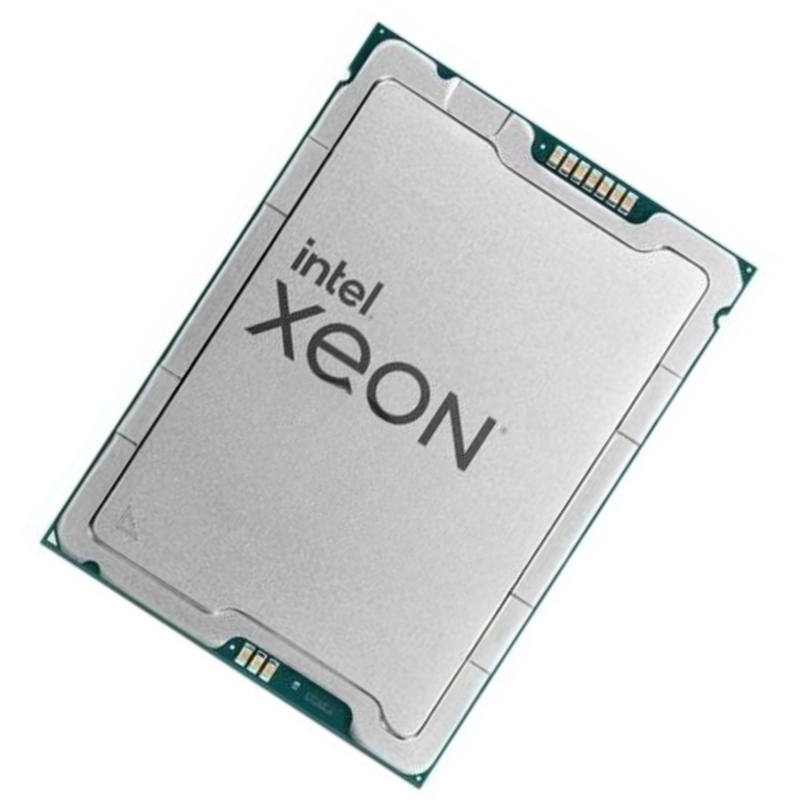

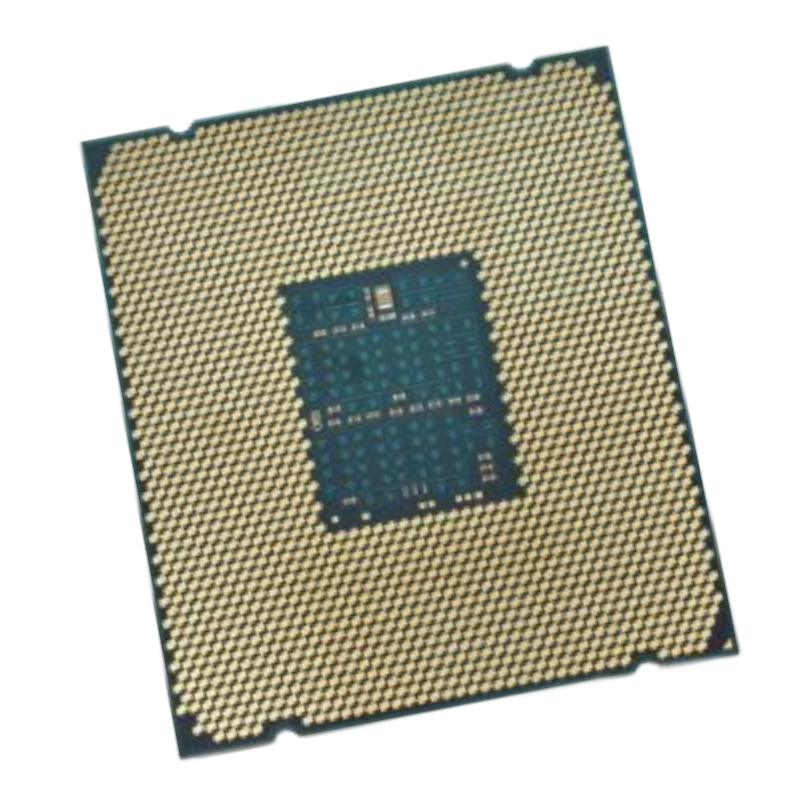

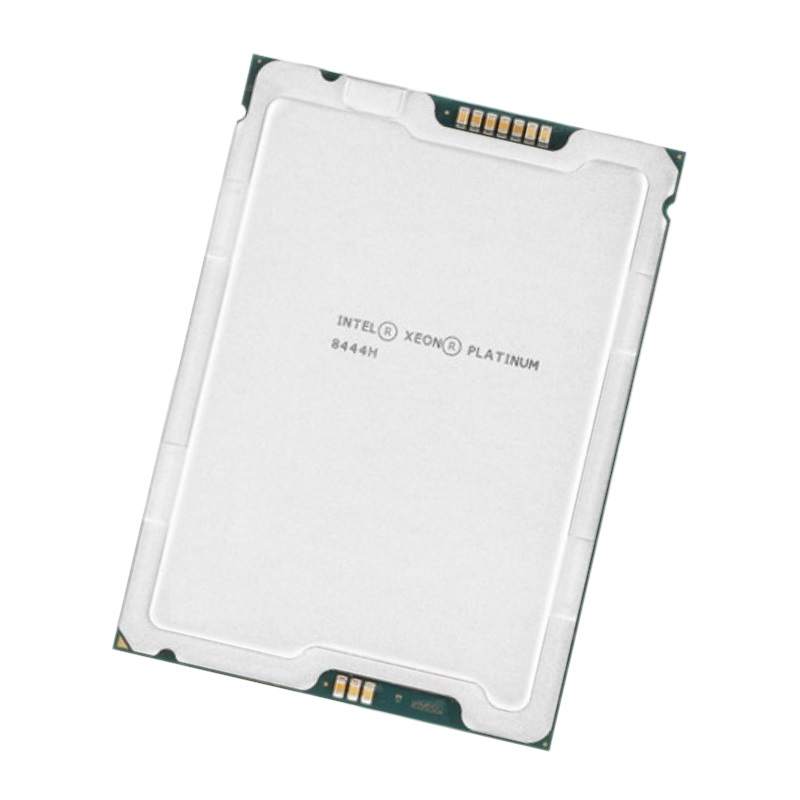

Xeon SRM7L Platinum 8444H 16-Core Gen-4 Processor 2.9GHz Intel

Xeon SRM7L Platinum 8444H Processor

The Xeon SRM7L Platinum 8444H is a 16-core Gen-4 processor from Intel’s prestigious Platinum series, designed for high-performance computing in enterprise data centers, cloud environments, and technical workstations. Operating at a base frequency of 2.9GHz, this processor delivers exceptional multi-threaded performance, enhanced reliability, and advanced security features tailored for critical business applications. With a focus on scalability, energy efficiency, and workload optimization, the Xeon Platinum 8444H supports demanding workloads, including AI, machine learning, data analytics, and virtualization, making it a robust choice for modern IT infrastructures.

Intel Xeon SRM7L Processor Details

Manufacturer and Part Information

Overview

The Intel Xeon SRM7L is a premier processor from Intel, part of the 4th Generation Intel Xeon Scalable series, specifically the Platinum 8400 Series. Its code name is Sapphire Rapids. This high-performance CPU is designed for advanced server applications and demanding enterprise environments.

Supported Socket

• Socket Type: FCLGA4677
• Part Number: SRM7L
• Note: This processor does not include a heatsink, accessories, or tools.

Performance Specifications

Clock Speed and Frequency

• Base CPU Frequency: 2.90 GHz
• Maximum Turbo Frequency: 4.00 GHz

Core and Thread Configuration

• Total Cores: 16-Core
• Total Threads: 32-Thread

Cache and Thermal Design

• Cache Size: 45 MB
• Thermal Design Power (TDP): 270 W

Intel UPI and Connectivity

• Intel UPI Speed: 16 GT/s
• Maximum Number of UPI Links: 4

Memory Specifications

Supported Memory Types and Sizes

• Maximum Memory Capacity: 4 TB (4,000 GB), dependent on memory type
• Memory Types:
  • Up to DDR5 4800 MT/s 1DPC
  • Up to DDR5 4400 MT/s 2DPC
• Maximum Number of Memory Channels: 8
• Error Correction Code (ECC) Support: Yes

Expansion and Connectivity

Scalability and PCI Express

• Scalability: S8S
• PCI Express Revision: 5.0
• Maximum Number of PCI Express Lanes: 80

Advanced Technologies

Intel Features and Enhancements

• Intel On-Demand Feature Activation: Yes
• Intel Data Streaming Accelerator (DSA): 4 Default Devices
• Intel In-Memory Analytics Accelerator (IAA): 4 Default Devices
• Intel Advanced Matrix Extensions (AMX): Yes
• Intel Speed Select Technology - Core Power: Yes
• Intel Speed Select Technology - Turbo Frequency: Yes
• Intel Deep Learning Boost (Intel DL Boost): Yes
• Intel Resource Director Technology (Intel RDT): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Technology: 2.0
• Intel Hyper-Threading Technology: Yes
• Intel Transactional Synchronization Extensions (Intel TSX): Yes
• Intel 64: Yes
• Instruction Set Extensions: Intel AMX, Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
• Number of AVX-512 FMA Units: 2

Security and Reliability Features

Advanced Security Measures

• Intel Crypto Acceleration: Yes
• Intel QuickAssist Software Acceleration: Yes
• Intel Platform Firmware Resilience Support: Yes
• Intel Control Flow Enforcement Technology: Yes
• Intel Total Memory Encryption: Yes
• Intel Advanced Encryption Standard AES New Instructions: Yes
• Intel Software Guard Extensions (Intel SGX): Yes (with Intel SPS)
• Maximum Enclave Page Cache (EPC) Size for Intel SGX: 512 GB
• Intel OS Guard: Yes
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel Boot Guard: Yes
• Intel Run Sure Technology: Yes
• Mode-Based Execute Control (MBEC): Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes

Key Features of the Xeon Platinum 8444H Processor

High Core Count and Multithreading Performance

The Xeon Platinum 8444H processor features 16 cores and 32 threads, providing the computational power needed to handle parallel processing tasks with ease. This high core count is particularly beneficial for multi-threaded applications, such as large-scale data processing, virtualization, and cloud computing, where efficient workload distribution is essential for maintaining optimal performance.

Advanced Gen-4 Architecture

Built on Intel’s advanced Gen-4 architecture, the Xeon Platinum 8444H integrates cutting-edge enhancements that boost performance, efficiency, and security. This architecture offers improved inter-core communication, faster memory access, and enhanced support for next-generation technologies, allowing for superior performance in data-intensive and time-sensitive applications.

Optimized Cache Hierarchy

The processor’s optimized cache hierarchy, featuring 35.75MB of Intel Smart Cache, ensures that frequently accessed data is readily available to the cores, reducing latency and enhancing processing speed. This large cache is particularly beneficial for workloads that require rapid access to data, such as database management, financial modeling, and scientific simulations.

Enhanced Clock Speeds with Turbo Boost Technology

Operating at a base clock speed of 2.9GHz, the Xeon Platinum 8444H can dynamically increase its frequency under heavy workloads, thanks to Intel Turbo Boost Technology. This capability allows the processor to deliver bursts of higher performance when needed, optimizing resource usage and maintaining high-speed processing even under peak loads.

Technical Specifications of the Xeon SRM7L Platinum 8444H

Core and Thread Configuration

The Xeon Platinum 8444H’s 16-core, 32-thread configuration makes it an ideal choice for enterprise applications that require multi-threaded performance. This setup enhances the processor’s ability to manage complex workloads simultaneously, making it perfect for virtualization, server consolidation, and high-performance computing (HPC) environments.

Base and Boost Frequencies

The processor’s 2.9GHz base frequency, coupled with its ability to boost speeds dynamically, provides a balanced approach to performance and power consumption. This feature is essential for real-time data processing, AI inference, and other applications that demand quick response times and consistent throughput.

Intel Advanced Vector Extensions 512 (AVX-512)

Equipped with Intel AVX-512, the Xeon Platinum 8444H excels in handling complex vector and floating-point calculations, which are critical in AI, machine learning, and scientific computing. AVX-512 enables the processor to execute more calculations per clock cycle, improving the performance of demanding tasks such as image and signal processing.

Thermal Design Power (TDP)

The Xeon Platinum 8444H features a TDP of 250W, balancing its high-performance capabilities with efficient power consumption. This TDP allows for optimal thermal management, ensuring stable operation in high-density data centers and reducing cooling requirements, which is crucial for minimizing energy costs and enhancing system reliability.

Applications and Industry Use Cases

Enterprise Data Centers

The Xeon Platinum 8444H is a popular choice in enterprise data centers, where its high core count, scalability, and security features make it ideal for mission-critical applications. It supports a wide range of workloads, including ERP systems, customer relationship management (CRM) platforms, and large-scale databases, ensuring that businesses can maintain high levels of performance and reliability.

Cloud Computing and Virtualization

Cloud service providers and enterprises rely on the Xeon Platinum 8444H to power their virtualized environments and cloud platforms. Its multi-threaded performance, combined with advanced virtualization features, enables efficient workload distribution across virtual machines, enhancing overall system responsiveness and scalability. This processor is well-suited for multi-tenant environments, where resource management and security are paramount.

Artificial Intelligence and Machine Learning

The Xeon Platinum 8444H’s support for Intel DL Boost and AVX-512 makes it an excellent processor for AI and machine learning applications. It accelerates deep learning inference, data preprocessing, and model training, allowing businesses to deploy AI solutions faster and with greater accuracy. This processor is ideal for applications such as natural language processing, predictive analytics, and computer vision.

Technical Computing and Scientific Research

Technical computing and scientific research facilities benefit from the Xeon Platinum 8444H’s ability to handle complex simulations, data analysis, and modeling tasks. Its robust architecture supports high throughput and low latency, making it suitable for applications in fields such as genomics, climate modeling, and physics simulations.

Architectural Enhancements and Innovations

3rd Generation Intel Xeon Scalable Platform

The Xeon Platinum 8444H is part of Intel’s 3rd Generation Xeon Scalable processors, which introduce significant improvements in performance, security, and scalability. These enhancements include faster interconnects, improved memory support, and integration with Intel Optane Persistent Memory, providing a comprehensive platform for next-generation data center needs.

Intel Deep Learning Boost (DL Boost)

Intel DL Boost technology accelerates AI workloads by optimizing instructions for deep learning inference. The technology enhances performance in neural network processing, allowing the Xeon Platinum 8444H to handle AI tasks more efficiently. DL Boost is particularly useful in applications such as speech recognition, image classification, and real-time analytics.

Vector Neural Network Instructions (VNNI)

VNNI, a key component of DL Boost, improves the execution of convolutional neural networks (CNNs), which are widely used in AI and machine learning. This optimization reduces the time required for training and inferencing, enabling faster deployment of AI models in production environments.

Security Enhancements with Intel SGX and TME

Security is a critical focus of the Xeon Platinum 8444H, featuring Intel Software Guard Extensions (SGX) and Total Memory Encryption (TME) to protect sensitive data. SGX creates secure enclaves within the processor to safeguard critical code and data, while TME ensures that all memory data is encrypted, protecting against unauthorized access and physical attacks.

Intel Speed Select Technology (SST)

Intel Speed Select Technology (SST) enables fine-grained control over processor performance settings, allowing administrators to optimize CPU resources based on specific workload requirements. SST enhances performance-per-core, improves server utilization, and allows for dynamic adjustments to match the demands of various applications.

Energy Efficiency and Operational Cost Management

Energy-Efficient Performance

Despite its high-performance capabilities, the Xeon Platinum 8444H is designed with energy efficiency in mind. Advanced power management technologies help minimize energy consumption during periods of low demand, making it a cost-effective choice for data centers aiming to reduce their carbon footprint and operational expenses.

Thermal Management Technologies

The processor’s thermal management features ensure that it operates within safe temperature ranges, even under heavy workloads. These technologies help prevent overheating, enhance system reliability, and prolong the lifespan of the hardware, which is essential for maintaining uptime in mission-critical environments.

Dynamic Load Balancing

Dynamic load balancing adjusts processor resources according to workload demands, optimizing performance and energy efficiency. This capability helps reduce the thermal load on individual cores, preventing overheating and ensuring consistent performance across all workloads.

Market Adoption and Competitive Advantages

Enterprise Adoption

Enterprises across various industries have adopted the Xeon Platinum 8444H for its robust performance, scalability, and security features. Its ability to handle complex, data-intensive tasks makes it a preferred choice for companies looking to enhance their IT infrastructure with reliable, future-proof technology.

Comparison with Competitors

Compared to its competitors, the Xeon Platinum 8444H offers a unique blend of performance, security, and energy efficiency. Its advanced architecture and feature set give it an edge in multi-threaded applications, AI workloads, and cloud environments, making it a compelling choice for organizations seeking a versatile and powerful processor.

Long-Term Value and ROI

The Xeon Platinum 8444H delivers long-term value through its combination of high performance, energy efficiency, and scalability. Its advanced features ensure that businesses can continue to benefit from their investment as their workload demands grow, providing a strong return on investment over the lifespan of the processor.

Conclusion

The Xeon SRM7L Platinum 8444H 16-Core Gen-4 Processor represents a powerful and versatile solution for modern data centers, cloud environments, and enterprise IT infrastructures. Its combination of high core count, advanced architectural enhancements, and robust security features make it an ideal choice for organizations looking to optimize their computing resources and stay ahead in a competitive market. With support for a wide range of applications, from AI to technical computing, the Xeon Platinum 8444H is a processor designed to meet the challenges of today and the demands of tomorrow.
