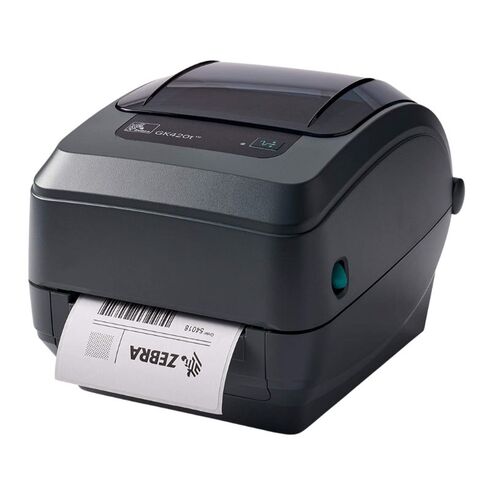

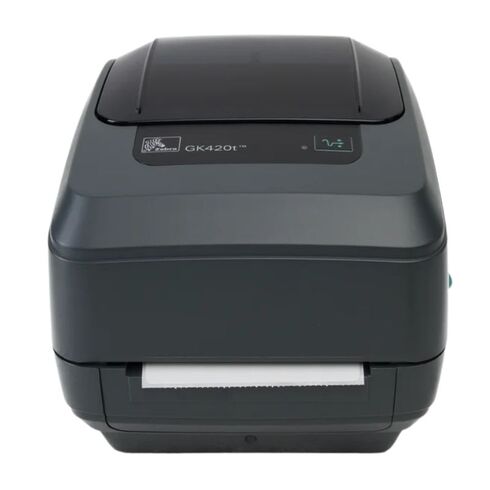

GK42-102510-000 Zebra 203DPI TT DB9 DB25 GK420T Desktop Label Thermal Printer

The Zebra GK42-102510-000 203DPI TT DB9 DB25 GK420T represents a versatile and reliable desktop thermal printing solution, engineered for businesses that demand consistent, high-quality label output. This model is part of Zebra's renowned GK series, which has set the standard for entry-level to mid-volume industrial and commercial labeling. With its 203 dots per inch (DPI) resolution, it delivers crisp text, barcodes, and graphics, making it suitable for a wide range of applications including shipping, retail, healthcare, and light manufacturing. The inclusion of both DB9 and DB25 interfaces ensures seamless integration with legacy systems, while the "TT" designation indicates its thermal transfer capability, allowing for durable, long-lasting prints on a variety of media. This section delves deep into the features, technical specifications, and practical applications of this robust printer, providing a comprehensive guide for potential users and integrators.

Core Technology: 203 DPI Thermal Transfer Printing Explained

At the heart of the Zebra GK42-102510-000 is its 203 DPI thermal transfer printing mechanism. This resolution is the industry workhorse for general-purpose labeling. It provides enough clarity for all common barcode (Code 128, QR, UPC, etc.), human-readable text down to approximately 4-point font sizes, and simple graphics. The "thermal transfer" process involves a thermal print head that heats up to melt ink from a wax or resin ribbon onto the label material. This is distinct from direct thermal printing, which chemically alters heat-sensitive media. The advantage of thermal transfer is longevity and durability. Labels printed with this method are resistant to sunlight, moisture, and handling, making them ideal for:

Print Speed and Quality Parameters

The GK420T can achieve print speeds of up to 5 inches per second (ips) at 203 DPI. This speed is more than adequate for on-demand printing in a busy office, warehouse, or laboratory setting. The printer supports a maximum print width of 4.09 inches (104 mm), accommodating standard 4-inch wide label stock. With 203 DPI, it produces 8 dots per millimeter, ensuring that even narrow barcode elements (narrow bars) are printed cleanly, reducing the risk of scanner non-reads. The printer’s firmware is optimized for ZPL (Zebra Programming Language) and EPL (Eltron Programming Language), allowing for precise control over print darkness, speed, and media handling.

The Standard for Point-of-Sale and Industrial Devices

The DB9 connector, typically using the RS-232 protocol, is a staple for connecting to point-of-sale (POS) systems, electronic scales, and older computer terminals. It allows for long cable runs (up to 50 feet or more at lower baud rates) and is highly resistant to electrical interference, making it suitable for factory floors. The GK42's DB9 port ensures that it can be directly connected to devices that output serial data, such as counting scales that print weight labels or legacy inventory terminals. Configuring the serial port (baud rate, parity, data bits, stop bits) is straightforward via the printer's software or command interface.

DB25 Connectivity: Bridging the Gap with Vintage Equipment

The inclusion of a DB25 port is particularly noteworthy. DB25 connectors were common on early industrial equipment, mainframe terminals, and legacy networking gear. By providing this port, Zebra ensures that the GK42-102510-000 can serve as a drop-in replacement for much older printers in environments where upgrading the host system is cost-prohibitive or impractical. This backward compatibility extends the life of capital equipment investments and simplifies procurement for facilities managers who maintain a mix of old and new technology. The DB25 port can often be configured to operate as a second serial interface or, in some legacy configurations, as a parallel port (though primarily it serves as a serial interface in this model).

USB and Optional Ethernet

While the DB9 and DB25 are the headline interfaces for this specific SKU, it's important to note that the GK420T platform is designed with modern connectivity in mind. This model also includes a standard USB port for easy connection to contemporary PCs and laptops. For users requiring network printing, optional internal Ethernet print servers are available, making the GK42-102510-000 a flexible choice that can adapt to future infrastructure changes without needing a full printer replacement.

Thermal Transfer

As a Thermal Transfer (TT) model, the GK42-102510-000 includes a ribbon mechanism. It supports wax, wax/resin, and resin ribbons to match the application's durability requirements. The printer uses a standard 300-meter ribbon length, which maximizes uptime by reducing changeover frequency. The ribbon and media paths are separate but coordinated, ensuring consistent tension and registration. The printer also features a reflective sensor for black mark sensing and a transmissive sensor for gap sensing, ensuring it can accurately detect the top-of-form on almost any label stock.

Durability and Maintenance

Zebra's GK series is known for its longevity. The GK420T chassis is rated for light industrial use, meaning it can withstand the occasional bump and dusty environment better than consumer-grade printers. Maintenance is simplified with a user-replaceable print head and platen roller, minimizing downtime. The dual-wall construction reduces vibration and keeps the media path stable, contributing to consistent print quality over the printer's lifespan. For businesses, this translates to a lower total cost of ownership compared to cheaper, less robust alternatives.

Healthcare and Laboratory

The Zebra GK42-102510-000, using resin ribbons, can print patient wristbands, specimen labels, and medication administration labels that adhere and remain readable in these demanding environments. Its small footprint is ideal for decentralized nursing stations or lab benches. The DB9 and DB25 ports are invaluable for connecting to legacy lab analyzers that output results via serial connection, allowing for immediate labeling of samples directly at the point of collection.

Zebra Designer and Utilities

For users creating new labels, Zebra offers Zebra Designer software (a free and pro version), which simplifies the label creation process with a graphical interface. The Zebra Setup Utilities allow for easy configuration of printer settings, including the tricky serial port parameters (baud rate, etc.) that are essential for the DB9 and DB25 interfaces. These tools also handle firmware updates, font downloads, and basic diagnostics, empowering users to maintain the printer themselves.

The "GK420T" Reliability Factor

The "GK420T" name carries weight in the labeling world. It signifies a printer that can handle daily volumes of hundreds or even a thousand labels without faltering. Its dual-wall frame and proven print mechanism are trusted by Fortune 500 companies and small businesses alike. Choosing the GK42-102510-000 means choosing a device with a well-documented history, a vast community of users, and readily available spare parts and support.

Future-Proofing Through Backward Compatibility

For large organizations with sunk costs in older infrastructure, the DB25 and DB9 ports are not a liability but a lifeline. They allow a modern, reliable printer to interface with 20-year-old mainframes, custom-built scales, or proprietary control systems that lack USB. This means an upgrade to a GK420T doesn't force a costly upgrade of the host system. The printer effectively future-proofs the labeling operation by being able to speak the language of both the past (DB9/DB25) and the present (USB).
