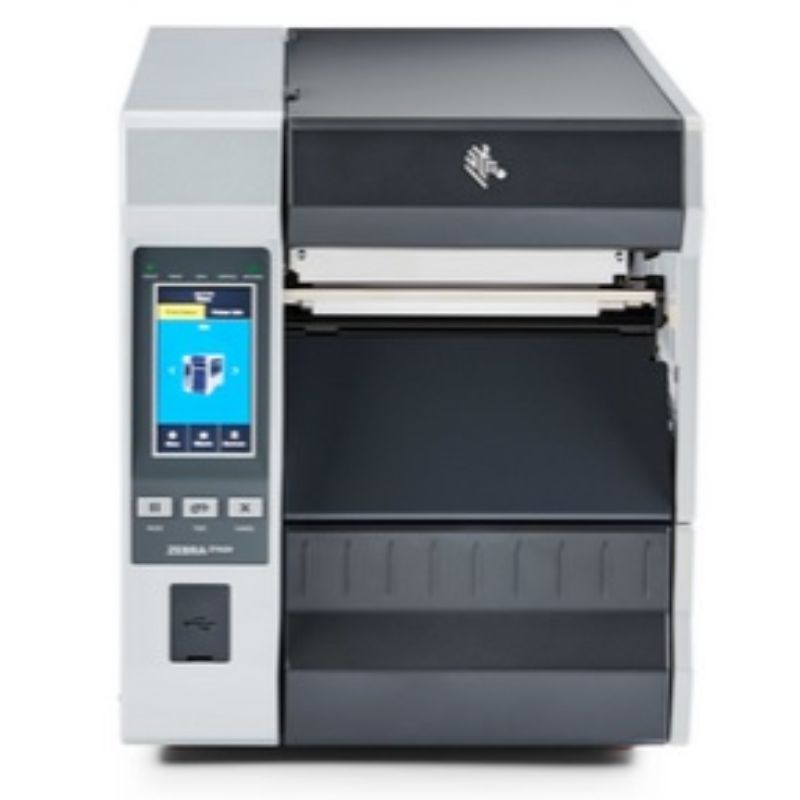

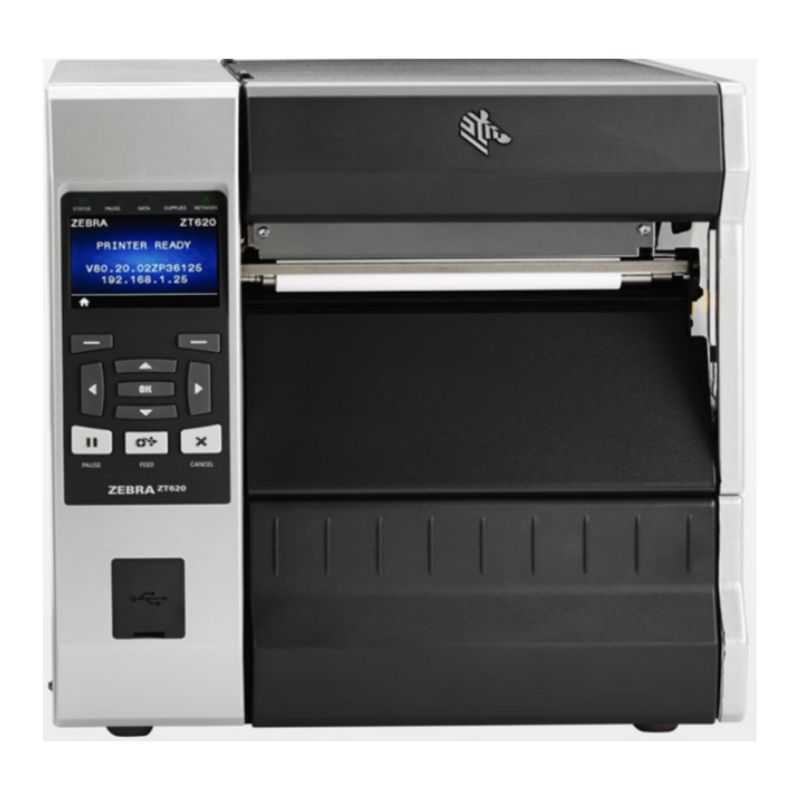

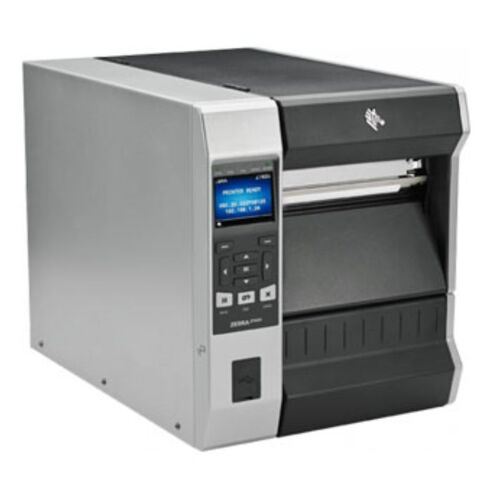

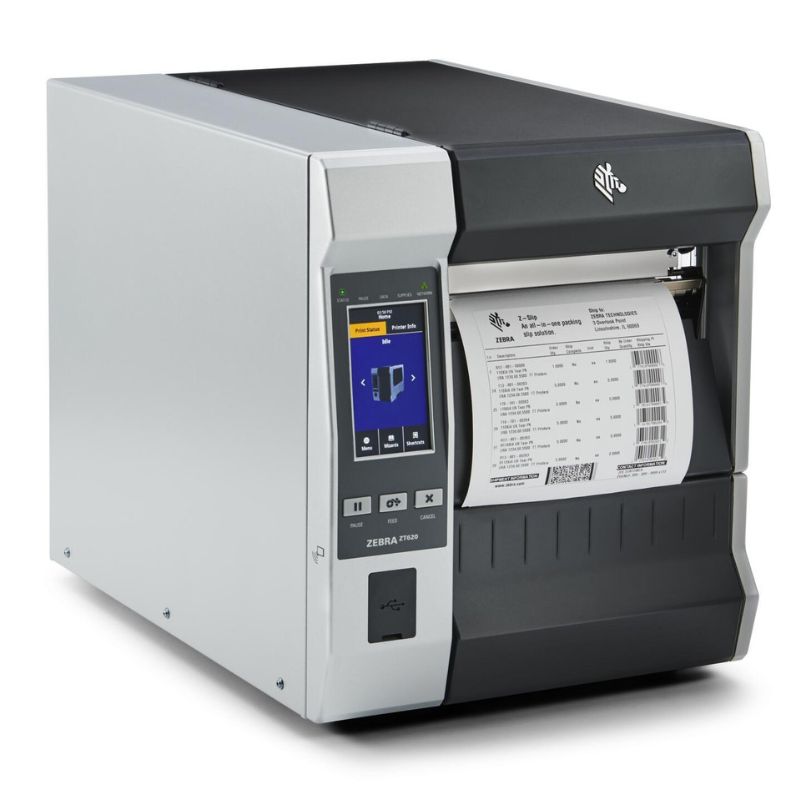

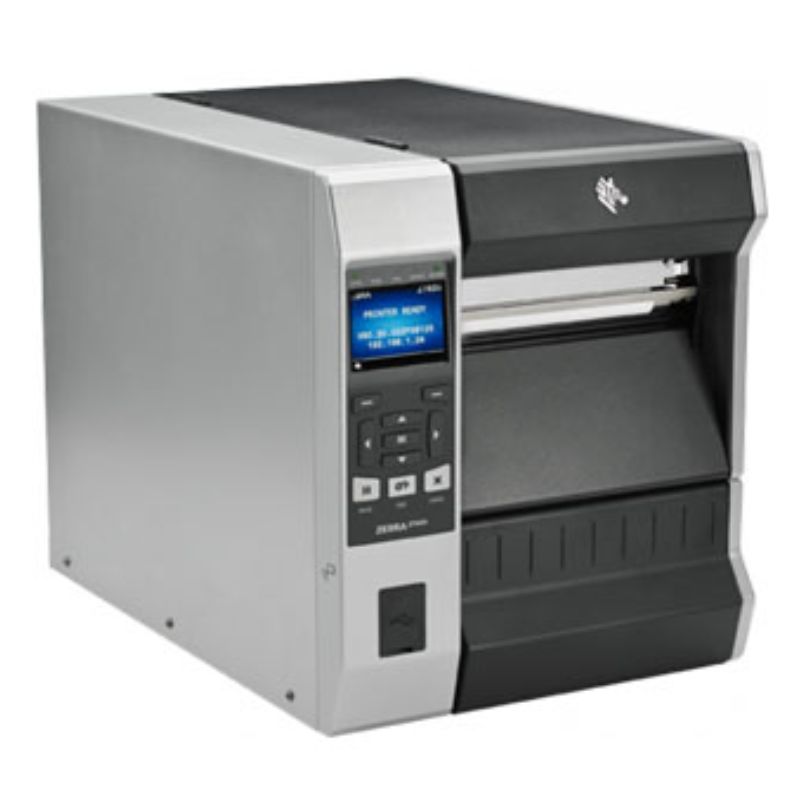

ZT62062-T010100Z Zebra ZT620 203DPI Thermal Transfer Printer

Overview of the ZT620 Thermal Printer

The ZT62062-T010100Z Zebra ZT620 203DPI Thermal Transfer Printer represents a high-performance industrial printing solution designed for organizations that require reliable, accurate, and continuous label production. Built for demanding operational environments, this industrial thermal transfer printer delivers consistent barcode, shipping label, identification tag, compliance label, and asset tracking output while maintaining excellent print quality and dependable performance. The Zebra ZT620 series is engineered for businesses that need wide-format printing capability, advanced connectivity, durable construction, and efficient operation across manufacturing, transportation, logistics, warehousing, healthcare, retail, and government applications.

Main Specifications

• Brand: Zebra
• Model Number: ZT62062-T010100Z
• Product Type: Thermal Printer

Technical Features of Printer

• Print Technology: Dual support for Thermal Transfer and Direct Thermal printing.
• Print Resolution: Formatted to 203 DPI (8 dots per mm) for logistics crispness.
• Maximum Print Speed: Rapid throughput clocking up to 12 inches per second.
• Maximum Print Width: Extra-wide format processing at 6.6 inches (168 mm).
• Maximum Print Length: Continuous label tracking up to 80 inches (2032 mm).
• Onboard Memory: Massive memory housing 1 GB RAM alongside 2 GB Flash.
• Core Processor: High-performing Dual ARM processor manages heavy queue loads.
• User Interface: Vivid 4.3-inch color touch graphical control panel displays errors.
• Structural Framing: Fully all-metal chassis engineered for 24/7 harsh industrial operations.
• Thermal Management: Ventless architecture keeps dust, debris, and oil elements out.
• Operational Weight: Base functional system weighs exactly 57.4 lbs (26.0 kg).

Connectivity

• USB Ports: Built-in high-speed USB 2.0 interface alongside dual front USB Hosts.
• Network Integration: Integrated internal Gigabit Ethernet connects directly to local servers.
• Serial Interface: Legacy RS-232 Serial communication DB9F port included natively.
• Wireless Standard: Onboard Bluetooth 4.0 allows localized mobile configuration adjustments.

Media & Ribbon Specifications

• Media Types: Handles continuous, die-cut, notch, and black-mark stock rolls.
• Media Width: Accommodates media roll widths starting from 2.0 to 7.1 inches.
• Maximum Roll Size: Fits 8.0-inch outer diameter rolls on 3-inch inner cores.
• Media Thickness: Accepts material thickness scales between 0.0023 and 0.010 inches.
• Ribbon Length: Accepts high-capacity ribbon spans measuring up to 1476 feet (450 meters).
• Ribbon Width: Compatible ribbon dimensions range between 2.0 and 6.7 inches.
• Ribbon Core: Standardized 1.0-inch inner diameter core mounting.

Compatibility

• Operating System: Powered by Zebra Link-OS Platform for scalable multi-device oversight.
• Printer Languages: Native architecture decodes universal ZPL and ZPL II commands.
• MDM Management: Seamlessly pairing with Profile Manager Enterprise for centralized IT updates.
• Device Management: Out-of-the-box integration paths tie into common MDM vendor systems.
• Barcodes 1D: Flawlessly maps Code 39, Code 128, UPC-A, UPC-E, and EAN variants.
• Barcodes 2D: Decodes high-density layouts including Data Matrix, QR codes, and PDF417.

The Zebra ZT620 203 DPI Thermal Transfer Printer

Featuring a 203 dots per inch print resolution, the Zebra ZT620 thermal transfer printer provides an ideal balance between speed, clarity, and operational efficiency. The 203 DPI print engine is optimized for standard barcode labels, large-format identification labels, product markings, pallet labels, and industrial documentation where fast production and dependable readability are essential. With thermal transfer technology, this printer uses a ribbon-based printing process that creates long-lasting labels resistant to environmental factors such as moisture, abrasion, chemicals, and extended storage conditions.

Industrial Thermal Transfer Printing Technology

Industrial environments require printing equipment that can operate continuously under demanding workloads. The Zebra ZT620 203 DPI Thermal Transfer Printer is designed specifically for high-volume applications where downtime can affect productivity and supply chain efficiency. Its rugged construction, advanced electronics, and precision printing mechanism provide organizations with a dependable platform for mission-critical labeling requirements.

Thermal transfer printing technology works by transferring ink from a ribbon onto specially designed media using controlled heat from the printhead. This process produces sharp and durable images compared with many traditional printing methods. The resulting labels are suitable for applications requiring extended durability, including warehouse inventory management, industrial identification, shipping documentation, and outdoor product tracking.

Zebra ZT620 203 DPI Printer Features and Capabilities

The ZT62062-T010100Z model combines advanced printing technology with user-friendly operation to support modern enterprise workflows. Designed as part of Zebra’s industrial printer family, this model provides a wide printing area that allows users to create larger labels without requiring multiple smaller labels or additional equipment. The printer supports a maximum print width of approximately 6.6 inches, making it suitable for applications that require wide-format labels and large information displays.

The printer delivers programmable print speeds that allow businesses to balance quality and production requirements. With support for fast output speeds, organizations can process large quantities of labels efficiently while maintaining consistent print accuracy. This makes the ZT620 an excellent choice for manufacturing lines, distribution centers, and logistics operations where speed and reliability are critical.

203 DPI Resolution for Professional Label Applications

The 203 DPI print resolution included in the Zebra ZT62062-T010100Z provides excellent performance for everyday industrial labeling needs. This resolution is widely used throughout supply chain operations because it delivers dependable barcode scanning performance while maintaining efficient printing speeds. The printer produces crisp text, clear graphics, and accurate one-dimensional and two-dimensional barcode formats required for inventory control and tracking systems.

For companies printing large quantities of labels every day, 203 DPI offers practical advantages. It reduces processing demands while maintaining sufficient detail for most industrial applications. Businesses can produce warehouse labels, carton identification labels, transportation tags, and product information labels quickly without sacrificing readability.

Wide Format Industrial Label Printing Solution

Many industrial operations require labels larger than those supported by standard desktop printers. The Zebra ZT620 addresses this requirement by offering wide-format printing capability suitable for oversized labels, compliance markings, and detailed information displays. Its expanded print area allows users to combine multiple data elements on a single label, reducing the need for separate identification systems.

Large-format labels are commonly used in logistics facilities, manufacturing plants, and distribution centers. These labels may include product descriptions, serial numbers, barcodes, regulatory information, handling instructions, and inventory details. The ZT620 provides the printing flexibility required for these applications while maintaining professional print quality.

Reliable Media Handling and Label Compatibility

The Zebra ZT620 industrial thermal transfer printer supports multiple media formats, giving organizations flexibility when selecting label materials for different environments. It can handle continuous media, die-cut labels, notch media, and black-mark media to support various industrial workflows.

Flexible media compatibility allows businesses to select materials based on durability requirements, application conditions, and industry standards. Whether printing warehouse labels, shipping documentation, inventory tags, or manufacturing identification labels, the ZT620 provides dependable media processing for professional results.

Enterprise Connectivity and Integration Options

Modern businesses require printing equipment that connects easily with existing technology infrastructures. The Zebra ZT62062-T010100Z includes enterprise-friendly connectivity options that simplify deployment across network environments. Available interfaces include USB connectivity, serial communication, Ethernet networking, and Bluetooth options depending on configuration.

Network connectivity allows multiple users and systems to access the printer efficiently, making it suitable for centralized printing environments. Warehouses, factories, and distribution centers can integrate the printer with inventory management platforms, enterprise resource planning systems, warehouse management software, and automated identification solutions.

Durable Design for Manufacturing and Logistics Environments

The Zebra ZT620 is engineered for demanding industrial conditions where reliability is essential. Its robust design helps organizations maintain consistent printing performance even in environments with continuous workloads. The printer structure is built to support long-term usage, reducing interruptions and improving productivity.

Manufacturing facilities, warehouses, transportation centers, and distribution operations depend on printers that can operate throughout extended shifts. The ZT620 provides the durability required for these applications while delivering consistent output quality from the first label to the last.
