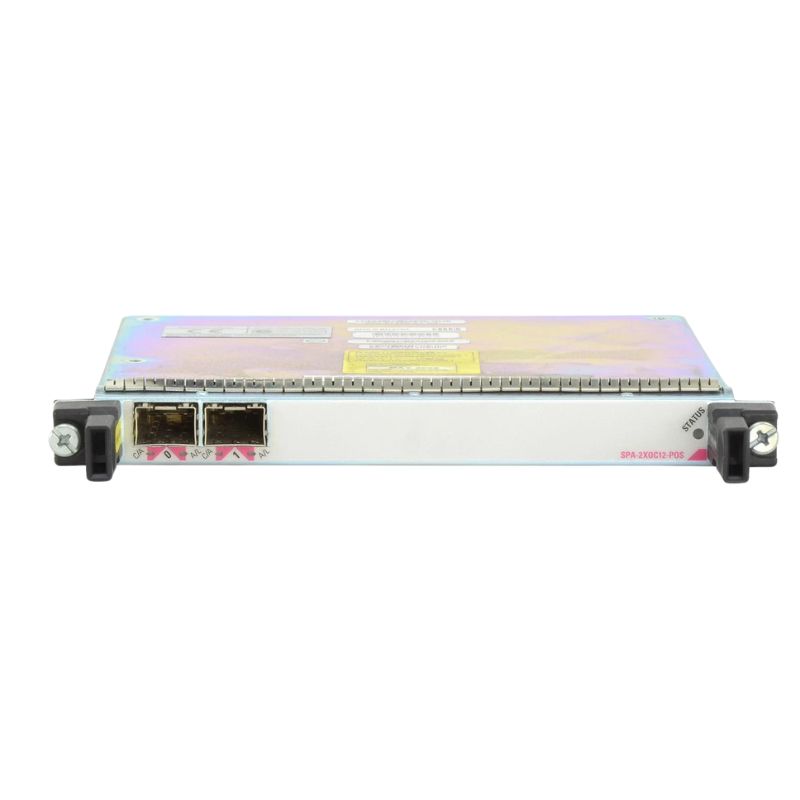

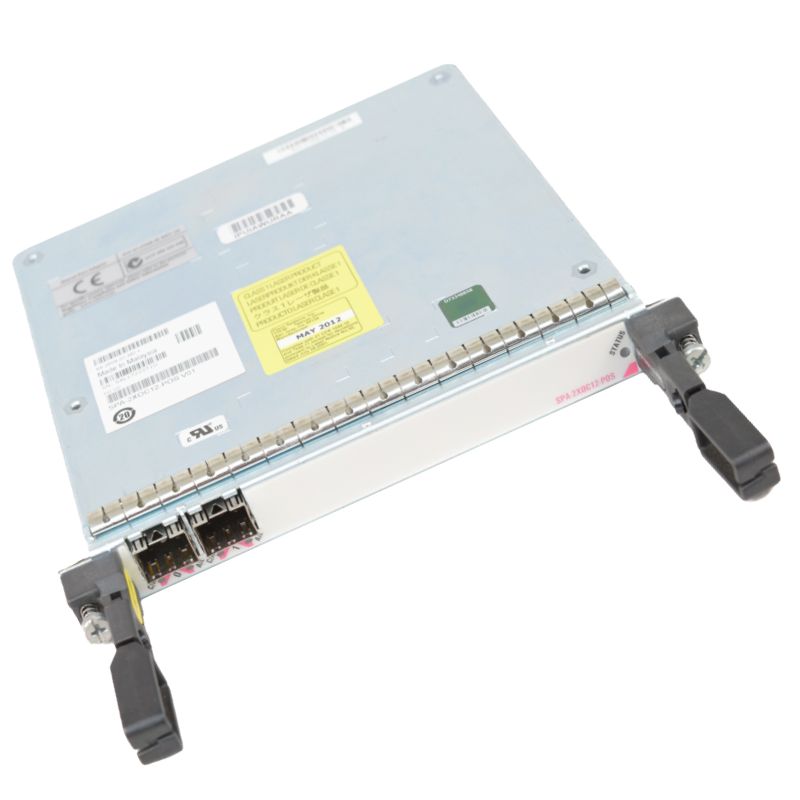

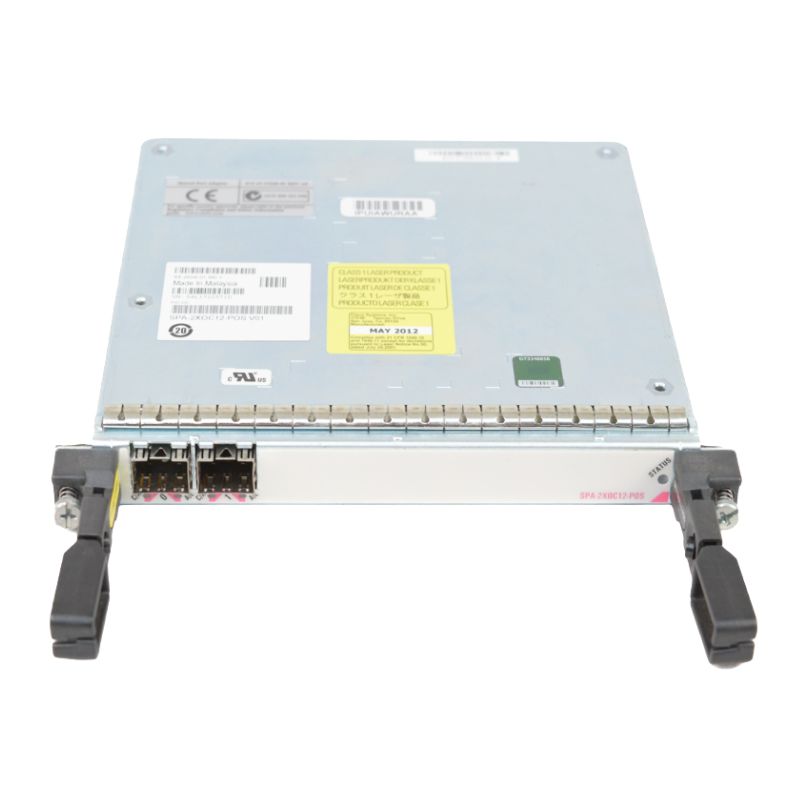

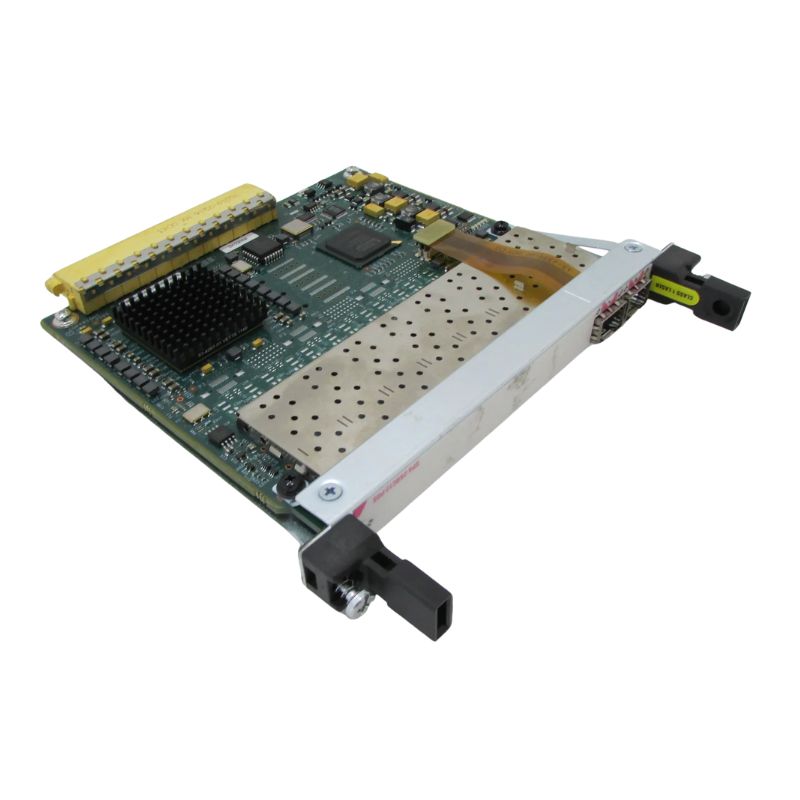

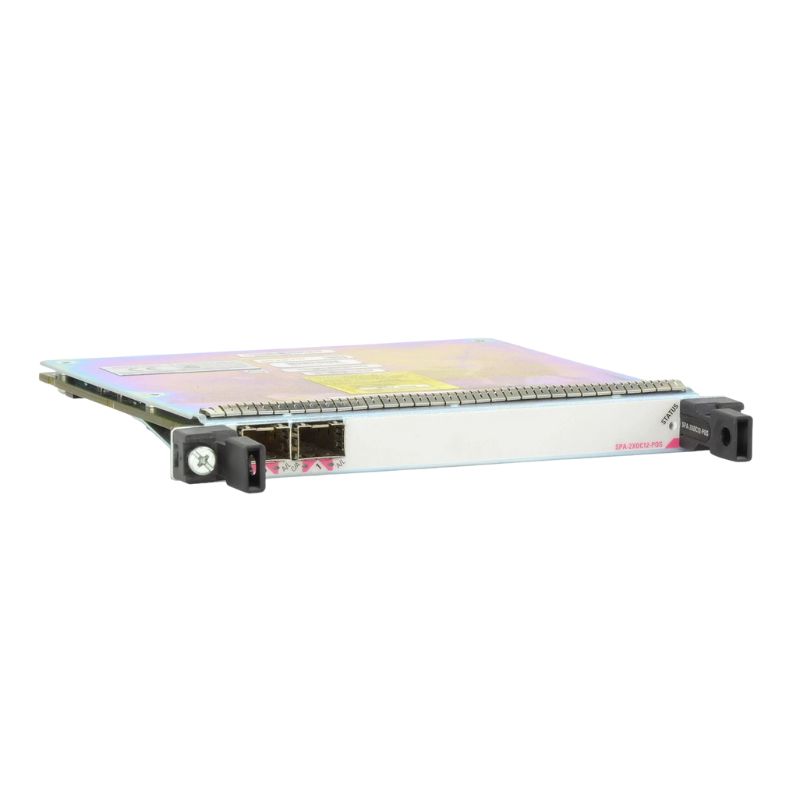

SPA-2XOC12-POS Cisco OC12/STM4 2 Ports Adapter

Cisco SPA-2XOC12-POS OC12/STM-4 2-Port Adapter Overview

The Cisco SPA-2XOC12-POS is a high-performance dual-port Packet over SONET (POS) shared port adapter designed for carrier-grade networking environments. Built for optical transport systems, this enterprise networking module delivers reliable high-speed data transmission over OC-12/STM-4 infrastructures, making it ideal for service providers, telecom operators, and large-scale backbone networks requiring stable and scalable optical connectivity.

General Information

• Manufacturer: Cisco
• Part Number: SPA-2XOC12-POS
• Product Type: Network Interface Adapter
• Interface Standard: OC-12 / STM-4 Packet over SONET (POS)
• Port Configuration: Dual-Port (2 Ports)

Key Optical Transmission Benefits

• Supports high-capacity SONET/SDH optical networks
• Enables long-distance data transmission over fiber
• Reduces latency in core network infrastructure
• Improves reliability for mission-critical communications
• Optimized for service provider backbone networks

Advantages of Dual-Port Configuration

• Increased bandwidth capacity for high-traffic environments
• Redundant connectivity for improved fault tolerance
• Load balancing across optical interfaces
• Improved network resilience and uptime
• Flexible deployment in carrier networks

Common Use Cases

• Telecommunications backbone networks
• Metropolitan Area Networks (MAN)
• Wide Area Network (WAN) aggregation
• Internet service provider (ISP) infrastructure
• High-capacity enterprise core routing systems

Reliability Features

• Designed for continuous 24/7 operation
• Stable optical signal processing
• Reduced packet loss in high-load environments
• Carrier-grade hardware architecture
• Optimized for long-term deployment stability

Supported Standards

• OC-12 (Optical Carrier Level 12)
• STM-4 (Synchronous Transport Module Level 4)
• Packet over SONET (POS) encapsulation
• High-speed optical fiber transmission protocols

Performance Benefits

• Efficient high-speed packet forwarding
• Reduced latency across optical networks
• Optimized bandwidth usage in SONET systems
• Enhanced traffic management capabilities
• Stable long-distance data transmission

Deployment Flexibility

• Compatible with Cisco modular routing systems
• Supports scalable network expansion
• Flexible installation in carrier hardware
• Seamless interoperability with Cisco IOS systems
• Optimized for backbone and edge routing

Cisco SPA-2XOC12-POS OC12/STM4 2 Ports Adapter

Purpose and Role in Service Provider Network Architectures

The Cisco SPA-2XOC12-POS OC12/STM4 2 Ports Adapter is a high-capacity Shared Port Adapter engineered for service provider and enterprise-grade optical transport environments. It is designed to deliver Packet over SONET/SDH (POS) connectivity at OC-12/STM-4 speeds, enabling reliable, high-performance data transmission across long-distance fiber infrastructure. This adapter plays a critical role in converged network architectures where legacy SONET/SDH systems still coexist with modern IP/MPLS backbones.

The dual-port design allows simultaneous operation of two independent OC-12/STM-4 interfaces, increasing flexibility for aggregation, redundancy, and load distribution. It is widely deployed in carrier edge routers, metropolitan area networks, and backbone aggregation nodes where deterministic performance and carrier-class stability are essential.

SONET and SDH Standards Explained

OC12 (Optical Carrier level 12) and STM4 (Synchronous Transport Module level 4) represent equivalent transmission standards used in SONET (North America) and SDH (global telecommunications). OC12 operates at approximately 622 Mbps, providing a mid-tier bandwidth layer between OC3 and OC48 in hierarchical optical transport networks.

STM4, used in SDH systems, mirrors this capacity and ensures international compatibility across telecom infrastructures. The Cisco SPA-2XOC12-POS adapter leverages these standards to ensure seamless interoperability across carrier networks that rely on synchronous optical transport technologies.

The importance of OC12/STM4 connectivity remains significant in environments where legacy infrastructure has not yet been fully migrated to higher-speed Ethernet or OTN-based systems. These systems require stable, deterministic latency and extremely low jitter, both of which are inherent characteristics of SONET/SDH-based transport.

Efficient IP Transport over Optical Networks

Packet over SONET (POS) is a networking technology that encapsulates IP packets directly into SONET frames without requiring intermediate Ethernet framing. This method reduces overhead and improves transmission efficiency for long-haul and metropolitan backbone networks.

The Cisco SPA-2XOC12-POS adapter implements POS functionality at OC12 speeds, enabling routers to forward IP traffic directly over optical transport networks. This eliminates unnecessary protocol conversion layers and enhances throughput performance. POS is particularly valuable in carrier environments where high-volume traffic aggregation and deterministic delivery are critical.

The adapter also supports HDLC-based encapsulation mechanisms that ensure data integrity and synchronization across optical links. This allows service providers to maintain consistent QoS levels even under heavy network load conditions.

Compatibility with Cisco Carrier Routing Systems

The SPA-2XOC12-POS is part of Cisco’s Shared Port Adapter (SPA) ecosystem, designed for modular deployment in carrier-grade routing platforms such as Cisco ASR and other high-end aggregation routers. SPA modules allow network operators to customize interface configurations based on evolving bandwidth requirements without replacing entire routing systems.

The hot-swappable nature of SPA modules ensures minimal downtime during upgrades or maintenance. This is especially important in carrier environments where service continuity is mandatory. The modular design also allows operators to scale network capacity incrementally, reducing capital expenditure while maintaining operational flexibility.

The adapter integrates seamlessly into Cisco’s carrier routing architecture, benefiting from centralized forwarding engines, distributed processing capabilities, and advanced QoS scheduling mechanisms.

High Availability Optical Transport Design

With two independent OC12/STM4 ports, the Cisco SPA-2XOC12-POS adapter provides enhanced redundancy and traffic engineering capabilities. Each port can function independently, enabling network administrators to configure failover paths or distribute traffic loads across multiple optical circuits.

This dual-port architecture is particularly beneficial in metropolitan area networks (MANs) and backbone aggregation layers where service interruptions must be minimized. In the event of a fiber cut or optical degradation on one link, traffic can be rerouted through the secondary port without disrupting service continuity.

The design also allows for efficient bandwidth utilization, enabling operators to maximize throughput across available optical resources while maintaining strict SLA compliance.

Optimized Data Flow for High-Density Traffic

The Cisco SPA-2XOC12-POS adapter is optimized for low-latency packet forwarding across optical networks. By leveraging hardware-based forwarding and SONET framing efficiency, the module ensures predictable performance even under heavy traffic conditions.

Latency is minimized through direct packet encapsulation and elimination of unnecessary protocol translation layers. This makes the adapter ideal for latency-sensitive applications such as financial trading networks, real-time voice transport, and high-priority enterprise data synchronization.

Jitter control mechanisms embedded within SONET/SDH transport further enhance the stability of data delivery, ensuring that packet timing remains consistent across long-distance optical links.

Hybrid Infrastructure Deployment Strategies

Despite the widespread adoption of Carrier Ethernet and IP/MPLS networks, SONET/SDH infrastructure remains prevalent in many telecom environments. The Cisco SPA-2XOC12-POS adapter plays a critical role in bridging these legacy systems with modern packet-based architectures.

By enabling POS connectivity, the adapter allows service providers to extend the lifespan of existing optical infrastructure while gradually transitioning to next-generation technologies. This hybrid approach reduces migration costs and minimizes service disruption.

The adapter ensures compatibility with both legacy optical transport systems and modern routing platforms, making it a strategic component in long-term network evolution planning.

Metropolitan Area Networks and Aggregation Layers

The Cisco SPA-2XOC12-POS adapter is commonly deployed in a wide range of networking environments. In service provider backbone networks, it supports high-capacity traffic aggregation and long-haul optical transport. In metropolitan area networks, it facilitates efficient data exchange between regional nodes and core infrastructure.

Enterprise WAN environments also benefit from OC12/STM4 connectivity, particularly in industries requiring secure and reliable inter-site communication. Financial institutions, government agencies, and large multinational corporations often rely on POS-based transport for mission-critical data flows.

The adapter is also used in interconnect applications where multiple carriers exchange traffic across peering points, ensuring consistent performance and protocol compatibility.

Long-Term Operational Stability

The hardware design of the Cisco SPA-2XOC12-POS adapter reflects Cisco’s commitment to carrier-grade engineering standards. The module is built to withstand demanding environmental conditions commonly found in telecom facilities, including high-density rack deployments and continuous 24/7 operation.

Advanced thermal management ensures stable performance even under sustained traffic loads. Signal integrity is maintained through precision-engineered optical interfaces and high-quality electronic components designed to minimize transmission errors.

These engineering considerations contribute to the long operational lifespan of the adapter, making it a reliable investment for long-term infrastructure deployment.

Traffic Engineering and Service Differentiation

The Cisco SPA-2XOC12-POS adapter supports advanced network configuration capabilities through integration with routing protocols such as OSPF, IS-IS, and BGP. This allows operators to dynamically manage traffic flows across optical links based on network conditions.

Quality of Service (QoS) policies can be applied to prioritize critical traffic types, ensuring that high-priority applications receive guaranteed bandwidth and minimal latency. This is essential in multi-service networks where voice, video, and data traffic coexist.

Traffic engineering capabilities allow network operators to optimize utilization of available bandwidth, reducing congestion and improving overall network efficiency.
