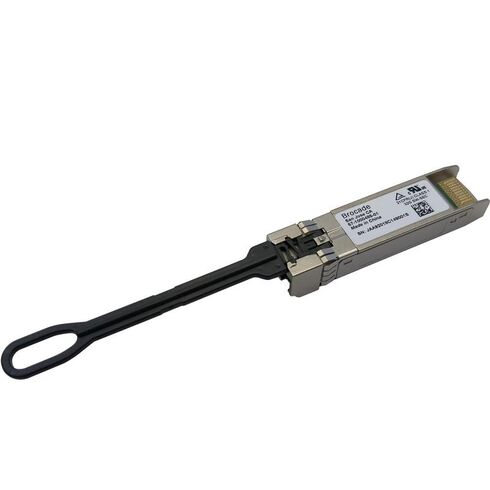

XBR-000412 Brocade 32 Gigabit Sfp+ Fibre Channel

Brocade 32GB Fibre Channel Transceiver

The Brocade XBR-000412 is a high-performance 32Gbps Fibre Channel SFP28 transceiver module. Designed for shortwave multi-mode fiber connectivity, this plug-in device ensures reliable data transfer, advanced compatibility, and efficient networking for enterprise-grade infrastructures.

General Information

• Manufacturer: Brocade
• Part Number: XBR-000412
• Device Type: Transceiver Module

Technical Specifications

Form Factor

• Plug-in module design
• Compact and hot-swappable for seamless integration

Cabling Type

• Fibre Channel optimized
• Supports multi-mode fiber

Data Transfer Rate

• 28.05 Gbps high-speed connectivity
• Stable and efficient throughput

Optical Characteristics

• Transmit Wavelength: 840–860 nm
• Receive Wavelength: 770–860 nm
• Shortwave optical design for enterprise networks

Data Link Protocols

• 8Gb Fibre Channel (SW)
• 16Gb Fibre Channel (SW)
• 32Gb Fibre Channel (SW)

Maximum Transfer Distance

• Up to 1310 feet (400 meters)

Performance and Reliability

• Supports multiple Fibre Channel speeds
• Reliable shortwave optical transmission
• Hot-swappable for easy deployment

Advantages

• High-speed 32Gbps connectivity
• Backward compatibility with 8G and 16G FC
• Compact plug-in form factor
• Energy-efficient optical performance

Overview of Brocade 32GB Fibre Channel Transceiver Module

The 32Gb/s Fibre Channel transceiver category, particularly the 32GBase-SW multimode fiber (MMF) LC-based SFP28 modules, represents a critical advancement in high-speed storage networking. These optical modules are engineered to support next-generation Storage Area Networks (SANs), enabling ultra-low latency, high bandwidth, and resilient data transmission across enterprise-grade infrastructure. The Brocade XBR-000412 32Gb/s 32GBase-SW MMF LC SFP28 Transceiver belongs to this category of high-performance optical connectivity solutions designed for mission-critical environments where predictable throughput and lossless communication are essential.

Brocade XBR-000412 32Gb/s SFP28 Transceiver

Enterprise Storage Networking Role

The Brocade XBR-000412 is positioned within the Fibre Channel ecosystem as a shortwave (SW) multimode optical transceiver optimized for 32G Fibre Channel speeds. In enterprise storage networks, it plays a vital role in connecting switches, directors, and host bus adapters (HBAs) within data centers that demand consistent throughput for virtualization, cloud storage, and high-performance computing workloads. Its 32Gb/s signaling capability ensures backward compatibility with 16G and 8G Fibre Channel infrastructures while delivering significantly higher bandwidth density.

Integration in SAN Architectures

In Storage Area Networks, the transceiver functions as the physical layer interface that converts electrical signals into optical signals for transmission over multimode fiber cabling. The Brocade XBR-000412 integrates seamlessly into Brocade switching platforms, supporting dense port configurations and high-speed fabric connectivity. Its LC duplex interface ensures standardized connectivity with existing MMF infrastructure, reducing deployment complexity and enabling scalable SAN expansion.

Architecture of 32GBase-SW MMF LC Transceivers

Optical Signal Conversion Mechanism

The Brocade XBR-000412 operates using shortwave optical technology optimized for multimode fiber environments. Electrical data signals received from the switch ASIC are converted into optical pulses through a vertical-cavity surface-emitting laser (VCSEL). These pulses are transmitted across OM3 or OM4 multimode fiber and received by a photodiode at the destination end, where they are converted back into electrical signals. This bidirectional conversion process ensures minimal signal loss and high data integrity at 32Gb/s transmission rates.

32G Fibre Channel Encoding Structure

The 32G Fibre Channel standard utilizes advanced encoding techniques designed to maximize throughput efficiency while minimizing overhead. The Brocade XBR-000412 transceiver supports this encoding layer at the physical level, ensuring accurate serialization and deserialization of high-speed data streams. This allows enterprise SAN environments to achieve deterministic latency, which is essential for applications such as real-time analytics, database clustering, and high-frequency transaction systems.

SFP28 Form Factor Advantages

The SFP28 form factor provides a compact and hot-pluggable design that supports high-density switch configurations. Compared to earlier SFP+ modules, SFP28 delivers increased bandwidth per port while maintaining backward mechanical compatibility. This enables data center operators to upgrade performance without requiring significant hardware redesigns, making the Brocade XBR-000412 a cost-effective modernization component.

Physical Layer and Multimode Fiber Compatibility

MMF Optical Characteristics

Multimode fiber (MMF) used in conjunction with the Brocade XBR-000412 is optimized for short-range, high-bandwidth communication within data centers. Typically deployed using OM3 or OM4 fiber types, MMF supports modal dispersion control and maintains signal integrity over distances suitable for rack-to-rack and row-to-row connectivity. The 32GBase-SW specification ensures performance stability across these optical conditions.

LC Duplex Interface Design

The LC duplex connector used in the XBR-000412 provides a secure and low-loss physical interface for optical transmission. Its compact size allows for high port density in switching equipment while maintaining ease of cable management. The latch mechanism ensures stable connectivity even in high-vibration environments typical of large-scale server installations.

Distance and Reach Optimization

The shortwave design of the 32GBase-SW transceiver is optimized for intra-data center connectivity, typically supporting distances up to 70 meters on OM3 fiber and up to 100 meters on OM4 fiber. These ranges make it suitable for enterprise SAN backbones where high-speed connectivity is required between distributed storage arrays and compute clusters.

Performance Characteristics of Brocade XBR-000412

Bandwidth Efficiency at 32Gb/s

At its core, the Brocade XBR-000412 delivers a full-duplex bandwidth of 32 gigabits per second per channel, enabling significantly improved data throughput compared to legacy Fibre Channel generations. This increase in bandwidth allows storage systems to handle higher I/O operations per second (IOPS), improving overall application responsiveness and reducing bottlenecks in virtualized environments.

Latency Optimization in SAN Environments

Latency is a critical metric in storage networking, and the XBR-000412 is designed to minimize transmission delays through optimized optical signaling and efficient encoding schemes. By reducing serialization delays and maintaining signal synchronization, the transceiver ensures deterministic performance for latency-sensitive workloads.

Error Rate and Signal Integrity

Bit error rate (BER) performance is tightly controlled in the Brocade XBR-000412 through integrated digital diagnostics and optical calibration mechanisms. The module continuously monitors signal quality parameters such as optical power, temperature, and bias current, ensuring stable transmission even under varying environmental conditions.

Enterprise Data Center Applications

Storage Area Network Deployment

Within SAN deployments, the Brocade XBR-000412 is commonly used to connect Fibre Channel switches, storage arrays, and server HBAs. Its high-speed connectivity enables seamless data replication, backup operations, and storage virtualization across distributed environments. This ensures that enterprise applications maintain continuous data availability and performance consistency.

Cloud Infrastructure Integration

Modern cloud data centers rely heavily on high-throughput storage networks, and the 32GBase-SW transceiver supports these requirements by enabling scalable and flexible SAN architectures. It allows cloud service providers to efficiently manage multi-tenant storage systems while maintaining strict performance isolation.

High-Performance Computing Workloads

In high-performance computing (HPC) environments, where massive datasets are processed in parallel, the Brocade XBR-000412 ensures rapid data movement between compute nodes and storage clusters. Its low latency and high bandwidth characteristics make it suitable for scientific simulations, AI model training, and financial modeling applications.

Compatibility and Interoperability Considerations

Brocade Switching Ecosystem Integration

The XBR-000412 is designed to integrate natively with Brocade Fibre Channel switches and directors. This ensures optimal performance tuning and firmware compatibility, allowing administrators to deploy the module without requiring extensive configuration adjustments.

Backward Compatibility with Legacy Fibre Channel

One of the key advantages of 32G Fibre Channel transceivers is their backward compatibility with previous generations such as 16G and 8G. This allows organizations to upgrade their infrastructure incrementally while maintaining interoperability across mixed-speed environments.

Multi-Vendor SAN Environment Support

Although optimized for Brocade systems, the XBR-000412 can function within multi-vendor SAN environments, provided that Fibre Channel standards are adhered to. This flexibility supports heterogeneous infrastructure strategies commonly used in large enterprises.

Installation and Deployment Practices

Hot-Swappable Deployment

The SFP28 form factor enables hot-swappable installation, allowing network administrators to replace or install transceivers without powering down the system. This minimizes downtime and ensures continuous operation in mission-critical environments.

Cable Handling and Fiber Management

Proper fiber handling is essential to maintain signal integrity when deploying the Brocade XBR-000412. Multimode fiber cables should be managed with appropriate bend radius control and protected from excessive stress to prevent signal degradation.

Signal Integrity and Reliability Engineering

Digital Diagnostic Monitoring (DDM)

The Brocade XBR-000412 includes Digital Diagnostic Monitoring capabilities that provide real-time insight into operating conditions. Parameters such as temperature, optical power output, and receiver sensitivity are continuously monitored to ensure long-term reliability.

Thermal Stability in Dense Environments

In high-density switch environments, thermal management becomes a critical factor. The transceiver is engineered to maintain stable performance across a wide operating temperature range, ensuring consistent optical output even under heavy network loads.

Long-Term Signal Stability

Signal stability is maintained through precision laser calibration and adaptive optical feedback mechanisms. These features reduce degradation over time and ensure consistent performance across extended deployment lifecycles.

Power Efficiency and Thermal Management

Low Power Consumption Design

The Brocade XBR-000412 is designed with energy efficiency in mind, consuming minimal power while delivering high-speed optical performance. This contributes to reduced operational costs in large-scale deployments where hundreds or thousands of ports may be active simultaneously.

Heat Dissipation in SFP28 Modules

Efficient heat dissipation mechanisms are integrated into the transceiver’s housing to prevent thermal buildup. This ensures that optical performance remains stable even in densely populated switch chassis where airflow may be constrained.

Environmental Adaptability

The module is engineered to operate reliably in controlled data center environments with varying humidity and temperature conditions. This adaptability ensures consistent performance across geographically distributed infrastructure.
