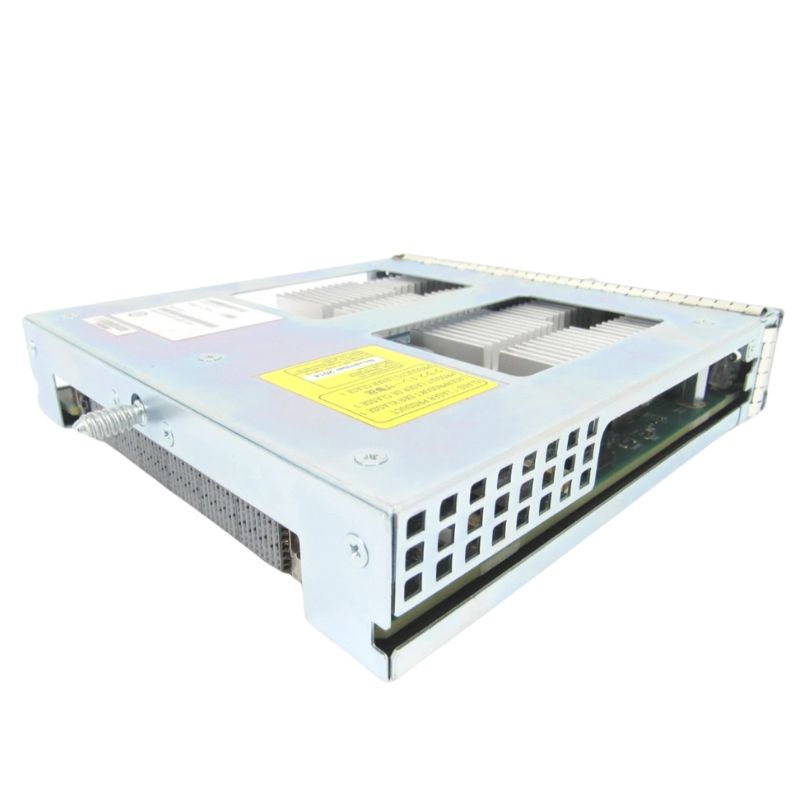

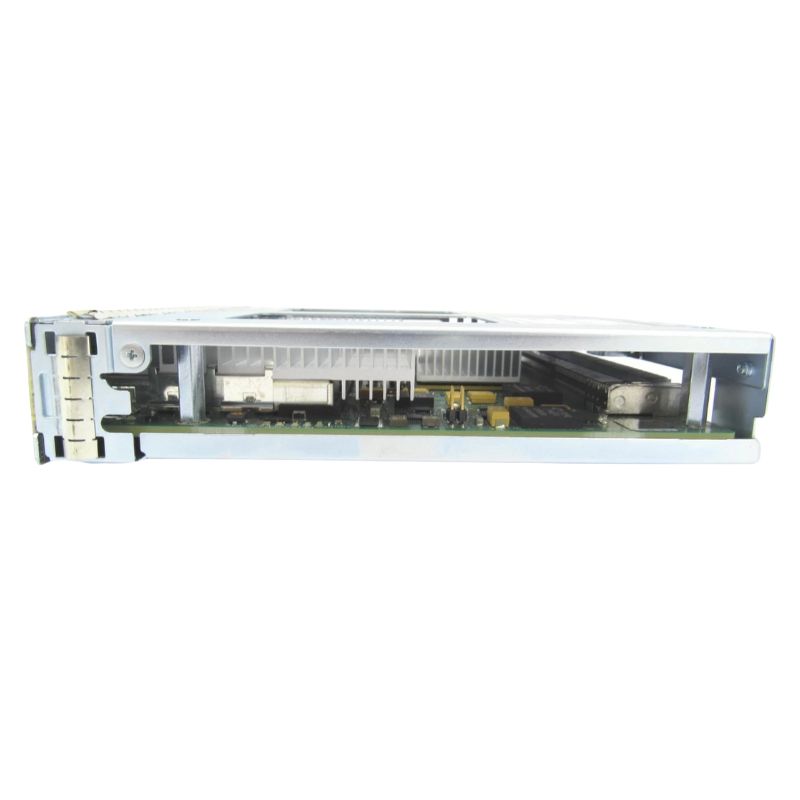

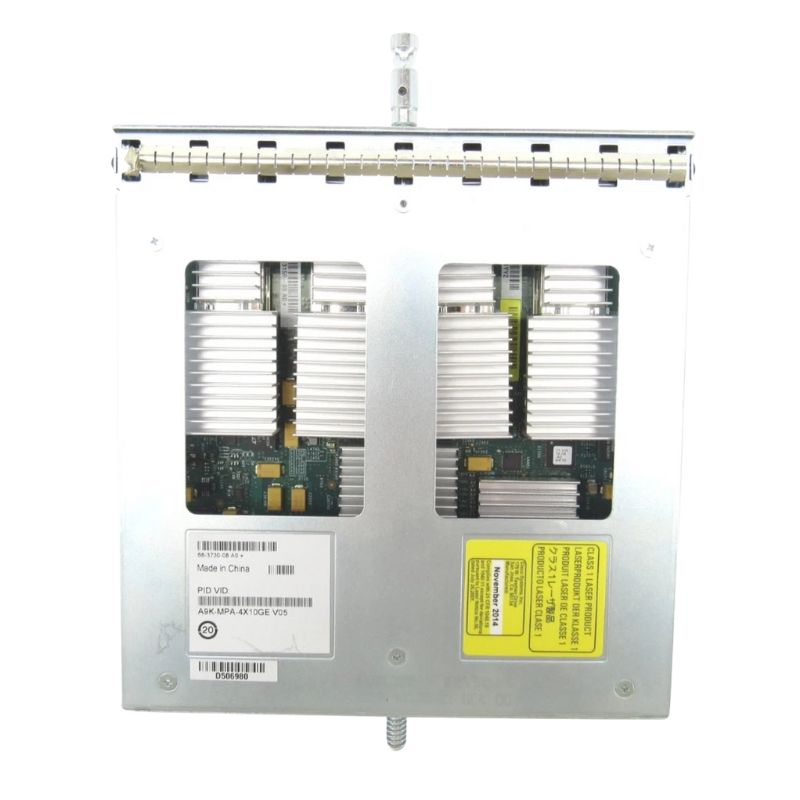

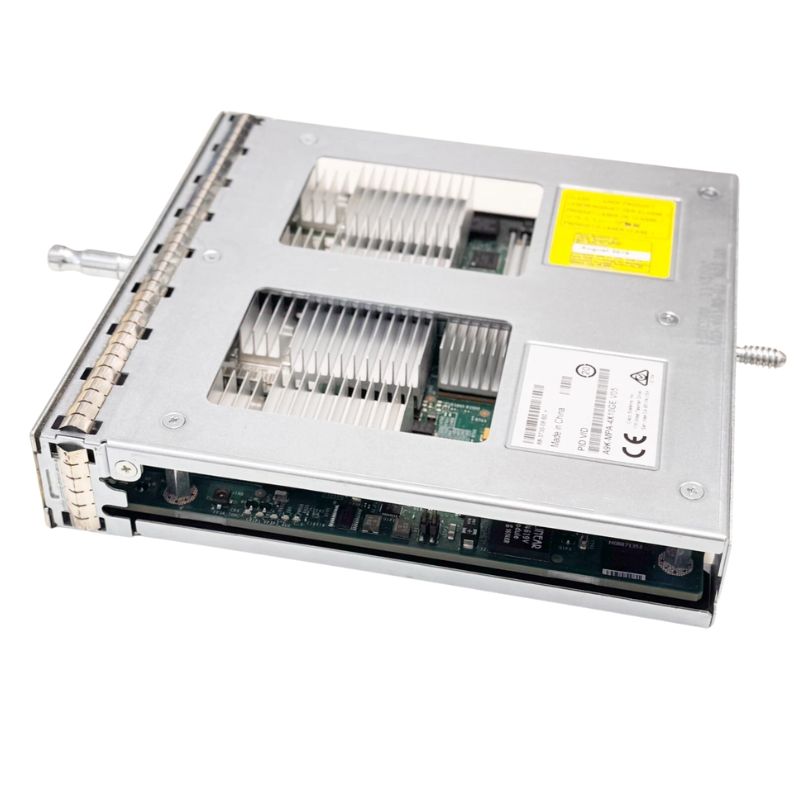

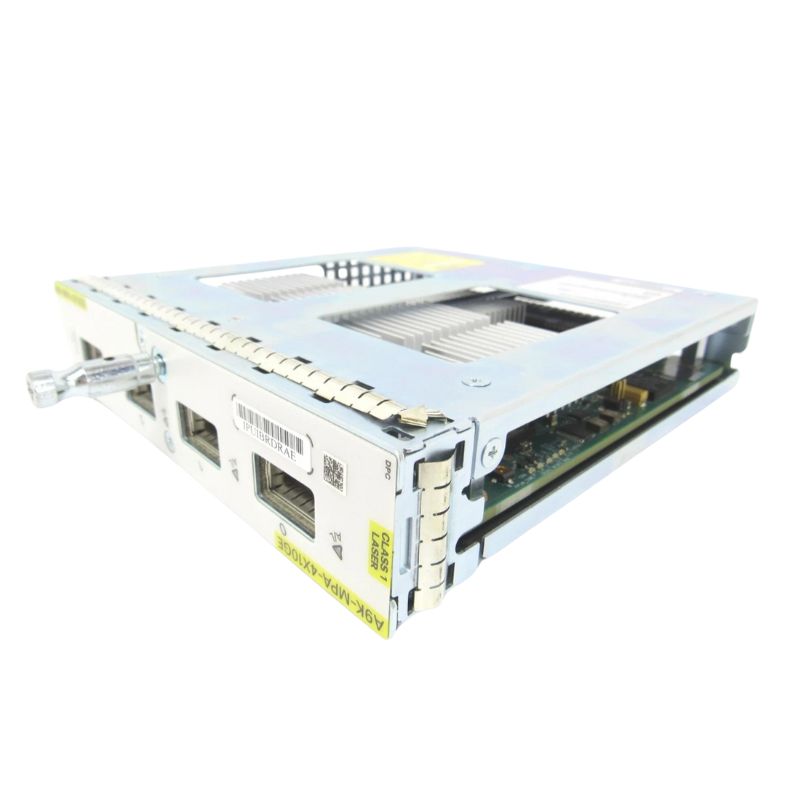

A9K-MPA-4X10GE Cisco 4 Ports 10 Gigabit Expansion Module

Product Overview of the Cisco A9K-MPA-4X10GE 4-port Moduler

The Cisco A9K-MPA-4X10GE is a high-performance 4-port 10 Gigabit Ethernet expansion module engineered to strengthen and scale modern network infrastructures. Designed for enterprise-grade environments, this plug-in networking component delivers ultra-fast data transmission and enhanced connectivity, making it an ideal choice for organizations requiring dependable, high-bandwidth communication between critical systems.

General Information

• Manufacturer: Cisco
• Product Model: A9K-MPA-4X10GE
• Category: Modular network expansion unit
• Device Type: Four-port high-speed Ethernet module

Technical Specifications

• Design: Hot-swappable plug-in architecture for simplified deployment
• Connectivity: Fully wired interface ensuring stable and consistent network flow
• Network Standard: 10 Gigabit Ethernet (10GbE) support
• Throughput Capacity: Up to 10 Gbps per port for high-speed data handling
• Performance: Optimized for low-latency enterprise networking environments

Expansion & Connectivity Options

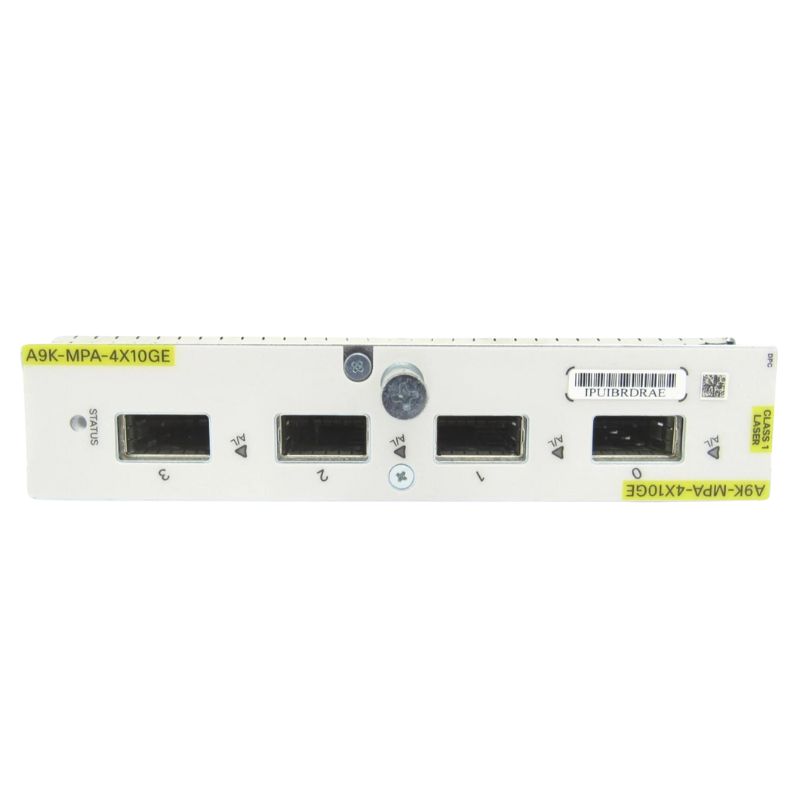

• Equipped with four XFP-based optical network interfaces
• Occupies a single modular expansion slot for efficient hardware utilization
• Supports scalable infrastructure upgrades without major system redesign
• Enables seamless integration into existing Cisco networking ecosystems

Compatibility

• Compatible with Cisco ASR 9000 Series routers
• Works with Cisco A9K modular chassis and supported line card slots
• Designed for systems that support 10 Gigabit Ethernet architecture
• Integrates with Cisco IOS XR-based networking environments
• Best suited for enterprise backbone, service provider, and data center deployments

The Cisco A9K-MPA-4X10GE 4 Ports 10 Gigabit Expansion Module

The Cisco A9K-MPA-4X10GE 4 Ports 10 Gigabit Expansion Module is a high-performance modular networking component designed for carrier-grade and enterprise-level routing platforms. It is widely used in advanced service provider networks where high bandwidth density, scalability, and reliable packet forwarding are essential. This category represents a class of modular port adapters built specifically for Cisco ASR 9000 Series routers, enabling flexible deployment of 10 Gigabit Ethernet connectivity across large-scale infrastructure environments.

This expansion module plays a crucial role in modern networking architectures where data traffic demand continues to grow rapidly due to cloud computing, virtualization, video streaming, and large-scale data center interconnectivity. The module provides four independent 10 Gigabit Ethernet interfaces, allowing network operators to expand router capacity without replacing entire systems, ensuring cost efficiency and operational flexibility.

High-Speed Networking Architecture

The Cisco A9K-MPA-4X10GE module is engineered with advanced packet processing capabilities that align with Cisco’s distributed forwarding architecture. It integrates seamlessly into the ASR 9000 platform, leveraging the router’s backplane bandwidth to deliver high-speed connectivity between network edges and core infrastructure.

Each of the four 10 Gigabit ports is optimized for full-duplex communication, enabling simultaneous transmission and reception of large data streams. This is particularly useful in environments such as internet service providers, cloud service networks, and enterprise backbone systems where uninterrupted high-speed data flow is required.

Multi-Port 10 Gigabit Connectivity

With four independent 10 Gigabit Ethernet ports, the module enables aggregation of high-speed links or distribution of traffic across multiple network paths. This supports load balancing, redundancy, and improved fault tolerance in large-scale deployments.

Advanced Quality of Service Support

Quality of Service (QoS) mechanisms are supported to prioritize traffic based on network policies. This ensures that critical applications such as voice communication, video conferencing, and real-time data analytics receive prioritized bandwidth allocation over less sensitive traffic.

Scalability for Growing Networks

The modular nature of the Cisco A9K-MPA-4X10GE allows organizations to scale their network infrastructure incrementally. Instead of replacing entire routing systems, operators can simply add expansion modules to increase capacity, making it a cost-effective solution for evolving network demands.

Deployment Environments

This expansion module is typically deployed in environments where high-speed data transfer and reliability are essential. It is widely used in telecommunications networks, enterprise WAN backbones, internet exchange points, and cloud service provider infrastructures.

Enterprise Data Centers

Large enterprises rely on this module to connect distributed data centers and support internal cloud infrastructure. It enables seamless communication between servers, storage systems, and virtualization platforms.

Cloud Service Providers

Cloud providers utilize the module to ensure fast and reliable connectivity between virtualized workloads and storage clusters. The high port density and bandwidth capabilities make it ideal for multi-tenant environments.

Performance Advantages

The Cisco A9K-MPA-4X10GE module offers several performance advantages that contribute to efficient network operation. These include high throughput capacity, low latency processing, and efficient traffic distribution across multiple ports.

Integration with Cisco ASR 9000 Series

The Cisco A9K-MPA-4X10GE module is specifically designed for integration with the ASR 9000 Series routers. This integration allows it to leverage the advanced routing capabilities of the platform, including multiprotocol support, advanced security features, and high availability configurations.

Seamless Hardware Compatibility

The module fits directly into compatible line cards without requiring additional configuration changes at the hardware level. This ensures quick deployment and minimal downtime during upgrades or expansions.

Reliability and Redundancy Features

Reliability is a core aspect of the Cisco A9K-MPA-4X10GE module design. It supports redundant configurations that ensure continuous network operation even in the event of hardware failure.

Advantages of Modern Network Infrastructure

The Cisco A9K-MPA-4X10GE module provides significant advantages in modern networking environments where scalability, reliability, and performance are critical. Its modular design reduces infrastructure costs while enabling rapid expansion of network capabilities.

Organizations benefit from improved bandwidth distribution, reduced latency, and enhanced service availability. The ability to integrate seamlessly into existing Cisco infrastructures makes it a preferred choice for network architects designing high-performance systems.

Use Cases

This module is commonly used in multiple advanced networking scenarios. These include backbone routing, metro Ethernet deployments, and high-speed interconnection of distributed enterprise systems.
