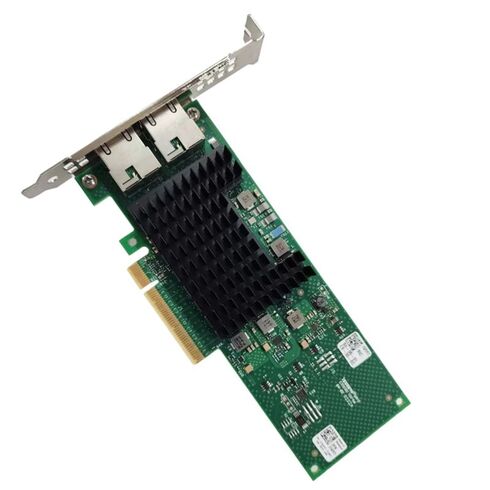

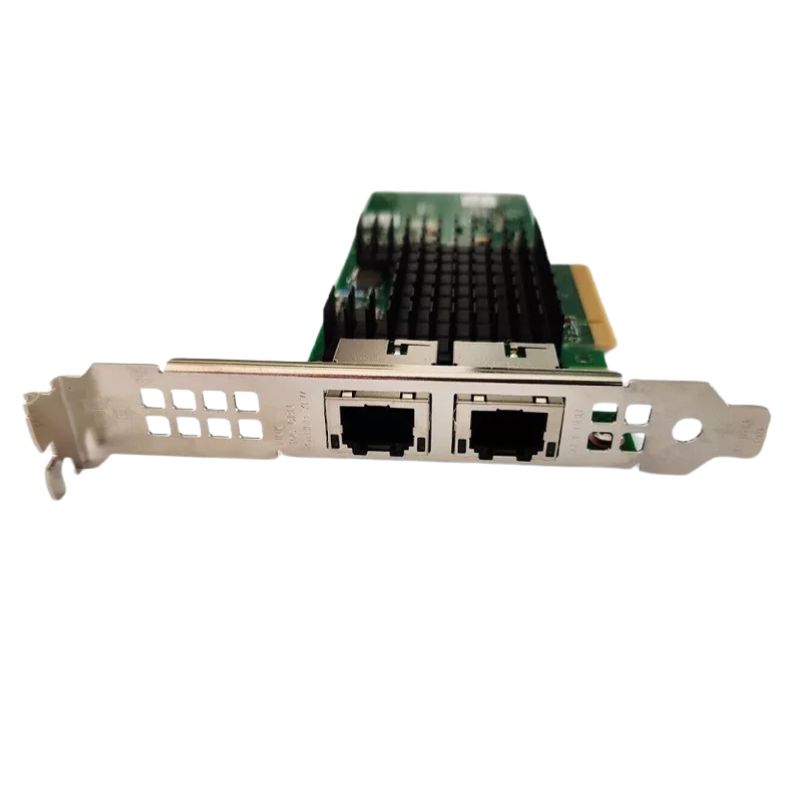

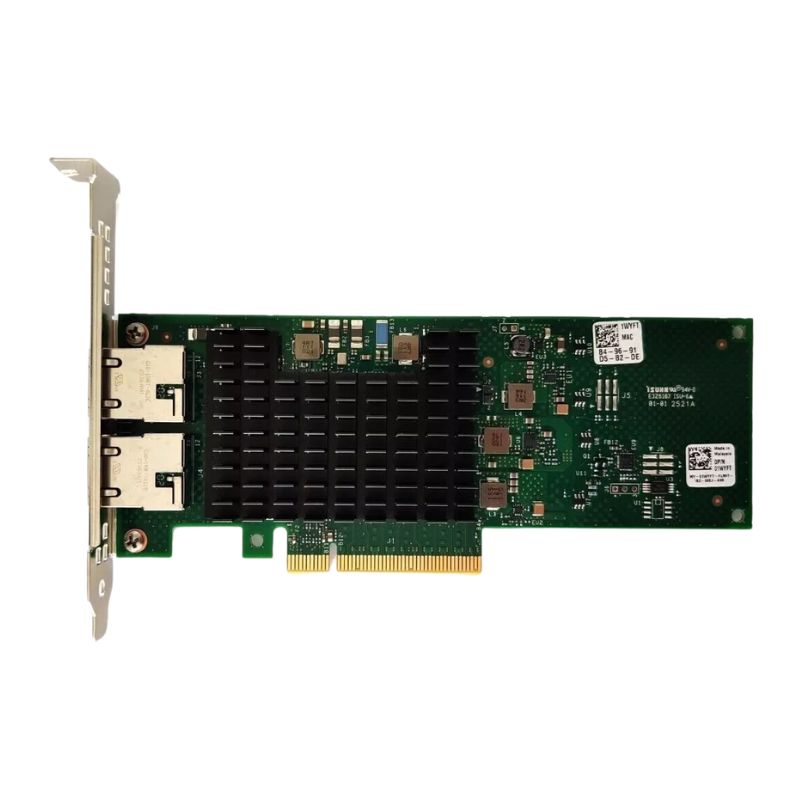

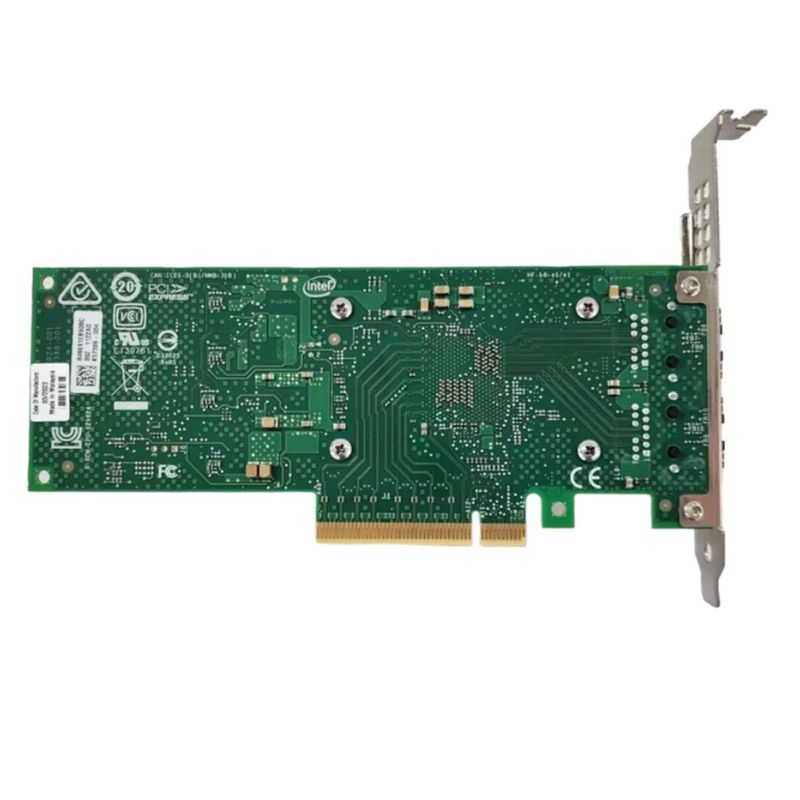

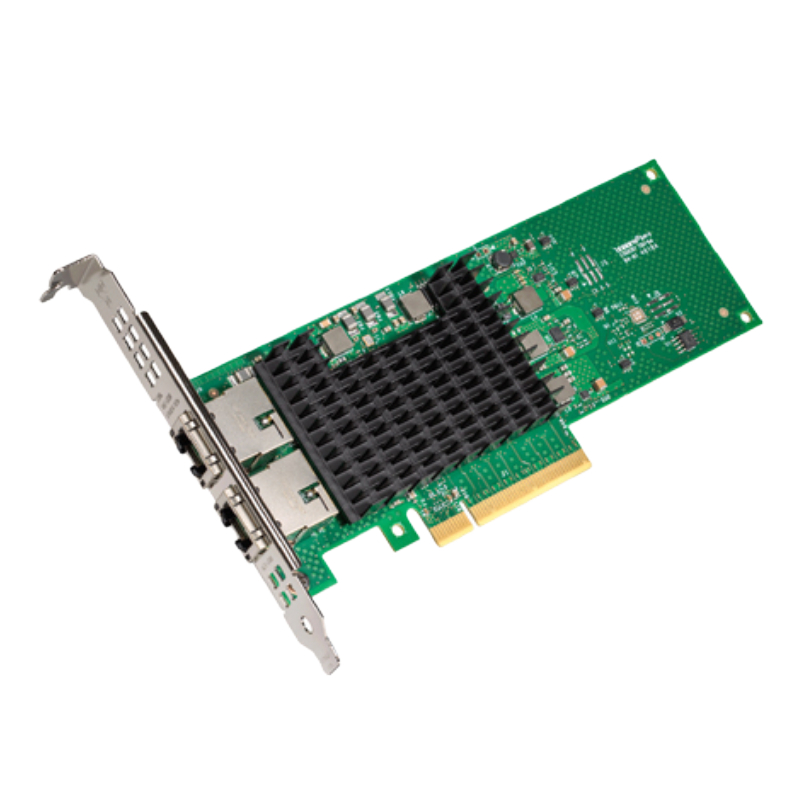

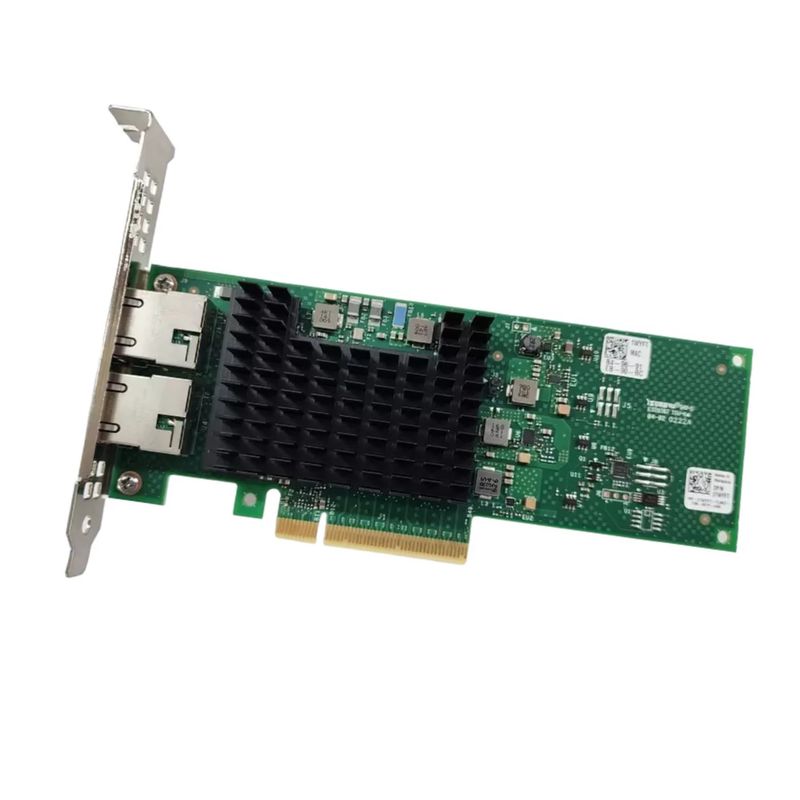

5CHK2 Dell Intel X710-t2l Dual Port 10GBE Base-t PCIE Adapter

Details of Dell Dual Port 10GBE Adapter

The Dell 5CHK2 Intel X710-T2L Dual Port 10GbE Base-T PCIe Adapter is a high-performance networking solution designed to deliver reliable and fast connectivity for enterprise environments.

General Information

• Manufacturer: Dell
• Part Number: 5CHK2
• Device Type: PCIe Adapter

Technical Specifications

• Plug-in Card - Low Profile
• Bus Type: PCI Express 3.0 x8
• Specification Revision: PCIe 3.0

Port Configuration

• Dual Ports supporting 100M/1G/2.5G/5G/10 Gigabit Ethernet
• Connectivity Technology: Wired

Supported Protocols

• Fast Ethernet
• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet

Performance

• Data Transfer Rate: 10 Gbps
• Network / Transport Protocols: iSCSI, NFS

Advanced Features

• Virtual Machine Device Queues (VMDq)
• Virtualization Technology for Connectivity (VT-c)

Enhanced Data Handling

• Data Direct I/O Technology (DDIO)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads for optimized performance

Interface Options

• 2 x 1/2.5/5/10GBASE-T ports
• Standard RJ-45 connectors for easy integration

Dell 5CHK2 Intel X710-T2L Dual Port 10GBE Adapter Overview

The Dell 5CHK2 Intel X710-T2L Dual Port 10GbE BASE-T PCIe Adapter is a high-performance Ethernet network interface card engineered for modern enterprise data centers, virtualization environments, cloud infrastructures, and business-critical applications. Designed with Intel's advanced X710 Ethernet controller technology, this adapter delivers reliable 10 Gigabit Ethernet connectivity through dual RJ-45 copper ports, enabling organizations to achieve exceptional network throughput, reduced latency, and superior scalability.

As network demands continue to increase due to virtualization, big data analytics, cloud computing, and software-defined networking, organizations require networking solutions capable of supporting higher bandwidth and enhanced performance. The Dell 5CHK2 adapter fulfills these requirements by providing robust 10GbE connectivity while maintaining compatibility with existing copper cabling infrastructures.

Advanced Intel X710 Ethernet Controller Architecture

The foundation of the Dell 5CHK2 network adapter is the Intel X710-T2L Ethernet controller, a highly optimized networking chipset developed to address the growing requirements of enterprise-class networking environments. This controller introduces advanced packet processing capabilities, intelligent traffic management, and hardware acceleration features that significantly improve overall network efficiency.

Intel's X710 family is recognized throughout the industry for delivering exceptional reliability, performance consistency, and support for next-generation networking technologies. The controller architecture enables servers to process large volumes of network traffic while minimizing CPU utilization, allowing computing resources to remain available for mission-critical workloads.

Hardware-Based Performance Optimization

The adapter incorporates sophisticated hardware offloading technologies that reduce processing overhead on host systems. These capabilities allow network-related tasks to be handled directly by the network adapter rather than consuming valuable server CPU cycles. As a result, applications experience improved responsiveness and increased processing efficiency.

Organizations deploying database systems, virtualization platforms, storage networks, and cloud applications benefit from these acceleration technologies because they help maximize server utilization while maintaining optimal network performance.

Dual-Port 10GbE Connectivity for Enhanced Network Redundancy

One of the primary advantages of the Dell 5CHK2 Intel X710-T2L adapter is its dual-port configuration. Each port supports 10 Gigabit Ethernet connectivity through standard BASE-T copper networking infrastructure, enabling organizations to achieve high-speed communication while maintaining deployment flexibility.

The dual-port design supports multiple networking configurations, including link aggregation, failover protection, load balancing, and network segmentation. These capabilities are particularly valuable in enterprise environments where uptime and performance are critical operational requirements.

Network Redundancy and Business Continuity

Redundancy is a crucial aspect of enterprise networking. By utilizing two independent Ethernet ports, organizations can establish resilient network architectures capable of maintaining connectivity even if one network path experiences an interruption. This redundancy helps minimize downtime and supports continuous business operations.

Mission-critical applications such as enterprise resource planning systems, database servers, virtualization hosts, and cloud platforms rely heavily on uninterrupted network connectivity. The Dell 5CHK2 adapter helps organizations meet these reliability requirements through its redundant networking capabilities.

Load Balancing Capabilities

Load balancing allows network traffic to be distributed across multiple physical connections, improving bandwidth utilization and reducing congestion. By leveraging both 10GbE ports simultaneously, organizations can increase available throughput and optimize network resource allocation.

This capability is particularly beneficial in high-traffic environments where large volumes of data are transferred between servers, storage systems, and client devices.

10GBASE-T Technology Advantages

The Dell 5CHK2 adapter utilizes 10GBASE-T Ethernet technology, providing high-speed network connectivity over traditional twisted-pair copper cabling. This approach offers significant deployment advantages compared to fiber-based networking solutions, particularly in environments where existing copper infrastructure is already in place.

Organizations can often upgrade to 10 Gigabit networking without extensive cabling replacement projects, reducing implementation costs and simplifying deployment processes.

Compatibility with Existing Infrastructure

One of the most significant benefits of 10GBASE-T networking is backward compatibility with established Ethernet standards. The adapter supports multiple network speeds, including 10GbE, 5GbE, 2.5GbE, 1GbE, and lower-speed Ethernet connections, depending on network infrastructure capabilities.

This flexibility enables organizations to implement network upgrades gradually while maintaining compatibility with legacy equipment and mixed-speed networking environments.

Extended Reach and Deployment Flexibility

BASE-T technology provides substantial cable reach capabilities, making it suitable for a wide range of deployment scenarios. Data centers, server rooms, branch offices, and enterprise campuses can utilize existing structured cabling systems while benefiting from high-speed 10 Gigabit Ethernet performance.

The use of standard RJ-45 connectors further simplifies installation and maintenance procedures, reducing the complexity associated with network infrastructure upgrades.

PCI Express Interface for Maximum Throughput

The Dell 5CHK2 Intel X710-T2L adapter connects to server platforms through a high-speed PCI Express interface, ensuring sufficient bandwidth for dual-port 10GbE operation. PCIe technology provides the data transfer capacity necessary to support demanding enterprise networking workloads without creating bottlenecks.

By leveraging the capabilities of modern PCI Express architectures, the adapter can efficiently handle simultaneous high-volume traffic streams while maintaining low latency and predictable performance characteristics.

Optimized Data Path Performance

The PCIe architecture facilitates direct communication between the network adapter and server resources, reducing latency and improving overall system responsiveness. This optimized data path is particularly important for applications requiring real-time data processing and rapid network communications.

Workloads such as virtual machine migrations, database synchronization, backup operations, and storage traffic benefit significantly from the high-performance PCIe interface.

Virtualization Acceleration Features

Virtualization technologies have become essential components of modern IT infrastructures. The Dell 5CHK2 adapter includes advanced virtualization support features that help improve performance in virtualized environments while simplifying network management.

By offloading network processing tasks and supporting virtual machine networking technologies, the adapter enables virtualization hosts to support greater virtual machine densities and improved workload scalability.

Support for Virtual Machine Networking

The Intel X710 controller incorporates features specifically designed for virtualized data center environments. These capabilities help isolate network traffic, improve security, and enhance communication efficiency between virtual machines and physical network resources.

Organizations utilizing hypervisor platforms can achieve better resource utilization and improved application performance through these virtualization-optimized networking features.

Scalable Infrastructure Growth

As virtualization environments expand, network demands increase accordingly. The Dell 5CHK2 adapter provides the bandwidth and processing capabilities necessary to support growing virtual machine deployments while maintaining consistent performance levels.

This scalability makes the adapter an excellent choice for organizations planning future infrastructure growth and modernization initiatives.

Cloud Computing and Data Center Applications

Cloud computing environments require network adapters capable of supporting dynamic workloads, large-scale resource sharing, and continuous data movement. The Dell 5CHK2 Intel X710-T2L adapter is designed to meet these requirements by providing high-bandwidth connectivity and enterprise-grade reliability.

Modern data centers depend on efficient communication between servers, storage systems, and networking equipment. The dual-port 10GbE architecture facilitates rapid data transfers and helps maintain optimal application performance across distributed computing environments.

Private and Hybrid Cloud Deployments

Organizations implementing private cloud or hybrid cloud architectures require networking infrastructure that can support fluctuating workloads and dynamic resource allocation. The Dell 5CHK2 adapter delivers the performance and flexibility necessary for these environments.

Its ability to handle large volumes of network traffic while maintaining low latency contributes to improved user experiences and more efficient cloud operations.

High-Density Server Environments

Data centers often deploy high-density server configurations to maximize space utilization and operational efficiency. The Dell 5CHK2 adapter supports these deployments by providing high-speed connectivity within a compact PCIe form factor.

Its combination of dual-port functionality, advanced traffic management, and enterprise-grade reliability makes it suitable for dense server environments where networking performance is a critical consideration.

Security and Network Management Enhancements

Enterprise networks require comprehensive security measures to protect sensitive business data and maintain regulatory compliance. The Intel X710 controller includes multiple security-oriented features designed to strengthen network protection and support secure communications.

These capabilities contribute to a more secure networking environment while helping organizations implement effective access control and traffic monitoring strategies.

Intelligent Traffic Management

The Dell 5CHK2 adapter incorporates advanced traffic management technologies that enable administrators to prioritize network traffic, allocate bandwidth efficiently, and optimize application performance. These capabilities are particularly valuable in environments supporting diverse workloads with varying performance requirements.

Quality of Service implementation allows organizations to ensure critical applications receive appropriate network resources while maintaining overall infrastructure efficiency.

Enhanced Monitoring and Diagnostics

Comprehensive monitoring capabilities enable IT administrators to track network performance, identify potential issues, and implement corrective actions before service disruptions occur. The adapter supports advanced diagnostic features that simplify troubleshooting and improve operational visibility.

These management capabilities contribute to reduced downtime, faster issue resolution, and improved overall network reliability.

Compatibility with Dell PowerEdge Servers

The Dell 5CHK2 Intel X710-T2L adapter is engineered to integrate seamlessly with compatible Dell PowerEdge server platforms. This integration ensures optimal compatibility, simplified deployment, and consistent performance across enterprise server environments.

Organizations utilizing Dell infrastructure can benefit from validated hardware compatibility and streamlined management capabilities that simplify IT operations and support efficient infrastructure administration.

Enterprise-Class Reliability and Longevity

Reliability is a fundamental requirement for enterprise networking hardware. The Dell 5CHK2 adapter is built using high-quality components and rigorous engineering standards to ensure dependable operation under demanding workloads.

Its robust design supports continuous operation in data center environments where hardware stability and predictable performance are essential for business success.
