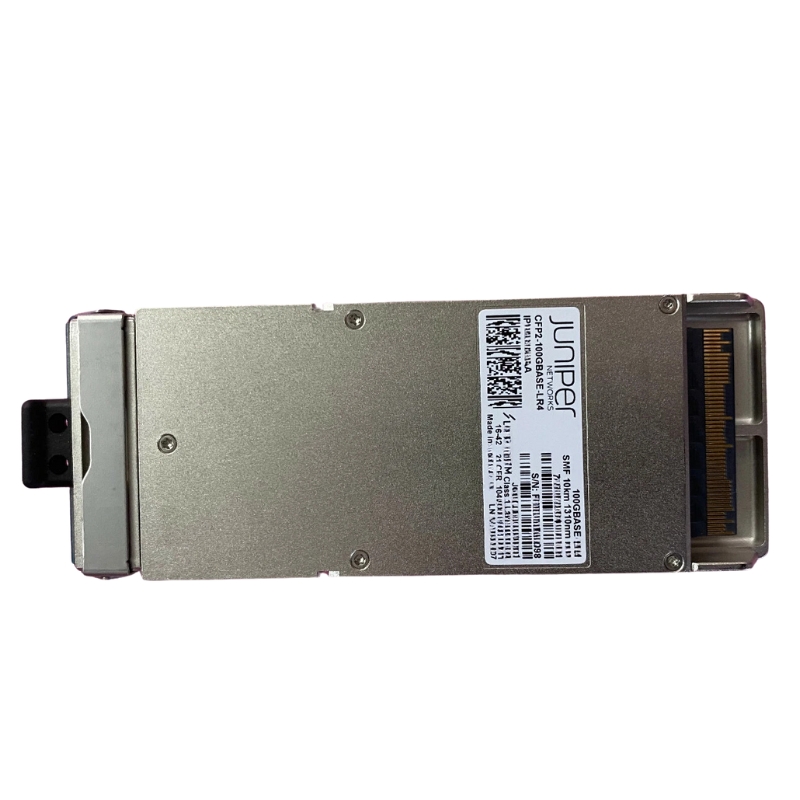

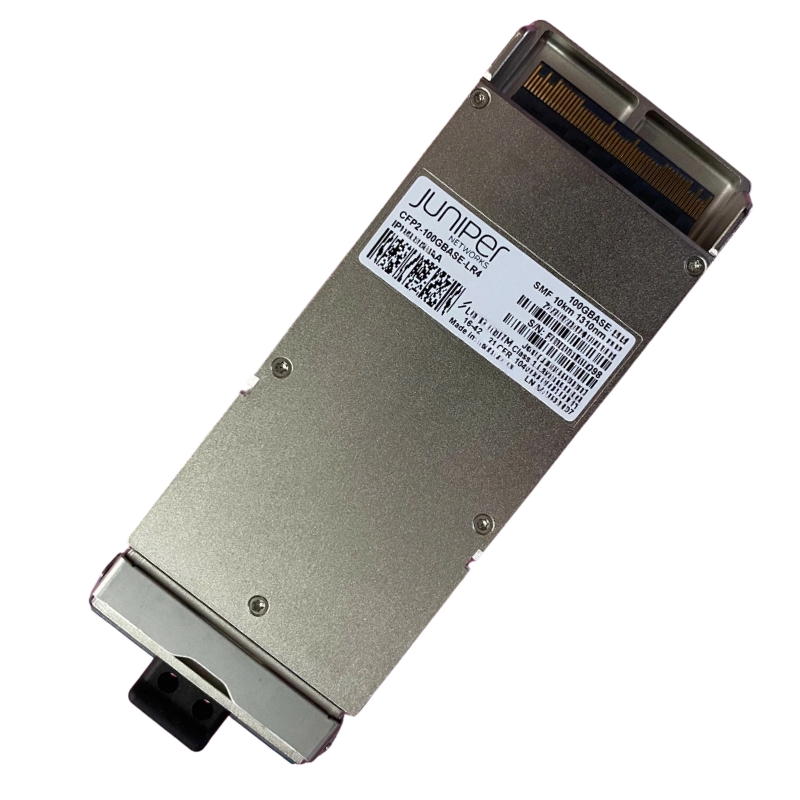

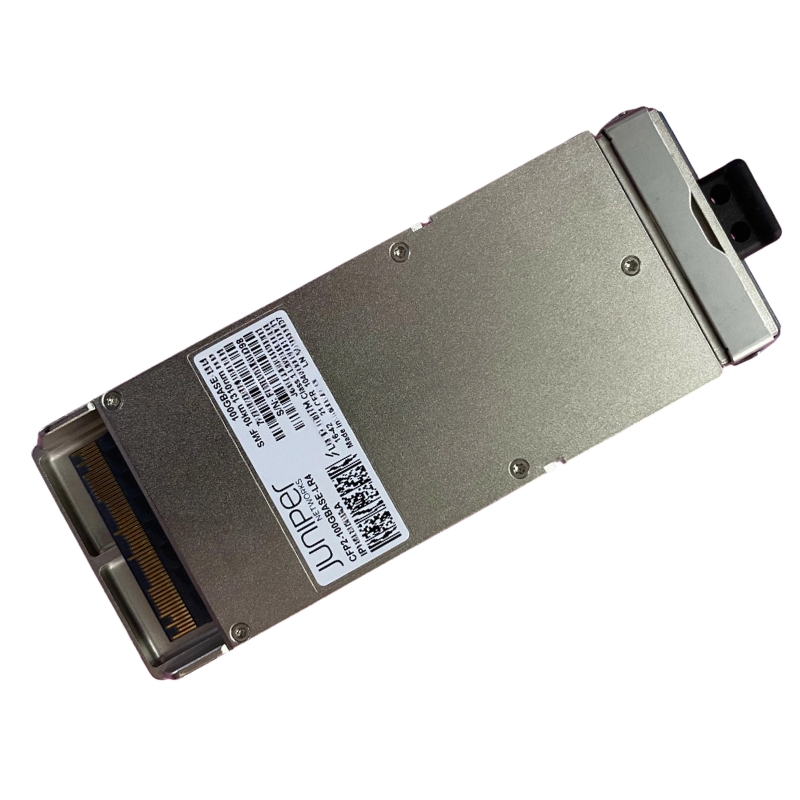

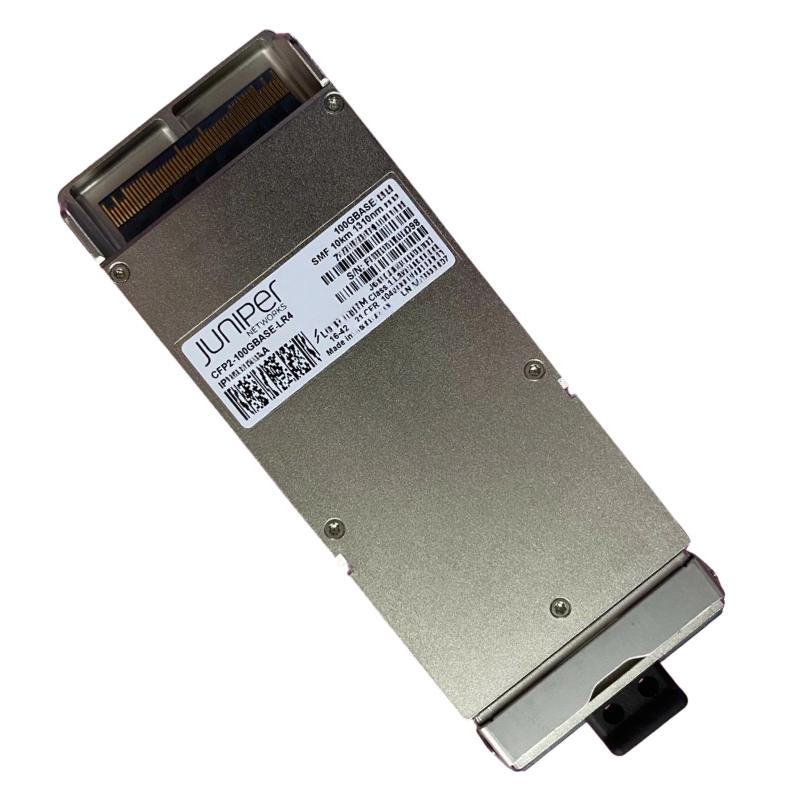

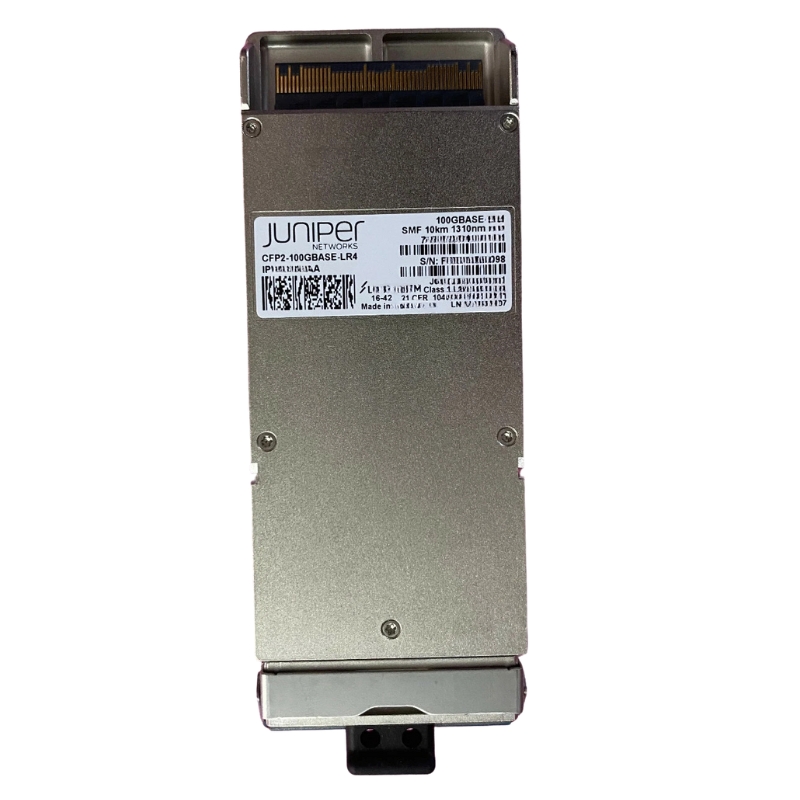

740-052504 Juniper Network Ethernet Transceiver Module

Highlights of Juniper 740-052504 100GBE Transceiver

The Juniper Networks 740-052504 CFP2 pluggable transceiver is a high-performance 100 Gigabit Ethernet optical module designed for data centers, carrier networks, and enterprise backbone infrastructures. It delivers reliable high-speed connectivity with advanced diagnostics and robust optical performance over single-mode fiber.

General Information

• Manufacturer: Juniper Networks
• Part Number: 740-052504
• Product Type: Optical Transceiver Module
• Sub-Type: Ethernet-only CFP2 Pluggable Module

Technical Specifications

• Transceiver Type: CFP2
• Connector: Duplex LC
• Fiber Type: Single-Mode Fiber (SMF)
• Core Size: 9/125 µm

Wavelength Ranges

• 1294.53 nm – 1296.59 nm
• 1299.02 nm – 1301.09 nm
• 1303.54 nm – 1305.63 nm
• 1308.09 nm – 1310.19 nm

Performance Highlights

• Supports 100 Gigabit Ethernet data rate
• Compliant with IEEE 802.3ba-2010 standards
• Optimized for 10 km single-mode fiber transmission

Stable Transmission Quality

• Transmit Power (Min): -4.3 dBm
• Transmit Power (Max): 4.5 dBm
• Receive Power (Min): -10.6 dBm
• Receive Power (Max): 4.5 dBm

Diagnostic Capabilities

• Transmit optical power (Tx Power)
• Receive optical power (Rx Power)
• Laser bias current monitoring
• Temperature and voltage tracking

Low Power Consumption Design

• Maximum Power Usage: 12W

Operating Environment

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Overview of Juniper 740-052504 Pluggable Transceiver

The Juniper Networks 740-052504 Ethernet Only CFP2 Pluggable Transceiver Module is a high performance optical networking component designed to deliver ultra fast Ethernet connectivity for modern data centers, enterprise core networks, and carrier grade infrastructures. Built on the CFP2 form factor, this module provides a compact yet powerful solution for high bandwidth optical transmission, enabling next generation network architectures that require scalability, reliability, and energy efficiency. This Ethernet only CFP2 transceiver is optimized for high speed data transfer across optical networks.

High Speed Ethernet Connectivity

The Juniper 740-052504 CFP2 transceiver delivers high speed Ethernet connectivity designed for data center interconnect, enterprise backbone networks, and cloud infrastructure environments. Its architecture enables efficient transmission of large data volumes, supporting applications that require stable and high bandwidth communication. This module is ideal for organizations that need to scale network capacity while maintaining consistent performance and minimizing latency across critical workloads.

High Performance Computing and Cloud Services

The transceiver is optimized for high throughput environments, enabling seamless operation of high performance computing systems, virtualization platforms, and cloud based services. It ensures smooth data exchange between servers, storage systems, and networking devices, reducing congestion and improving overall system efficiency. It supports scalable infrastructure growth and enhances application responsiveness across enterprise environments.

Low Latency Ethernet Transmission for Real Time Network Applications

The module provides low latency Ethernet transmission, ensuring rapid communication across optical links. This is essential for real time applications such as financial trading systems, video conferencing, VoIP communication, and distributed cloud workloads that require immediate response times. It ensures reliable and predictable performance for mission critical applications.

High Density Optical Networking

The Juniper 740-052504 module utilizes the CFP2 pluggable form factor, which is designed for high density optical networking environments where space efficiency and performance are equally important. This compact design allows multiple transceivers to be deployed within a single networking device, significantly increasing port density while reducing physical footprint. The CFP2 architecture supports advanced optical performance while maintaining energy efficiency and ease of integration into modern networking platforms.

Continuous Network Operation and Maintenance Flexibility

The module supports hot swappable functionality, allowing it to be installed or removed without powering down the host system. This ensures uninterrupted network operation and minimizes downtime during maintenance or upgrades, making it suitable for high availability environments. It enhances operational efficiency and simplifies lifecycle management for network administrators.

Compact Design for Scalable Data Center and Carrier Network Deployment

The CFP2 form factor enables compact deployment in high density environments, allowing organizations to scale network capacity without increasing physical infrastructure size. This is particularly beneficial for data centers and telecom networks that require efficient space utilization and high performance connectivity. It supports optimized hardware architecture and scalable network expansion.

High Performance Network Connectivity

The Juniper 740-052504 transceiver is designed as an Ethernet only module, providing simplified and efficient connectivity for modern network environments that rely exclusively on Ethernet protocols. This focused design eliminates unnecessary complexity while ensuring maximum performance for Ethernet based infrastructures. It is ideal for organizations seeking streamlined deployment and consistent high speed Ethernet communication across their network architecture.

Ethernet Data Transmission for Enterprise and Cloud Environments

The module ensures efficient Ethernet data transmission across optical networks, supporting enterprise applications, cloud services, and data center operations. This enhances network performance and ensures stable communication between critical infrastructure components. It improves system reliability and reduces operational bottlenecks.

Standardized Ethernet Connectivity for Multi Vendor Network Interoperability

The transceiver supports standardized Ethernet protocols, ensuring interoperability across multi vendor networking environments. This allows seamless integration into existing infrastructure without compatibility issues, simplifying deployment and management. It supports flexible and scalable network architectures.

High Capacity Optical Performance

The Juniper 740-052504 CFP2 module is designed for high capacity optical performance, making it suitable for data center interconnect and backbone network applications. It enables efficient data transfer between geographically distributed data centers and enterprise facilities, ensuring consistent communication across large scale infrastructures. This capability is essential for organizations that require high bandwidth and reliable long distance connectivity for mission critical operations.

Reliable Inter Data Center Connectivity for Distributed Enterprise Systems

The module enables reliable communication between multiple data centers, supporting workload distribution, data replication, and disaster recovery strategies. This ensures business continuity and operational resilience in distributed enterprise environments. It enhances infrastructure reliability and supports centralized IT management.

High Bandwidth Backbone Connectivity for Service Provider Networks

The transceiver provides high bandwidth backbone connectivity for service providers, enabling efficient transport of large data volumes across core network infrastructure. This supports scalable and high performance networking architectures capable of handling growing traffic demands. It ensures stable and efficient communication across network backbones.

Juniper Networking Platforms

The Juniper 740-052504 CFP2 module is fully compatible with a wide range of Juniper networking platforms, ensuring seamless integration into existing network infrastructures. This compatibility simplifies deployment and ensures consistent performance across supported devices in enterprise and carrier environments. The plug and play design enables rapid deployment without complex configuration, reducing operational overhead.

Simplified Network Expansion

The module supports plug and play functionality, allowing automatic detection by compatible systems. This reduces deployment time and simplifies network expansion processes for IT teams managing large scale environments. It improves operational efficiency and reduces configuration complexity.

Stable Performance Across Switching and Routing Platforms

The transceiver delivers stable performance across supported switching and routing platforms, ensuring reliable connectivity in diverse deployment scenarios. This ensures predictable behavior and consistent communication quality across network infrastructure. It supports dependable operation in enterprise and carrier grade environments.

Integration with WAN Technologies and Enterprise Routing Systems

The Juniper 740-052504 module complements WAN technologies and enterprise routing systems such as HWIC-4SHDSL by providing high speed optical Ethernet connectivity that enhances both internal and external communication. This integration allows organizations to build unified networking architectures that combine optical transport with WAN connectivity for distributed enterprise environments. It ensures seamless data flow across multiple network layers, supporting efficient enterprise networking strategies.

End to End Network and Data Center and Remote Connectivity

The combination of high speed optical Ethernet modules and WAN technologies ensures optimized data flow between data centers and remote locations, improving overall network performance and reducing latency across distributed infrastructures. This enhances communication efficiency and supports business critical operations. It ensures consistent performance across enterprise environments.

Scalable Infrastructure for Expanding Enterprise Networking Requirements

The integration of optical Ethernet modules with WAN connectivity solutions provides a scalable infrastructure that allows organizations to expand their network capabilities as business needs evolve. This ensures long term adaptability and supports continuous improvement of enterprise networking systems. It provides a future ready foundation for modern digital enterprise environments.

High Availability for Mission Critical Networking Environments

The Juniper Networks 740-052504 Ethernet Only CFP2 Pluggable Transceiver Module is built to deliver enterprise grade reliability, ensuring consistent performance in mission critical environments where uptime is essential. Its robust optical and electronic design minimizes downtime and supports continuous operation in high performance networking infrastructures. The module is suitable for data centers, enterprise networks, and service provider environments that require dependable high speed Ethernet connectivity.

High Availability Optical Design for Continuous Network Operation

The module supports high availability network design by ensuring stable Ethernet optical connections that maintain continuous data transmission even under heavy workloads. This enhances network resilience and supports uninterrupted business operations. It ensures reliable performance for critical enterprise applications.

Cloud and Digital Transformation

The Juniper 740-052504 CFP2 module provides a future ready Ethernet optical networking solution that supports cloud infrastructure, virtualization, and digital transformation initiatives. This ensures long term scalability and adaptability in evolving enterprise environments. It provides a strong foundation for next generation high performance Ethernet optical networks.
