740-062357 Juniper Networks 100 Gigabit Transceiver

Highlights of Juniper 740-062357 100GB Duplex LC Transceiver

The Juniper Networks 740-062357 is a high-performance 100 Gigabit Ethernet optical transceiver designed for long-haul data transmission and carrier-grade networking. Engineered for reliability and scalability, this CFP2-ACO module supports advanced DWDM technologies, making it ideal for enterprise, telecom, and data center deployments requiring ultra-high bandwidth connectivity.

General Information

• Manufacturer: Juniper Networks
• Part Number: 740-062357
• Product Type: Optical Transceiver Module
• Subtype: 100 Gigabit Duplex LC Ethernet

Technical Specifications

Core Networking Specifications

• Speed: 100 Gigabit Ethernet
• Connector Type: Duplex LC
• Breakout Capability: Not supported
• Transceiver Type: CFP2-ACO
• Cable Type: Single-mode fiber (SMF)
• Core Size: 9/125 µm
• Maximum Distance: Up to 2000 km

Advanced DWDM and Tunable Technology

• Supports 100-channel tunability
• DWDM frequency grid compliant
• Fast wavelength tuning within 60 seconds

Reliable Optical Monitoring and Diagnostics

• Real-time optics monitoring via CLI commands
• Detailed interface performance metrics
• Supports transport PM optics diagnostics

Standards Compliance

• ITU-T G.709 – Optical Transport Network interfaces
• ITU-T G.798 – OTN functional blocks
• ITU-T G.694.1 – DWDM frequency grid
• RFC 3591 – Optical interface management

FEC (Forward Error Correction) Support

Supported FEC Types

• SD-FEC: Soft-decision forward error correction
• HG-FEC: Staircase high-gain correction
• GFEC: Standard G.709 correction

Signaling Rate Per Lane

• SD-FEC: 120.58 Gbps
• HG-FEC: 111.81 Gbps
• GFEC: 111.81 Gbps

Optical Transmission Details

Wavelength and Frequency

• Wavelength Range: 1528.773 nm to 1568.362 nm
• Frequency Range: 191.15 THz to 196.10 THz
• Channel Spacing: 50 GHz

Transmitter Specifications

• Output Power (ON): 0 dBm to -8 dBm
• Output Power (OFF): ≤ -45 dBm
• Wavelength Accuracy: ±1.8 GHz
• Channel Tuning Time: ≤ 60 seconds

Receiver Specifications

• Input Power Range: -18 to 0 dBm (normal), -22 to +3 dBm (extended)
• Damage Threshold: +17 dBm
• Sensitivity:
  • -30 dBm (SD-FEC)
  • -28 dBm (HG-FEC)
  • -23 dBm (GFEC)

OSNR (Optical Signal-to-Noise Ratio)

Typical OSNR

• 14 dB (SD-FEC)
• 16 dB (HG-FEC)
• 24 dB (GFEC)

Worst-Case OSNR

• 14.5 dB (SD-FEC)
• 16.5 dB (HG-FEC)
• 25 dB (GFEC)

Environmental and Power Specifications

Power Consumption

• Maximum Power Usage: 12W

Temperature Range

• Operating Temperature: 0°C to 75°C
• Storage Temperature: -40°C to 85°C

Overview of Juniper 740-062357 Ethernet Transceiver Module

The Juniper Networks 740-062357 100 Gigabit Duplex LC Ethernet Transceiver Module is a high performance optical networking solution engineered to deliver reliable, scalable, and ultra high speed connectivity across enterprise networks, data centers, and service provider infrastructures. Designed to support 100 Gigabit Ethernet over duplex LC fiber connections, this module enables efficient long distance communication with exceptional signal integrity and bandwidth efficiency, making it an ideal choice for modern networking environments that demand both performance and reliability.

100 Gigabit Ethernet Performance for Ultra High Bandwidth Enterprise

The Juniper 740-062357 module delivers 100 Gigabit Ethernet performance, enabling ultra fast data transmission across optical networks that require maximum throughput and minimal latency. This high bandwidth capability is essential for hyperscale data centers, enterprise core networks, and service provider infrastructures that handle large volumes of data traffic continuously. It ensures efficient communication between network devices, reducing congestion and improving overall system performance in high density environments.

Throughput for Cloud Computing and Distributed Workloads

The transceiver is designed to support cloud computing and virtualization platforms, delivering consistent throughput for distributed workloads, storage systems, and application services. This ensures smooth operation of mission critical systems without performance bottlenecks or interruptions. It enhances infrastructure scalability and supports continuous network expansion.

Ultra Low Latency Data Transmission for Real Time Applications

The module provides ultra low latency optical transmission, enabling rapid data exchange across high speed links. This is essential for real time applications such as financial trading systems, AI processing, live streaming, and cloud based services that require immediate responsiveness. It ensures predictable performance and stable operation across mission critical environments.

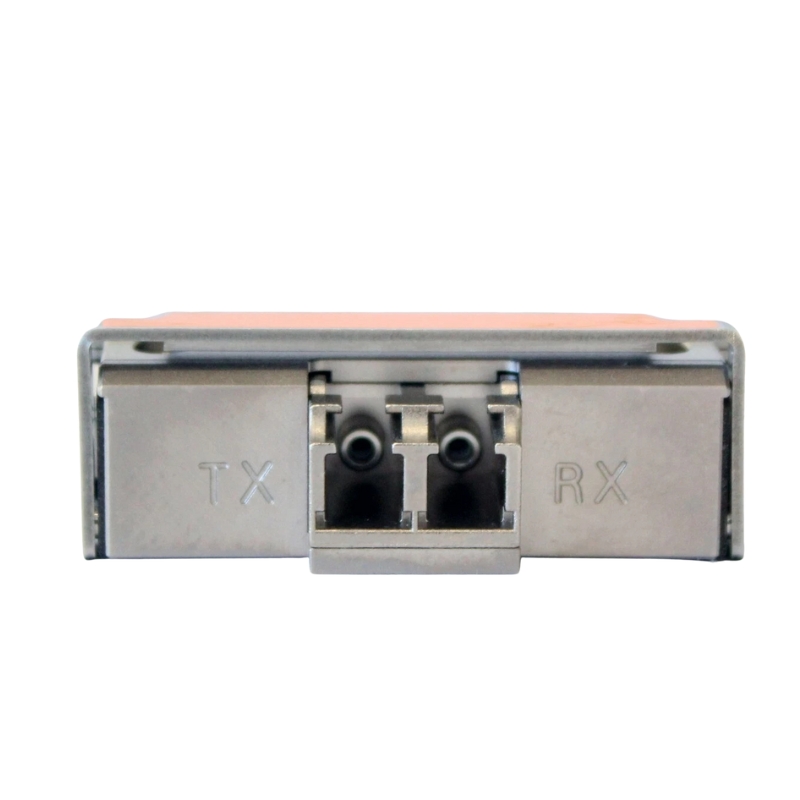

Duplex LC Optical Connectivity for Long Distance and High Reliability Transmission

The Juniper 740-062357 transceiver utilizes duplex LC optical connectors, enabling reliable point to point communication over single mode fiber. This design supports long distance transmission while maintaining high signal quality and low attenuation, making it suitable for inter data center connectivity and enterprise backbone networks. The duplex LC interface is widely used in modern networking environments due to its compact design and dependable performance characteristics.

Optical Signal Transmission for Extended Reach Networking

The module ensures efficient optical signal transmission across long distance fiber links, maintaining signal integrity and reducing data loss. This allows organizations to connect remote facilities and distributed infrastructure with high speed optical connectivity. It enhances network reliability and supports scalable infrastructure deployment.

Enhanced Stability for Consistent Long Distance Communication

The transceiver provides enhanced signal stability, ensuring consistent performance across extended fiber connections. This minimizes interference and maintains reliable communication in enterprise and carrier grade environments. It supports dependable long range networking solutions.

QSFP28 Pluggable Form Factor for High Density Deployment and Flexibility

The QSFP28 form factor of the Juniper 740-062357 module is designed for high density networking environments, allowing multiple transceivers to be installed within a single networking device. This compact architecture significantly increases port density while reducing physical space requirements in data center racks and network cabinets. The pluggable design ensures flexibility, easy installation, and simplified maintenance across large scale deployments.

Continuous Network Operation

The module supports hot swappable functionality, allowing it to be installed or removed without interrupting network operations. This ensures continuous service availability and minimizes downtime during maintenance or upgrades. It enhances operational efficiency and supports high availability networking environments.

Compact Design for Data Center Space Utilization

The compact QSFP28 design enables efficient deployment in hyperscale data centers where maximizing port density and minimizing physical footprint are critical. This supports scalable infrastructure growth and efficient hardware utilization. It improves overall data center performance and organization.

Data Center Interconnect and Backbone Networks

The Juniper 740-062357 module is designed for long reach optical performance, making it suitable for data center interconnect, enterprise backbone networks, and service provider infrastructure. It enables high speed communication between geographically distributed locations, ensuring efficient data transfer across large scale environments. This capability is essential for organizations that require reliable connectivity across multiple sites and centralized network management.

Reliable Inter Data Center Connectivity for Distributed Infrastructure

The module enables reliable communication between data centers, supporting workload distribution, data replication, and disaster recovery operations. This ensures business continuity and enhances overall infrastructure resilience. It improves operational efficiency across enterprise environments.

High Speed Backbone Connectivity for Service Provider Networks

The transceiver provides high speed backbone connectivity for service provider networks, enabling efficient data transport across core infrastructure. This supports scalable network architectures capable of handling increasing traffic demands. It ensures stable and high performance communication across backbone networks.

Juniper Networking Platforms for Seamless Integration

The Juniper 740-062357 QSFP28 module is fully compatible with a wide range of Juniper networking platforms, ensuring seamless integration into existing infrastructure. This compatibility simplifies deployment and ensures consistent performance across supported devices in enterprise and carrier environments. The plug and play design allows rapid installation and immediate operational readiness without complex configuration requirements.

Deployment for Simplified Network Expansion

The module supports plug and play functionality, allowing automatic detection by compatible systems. This reduces deployment time and simplifies network expansion processes for IT teams managing large scale environments. It improves operational efficiency and reduces configuration complexity.

Stable Performance Across Switching and Routing Platforms

The transceiver delivers stable performance across supported networking platforms, ensuring reliable connectivity in diverse deployment scenarios. This ensures consistent communication quality and predictable network behavior. It supports dependable operation in enterprise and service provider environments.

Integration with WAN Technologies and Enterprise Networking Systems

The Juniper 740-062357 module integrates effectively with WAN technologies and enterprise networking systems such as HWIC-4SHDSL, enabling comprehensive networking solutions that combine high speed optical connectivity with wide area network capabilities. This integration supports unified communication across distributed enterprise infrastructures. It ensures efficient data flow across multiple network layers and supports advanced networking architectures.

Data Center and Remote Site Connectivity

The combination of optical transceivers and WAN technologies ensures optimized data flow between data centers and remote locations, improving overall network performance and reducing latency. This enhances communication efficiency and supports business critical operations. It ensures consistent performance across enterprise infrastructure environments.

Scalable Infrastructure for Expanding Enterprise Networking Requirements

The integration of optical networking modules with WAN solutions provides a scalable infrastructure that allows organizations to expand their capabilities as business needs evolve. This ensures long term adaptability and supports continuous improvement in network performance. It provides a future ready foundation for modern digital enterprise environments.

Enterprise Grade Reliability and High Availability

The Juniper Networks 740-062357 100 Gigabit Ethernet QSFP28 Optical Transceiver Module is built to deliver enterprise grade reliability, ensuring consistent performance in environments where uptime is critical. Its robust design minimizes downtime and supports continuous operation under heavy workloads and demanding traffic conditions. The module is suitable for data centers, enterprise networks, and service provider infrastructures that require dependable high speed connectivity.

High Availability Design for Continuous Network Operation

The module supports high availability network design by ensuring stable optical connections that maintain continuous data transmission even under demanding conditions. This enhances network resilience and supports uninterrupted business operations. It ensures reliable performance for critical enterprise applications and services.
