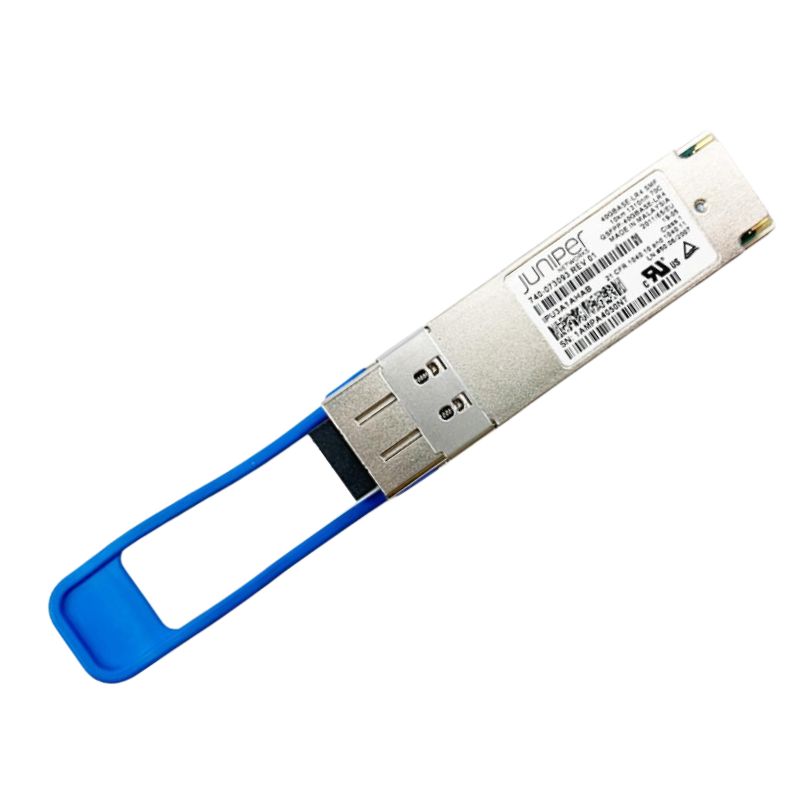

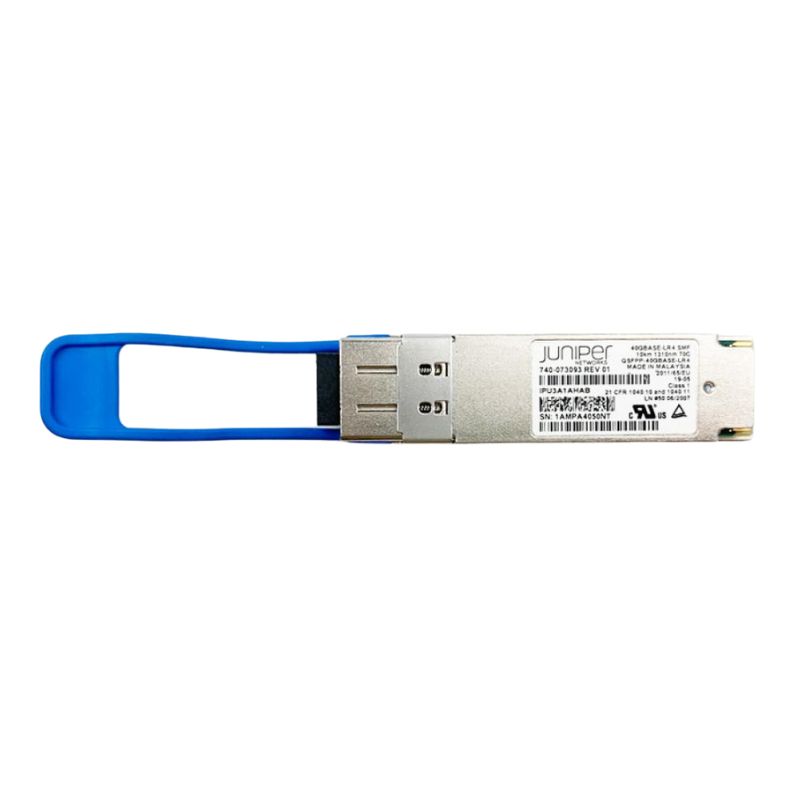

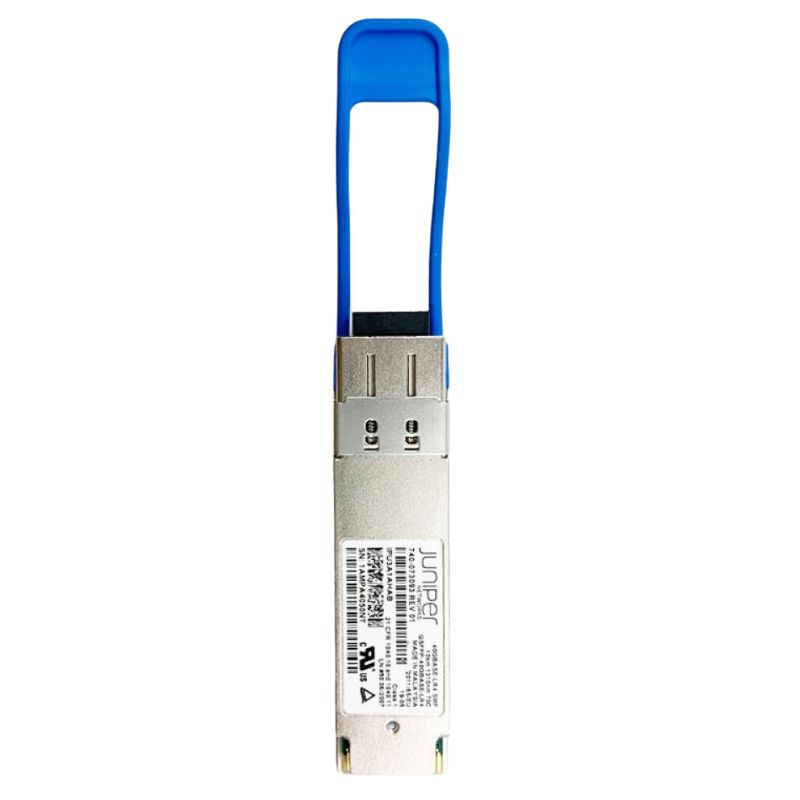

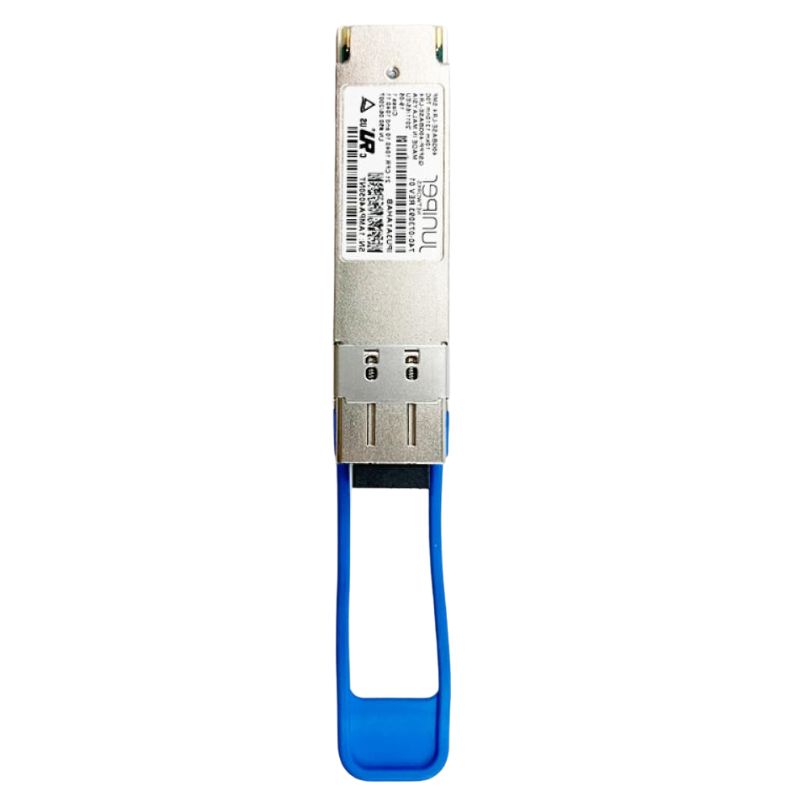

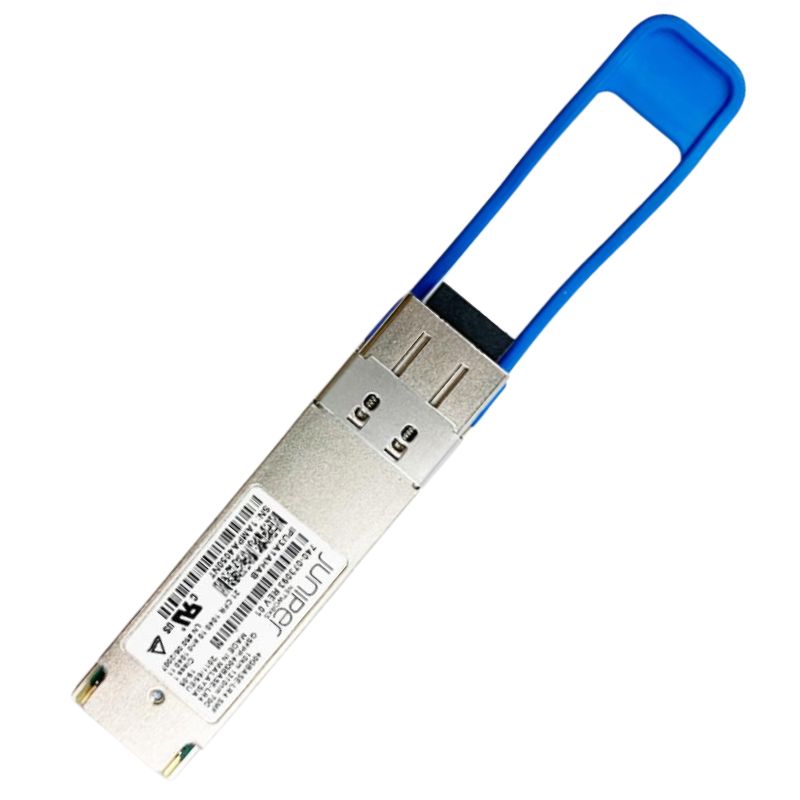

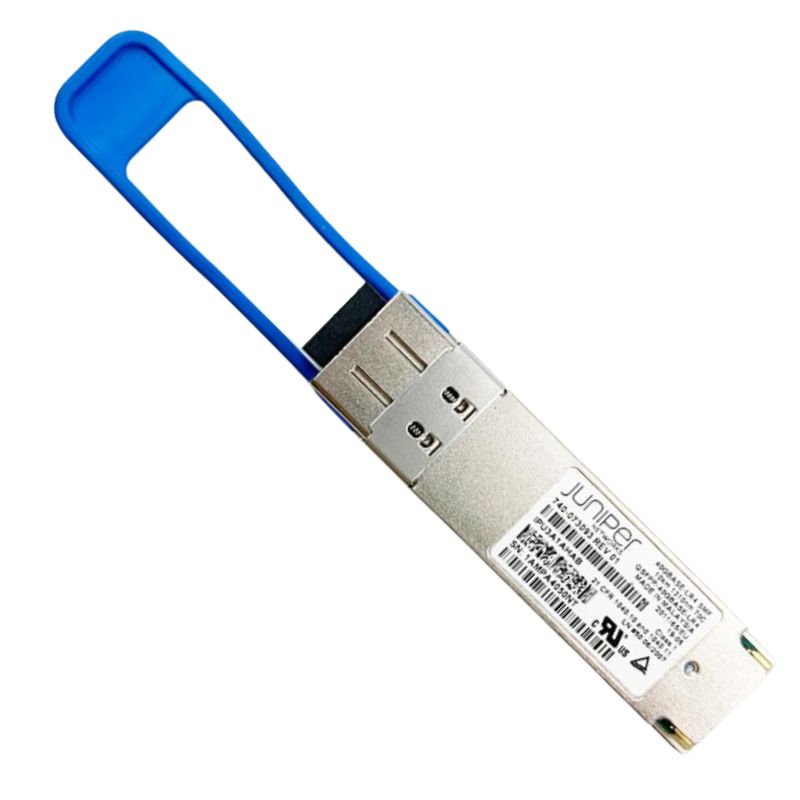

740-073093 Juniper Networks 40G QSFP+ LR4 Optics Transceiver Module

Overview of Juniper Networks 740-073093 Optical Module

The Juniper Networks 740-073093 QSFP+ LR4 transceiver is a high-performance pluggable optics module engineered for long-range Ethernet connectivity. Supporting 40 Gigabit Ethernet, it ensures reliable transmission across single-mode fiber, making it suitable for enterprise and data center applications.

General Information

• Manufacturer: Juniper Networks
• Part Number: 740-073093
• Category: Ethernet Optical Transceiver

Technical Information

Performance & Speed

• Data Rate: 40 Gigabit Ethernet
• Breakout Capability: Not supported
• Form Factor: QSFP+
• Connector Type: Duplex LC
• Monitoring: Optical monitoring available

Standards Compliance

• IEEE 802.3ba-2010
• Ethernet/OTN standard compatibility

Optical Specifications

• Transmitter Wavelengths:
  • 1264.5 nm – 1277.5 nm
  • 1284.5 nm – 1297.5 nm
  • 1304.5 nm – 1317.5 nm
  • 1324.5 nm – 1337.5 nm
• Transmitter Output Power (per lane): Min –7 dBm, Max 2.3 dBm
• Receiver Input Power (per lane): Min –13.7 dBm, Max 2.3 dBm

Cabling & Fiber

Supported Fiber Types

• Cable Type: SMF (Single-Mode Fiber)
• Core/Cladding: 9/125 µm
• Distance: Up to 10 km

Power & Environmental Specifications

Power Consumption

• Maximum Consumption: 3.5 W

Temperature Range

• Operating: 0° C to 70° C
• Storage: –40° C to 85° C

Juniper Networks 740-073093 Optics Transceiver Module

The Juniper Networks 740-073093 40G QSFP+ LR4 pluggable optics transceiver module represents a high-performance optical communication solution engineered for modern enterprise, data center, and service provider environments. Designed to support 40 Gigabit Ethernet connectivity over long distances, this optical transceiver module delivers reliable, scalable, and efficient data transmission capabilities across single-mode fiber infrastructure. Its QSFP+ (Quad Small Form-Factor Pluggable Plus) design ensures compact integration while maintaining high throughput, making it ideal for high-density networking environments.

Core Functional Architecture

The module operates using four independent optical lanes, each transmitting data at 10 Gbps, which are multiplexed into a single 40 Gbps signal. This multiplexing mechanism utilizes advanced wavelength division multiplexing (WDM) technology to transmit signals over different wavelengths on a single fiber pair. The LR4 designation indicates long-range capability, typically supporting transmission distances up to 10 kilometers over single-mode fiber, ensuring robust performance across extended network links.

Optical Transmission Technology

At the heart of the 740-073093 module lies a sophisticated optical engine designed to deliver consistent signal integrity and minimal latency. The transceiver employs distributed feedback (DFB) lasers, which operate at multiple wavelengths to facilitate efficient multiplexing. These wavelengths are combined into a single optical stream, allowing seamless transmission without signal interference. On the receiving end, a demultiplexer separates the wavelengths back into individual data streams, ensuring accurate data reconstruction.

Precision Engineering for Signal Integrity

Signal integrity is a critical requirement in high-speed networking, and this module incorporates advanced error correction mechanisms and optical filtering techniques to maintain low bit error rates. The precision alignment of optical components ensures minimal insertion loss and optimal performance even in challenging network conditions. This design minimizes packet loss and enhances overall network reliability.

Performance Characteristics and Specifications

The Juniper Networks 740-073093 QSFP+ LR4 transceiver module is engineered to meet stringent performance standards required in enterprise-grade and carrier-grade deployments. Its capabilities are aligned with IEEE 802.3ba standards for 40 Gigabit Ethernet, ensuring compatibility with a wide range of networking equipment.

High-Speed Data Transmission

The module supports a data rate of 40 Gbps, achieved through four parallel channels. Each channel operates independently at 10 Gbps, allowing efficient load balancing and improved performance across network traffic streams. This architecture enables high throughput while maintaining stability under heavy workloads.

Extended Reach Capabilities

With support for transmission distances of up to 10 kilometers over single-mode fiber, the LR4 transceiver is suitable for campus networks, metropolitan area networks, and inter-building connectivity. Its extended reach reduces the need for signal regeneration or amplification, lowering infrastructure complexity and operational costs.

Low Power Consumption Efficiency

Despite its high-performance capabilities, the module is designed with power efficiency in mind. It operates within a defined power envelope, reducing heat generation and minimizing cooling requirements. This contributes to improved energy efficiency in data centers and helps organizations reduce operational expenses.

Compatibility and Integration Flexibility

The 740-073093 QSFP+ LR4 module is designed for seamless integration with a wide range of networking devices, including switches, routers, and optical transport platforms. Its standardized QSFP+ form factor ensures compatibility with various hardware configurations, allowing flexible deployment across diverse network environments.

Interoperability with Networking Equipment

This optical transceiver is fully compatible with systems that support QSFP+ interfaces and adhere to industry standards. It can be deployed in aggregation layers, core networks, and high-performance computing environments without requiring specialized configurations. This interoperability simplifies network upgrades and expansions.

Hot-Swappable Design Advantages

The module features a hot-swappable design, enabling installation or replacement without powering down the host device. This capability minimizes downtime and ensures continuous network operation, which is essential in mission-critical environments.

Plug-and-Play Deployment

The plug-and-play nature of the QSFP+ LR4 module allows rapid deployment, reducing installation time and complexity. Network administrators can quickly integrate the module into existing infrastructure, accelerating network scaling initiatives.

Application Scenarios and Use Cases

The versatility of the Juniper Networks 740-073093 module makes it suitable for a wide range of applications across various industries. Its high-speed performance and long-distance capabilities address the demands of modern networking environments.

Data Center Interconnects

In data centers, the module is commonly used for interconnecting switches and storage systems across different racks or facilities. Its ability to transmit data over long distances without signal degradation makes it ideal for large-scale data center deployments.

Enterprise Network Backbone

Enterprises utilize this transceiver for backbone connectivity, linking core switches and routers to ensure high-speed data flow across departments and locations. Its reliability and performance contribute to efficient business operations.

Service Provider Networks

Telecommunication service providers deploy LR4 transceivers in metropolitan and wide-area networks to deliver high-speed connectivity to customers. The module supports bandwidth-intensive applications such as video streaming, cloud computing, and online services.

Design and Build Quality

The physical construction of the 740-073093 QSFP+ LR4 module reflects Juniper Networks' commitment to quality and durability. The module is engineered to withstand demanding operating conditions while maintaining consistent performance.

Compact Form Factor

The QSFP+ design ensures a compact footprint, allowing high port density in networking equipment. This is particularly beneficial in data centers where space optimization is crucial.

Thermal Management Efficiency

Effective thermal management is achieved through advanced heat dissipation mechanisms. The module is designed to operate within specified temperature ranges, ensuring stability and longevity even under continuous high-load conditions.

Durable Construction Materials

High-quality materials are used in the construction of the module to ensure resistance to environmental factors such as temperature fluctuations and mechanical stress. This durability enhances the lifespan of the transceiver and reduces maintenance requirements.

Standards Compliance

The Juniper Networks 740-073093 module complies with industry standards, ensuring interoperability and reliability across various networking environments. Adherence to these standards guarantees consistent performance and compatibility with certified equipment.

IEEE and MSA Standards Alignment

The module aligns with IEEE 802.3ba standards for 40 Gigabit Ethernet and follows Multi-Source Agreement (MSA) specifications for QSFP+ transceivers. This ensures compatibility with a broad ecosystem of networking devices.

Safety and Environmental Certifications

The transceiver meets safety and environmental regulations, including RoHS compliance, which restricts the use of hazardous substances. This makes it suitable for deployment in environmentally conscious organizations.

Quality Assurance Testing

Each module undergoes rigorous testing to ensure performance consistency and reliability. These tests include optical performance validation, temperature stress testing, and compatibility verification with supported devices.

Advantages in Modern Networking Infrastructure

The adoption of the 740-073093 QSFP+ LR4 module offers numerous advantages for organizations seeking to enhance their networking capabilities. Its features are tailored to meet the evolving demands of high-speed data communication.

Scalability for Future Growth

The module supports scalable network architectures, enabling organizations to expand their infrastructure without significant redesign. Its compatibility with existing systems ensures a smooth transition to higher bandwidth capabilities.

Cost-Effective Deployment

By supporting long-distance transmission over single-mode fiber, the module reduces the need for additional networking equipment such as repeaters or amplifiers. This lowers both capital and operational expenditures.

Enhanced Network Reliability

The advanced optical design and robust construction contribute to high reliability, minimizing downtime and ensuring consistent network performance. This is essential for mission-critical applications that require uninterrupted connectivity.
