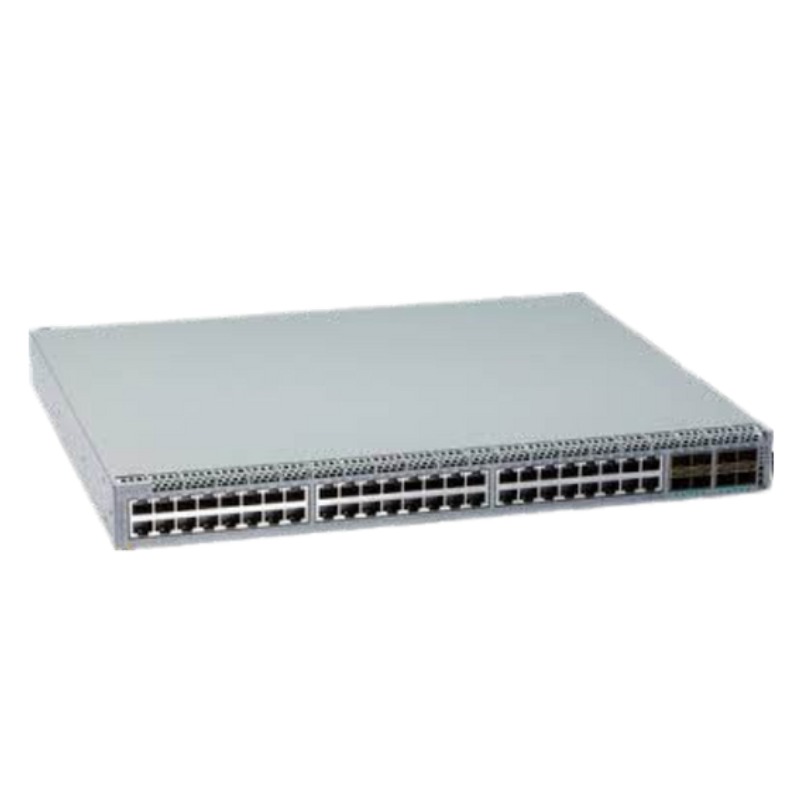

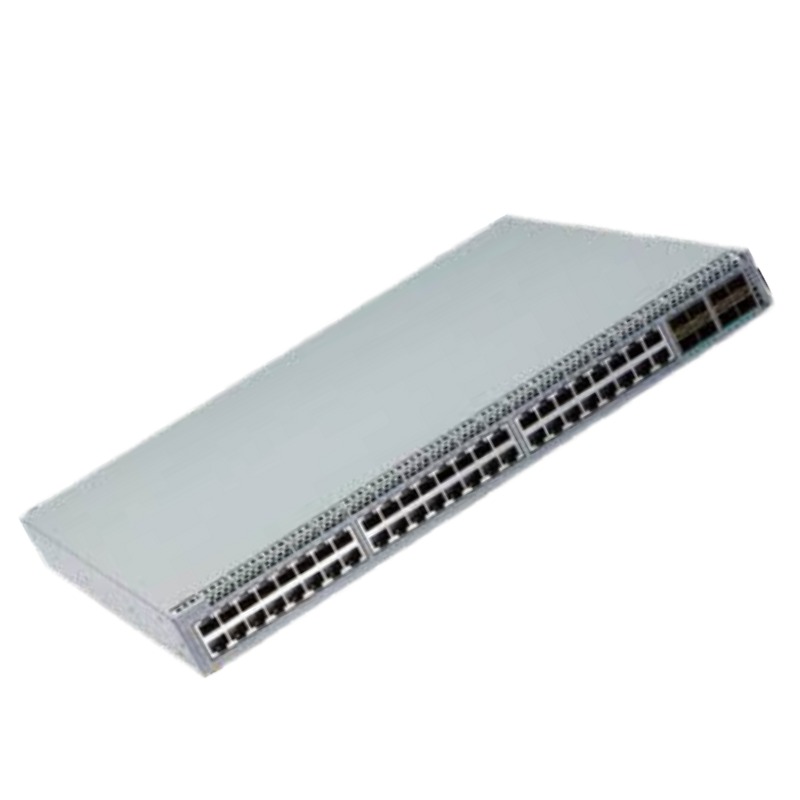

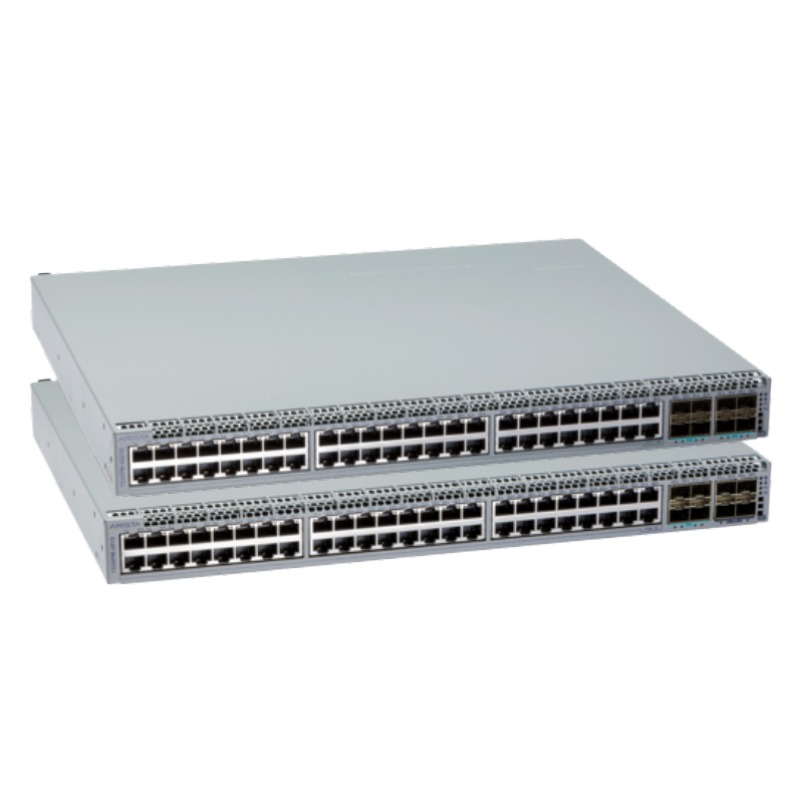

Arista CCS-722XPM-48Y4-F 722XPM, 48 Ports 1G 30W POE Switch.

Arista CCS-722XPM-48Y4-F High-Performance Ethernet Switch

Enterprise-Grade Network Switching Solution

The Arista CCS-722XPM-48Y4-F is a robust, high-density Ethernet switch engineered for modern enterprise and data center environments. Built to deliver scalable connectivity, advanced security, and energy-efficient performance, this model is designed for demanding Layer 2 and Layer 3 networking deployments.

Key Product Highlights

• Manufacturer: Arista Networks
• Part Number / SKU: CCS-722XPM-48Y4-F
• Device Type: Managed Network Switch
• High-speed uplink and access port combination
• Integrated MACsec security support
• Front-to-rear airflow optimized cooling design

Port Configuration and Connectivity Features

High-Density 1G PoE Access Ports

This switch includes 48 x 1G Ethernet ports supporting up to 30W Power over Ethernet (PoE), enabling seamless connectivity for IP phones, wireless access points, cameras, and other powered network devices.

Advanced Uplink Flexibility

• 4 x 25G SFP uplink ports for high-speed backbone integration
• 4 x 10G SFP+ ports for scalable network expansion
• Optimized bandwidth distribution for core and aggregation layers

Network Optimization Capabilities

• Low-latency switching architecture
• Efficient traffic segmentation and routing support
• Seamless integration with enterprise cloud and virtualization platforms

Performance and Security Capabilities

Advanced Data Protection with MACsec

The built-in MACsec encryption ensures secure Layer 2 communication, protecting sensitive data as it moves across the network infrastructure. This makes the switch suitable for secure enterprise and financial environments.

High Availability and Reliability

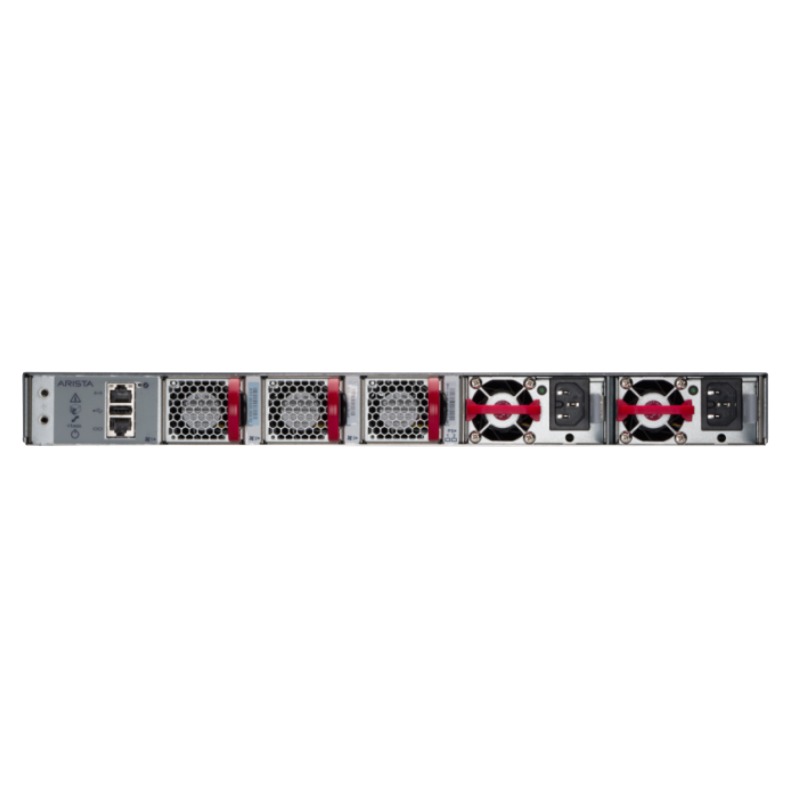

• Dual redundant AC power supply support
• Hot-swappable fan modules for continuous operation
• Enterprise-grade hardware durability

Cooling and Airflow Design

• Front-to-rear airflow system for optimized thermal management
• Three high-efficiency fan modules (fan-7000-f)

Hardware Components and Accessories

Included Hardware Package

The Arista CCS-722XPM-48Y4-F is shipped as a complete networking solution with essential installation and power components included.

Standard In-The-Box Items

• 1 x CCS-722XPM-48Y4-F switch unit
• 2 x Power Supply Units (pwr-621-ac-red)
• 3 x Fan modules (fan-7000-f)

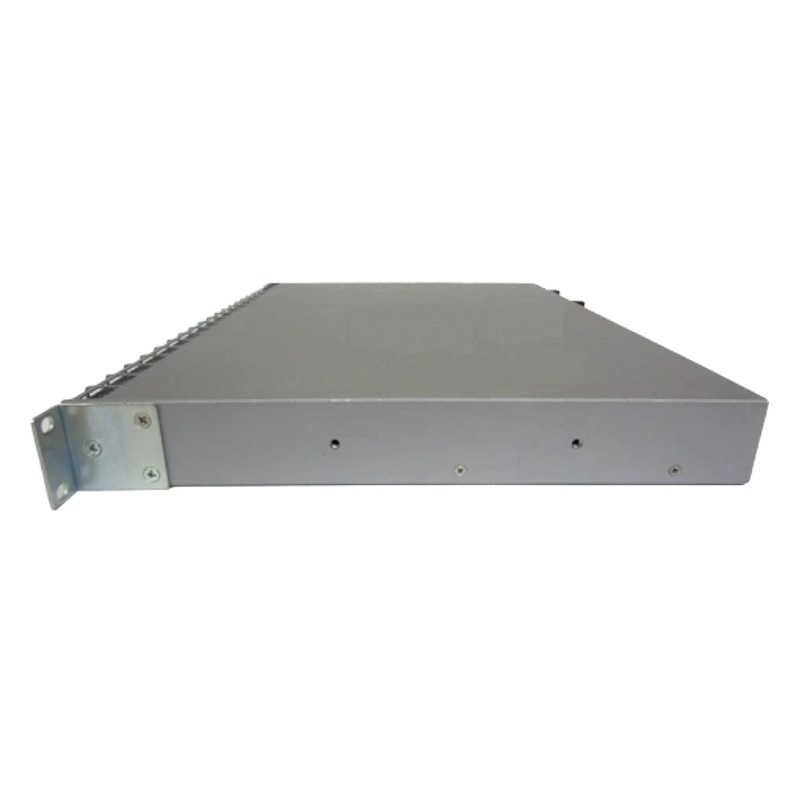

• 1 x Rack Mount Kit (rmk-7010)
• 2 x Power Cords (cab-notch)
• 1 x Console cable for management access

Deployment and Use Cases

Ideal Applications in Modern IT Infrastructure

This switch is optimized for enterprise networking environments requiring high port density, reliable PoE delivery, and fast uplink capabilities.

Common Deployment Scenarios

• Data center access layer switching
• Enterprise campus network distribution
• VoIP and IP surveillance system integration
• Cloud-connected infrastructure environments

Operational Advantages

• Scalable architecture for growing networks
• Reduced downtime through redundant components
• Efficient power and cooling management

Technical Summary

Core Engineering Specifications

• 48 x 1G PoE Ethernet ports (30W each)
• 4 x 25G high-speed uplinks
• 4 x 10G SFP+ expansion ports
• MACsec hardware-based encryption
• AC-powered redundant system design
• Front-to-rear airflow thermal architecture

Arista CCS-722XPM-48Y4-F 722XPM Switch Platform

The Arista CCS-722XPM-48Y4-F is a high-performance enterprise access and aggregation switch engineered for modern campus networks, high-density enterprise deployments, and secure edge infrastructure. Built by Arista Networks, this platform is designed to deliver advanced Layer 2 and Layer 3 capabilities, high-speed uplink connectivity, robust Power over Ethernet (PoE) support, and enhanced security features such as MACsec encryption. It is optimized for organizations requiring scalable, resilient, and cloud-managed network switching with predictable performance and long-term operational efficiency.

This switch integrates 48 ports of 1G PoE (30W per port), 4 high-speed 25G SFP uplink ports, and 4 10G SFP+ ports, making it an ideal choice for converged network environments where wired access, wireless access points, IP surveillance systems, and IoT devices coexist on the same infrastructure.

High-Density Access Layer Switching for Enterprise Networks

The CCS-722XPM-48Y4-F is specifically designed to serve as a high-density access layer switch in enterprise campus architectures. It enables organizations to consolidate wired and wireless traffic into a single unified switching platform. With 48 Gigabit Ethernet ports supporting PoE at up to 30W per port, it can efficiently power a wide range of connected devices such as Wi-Fi 6 access points, VoIP phones, surveillance cameras, and building automation systems.

Enterprise Access Layer Role

At the access layer, switches must provide reliable connectivity, low latency, and consistent power delivery. The CCS-722XPM-48Y4-F ensures that endpoint devices receive uninterrupted network access and sufficient power without the need for additional power injectors. This reduces infrastructure complexity while improving scalability and maintainability.

Optimized for Modern Campus Architecture

Modern campus networks rely heavily on high-bandwidth uplinks and distributed edge computing. The inclusion of 25G uplink ports enables seamless aggregation to distribution or core switches, ensuring that bandwidth bottlenecks are minimized even in high-traffic environments. Meanwhile, the 10G SFP+ ports provide flexible connectivity for legacy aggregation or specialized network segments.

Power over Ethernet (PoE) Capabilities and Device Support

One of the defining features of the Arista CCS-722XPM-48Y4-F switch is its robust PoE capability. Each of its 48 access ports supports up to 30W of power delivery, enabling compatibility with high-power network devices. This makes it suitable for enterprise environments that rely heavily on powered endpoints.

Supporting Modern Endpoint Devices

The switch is capable of powering a wide range of devices including Wi-Fi 6 and Wi-Fi 6E access points, PTZ security cameras, biometric access control systems, VoIP phones, and IoT sensors. By combining data and power delivery over a single Ethernet cable, organizations can significantly reduce installation costs and simplify cabling requirements.

PoE Efficiency and Power Management

Advanced power management features allow administrators to monitor and control power allocation per port. Dynamic power allocation ensures that devices receive only the power they require, optimizing overall energy consumption. This is particularly important in large-scale deployments where power efficiency translates into significant operational savings.

Smart Power Allocation Features

Smart PoE scheduling and prioritization enable critical devices to maintain uptime even during power budget constraints. Network administrators can define power priorities for surveillance systems or communication devices to ensure continuous operation during peak demand scenarios.

High-Speed Uplink Architecture with 25G and 10G Connectivity

The uplink architecture of the CCS-722XPM-48Y4-F is designed to support high-throughput aggregation and backbone connectivity. The inclusion of 4 x 25G SFP ports provides high-bandwidth uplinks suitable for modern data-heavy applications, while the 4 x 10G SFP+ ports offer flexible integration with existing network infrastructure.

25G Uplink Advantages in Enterprise Environments

The 25G uplinks are particularly beneficial in environments with high-density wireless deployments, data-intensive applications, and cloud-connected services. These uplinks ensure that traffic from multiple access ports can be aggregated efficiently without congestion or packet loss.

10G SFP+ Port Flexibility

The inclusion of 10G SFP+ ports provides backward compatibility with existing enterprise network infrastructures. This allows organizations to gradually upgrade their networks without requiring full infrastructure replacement, reducing capital expenditure while maintaining performance continuity.

Advanced Security with MACsec Encryption

Security is a critical component of modern network infrastructure, and the CCS-722XPM-48Y4-F integrates MACsec (Media Access Control Security) to provide hardware-based encryption for data traveling across Ethernet links. MACsec ensures that sensitive data is protected from interception and tampering at the link layer.

Layer 2 Encryption for Enterprise Security

MACsec operates at Layer 2 of the OSI model, providing encryption between directly connected devices. This is especially important in campus environments where physical access to network infrastructure may not always be fully controlled.

Data Integrity and Confidentiality

With MACsec enabled, data packets are encrypted and authenticated, ensuring both confidentiality and integrity. This prevents unauthorized access, man-in-the-middle attacks, and data manipulation within the local network infrastructure.

Front-to-Rear Airflow Design for Data Center Integration

The CCS-722XPM-48Y4-F features a front-to-rear airflow design that aligns with standard data center cooling architectures. This ensures efficient thermal management and compatibility with rack-based cooling systems commonly used in enterprise and data center environments.

Thermal Efficiency and Cooling Optimization

Proper airflow direction is essential for maintaining optimal operating temperatures. Front-to-rear cooling ensures that cold air intake occurs at the front of the switch and hot air is expelled at the rear, aligning with server rack cooling strategies.

Improved Hardware Longevity

Efficient thermal management contributes to extended hardware lifespan and reduced failure rates. By maintaining stable operating temperatures, the switch ensures consistent performance even under heavy load conditions.

Arista EOS Operating System and Network Intelligence

Like other platforms developed by Arista Networks, the CCS-722XPM-48Y4-F runs on the Arista Extensible Operating System (EOS), which provides a highly programmable and modular networking environment.

Automation and Programmability

EOS enables network automation through APIs, scripting, and integration with orchestration tools. This makes it ideal for modern IT environments that rely on infrastructure-as-code principles.

Consistency Across Network Layers

One of the key advantages of EOS is its single-image architecture, which ensures consistency across all devices. This reduces operational complexity and simplifies troubleshooting across large-scale deployments.

Scalability in Enterprise and Campus Deployments

The CCS-722XPM-48Y4-F is designed for scalability, allowing organizations to expand their network infrastructure without redesigning core architecture. Its combination of access ports and high-speed uplinks makes it suitable for both small deployments and large enterprise campuses.

Flexible Network Expansion

As network demands grow, additional switches can be integrated seamlessly into existing architectures. The high-speed uplinks ensure that aggregation layers can scale without performance degradation.

Cloud-Connected Enterprise Networks

The switch supports cloud-managed networking environments, enabling centralized visibility and control. This is particularly useful for organizations with multiple branch locations or distributed infrastructure.

Quality of Service (QoS) and Traffic Management

The CCS-722XPM-48Y4-F provides advanced QoS capabilities to ensure that critical traffic receives priority over less time-sensitive data streams. This is essential in converged networks where voice, video, and data coexist.

Traffic Prioritization Strategies

Administrators can define traffic classes and assign priority levels based on application requirements. This ensures that latency-sensitive applications such as VoIP and video conferencing maintain optimal performance.

Bandwidth Optimization

Through intelligent traffic shaping and congestion management, the switch optimizes bandwidth usage across all connected devices, ensuring efficient network performance even during peak demand periods.

Enterprise Use Cases and Deployment Scenarios

The versatility of the CCS-722XPM-48Y4-F makes it suitable for a wide range of enterprise use cases including corporate offices, educational institutions, healthcare facilities, retail environments, and smart buildings.

Corporate Campus Networks

In corporate environments, the switch serves as a reliable access layer solution that supports employee connectivity, collaboration tools, and unified communications systems.

Education and Research Networks

Educational institutions benefit from its ability to support high-density device environments, including student devices, smart classrooms, and campus-wide Wi-Fi infrastructure.

Healthcare Infrastructure

Hospitals and healthcare facilities rely on stable and secure networking for medical devices, patient monitoring systems, and administrative communication networks. MACsec encryption ensures sensitive data protection.
