BCM957414A4142CC Broadcom 2 Port SFP28 Ethernet PCI Express Interface Card

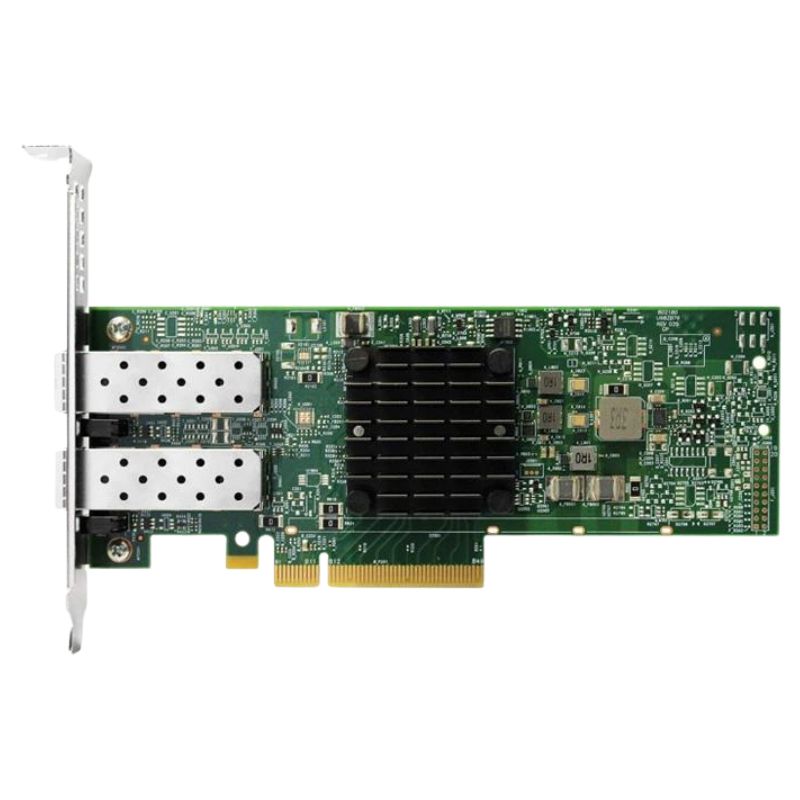

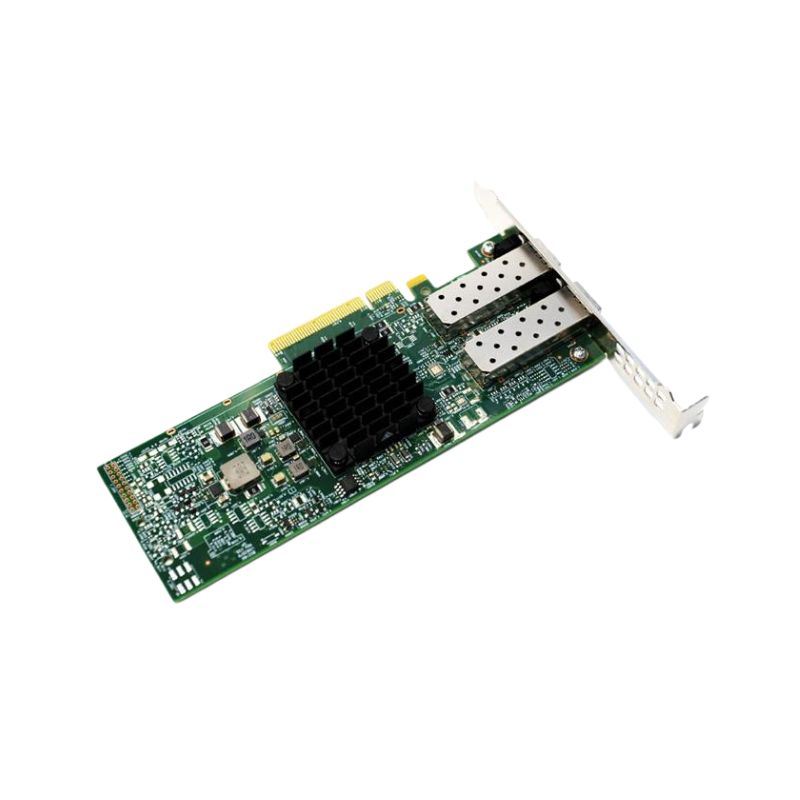

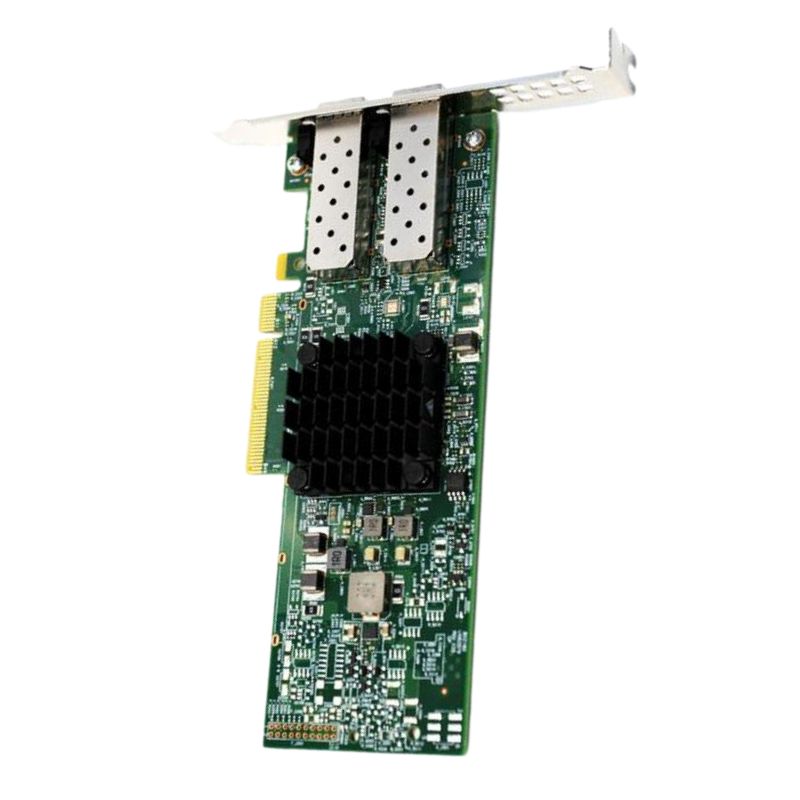

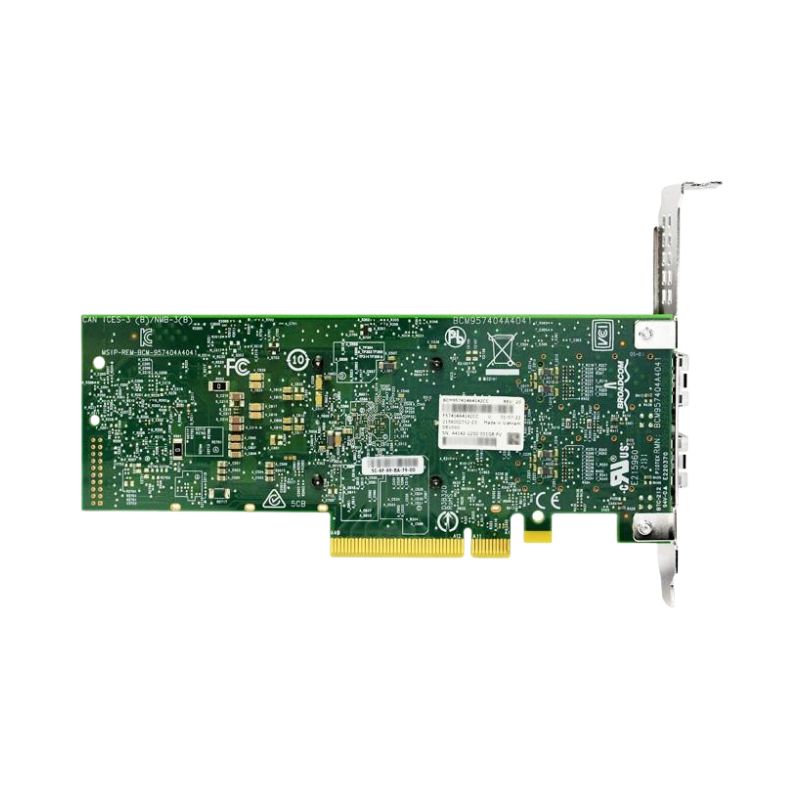

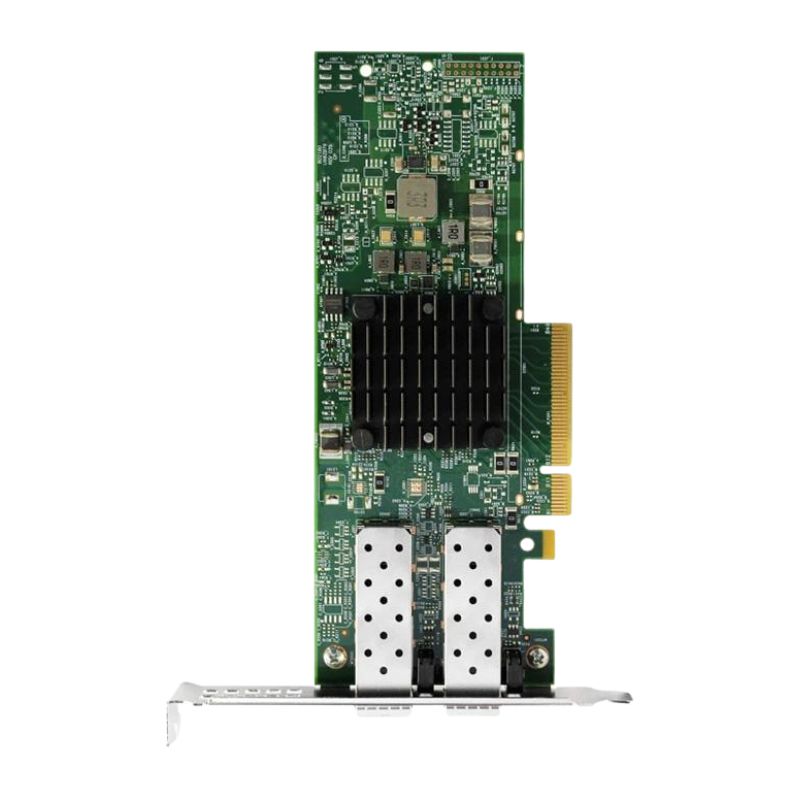

Overview of Broadcom BCM957414A4142CC 2-Port Adapter

The Broadcom BCM957414A4142CC is a high-performance dual-port Ethernet network interface card designed for enterprise servers, cloud computing environments, virtualization platforms, and modern data center infrastructures. It delivers ultra-fast 25Gb/s connectivity with advanced hardware acceleration and efficient traffic processing capabilities.

General Information

• Manufacturer: Broadcom
• Part Number: BCM957414A4142CC
• Product Type: Network Interface Card / Ethernet Adapter

Technical Specifications

• Interface Type: Dual-Port 25Gb/s SFP28
• Chipset Family: Broadcom BCM57414
• 25G SFP28 Support: high-speed optical transceiver
• 10G SFP+ Compatibility – backward support
• Copper DAC Support – direct attach cable connectivity
• SFF-8402 Compliance – industry-standard
• PCI Express 3.0 x8 Interface – high-bandwidth

Virtualization and Offload Features

• SR-IOV support with up to 128 virtual functions for VM scalability
• Function Level Reset (FLR) support for device reset control
• vSwitch acceleration for optimized virtual networking
• Tunnel offload support including VXLAN, NVGRE, Geneve, GRE encapsulation/decapsulation
• Tunnel-aware stateless offload engine for improved packet processing

Performance And Hardware Acceleration

• TruFlow™ engine – intelligent flow processing acceleration
• IPv4/IPv6 offload – reduced CPU workload
• TCP/UDP/IP checksum offload – hardware-based packet validation
• LSO (Large Send Offload) – optimized packet transmission
• LRO (Large Receive Offload) – improved receive performance
• TSO (TCP Segmentation Offload) – efficient segmentation handling
• RSS (Receive Side Scaling) – multi-core traffic distribution
• TSS (Transmit Side Scaling) – optimized transmit processing

Data Center And Network Optimization

• Data Center Bridging (DCB) – PFC, ETS, QCN, DCBx support
• Advanced congestion control – improved traffic stability
• Multi-queue architecture – better load balancing
• VMQ and NetQueue support – virtualization optimization
• Jumbo frames up to 9KB – enhanced payload efficiency
• Interrupt coalescing – reduced CPU interrupt load

System Integration and Management Features

• PXE boot support – network-based OS deployment
• UEFI boot compatibility – modern firmware support
• iSCSI boot support – storage boot capability
• SMBus 2.0 interface – system communication support
• MCTP over SMBus – management protocol support
• PCIe UART and KCS interfaces – hardware communication channels
• MSI and MSI-X interrupts – advanced interrupt handling

Highlights of Broadcom BCM957414A4142CC 25GB/S Adapter

The Broadcom BCM957414A4142CC Dual-Port 25 GB/S SFP28 Ethernet PCI Express 3.0 x8 Network Interface Card is a high performance enterprise grade networking adapter designed for modern data center environments requiring ultra fast connectivity, low latency communication, and highly scalable network infrastructure. Built on Broadcom advanced Ethernet controller technology, this adapter delivers dual port 25 Gigabit per second SFP28 connectivity optimized for virtualization, cloud computing, storage networking, and AI workloads. It is engineered to provide stable, reliable, and efficient network performance in mission critical enterprise systems.

Dual-Port 25GB SFP28 Architecture For High Speed Enterprise

The dual-port 25 Gigabit SFP28 architecture enables simultaneous high speed data transmission across enterprise systems. Each port provides 25GbE performance, allowing efficient handling of large scale network traffic. This configuration enhances redundancy and load balancing in distributed environments. It ensures uninterrupted communication between servers, storage systems, and cloud platforms. Enterprises benefit from scalable and high performance network connectivity.

PCI Express 3.0 x8 Interface For High Bandwidth System Integration

The PCIe 3.0 x8 interface delivers a high speed communication pathway between the network adapter and host system. It ensures fast data transfer with minimal latency and maximum efficiency. This architecture supports large volume network workloads without performance degradation. It enhances packet processing and system responsiveness. Organizations benefit from optimized computing performance and stable network operations.

Broadcom Advanced Ethernet Controller Technology

The adapter is powered by Broadcom advanced Ethernet controller technology designed for high efficiency packet processing. It reduces CPU overhead by handling network tasks at the hardware level. This improves system performance and scalability in enterprise environments. It ensures stable operation under heavy workloads. Enterprises benefit from improved processing efficiency and reduced system bottlenecks.

Enterprise Grade Networking Performance

The BCM957414A4142CC adapter is designed for enterprise environments requiring stable and reliable network performance. It ensures consistent data transmission across mission critical workloads. High speed connectivity enhances application responsiveness and system efficiency. Reduced latency improves operational performance. Organizations benefit from dependable and scalable infrastructure connectivity.

High Density Server Environments

Virtualized environments require robust networking capabilities to support multiple workloads simultaneously. This adapter provides high bandwidth connectivity for efficient virtual machine communication. It enhances workload distribution across servers. Reduced network congestion improves virtualization performance. Enterprises benefit from improved scalability and resource utilization.

Cloud Infrastructure Support

The adapter supports modern cloud computing environments including hybrid and multi cloud architectures. It ensures fast and reliable communication between distributed systems. This enables seamless data synchronization and application consistency. High bandwidth improves cloud performance and scalability. Organizations benefit from improved cloud agility and operational efficiency.

Real Time Enterprise Applications

Low latency performance is critical for real time enterprise applications requiring immediate data exchange. The BCM957414A4142CC minimizes network delays for fast communication. It improves performance in transactional systems and analytics workloads. Reduced latency enhances system responsiveness and user experience. Enterprises benefit from faster operations and improved efficiency.

High Bandwidth Storage Networking

The adapter is optimized for storage intensive environments requiring fast and reliable data transfer. It enhances communication between servers and storage systems. This reduces bottlenecks and improves database performance. High bandwidth ensures efficient handling of large datasets. Organizations benefit from improved storage networking efficiency and faster data access.

Advanced Hardware Offload Engine

The Broadcom controller includes hardware offload capabilities that reduce CPU workload by processing network tasks directly on the adapter. This improves system efficiency and frees CPU resources for application processing. It enhances scalability in high demand environments. Reduced overhead improves system stability and responsiveness. Enterprises benefit from optimized computing resource utilization.

Scalable Network Architecture

The scalable design of this adapter supports expanding enterprise network requirements. It ensures compatibility with evolving data center architectures. Flexible integration allows seamless deployment in modern IT environments. This supports long term infrastructure scalability. Organizations benefit from future ready networking capabilities.

Energy Efficient Design For Sustainable Data Center

The adapter is engineered for energy efficiency while maintaining high performance output. It reduces power consumption in enterprise deployments. Efficient thermal design ensures stable operation under continuous workloads. This supports sustainable IT infrastructure practices. Enterprises benefit from reduced operational costs and improved energy efficiency.

Flexible Optical Network Deployment

The SFP28 interface supports high speed optical connectivity for flexible enterprise deployment. It integrates with a wide range of transceiver modules and fiber optic systems. This allows deployment across short and long distance network configurations. Flexible connectivity enhances infrastructure adaptability. Organizations benefit from scalable networking solutions.

Optimized Network Performance

The adapter includes intelligent traffic management features that optimize data flow across enterprise systems. It balances network load to prevent congestion and ensure stable performance. Optimized routing enhances throughput and system responsiveness. Efficient packet handling improves application performance. Enterprises benefit from improved network stability and efficiency.

Workload Optimization Through High Speed Networking

AI and machine learning workloads require high bandwidth connectivity for large scale data processing. This adapter supports fast data movement between compute nodes and storage systems. It improves training efficiency and reduces processing delays. High speed networking enhances distributed computing performance. Organizations benefit from accelerated AI and analytics workloads.

Data Center Efficiency Optimization Through Resource

The BCM957414A4142CC improves data center efficiency by optimizing network resource utilization. It reduces congestion and enhances workload distribution. Efficient networking improves system performance and scalability. This leads to better infrastructure stability. Enterprises benefit from optimized data center operations.

Enterprise Security And Stable Network Communication

Stable communication is essential for enterprise security and data integrity. The adapter ensures consistent data transmission across systems. It reduces packet loss and communication errors. Reliable connectivity supports enterprise compliance requirements. Organizations benefit from improved infrastructure stability and security.

Future Ready Networking Technology

The BCM957414A4142CC is designed to support evolving enterprise technologies and future IT requirements. Its high performance architecture ensures compatibility with next generation workloads. It supports continuous infrastructure modernization. Flexible deployment ensures long term scalability. Enterprises benefit from future ready networking capabilities.

Continuous Enterprise Operations

This network adapter is engineered for mission critical environments requiring uninterrupted performance. It delivers stable and consistent connectivity under heavy workloads. Hardware reliability reduces downtime risks and enhances operational continuity. It ensures dependable enterprise system operation. Organizations benefit from improved infrastructure reliability and business continuity.
