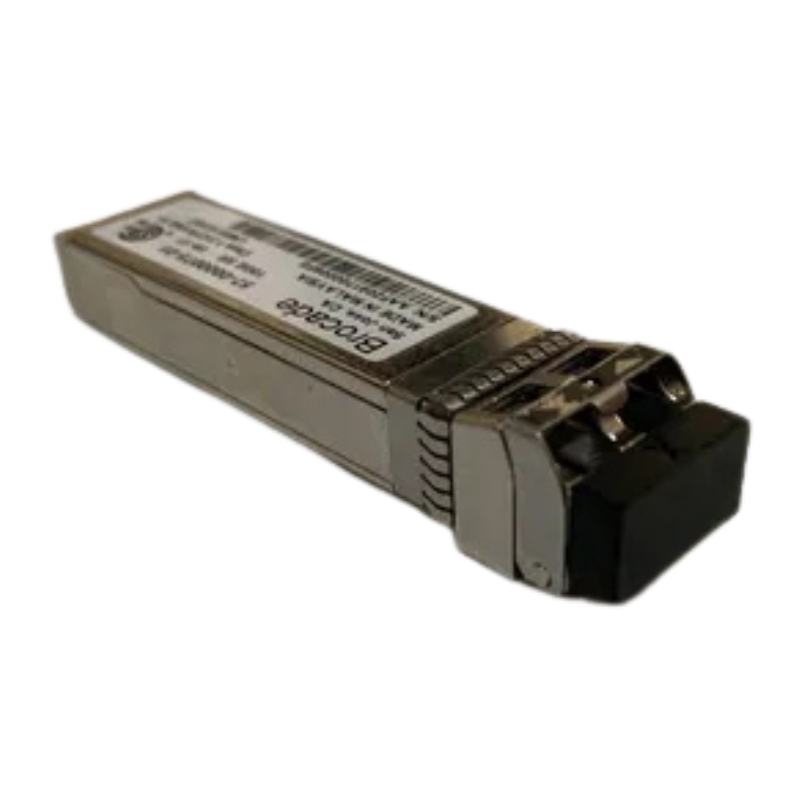

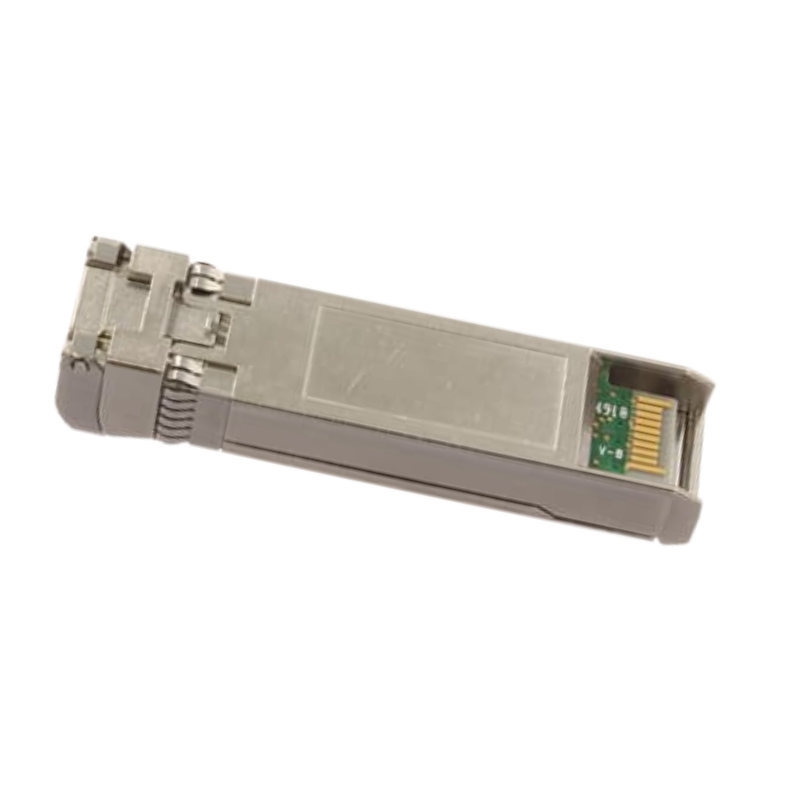

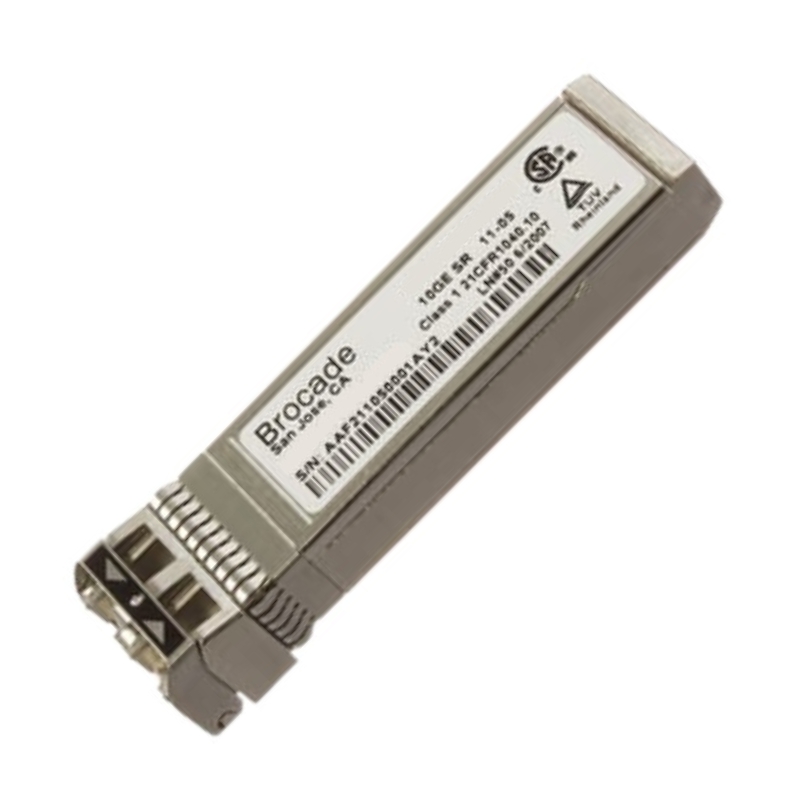

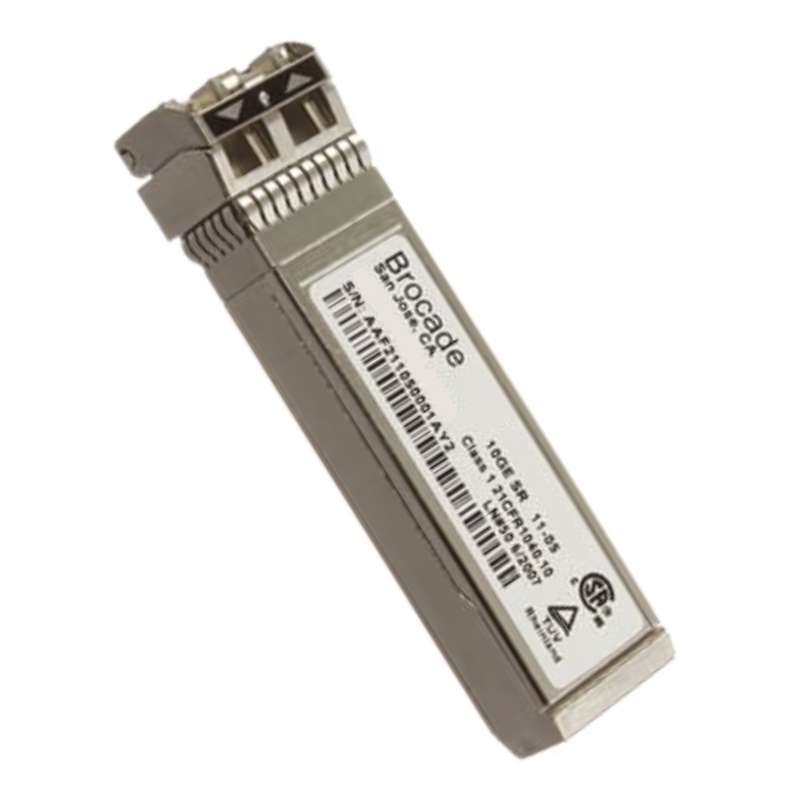

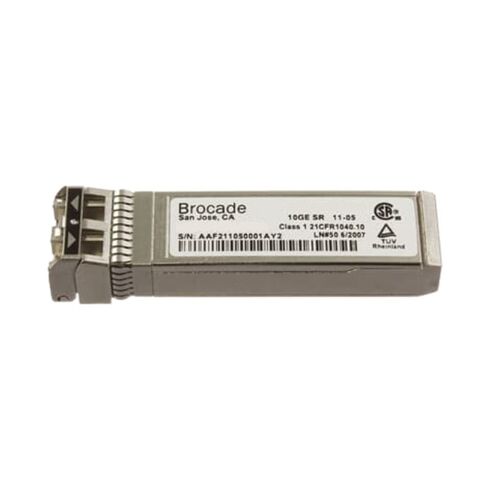

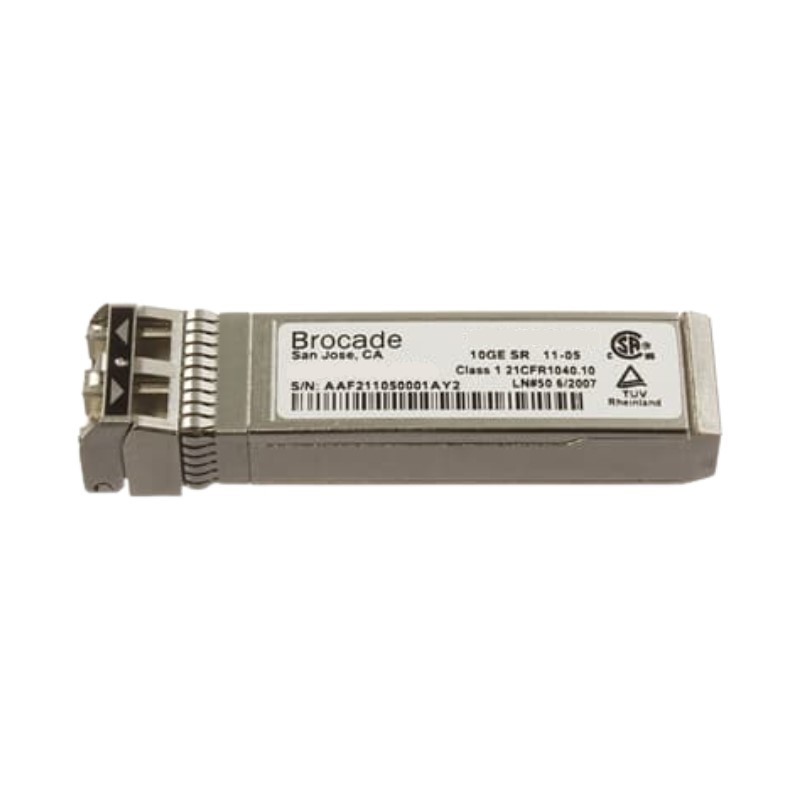

57-0000085-01 Brocade 10GB ZR SFP+ Transceiver.

Overview of Brocade 57-0000085-01 SFP+ Transceiver Module

The Brocade 57-0000085-01 SFP+ transceiver module is engineered to deliver robust 10 Gigabit Ethernet (10GbE) and STM-64 ZR optical transmission performance. Designed for long-distance, high-capacity data communication environments, this single-pack optical interface enhances backbone connectivity across enterprise, telecom, and data center infrastructures.

General Specification

• Manufacturer: Brocade
• Part Number: 57-0000085-01
• Device Type: Single Pack Transceiver

Key Functional Highlights

• Supports dual-rate transmission: 10GbE and STM-64 ZR standards
• Optimized for long-reach optical fiber communication
• Hot-pluggable SFP+ form factor for seamless deployment
• High stability for mission-critical networking systems
• Low power consumption with efficient thermal performance

Performance Advantages

• Reliable 10Gbps data throughput for uninterrupted connectivity
• ZR (Zirconium Reach) capability for long-distance fiber links
• Advanced optical components for reduced signal degradation
• Stable interoperability with Brocade networking hardware ecosystems

Ideal Network Scenarios

• Data center interconnect (DCI) applications
• Telecommunications backbone expansion
• Metro Ethernet infrastructure deployment
• High-speed enterprise campus networking

Engineering Excellence

• Precision-engineered optical transmitter and receiver components
• Durable casing designed for long-term operational reliability
• Optimized thermal dissipation to prevent overheating
• Stable performance under variable environmental conditions

Compatibility Benefits

• Works with Brocade enterprise-grade switching systems
• Supports standardized SFP+ ports across multiple platforms
• Easy installation without additional configuration tools
• Interoperable with fiber optic networking standards

Installation Highlights

• Hot-swappable design for uninterrupted network uptime
• No complex configuration required for activation
• Secure locking mechanism for stable port connection
• Quick deployment in scalable network environments

Common Application Areas

• Cloud data center interconnectivity
• High-capacity ISP transmission lines
• Carrier-grade optical networking systems
• Large-scale corporate network expansion

Operational Advantages in Real-World Deployment

• Improves network scalability and flexibility
• Reduces downtime through stable optical performance
• Supports bandwidth-intensive applications
• Enhances backbone network reliability

Long-Term Benefits

• Extended service life with durable optical components
• Reduced operational costs due to low power usage
• Minimal signal loss across long-distance fiber links
• High return on investment for enterprise networking setups

Optimization Features

• Improves overall network throughput and responsiveness
• Supports high-bandwidth data applications
• Enables seamless interconnection of distributed systems
• Strengthens backbone stability in complex architectures

Outline of Brocade 57-0000085-01 10GB SFP+ Transceiver

The Brocade 57-0000085-01 10GB and STM64 ZR SFP+ Transceiver Single Pack represents a high-performance optical networking component engineered for enterprise-grade data communication, telecom-grade optical transport, and long-distance fiber connectivity. This transceiver is designed to support 10 Gigabit Ethernet (10GbE) as well as STM-64 optical transport rates, making it a versatile solution for converged networking environments where both data center interconnectivity and carrier-grade transmission are required. Its ZR (Extended Reach) classification indicates its capability to operate over significantly long distances using single-mode fiber, typically up to tens of kilometers depending on fiber quality and network conditions.

As a part of Brocade’s optical transceiver portfolio, this module plays a crucial role in ensuring reliable, high-speed data transmission across backbone networks, metropolitan area networks (MANs), and storage area networks (SANs). The integration of 10GbE and STM-64 compatibility allows it to function seamlessly in hybrid infrastructures where legacy telecom systems coexist with modern Ethernet-based networks.

Core Architecture of the Brocade SFP+ ZR Transceiver

SFP+ Form Factor and Physical Integration

The SFP+ (Enhanced Small Form-Factor Pluggable) architecture is a compact, hot-swappable interface designed for high-speed data transmission. The Brocade 57-0000085-01 leverages this standardized form factor to ensure compatibility with a wide range of Brocade switches, routers, and optical transport equipment. The compact design allows dense port deployment, making it ideal for environments where space optimization is critical, such as data centers and telecom racks.

The physical engineering of the SFP+ module ensures minimal electromagnetic interference while maintaining stable optical signal integrity. Its metal housing is designed for thermal efficiency, enabling continuous operation under high network loads without performance degradation. The module's connector interface aligns precisely with LC duplex fiber connectors, ensuring secure optical alignment and reducing insertion loss.

Mechanical Stability and Hot-Swap Capability

One of the most important features of this transceiver is its hot-swappable capability, allowing network administrators to install or replace the module without shutting down the system. This feature significantly reduces downtime and supports continuous service availability in mission-critical environments. The mechanical latch design ensures a secure fit, preventing accidental disconnections during operation.

Durability and Environmental Tolerance

The module is engineered to operate under demanding environmental conditions, including variations in temperature, humidity, and vibration levels commonly found in telecom racks and industrial networking facilities. This durability ensures long-term operational stability, even in high-density deployments.

Optical Transmission Technology and Signal Performance

10 Gigabit Ethernet and STM-64 Compatibility

The Brocade 57-0000085-01 transceiver supports dual-mode functionality, enabling both 10 Gigabit Ethernet and STM-64 (Synchronous Transport Module level-64) protocols. STM-64 corresponds to a data rate of approximately 9.953 Gbps, widely used in SONET/SDH optical transport systems. This compatibility allows seamless integration between modern IP-based networks and traditional telecom infrastructure.

By bridging these two communication standards, the transceiver enables service providers and enterprises to maintain interoperability across heterogeneous systems. This is especially valuable in network modernization projects where legacy infrastructure must coexist with newer high-speed Ethernet-based systems.

ZR (Extended Reach) Optical Capabilities

The ZR designation refers to Extended Reach optical transmission, typically achieved through 1550nm wavelength lasers combined with high-performance optical amplification techniques. This enables transmission distances that can extend up to approximately 80 kilometers over single-mode fiber, depending on fiber quality, dispersion characteristics, and network design.

The extended reach capability makes this module suitable for metropolitan area networks, campus interconnects, and regional backbone networks where long-distance transmission is required without intermediate signal regeneration. The optical design minimizes signal attenuation and chromatic dispersion, ensuring data integrity over long fiber spans.

Wavelength Optimization and Signal Stability

Operating typically in the 1550nm window, the transceiver takes advantage of the low-loss transmission characteristics of single-mode fiber. This wavelength range is optimal for long-distance communication due to reduced attenuation compared to shorter wavelengths. The internal laser diode system is calibrated for consistent output power, ensuring stable signal delivery even under variable network load conditions.

Digital Optical Monitoring (DOM) Integration

The module supports Digital Optical Monitoring functionality, enabling real-time tracking of critical parameters such as optical power, temperature, laser bias current, and voltage. This allows network administrators to proactively monitor performance and identify potential degradation before it impacts service quality. DOM data integration into network management systems enhances operational visibility and predictive maintenance capabilities.

Enterprise and Telecom Network Applications

Data Center Interconnect (DCI) Usage

In modern data center environments, high-speed interconnectivity between geographically distributed facilities is essential. The Brocade 57-0000085-01 transceiver supports Data Center Interconnect applications by enabling reliable 10GbE transmission over long distances. This ensures seamless synchronization of data, applications, and storage systems across multiple sites.

Its low-latency performance and high signal stability make it particularly suitable for cloud infrastructure providers and large-scale enterprise networks that require continuous data replication and disaster recovery capabilities.

Telecommunication Backbone Integration

Telecom operators rely heavily on STM-64 infrastructure for high-capacity backbone networks. The ability of this transceiver to support STM-64 ensures compatibility with SONET/SDH systems, allowing service providers to extend the life of existing infrastructure while gradually transitioning toward IP-based networks.

This dual compatibility reduces capital expenditure by minimizing the need for complete system overhauls. Instead, operators can integrate the module into existing optical transport equipment and gradually evolve toward next-generation architectures.

Metropolitan Area Networks (MANs)

Within metropolitan area networks, the demand for long-distance, high-capacity optical transmission is critical. The ZR capability ensures that cities and regional hubs can be interconnected without signal degradation. This supports high-speed internet services, enterprise connectivity, and backbone traffic aggregation across urban regions.

Service Provider Infrastructure Optimization

Service providers benefit from the transceiver’s ability to support multi-protocol environments, allowing them to offer a wide range of services including leased lines, enterprise connectivity, and cloud interconnect services. The reliability of the module ensures consistent quality of service for end-users.

Performance Optimization and Signal Integrity Management

Low Latency Transmission Characteristics

The Brocade 57-0000085-01 is engineered to deliver extremely low latency, which is essential for high-frequency trading networks, real-time data analytics, and latency-sensitive enterprise applications. The optical conversion process is optimized to minimize processing delays and maintain high throughput efficiency.

Error Reduction and Data Integrity

Advanced signal conditioning techniques are implemented within the transceiver to reduce bit error rates during transmission. This includes enhanced modulation stability and precise laser calibration. As a result, the module ensures high data integrity even in long-distance deployments where signal degradation is typically more pronounced.

Dispersion Compensation Considerations

Long-distance optical transmission is often affected by chromatic dispersion, which can distort signal timing. The design of the ZR module accounts for these challenges by maintaining optimal signal shaping and requiring compatible dispersion management strategies within the fiber network. This ensures reliable communication across extended distances.

Network Synchronization Stability

In telecom environments, synchronization is essential for maintaining timing accuracy across network nodes. The transceiver supports stable clock recovery mechanisms that help preserve synchronization across STM-64 and Ethernet networks, ensuring seamless interoperability.

Compatibility and Integration in Brocade Ecosystems

Switch and Router Compatibility

The Brocade 57-0000085-01 transceiver is designed specifically for compatibility with Brocade switching and routing platforms. This ensures optimal performance, firmware recognition, and full support for diagnostic features. Integration within Brocade ecosystems guarantees seamless configuration and management through centralized network control systems.

Multi-Vendor Network Considerations

Although optimized for Brocade hardware, the module may also operate in select multi-vendor environments where SFP+ standards are supported. However, full functionality, including DOM features and performance tuning, is best achieved within certified Brocade systems.

Interoperability Testing and Validation

Extensive interoperability testing ensures that the module maintains stable performance under different network conditions. This includes validation across varying fiber types, distances, and traffic loads to ensure reliable deployment in real-world environments.

Operational Efficiency and Network Scalability

High-Density Deployment Advantages

The compact SFP+ design allows for high-density port configurations, enabling organizations to scale their network infrastructure efficiently. This is particularly valuable in large data centers where rack space optimization is critical for operational cost efficiency.

Energy Efficiency and Thermal Performance

Energy efficiency is a key consideration in modern network design. The Brocade 57-0000085-01 is optimized for low power consumption while maintaining high optical output performance. Its thermal design ensures efficient heat dissipation, reducing cooling requirements in dense network environments.

Scalability in Enterprise Growth Environments

As organizations expand their digital infrastructure, scalable optical connectivity becomes essential. This transceiver supports incremental scaling, allowing additional capacity to be introduced without redesigning the entire network architecture.

Cost Optimization in Optical Networks

By combining long-distance capability with dual-protocol support, the module reduces the need for multiple specialized transceivers. This consolidation leads to lower procurement costs and simplified inventory management in enterprise IT operations.
