ASR1001-HDD Cisco ASR 1000 Chassis, 4 built-in GE

Overview Cisco ASR1001-HDD Router

The Cisco ASR1001-HDD is a compact Aggregation Services Router designed with integrated storage and advanced redundancy features. With built-in Gigabit Ethernet ports and scalable throughput, it is ideal for enterprises and service providers seeking reliable performance and secure connectivity.

General Information

• Manufacturer: Cisco
• Part Number: ASR1001-HDD
• Device Type: Router

Technical Information

Internal Storage

• Integrated 160 GB hard disk drive
• Optional configurations with 500 GB HDD

System Throughput

• Base performance: 2.5 Gbps
• Upgradeable to 5 Gbps via software license

Memory (DRAM)

• Default: 4 GB shared
• Upgradeable to 8 GB or 16 GB
• Minimum 8 GB required for software redundancy

Flash Memory

• 8 GB internal eUSB bootflash

Processor

• Dual-core CPU operating at 2.2 GHz

Connectivity & Expansion

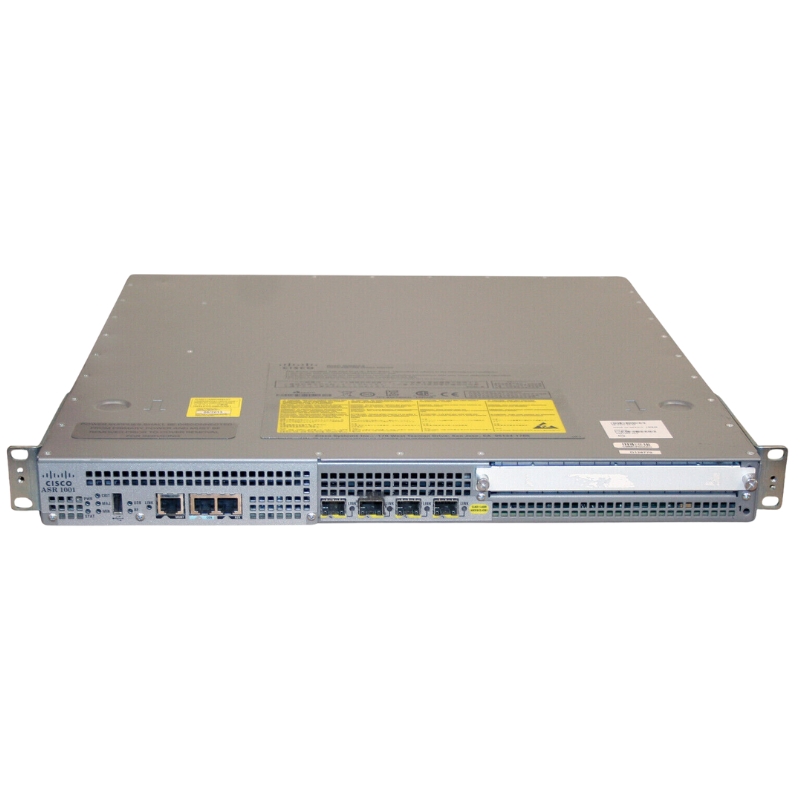

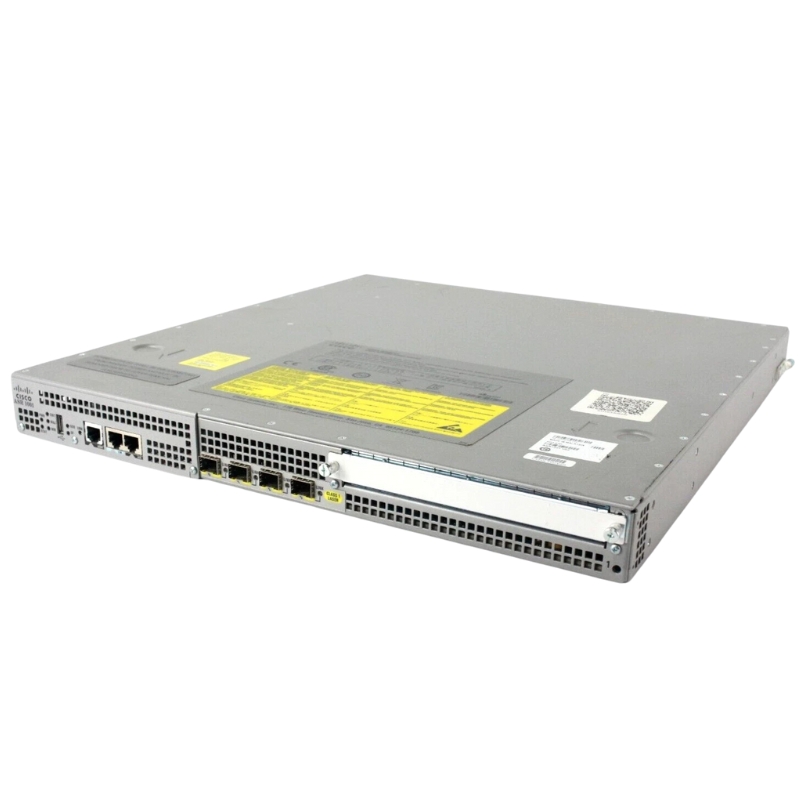

Built-in Ethernet

• 4x 1-Gigabit Ethernet SFP ports

Expansion Slot

• 1x Half-height Shared Port Adapter (SPA) slot for modular I/O expansion

Management Ports

• 1x 10/100/1000 Mbps Management Ethernet port
• 1x RJ-45 Console port
• 1x RJ-45 AUX port
• 1x USB 2.0 port for external flash storage

Physical & Environmental

Form Factor

• 1 Rack Unit (1RU) compact chassis

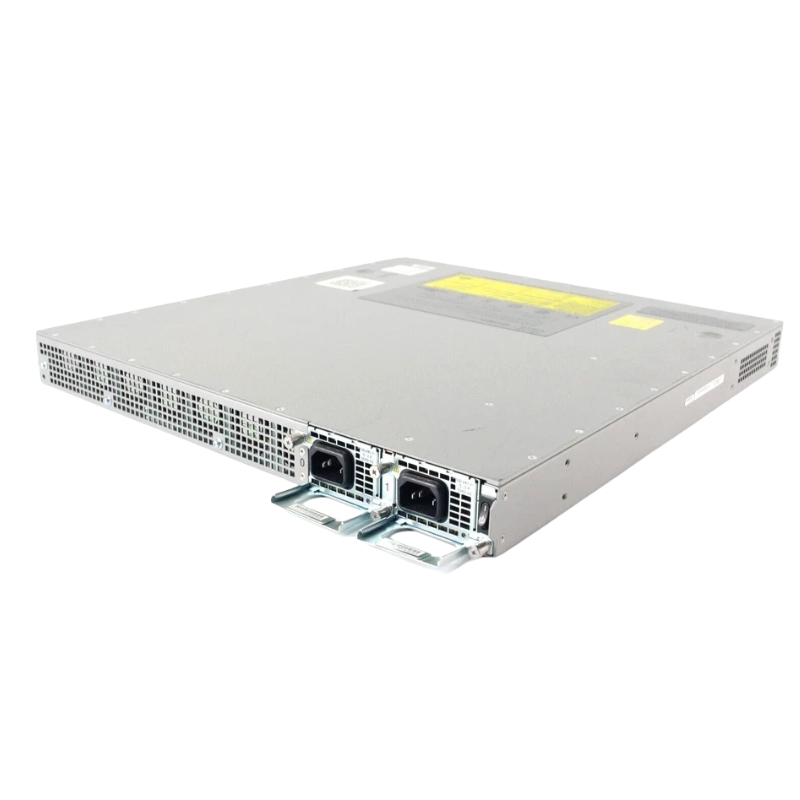

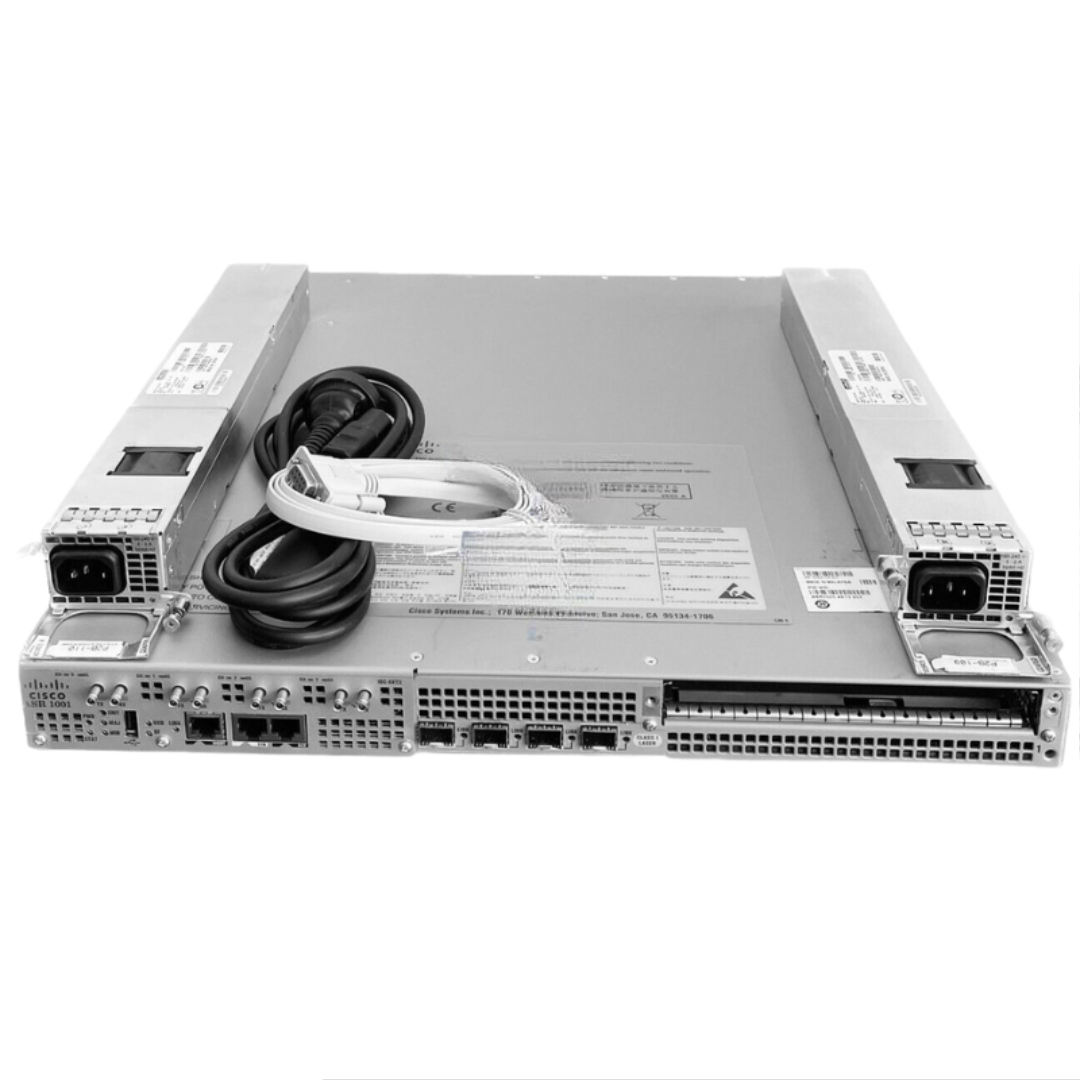

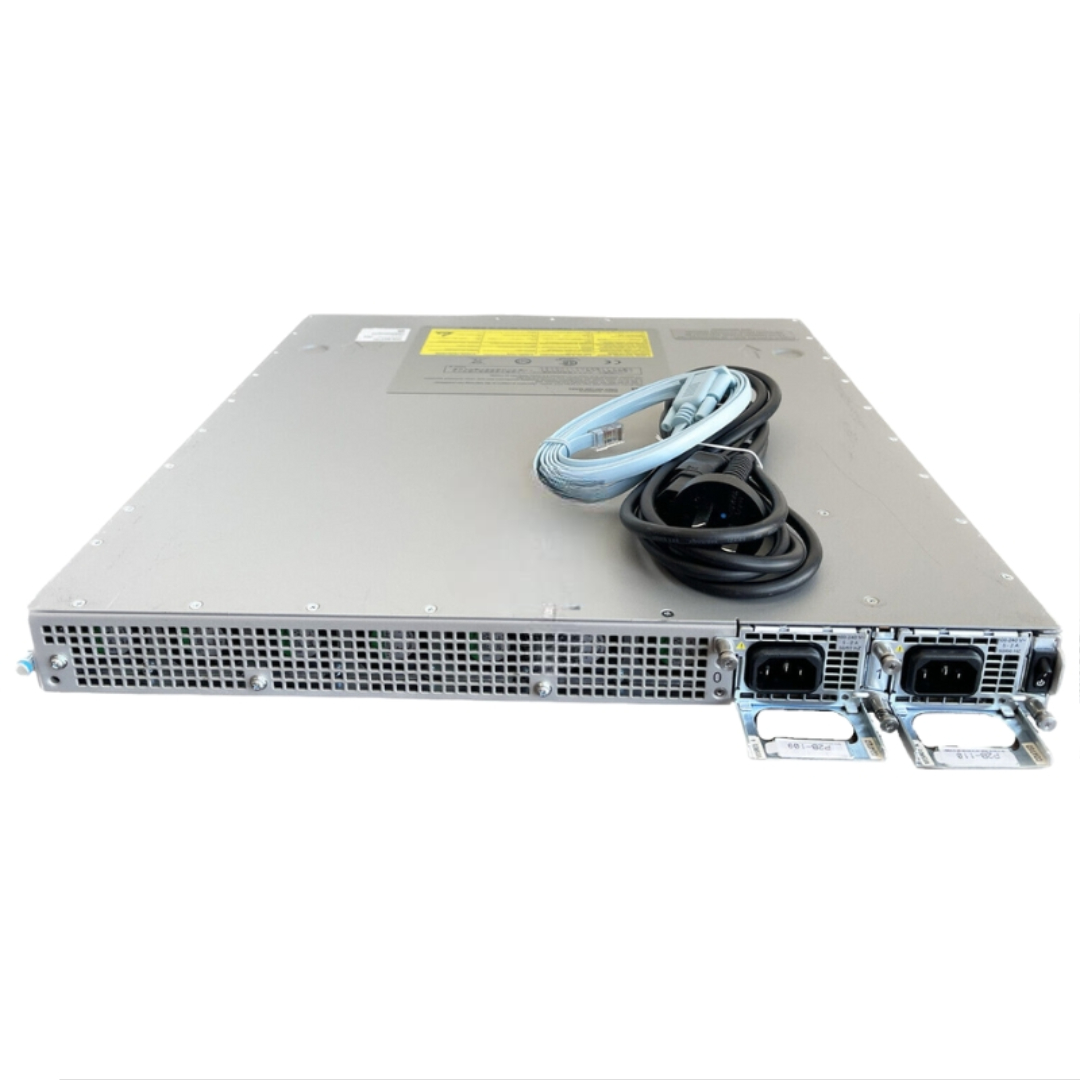

Power Redundancy

• Supports 1+1 redundant hot-swappable AC or DC power supplies

Cooling System

• Front-to-back airflow design
• Equipped with 7 built-in fans

Dimensions & Weight

• Size: 1.71" x 17.3" x 18.17" (43.43 x 439.42 x 461.5 mm)
• Weight: Approximately 23.3 lbs (10.59 kg) fully loaded

Software Features

Operating System

• Requires Cisco IOS XE
• Minimum version: 3.2.0S

Security Capabilities

• Hardware-accelerated VPN support
• Integrated Firewall protection
• Intrusion Prevention System (IPS) capabilities

Redundancy

• Supports software-based redundancy via Dual IOS

Cisco ASR1001-HDD ASR 1000 Chassis and Enterprise Routing

The Cisco ASR1001-HDD ASR 1000 Chassis with integrated 4 built-in Gigabit Ethernet (GE) Router functionality represents a high-performance, carrier-grade aggregation and routing platform engineered for enterprise edge, service provider core, and large-scale WAN deployments. Designed within the Cisco ASR 1000 Series ecosystem, this chassis integrates advanced routing intelligence, modular scalability, and embedded hardware acceleration to support mission-critical networking environments where reliability, throughput, and service continuity are essential.

Built to deliver consistent performance under heavy traffic loads, the Cisco ASR1001-HDD platform provides a resilient infrastructure for converged services including secure data transport, VPN aggregation, broadband access, cloud interconnectivity, and high-density routing operations. Its architecture is optimized for environments requiring low latency, high availability, and predictable throughput across multiple network layers.

Advanced Hardware Design of Cisco ASR1001-HDD Chassis

Integrated Routing Platform Architecture

The Cisco ASR1001-HDD chassis is engineered with a tightly integrated system design that consolidates routing, forwarding, and service processing into a compact yet powerful hardware structure. Unlike modular chassis-based routers that require multiple external components, this platform incorporates key routing functions directly into the system, reducing operational complexity and improving deployment efficiency.

The integration of 4 built-in Gigabit Ethernet ports enables direct connectivity to enterprise networks, WAN links, and service provider aggregation points without requiring additional line cards. This makes the device suitable for distributed branch deployments, medium-scale data centers, and edge routing scenarios where space efficiency and simplified configuration are priorities.

Hardware Acceleration and Performance Optimization

The ASR1001-HDD chassis utilizes dedicated hardware acceleration mechanisms to handle packet processing, encryption, and traffic forwarding. This offloads CPU-intensive tasks from the main processor, ensuring consistent throughput even during peak network utilization. The architecture is designed to support high session density, making it ideal for environments running multiple concurrent services such as voice, video, and secure data tunneling.

By leveraging Cisco’s embedded services processor technology, the platform ensures that routing decisions, security policies, and traffic engineering functions are executed efficiently. This contributes to reduced jitter, improved packet delivery accuracy, and enhanced network stability across complex infrastructures.

Cisco ASR 1000 Series Integration and Ecosystem Compatibility

Seamless Integration with ASR 1000 Family

The Cisco ASR1001-HDD chassis is part of the broader ASR 1000 Series, a family of routers designed for enterprise WAN edge and service provider environments. This integration ensures compatibility with Cisco IOS XE software, enabling advanced routing protocols, automation features, and centralized management capabilities.

Within the ASR ecosystem, the chassis supports consistent configuration models, making it easier for network administrators to deploy, scale, and maintain infrastructure across multiple sites. This consistency reduces training overhead and improves operational efficiency in large-scale deployments.

Software-Defined Networking Readiness

The platform is fully compatible with modern software-defined networking paradigms, allowing organizations to implement programmable network architectures. Through Cisco IOS XE, administrators can automate routing policies, enforce security rules dynamically, and integrate the device into orchestration frameworks used in cloud and hybrid environments.

This SDN readiness makes the ASR1001-HDD chassis a future-proof investment for enterprises transitioning toward intent-based networking models and automated infrastructure management systems.

Network Performance and Traffic Management Capabilities

High Throughput Routing Engine

The Cisco ASR1001-HDD chassis is engineered to handle high-volume traffic with optimized forwarding paths that ensure minimal packet loss and maximum throughput efficiency. It is capable of processing diverse traffic types simultaneously, including encrypted VPN traffic, multicast streams, and real-time application data.

This makes it suitable for enterprise WAN aggregation points, internet edge deployments, and service provider peering environments where traffic diversity and volume are significant.

Quality of Service Optimization

Quality of Service (QoS) mechanisms embedded within the platform allow administrators to prioritize mission-critical applications over less sensitive traffic. The system supports granular traffic classification, bandwidth allocation, and congestion management to ensure consistent application performance.

These capabilities are particularly important in environments where latency-sensitive applications such as VoIP, video conferencing, and financial transaction systems operate alongside bulk data transfers.

Traffic Security and Segmentation

The ASR1001-HDD chassis provides advanced traffic segmentation features that enable secure separation of different network zones. This helps organizations enforce security policies at the routing level while maintaining high-speed data forwarding.

By isolating traffic flows and applying encryption policies where necessary, the platform ensures that sensitive data remains protected across WAN and internet connections.

Security Architecture and Enterprise Protection Features

Integrated Network Security Services

Security is a core component of the Cisco ASR1001-HDD design. The chassis supports integrated firewall capabilities, intrusion prevention mechanisms, and secure tunneling protocols. These features are implemented directly within the routing architecture, eliminating the need for separate security appliances in many deployment scenarios.

The integration of security services within the routing plane enhances performance while reducing infrastructure complexity, making it easier for enterprises to maintain a secure network posture.

Encrypted Communication and VPN Support

The platform supports multiple VPN technologies, including IPsec and SSL-based encryption frameworks. These capabilities allow secure connectivity between branch offices, data centers, and cloud environments.

Hardware acceleration ensures that encryption processes do not degrade routing performance, enabling secure data transmission at high speeds across distributed networks.

Threat Mitigation and Policy Enforcement

Advanced policy enforcement mechanisms allow administrators to define security rules that govern traffic behavior at a granular level. These policies can be applied dynamically based on network conditions, user roles, or application types.

This adaptive security model enhances resilience against network threats while maintaining operational efficiency in high-demand environments.

Scalability and Deployment Flexibility of Cisco ASR1001-HDD

Enterprise Branch and Edge Deployment

The compact form factor and integrated design of the Cisco ASR1001-HDD chassis make it ideal for enterprise branch deployments. It can be deployed in remote offices, regional hubs, and edge locations where space and power efficiency are critical considerations.

Despite its compact size, the platform delivers enterprise-grade routing capabilities, ensuring that even distributed locations benefit from centralized network performance standards.

Service Provider Aggregation Role

In service provider environments, the chassis functions as an aggregation node for customer traffic, consolidating multiple data streams into higher-capacity backbone links. Its ability to handle diverse traffic types makes it suitable for broadband aggregation, MPLS networks, and internet service delivery infrastructures.

The platform’s reliability and throughput consistency are essential for maintaining service-level agreements in carrier-grade deployments.

Cloud Connectivity and Hybrid Integration

The ASR1001-HDD chassis supports seamless integration with cloud environments, enabling hybrid networking architectures that connect on-premises infrastructure with public and private cloud services. This capability is increasingly important as organizations adopt distributed application models.

The platform ensures secure and high-performance connectivity between enterprise networks and cloud platforms, supporting workloads that require continuous data exchange and low-latency communication.

Industry Applications of Cisco ASR1001-HDD Router

Enterprise WAN Edge Deployment

The chassis is widely used as a WAN edge router in enterprise environments where secure and reliable connectivity between branch offices and central data centers is required. Its ability to handle encrypted traffic and routing policies makes it suitable for distributed enterprise architectures.

Data Center Interconnect Solutions

In data center environments, the platform supports interconnectivity between multiple facilities, enabling high-speed data replication, load balancing, and disaster recovery operations. Its routing efficiency ensures minimal latency between critical infrastructure components.

Telecommunications Infrastructure

Telecommunication providers utilize the ASR1001-HDD chassis for subscriber aggregation and service delivery. Its scalability and performance make it suitable for handling large volumes of customer traffic while maintaining service quality standards.

Technical Optimization and Performance Engineering

Packet Processing Efficiency

The internal architecture of the Cisco ASR1001-HDD chassis is optimized for high-speed packet processing, ensuring that data flows are handled efficiently across all interfaces. This reduces bottlenecks and enhances overall network responsiveness.

Memory and Resource Allocation

Efficient memory management ensures that routing tables, security policies, and session data are processed without degradation in performance. This is critical in environments with high connection density and complex routing requirements.

System Stability Under Load

The chassis is designed to maintain stability under sustained high traffic conditions. This ensures that performance remains consistent even during peak usage periods, supporting enterprise-grade reliability requirements.
