ASR1001X-20G-K9 Cisco Ethernet Router 20GBPS Rack-mountable 9 Slots

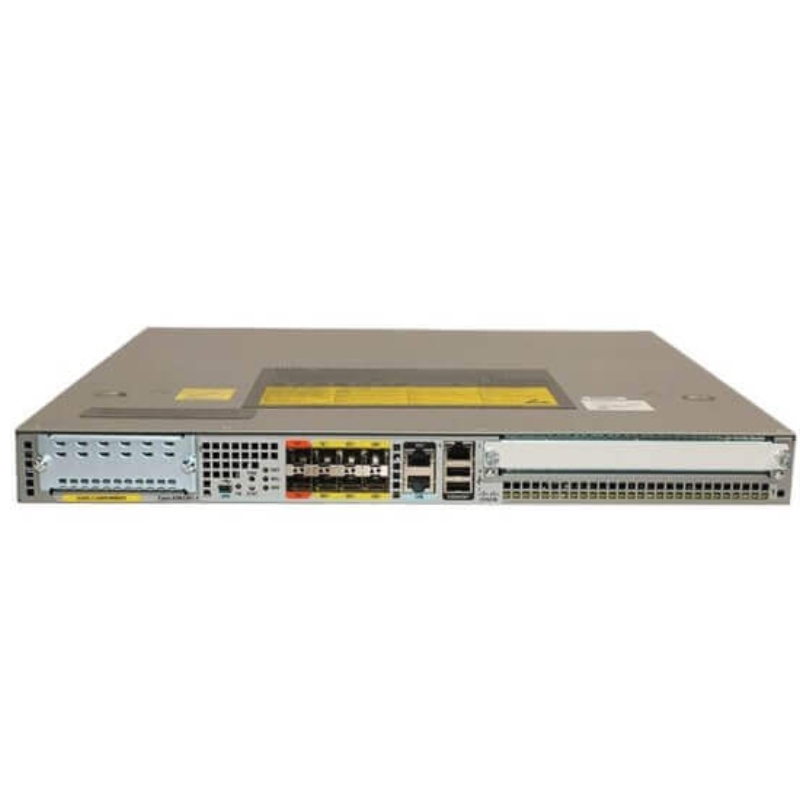

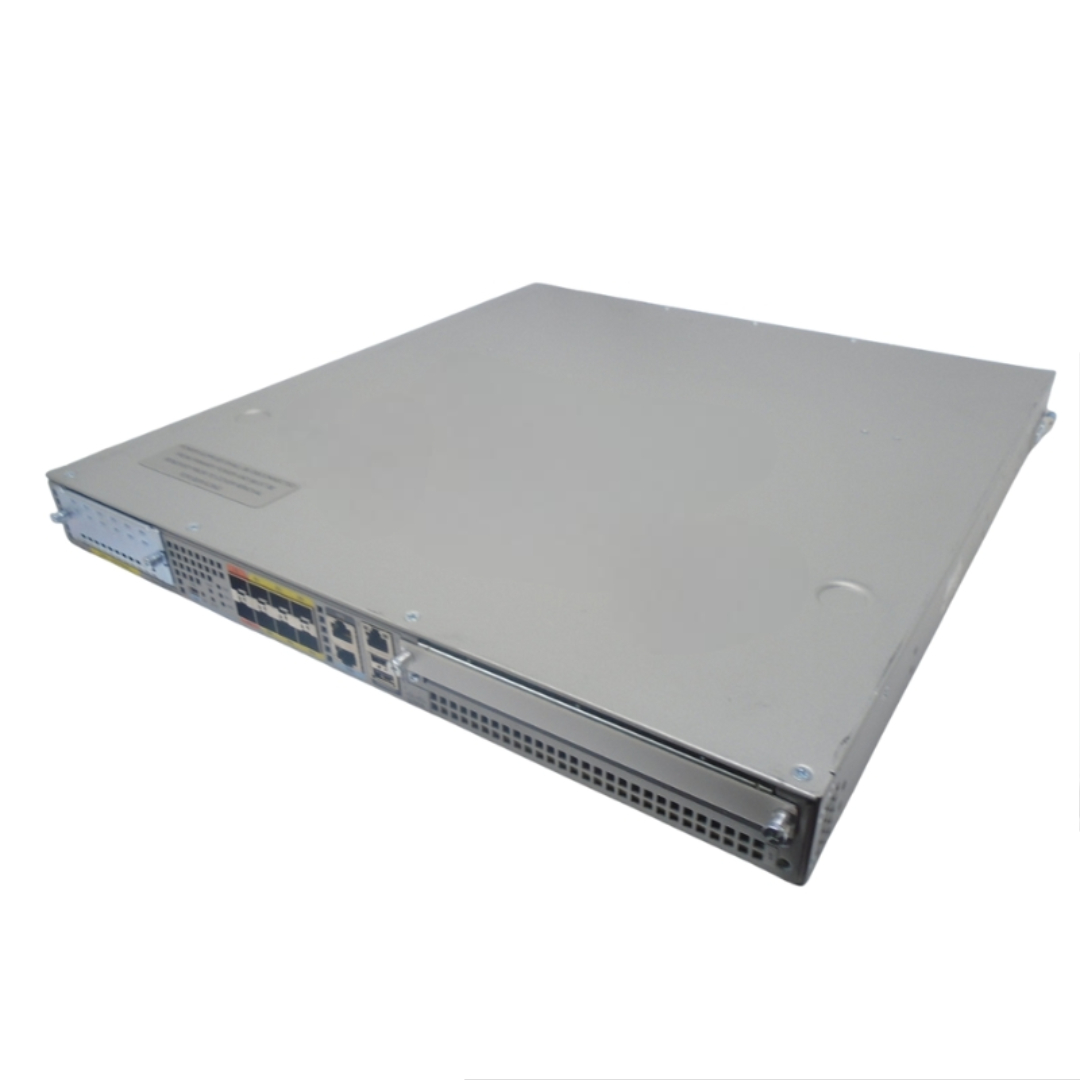

Cisco ASR1001X-20G-K9 Rack-Mount Router Overview

The Cisco ASR1001X-20G-K9 is a powerful, enterprise-grade routing solution engineered for high-speed data processing and scalable network infrastructures. Designed for modern businesses, service providers, and data centers, this rack-mountable router delivers exceptional throughput, advanced connectivity, and reliable redundancy in a compact 1U form factor. With a forwarding capacity of up to 20 Gbps, it ensures seamless performance for bandwidth-intensive applications.

General Specifications

• Manufacturer: Cisco
• Model Number: ASR1001X-20G-K9
• Device Category: Enterprise Router

Physical Characteristics

• Width: 17.3 inches
• Depth: 22.5 inches
• Height: 1.7 inches
• Chassis Type: Modular rack-mounted system

Performance Benefits

• Efficient packet forwarding for reduced latency
• Optimized traffic handling for mission-critical applications
• Scalable performance for future network growth

Management Interfaces

• 1 x RJ-45 10Base-T/100Base-TX management port
• 1 x RJ-45 console port for direct access
• 1 x RJ-45 auxiliary port for remote management

USB Connectivity

• 1 x USB console interface
• 2 x USB Type-A ports for external device integration

Network Interfaces

• 6 x SFP (Mini-GBIC) slots for fiber connectivity
• 2 x SFP+ ports for high-speed uplink connections

Expansion Slot Details

• Total Expansion Slots: 1
• Available Slots: 0 (fully utilized)

Module Capacity

• Installed Modules: 0
• Maximum Supported Modules: 1

Scalability Advantages

• Future-ready design for network upgrades
• Flexible configuration for various deployment scenarios
• Supports evolving enterprise networking needs

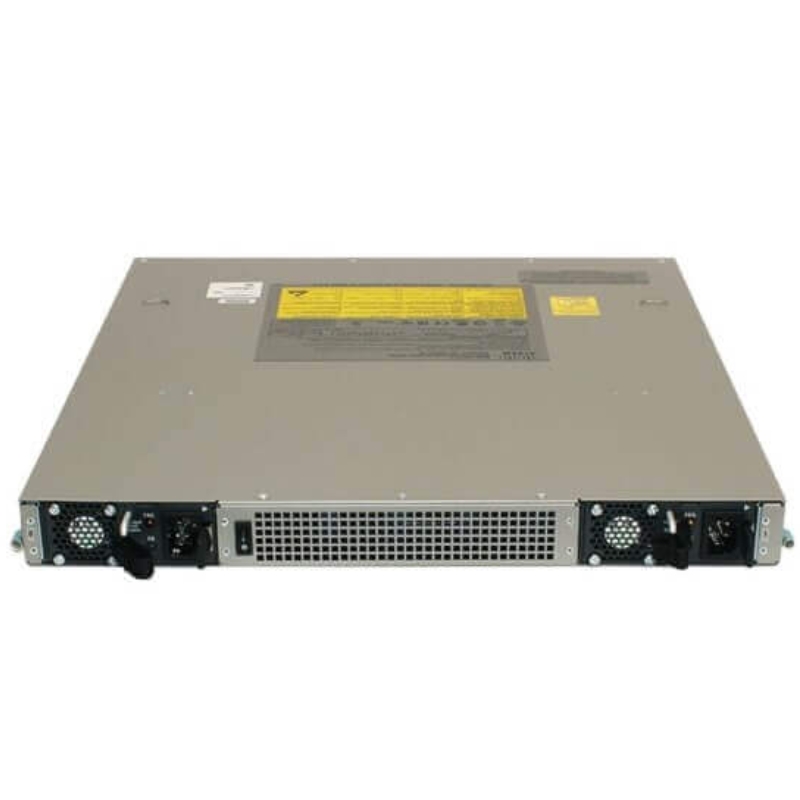

Power Specifications

• Power Supply Type: Internal
• Power Redundancy: Supported
• Installed Power Units: 2
• Maximum Power Units: 2

Reliability Benefits

• Enhanced uptime with redundant power configuration
• Minimized risk of service disruption
• Ideal for mission-critical environments

Provider Advantages

• Supports high-density traffic loads
• Ensures consistent service quality
• Optimized for multi-service deployments

Cisco ASR1001X-20G-K9 Ethernet Router 20GBPS Overview

The Cisco ASR1001X-20G-K9 rack-mountable router represents a high-performance aggregation and edge routing solution engineered for enterprise networks, service providers, and data-driven environments requiring robust throughput and scalability. Designed with a compact yet powerful architecture, this Ethernet router delivers up to 20Gbps of forwarding capacity, enabling organizations to handle growing traffic demands, advanced services, and mission-critical applications without compromising performance or reliability.

High-Performance Architecture for Modern Networks

This router is built on a highly optimized hardware and software framework that integrates forwarding, control, and services into a single platform. The architecture ensures seamless packet processing, minimal latency, and consistent throughput even under heavy workloads. With its ability to sustain high bandwidth usage, the device supports modern digital transformation initiatives, including cloud computing, virtualization, and hybrid networking models.

Integrated Services Processing Engine

The embedded services processor enhances routing efficiency by offloading complex tasks such as encryption, deep packet inspection, and traffic management. This integration reduces the need for external appliances, simplifying infrastructure while improving performance. The result is a streamlined network core capable of handling diverse workloads with reduced operational overhead.

Advanced Traffic Management Capabilities

The Cisco ASR1001X-20G-K9 router incorporates intelligent traffic shaping and prioritization mechanisms that ensure optimal bandwidth utilization. It dynamically allocates resources based on application requirements, ensuring latency-sensitive services such as voice, video, and real-time analytics receive priority treatment.

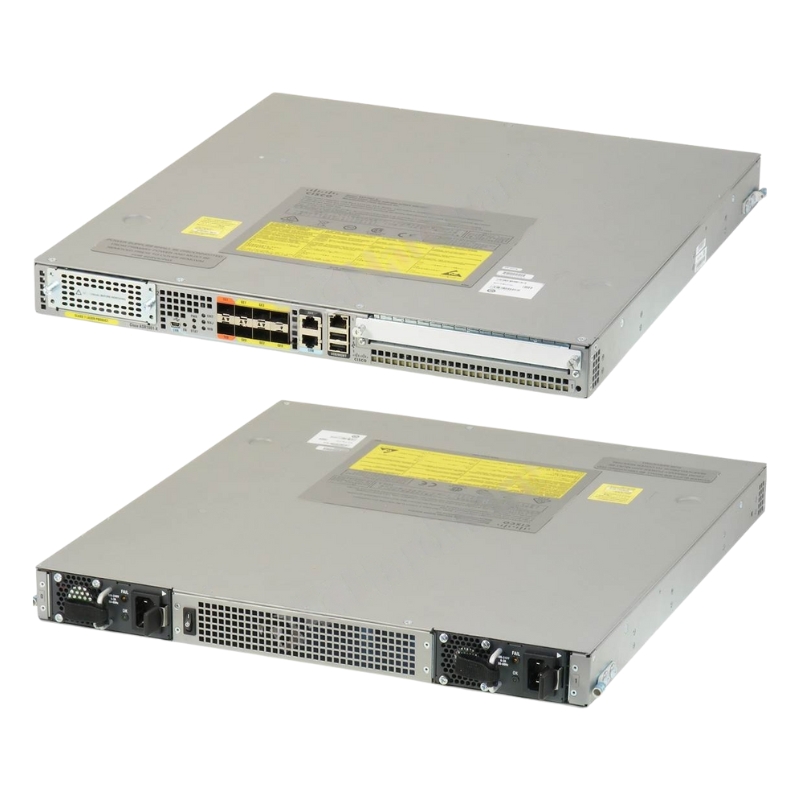

Rack-Mountable Design and Deployment Flexibility

The rack-mountable form factor ensures seamless integration into standard data center racks, making it ideal for space-constrained environments. Its compact footprint does not compromise on functionality, allowing enterprises to deploy high-capacity routing capabilities without requiring extensive physical infrastructure.

9-Slot Configuration for Scalability

The 9-slot architecture provides flexibility for interface expansion and customization. This modular design allows organizations to adapt the router to evolving network demands by adding or upgrading interface modules. It ensures long-term investment protection by enabling incremental upgrades rather than complete hardware replacement.

Enterprise Networking Capabilities

The Cisco ASR1001X-20G-K9 is tailored for enterprise environments that demand secure, high-speed connectivity across multiple locations. It supports a wide range of routing protocols, enabling seamless communication between distributed networks.

Advanced Routing Protocols

The router is compatible with industry-standard routing protocols such as BGP, OSPF, EIGRP, and IS-IS. These protocols ensure efficient route calculation, redundancy, and load balancing, making the device suitable for complex network topologies and large-scale deployments.

Dynamic Routing Optimization

Dynamic routing capabilities allow the system to automatically adjust to network changes, ensuring continuous availability and optimal path selection. This adaptability is critical for organizations that operate in dynamic environments where network conditions frequently change.

High Availability and Redundancy Features

High availability is a core feature of this router, with built-in redundancy mechanisms that prevent service interruptions. These include dual power supplies, redundant control paths, and failover capabilities that ensure uninterrupted network operations.

Security and Data Protection

Security is a fundamental aspect of the Cisco ASR1001X-20G-K9, designed to protect sensitive data and maintain network integrity. The router integrates multiple layers of security features to safeguard against cyber threats.

Integrated Encryption Services

Built-in encryption capabilities provide secure data transmission across public and private networks. The router supports advanced cryptographic standards, ensuring data confidentiality and compliance with industry regulations.

Threat Detection and Mitigation

The router includes advanced threat detection mechanisms that identify and mitigate potential security risks in real time. It leverages deep packet inspection and anomaly detection to prevent unauthorized access and malicious activities.

Access Control and Policy Enforcement

Granular access control policies allow administrators to define and enforce security rules based on user roles, applications, and network segments. This ensures that only authorized traffic is permitted, reducing the risk of data breaches.

Application Performance and Optimization

The Cisco ASR1001X-20G-K9 is optimized for application performance, ensuring that critical services operate efficiently across the network. Its intelligent traffic management capabilities enhance user experience and operational efficiency.

Quality of Service Implementation

Quality of Service mechanisms prioritize traffic based on application requirements, ensuring consistent performance for mission-critical applications. This is particularly important for environments that rely on real-time communication and data processing.

Latency Reduction Techniques

The router employs advanced techniques to minimize latency, ensuring fast data delivery and improved responsiveness. These optimizations are essential for applications such as video conferencing, online gaming, and financial transactions.

Load Balancing and Resource Allocation

Load balancing features distribute traffic evenly across network paths, preventing congestion and maximizing resource utilization. This ensures that the network operates efficiently even during peak usage periods.

Cloud and Data Center Integration

The Cisco ASR1001X-20G-K9 seamlessly integrates with cloud environments and modern data center architectures. Its support for virtualization and software-defined networking makes it a versatile solution for hybrid and multi-cloud deployments.

Virtualization

The router supports virtualized network functions, enabling organizations to deploy services such as firewalls, load balancers, and WAN optimization tools without dedicated hardware. This reduces costs and increases flexibility.

Software-Defined Networking Compatibility

Compatibility with software-defined networking frameworks allows centralized management and automation of network operations. This enhances efficiency and simplifies network administration.

Data Center Interconnect Capabilities

The router facilitates high-speed connectivity between data centers, ensuring seamless data replication and disaster recovery. Its high throughput capacity supports large-scale data transfers with minimal latency.

Scalability and Future-Proof Networking

The Cisco ASR1001X-20G-K9 is designed to scale with growing business needs, ensuring long-term value and adaptability. Its modular architecture and support for emerging technologies make it a future-proof investment.

Expandable Interface Options

The router supports a wide range of interface modules, allowing organizations to expand connectivity options as needed. This flexibility ensures compatibility with evolving network standards and technologies.

High-Speed Ethernet

High-speed Ethernet interfaces enable seamless integration with modern networking equipment, supporting increased bandwidth requirements and faster data transfer rates.

Adaptability to Emerging Technologies

The router is designed to support emerging technologies such as 5G, IoT, and edge computing. Its robust performance and scalability ensure that it remains relevant in rapidly evolving network environments.

Use Cases and Deployment Scenarios

The Cisco ASR1001X-20G-K9 is suitable for a wide range of deployment scenarios, including enterprise networks, service provider environments, and data centers. Its versatility makes it an ideal solution for organizations seeking high-performance routing capabilities.

Enterprise Edge Routing

In enterprise environments, the router serves as a reliable edge device that connects internal networks to external resources. It ensures secure and efficient data exchange between corporate offices, branch locations, and cloud services.

Branch Connectivity Solutions

The router supports secure connectivity for branch offices, enabling seamless communication and collaboration across geographically dispersed locations.

Service Provider Applications

Service providers can leverage the router’s high throughput and advanced features to deliver reliable connectivity services to customers. Its scalability and performance make it suitable for handling large volumes of traffic.

Customer Edge Deployments

The router is ideal for customer edge deployments, providing secure and high-speed connectivity for end users while supporting a wide range of services.

Data Center Networking

In data center environments, the router facilitates high-speed data transfer and interconnectivity between servers, storage systems, and external networks. Its performance capabilities ensure efficient handling of large-scale workloads.
