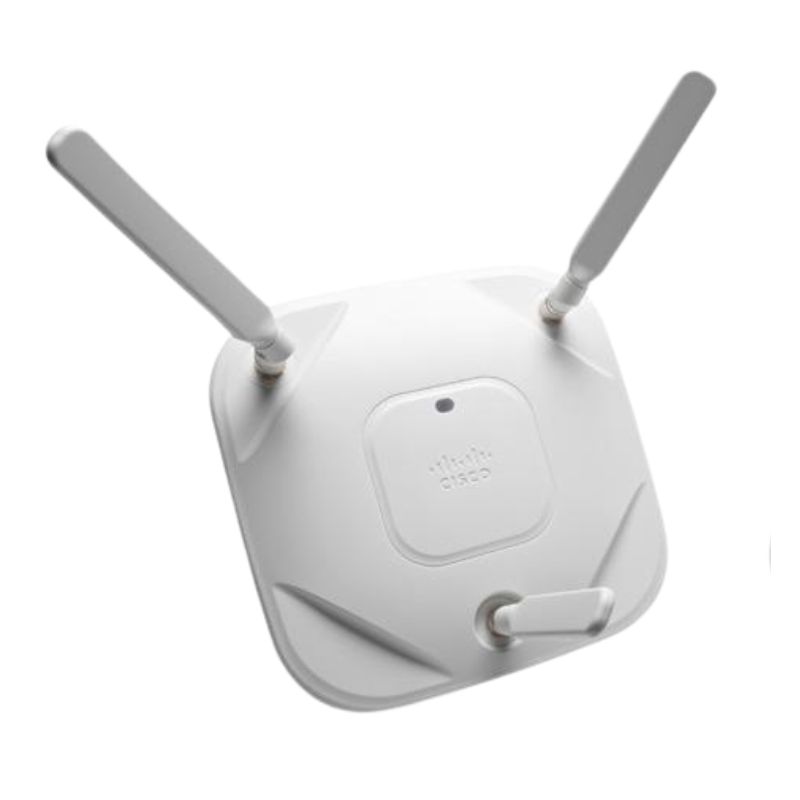

AIR-SAP1602I-A-K9 Cisco Aironet 1602 Wireless Access Point

Product Overview of the Cisco AIR-SAP1602I-A-K9 Aironet

The Cisco AIR-SAP1602I-A-K9 Aironet 1600 Series Wireless Access Point is a high-performance networking device engineered to deliver stable and efficient wireless coverage for enterprise environments. Designed with advanced 802.11n technology, this access point ensures smooth connectivity, improved signal strength, and reliable network performance for medium to large-scale deployments. Its dual-band capability helps reduce interference while maximizing throughput up to 300 Mbps, making it a dependable solution for modern business wireless infrastructure.

General Information

• Manufacturer: Cisco
• Model: AIR-SAP1602I-A-K9
• Product Line: Aironet
• Series: 1600
• Device Type: Enterprise Wireless Access Point

Wireless Connectivity Features

• Wireless Standard: IEEE 802.11n compliant
• Supported Frequency Bands: ISM and UNII dual-band operation
• Data Speed Capability: Up to 300 Mbps transmission rate
• ISM Band Range: 2.41 GHz – 2.46 GHz
• UNII Band Range: 5.18 GHz – 5.83 GHz
• Technology: Advanced MIMO (Multiple Input Multiple Output) for enhanced signal efficiency

Security Capabilities

• Wireless Security Protocols: WPA, WPA2, IEEE 802.11i
• Encryption Standards: AES and TKIP for secure data transmission

Authentication Methods Supported:

• EAP-TLS
• EAP-TTLS
• PEAP and PEAPv1
• MSCHAPv2 and EAP-MSCHAPv2
• EAP-FAST
• EAP-GTC

Connectivity Options

• Fast Ethernet Port: Available
• Gigabit Ethernet Port: Supported for high-speed uplink
• Management Interface Port: Included for configuration and monitoring
• Non-supported Interfaces: No HDMI, VGA, USB, RJ-11, audio, or serial ports
• PoE Support: Powered via PoE-enabled network infrastructure or external power supply

Power

• Input Voltage Range: 110V AC / 220V AC
• Power Sources: Direct power supply or Power over Ethernet (PoE)

Compatibility

• Compatible with Cisco Wireless LAN Controllers (WLC series)
• Works with Cisco Prime Infrastructure for centralized management
• Supports IEEE 802.11n, 802.11a/b/g client devices
• Compatible with PoE switches and PoE injectors (IEEE 802.3af compliant equipment)
• Integration support for enterprise network security systems using WPA/WPA2 standards
• Suitable for use in office networks, educational institutions, hospitality setups, and enterprise-grade deployments

Cisco Aironet 1600 Series Wireless Access Point Architecture

The Cisco AIR-SAP1602I-A-K9 Aironet 300Mbps Access Point belongs to a class of enterprise-grade wireless networking devices designed to deliver stable, scalable, and efficient connectivity in demanding environments. Built on a robust hardware architecture, this access point is engineered to support modern wireless communication requirements in offices, campuses, retail environments, and distributed enterprise networks. Its internal design focuses on balancing performance efficiency with energy optimization, ensuring consistent operation under varying network loads.

At the core of its design is a dual-band radio system that supports simultaneous operation across both 2.4 GHz and 5 GHz frequency bands. This enables optimized traffic distribution, reducing congestion and improving overall throughput. The device is structured to handle multiple client connections while maintaining stable signal integrity across coverage zones. With intelligent radio resource management capabilities, it adapts dynamically to environmental changes and network demand.

Hardware Design and Structural Efficiency

The physical build of the access point emphasizes durability and flexible deployment. It features a compact form factor suitable for ceiling or wall mounting, allowing seamless integration into diverse architectural layouts. The internal components are arranged to maximize heat dissipation efficiency, which helps maintain consistent performance during extended operational cycles.

The hardware is designed to support enterprise-class workloads with minimal latency. High-quality chipset integration enables efficient packet processing, while optimized memory allocation ensures smooth handling of multiple simultaneous connections. This structural efficiency makes it suitable for environments where uninterrupted connectivity is essential.

Wireless Performance and Data Capabilities

The Cisco AIR-SAP1602I-A-K9 delivers wireless speeds of up to 300Mbps, making it suitable for medium to high-density network environments. This throughput is achieved through IEEE 802.11n technology, which enhances data transmission efficiency using multiple-input multiple-output (MIMO) techniques. These techniques allow simultaneous data streams, improving both speed and reliability.

Performance optimization is further enhanced by intelligent channel management. The access point automatically selects optimal frequency channels to minimize interference and maximize signal clarity. This is especially important in environments where multiple wireless devices operate in proximity.

Signal Distribution and Coverage Efficiency

The coverage design ensures consistent wireless distribution across a wide area. Internal antennas are engineered to deliver balanced signal propagation, reducing dead zones and improving connectivity uniformity. The device supports seamless roaming, allowing clients to move between access points without connection drops.

Advanced signal processing capabilities ensure that bandwidth is allocated efficiently among connected devices. This prevents network congestion and ensures fair distribution of resources, even in high-traffic environments such as offices or educational campuses.

Dual-Band Operation

One of the defining characteristics of this access point is its dual-band functionality. Operating on both 2.4 GHz and 5 GHz frequencies allows it to accommodate a wide range of wireless devices with varying compatibility requirements. The 2.4 GHz band provides broader coverage, while the 5 GHz band offers higher speeds and reduced interference.

This dual-band structure enables intelligent load balancing, where traffic is distributed between bands based on network conditions. Devices requiring higher bandwidth are automatically assigned to the faster frequency band, while general connectivity tasks utilize the broader coverage band.

Interference Reduction Mechanisms

To ensure optimal performance, the system incorporates advanced interference mitigation techniques. These mechanisms analyze surrounding wireless activity and adjust transmission parameters accordingly. This results in improved signal clarity and reduced packet loss, especially in dense wireless environments.

Dynamic frequency selection further enhances performance by automatically avoiding congested channels. This ensures uninterrupted connectivity even in environments with multiple overlapping wireless networks.

Enterprise Security and Data Protection Features

Security is a fundamental aspect of the Cisco AIR-SAP1602I-A-K9 access point. It integrates multiple layers of protection to safeguard network traffic and prevent unauthorized access. Encryption protocols ensure that all transmitted data remains secure, reducing the risk of interception or tampering.

Authentication mechanisms support enterprise-level security policies, enabling administrators to enforce strict access control rules. This includes user authentication through centralized management systems and secure credential verification methods.

Network Access Control and Policy Enforcement

The device supports advanced network access control features that allow administrators to define and enforce security policies. These policies regulate device connectivity, ensuring that only authorized users and devices can access the network infrastructure.

Intrusion detection capabilities help identify and mitigate potential threats. The system continuously monitors network activity for suspicious behavior and responds accordingly to maintain network integrity.

Deployment Scenarios and Environmental Adaptability

The Cisco AIR-SAP1602I-A-K9 is designed for flexible deployment across various environments. It is commonly used in corporate offices, educational institutions, healthcare facilities, hospitality venues, and retail spaces. Its adaptability allows it to perform efficiently in both small-scale and large-scale network deployments.

Its compact design enables discreet installation, making it suitable for environments where aesthetics and space optimization are important. The access point can be mounted on ceilings or walls to provide optimal coverage distribution.

Scalability in Network Expansion

As network demands grow, additional units can be integrated seamlessly into existing infrastructure. This scalability ensures that organizations can expand their wireless coverage without significant redesign of their network architecture.

Centralized management capabilities allow administrators to configure multiple access points simultaneously, reducing operational complexity and improving deployment efficiency.

Power Efficiency and PoE Integration

The device supports Power over Ethernet technology, allowing both data and power to be transmitted through a single cable. This simplifies infrastructure requirements and enhances deployment efficiency in enterprise environments.

Power efficiency is optimized through intelligent energy management features that adjust consumption based on network load. This ensures reduced energy usage during periods of low activity while maintaining full performance capability when demand increases.

Operational Stability

The internal power regulation system ensures stable operation even under fluctuating power conditions. This contributes to improved reliability and reduced risk of downtime in critical network environments.

Energy-efficient design principles also contribute to lower operational costs, making it suitable for long-term enterprise deployment strategies.

Radio Frequency Optimization and Signal Intelligence

RF optimization features allow the access point to dynamically adjust transmission parameters based on environmental conditions. This ensures consistent signal quality and minimizes interference from external sources.

The system continuously evaluates channel utilization and adjusts frequency allocation to maintain optimal performance levels. This adaptive approach enhances overall network stability.
