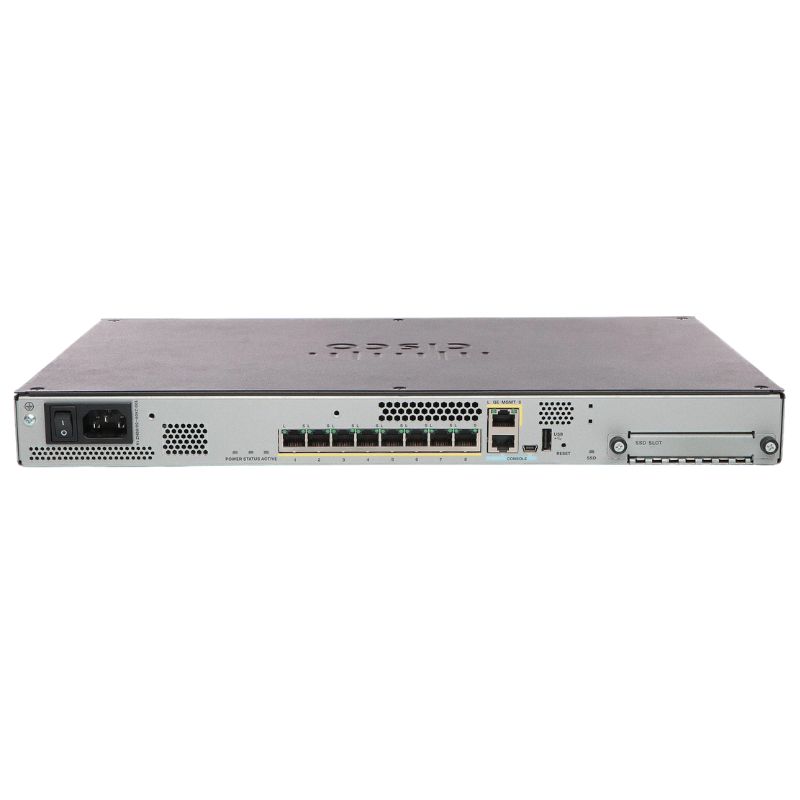

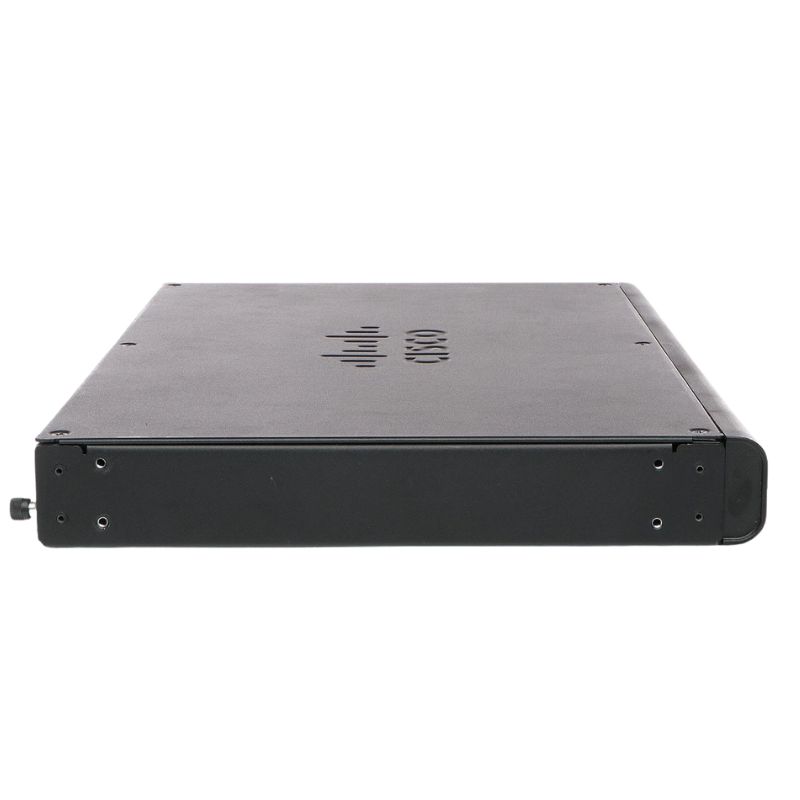

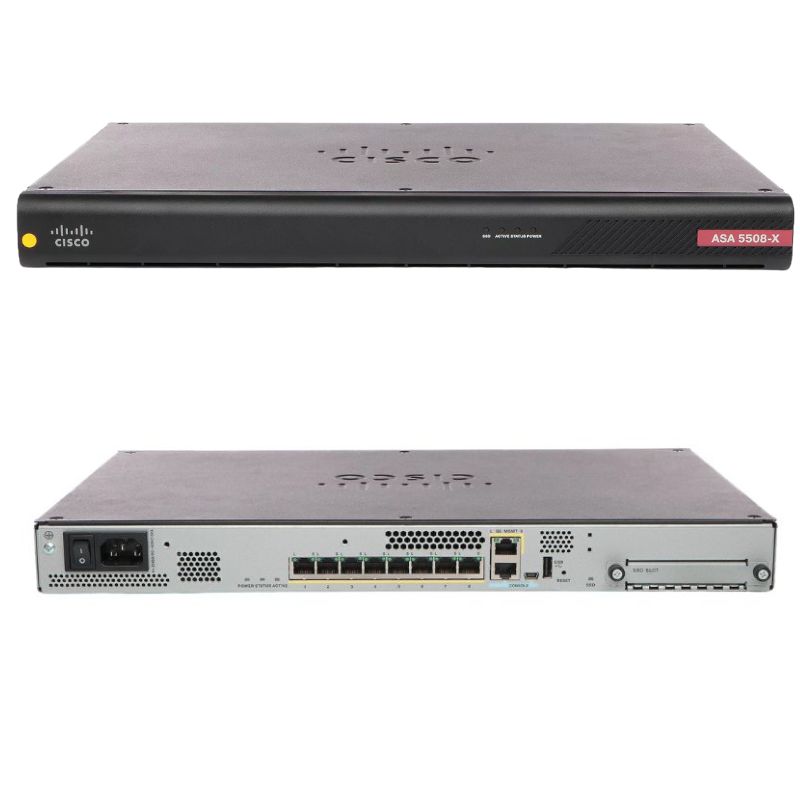

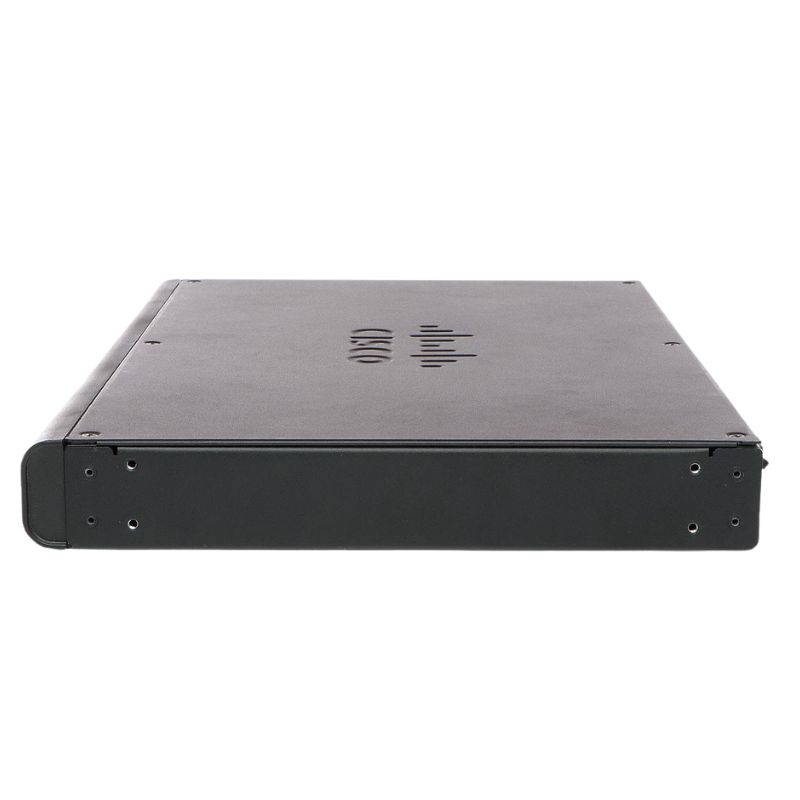

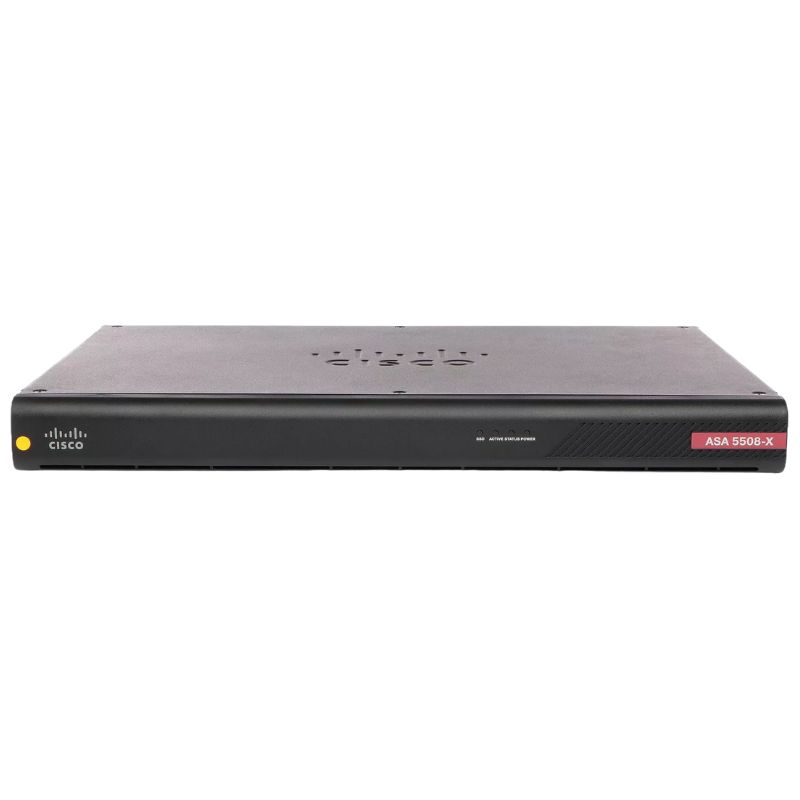

ASA5508-K9 Cisco w/FirePOWER Security Appliance

Product Overview of the Cisco ASA5508-K9 ASA 5500-X Series

The Cisco ASA5508-K9, part of the ASA 5500-X Series, is a next-generation network security and firewall appliance engineered for advanced threat defense and enterprise-grade network protection. This compact yet powerful security solution integrates FirePOWER services to deliver intelligent traffic inspection, intrusion prevention, and secure connectivity for modern IT environments. Designed for scalability and efficiency, it is widely used in business networks requiring reliable cybersecurity enforcement and high-performance traffic management.

General Information

• Manufacturer: Cisco
• Model: ASA5508-K9
• Product Line: ASA
• Series: 5500-X
• Device Name: ASA 5508-X Network Security Appliance
• Category: Firewall / Network Management System

Technical Specifications

• Advanced Threat Detection & Mitigation
• Application Visibility and Control (AVC)
• URL Filtering for safe browsing policies
• Web Content Filtering for access restriction
• Intrusion Prevention System (IPS)
• Encrypted traffic protection using 3DES and AES standards

Network Interfaces & Connectivity

• Total Ports: 8 x RJ-45 Gigabit Ethernet
• USB Connectivity: Supported
• PoE Support: Not available
• VLAN Interfaces: Up to 50 logical networks
• IPsec Site-to-Site VPN Support: Up to 100 peers

Performance

• Maximum Data Throughput: 450 Mbps
• Application Control Throughput (AVC): 450 Mbps
• AVC with IPS Enabled: 250 Mbps
• Stateful Inspection Throughput: Up to 1 Gbps
• Multiprotocol Stateful Performance: 500 Mbps
• VPN Encryption Throughput (3DES/AES): 175 Mbps

Software Tools

• Cisco Security Manager (CSM)
• Cisco Firepower Management Center (FMC)
• ASDM Management Interface (Version 7.3 or later required)
• Support for Ethernet, Fast Ethernet, and Gigabit Ethernet protocols

Power & Electrical

• Power Source: External AC Adapter
• Voltage Range: 120/230V AC
• Frequency: 50/60 Hz
• Power Type: AC-only operation

Environmental Conditions

• Operating Temperature Range: 32°F to 104°F
• Humidity Tolerance: 10% – 90% (non-condensing)

Compatibility

• Compatible with Cisco Firepower Management Center (FMC)
• Supports Cisco Security Manager (CSM) integration
• Works with ASDM version 7.3 and above
• Fully interoperable with Cisco ASA 5500-X series ecosystem
• Supports standard networking protocols including Ethernet, Fast Ethernet, and Gigabit Ethernet
• Compatible with VLAN-based enterprise network architectures (up to 50 VLANs)
• Supports IPsec VPN-based site-to-site secure connections (up to 100 peers)
• Designed for integration into enterprise routers, switches, and secure WAN/LAN infrastructures

The Cisco ASA5508-K9 ASA 5508 FirePOWER Security Appliance

The Cisco ASA5508-K9 ASA 5508 w FirePOWER Security Appliance category represents a powerful class of next generation network security systems designed for enterprise environments that require advanced protection, deep visibility, and high performance traffic handling. This category focuses on integrated firewall technology combined with advanced intrusion prevention and threat intelligence capabilities, offering a unified security approach for modern network infrastructures. The appliance is widely used in organizations that require consistent enforcement of security policies across distributed networks while maintaining strong throughput and minimal latency in data processing.

Within this category, the hardware and software integration is optimized for delivering consistent security enforcement across both perimeter and internal network segments. The system is designed to handle encrypted and unencrypted traffic with high efficiency, ensuring that security inspection does not become a bottleneck in network performance. The appliance architecture allows enterprises to deploy it in branch offices, data centers, and centralized security environments where unified control and visibility are essential.

Hardware Architecture System

The Cisco ASA5508-K9 platform is built on a compact yet powerful hardware foundation that supports advanced security processing. The internal architecture is engineered to balance CPU utilization, memory handling, and dedicated security processing engines that accelerate packet inspection. This ensures that security policies can be applied in real time without degrading network throughput. The system is designed for scalability in terms of session handling, allowing it to manage a large number of concurrent connections which is essential for enterprise-grade environments.

The appliance includes optimized interfaces for network connectivity that support high-speed data transmission across multiple segments. These interfaces are integrated with hardware acceleration features that assist in cryptographic operations, intrusion detection processing, and traffic normalization. The system design focuses on reducing processing overhead on general computing resources by delegating specialized tasks to dedicated modules within the hardware architecture.

Processing Efficiency

One of the defining characteristics of this category is its ability to efficiently process large volumes of network traffic. The system is engineered to inspect packets at multiple layers, including application, transport, and network layers, while maintaining minimal latency. This is achieved through optimized firmware and tightly integrated security modules that work together to inspect, classify, and control traffic in real time.

Traffic handling capabilities extend to both inbound and outbound flows, ensuring that all communication is evaluated against predefined security policies. This includes deep packet inspection, protocol analysis, and behavior-based anomaly detection, which collectively enhance the overall security posture of the network environment.

FirePOWER Security Integration

A key element of this category is the integration of FirePOWER security services, which significantly enhances the threat detection and prevention capabilities of the appliance. FirePOWER introduces advanced security intelligence features such as intrusion prevention systems, malware detection, file control, and application visibility. These capabilities work together to provide a multi-layered defense strategy that goes beyond traditional firewall functionality.

The integration allows administrators to enforce granular control over network traffic based on application type, user identity, and content behavior. This level of visibility ensures that security policies are not only reactive but also proactive, enabling organizations to identify and mitigate threats before they can impact network integrity.

Virtual Private Network Capabilities

The Cisco ASA5508-K9 category also provides strong support for virtual private network configurations, enabling secure remote access for users and site-to-site connectivity between distributed locations. VPN functionality is essential for modern enterprises that rely on remote workforces and geographically dispersed operations.

Encryption protocols are implemented to ensure that all transmitted data remains secure during transit. This includes support for advanced cryptographic standards that protect sensitive information from interception or unauthorized access. The system ensures that remote connections are authenticated and authorized before granting access to internal network resources.

Network Visibility and Control

A major strength of this category is its ability to provide deep visibility into network activity. Administrators can monitor application usage, bandwidth consumption, and user behavior across the entire network. This visibility is essential for identifying performance bottlenecks, security threats, and unauthorized activities.

The system allows for granular control over network traffic, enabling administrators to define rules based on applications, ports, protocols, and user roles. This ensures that network resources are used efficiently while maintaining strict security enforcement across all communication channels.

Performance Optimization and Scalability

The Cisco ASA5508-K9 category is designed to maintain high performance even under heavy network loads. Its architecture supports scalable security processing, allowing it to handle increasing numbers of connections without degradation in performance. This makes it suitable for growing organizations that require flexible security infrastructure.

Performance optimization is achieved through a combination of hardware acceleration and software-level efficiency improvements. These enhancements ensure that security inspection processes do not interfere with normal network operations, allowing for seamless data flow across all connected systems.

Deployment Scenarios in Enterprise Networks

This category is widely used in enterprise environments where network security is a critical priority. It can be deployed at the network edge to protect against external threats or within internal segments to enforce segmentation policies. Its flexibility allows it to adapt to different network architectures and security requirements.

In branch office environments, the appliance provides centralized security enforcement while maintaining local network performance. In data center environments, it ensures that sensitive workloads are protected against internal and external threats through consistent policy application.

High Availability and Reliability

The category supports high availability configurations that ensure continuous network protection even in the event of hardware or software failures. Redundant configurations allow systems to take over seamlessly, minimizing downtime and maintaining security enforcement without interruption.

Reliability is a core design principle, ensuring that the appliance can operate continuously in mission-critical environments. This makes it suitable for organizations that require uninterrupted security services at all times.

Compliance and Security Standards Support

The system is designed to assist organizations in meeting various regulatory and compliance requirements. By enforcing strict security policies and maintaining detailed logs, it supports audits and compliance verification processes. This helps organizations align with industry standards and maintain secure operational practices.

Security standards support ensures that encryption, authentication, and access control mechanisms meet modern enterprise requirements. This contributes to a strong security framework that protects sensitive data and network resources.
