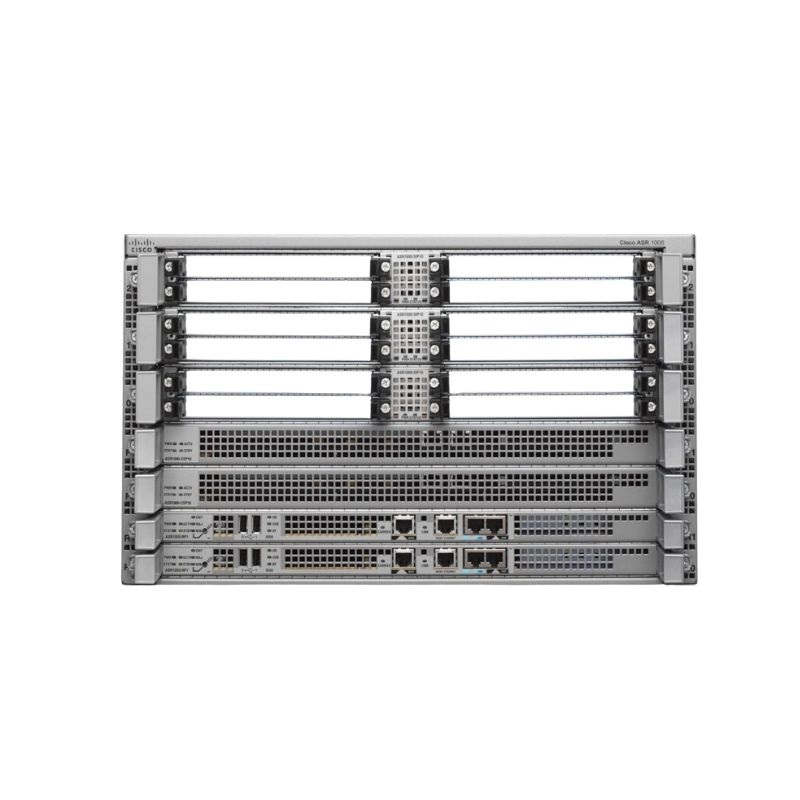

ASR1006-SB Cisco 1006 Agg. Svc. Router Rack-mountable

Product Overview Cisco ASR1006-SB

The Cisco ASR1006-SB is a high-performance aggregation service router. Part of Cisco's elite network solutions series, this router delivers reliable, scalable, and efficient network management for enterprise and service provider environments.

• Brand: Cisco
• Model: 1006 Aggregation Service Router
• Type: Router Chassis
• Part Number: ASR1006-SB

Expansion Capabilities

This router chassis is designed to support a versatile array of modules and interfaces, offering robust expansion potential:

• Total Slots: 19 expansion slots accommodate diverse networking modules.
• Route Processor Slot: Enhances routing performance and efficiency.
• Embedded Service Processor Slot: Enables additional service processing for complex operations.
• Shared Port Adapter Slot: Provides adaptable port configurations for different network setups.
• Interface Processor Slot: Supports seamless connectivity across multiple network interfaces.

Security

The Cisco ASR1006-SB integrates advanced security measures and network management protocols, ensuring safe and controlled operations:

• IPSec: Encrypts communications to protect data integrity.
• L2TP: Facilitates secure tunneling for private data transfer.
• SSH: Offers encrypted remote management access.
• 3DES Encryption: Strengthens data confidentiality.
• AES Encryption: Advanced standard for secure network operations.

Memory and Storage

The router comes equipped with sufficient memory to handle system operations and configuration data effectively:

• Flash Memory: 1 GB of onboard storage ensures reliable system performance and configuration management.

Power and Voltage

The ASR1006-SB supports flexible power requirements, making it adaptable to diverse network environments:

• Input Voltage: 110 V AC or 220 V AC compatibility.

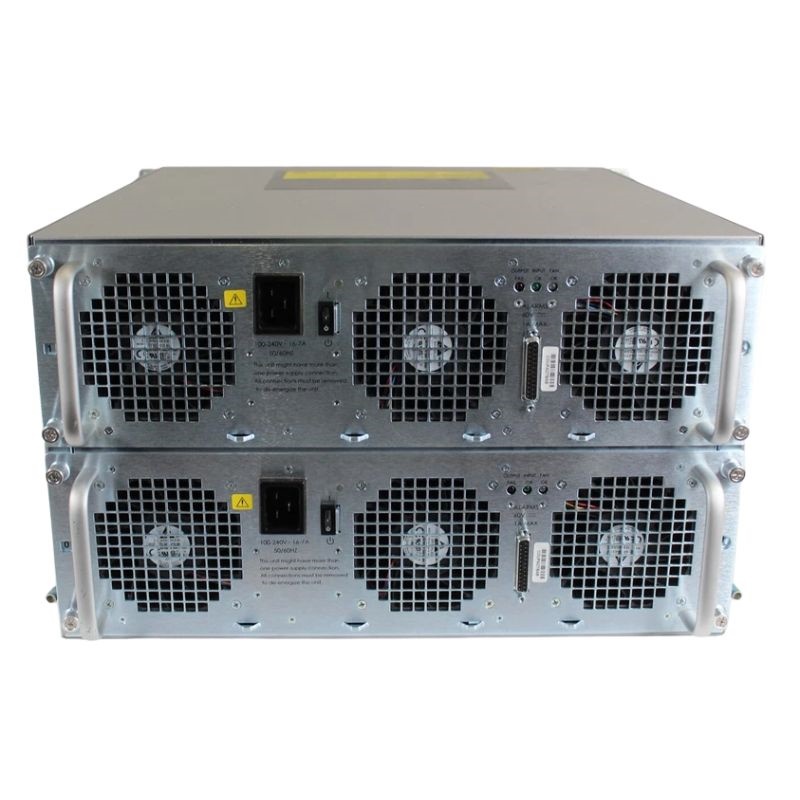

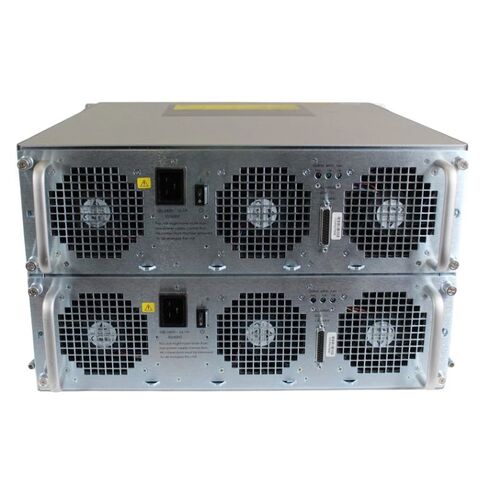

• Power Supply: Comes with a dedicated power unit and dual power supply redundancy.
• 1 x Cisco ASR1006-SB Aggregation Service Router
• 2 x Redundant Power Supplies for uninterrupted operations

Compatibility

The Cisco ASR1006-SB router is compatible with a wide range of Cisco modules, software versions, and network protocols, making it suitable for modern enterprise and carrier-grade networks:

• Module Compatibility: Supports Cisco Shared Port Adapters (SPA) and Network Interface Modules (NIM).
• Software Support: Compatible with Cisco IOS XR operating system versions for enhanced network management.
• Protocol Integration: Works seamlessly with IPv4, IPv6, MPLS, BGP, OSPF, and other routing protocols.
• Accessory Compatibility: Compatible with standard Cisco power supplies, fan trays, and redundant hardware components.
• Network Environment: Suitable for enterprise data centers, service provider networks, and large-scale aggregation deployments.

The Cisco ASR1006-SB 1006 Aggregation Service Router

The Cisco ASR1006-SB 1006 Aggregation Service Router is a high-performance, rack-mountable networking device designed for enterprise and service provider environments. It is part of Cisco's renowned ASR 1000 series, offering scalability, reliability, and flexibility for modern networking needs. This router supports advanced routing, switching, and security functions while maintaining exceptional throughput, making it ideal for organizations that demand high-speed connectivity and secure network management.

High-Performance Routing Capabilities

The ASR1006-SB 1006 is engineered for superior performance in aggregation scenarios. It delivers high-speed IP routing for both IPv4 and IPv6 networks, ensuring that enterprise networks can manage large-scale traffic efficiently. With support for multiple routing protocols, including BGP, OSPF, EIGRP, and IS-IS, this router guarantees seamless connectivity across complex network topologies.

Designed for high availability, the router includes redundant components such as power supplies and route processors, minimizing downtime and ensuring continuous network operations. Its ability to handle millions of concurrent sessions makes it ideal for service providers and enterprises with demanding network traffic requirements.

Advanced Security Features

Security is a critical aspect of modern networking, and the Cisco ASR1006-SB 1006 does not compromise. It supports integrated firewall capabilities, intrusion prevention, and secure VPN connections to safeguard data in transit. The router also offers role-based access control (RBAC), ensuring that network administrators can manage access rights efficiently and securely.

Additionally, the router is compatible with Cisco TrustSec, which enables identity-based network segmentation, reducing the attack surface and enhancing overall network security. These features make it a preferred choice for organizations requiring robust security without sacrificing performance.

Scalability and Flexibility

The Cisco ASR1006-SB 1006 Aggregation Service Router is designed to scale with the growing needs of enterprise networks. With modular interface slots, network managers can customize the router with various line cards, adapting to evolving traffic demands. This flexibility supports multiple connection types, including Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet, ensuring compatibility with a wide range of devices and network topologies.

Redundant Architecture for Continuous Operation

Reliability is key in mission-critical networks, and the ASR1006-SB 1006 incorporates a redundant architecture to ensure uninterrupted service. Dual power supplies and route processors provide failover support, allowing the router to continue operating even in the event of hardware failures. This architecture minimizes network downtime and enhances service level agreements (SLAs) for enterprises and service providers.

High Availability and Network Resilience

In addition to redundancy, the ASR1006-SB 1006 supports advanced features like Nonstop Forwarding (NSF) and Stateful Switchover (SSO), which help maintain uninterrupted routing during system upgrades or hardware failures. These capabilities are particularly valuable for networks that require constant uptime, such as financial institutions, healthcare facilities, and large-scale corporate environments.

Integrated Network Services

The ASR1006-SB 1006 router is not just a routing device; it serves as a platform for integrated network services. It supports service provider-grade capabilities such as MPLS, Quality of Service (QoS), and multicast routing. These features allow organizations to optimize traffic flow, prioritize critical applications, and deliver high-quality voice, video, and data services.

MPLS

Multiprotocol Label Switching (MPLS) is a core feature of the ASR1006-SB 1006, enabling efficient traffic management and network segmentation. MPLS allows for predictable network performance and streamlined routing across complex topologies. Traffic engineering capabilities ensure that critical applications receive priority bandwidth, reducing latency and packet loss, which is essential for voice-over-IP (VoIP) and real-time video applications.

Hardware and Form Factor

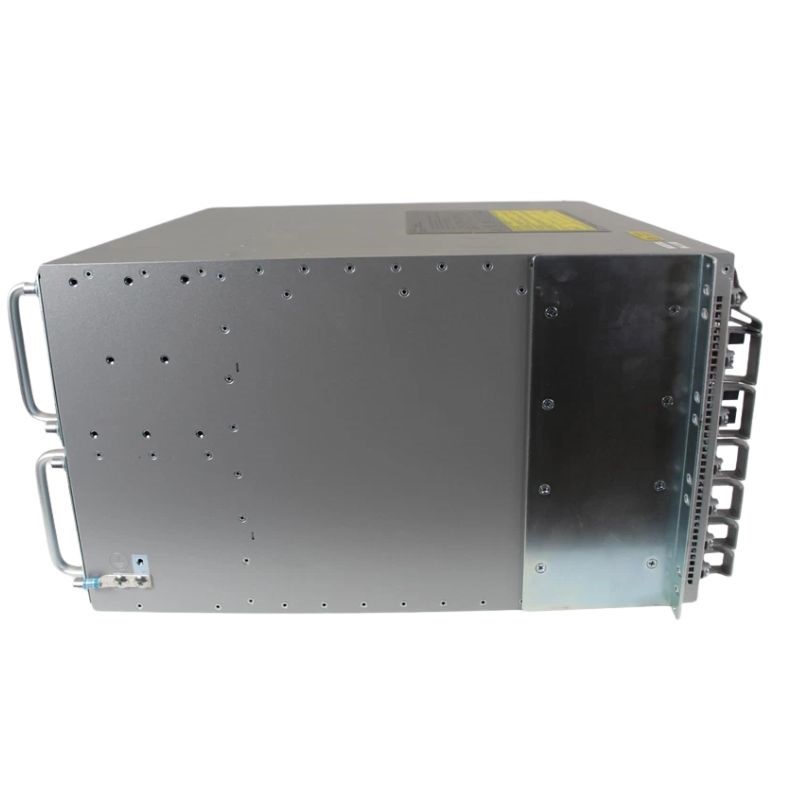

The Cisco ASR1006-SB 1006 is designed as a rack-mountable unit, offering a compact form factor while supporting a broad range of interface modules. This design allows it to fit seamlessly into enterprise data centers and telecommunications closets. With six modular slots, the router can accommodate multiple interface cards, including Ethernet, POS, and WAN interfaces, providing flexibility for various deployment scenarios.

Processor and Memory Features

The router features dual route processors that deliver high-speed packet forwarding and network intelligence. With substantial DRAM and flash memory, the ASR1006-SB 1006 can store extensive routing tables, configuration files, and service policies, enabling efficient operation even under heavy network loads. The dual processor architecture ensures smooth performance and system redundancy.

Power Supply

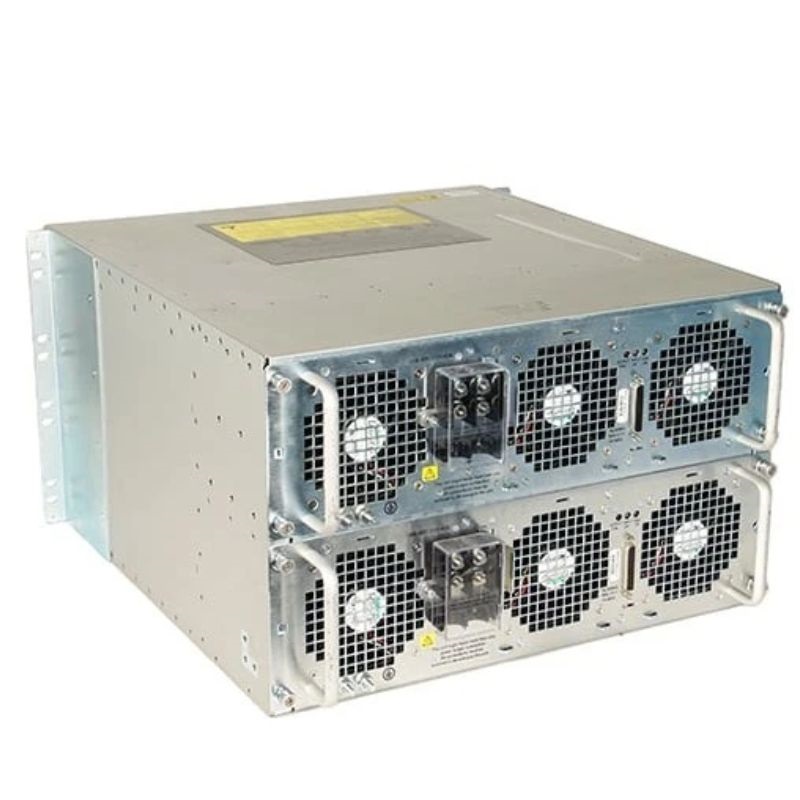

The Cisco ASR1006-SB 1006 supports redundant power supply modules, which provide reliable power backup and enhance network resilience. Advanced cooling mechanisms, including hot-swappable fans, maintain optimal operating temperatures and prevent overheating, ensuring long-term reliability. These features make the router suitable for 24/7 operation in enterprise environments with high uptime requirements.

Deployment Scenarios

The ASR1006-SB 1006 is versatile and suitable for multiple deployment scenarios. It is ideal for large enterprise networks requiring aggregation of multiple access routers, service provider networks handling high-volume traffic, and data center environments that demand high-speed, low-latency routing. Its modularity and performance capabilities make it a future-proof solution for evolving network requirements.

Enterprise Network Aggregation

In enterprise settings, the ASR1006-SB 1006 functions as an aggregation router, consolidating traffic from multiple access layer devices. This simplifies network management, enhances routing efficiency, and provides a centralized point for implementing security policies and QoS rules. Enterprises benefit from increased network visibility, simplified monitoring, and improved operational efficiency.

Service Provider Networks

For service providers, the ASR1006-SB 1006 serves as a high-capacity aggregation platform capable of handling millions of concurrent sessions. It supports MPLS, VPN, and multicast services, which are critical for delivering reliable broadband, voice, and video services. Its scalability and redundancy features help maintain service continuity and meet stringent SLA requirements.

Data Center Integration

Within data centers, the ASR1006-SB 1006 can operate as a core or aggregation router, providing high-speed connectivity between server clusters, storage networks, and external network links. Its support for multiple interfaces and high throughput ensures that data center traffic flows efficiently, minimizing bottlenecks and maintaining high performance for critical applications.

IPv6 Support and Future-Proofing

With full IPv6 support, the ASR1006-SB 1006 is ready for the next generation of internet addressing and routing. This future-proofing ensures that organizations can transition smoothly from IPv4 to IPv6 without requiring major network overhauls, preserving their investment in Cisco hardware.

Network Services

The router supports integration with Cisco’s suite of network services, including application optimization, WAN acceleration, and security solutions. This enables enterprises to deliver high-performance, secure services across the network, enhancing user experience and operational efficiency. The ability to integrate additional network services ensures that the ASR1006-SB 1006 remains a central component of evolving network architectures.
