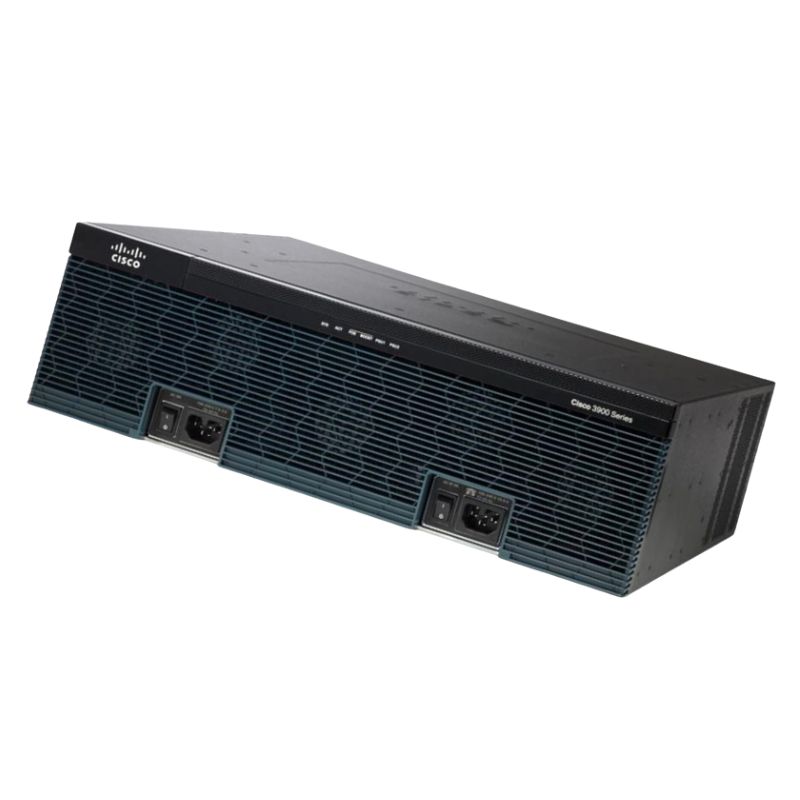

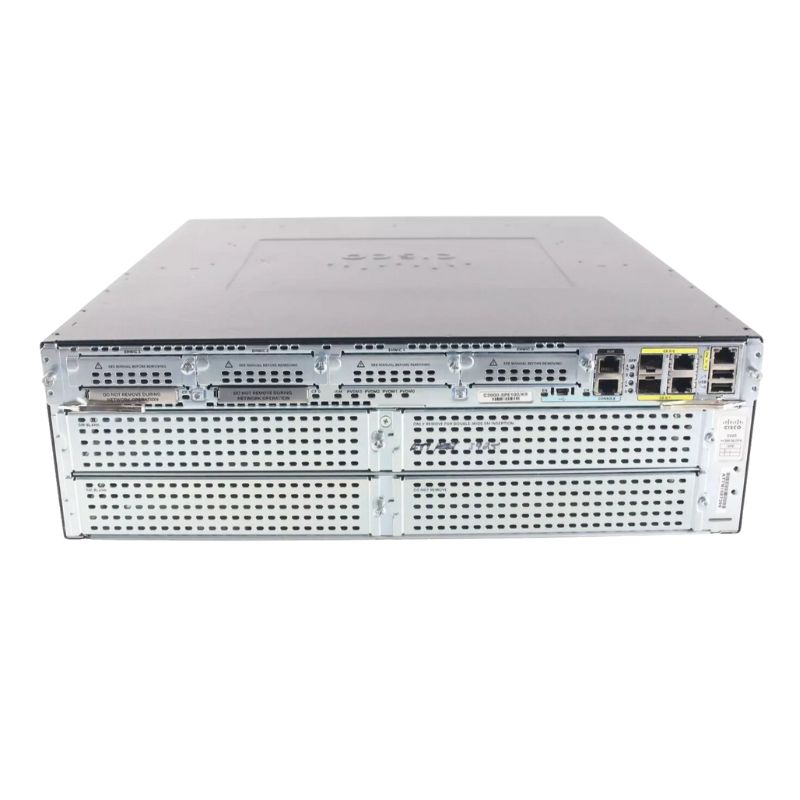

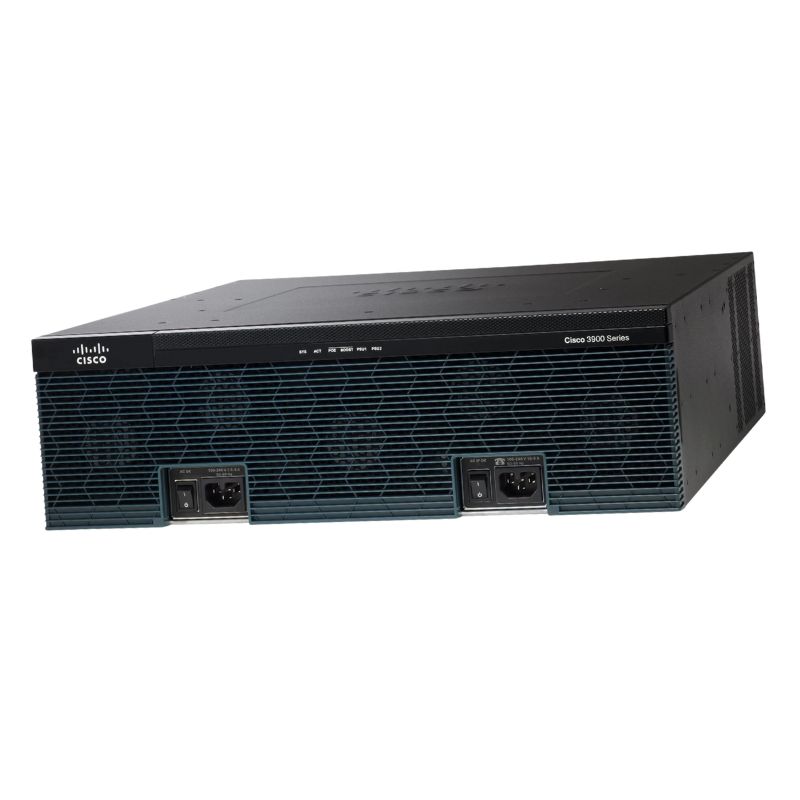

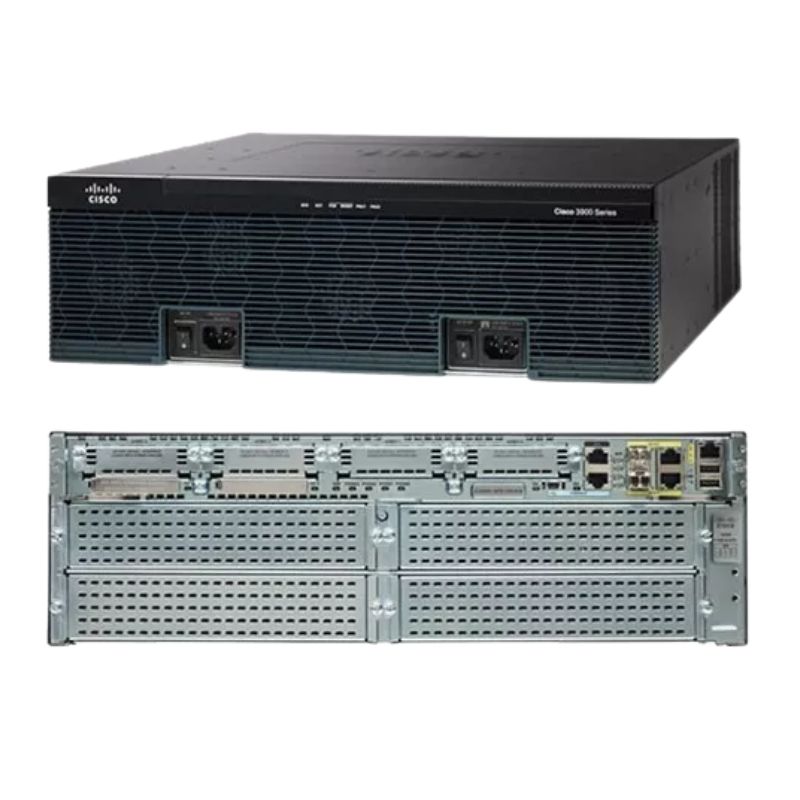

C3945E-VSEC-CUBEK9 Cisco C3945E VSEC CUBE Bundle

Overview of the Cisco Security Services Router

The Cisco C3945E-VSEC-CUBEK9 VSEC CUBE Bundle is a feature-rich integrated services router that offers numerous benefits for businesses. Its integrated services router feature consolidates various network services into a single device, simplifying network management and reducing costs. The security features protect against threats and ensure data confidentiality. The voice, video, and data networking capabilities enable efficient communication, collaboration, and smooth data transfer. With its advanced features and scalability options, this router is an ideal choice for businesses seeking a reliable and comprehensive networking solution.

Features of Cisco Security Router

• Manufacturer: Cisco
• Part Number: C3945E-VSEC-CUBEK9
• Device Type: Modular Desktop Router (3U)
• Connectivity: Wired, supporting multiple Ethernet standards
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet

Robust Network & Transport Protocols

• Supported Network Protocols: TCP/IP, UDP/IP, RSVP, IPSec, PPPoE, L2TPv3
• Routing Protocols: OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, and more
• Static Routing Support: IPv4 and IPv6 static routing options available
• Advanced Routing Features: Policy-Based Routing (PBR)

Comprehensive Remote Management

• Remote Management Protocols: SNMP, RMON
• Security Features: Encryption via SSL, TLS
• Authentication Method: RADIUS

Performance & Memory Capacity

• RAM: 1 GB installed, expandable to 2 GB
• Flash Memory: 256 MB installed, expandable to 8 GB
• Status Indicators: Power and link activity

High-Capacity Communication Features

• Voice/Fax Module: Supports 64 digital ports
• Protocols: ITU T.38

VoIP & IP Telephony Capabilities

• VoIP Protocols: H.323, SIP
• Supported Voice Codecs: G.711, G.722, G.723, G.728, G.729 (a, ab), G.726, iLBC, and more
• Telephony Features: Call forwarding, call transfer, automatic fax detection, DTMF support

Expandable Connectivity Options

• Interfaces: 4 x RJ-45 (10/100/1000 Ethernet), 2 x USB (Type A), 2 x SFP (mini-GBIC)
• Management Ports: 1 x RJ-45 console, 1 x mini-USB Type B
• Expansion Slots: 3 EHWIC, 3 PVDM, 2 CompactFlash (1 free)

Power Specifications

• Power Supply: Internal
• Voltage: AC 120/230V (50/60Hz)

Unified Communications Capacity

• Cisco Unified Communications Manager Express Sessions: Supports up to 250 sessions
• Cisco Unified SRST Sessions: Handles up to 1500 sessions

C3945E-VSEC-CUBEK9 Cisco C3945E VSEC CUBE Bundle

The C3945E-VSEC-CUBEK9 Cisco C3945E VSEC CUBE Bundle represents a powerful and versatile solution designed for organizations that demand secure, scalable, and high-performance voice and data integration. Built on the robust Cisco 3900 Series Integrated Services Router (ISR) platform, this bundle is specifically engineered to support advanced voice gateway capabilities through Cisco Unified Border Element (CUBE) functionality, along with enhanced security features provided by the VSEC (Voice Security) license.

As enterprises continue to transition toward unified communications and cloud-based telephony systems, the need for a reliable session border controller (SBC) becomes critical. The C3945E-VSEC-CUBEK9 bundle serves as a comprehensive solution that enables seamless interconnection between enterprise VoIP networks and service provider SIP trunks, while maintaining strict control over security, policy enforcement, and call routing.

Key Features and Capabilities

The Cisco C3945E VSEC CUBE Bundle is designed with a wide array of features that address modern networking and communication challenges. It integrates high-performance routing, voice processing, encryption, and session management into a single platform.

High-Performance Architecture

At the core of the C3945E is a powerful multicore processor architecture that delivers superior throughput and performance. This ensures that the router can handle demanding workloads, including high call volumes, secure VPN traffic, and data routing, without compromising reliability or latency.

The platform supports hardware acceleration for encryption and voice processing, which enhances performance for secure communications. This is particularly important for organizations handling sensitive data or operating in regulated industries.

Integrated Cisco Unified Border Element (CUBE)

The inclusion of Cisco Unified Border Element (CUBE) functionality allows the router to act as a session border controller. This enables enterprises to connect their internal unified communications systems to external SIP service providers while maintaining full control over call signaling and media streams.

CUBE provides protocol interworking, SIP normalization, and advanced call routing features. It also supports interoperability between different VoIP systems, making it an ideal solution for hybrid environments that include legacy PBX systems and modern cloud-based communication platforms.

Voice Security (VSEC) Licensing

The VSEC license enhances the security capabilities of the C3945E by enabling features such as encrypted voice signaling and media, secure SIP trunking, and protection against toll fraud and denial-of-service attacks. This ensures that voice communications remain confidential and protected from unauthorized access.

With VSEC, organizations can implement secure voice architectures that comply with industry standards and regulatory requirements, providing peace of mind for both IT administrators and end users.

Scalability and Flexibility

One of the standout characteristics of the C3945E-VSEC-CUBEK9 bundle is its scalability. The platform is designed to grow with your business, supporting increasing numbers of users, devices, and applications without requiring a complete infrastructure overhaul.

Modular Design

The Cisco C3945E features a modular design that allows for the addition of interface cards, service modules, and digital signal processors (DSPs). This flexibility enables organizations to customize the router to meet their specific requirements, whether they need additional WAN connectivity, voice ports, or enhanced processing capabilities.

The ability to upgrade and expand the system over time helps protect investment and reduces the total cost of ownership.

Support for Multiple Interfaces

The router supports a wide range of interfaces, including Gigabit Ethernet, T1/E1, and serial connections. This makes it suitable for diverse network environments and allows seamless integration with existing infrastructure.

Additionally, the platform supports both IPv4 and IPv6, ensuring compatibility with modern networking standards and future-proofing the deployment.

Advanced Security Features

Security is a critical component of any enterprise network, and the C3945E-VSEC-CUBEK9 bundle delivers comprehensive protection against a wide range of threats.

Integrated Firewall and VPN

The router includes built-in firewall capabilities that provide stateful packet inspection, intrusion prevention, and access control. These features help safeguard the network from unauthorized access and malicious activity.

In addition, the platform supports various VPN technologies, including IPsec and SSL VPNs, enabling secure remote access and site-to-site connectivity. Hardware-based encryption ensures high performance even when handling encrypted traffic.

Voice Security Enhancements

With the VSEC license, the router offers advanced voice security features such as Secure Real-Time Transport Protocol (SRTP) and Transport Layer Security (TLS). These protocols encrypt voice data and signaling, protecting communications from interception and tampering.

The system also includes mechanisms to detect and mitigate voice-specific threats, such as SIP-based attacks and call fraud, ensuring the integrity of the voice network.

Unified Communications Integration

The C3945E-VSEC-CUBEK9 bundle is designed to integrate seamlessly with unified communications platforms, enabling organizations to deliver a consistent and efficient communication experience.

Compatibility with Cisco UC Solutions

The router is fully compatible with Cisco Unified Communications Manager (CUCM), Cisco Unity Connection, and other Cisco collaboration tools. This ensures smooth integration and simplifies deployment in Cisco-centric environments.

The platform also supports third-party VoIP systems, providing flexibility for organizations with mixed vendor environments.

Performance Optimization and Reliability

The Cisco C3945E is built to deliver consistent performance and high availability, even in demanding environments.

Quality of Service (QoS)

The platform includes advanced QoS features that prioritize voice and video traffic, ensuring clear and uninterrupted communication. This is essential for maintaining high call quality in networks with mixed traffic types.

Administrators can define policies to allocate bandwidth, manage congestion, and optimize performance for critical applications.

Redundancy and High Availability

The router supports various redundancy mechanisms, including dual power supplies and failover configurations. These features help minimize downtime and ensure continuous operation in the event of hardware or network failures.

High availability is particularly important for organizations that rely on voice communications for business-critical operations.

Deployment Scenarios

The versatility of the C3945E-VSEC-CUBEK9 bundle makes it suitable for a wide range of deployment scenarios across different industries.

Enterprise Branch Offices

In branch office environments, the router can serve as a central communication hub, providing voice gateway functionality, secure connectivity, and routing services. Its compact design and modular capabilities make it ideal for distributed networks.

Service Provider Edge

Service providers can use the C3945E as a customer premises equipment (CPE) device, enabling secure SIP trunking and voice services for enterprise clients. The CUBE functionality ensures interoperability and efficient call management.

Hybrid Cloud Communications

As organizations adopt cloud-based communication platforms, the C3945E acts as a bridge between on-premises systems and cloud services. It enables secure connectivity and ensures seamless communication across different environments.

Centralized Management

The router can be managed באמצעות Cisco network management platforms, allowing administrators to configure, monitor, and troubleshoot the system from a central location. This reduces complexity and improves operational efficiency.

Support for command-line interface (CLI) and graphical user interfaces (GUI) provides flexibility for different management preferences.

Real-Time Monitoring

The platform includes real-time monitoring capabilities that provide insights into network performance, call quality, and resource utilization. These metrics help administrators identify issues վաղ and اتخاذ proactive measures to maintain optimal performance.

Investment Protection and Future Readiness

The C3945E-VSEC-CUBEK9 bundle is designed with long-term value in mind, offering features that protect investment and support future growth.

Software Upgradability

The router supports regular software updates that introduce new features, security enhancements, and performance improvements. This ensures that the system remains current and capable of meeting evolving requirements.

Licensing options allow organizations to enable additional capabilities as needed, providing flexibility and scalability.

Energy Efficiency

Cisco has incorporated energy-efficient technologies into the C3945E, reducing power consumption and operating costs. This aligns with sustainability goals and helps organizations minimize their environmental impact.

The C3945E-VSEC-CUBEK9 Bundle

The C3945E-VSEC-CUBEK9 Cisco C3945E VSEC CUBE Bundle stands out as a comprehensive solution for organizations seeking a reliable, secure, and scalable platform for unified communications and network integration. Its combination of advanced routing capabilities, robust security features, and seamless voice integration makes it a valuable asset for modern enterprises.

By consolidating multiple functions into a single device, the bundle simplifies network architecture, reduces operational complexity, and lowers overall costs. Whether deployed in branch offices, data centers, or hybrid cloud environments, the C3945E delivers the performance and flexibility needed to support today’s communication demands.

Integrated Services Router

The Cisco C3945E-VSEC-CUBEK9 VSEC CUBE Bundle is an advanced integrated services router that provides high-performance and secure connectivity for small to medium-sized businesses. With its powerful hardware and software capabilities, this router offers a comprehensive solution for data, voice, and video networking needs.

The integrated services router feature is crucial for businesses as it allows them to consolidate multiple network services into a single device. This eliminates the need for separate devices for routing, security, voice, and video, resulting in simplified network management and reduced hardware costs.
