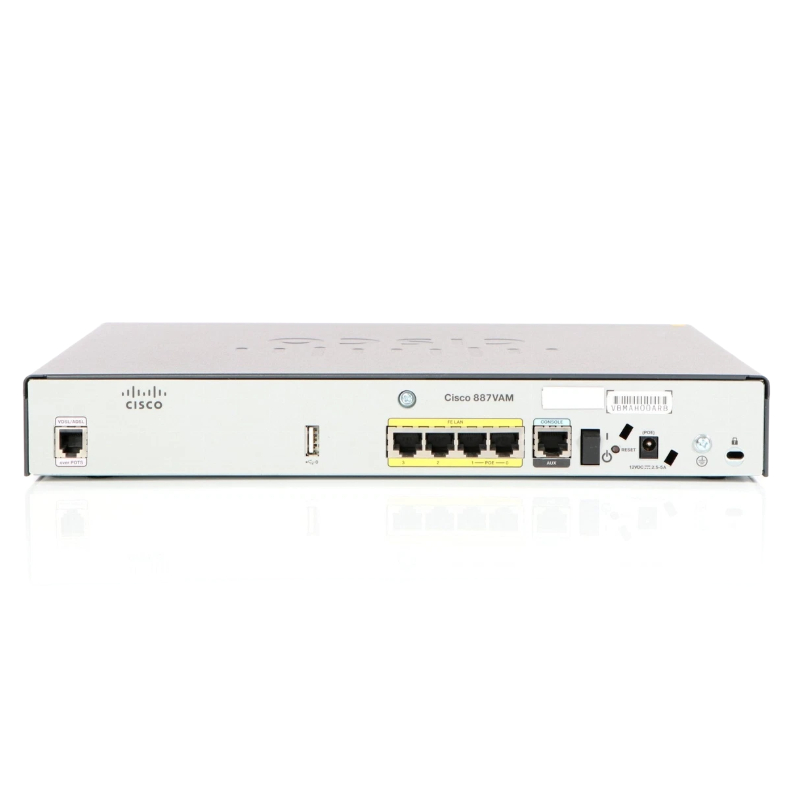

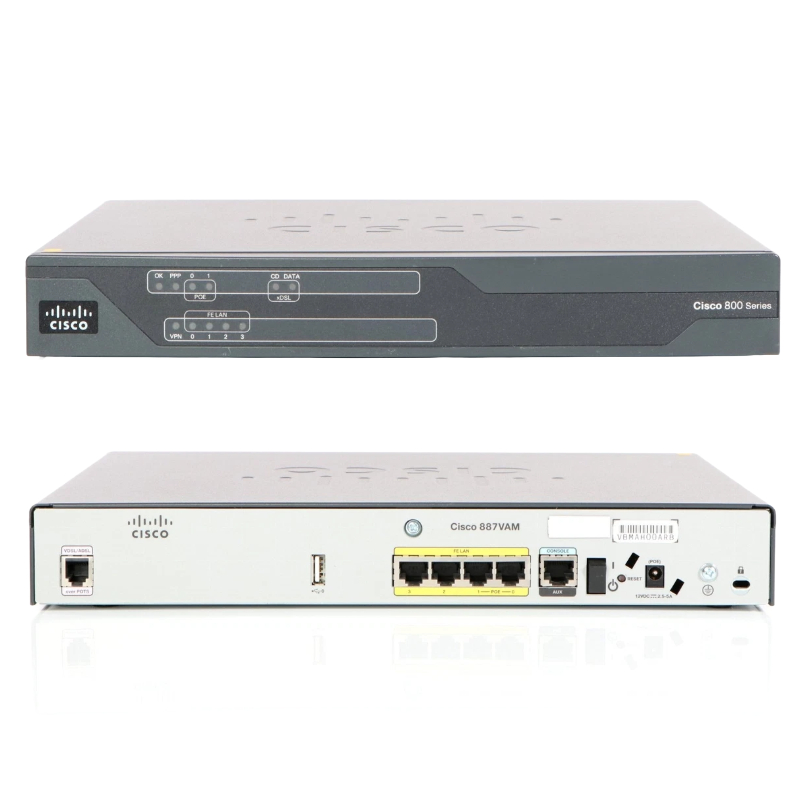

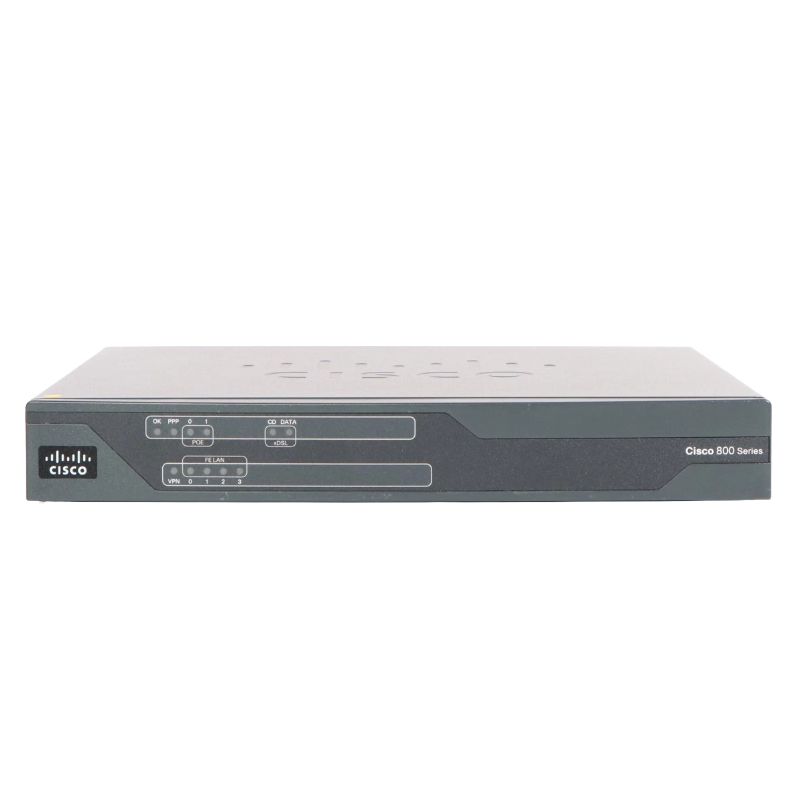

C887VAM-K9 Cisco 887 VDSL/ADSL Annex M Over POTS Multi-Mode 4 Ports Router

Cisco C887VAM-K9 Multi-Mode Router Overview

The Cisco C887VAM-K9 is a high-performance integrated services router designed for small businesses and branch offices. With Annex M support, advanced routing protocols, and robust security features, it ensures reliable broadband connectivity and secure data transmission over POTS lines.

General Information

• Manufacturer: Cisco
• Part Number: C887VAM-K9
• Product Type: Integrated Services Router

Connectivity & Interfaces

• Broadband WAN: Multimode VDSL2 and ADSL2/2+ over Plain Old Telephone Service (POTS)
• Annex Support: Annex M support for enhanced upstream speeds
• Wired LAN: 4-port 10/100 Mbps managed Fast Ethernet switch
• Management Ports: 1 x RJ-45 console/auxiliary port for local configuration
• USB Support: 1 x USB 1.1 port for tokens, booting, or flash storage
• PoE Support: Optional 2-port Power over Ethernet (PoE) for IP phones and devices (requires external adapter)

Memory

• 256 MB DRAM standard (expandable up to 768 MB)
• 128 MB or 256 MB Flash memory

VPN Capacity

• Hardware-accelerated support for up to 20 IPsec tunnels

Routing Protocols

• BGP (Border Gateway Protocol)
• EIGRP (Enhanced Interior Gateway Routing Protocol)
• OSPF (Open Shortest Path First)
• RIP-1 and RIP-2
• HSRP (Hot Standby Router Protocol)
• VRRP (Virtual Router Redundancy Protocol)

Cooling

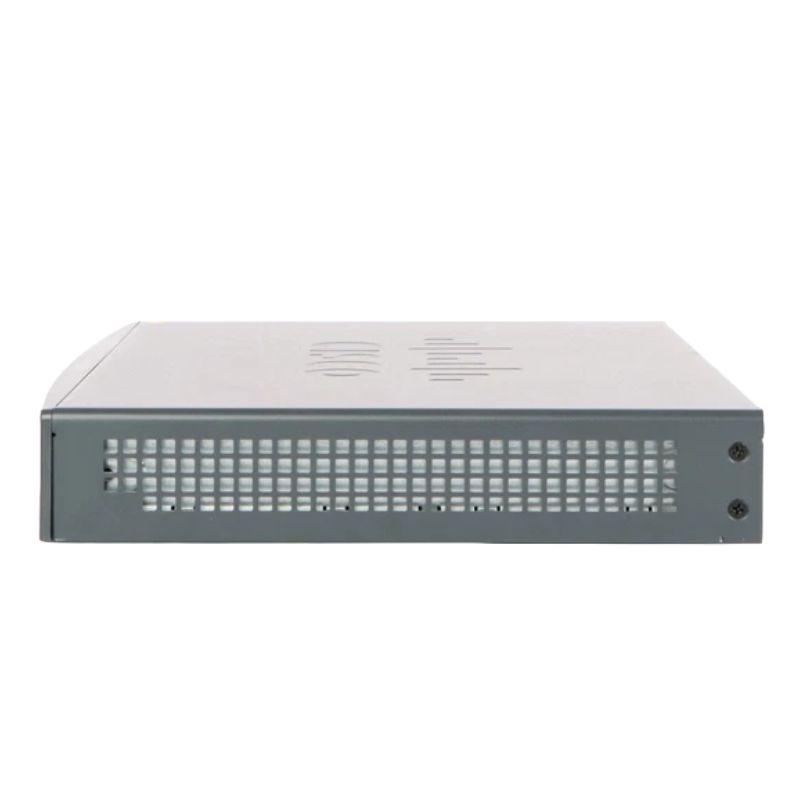

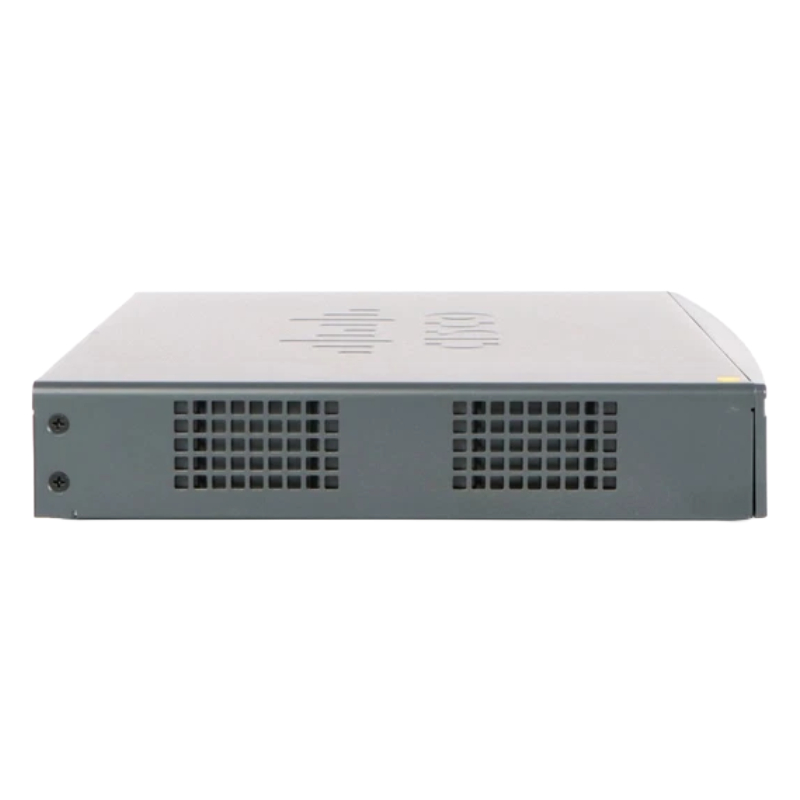

• Fanless chassis design for silent operation in office environments

Operating System

• Cisco IOS Advanced Security

Hardware-Accelerated Encryption

• DES
• 3DES
• AES (128, 192, 256-bit)

Security Suite

• Stateful inspection firewall
• Intrusion Prevention System (IPS)
• Content filtering

Traffic Optimization

• Class-Based Weighted Fair Queuing (CBWFQ)
• Low-Latency Queuing (LLQ)
• Weighted Fair Queuing (WFQ)

Cisco C887VAM-K9 887 VDSL/ADSL Multi-Mode Router

The Cisco C887VAM-K9 887 VDSL/ADSL Annex M Over POTS Multi-Mode 4 Ports Router represents a highly adaptable integrated services networking platform engineered to deliver reliable broadband access across diverse WAN environments. Designed for branch offices, small enterprises, and managed service deployments, this router integrates advanced DSL technologies with robust routing, security, and voice capabilities, making it a versatile solution for converged data, voice, and internet connectivity. Its architecture is optimized for environments requiring stable broadband over traditional copper telephone infrastructure, ensuring organizations can maintain operational continuity even in locations without fiber availability.

Positioning Within Cisco Integrated Services Router 880 Series Ecosystem

The device belongs to the Cisco 880 Series Integrated Services Router family, which is widely recognized for delivering secure, scalable, and compact networking solutions. Within this ecosystem, the C887VAM-K9 is specifically tailored for VDSL and ADSL deployments supporting Annex M enhancement over POTS lines. This allows higher upstream bandwidth compared to standard ADSL configurations, making it particularly suitable for modern cloud-based applications, VoIP services, and remote collaboration tools that require consistent upload performance. The multi-mode DSL interface ensures compatibility with a broad range of service provider infrastructures, enabling seamless deployment in both legacy and upgraded telecom environments.

Design Philosophy and Deployment Flexibility

The design of the Cisco C887VAM-K9 emphasizes operational flexibility and resilience. Its compact form factor allows deployment in space-constrained environments such as retail branches, kiosks, and small office network closets. Despite its small footprint, the router integrates enterprise-grade features typically found in larger branch routers. It supports multiple WAN connectivity modes, allowing automatic adaptation to VDSL, ADSL2+, and Annex M conditions without requiring hardware replacement. This adaptability reduces operational costs and simplifies long-term network maintenance strategies for IT administrators.

Multi-Mode DSL Integration and Connectivity Adaptation

The multi-mode DSL capability is one of the defining attributes of the Cisco C887VAM-K9 router. It enables dynamic negotiation with service provider DSLAM equipment, ensuring optimal synchronization rates based on line quality and distance from the exchange. Annex M support enhances upstream throughput by reallocating frequency spectrum traditionally reserved for downstream traffic. This makes the router especially valuable for organizations relying on cloud backups, real-time communication platforms, and VPN-based remote access systems where upload speed consistency is critical.

Advanced Routing Capabilities and Network Intelligence

The Cisco C887VAM-K9 integrates advanced routing protocols and intelligent traffic management mechanisms that enable efficient data handling across distributed networks. It supports dynamic routing protocols commonly used in enterprise environments, ensuring efficient path selection and network redundancy. The router is capable of handling multiple subnet architectures, making it suitable for segmented branch office deployments where secure separation of services is required. Its routing engine is optimized for low-latency processing, ensuring minimal packet delay even under heavy traffic loads.

Quality of Service and Traffic Prioritization Framework

Quality of Service (QoS) functionality plays a critical role in ensuring consistent performance across different application types. The router can prioritize latency-sensitive traffic such as voice over IP and video conferencing, while still maintaining bandwidth allocation for bulk data transfers and background synchronization tasks. This intelligent traffic classification ensures that mission-critical applications receive uninterrupted performance even in congested network conditions.

Bandwidth Optimization for Converged Services

In converged networking environments where voice, video, and data coexist over a single DSL connection, bandwidth optimization becomes essential. The Cisco C887VAM-K9 applies traffic shaping techniques and congestion management policies to maintain service quality across all applications. By dynamically allocating available bandwidth based on real-time demand, the router ensures that no single service type monopolizes network resources, preserving overall system stability and user experience.

Security Architecture and Threat Mitigation Capabilities

Security is a foundational component of the Cisco C887VAM-K9 router design. It incorporates multiple layers of protection that safeguard data integrity, prevent unauthorized access, and mitigate external threats. The integrated firewall capabilities allow stateful inspection of traffic, ensuring that only legitimate data flows are permitted through the network boundary. This is particularly important for branch office deployments where centralized security infrastructure may not be directly accessible.

VPN Support and Secure Remote Connectivity

The router supports virtual private network technologies that enable secure communication between remote sites and central enterprise networks. These encrypted tunnels ensure that sensitive business data remains protected during transmission over public DSL networks. The device supports scalable VPN configurations suitable for both site-to-site connectivity and remote access scenarios, allowing employees to securely access internal resources from distributed locations.

Encryption Standards and Data Protection Mechanisms

The encryption mechanisms integrated into the Cisco C887VAM-K9 ensure compliance with modern security requirements. Strong cryptographic algorithms are utilized to secure data traffic, preventing interception or tampering during transmission. These encryption standards are essential for industries handling sensitive financial, healthcare, or operational data where regulatory compliance and data protection are mandatory.

Voice Over IP Integration and Unified Communications Support

The Cisco C887VAM-K9 is engineered to support voice services alongside traditional data traffic, enabling unified communications in branch office environments. Its integration with VoIP systems allows organizations to reduce dependency on separate telephony infrastructure. The router ensures voice packet prioritization to maintain call clarity and reduce jitter, latency, and packet loss during communication sessions.

Analog and Digital Voice Compatibility

The router’s architecture supports integration with analog voice interfaces and digital communication systems, allowing hybrid telephony deployments. This flexibility enables organizations transitioning from legacy PBX systems to modern IP-based communication platforms to maintain operational continuity without immediate infrastructure overhaul. The ability to support multiple voice technologies makes the device suitable for gradual network modernization strategies.

Call Quality Optimization and Latency Management

Maintaining high-quality voice communication over DSL connections requires precise traffic engineering. The Cisco C887VAM-K9 incorporates jitter buffering and packet prioritization techniques that ensure stable call quality even under fluctuating network conditions. These mechanisms are essential in environments where consistent voice communication is critical for customer service operations or internal collaboration.

WAN Interface Capabilities and Broadband Optimization

The WAN interface design of the Cisco C887VAM-K9 enables efficient broadband utilization across different DSL technologies. Its compatibility with VDSL and ADSL Annex M ensures that organizations can leverage existing copper infrastructure while achieving enhanced performance levels. This makes it particularly valuable in regions where fiber deployment is limited or cost-prohibitive.

DSL Line Adaptation and Signal Stability

The router continuously monitors DSL line conditions and adjusts synchronization parameters to maintain optimal performance. This adaptive behavior ensures stable connectivity even in environments with variable line quality or electrical interference. The system’s ability to recalibrate connection parameters dynamically helps reduce downtime and improves overall network reliability.

Upstream Enhancement Through Annex M Technology

Annex M technology significantly improves upstream data rates by reallocating available frequency spectrum within the DSL channel. This enhancement is particularly beneficial for applications such as cloud storage synchronization, video conferencing uploads, and VPN tunneling. By improving upstream performance, the Cisco C887VAM-K9 supports modern digital workflows that rely heavily on bidirectional data exchange.

Hardware Architecture and Performance Efficiency

The hardware architecture of the Cisco C887VAM-K9 is designed to balance performance efficiency with energy conservation. It integrates a high-performance processor capable of handling multiple concurrent processes, including routing, encryption, and traffic management. The system memory architecture ensures smooth operation even under heavy network load conditions, making it suitable for demanding branch office environments.

Embedded Systems Design for Continuous Operation

The embedded system design ensures that the router can operate continuously without performance degradation. Thermal efficiency and power management systems are optimized to reduce energy consumption while maintaining operational stability. This makes the device suitable for environments where continuous uptime is critical.

Scalability and Future Network Integration

Scalability is a key consideration in the design of the Cisco C887VAM-K9. Its modular software architecture allows for future updates and feature enhancements without requiring hardware replacement. This ensures long-term investment protection for organizations deploying the router as part of their network infrastructure strategy.

Deployment Scenarios

The Cisco C887VAM-K9 is widely used across multiple deployment scenarios including retail branches, remote offices, and distributed enterprise environments. Its ability to provide reliable broadband connectivity over DSL lines makes it ideal for locations lacking advanced fiber infrastructure. It is also commonly used in backup connectivity configurations, ensuring business continuity in the event of primary WAN failure.

Remote Office Connectivity Solutions

In remote office environments, the router serves as the primary gateway for internet access, internal communication, and cloud service integration. Its integrated security features and routing capabilities eliminate the need for multiple standalone devices, simplifying network architecture and reducing operational complexity.

Business Continuity and Redundancy Planning

The device plays a crucial role in business continuity strategies by providing stable secondary connectivity options. In the event of primary network outages, it can maintain essential communication channels and ensure uninterrupted access to critical services. This redundancy is essential for maintaining productivity and operational resilience in distributed enterprise environments.
