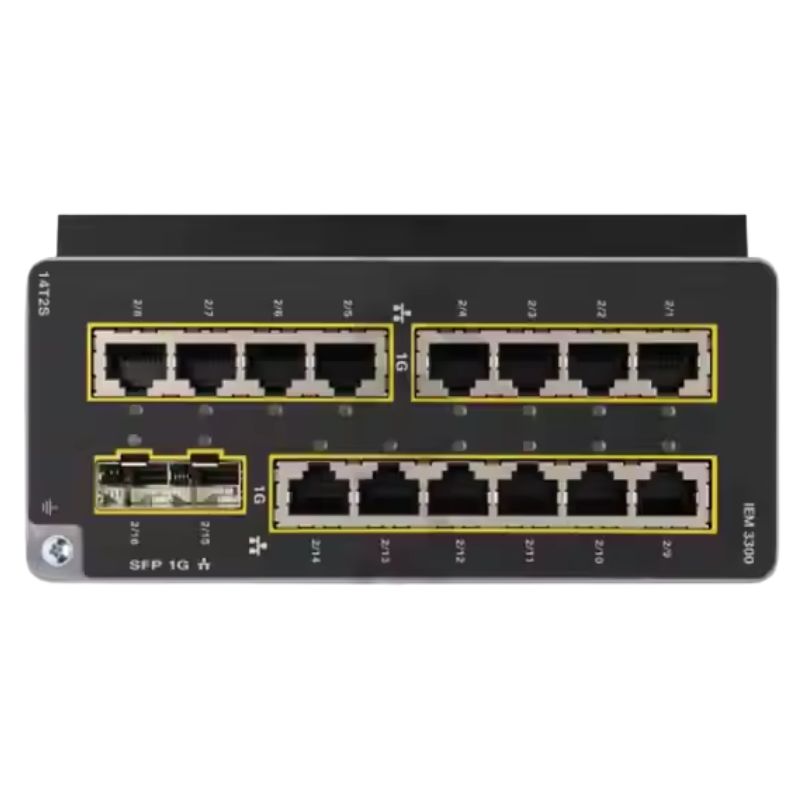

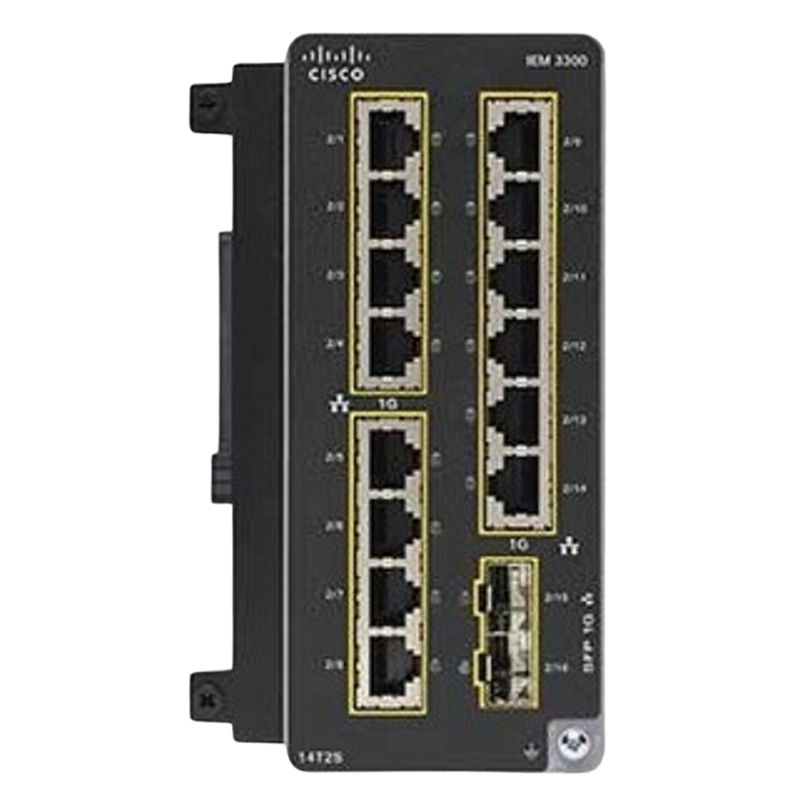

IEM-3300-14T2S Cisco Catalyst IE3300 Rugged Series Expansion Module

Cisco Catalyst IE3300 Rugged Series Module

This Cisco expansion module is engineered to extend the capabilities of the Catalyst IE3300 Rugged Series, delivering reliable and high-speed network connectivity in demanding industrial environments. It provides robust performance for data-intensive applications requiring stable and secure Ethernet communication.

Product Identification

• Manufacturer: Cisco
• Part Number: IEM-3300-14T2S
• Category: Catalyst Expansion Module

Ethernet Port Configuration

• Total Ports: 14 x RJ-45 Ethernet connections
• Port Standard: 1000BASE-T Gigabit Ethernet
• Connector Type: Twisted Pair RJ-45
• Designed for stable LAN communication in industrial setups

Network Technology

• Ethernet Technology: High-speed Gigabit Ethernet
• Optimized for data transmission efficiency and reliability

Industry-Compliant Protocol Compatibility

• 1000BASE-T standard support
• 1000BASE-X compatibility for optical networking integration

Flexible Modular Networking Extension

• Total Expansion Slots: 2
• Slot Type: SFP (Small Form-Factor Pluggable / Mini-GBIC)
• Supports optical fiber and high-speed uplink modules

Multi-Type Transmission

• Twisted pair copper cabling
• Fiber optic network media

Space-Efficient Rugged Construction

• Height: 6 inches
• Width: 2.4 inches
• Depth: 5.3 inches
• Weight: 2.06 lbs

Optimized for Critical Networking Environments

• Industrial data networking systems
• High-performance optical and hybrid networks
• Factory automation and control systems
• Enterprise-grade infrastructure expansion

Designed for Continuous Industrial Operation

• Stable 14-port Gigabit Ethernet expansion capability
• Supports both copper and fiber connectivity options
• Modular SFP-based uplink flexibility
• Rugged build optimized for harsh environments
• Efficient integration with Cisco IE3300 systems

Cisco IEM-3300-14T2S Catalyst Expansion Module

The Cisco IEM-3300-14T2S Catalyst IE3300 Rugged Series Expansion Module 14 Ports represents a highly specialized industrial networking expansion component designed to extend the port density and connectivity capabilities of the Cisco Catalyst IE3300 Rugged Series switch platform. Built for demanding industrial environments, this expansion module enhances the flexibility, scalability, and operational resilience of rugged network deployments where reliability, deterministic performance, and environmental durability are critical. It is engineered to integrate seamlessly into Cisco’s industrial Ethernet ecosystem, enabling organizations to scale connectivity without compromising on industrial-grade robustness.

This expansion module is particularly significant in environments where traditional enterprise-grade networking equipment cannot withstand harsh conditions such as extreme temperatures, vibration, dust exposure, and electrical noise. By providing additional Ethernet and uplink interfaces through a compact modular design, the Cisco IEM-3300-14T2S plays a crucial role in enabling high-density industrial networking architectures that support modern operational technologies and digital transformation initiatives in industrial sectors.

Role of Modular Expansion in Rugged Networking Systems

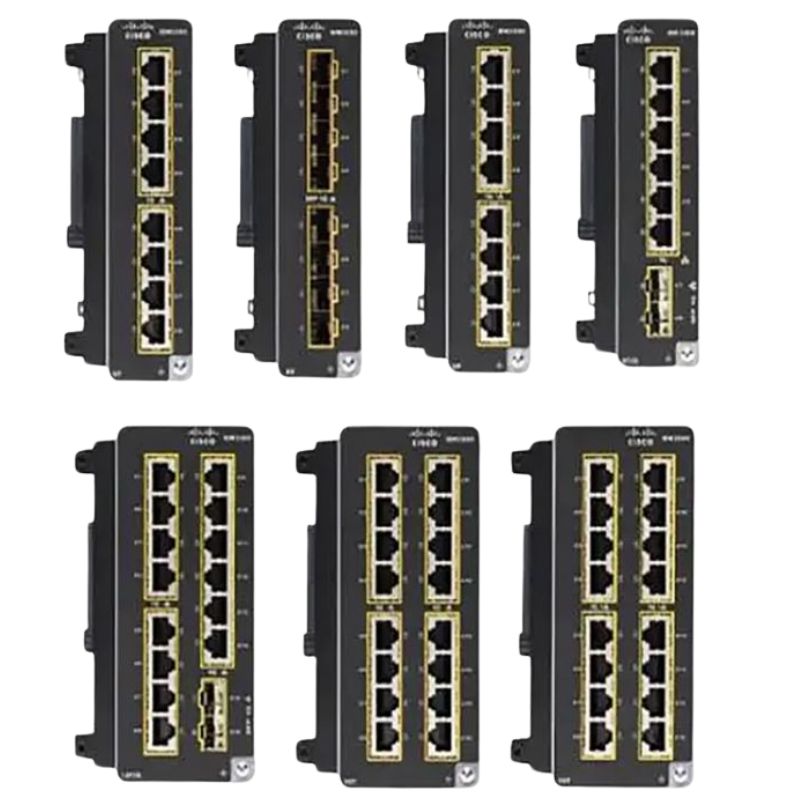

Industrial networking environments often require adaptable infrastructure that can evolve with changing operational demands. The Cisco IE3300 Rugged Series leverages a modular architecture that allows expansion modules such as the IEM-3300-14T2S to extend port capacity without replacing the entire switching system. This modular approach reduces operational downtime, simplifies scalability, and improves lifecycle management for industrial networks.

The expansion module concept is particularly valuable in distributed industrial environments such as manufacturing plants, transportation systems, oil and gas facilities, and smart city infrastructure, where incremental expansion is often preferred over complete system redesign. The Cisco IEM-3300-14T2S integrates into this architecture by providing additional high-performance ports that support a wide range of industrial devices and communication protocols.

Integration with Cisco Catalyst IE3300 Rugged Series

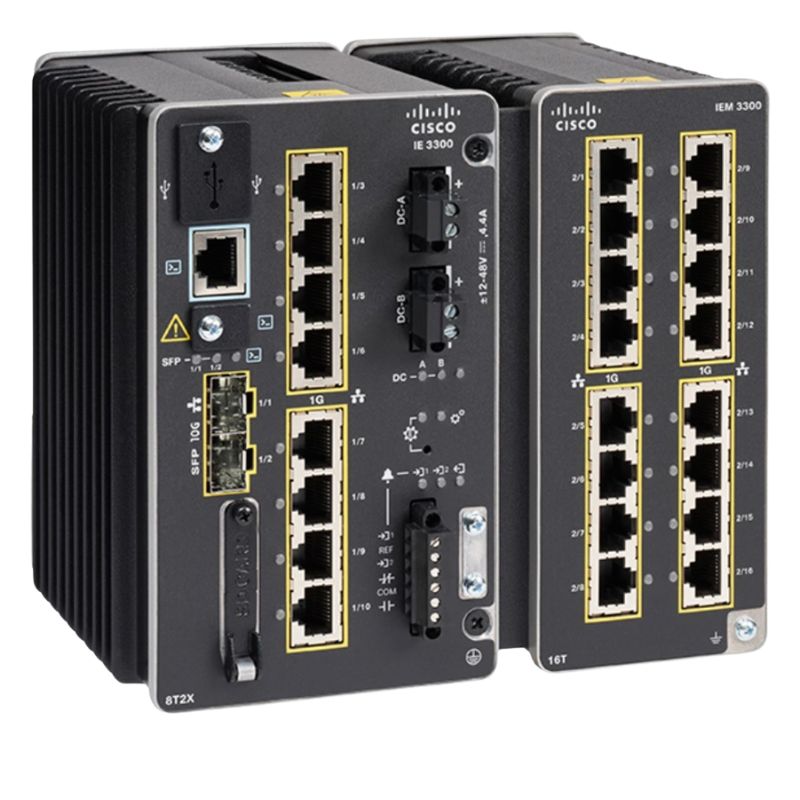

The Cisco IEM-3300-14T2S is specifically designed for compatibility with the Cisco Catalyst IE3300 Rugged Series switches. This tight integration ensures that all ports and uplinks function as a unified system with consistent management, configuration, and monitoring capabilities. The expansion module connects directly to the host switch chassis, enabling low-latency communication and synchronized operation across the entire switching platform.

This seamless integration ensures that network administrators can manage expanded port capacity through a single control plane, simplifying configuration workflows and reducing complexity in industrial network management environments.

High-Density 14-Port Expansion Design

At the core of the Cisco IEM-3300-14T2S is its ability to provide 14 additional ports, significantly increasing the connectivity capacity of the base IE3300 switch system. This expanded port density is critical for industrial environments where numerous devices such as sensors, programmable logic controllers, actuators, and industrial cameras must be connected simultaneously.

The high port density allows network designers to consolidate infrastructure, reducing the need for multiple standalone switches while maintaining organized and efficient network topologies. This results in improved cable management, simplified troubleshooting, and more efficient use of rack or enclosure space.

Dual-Speed and Multi-Service Connectivity Support

The expansion module is engineered to support a range of industrial Ethernet connectivity requirements. It is designed to handle mixed-device environments where legacy industrial equipment and modern IoT-enabled devices coexist. This flexibility ensures that organizations can modernize their networks incrementally without replacing existing infrastructure.

The inclusion of T-type and S-type interfaces within the module design enhances uplink flexibility, enabling connections to aggregation layers, backbone networks, or industrial control systems with varying bandwidth requirements.

Industrial-Grade Hardware Construction

The Cisco IEM-3300-14T2S is built with a ruggedized hardware architecture specifically designed for harsh industrial environments. Unlike conventional enterprise networking modules, this expansion module is engineered to withstand mechanical stress, temperature fluctuations, and electromagnetic interference commonly found in industrial settings.

Its reinforced chassis and industrial-grade components ensure long-term operational reliability even under continuous heavy-duty usage. This makes it suitable for deployment in environments such as factory floors, outdoor installations, transportation hubs, and energy production facilities.

Thermal and Environmental Resilience

Thermal resilience is a key aspect of the Cisco IEM-3300-14T2S design. It is capable of operating in environments with wide temperature variations, ensuring uninterrupted network performance even in extreme heat or cold conditions. This capability is essential for industrial applications where climate control may be limited or unavailable.

Additionally, the module is designed to resist dust, vibration, and humidity, making it suitable for deployment in challenging environments where traditional networking equipment would fail or require frequent maintenance.

Low-Latency Switching Capabilities

The Cisco IEM-3300-14T2S is optimized for low-latency communication, ensuring fast and deterministic data transfer between connected industrial devices. This is particularly important in automation systems where real-time decision-making is required. The module ensures minimal packet delay, supporting time-sensitive applications such as robotic control and machine synchronization.

Bandwidth Efficiency and Traffic Management

Efficient traffic handling is essential in industrial networks where multiple data streams coexist. The expansion module contributes to improved bandwidth distribution by allowing additional segmentation of network traffic across more ports. This helps reduce congestion and improves overall system responsiveness.

Advanced traffic prioritization capabilities integrated into the IE3300 platform ensure that critical industrial data is prioritized over less time-sensitive communications, supporting operational continuity in mission-critical environments.

Manufacturing Automation Systems

In manufacturing environments, the Cisco IEM-3300-14T2S plays a vital role in connecting production line equipment, including sensors, PLCs, robotic arms, and monitoring systems. The additional port capacity enables comprehensive connectivity across complex production environments where high device density is common.

Energy and Utility Networks

In energy production and utility distribution environments, the module supports connectivity for monitoring devices, substations, and remote control systems. Its durability ensures reliable operation in outdoor installations and harsh environmental conditions often encountered in power generation and distribution facilities.

Industrial Network Segmentation

Security is a fundamental component of industrial networking, and the Cisco IEM-3300-14T2S contributes to secure network segmentation by enabling expanded port-level isolation. This allows administrators to separate operational domains and reduce the risk of unauthorized access or lateral movement within the network.

Integrated Cisco Security Framework

When deployed within the Cisco Catalyst IE3300 ecosystem, the expansion module benefits from integrated security features such as identity-based access control, encrypted communication pathways, and policy-based traffic management. These features collectively enhance the security posture of industrial environments where cybersecurity threats can have physical consequences.

Scalability in Industrial Network Design

Scalability is a key advantage of the modular design. Organizations can deploy the base IE3300 switch initially and later expand port capacity using the IEM-3300-14T2S as operational requirements grow. This approach supports phased deployment strategies and reduces capital expenditure.

Compact Form Factor Integration

The Cisco IEM-3300-14T2S is designed with a compact form factor that allows it to be easily installed within existing industrial enclosures or switch housings. This reduces the physical footprint required for network expansion and supports efficient use of space in control cabinets.

Industrial Installation Environments

Installation flexibility is a key advantage, enabling deployment in wall-mounted enclosures, rack-mounted systems, or distributed field installations. The rugged design ensures stable performance regardless of installation orientation or environmental conditions.

Compatibility with Industrial Ethernet Protocols

The Cisco IEM-3300-14T2S supports integration with a wide range of industrial communication protocols commonly used in automation and control systems. This ensures compatibility with existing industrial infrastructures and facilitates seamless integration into hybrid environments.

Deterministic Communication

Deterministic communication is essential in industrial environments where timing accuracy is critical. The expansion module supports network configurations that prioritize predictable data delivery, ensuring synchronization across connected systems.

Extended Operational Lifespan

The Cisco IEM-3300-14T2S is designed for long-term industrial deployment, offering extended operational lifespan compared to standard enterprise networking equipment. This reduces replacement cycles and supports long-term infrastructure investment strategies.

Maintenance Efficiency and Minimal Downtime

Maintenance operations are simplified through modular design, allowing the expansion module to be serviced or upgraded with minimal disruption to network operations. This is particularly valuable in industrial environments where downtime can result in significant operational costs.

Operational Continuity in Mission-Critical Systems

Mission-critical industrial systems require uninterrupted communication between devices and control systems. The expansion module supports this requirement by maintaining stable connectivity even in challenging environmental conditions, ensuring operational continuity across industrial workflows.
