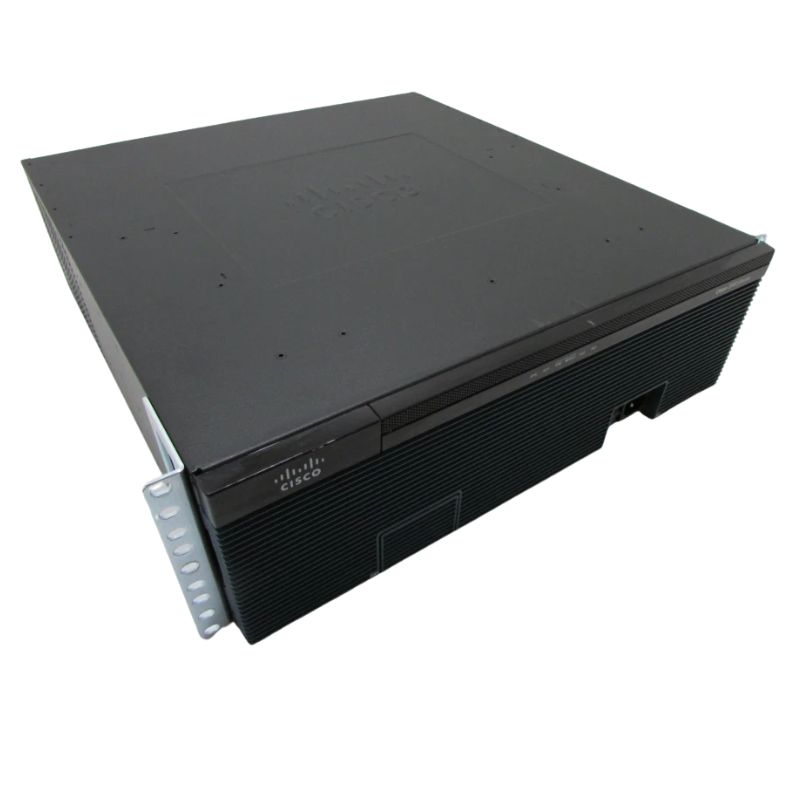

Cisco CISCO3945/K9 3-Port Router 3900 Series Integrated Services Module

Overview of Cisco CISCO3945/K9 Router

Product Specifications

• Manufacturer: Cisco
• Model Number / SKU: CISCO3945/K9
• Type: Router

Technical Details

Networking Protocols and Features

• Supported Protocols: IPSec, PPPoE, L2TPv3
• Routing Protocols: OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4, static IPv6, policy-based routing (PBR)
• Remote Management: SNMP, RMON
• Encryption: SSL

Memory and Storage

• RAM: 1 GB (installed), upgradable to 2 GB
• Flash Memory: 256 MB (installed), expandable to 8 GB

Status Indicators

• Indicators: Power, link/activity

Connectivity and Expansion

Port Configuration

• Total Ports: 3
• USB Ports: Yes
• Management Port: Yes
• Broadband RJ-45 Ports: 3

Expansion Slots

• Total Slots: 17
• Types: SFP (mini-GBIC), HWIC, PVDM

Network and Communication

Technologies

• Network Technology: 10/100/1000Base-T
• Ethernet Technology: Gigabit Ethernet

Security and Management

Security Features

• Security: Cisco IOS IPS, Content Filtering, Flexible Packet Matching (FPM), Cisco Security Manager, Cisco IOS Firewall, Zone-Based Firewall

Management Protocols

• Protocols: Comprehensive management and protocol support

Product Capabilities

Key Features

• Firewall Protection: Robust security
• VPN Support: Dynamic Multipoint VPN (DMVPN)
• MPLS Support: Enabled
• Syslog Support: Available
• Content Filtering: Yes
• IPv6 Support: Included
• Quality of Service (QoS): Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)

Expansion and Connectivity Options

Interface Details

• Interfaces: 3 x 10Base-T/100Base-TX/1000Base-T – RJ-45
• Management: 1 x console – RJ-45, 1 x console – mini-USB Type B
• Serial: 1 x auxiliary – RJ-45
• USB 2.0 Ports: 2 x 4 pin USB Type A
• SFP Ports: 2 x mini-GBIC

Expansion Slots

• Available Slots: EHWIC: 4 (total), 4 (free); PVDM: 4 (total), 4 (free); CompactFlash: 2 (total), 1 (free); Expansion Slot: 1 (total), 1 (free); Service Module: 4 (total), 4 (free)

Memory Specifications

Memory Details

• Standard Memory: 1 GB
• Maximum Memory: 2 GB
• Memory Technology: DRAM
• Supported Memory Card: CompactFlash (CF) Card

Power and Environmental Specifications

Power Requirements

• Input Voltage: 110 V AC, 220 V AC
• Power Source: Power Supply
• Redundant Power Supply: Yes

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Humidity Range: 5 – 85%

Package Contents

• Included: 3945 Integrated Services Router, Services Performance Engine (SPE), Compact Flash (external): Default 256MB

Series: Cisco 3900

Introduction

The Cisco 3900 Series is a powerful and reliable line of routers that deliver exceptional performance and scalability for enterprise-level networking requirements. With its advanced features and robust capabilities, the Cisco 3900 Series routers offer unparalleled performance, security, and flexibility. Whether you are a small business or a large corporation, the Cisco 3900 Series routers are designed to meet your networking needs.

High Performance

The Cisco 3900 Series routers are equipped with advanced hardware components and software features that enable them to deliver high-performance networking. With their powerful processors and ample memory, these routers can handle heavy workloads and provide fast data transfer rates. This ensures that your network runs smoothly and efficiently, allowing your business to operate without any interruptions or delays.

Scalability

One of the key benefits of the Cisco 3900 Series routers is their scalability. These routers are designed to grow with your business, allowing you to easily add new features and expand your network as your needs change. With their modular design, you can easily upgrade or replace components without disrupting your network operations. This ensures that your investment in the Cisco 3900 Series routers is future-proof and can adapt to your evolving business requirements.

Reliability

When it comes to network infrastructure, reliability is of utmost importance. The Cisco 3900 Series routers are built with this in mind, offering industry-leading reliability and uptime. These routers are designed to withstand high-demand environments and provide uninterrupted connectivity. With redundant power supplies and built-in failover mechanisms, the Cisco 3900 Series routers ensure that your network stays up and running even in the event of a hardware failure or power outage.

Security

Protecting your network from threats is critical in today's digital landscape. The Cisco 3900 Series routers come equipped with advanced security features that safeguard your network against unauthorized access, malware, and other cyber threats. With integrated firewall capabilities, intrusion prevention systems, and VPN support, these routers provide a secure environment for your data and ensure the confidentiality and integrity of your network.

Integrated Services Module: True

Introduction

The Integrated Services Module (ISM) is a crucial feature of the Cisco CISCO3945/K9 3-Port Router. With its true integration capabilities, the ISM enhances the functionality of the router by providing additional services and features in a single module. This not only simplifies network management but also improves overall performance and efficiency.

Enhanced Functionality

The true integration of the ISM enables the Cisco CISCO3945/K9 router to provide enhanced functionality to meet the diverse needs of modern networks. With the ISM, you can incorporate additional services such as firewall, VPN, content filtering, and intrusion prevention directly into the router. This eliminates the need for separate devices, reducing complexity and saving valuable rack space.

Streamlined Network Management

By integrating multiple services into a single module, the ISM simplifies network management. Instead of managing multiple devices and configurations, you can centrally manage all the integrated services through a single interface. This not only saves time but also reduces the chances of configuration errors, ensuring a more reliable and secure network.

Improved Performance and Efficiency

The true integration of the ISM improves overall performance and efficiency by reducing latency and increasing throughput. With services integrated directly into the router, data can be processed more quickly, resulting in faster response times and improved network performance. Additionally, the ISM optimizes resource utilization, ensuring that critical network resources are efficiently allocated to different services.

In conclusion, the Cisco CISCO3945/K9 3-Port Router with its Cisco 3900 Series and Integrated Services Module (ISM) features offers a comprehensive and powerful solution for enterprise networking needs. The 3900 Series provides high performance, scalability, reliability, and security, ensuring that your network operates at its best. The ISM enables true integration of additional services, simplifying network management and improving overall performance and efficiency. With these features combined, the Cisco CISCO3945/K9 3-Port Router is a reliable and versatile choice for businesses of all sizes.
