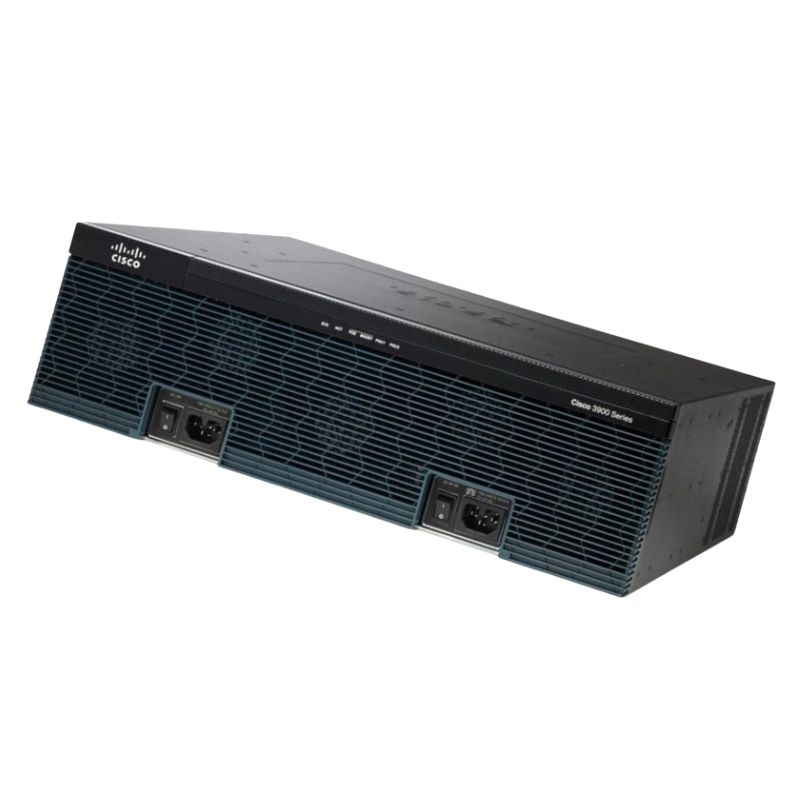

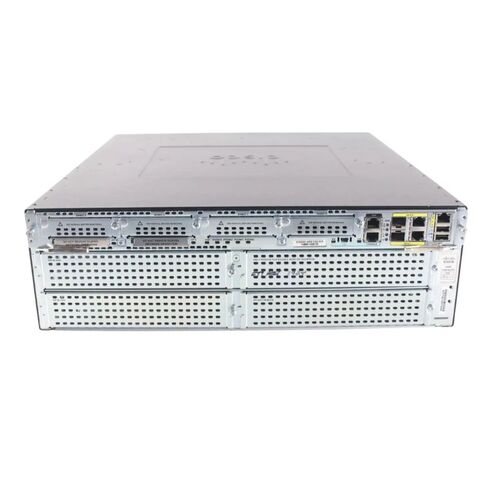

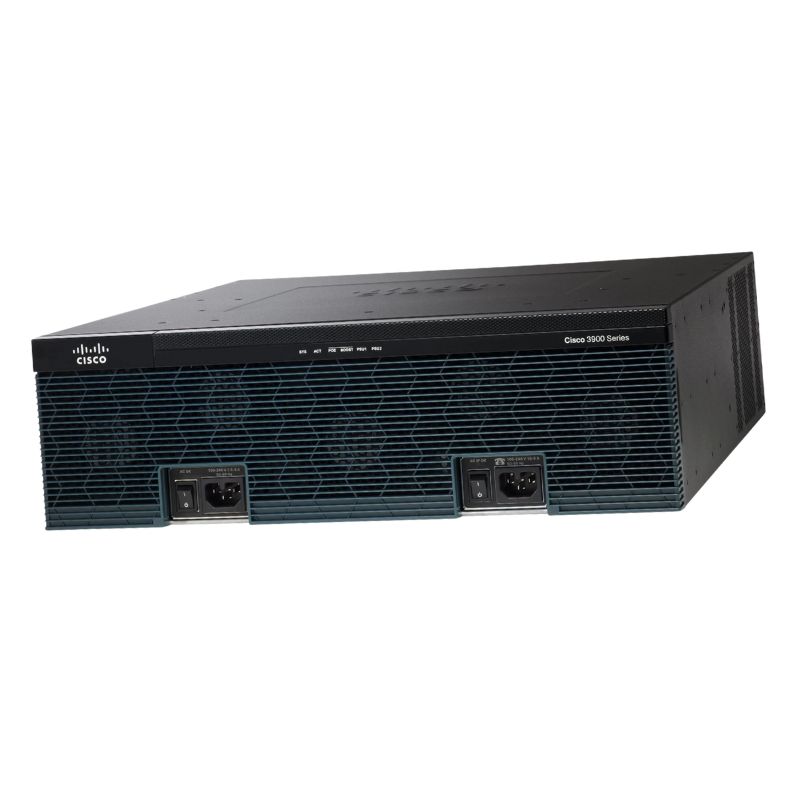

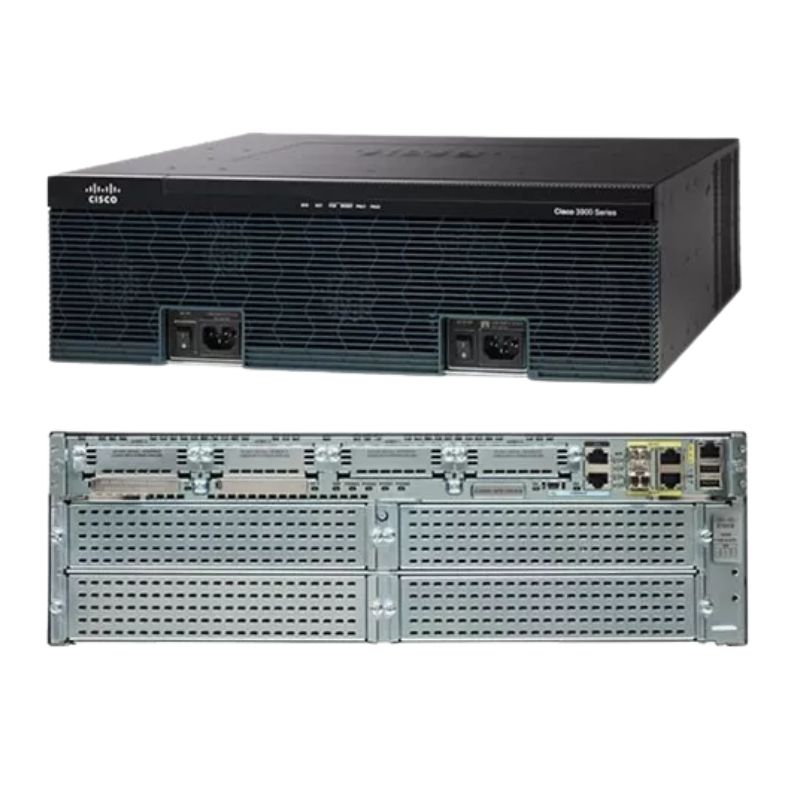

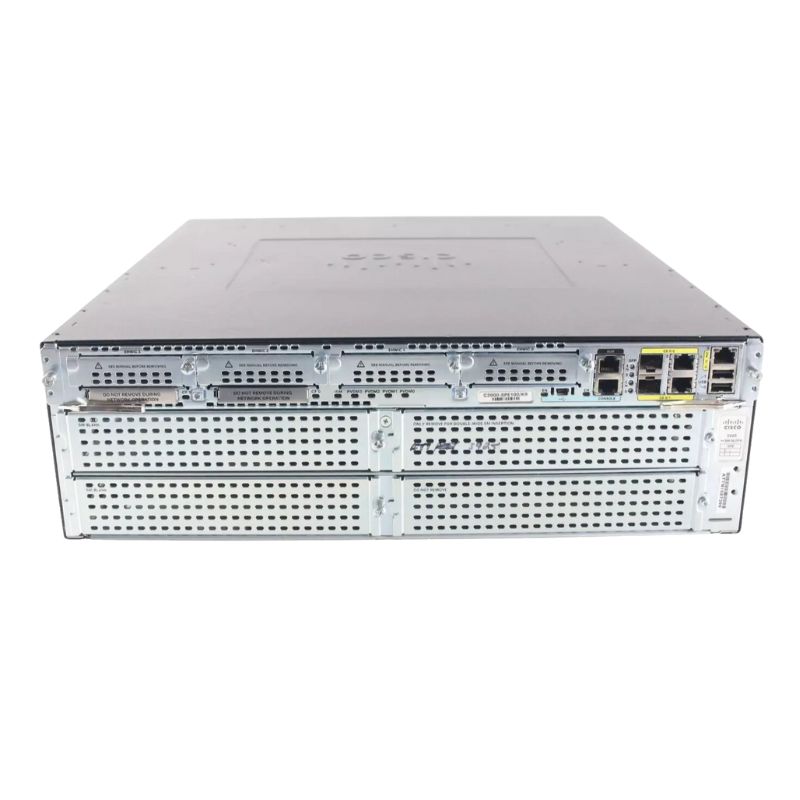

C3945-AX/K9 Cisco Router, 15 Slots, 3 Management Ports, Gigabit Ethernet

Overview of Cisco Router

The C3945-AX/K9 Cisco Router is a powerful and highly scalable enterprise networking solution designed to meet the demands of modern businesses that require robust performance, security, and flexibility. Built as part of Cisco’s Integrated Services Router (ISR) portfolio, this model is engineered to support a wide range of networking functions, from high-speed data routing to advanced application services. With 15 available slots, 3 dedicated management ports, and Gigabit Ethernet connectivity, the router is optimized for medium to large-scale deployments where reliability and scalability are essential.

Main Specification

• Brand: Cisco
• Part Number/SKU: C3945-AX/K9
• Product Series: 3900
• Model: 3945
• Product Type: Router

Router Interfaces and Ports

• Total Ports: 3
• USB Ports: Yes
• Management Port: Yes
• Token Ring Port: No
• Serial V.35 Interface: No
• RJ-45 Network Ports: 3

Expansion Capabilities

• Total Expansion Slots: 15
• EHWIC
• PVDM
• ISM
• SFP (mini-GBIC)

Network and Communication

• Network Technology: 10/100/1000Base-T
• Ethernet Technology: Gigabit Ethernet
• VoIP Support: Yes

Management and Protocols

• VPN: Supported
• DMVPN: Supported

Security Features

• Cisco IOS IPS
• Cisco IOS Content Filtering
• Flexible Packet Matching (FPM)
• Cisco Security Manager
• Cisco IOS Firewall
• Cisco IOS Zone-Based Firewall
• AAA
• PKI
• Intrusion Prevention System
• Cisco Security MARS

Memory Specifications

• Standard Memory: 1 GB
• Maximum Memory: 2 GB
• Memory Type: DDR2 SDRAM
• Flash Memory: 256 MB
• Supported Memory Card: Compact Flash (CF) Card

Power Requirements

• Input Voltage: 110 V AC, 220 V AC
• Power Source: Power Supply

Package Contents

• 3945 Router
• SPE150 Module

Certifications and Standards

• UL 60950-1
• CAN/CSA C22.2 No. 60950-1
• EN 60950-1
• AS/NZS 60950-1
• IEC 60950-1

EMC

• 47 CFR, Part 15
• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZS 3548 Class A
• VCCI V-3
• CNS 13438
• EN 300-386
• EN 61000 (Immunity)
• EN 55024, CISPR 24
• EN50082-1

Telecom

• TIA/EIA/IS-968
• CS-03
• ANSI T1.101
• ITU-T G.823, G.824
• IEEE 802.3
• RTTE Directive

C3945-AX/K9 Cisco Router

Organizations today require networking equipment that not only delivers speed but also ensures consistent uptime, enhanced security, and seamless integration with existing infrastructure. The C3945-AX/K9 is designed to fulfill these needs by combining modular hardware architecture with intelligent software capabilities. This makes it an ideal choice for enterprises, data centers, branch offices, and service providers seeking long-term network growth and adaptability.

High-Performance Architecture and Scalability

One of the defining features of the C3945-AX/K9 Cisco Router is its high-performance architecture. The device is built with a multi-core processor and advanced forwarding capabilities, allowing it to handle heavy traffic loads without compromising performance. This ensures smooth data transmission, reduced latency, and efficient packet processing across complex network environments.

The inclusion of 15 expansion slots significantly enhances the router’s scalability. These slots allow administrators to customize the device according to specific networking requirements by adding modules such as WAN interface cards, service modules, or additional network interfaces. This modular design ensures that the router can evolve alongside business needs, eliminating the necessity for frequent hardware replacements.

Scalability is particularly important for growing organizations. As network traffic increases and new applications are introduced, the ability to expand the router’s capabilities becomes crucial. The C3945-AX/K9 supports this growth seamlessly, making it a future-proof investment for businesses aiming to maintain a competitive edge in their industry.

Gigabit Ethernet Connectivity

The router is equipped with Gigabit Ethernet ports that provide high-speed connectivity for both internal and external network communications. These ports enable rapid data transfer, ensuring that bandwidth-intensive applications such as video conferencing, cloud computing, and large file transfers operate efficiently.

Gigabit Ethernet connectivity also supports advanced networking features such as VLAN segmentation, Quality of Service (QoS), and traffic prioritization. This ensures that critical business applications receive the necessary bandwidth and performance levels, even during peak usage periods.

In modern enterprise environments, network speed is a critical factor in productivity. The C3945-AX/K9’s Gigabit capabilities ensure that organizations can maintain high levels of efficiency while supporting a growing number of connected devices and users.

Advanced Management Capabilities

The inclusion of 3 management ports sets the C3945-AX/K9 apart as a highly manageable networking device. These ports allow administrators to monitor, configure, and troubleshoot the router efficiently. Dedicated management interfaces ensure that network management traffic remains separate from regular data traffic, enhancing both performance and security.

Network administrators can leverage various management tools and protocols to control the router. These include command-line interface access, web-based management platforms, and integration with centralized network management systems. This flexibility allows for streamlined operations and faster response times in case of network issues.

Effective management is essential for maintaining network stability. The C3945-AX/K9 provides comprehensive monitoring and reporting features that enable proactive maintenance and performance optimization. This reduces downtime and ensures consistent network availability.

Enhanced Security Features

Security is a top priority for any enterprise network, and the C3945-AX/K9 Cisco Router is designed with robust security features to protect sensitive data and prevent unauthorized access. The router supports advanced encryption protocols, secure VPN connectivity, and integrated firewall capabilities.

These security features allow organizations to establish secure connections between remote offices, employees, and cloud services. Virtual Private Networks ensure that data transmitted over public networks remains encrypted and protected from potential threats.

Additionally, the router includes intrusion prevention and threat detection capabilities, helping to identify and mitigate security risks in real time. This proactive approach to security ensures that the network remains resilient against evolving cyber threats.

Modular Design and Flexibility

The modular design of the C3945-AX/K9 is one of its most significant advantages. With 15 available slots, users can customize the router to meet specific operational requirements. This flexibility allows for the addition of various modules, including voice, video, and data services.

This adaptability makes the router suitable for a wide range of applications, from traditional data networking to unified communications and collaboration solutions. Organizations can deploy the router in diverse environments without worrying about compatibility issues.

The ability to upgrade and expand the router’s capabilities also ensures a lower total cost of ownership. Businesses can invest in additional modules as needed, rather than replacing the entire system, making it a cost-effective solution in the long run.

Enterprise-Grade Reliability

Reliability is a critical factor in network infrastructure, and the C3945-AX/K9 delivers enterprise-grade performance with minimal downtime. The router is designed to operate continuously in demanding environments, ensuring consistent connectivity and service availability.

Features such as redundant power supply options and advanced failover mechanisms contribute to the router’s reliability. These capabilities ensure that the network remains operational even in the event of hardware or power failures.

For businesses that rely on uninterrupted network access, such as financial institutions, healthcare providers, and large enterprises, the reliability of the C3945-AX/K9 is a key advantage.

Support for Unified Communications

The C3945-AX/K9 Cisco Router is well-suited for unified communications deployments. It supports voice, video, and data integration, enabling organizations to streamline communication processes and improve collaboration.

By integrating communication services into a single platform, businesses can reduce complexity and enhance efficiency. The router’s high-performance capabilities ensure that voice and video traffic are transmitted without delays or interruptions.

This makes the router an ideal choice for organizations implementing VoIP systems, video conferencing solutions, and other communication technologies that require reliable and high-quality network performance.

Energy Efficiency and Environmental Considerations

Modern enterprises are increasingly focused on sustainability and energy efficiency. The C3945-AX/K9 is designed with these considerations in mind, offering energy-efficient operation without compromising performance.

The router includes features that optimize power consumption based on network activity. This reduces energy costs and minimizes the environmental impact of network operations.

By investing in energy-efficient networking equipment, organizations can achieve both cost savings and environmental responsibility, aligning with global sustainability goals.

Deployment Scenarios and Use Cases

The versatility of the C3945-AX/K9 Cisco Router makes it suitable for a wide range of deployment scenarios. It can be used in enterprise branch offices, corporate headquarters, data centers, and service provider networks.

In branch office deployments, the router provides secure connectivity to central networks while supporting local services such as voice and video. In data center environments, it delivers high-speed routing and advanced traffic management capabilities.

Service providers can leverage the router’s scalability and performance to deliver reliable network services to customers. Its modular design allows for customized configurations tailored to specific service requirements.

Quality of Service and Traffic Management

Quality of Service is a critical component of modern networking, and the C3945-AX/K9 offers advanced QoS features to ensure optimal performance for critical applications. The router can prioritize traffic based on predefined policies, ensuring that important data is transmitted without delays.

This is particularly important for applications such as voice and video, which require low latency and consistent bandwidth. By managing network traffic effectively, the router helps maintain high levels of user satisfaction and productivity.

Traffic management features also enable administrators to monitor and control network usage, preventing congestion and ensuring efficient resource allocation.

Integration with Existing Infrastructure

The C3945-AX/K9 is designed to integrate seamlessly with existing network infrastructure. It supports a wide range of protocols and standards, ensuring compatibility with various devices and systems.

This compatibility simplifies the deployment process and reduces the need for extensive reconfiguration. Organizations can incorporate the router into their networks without significant disruptions, allowing for a smooth transition and immediate performance improvements.

The router’s ability to integrate with cloud services and modern networking technologies further enhances its value, making it a versatile solution for evolving IT environments.

Long-Term Investment Value

Investing in the C3945-AX/K9 Cisco Router provides long-term value for organizations seeking reliable and scalable networking solutions. Its modular design, high-performance capabilities, and advanced features ensure that it can meet the demands of future network requirements.

The router’s durability and reliability reduce maintenance costs and minimize the need for frequent upgrades. This makes it a cost-effective choice for businesses looking to optimize their IT budgets while maintaining high-performance network infrastructure.
