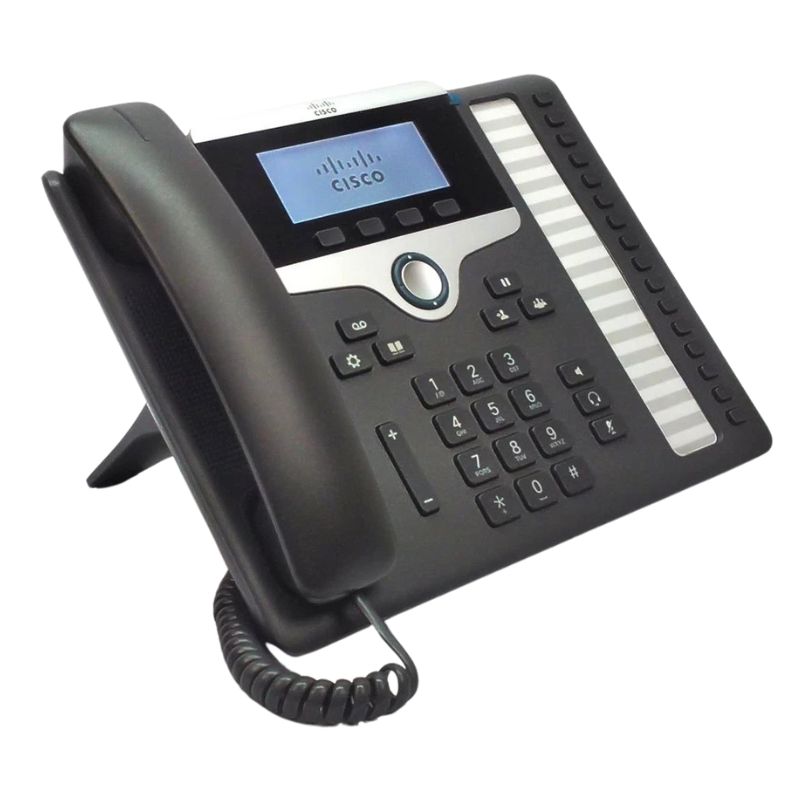

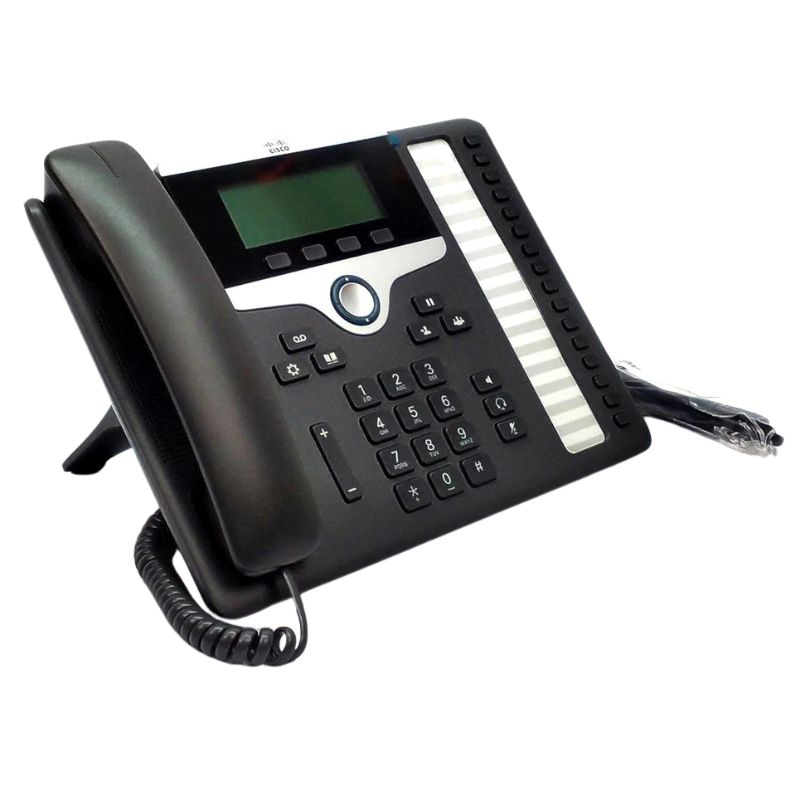

CP-7861-3PCC-K9 Cisco IP Phone with MPP firmware, 2 Ports

Cisco CP-7861-3PCC-K9 IP Phone (MPP Firmware) Overview

Product Identification & Manufacturer Details

The Cisco CP-7861-3PCC-K9 is a professional-grade VoIP communication device designed for modern enterprise telephony environments. It is manufactured by Cisco and identified by part number CP-7861-3PCC-K9. This model belongs to the IP telephony category and operates with Multi-Platform Phone (MPP) firmware, ensuring flexible deployment across compatible VoIP systems.

Core Classification

• Manufacturer: Cisco
• Model / SKU: CP-7861-3PCC-K9
• Device Type: IP-based VoIP desk phone
• Telephony Category: Business communication hardware

Physical Design & Construction Quality

Durability and Build Composition

Engineered for long-term office use, this device features a robust body structure made from PC/ABS material, providing strength and resilience for daily business communication workloads.

Color & Form Factor

• Housing Color: Charcoal finish for a professional appearance
• Construction Material: High-grade PC/ABS polymer blend
• Placement Options: Suitable for desk and wall mounting configurations

Advanced Calling Features & User Functions

Call Handling Capabilities

This IP phone delivers a rich set of telephony functions designed to improve productivity and streamline communication workflows in corporate environments.

Supported Calling Services

• Voice mailbox integration
• Caller identification display
• Call waiting and call hold functionality
• Call forwarding and call transfer support
• Message waiting notification system

Additional Communication Tools

• Call timer tracking for duration monitoring
• Music on hold feature for enhanced caller experience
• Conference calling capability for multi-party communication

Input Controls & Interface Elements

• Keypad-based dialing system
• Base-positioned dialer layout
• 16 programmable feature buttons
• Digital speakerphone with full duplex audio

Status Indicators

• Voice message waiting indicator light
• Speakerphone active indicator
• Headset connection alert system

IP Telephony & Network Capabilities

VoIP Integration & Protocol Support

Built for enterprise-grade network communication, the device supports multiple VoIP standards and ensures secure, stable voice transmission across IP networks.

Supported Protocols & Standards

• SIP (Session Initiation Protocol)
• SRTP for secure voice encryption
• Cisco Discovery Protocol (CDP)

Audio Codecs Compatibility

• G.711u and G.711a codecs
• G.722 wideband audio support
• G.729a compression codec
• iLBC for low-bandwidth communication

Network Performance & Security

Connectivity & IP Management

• DHCP and static IP address configuration
• Integrated dual Ethernet switch (2 x 10/100 Mbps ports)
• Power over Ethernet (PoE) support

Security Framework

• 128-bit and 256-bit AES encryption
• IEEE 802.1X network access control
• TLS secure communication protocol

Quality of Service (QoS)

• IEEE 802.1Q VLAN tagging
• IEEE 802.1p traffic prioritization

Directory & Network Services

• LDAP directory integration support

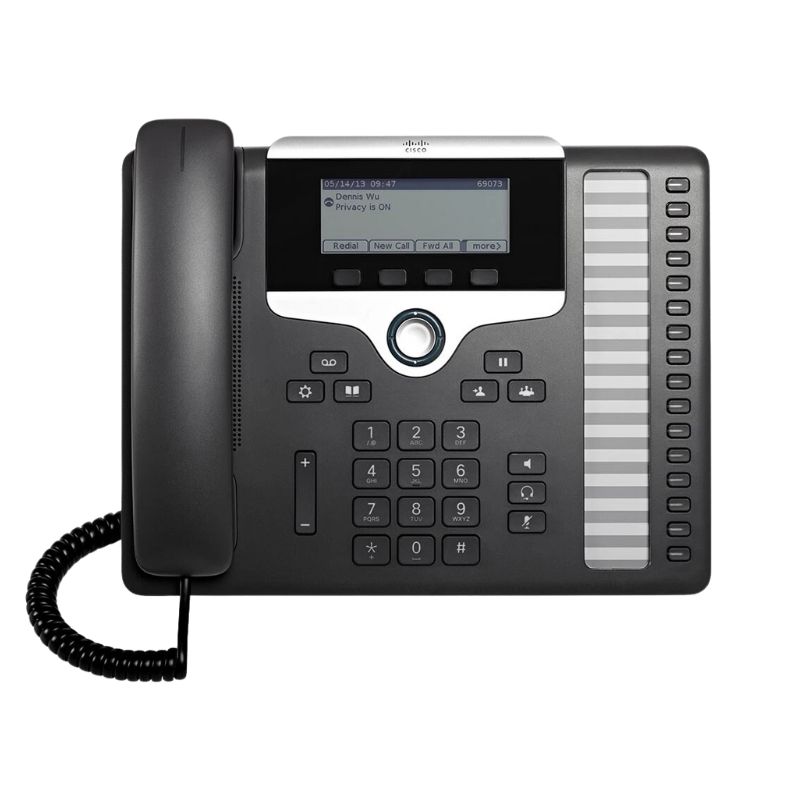

Display Specifications & User Interface

Screen Characteristics

The device features a clear monochrome LCD display designed for readability and efficient call management.

Display Details

• Screen Type: Monochrome LCD panel
• Size: 3.5-inch diagonal display
• Resolution: 396 x 162 pixels
• Backlit screen for low-light visibility

Connectivity Options & Physical Interfaces

External Connections

• Dedicated headset jack for hands-free communication
• Dual Ethernet ports for network and PC passthrough

Flexible Installation Options

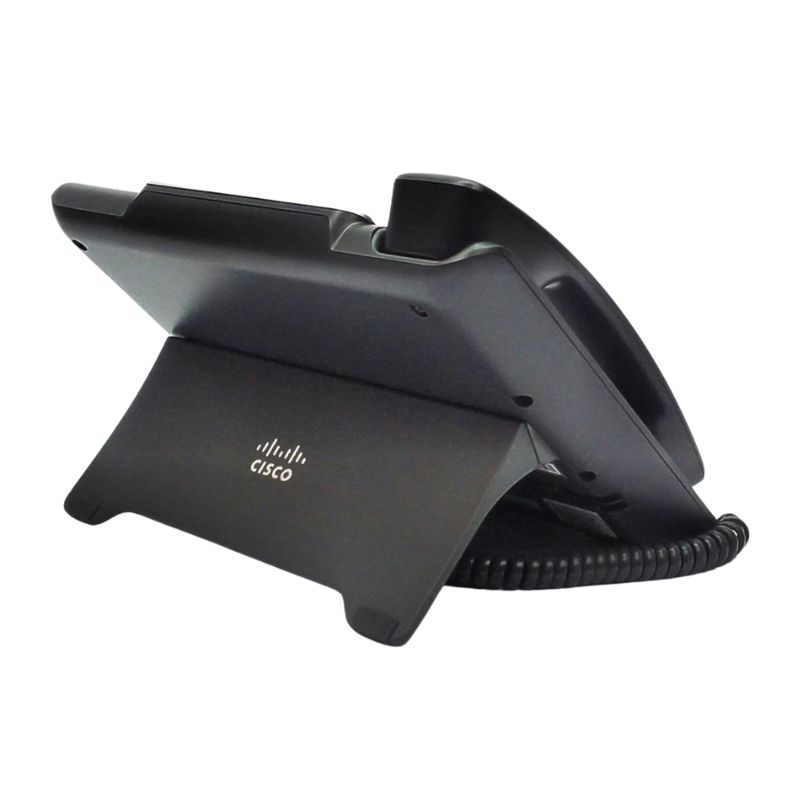

Mounting Methods

• Desktop placement for office desks
• Wall-mount compatibility for space-saving installation

Standards Compliance & Regulatory Certification

Safety & Emission Standards

• CISPR 22 Class B and CISPR 24 compliance
• EN 55022 and EN 55024 standards adherence
• FCC Part 15 and FCC Part 68 certification

Electrical & Environmental Standards

• IEC 60950-1 safety compliance
• UL 60950-1 certification
• CSA C22.2 No. 60950-1 compliance
• AS/NZS safety and EMC standards

Additional Certifications

• VCCI Class B compliance
• ICES-003 Class B certification
• EMC and AS/ACIF S004 compliance

Cisco CP-7861-3PCC-K9 IP Phone MPP Firmware

The Cisco CP-7861-3PCC-K9 IP Phone with MPP Firmware and 2 Ethernet Ports represents a high-efficiency endpoint designed for modern VoIP and unified communications environments. Built to support scalable business telephony systems, this model is widely used in enterprise deployments that require reliable voice communication, multi-line handling, and simplified provisioning through cloud-managed platforms. A global leader in networking and communication technologies, this device integrates advanced IP telephony capabilities with Multi-Platform Firmware (MPP), ensuring compatibility with third-party call control systems and cloud-based collaboration platforms.

As part of the Cisco 7800 Series, the CP-7861-3PCC-K9 is designed to deliver cost-effective, secure, and scalable voice communication. Its architecture supports SIP-based communication protocols, enabling seamless integration into existing VoIP infrastructures. The device is optimized for organizations that prioritize voice clarity, ease of deployment, and administrative control through centralized management tools.

Core Architecture and Design Philosophy of Cisco CP-7861-3PCC-K9

Enterprise-Grade Hardware Design

The Cisco CP-7861-3PCC-K9 IP Phone is engineered with a durable industrial-grade design intended for long-term enterprise usage. Its physical structure emphasizes stability, ergonomic usability, and desk-friendly integration. The device includes a high-resolution grayscale display that enhances visibility for call details, directory access, and system navigation.

The phone’s interface is designed to reduce user complexity while maximizing productivity in high-call-volume environments. The button layout, navigation keys, and programmable line keys are strategically positioned to support efficient communication workflows in corporate settings, call centers, and remote office environments.

Material and Build Quality

The handset and base unit are constructed from reinforced polymer materials that provide durability under continuous use. The keypad is designed for tactile feedback, ensuring accurate dialing and operational control even during fast-paced communication scenarios. This makes the device suitable for both executive desks and shared workstations.

MPP Firmware Integration and Its Importance

A defining feature of the Cisco CP-7861-3PCC-K9 is its Multi-Platform Firmware (MPP), which enables compatibility with multiple third-party communication platforms. Unlike enterprise-specific firmware, MPP allows organizations to deploy the device in flexible VoIP ecosystems without being locked into a single vendor environment.

Benefits of MPP Firmware

MPP firmware enhances interoperability with SIP-based platforms, cloud PBX systems, and hosted VoIP services. This flexibility is essential for businesses adopting hybrid communication models or migrating to cloud-based telephony systems. It reduces operational constraints while improving scalability.

Cloud Communication Optimization

With MPP firmware, the device is optimized for cloud-managed communication systems, enabling remote provisioning, firmware updates, and configuration management. This reduces IT overhead and allows administrators to manage large-scale deployments efficiently.

Network Connectivity and Dual-Port Ethernet Architecture

Dual 10/100 Ethernet Ports for Flexible Deployment

The Cisco CP-7861-3PCC-K9 features two integrated Ethernet ports, enabling both network connectivity and PC pass-through functionality. This design reduces the need for additional network cabling, making deployment simpler and more cost-effective in office environments.

Primary and Secondary Port Functions

The primary Ethernet port connects the device to the enterprise network or VoIP infrastructure, while the secondary port allows a desktop computer or other network device to share the same connection. This is particularly beneficial in environments where network port availability is limited.

Network Efficiency and Bandwidth Optimization

By enabling daisy-chained connectivity, the device reduces infrastructure complexity while maintaining stable data throughput for both voice and data traffic. Quality of Service (QoS) configurations can be applied to prioritize voice packets, ensuring clear and uninterrupted communication.

Power over Ethernet (PoE) Support

The Cisco CP-7861-3PCC-K9 supports Power over Ethernet (PoE), allowing it to receive power and data through a single Ethernet cable. This eliminates the need for separate power adapters and simplifies installation in enterprise environments.

Advantages of PoE Deployment

PoE support reduces installation costs, improves cable management, and enables centralized power control. IT administrators can remotely manage device power cycles, enhancing maintenance efficiency and reducing downtime during troubleshooting.

Voice Communication Features and Call Handling Capabilities

Multi-Line Support and Call Management

The Cisco CP-7861-3PCC-K9 supports multiple line appearances, allowing users to manage several calls simultaneously. This feature is critical in busy office environments where users handle internal extensions, external calls, and conference lines.

Programmable Line Keys

The device includes programmable line keys that can be configured for speed dial, extension monitoring, call forwarding, and other telephony functions. This customization enhances user efficiency and streamlines daily communication tasks.

Busy Lamp Field (BLF) Integration

BLF functionality allows users to monitor the status of other extensions within the organization. This is particularly useful for receptionists, administrative staff, and call center supervisors who need real-time visibility into availability.

High-Definition Voice Quality

The device supports wideband audio codecs that deliver enhanced voice clarity. This ensures natural-sounding conversations, reducing listener fatigue during extended communication sessions. Noise reduction features further improve audio quality in shared office environments.

Audio Optimization Technologies

The system integrates acoustic echo cancellation and adaptive jitter buffering to maintain consistent audio performance even in unstable network conditions. These technologies are essential for maintaining professional communication standards.

User Interface and Display Functionality

Grayscale Display System

The Cisco CP-7861-3PCC-K9 features a backlit grayscale display designed for clear visibility under various lighting conditions. The screen provides intuitive navigation for call logs, directories, system settings, and voicemail access.

Menu Navigation and User Experience

The user interface is structured to minimize complexity while maximizing accessibility. Menu hierarchies are logically organized, allowing users to quickly locate essential functions such as call history, settings, and contact directories.

Accessibility Enhancements

The display supports adjustable brightness settings, ensuring usability in both low-light and brightly lit office environments. This enhances accessibility for a wide range of users across different workplace conditions.

Security and Protocol Support in Cisco CP-7861-3PCC-K9

Secure SIP Communication

Security is a critical component of the Cisco CP-7861-3PCC-K9 architecture. The device supports secure SIP protocols, ensuring encrypted voice communication across IP networks. This prevents unauthorized interception and maintains data confidentiality.

Authentication and Encryption Mechanisms

The phone supports multiple authentication methods, including digest authentication and secure provisioning. Encryption protocols such as TLS and SRTP are used to protect signaling and media streams.

Enterprise Security Compliance

These security features make the device suitable for industries with strict compliance requirements, including finance, healthcare, and government sectors. It helps organizations maintain regulatory adherence while ensuring secure communication channels.

Network Access Control and Device Integrity

The device supports network access control mechanisms that ensure only authorized endpoints can connect to enterprise networks. This helps prevent unauthorized devices from accessing sensitive communication infrastructure.

Deployment Scenarios and Enterprise Use Cases

Corporate Office Communication Systems

The Cisco CP-7861-3PCC-K9 is widely used in corporate office environments where reliable voice communication is essential. It supports internal communication, external client interaction, and cross-department coordination.

Executive Desk Setup

In executive environments, the device serves as a primary communication endpoint, offering multi-line management and direct access to important contacts. Its professional design complements modern office aesthetics.

Call Centers and Customer Support Environments

In call center deployments, the device’s multi-line capability and programmable keys improve agent efficiency. Quick access to call handling functions reduces response time and enhances customer satisfaction.

Supervisor Monitoring Features

Supervisors can utilize BLF and call monitoring capabilities to track agent availability and performance in real time, improving operational oversight.

Remote and Hybrid Work Environments

With MPP firmware support, the device is suitable for remote deployment in hybrid work models. Employees can connect to cloud-based communication systems from home offices while maintaining enterprise-level functionality.

Configuration, Provisioning, and Management Capabilities

Centralized Device Management

The Cisco CP-7861-3PCC-K9 supports centralized provisioning through cloud or on-premises management platforms. This simplifies deployment across large organizations with multiple endpoints.

Auto-Provisioning Features

Auto-provisioning allows devices to be configured automatically upon network connection. This reduces manual setup requirements and accelerates large-scale deployments.

Firmware Upgrade Management

Administrators can remotely manage firmware updates, ensuring all devices remain secure and up to date with the latest performance enhancements and security patches.

Customization and User Profiles

The device supports user-specific configurations, allowing personalized settings for line keys, ring tones, and display preferences. This improves user experience and adaptability in shared environments.

Scalability and Integration in Unified Communication Systems

VoIP System Integration

The Cisco CP-7861-3PCC-K9 integrates seamlessly into SIP-based VoIP systems, supporting interoperability with a wide range of communication platforms. This makes it suitable for both small businesses and large enterprises.

Unified Communications Compatibility

The device supports integration with unified communications platforms that combine voice, video, messaging, and collaboration tools into a single ecosystem.

API and Platform Flexibility

MPP firmware enables compatibility with multiple service providers, allowing organizations to switch or combine communication platforms without hardware replacement.
