CP-DX80-K9 Cisco Video Conference Equipment

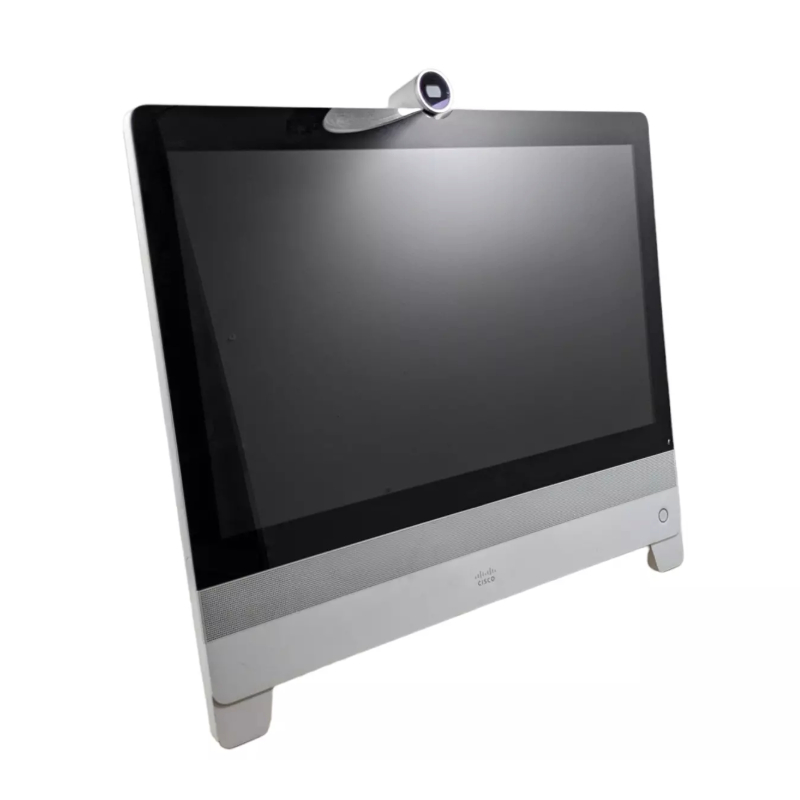

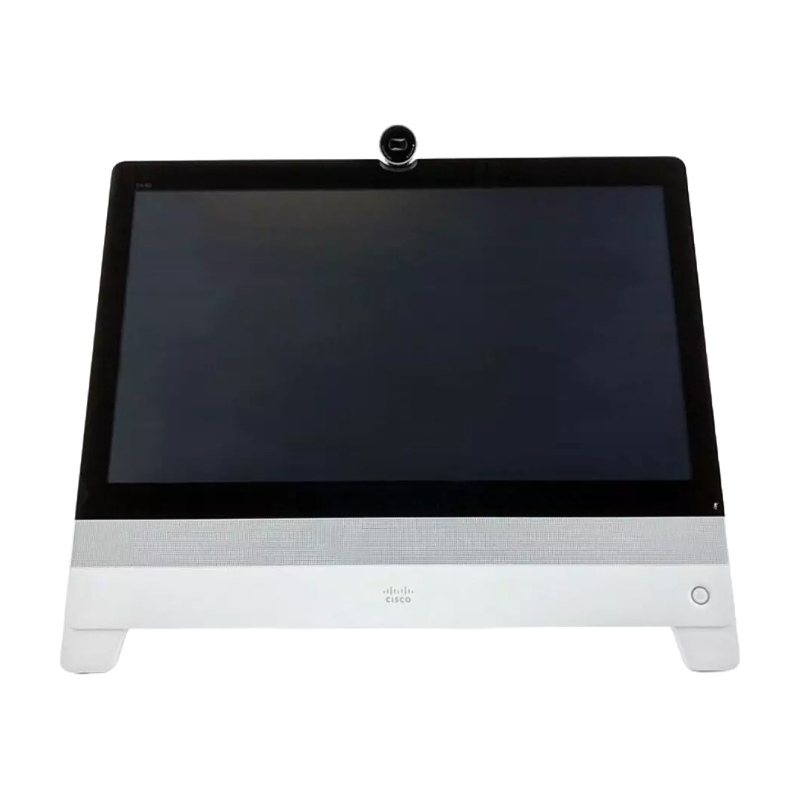

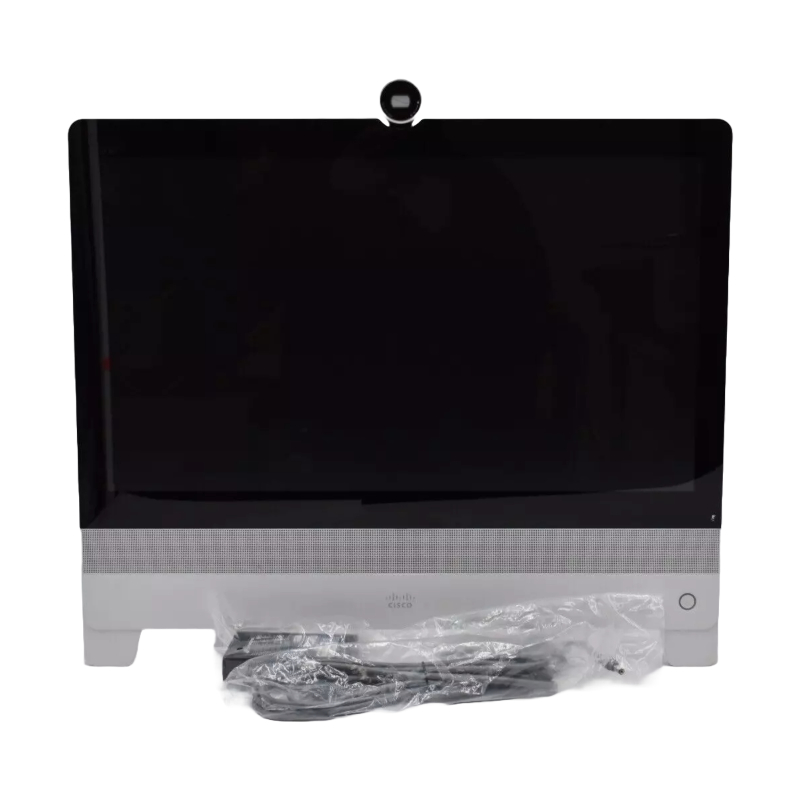

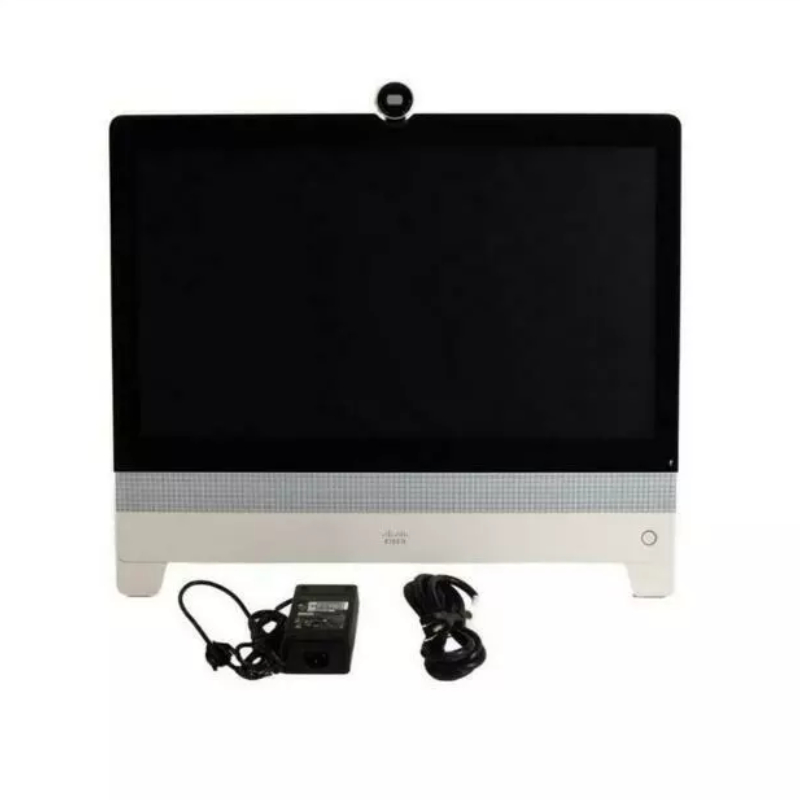

Cisco CP-DX80-K9 DX80 Video Conference Equipment Overview

The Cisco CP-DX80-K9 DX80 Video Conferencing System is an advanced unified communication device designed to deliver high-quality collaboration experiences. Built for modern enterprises, it integrates a large touchscreen display, HD video camera, powerful audio system, and robust networking features into a single desktop solution optimized for professional telephony and video conferencing environments.

Manufacturer Information

Brand: Cisco
Model Number: CP-DX80-K9
Category: Video Conference Equipment / Telephony Endpoint

Specifications

Display Specifications

• 23-inch diagonal LED-backlit LCD screen
• Full HD resolution (1920 × 1080 pixels)
• 16:9 widescreen aspect ratio for optimal video conferencing
• 10-point multi-touch capacitive technology
• IPS panel with wide 85° viewing angles in all directions

Visual Quality Enhancements

• 1000:1 contrast ratio for deeper image clarity
• Brightness level of 215 cd/m²
• Anti-glare display performance for office environments

Camera Specifications

• 8-megapixel front-facing HD camera
• Supports 1080p Full HD video streaming at 30 frames per second
• 63° horizontal and 38° vertical field of view

Privacy Protection Features

• Built-in mechanical tilt adjustment
• Physical privacy shutter for secure video control

Core Hardware Specifications

• TI OMAP 4470 dual-core ARM Cortex-A9 processor running at 1.5 GHz
• 2 GB RAM for multitasking performance
• 8 GB eMMC flash storage
• Cisco collaboration firmware based on Android platform

Audio Components

• Four-element multi-array microphone system
• Advanced active echo cancellation
• Front-facing stereo speakers with subwoofer support
• Full-band audio response up to 20 kHz

Audio Performance Benefits

• Clear voice pickup in large rooms
• Enhanced media playback quality
• Reduced background noise interference

Network Features

• Dual Gigabit Ethernet ports (10/100/1000 Mbps)
• Integrated Wi-Fi (802.11a/b/g/n)
• Bluetooth 3.0 with A2DP support
• Native SIP protocol compatibility

Available Ports & Interfaces

• HDMI input supporting external 1080p devices
• DisplayPort input for laptop or PC sharing
• HDMI output for secondary display or projector connection
• Three USB 2.0 Type-A ports for peripherals
• 3.5mm audio jack for headsets or line-out connection

Integration Advantages

• Easy connection with external computing devices
• Supports multi-display conferencing setups
• Flexible peripheral expansion support

Professional Collaboration Environments

• Enterprise boardrooms and meeting spaces
• Remote team video conferencing setups
• Corporate communication hubs
• Educational and training institutions

Cisco CP-DX80-K9 DX80 Video Conference Equipment Overview

The Cisco CP-DX80-K9 DX80 Video Conference Equipment represents a premium all-in-one collaboration solution designed for modern enterprise communication environments. Built to support high-quality video conferencing, unified communications, and interactive collaboration, the DX80 integrates advanced display technology, crystal-clear audio systems, and intelligent software-driven communication features into a single compact desktop unit. This category of video conferencing equipment is widely adopted in corporate offices, remote workstations, executive rooms, and hybrid meeting environments where seamless communication is essential.

Understanding the Cisco DX80 Video Collaboration Category

The Cisco DX80 series belongs to a high-performance category of unified communication devices that combine video, audio, and computing capabilities into one integrated platform. Unlike traditional conferencing systems that require multiple external components, the DX80 is designed as a standalone endpoint that reduces complexity while enhancing productivity. It supports immersive communication experiences that bridge the gap between physical and virtual meetings, making it a critical tool in modern business ecosystems.

All-in-One Design Philosophy

The DX80 category is built around an all-in-one design philosophy that eliminates the need for separate cameras, microphones, and displays. This integration reduces installation overhead and ensures consistent performance across communication channels. The built-in touchscreen display serves as both a control interface and a viewing screen, while the embedded camera and microphone system provide high-definition video and audio capture for meetings.

Enterprise Communication Integration

The device is engineered for deep integration with enterprise communication systems, enabling compatibility with corporate telepresence infrastructures and cloud-based conferencing platforms. This ensures that organizations can deploy the DX80 within existing workflows without significant infrastructure changes, making it a scalable solution for businesses of all sizes.

Design and Build Quality of Cisco CP-DX80-K9

The Cisco CP-DX80-K9 is designed with a sleek, professional aesthetic that complements modern office environments. Its physical structure emphasizes durability, ergonomic usability, and visual clarity. The unit typically features a large touchscreen display mounted on a stable base, allowing users to interact naturally with conferencing applications and communication tools.

Ergonomic Desktop Form Factor

The desktop form factor is optimized for individual workspaces and executive desks. Users can easily initiate or join meetings without relying on additional peripherals. The adjustable screen angle allows for comfortable viewing during extended meetings, reducing strain and improving user experience in long-duration conference sessions.

Material Engineering and Durability

The construction of the DX80 incorporates high-quality materials designed for long-term enterprise use. Its chassis is engineered to withstand continuous operation in demanding corporate environments. The robust build ensures stability while maintaining a lightweight profile suitable for office deployment.

Integrated Cable Management

Efficient cable management is an important aspect of the DX80 design category. The system minimizes visible wiring, helping maintain a clean and organized workspace. This is particularly valuable in professional environments where desk aesthetics and space optimization are important considerations.

Display Technology and Visual Experience

A defining feature of the Cisco DX80 category is its high-resolution touchscreen display. The screen delivers sharp visuals, accurate color reproduction, and responsive touch interaction, making it suitable for both video conferencing and interactive collaboration tasks.

High-Definition Touchscreen Interface

The touchscreen interface provides intuitive navigation for users, enabling quick access to contacts, meetings, and collaboration tools. The responsive touch system enhances productivity by reducing the time required to initiate communication sessions.

Multi-Function Display Usage

The display serves multiple functions beyond video conferencing. It can be used for content sharing, document viewing, and interactive collaboration sessions. This multifunctionality transforms the DX80 into a versatile workstation tool rather than just a communication device.

Visual Clarity for Professional Meetings

The high-definition output ensures that participants appear clear and detailed during video calls. This level of visual clarity is essential for professional communication where facial expressions, gestures, and visual cues play a significant role in effective collaboration.

Audio and Video Performance Capabilities

The Cisco DX80 category is known for its advanced audio and video performance. It is designed to deliver a natural communication experience that closely replicates in-person interactions. The integrated camera and microphone systems are optimized for clarity, noise reduction, and spatial accuracy.

Integrated HD Camera System

The built-in HD camera provides high-resolution video capture, ensuring that participants are clearly visible during meetings. The camera is strategically positioned to maintain eye-level engagement, enhancing the sense of direct interaction between remote participants.

Automatic Focus and Image Optimization

The camera system includes intelligent focus and image optimization features that adjust automatically based on lighting conditions and user positioning. This ensures consistent video quality even in variable office environments.

Wide-Angle Viewing Capability

The wide-angle lens allows multiple participants to be captured within the frame when the device is used in shared workspace scenarios. This enhances collaboration in small group settings without requiring additional camera equipment.

Audio Clarity and Noise Reduction

Audio performance is a critical component of the DX80 category. The system is equipped with high-quality microphones and speakers designed to deliver clear voice transmission while minimizing background noise interference.

Directional Microphone Technology

The directional microphone system focuses on capturing voice input from the primary user position while reducing ambient noise. This ensures that conversations remain clear and professional even in busy office environments.

Speaker Output Optimization

The integrated speakers are tuned for voice clarity, ensuring that remote participants can be heard without distortion. This improves communication efficiency during meetings and collaborative discussions.

Software Integration and Communication Features

The Cisco CP-DX80-K9 DX80 category is powered by advanced communication software that enables seamless integration with unified communication platforms. This allows users to access video conferencing, messaging, and collaboration tools from a single interface.

Unified Communication Platform Support

The device is designed to work within unified communication ecosystems, supporting enterprise-grade conferencing solutions. This enables organizations to maintain consistent communication standards across multiple departments and locations.

Contact Management and Scheduling

Users can manage contacts, schedule meetings, and initiate calls directly from the device interface. This reduces dependency on external systems and streamlines daily communication workflows.

Collaboration Application Integration

The DX80 supports integration with various collaboration applications, allowing users to share content, collaborate on documents, and conduct interactive presentations during meetings.

Deployment in Modern Business Environments

The Cisco DX80 category is widely deployed in modern business environments where remote collaboration and hybrid work models are increasingly common. Its versatility makes it suitable for executive offices, remote workstations, and conference room extensions.

Remote Work Enablement

The device plays a crucial role in remote work setups by providing a dedicated communication platform that replicates in-office collaboration experiences. This supports productivity and team engagement across distributed workforces.

Encrypted Communication Channels

All video and audio communications are transmitted through encrypted channels to prevent unauthorized access. This is essential for organizations handling sensitive information.

Reliable System Performance

The DX80 is designed for consistent uptime and stable performance, making it suitable for mission-critical communication environments where reliability is essential.

Centralized Management Capabilities

IT administrators can manage multiple DX80 devices through centralized management systems, simplifying updates, configuration, and maintenance tasks.
