IEM-3000-8FM Cisco Fast Ethernet Expansion Module 100 MBPS

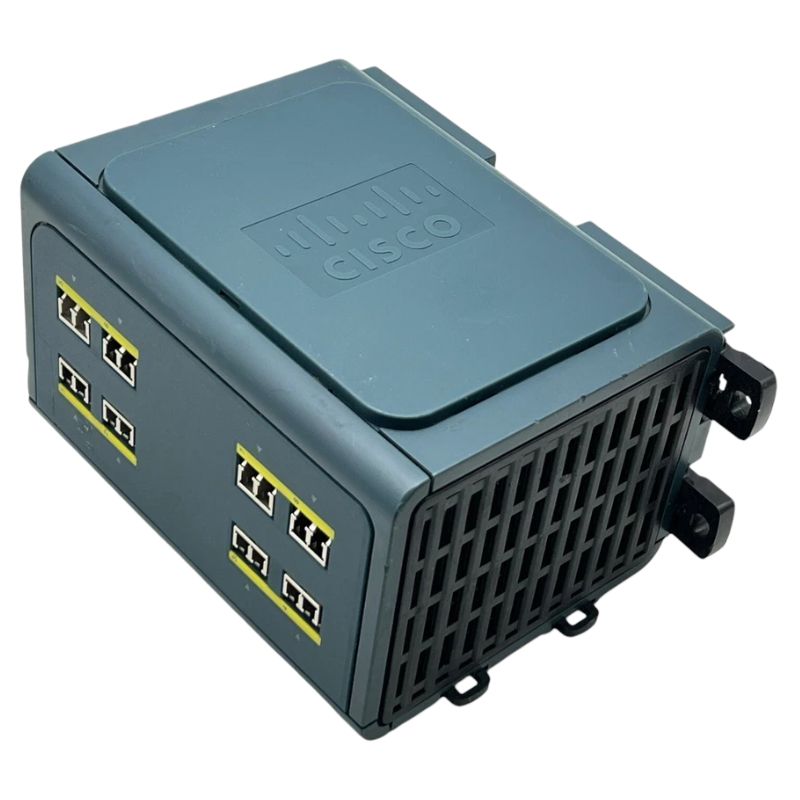

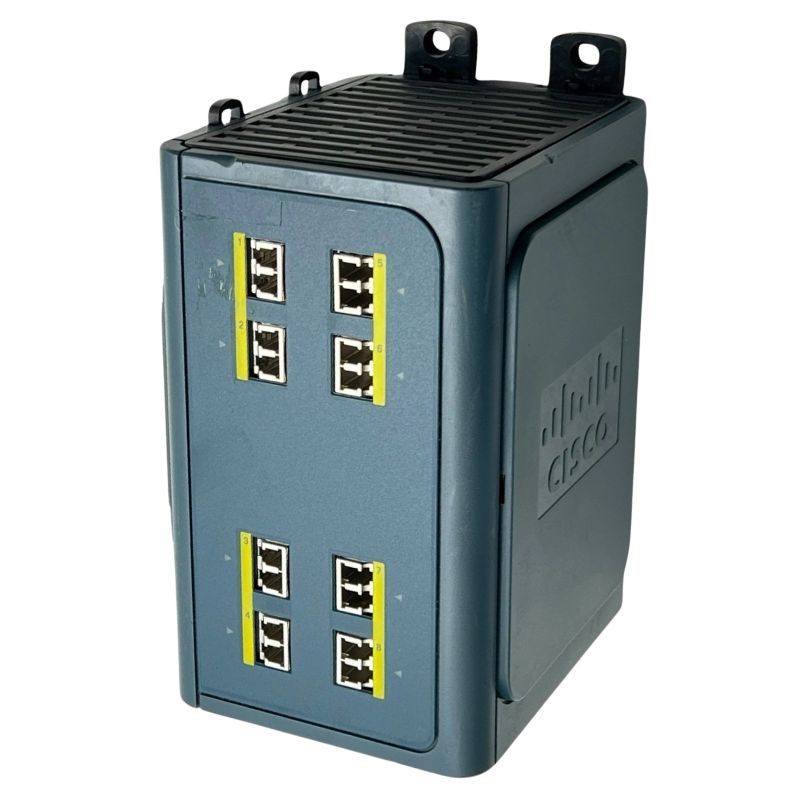

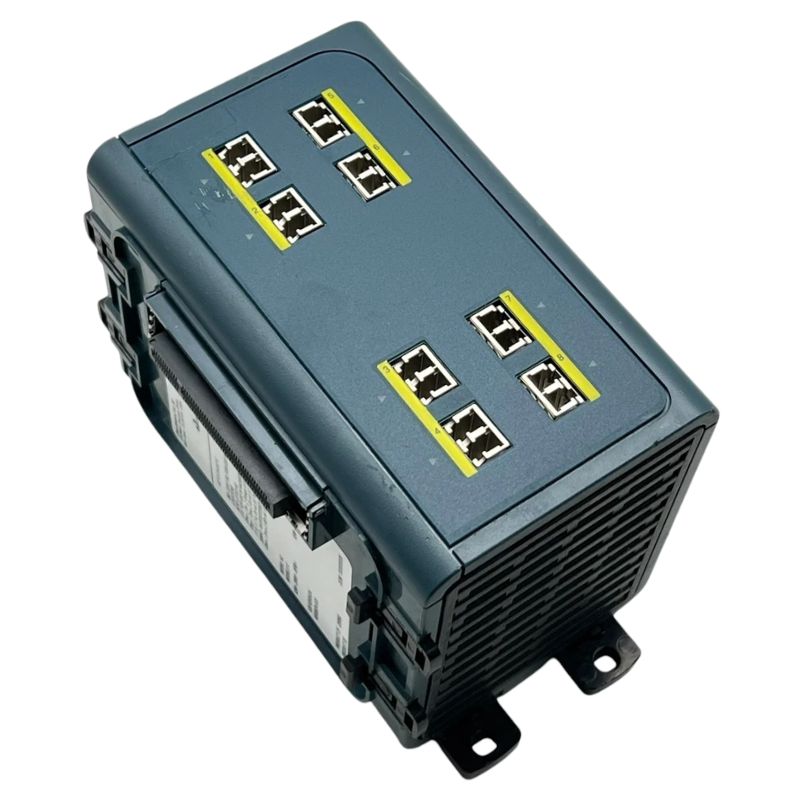

Cisco IEM-3000-8FM Fast Ethernet Expansion Module

The Cisco IEM-3000-8FM module is engineered to extend connectivity by adding eight additional 100BASE-FX fiber optic interfaces to compatible Cisco IE 3000 switches. This expansion enhances network scalability and reliability in demanding industrial environments. IEM-3000-8FM is an industrial Ethernet expansion module designed for compatible Cisco IE 3000 Series switches. The module provides a simple way to expand network capacity without replacing the existing switch.

General Information

• Manufacturer: Cisco
• Part Number: IEM-3000-8FM
• Device Type: Industrial Network Expansion Device
• Series: Cisco IE 3000 Series

Technical Specifications

• Model: IEM-3000-8FM
• Ports: 8 × 100BASE-FX Fast Ethernet Fiber
• Connector Type: LC Fiber Connector
• Network Speed: 100 Mbps (Fast Ethernet)
• Transmission Media: Multimode Fiber Optic
• Product Type: Expansion Module
• Power Consumption: Approximately 10.1 W
• Industrial Design: Rugged, DIN-Rail Compatible
• Compliance: Meets industrial shock, vibration, and EMC standards

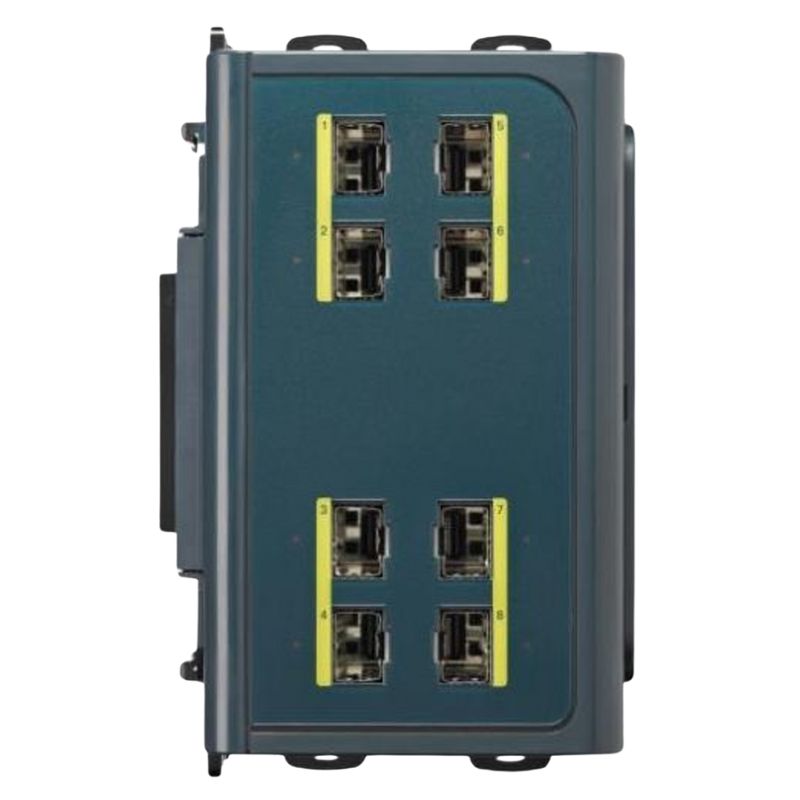

Port Configuration

• 8 × 100BASE-FX Fiber Ethernet Ports
• Connector Type: LC Fiber Connectors
• Data Rate: 100 Mbps per port
• Fiber Type: Multimode Fiber (100BASE-FX)
• Optical Wavelength: 1300 nm

Power and Environmental Ratings

• Maximum Power Consumption: ~10.1 W
• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Industrial Design: Rugged, fan less construction for durability

Network Standards

Supports IEEE 802.3u Fast Ethernet (100BASE-FX), ensuring compatibility with established industrial networking protocols.

Compatibility

• Cisco IE-3000-4TC
• Cisco IE-3000-8TC
• Other modular Cisco IE 3000 Series switches supporting expansion modules

Cisco IEM-3000-8FM Ethernet Expansion Module Overview

The Cisco IEM-3000-8FM 100MBPS Fast Ethernet Expansion Module is a specialized industrial networking component designed to extend the connectivity of Cisco Industrial Ethernet 3000 Series switches. This expansion module provides eight Fast Ethernet ports, each capable of delivering 100MBPS speed, ensuring stable and reliable communication across industrial environments. It is engineered to meet the demands of automation, energy, transportation, and manufacturing sectors where consistent performance and rugged durability are essential. The module integrates seamlessly into existing infrastructures, offering scalability and compatibility with legacy systems while supporting modern industrial applications.

Design and Build Quality

The Cisco IEM-3000-8FM is constructed with industrial-grade materials that withstand harsh operating conditions. Its ruggedized design ensures resilience against extreme temperatures, vibrations, and electromagnetic interference. The compact form factor allows easy installation in control cabinets and industrial racks, making it suitable for environments with limited space. Cisco’s engineering emphasizes durability and efficiency, ensuring that the module delivers consistent performance even under continuous operation in mission-critical scenarios.

Industrial-Grade Reliability

The reliability of the Cisco IEM-3000-8FM is a key factor in its adoption across industries. The module undergoes rigorous testing to meet stringent industrial standards, guaranteeing uninterrupted service. Its robust architecture minimizes downtime, ensuring that automation systems, monitoring devices, and communication platforms remain operational without disruption. This reliability is vital in industries where network failures can lead to costly production halts or safety risks.

Compact and Efficient Design

The compact design of the Cisco IEM-3000-8FM allows it to integrate seamlessly into existing switch chassis without requiring extensive modifications. Its efficient layout optimizes airflow and heat dissipation, reducing the risk of overheating during continuous operation. The design also simplifies maintenance, enabling technicians to replace or upgrade components quickly without interrupting network services.

Port Configuration and Speed

The eight Fast Ethernet ports deliver 100MBPS speed, which is sufficient for many industrial applications such as SCADA systems, sensor networks, and machine-to-machine communication. The ports are designed to handle continuous traffic loads, ensuring smooth data flow without bottlenecks. This configuration supports both legacy devices that require Fast Ethernet and modern equipment that benefits from stable connectivity.

Compatibility with Cisco

The Cisco IEM-3000-8FM is fully compatible with Cisco IE3000 Series switches, enabling seamless integration into existing infrastructures. This compatibility ensures that organizations can expand their networks without replacing core equipment, reducing costs and simplifying deployment. The module supports Cisco’s advanced networking features, including VLANs, QoS, and security protocols, enhancing overall network management.

Applications in Industrial Environments

The Cisco IEM-3000-8FM is widely used across industries that require reliable and scalable networking solutions. Its ability to provide additional Fast Ethernet ports makes it suitable for connecting sensors, controllers, and monitoring devices in industrial automation systems. The module supports energy distribution networks, transportation systems, and manufacturing plants, ensuring that critical devices remain connected and operational.

Manufacturing and Automation

In manufacturing environments, the Cisco IEM-3000-8FM connects programmable logic controllers, robotic systems, and monitoring devices. Its stable connectivity ensures that automated processes run smoothly without interruptions. The module supports real-time communication between machines, enabling precise control and monitoring of production lines.

Energy and Utilities

Energy facilities rely on the Cisco IEM-3000-8FM to connect monitoring devices, sensors, and control systems. The module ensures reliable communication within power plants, substations, and renewable energy installations. Its robust design withstands the harsh conditions often found in energy environments, ensuring continuous operation and safety.

Transportation and Infrastructure

Transportation systems such as railways, highways, and airports use the Cisco IEM-3000-8FM to connect surveillance cameras, signaling systems, and monitoring devices. The module provides stable connectivity that supports real-time data transmission, enhancing safety and efficiency within transportation networks. Its compact design allows easy installation within control cabinets and infrastructure hubs.

Security Features

Security is a critical aspect of industrial networking, and the Cisco IEM-3000-8FM incorporates advanced security features to protect data and devices. The module supports Cisco’s security protocols, including access control lists, port security, and VLAN segmentation. These features ensure that unauthorized devices cannot access the network, safeguarding sensitive industrial data and systems.

Access Control and Authentication

The Cisco IEM-3000-8FM supports access control mechanisms that restrict network access to authorized devices. Authentication protocols ensure that only trusted devices can connect, reducing the risk of cyber threats. This security is essential in industrial environments where unauthorized access could compromise safety and operations.

Data Protection and Integrity

The module incorporates features that protect data integrity during transmission. VLAN segmentation isolates traffic, preventing unauthorized interception. Quality of Service ensures that critical data receives priority, maintaining operational efficiency. These features collectively enhance the security and reliability of industrial networks.

Scalability and Proofing

The Cisco IEM-3000-8FM is designed to support future growth by providing scalable connectivity options. Organizations can expand their networks by adding more modules, increasing port density without replacing existing infrastructure. This scalability ensures that industrial networks can adapt to evolving requirements, supporting new devices and applications as technology advances.

Flexible Expansion Options

The module’s design allows organizations to expand their networks incrementally. By adding Cisco IEM-3000-8FM modules, they can increase port density as needed, avoiding unnecessary costs. This flexibility supports gradual network growth, ensuring that infrastructure investments remain sustainable.

Support for Emerging Technologies

The Cisco IEM-3000-8FM supports emerging industrial technologies by providing stable and scalable connectivity. As industries adopt IoT devices, advanced automation systems, and smart infrastructure, the module ensures that networks remain capable of handling increased traffic and complexity. This future-proofing capability makes it a valuable investment for organizations seeking long-term reliability.

Installation and Deployment

The Cisco IEM-3000-8FM is designed for easy installation and deployment within industrial environments. Its modular design allows technicians to integrate it into existing switch chassis without extensive modifications. The installation process is straightforward, reducing downtime and ensuring quick deployment. Cisco provides detailed documentation and support to assist organizations in deploying the module effectively.

Ease of Integration

The module integrates seamlessly with Cisco IE3000 Series switches, ensuring compatibility and reducing complexity during deployment. Its plug-and-play design simplifies installation, allowing organizations to expand their networks quickly. This ease of integration is essential in industrial environments where downtime must be minimized.

Maintenance and Support

Cisco offers comprehensive support for the IEM-3000-8FM, including documentation, training, and technical assistance. The module’s design simplifies maintenance, enabling technicians to replace or upgrade components without interrupting network services. This support ensures that organizations can maintain reliable and efficient networks over the long term.

Environmental Compliance

The Cisco IEM-3000-8FM complies with environmental standards and regulations, ensuring safe and sustainable operation. Its design minimizes energy consumption, reducing operational costs and environmental impact. The module is built with materials that meet environmental compliance standards, supporting organizations’ sustainability goals.

Energy Efficiency

The module’s design emphasizes energy efficiency, reducing power consumption during operation. This efficiency lowers operational costs and supports sustainability initiatives. Energy-efficient networking components are essential in industries seeking to reduce their environmental footprint.

Compliance with Standards

The Cisco IEM-3000-8FM meets industry standards for environmental compliance, ensuring safe operation in industrial environments. Compliance with these standards demonstrates Cisco’s commitment to sustainability and responsible manufacturing practices.

Integration with Systems

The Cisco IEM-3000-8FM supports integration with IoT systems, enabling organizations to connect sensors, devices, and controllers within industrial networks. Its stable connectivity ensures reliable communication between IoT devices, supporting real-time monitoring and control. This integration enhances operational efficiency and supports the adoption of smart technologies in industrial environments.

Device Connectivity

The module provides stable connectivity for IoT devices, ensuring reliable communication within industrial networks. This connectivity supports real-time monitoring and control, enhancing operational efficiency and safety. The Cisco IEM-3000-8FM enables organizations to adopt IoT technologies without compromising network reliability.

Smart Infrastructure Support

The Cisco IEM-3000-8FM supports smart infrastructure initiatives by providing scalable and reliable connectivity. As organizations adopt smart technologies, the module ensures that networks remain capable of handling increased traffic and complexity. This support enhances the value of investments and
