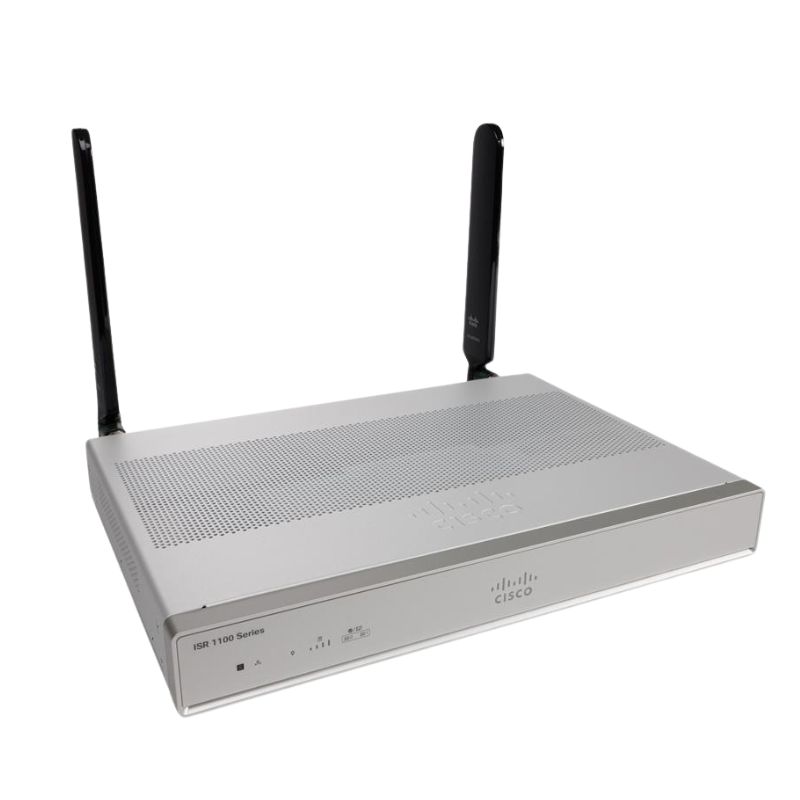

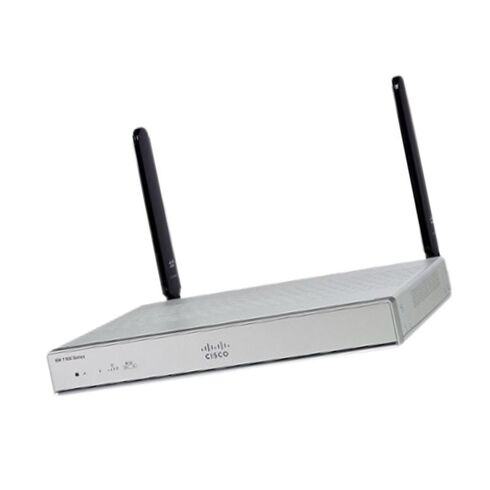

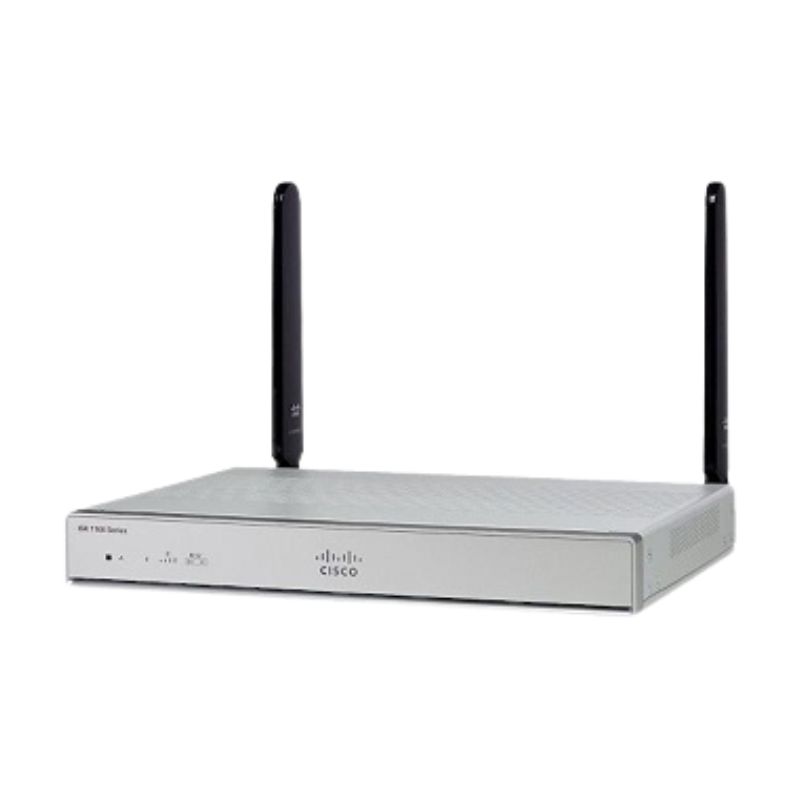

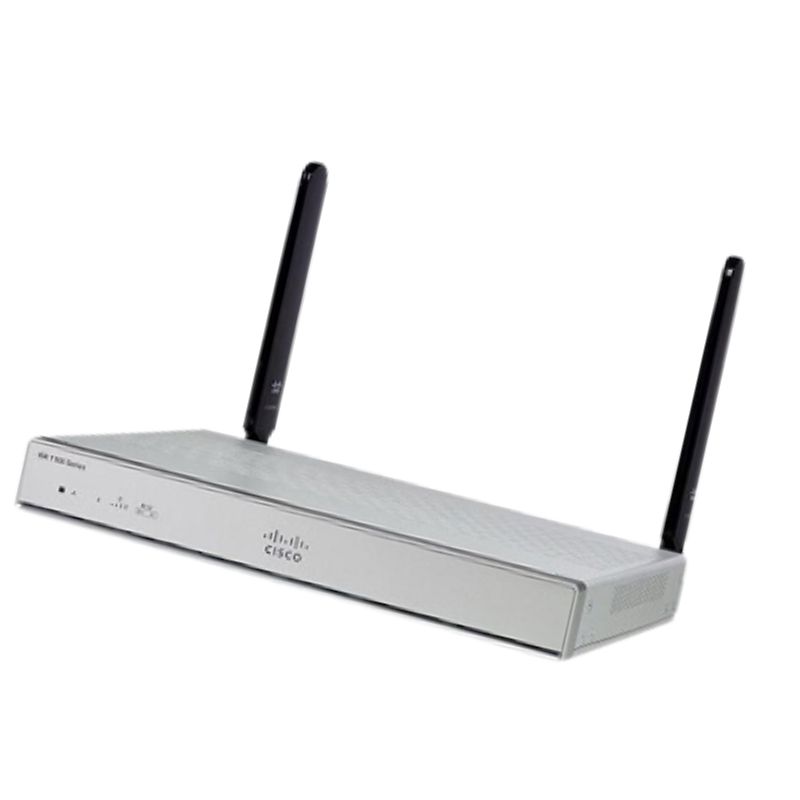

C1121-4P Cisco ISR Integrated Services Router

Cisco C1121-4P Integrated Services Router Overview

The Cisco C1121-4P 4-port services router is a versatile and enterprise-grade networking solution designed to deliver reliable connectivity, advanced security, and scalable performance for small to medium-sized businesses and branch offices. Built with cutting-edge architecture, this compact yet powerful router ensures seamless data transmission, efficient traffic management, and robust WAN connectivity for modern digital infrastructures.

General Product Information

• Brand: Cisco
• Model Number: C1121-4P
• Device Category: Enterprise Services Router

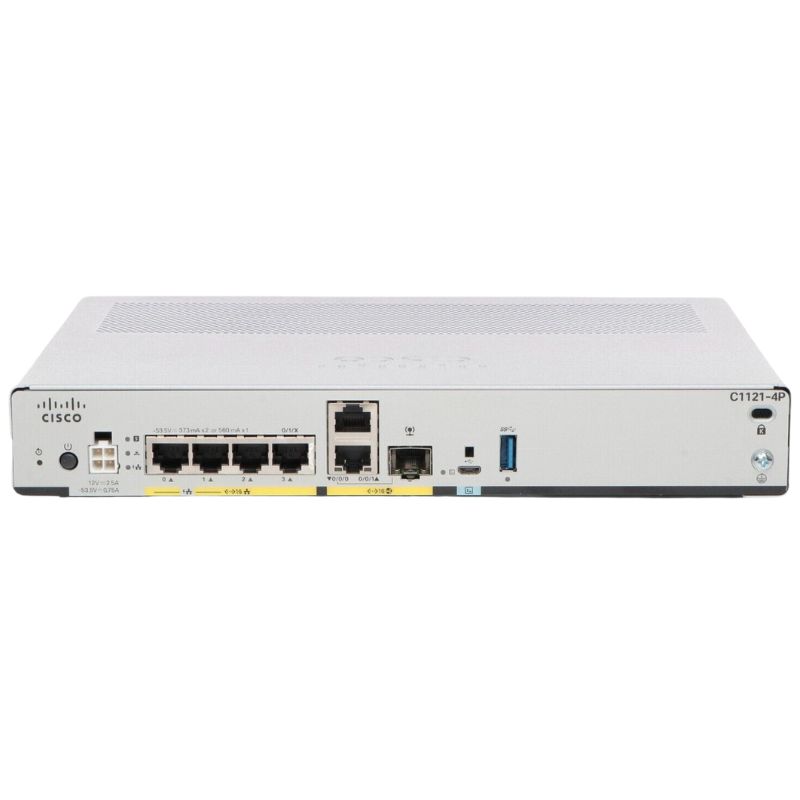

Advanced Networking Interfaces and Connectivity

• 4 x 10/100/1000 Gigabit Ethernet LAN ports
• Auto-negotiation and auto-MDI/MDIX support
• Optimized for high-bandwidth applications

Flexible WAN Connectivity Options

• 2 x Gigabit Ethernet WAN ports
• 1 x RJ-45 dedicated WAN interface
• 1 x Combo RJ-45/SFP port for fiber or copper connections
• Support for failover and load balancing

Console and USB Expansion

• 1 x Micro USB console port (Type-A)
• 1 x USB 3.0 Type-A port for external storage devices
• Convenient firmware upgrades and configuration backup

Power over Ethernet (PoE) Capabilities

• Supports up to 2 PoE devices or 1 PoE+ device
• Total PoE power budget of 66W
• Requires optional 115W external power supply unit
• Ideal for IP cameras, VoIP phones, and wireless APs

Performance, Throughput, and Memory

• Forwarding performance up to 1372 Mbps (IMIX)
• IPsec VPN encrypted throughput up to 370 Mbps
• Supports simultaneous data, voice, and video traffic

Memory and Storage Specifications

• 4 GB DRAM for fast processing
• 4 GB Flash memory for system storage
• Enhanced multitasking and application handling

Scalability for Growing Networks

• Supports up to 400 connected users
• Handles up to 100 concurrent VPN tunnels
• Suitable for branch and remote office deployments

Enterprise Software and SD-WAN Integration

• Minimum supported versions: 16.11.1 or 17.2.1 for SD-WAN
• Advanced routing protocols and policy control
• Seamless updates and patch management

SD-WAN Ready Architecture

• Zero-touch deployment capabilities
• Application-aware routing for optimized performance
• Centralized network orchestration and monitoring

Integrated Security Features

• Built-in enterprise firewall functionality
• IPSec VPN for secure remote connectivity
• Advanced URL filtering capabilities
• Secure segmentation and threat defense

Trust Anchor Technology

• Secure boot process to prevent unauthorized firmware
• Hardware root of trust for enhanced security
• Protection against tampering and malware attacks

Fanless and Silent Operation

• Silent operation with no moving parts
• Reduced maintenance requirements
• Enhanced reliability and durability

Dimensions and Weight

• Height: 1.65 inches (4.19 cm)
• Width: 10.80 inches (27.4 cm)
• Depth: 7.85 inches (19.9 cm)
• Weight: Approximately 3.43 lbs (1.55 kg)

Environmental Conditions

• Operating temperature range: 32°F to 104°F (0°C to 40°C)
• Reliable performance in diverse office environments

Cisco C1121-4P 4-Port Services Router Overview

The Cisco C1121-4P 4-port Services Router represents a highly adaptable and enterprise-grade networking solution designed to meet the evolving demands of modern branch offices, small-to-medium businesses, and distributed enterprise environments. Built on the robust foundation of Cisco’s Integrated Services Router (ISR) 1100 Series, this router is engineered to provide secure, high-performance connectivity while maintaining operational simplicity and scalability. The architecture combines routing, switching, security, and wireless capabilities into a compact platform, making it a versatile choice for organizations seeking to consolidate infrastructure and reduce total cost of ownership.

The internal hardware design incorporates a powerful multicore processor, advanced memory management, and optimized packet forwarding mechanisms. These elements work together to ensure consistent throughput even under heavy workloads, including encrypted traffic, VPN tunnels, and application-layer services. The integration of four Power over Ethernet (PoE) ports allows the device to directly power endpoints such as IP phones, wireless access points, and surveillance cameras, eliminating the need for additional power infrastructure.

Hardware Design and Performance Capabilities

The Cisco C1121-4P is engineered with a focus on reliability, efficiency, and compact deployment. Its rack-mountable and desktop-friendly form factor enables seamless integration into various environments, from branch office wiring closets to retail locations. The device supports high-speed Gigabit Ethernet connectivity, ensuring fast data transfer rates and minimal latency for business-critical applications. Its internal architecture supports hardware-accelerated encryption, allowing secure communications without compromising performance.

Thermal efficiency is another critical aspect of the design. The router utilizes intelligent cooling mechanisms that maintain optimal operating temperatures while minimizing noise levels. This makes it suitable for deployment in office environments where quiet operation is essential. The hardware also includes redundant features and advanced diagnostics that help ensure continuous uptime and rapid troubleshooting.

Integrated Switching and Power Delivery

The four integrated Ethernet ports on the Cisco C1121-4P are not merely standard interfaces but are enhanced with switching capabilities that support VLAN segmentation, traffic prioritization, and advanced Quality of Service (QoS) policies. These ports are capable of delivering PoE, enabling centralized power management for connected devices. This reduces cabling complexity and simplifies deployment, particularly in environments where multiple powered devices are required.

The PoE functionality is managed through intelligent power allocation algorithms, ensuring that connected devices receive adequate power while optimizing overall consumption. This feature is particularly beneficial for organizations looking to implement unified communications or IoT deployments.

Energy Efficiency and Environmental Considerations

The router is designed with energy efficiency in mind, incorporating low-power components and adaptive power management features. These capabilities allow the device to dynamically adjust its energy consumption based on network activity, reducing operational costs and supporting sustainability initiatives. Compliance with global environmental standards further enhances its suitability for organizations committed to eco-friendly operations.

Advanced Security Features and Threat Protection

Security is a cornerstone of the Cisco C1121-4P, with a comprehensive suite of integrated features designed to protect networks from evolving cyber threats. The router supports advanced encryption standards, secure VPN connectivity, and robust firewall capabilities, ensuring that data remains protected both in transit and at rest. These security features are tightly integrated into the operating system, providing seamless protection without the need for additional hardware.

The platform supports Cisco IOS XE, a modular and secure operating system that enables advanced threat detection and mitigation. This includes capabilities such as intrusion prevention, malware defense, and secure segmentation. The router also supports identity-based access control, allowing administrators to enforce policies based on user roles and device types.

Virtual Private Network and Encryption Technologies

The Cisco C1121-4P supports a wide range of VPN technologies, including IPsec, SSL, and DMVPN. These capabilities enable secure remote access and site-to-site connectivity, ensuring that distributed teams can securely access corporate resources. Hardware acceleration ensures that encryption processes do not degrade network performance, even when handling large volumes of traffic.

Advanced encryption algorithms provide robust protection against unauthorized access, while integrated key management simplifies deployment and maintenance. These features make the router an ideal choice for organizations with stringent security requirements.

Firewall and Access Control Mechanisms

The integrated firewall capabilities of the Cisco C1121-4P provide stateful packet inspection, application-level filtering, and granular access control. Administrators can define policies that restrict traffic based on IP addresses, protocols, and application types. This level of control helps prevent unauthorized access and ensures compliance with organizational security policies.

Additionally, the router supports zone-based firewall configurations, allowing for more flexible and scalable security architectures. This approach enables the segmentation of network traffic into different zones, each with its own security policies.

Threat Detection and Response

Real-time threat detection is achieved through advanced monitoring and analytics capabilities. The router can identify suspicious activity and trigger automated responses, such as blocking malicious traffic or alerting administrators. Integration with Cisco security solutions further enhances visibility and control, enabling a comprehensive security posture across the network.

Connectivity Options and Network Integration

The Cisco C1121-4P offers a wide range of connectivity options designed to support diverse network environments. In addition to its four Gigabit Ethernet ports, the router supports WAN connectivity through various interfaces, including DSL, LTE, and fiber, depending on configuration. This flexibility allows organizations to choose the most appropriate connectivity option based on their requirements and infrastructure.

The router’s ability to integrate seamlessly with existing network infrastructure is a key advantage. It supports standard networking protocols and can be easily configured to work with other Cisco devices, as well as third-party equipment. This interoperability ensures that organizations can leverage their existing investments while upgrading their network capabilities.

WAN and LAN Integration

The Cisco C1121-4P is designed to bridge the gap between wide area networks and local area networks. Its advanced routing capabilities ensure efficient traffic flow between different network segments, while maintaining high levels of performance and reliability. The router supports dynamic routing protocols such as OSPF, EIGRP, and BGP, enabling scalable and resilient network designs.

On the LAN side, the integrated switch ports provide high-speed connectivity for local devices, with support for advanced features such as link aggregation and spanning tree protocols. These capabilities enhance network stability and performance, particularly in complex environments.

Wireless and Mobility

While the Cisco C1121-4P primarily focuses on wired connectivity, it can be integrated with external wireless access points to provide comprehensive wireless coverage. This allows organizations to extend their network to support mobile devices and remote users. The router’s support for secure wireless integration ensures that data remains protected across all access points.

Cloud and SD-WAN Integration

The router is fully compatible with Cisco’s SD-WAN solutions, enabling organizations to leverage cloud-based management and optimization capabilities. This integration allows for centralized control, improved application performance, and enhanced visibility into network operations. The ability to connect seamlessly to cloud services further enhances the router’s versatility and future-proofing.
