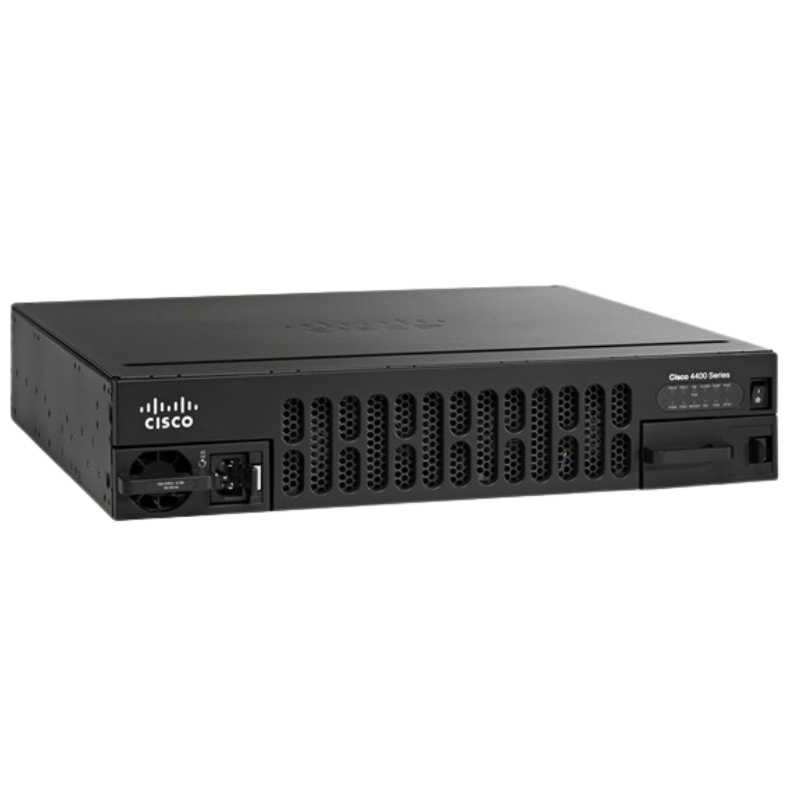

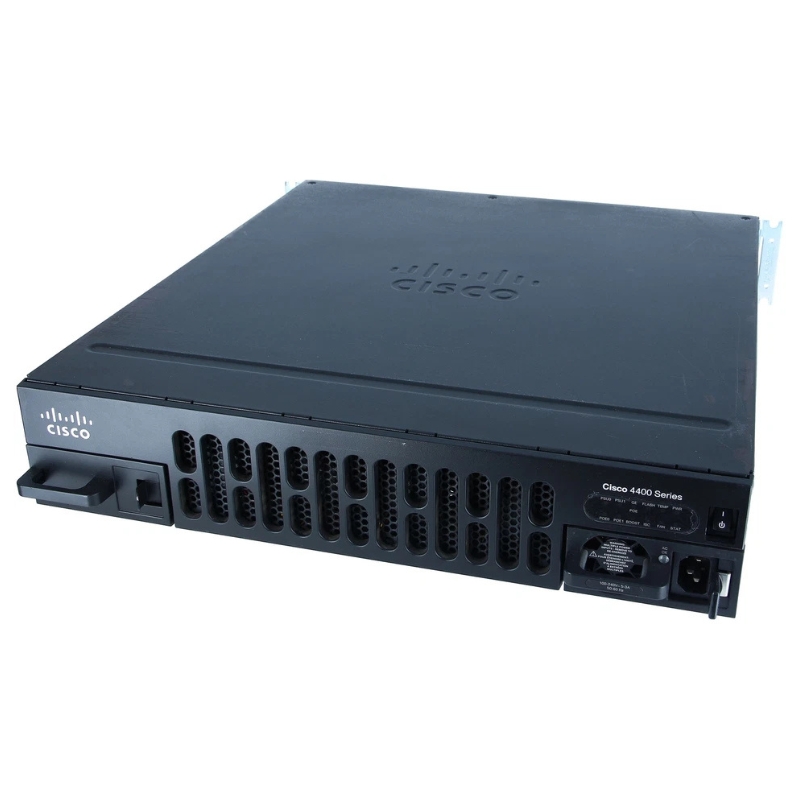

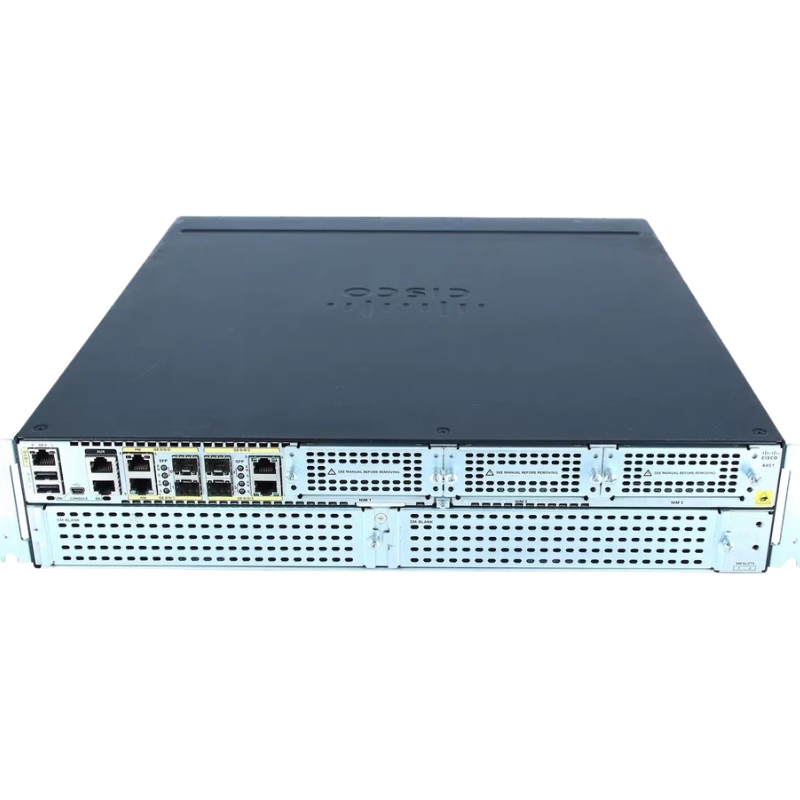

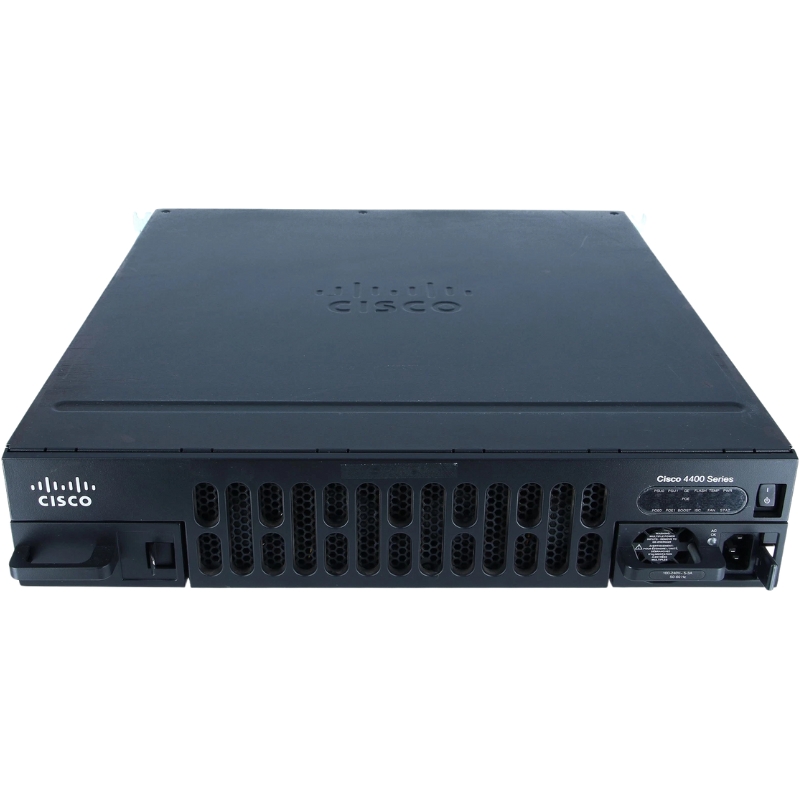

ISR4451-X-V/K9 Cisco Security Bundle Integrated Services Router

Cisco Integrated Services Router

The Cisco ISR4451-X-V/K9 4451-X is a high-performance integrated services router designed to deliver secure, scalable, and reliable networking solutions for enterprise environments.

General Information

• Brand: Cisco
• Model Number: ISR4451-X-V/K9 4451-X
• Category: Enterprise Router

Technical Specifications

Device Type

• Router
• Desktop
• Rack-mountable
• Modular - 2U

Supported Data Link Protocols

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Network and Transport Protocols

• IPSec
• PPPoE
• L2TPv3

Routing Protocols

• OSPF
• RIP, RIP-2
• IS-IS
• BGP
• EIGRP
• DVMRP
• PIM-SM, PIM-SSM
• IGMPv3
• GRE
• Static IPv4 & IPv6 Routing
• Policy-Based Routing (PBR)

Remote Management Protocols

• SNMP
• RMON

Advanced Features

Security and Performance

• Firewall Protection
• VPN Support
• MPLS Compatibility
• Syslog Integration
• Content Filtering
• IPv6 Support

Traffic Management

• Class-Based Weighted Fair Queuing (CBWFQ)
• Weighted Random Early Detection (WRED)
• Quality of Service (QoS)
• Dynamic Multipoint VPN (DMVPN)

Compliance Standards

• IEEE 802.3
• IEEE 802.1Q
• IEEE 802.1ah
• IEEE 802.1ag

Power Specifications

Electrical Requirements

• AC 120/230 V (47/63 Hz)

Power Device

• Internal Power Supply

Physical Dimensions

Size

• Width: 17.2 in
• Depth: 18.5 in
• Height: 3.5 in

Weight

• 28.88 lbs

ISR4451-X-V/K9 4451-X Integrated Router Overview

The Cisco ISR4451-X-V/K9 4451-X Integrated Services Security Bundle Router represents a cornerstone in modern enterprise networking, delivering high-performance routing, advanced security capabilities, and scalable service integration within a single platform. Designed for medium to large branch offices and distributed enterprise environments, this router integrates multiple services that traditionally required separate appliances, enabling organizations to streamline infrastructure, reduce operational complexity, and enhance overall network performance.

At the core of this platform lies Cisco’s innovative architecture that supports modular scalability and application-aware networking. The ISR4451-X-V/K9 is built to accommodate evolving network demands, including increasing bandwidth consumption, cloud adoption, and advanced threat protection. This makes it an ideal solution for enterprises looking to future-proof their networks while maintaining consistent and reliable connectivity.

Architecture and Performance Capabilities

High-Performance Multi-Core Processing

The Cisco ISR4451-X-V/K9 router is powered by a multi-core CPU architecture designed to handle intensive network workloads with ease. This architecture allows simultaneous processing of routing, security, and application services without performance degradation. With throughput capabilities that scale up to multiple gigabits per second, the router supports bandwidth-intensive applications such as video conferencing, cloud services, and data replication.

The system’s performance is further enhanced through Cisco’s IOS XE operating system, which separates control plane and data plane processes. This separation ensures stability, faster fault isolation, and seamless updates, providing a robust and resilient networking platform for mission-critical environments.

Embedded Services and Virtualization

One of the standout features of the ISR4451-X-V/K9 is its ability to host virtualized network functions directly on the router. This includes services such as WAN optimization, security applications, and network monitoring tools. The integrated services architecture allows businesses to deploy multiple services without requiring additional hardware, reducing both capital expenditure and rack space requirements.

Virtualization capabilities also enable organizations to adapt quickly to changing business needs by deploying new services on demand. This flexibility is particularly beneficial in environments where agility and scalability are essential.

Integrated Security Features

Comprehensive Threat Protection

Security is a fundamental component of the Cisco ISR4451-X-V/K9 bundle. The router includes advanced security features such as firewall protection, intrusion prevention systems, and encrypted VPN connectivity. These capabilities ensure that data remains secure as it traverses the network, protecting against both external and internal threats.

The integrated security bundle is designed to provide consistent policy enforcement across the network, enabling centralized management and simplified security operations. This unified approach reduces the risk of misconfigurations and enhances overall network protection.

Advanced VPN Capabilities

The router supports a wide range of VPN technologies, including IPsec and SSL VPNs, enabling secure remote access and site-to-site connectivity. These features are essential for organizations with distributed workforces or multiple branch locations. High-performance encryption ensures that sensitive data is protected without compromising network speed or user experience.

Zone-Based Firewall and Access Control

The zone-based firewall functionality provides granular control over network traffic by defining security zones and policies. This allows administrators to implement detailed access control rules, ensuring that only authorized traffic is permitted. The flexibility of this system makes it suitable for complex network environments with diverse security requirements.

WAN Connectivity and Optimization

Flexible WAN Interface Options

The Cisco ISR4451-X-V/K9 offers a wide range of WAN connectivity options, including Ethernet, serial, and fiber interfaces. This flexibility enables organizations to connect to various service providers and network infrastructures. The router supports multiple WAN links simultaneously, providing redundancy and load balancing to ensure continuous connectivity.

The modular design allows for easy expansion and customization, enabling businesses to adapt their network infrastructure as requirements evolve. This ensures long-term investment protection and operational efficiency.

Software-Defined Networking Integration

The router is compatible with software-defined networking (SDN) solutions, enabling centralized control and automation of network operations. This integration allows organizations to simplify network management, improve visibility, and enhance overall efficiency. SDN capabilities also support rapid deployment of new services and policies, reducing time-to-market for business initiatives.

Advanced Analytics and Reporting

Built-in analytics and reporting capabilities provide valuable insights into network performance and usage. These insights enable organizations to identify potential issues, optimize resource allocation, and improve overall network performance. Detailed reports also support compliance and auditing requirements.

Robust Hardware Design

The hardware design of the router emphasizes durability and reliability. High-quality components and rigorous testing ensure consistent performance in demanding environments. This reliability is essential for organizations that depend on uninterrupted network connectivity for their operations.

Remote Workforce Connectivity

The router’s VPN capabilities make it an ideal solution for supporting remote workforces. Employees can securely access corporate resources from anywhere, ensuring productivity and collaboration regardless of location. This is particularly important in today’s increasingly mobile and distributed work environments.
