SM-X-1T3/E3 Cisco WAN Expansion Module

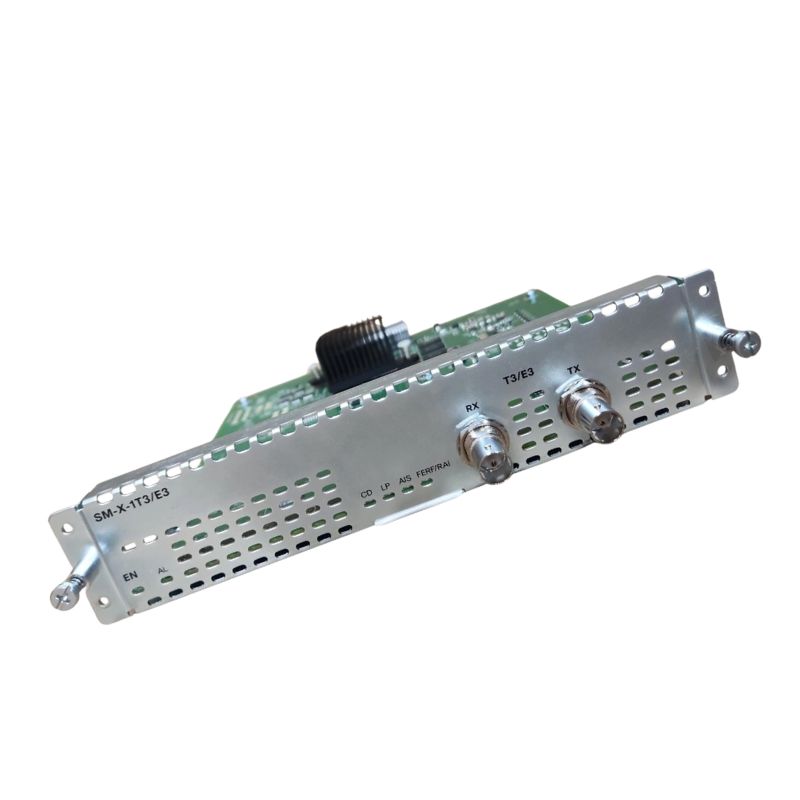

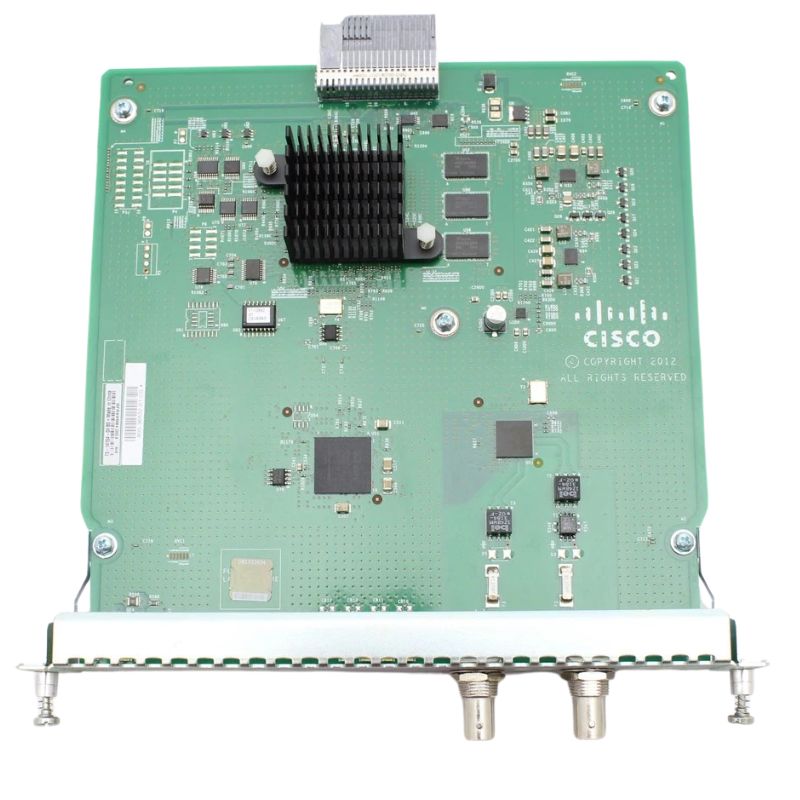

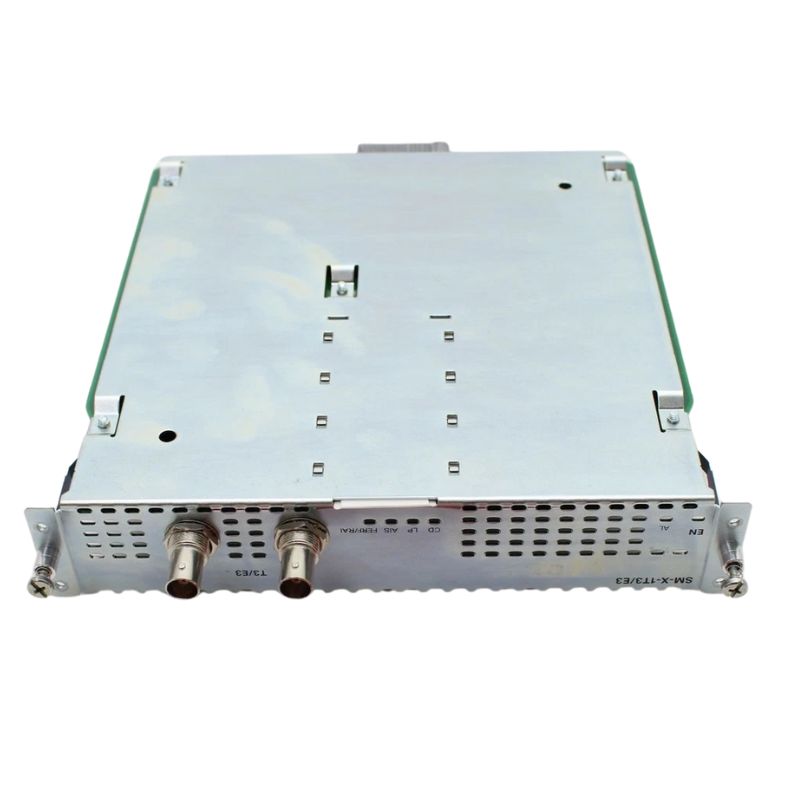

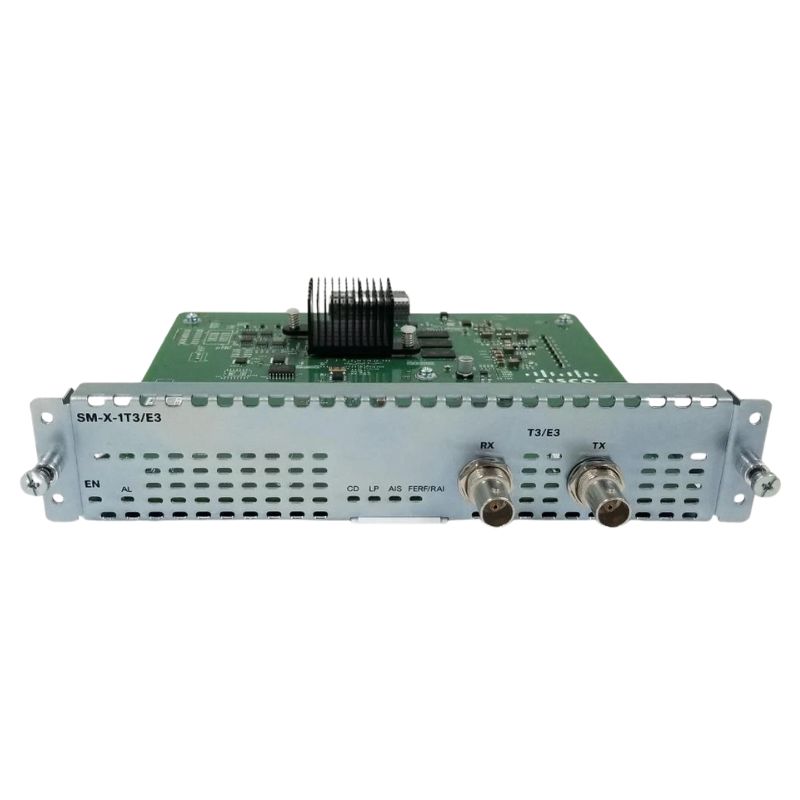

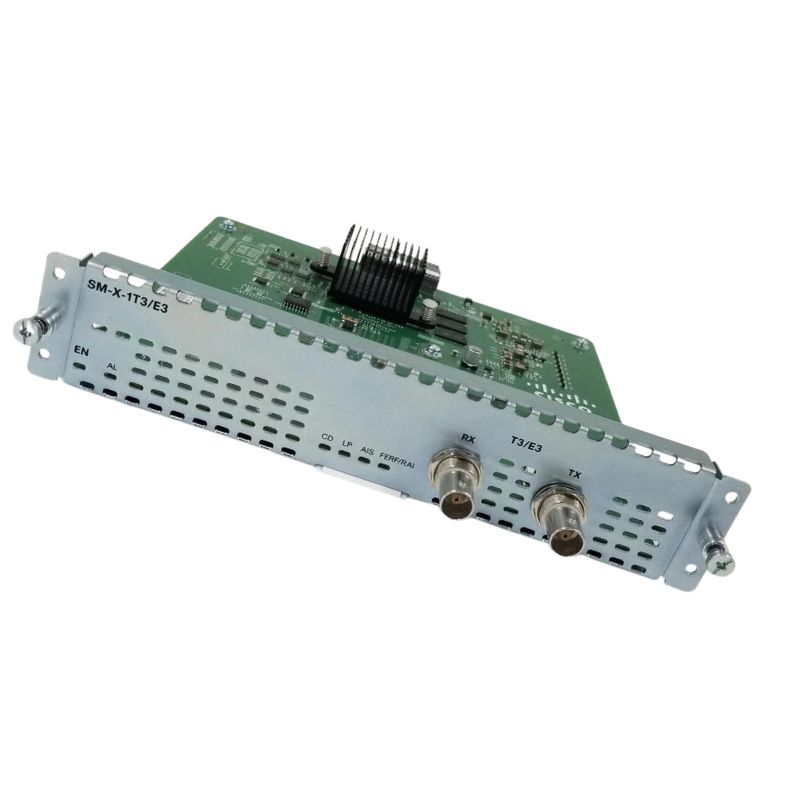

Cisco SM-X-1T3/E3 One-Port Router Expansion Module

The Cisco SM-X-1T3/E3 is a high-performance WAN expansion module designed to enhance Cisco Integrated Services Routers (ISR) with reliable T3/E3 connectivity. Built for enterprise networking environments, this plug-in expansion card delivers stable wired WAN performance, making it ideal for organizations requiring dedicated leased-line connections, carrier-grade transport, and mission-critical data routing.

Product Details

• Manufacturer: Cisco
• Part Number: SM-X-1T3/E3
• Device Type: Router Expansion Module
• Form Factor: Plug-in WAN Module
• Connectivity: Wired T3/E3 Interface
• Line Rate: T3 / E3 Support

Supported Cisco Router Platforms

• Cisco 2900 Series Integrated Services Routers
• Cisco 3900 Series Integrated Services Routers
• Cisco ISR 4451-X
• Cisco 4451-X Application Experience Bundle
• Cisco 4451-X Security Bundle
• Cisco 4451-X Voice Security Bundle

Interface and Port Configuration

• 1 x T3/E3 WAN Port
• BNC Female Connector Type
• 75-ohm coaxial cable support

Data Transfer Rates

• T3 Speed: Up to 32.06 Mbps
• E3 Speed: Up to 34.37 Mbps

Key Functional Advantages

• Plug-in modular design for Cisco ISR routers
• High-reliability WAN connectivity
• Carrier-grade T3/E3 support
• Easy installation and configuration
• Enterprise network scalability

Interface Characteristics

• Connector Type: BNC Female
• Media Type: 75-ohm coaxial cable
• WAN Standard: T3/E3 supported

Supported Media Standards

• T3 (DS3) telecommunications standard
• E3 digital transmission standard
• Coaxial 75-ohm infrastructure

Regulatory Compliance Standards

• FCC CFR47 Part 15
• EN 55022 Class A
• EN 55024
• EN 60950
• UL 1950 Third Edition
• ICES-003 Class A
• VCCI V-3
• TUV GS Certification

Additional International Standards

• AS/NZ 3548 Class A
• AS/NZS 3260
• EN 61000 series (EMC immunity and emissions)
• CSA C22.2 No. 950
• IEC 950
• EN 300386

Common Deployment Scenarios

• Enterprise WAN connectivity over T3/E3 lines
• Branch office network expansion
• Telecom carrier network integration
• Secure dedicated leased-line communication
• Legacy infrastructure modernization

Cisco SM-X-1T3/E3 One Port Router Expansion Module Overview

High-Performance WAN Expansion for Enterprise Modular Routers

The Cisco SM-X-1T3/E3 One Port Router Expansion Module represents a specialized network interface solution designed to extend the WAN connectivity capabilities of compatible Cisco modular routers. Built to support legacy and carrier-class telecommunications infrastructures, this expansion module enables enterprises, service providers, and government networks to integrate T3 (DS3) and E3 circuit connectivity into modern routing environments. The module is engineered for reliability, predictable throughput, and seamless integration within Cisco’s modular service architecture, ensuring that organizations can maintain connectivity with traditional leased line infrastructures while scaling toward advanced IP-based networking.

As part of Cisco’s service module ecosystem, the SM-X-1T3/E3 provides a bridge between legacy WAN transport technologies and contemporary enterprise routing systems. It is particularly valuable in environments where telecommunications providers still rely on TDM-based circuits, allowing organizations to preserve investments in existing infrastructure while maintaining compatibility with modern network services.

Core Design Philosophy of the SM-X-1T3/E3 Module

The design of the Cisco SM-X-1T3/E3 expansion module emphasizes interoperability, operational continuity, and long-term service stability. It is intended for deployment in modular routers where flexible interface expansion is required without compromising chassis performance. By integrating directly into supported Cisco platforms, the module eliminates the need for standalone WAN termination equipment, reducing complexity and improving centralized network management.

The architecture supports intelligent packet processing, synchronization with WAN timing sources, and robust error correction mechanisms. This ensures that data transmission over T3 and E3 circuits remains stable even under fluctuating line conditions. The module is also designed to handle carrier-grade uptime requirements, making it suitable for mission-critical applications in industries such as finance, telecommunications, transportation, and public sector communications.

Technical Architecture and Interface Capabilities

T3 (DS3) and E3 WAN Interface Support

The Cisco SM-X-1T3/E3 module supports both T3 and E3 WAN standards, which are widely used in North American and international telecommunications infrastructures. T3, also known as DS3, provides a high-capacity digital circuit typically used for aggregated voice, video, and data traffic. E3 circuits serve a similar role in European and global carrier networks, delivering reliable high-speed transport over synchronous digital hierarchy systems.

This dual-standard support ensures that organizations operating across multiple geographic regions can standardize on a single modular interface solution. The ability to handle both T3 and E3 signaling makes the module highly adaptable in multinational enterprise deployments where diverse carrier standards must be accommodated.

Signal Processing and Line Encoding Mechanisms

The module incorporates advanced signal processing capabilities to manage line encoding schemes and maintain synchronization with carrier networks. It supports industry-standard encoding formats used in TDM-based WAN environments, ensuring compatibility with service provider infrastructure. The onboard processing subsystem is optimized for minimizing latency while maintaining signal integrity across long-distance leased lines.

Through integrated clocking mechanisms, the module ensures precise timing alignment with external network sources. This is essential for maintaining jitter-free transmission and preventing packet loss in time-sensitive applications such as voice transport and financial transaction processing.

Integration with Cisco Modular Router Platforms

Seamless Deployment within Cisco Service Module Architecture

The Cisco SM-X-1T3/E3 module is designed for integration into Cisco modular router platforms that support service modules. This allows organizations to expand WAN interface density without replacing entire routing systems. Instead, the module can be inserted into an existing chassis, enabling rapid deployment of new connectivity options with minimal disruption to network operations.

This modular approach is particularly beneficial in enterprise branch environments where network requirements evolve over time. Organizations can begin with basic IP connectivity and later introduce T3 or E3 WAN links as bandwidth demands increase or as legacy circuit availability becomes necessary for business continuity.

Hot-Swap and Service Continuity Advantages

One of the key operational advantages of service module-based architecture is the ability to maintain service continuity during upgrades or maintenance procedures. In supported Cisco systems, the SM-X-1T3/E3 module can be replaced or upgraded without requiring full router shutdown, reducing downtime and ensuring continuous network availability.

This capability is particularly valuable in environments where even short service interruptions can have significant operational or financial consequences. By enabling non-disruptive hardware changes, the module contributes to a highly resilient network infrastructure.

Enterprise WAN Optimization and Legacy Circuit Support

Bridging Modern IP Networks with Legacy TDM Infrastructure

Despite the widespread adoption of IP-based WAN technologies, many organizations continue to rely on legacy TDM circuits for specific applications or due to long-term service contracts with carriers. The Cisco SM-X-1T3/E3 module provides a critical bridge between these legacy systems and modern IP routing infrastructures.

By integrating directly into a Cisco router, the module allows legacy circuits to be terminated and processed within the same routing environment used for IP traffic. This reduces the need for external CSU/DSU devices and simplifies network topology. The result is a more efficient and manageable WAN architecture that retains compatibility with existing carrier services.

Optimizing Bandwidth Utilization Across WAN Links

The module is engineered to optimize bandwidth usage across T3 and E3 links through efficient packet handling and traffic prioritization mechanisms. This ensures that critical applications receive appropriate bandwidth allocation while maintaining overall network stability. In enterprise environments, this is particularly important for supporting voice over IP, video conferencing, and transactional systems that require predictable performance.

By enabling granular control over WAN traffic behavior, the SM-X-1T3/E3 contributes to improved quality of service and more efficient utilization of leased line resources.

High Availability Design for Mission-Critical Networks

The Cisco SM-X-1T3/E3 module is built with high availability principles in mind. It is designed to operate continuously in environments where uptime requirements are extremely strict. Carrier-grade reliability ensures that the module can withstand long-term operational loads without degradation in performance.

Redundancy features at both hardware and network levels allow the module to participate in resilient network designs. When deployed alongside redundant routing systems, it contributes to failover architectures that maintain connectivity even during hardware or link failures.

Error Detection and Line Integrity Assurance

To maintain stable WAN connectivity, the module incorporates robust error detection mechanisms that continuously monitor line integrity. These systems identify signal degradation, synchronization loss, and framing errors, allowing the router to respond appropriately to maintain service quality.

This level of monitoring is essential in T3 and E3 environments, where physical line conditions can vary depending on distance, carrier quality, and environmental factors.

Security and Network Isolation Capabilities

Secure WAN Termination within Enterprise Edge Architectures

Security is a critical consideration in WAN edge deployments, and the Cisco SM-X-1T3/E3 module supports secure integration into enterprise routing environments. By terminating WAN circuits directly within a Cisco router, the module reduces exposure to external devices and simplifies the security perimeter.

This consolidation of WAN termination and routing functions helps organizations enforce consistent security policies across all traffic flows. It also reduces the number of potential attack surfaces by eliminating unnecessary intermediate hardware.

Traffic Segmentation and Policy Enforcement

When used in conjunction with Cisco routing and security features, the module supports advanced traffic segmentation strategies. This allows organizations to separate different types of traffic based on application, department, or security classification while maintaining full control over WAN transmission paths.

Policy-based routing capabilities further enhance control over how data is transmitted across T3 and E3 circuits, enabling optimized routing decisions based on business requirements.

Deployment Scenarios and Industry Applications

Enterprise WAN Edge Connectivity

In enterprise environments, the Cisco SM-X-1T3/E3 module is commonly deployed at WAN edge locations where connectivity to service provider networks is required. It enables organizations to maintain direct leased-line connections for critical applications while integrating seamlessly with IP-based backbone networks.

This is particularly useful for organizations with distributed branch offices that require consistent and reliable connectivity to centralized data centers.

Telecommunications and Service Provider Environments

Service providers utilize T3 and E3 circuits extensively in aggregation and transport networks. The module allows carrier environments to integrate Cisco routing capabilities directly into their infrastructure, enabling more efficient service delivery and network management.

By supporting standardized WAN interfaces, the module simplifies interconnection between carrier systems and enterprise customers.

Government and Financial Network Infrastructure

Government agencies and financial institutions often require highly stable and secure WAN connections for sensitive operations. The SM-X-1T3/E3 module provides the reliability and predictability needed for these environments, ensuring that critical data flows remain uninterrupted and secure.

Its compatibility with legacy infrastructure also allows these organizations to maintain long-term operational continuity without requiring complete network redesigns.
