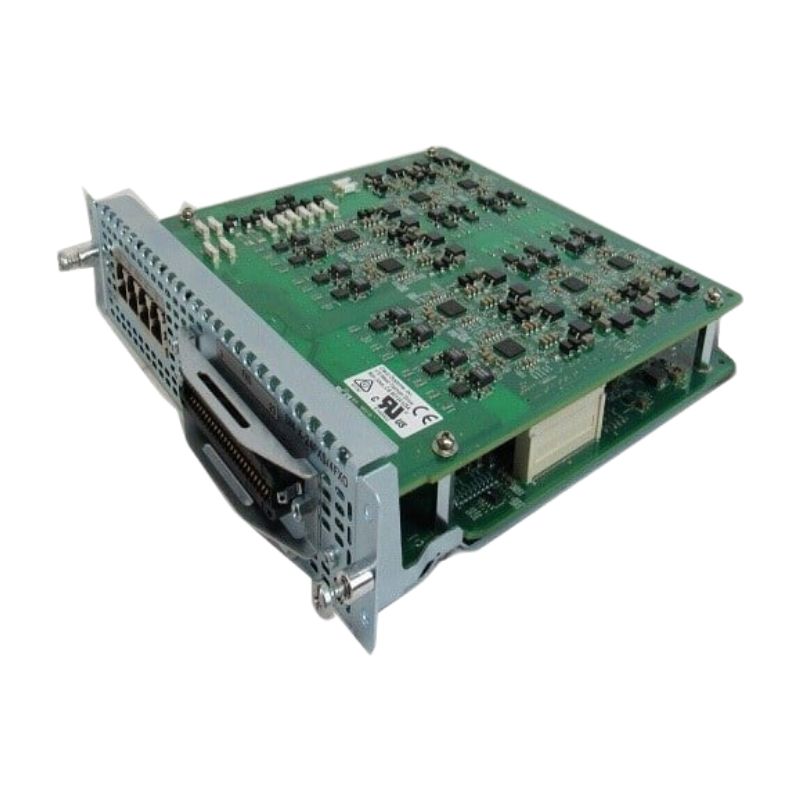

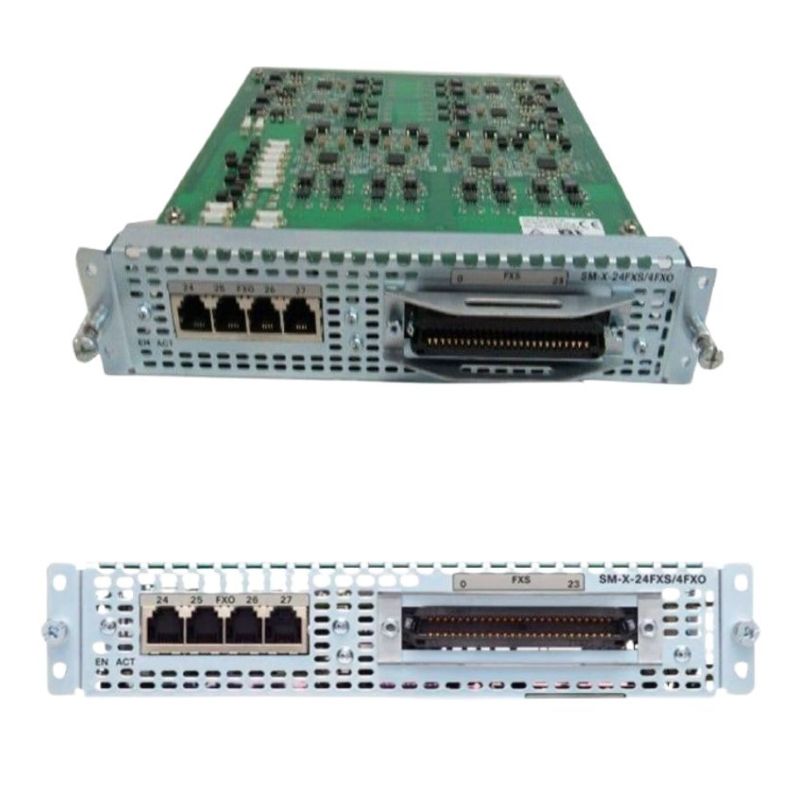

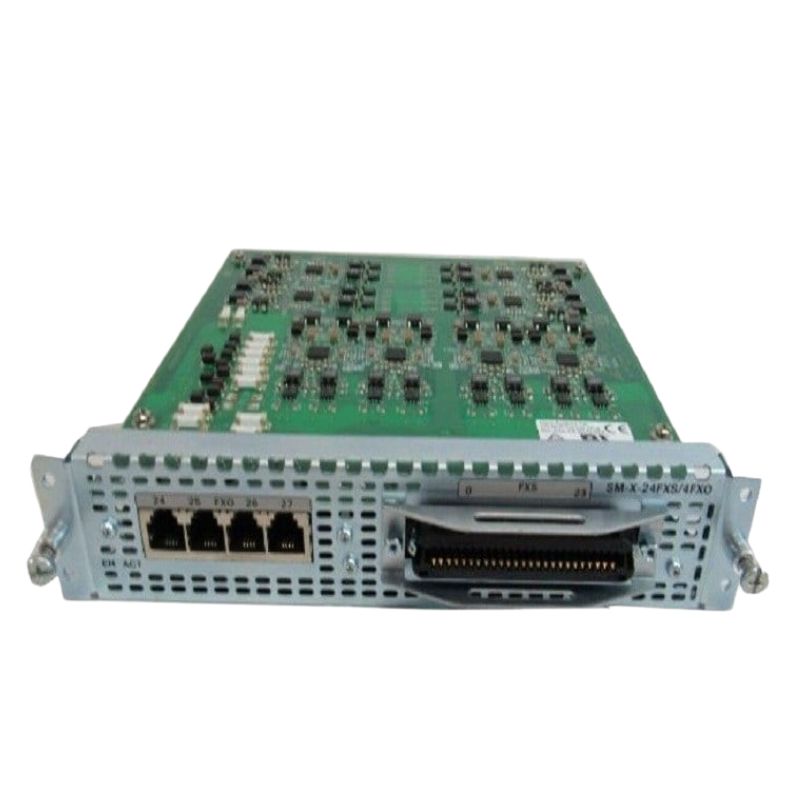

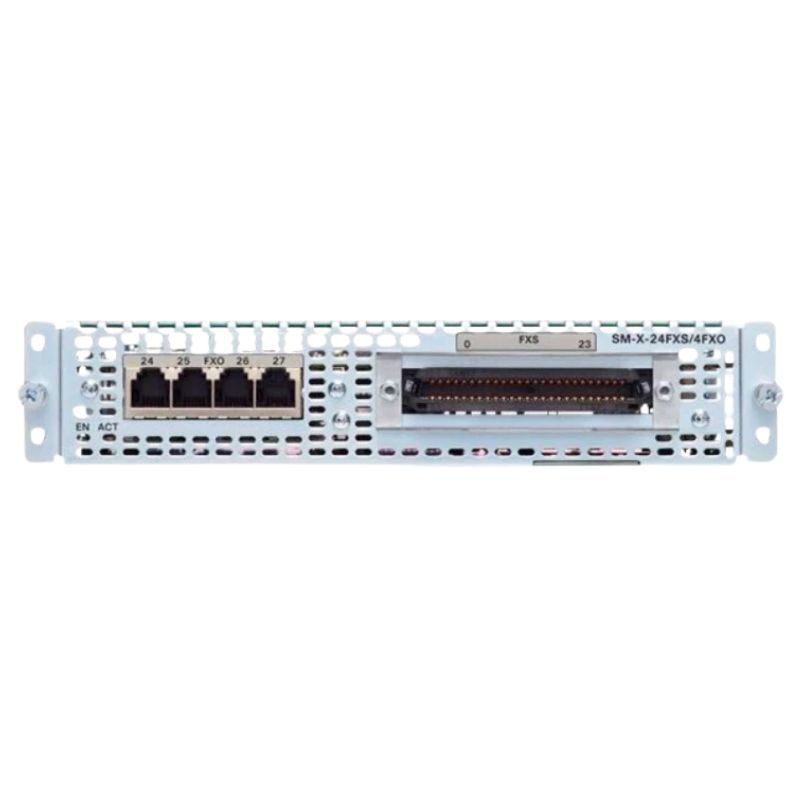

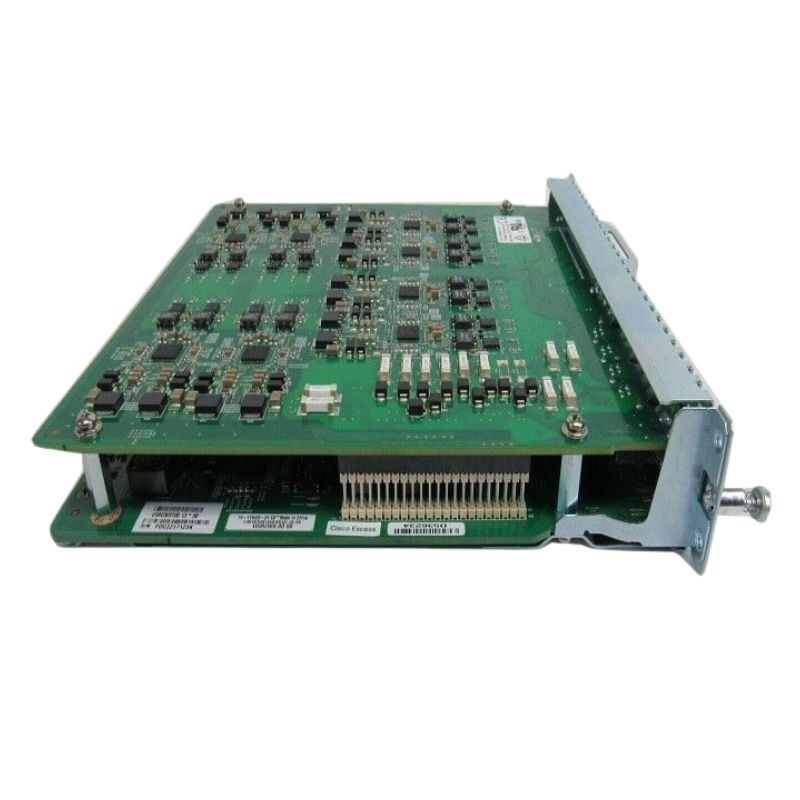

SM-X-24FXS/4FXO Cisco Fixed Port Analog Voice Service Module

Cisco SM-X-24FXS/4FXO Voice Service Expansion Module

The Cisco SM-X-24FXS/4FXO is a high-performance fixed-port analog voice service module designed to extend enterprise telephony capabilities with reliable voice and fax connectivity. Built for Cisco integrated services routers, this expansion module provides scalable analog communication support for businesses that require seamless integration of traditional telephony systems with modern IP-based networks.

General Information

• Manufacturer: Cisco
• Part Number: SM-X-24FXS/4FXO
• Product Type: High-Density Analog Voice Expansion Module
• Device Category: Network Service Module

Technical Specifications of Cisco SM-X-24FXS/4FXO

• Total Ports: 28 analog ports
• FXS Ports: 24 (Foreign Exchange Station)
• FXO Ports: 4 (Foreign Exchange Office)

Supported Media Type

• Twisted Pair cabling

Primary Use Cases

• Enterprise voice communication systems
• Analog telephone integration
• Fax transmission services
• Contact center voice extensions
• Branch office telephony support

Integration Benefits

• Direct compatibility with Cisco ISR platforms
• Simplified network architecture
• Centralized voice management
• Reduced hardware complexity
• Improved deployment efficiency

Scalability Features

• High port density for enterprise voice expansion
• Supports growing communication demands
• Flexible deployment across multiple sites
• Efficient utilization of router resources

Communication Reliability Features

• Stable analog voice signal processing
• Consistent fax transmission support
• Reliable PSTN connectivity via FXO ports
• Low-latency voice communication

Deployment Scenarios

• Branch office telephony systems
• Corporate headquarters voice integration
• Distributed enterprise communication networks
• Legacy PBX system expansion

Overview of Cisco SM-X-24FXS/4FXO Voice Service Module

The Cisco SM-X-24FXS/4FXO Fixed Port High Density Analog Voice Service Module is a specialized enterprise-grade voice networking component designed to extend the capabilities of Cisco Integrated Services Routers (ISR) by enabling robust analog voice connectivity in modern hybrid communication environments. This service module is engineered to bridge legacy telephony systems with contemporary IP-based voice infrastructures, ensuring seamless interoperability between analog endpoints and VoIP networks. It is widely deployed in enterprise branch offices, service provider environments, government institutions, and large-scale communication networks where analog devices still play a critical operational role.

This module integrates twenty-four Foreign Exchange Station (FXS) ports and four Foreign Exchange Office (FXO) ports within a compact, high-density architecture. The FXS interfaces are primarily used to connect analog devices such as telephones, fax machines, and paging systems, while FXO ports interface with Public Switched Telephone Network (PSTN) lines or analog trunk lines. The combination of both port types provides a flexible and powerful solution for organizations transitioning toward full IP telephony while maintaining support for essential analog systems.

Core Architecture and Engineering Design

The engineering foundation of the Cisco SM-X-24FXS/4FXO module is built on modular voice service principles that prioritize scalability, reliability, and high-quality voice transmission. The architecture is tightly integrated with Cisco ISR platforms, allowing the module to leverage router-based processing power for voice encoding, signaling, and session management. This ensures consistent performance in environments where concurrent voice sessions and analog conversions are required at scale.

High-Density Voice Port Configuration

The high-density configuration of twenty-four FXS ports combined with four FXO ports allows enterprises to maximize port utilization within a single service module. This reduces hardware footprint while increasing operational efficiency. Each FXS port supports analog endpoint connectivity, enabling organizations to deploy traditional telephony devices without requiring individual analog gateways for each connection. Meanwhile, the FXO ports provide direct access to PSTN lines, enabling call routing, failover, and external connectivity when IP networks are unavailable or degraded.

The integration of multiple analog interfaces in a unified module reduces network complexity and simplifies infrastructure management. Instead of maintaining separate analog voice gateways, enterprises can consolidate analog communication functions within a single Cisco ISR-based system, significantly reducing maintenance overhead and operational costs.

Digital Signal Processing and Voice Conversion

The module relies heavily on digital signal processing (DSP) capabilities to convert analog voice signals into digital packets suitable for IP transmission. This process includes analog-to-digital conversion, compression using industry-standard codecs, jitter buffering, and echo cancellation. The DSP resources ensure that voice quality remains consistent even under varying network conditions. The module supports real-time voice encoding that minimizes latency and preserves clarity in both inbound and outbound communication channels.

By integrating DSP functions directly into the service module and the host router platform, Cisco ensures that voice traffic is handled efficiently without requiring external processing hardware. This tight integration improves performance predictability and reduces points of failure within the communication system.

FXS and FXO Functional Capabilities

Foreign Exchange Station (FXS) Connectivity

FXS ports in the Cisco SM-X-24FXS/4FXO module are designed to provide power, dial tone, and signaling to analog devices. These ports simulate the behavior of a traditional telephone exchange, enabling direct connection of analog telephones, fax machines, intercom systems, and analog paging systems. Each FXS port delivers consistent voltage and signaling required to maintain stable analog communication, making them ideal for environments that rely on legacy communication devices.

In enterprise environments, FXS connectivity is especially valuable in hospitality, healthcare, education, and government sectors where analog endpoints remain widely deployed due to cost efficiency and operational familiarity.

Foreign Exchange Office (FXO) Interface Functionality

The FXO ports provide direct connectivity to PSTN lines or analog PBX trunks. These interfaces allow the router to receive and initiate calls from external telephone networks. FXO functionality is essential for organizations requiring fallback communication paths or hybrid telephony architectures that combine VoIP with traditional telephony infrastructure.

The FXO interfaces also support call routing policies that enable intelligent failover between VoIP and PSTN networks. In the event of IP network disruption, calls can be automatically rerouted through FXO-connected PSTN lines, ensuring business continuity and uninterrupted communication services.

Enterprise Telephony Integration

The Cisco SM-X-24FXS/4FXO module plays a critical role in enterprise telephony integration strategies. As organizations migrate from traditional PBX systems to IP-based Unified Communications (UC) platforms, the need for analog compatibility remains essential. This module provides a transitional bridge that supports both legacy and modern communication systems simultaneously.

PBX Migration and Hybrid Deployment Models

Many enterprises operate legacy Private Branch Exchange (PBX) systems that rely heavily on analog connectivity. The Cisco SM-X-24FXS/4FXO module facilitates gradual migration from PBX to IP telephony by allowing analog endpoints to remain functional during transition phases. This hybrid deployment model reduces migration risks and allows IT teams to modernize infrastructure without disrupting daily operations.

During migration, analog devices connected through FXS ports can communicate with SIP-based IP endpoints via the Cisco ISR router. This interoperability ensures that both legacy and modern communication systems coexist within a unified network architecture.

Session Initiation Protocol (SIP) Integration

The module supports SIP-based voice communication, enabling seamless integration with VoIP platforms and Unified Communications systems. SIP signaling allows analog voice calls to be encapsulated and transmitted over IP networks, ensuring compatibility with modern communication frameworks such as Cisco Unified Communications Manager and third-party VoIP systems.

This SIP integration enhances communication flexibility and enables advanced features such as call routing, voicemail integration, call forwarding, and conferencing capabilities across analog and IP endpoints.

Deployment Scenarios and Use Cases

Enterprise Branch Office Communication

In branch office environments, the Cisco SM-X-24FXS/4FXO module provides a compact yet powerful solution for managing both internal and external communication requirements. Branch offices often rely on a combination of analog phones and IP endpoints, and this module ensures seamless interoperability between both systems. It also enables centralized management of voice services through the corporate headquarters.

Contact Centers and Customer Service Operations

Contact centers benefit significantly from the high-density port configuration of this module. Analog lines can be used for inbound customer calls while IP-based systems handle routing and analytics. This hybrid structure allows organizations to maintain redundancy and ensure high availability of customer communication channels.

Legacy System Integration in Industrial Environments

Industrial facilities, manufacturing plants, and utility companies often rely on analog communication systems for alarms, emergency lines, and internal communication networks. The Cisco SM-X-24FXS/4FXO module provides reliable integration for these systems, ensuring that legacy communication devices remain functional while integrating into modern IP infrastructure.

Installation and Platform Compatibility

The module is designed for seamless integration with Cisco Integrated Services Routers, particularly within the Cisco ISR series. Installation is typically performed through modular slots within compatible routers, allowing administrators to expand voice capabilities without deploying additional standalone hardware. The plug-and-play nature of the module simplifies deployment and reduces configuration complexity.

Router-Based Integration and Configuration

Once installed, the module is recognized by the host router, which automatically allocates resources for voice processing and signaling. Network administrators can configure voice ports, dial peers, and call routing policies through Cisco IOS command-line interfaces or graphical management tools. This centralized configuration model simplifies administration and ensures consistent policy enforcement across the network.

Voice Quality Optimization and Signal Processing

Voice quality is a critical factor in any telephony system, and the Cisco SM-X-24FXS/4FXO module incorporates advanced mechanisms to ensure clear and reliable communication. These include jitter buffering to smooth packet delivery variations, echo cancellation to eliminate feedback loops, and dynamic codec selection to optimize bandwidth usage.

The module supports high-fidelity voice transmission by minimizing latency and ensuring that analog-to-digital conversion maintains signal integrity. These optimizations are particularly important in environments where call clarity is essential for business operations and customer interactions.

Security and Network Reliability

Security is a core component of Cisco voice infrastructure design. The SM-X-24FXS/4FXO module benefits from the security capabilities of the host router, including encryption of voice traffic, secure signaling protocols, and access control mechanisms. These features protect against unauthorized access and ensure secure communication across both internal and external networks.

Reliability is further enhanced through redundant routing capabilities and failover mechanisms. In the event of IP network failure, FXO ports provide PSTN fallback options, ensuring continuous voice communication even during network disruptions.

Scalability and Network Expansion

The modular nature of the Cisco SM-X-24FXS/4FXO service module allows organizations to scale voice infrastructure as needed. Additional modules can be deployed in compatible routers to expand port capacity, enabling support for growing numbers of analog endpoints. This scalability ensures that enterprises can adapt their communication infrastructure to evolving operational requirements without significant hardware replacement.

Operational Efficiency and Cost Optimization

By consolidating analog voice capabilities into a single high-density module, organizations reduce the need for multiple standalone analog gateways. This consolidation reduces capital expenditure, simplifies network design, and lowers ongoing maintenance costs. IT teams benefit from centralized management, which reduces configuration complexity and improves troubleshooting efficiency.

The module also reduces physical rack space requirements, making it ideal for data centers and branch offices where space optimization is critical. Its integration with Cisco ISR platforms ensures long-term operational efficiency and compatibility with evolving communication standards.

Industry Applications and Deployment Environments

The Cisco SM-X-24FXS/4FXO module is widely deployed across various industries including healthcare, education, government, financial services, and hospitality. In healthcare environments, it supports analog paging systems and emergency communication devices. In educational institutions, it enables integration of legacy intercom systems and administrative communication lines.

Government agencies utilize the module for secure and reliable communication between departments, while financial institutions leverage it for customer service operations and secure voice communications. Hospitality environments benefit from its ability to support guest room telephony systems and internal staff communication networks.
