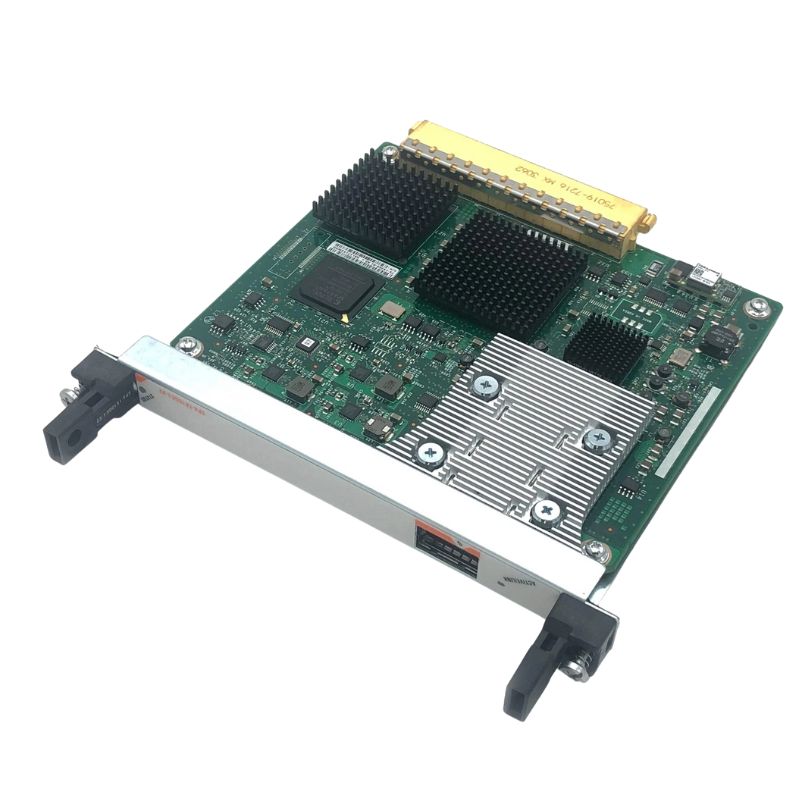

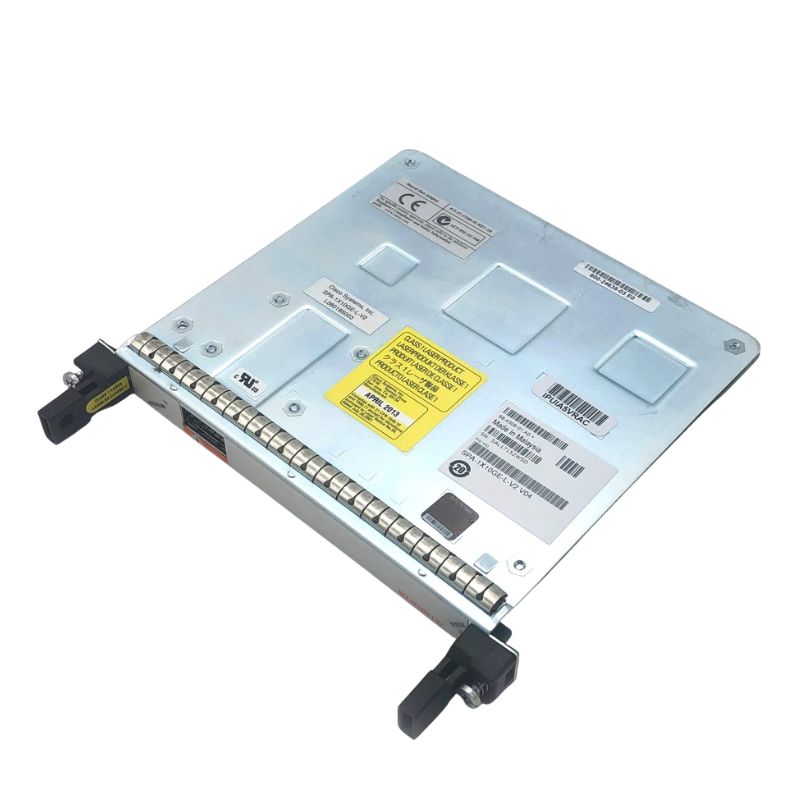

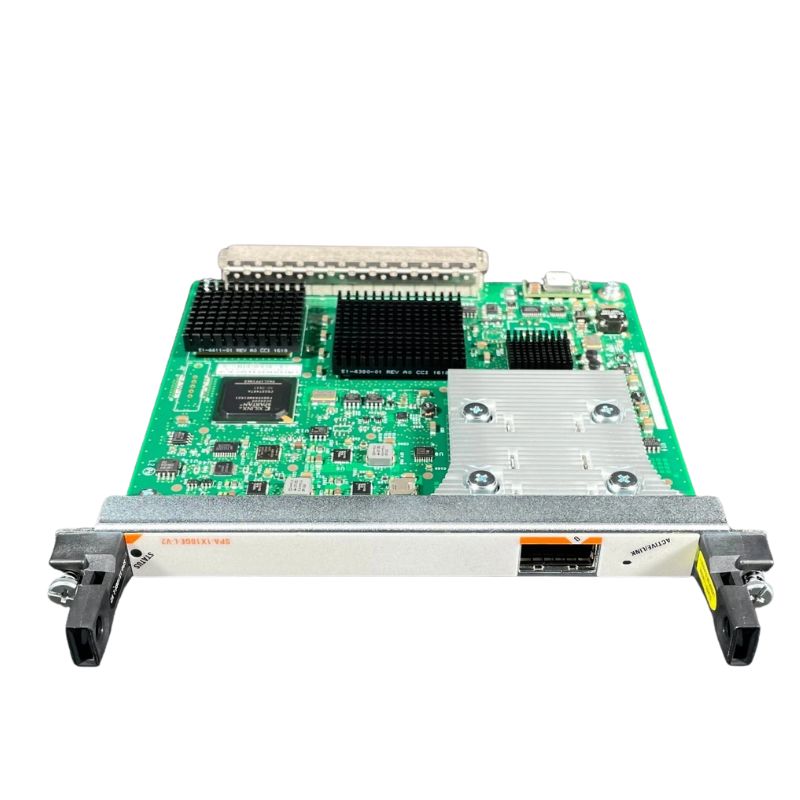

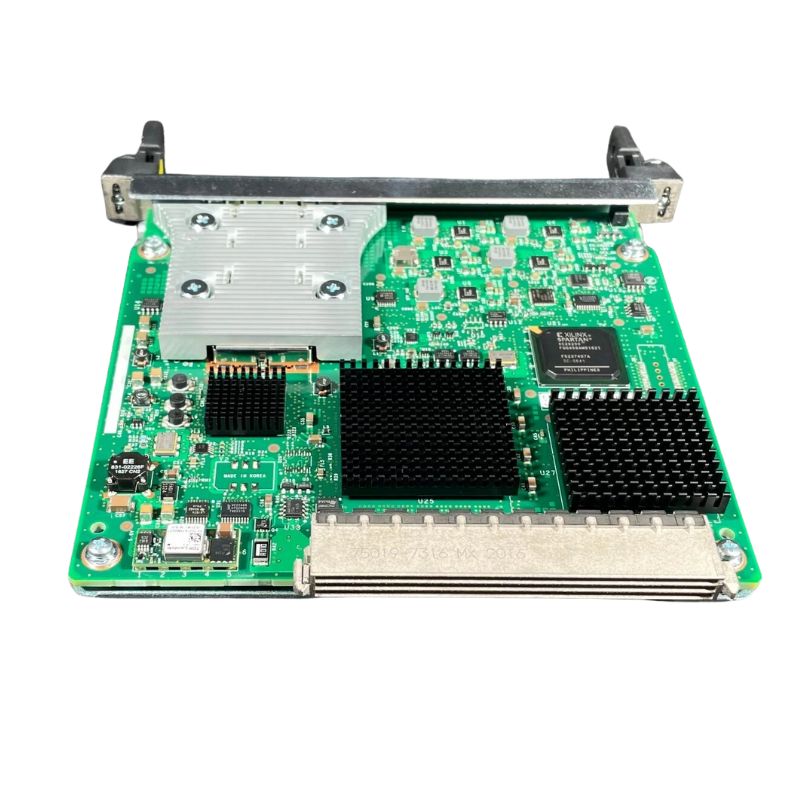

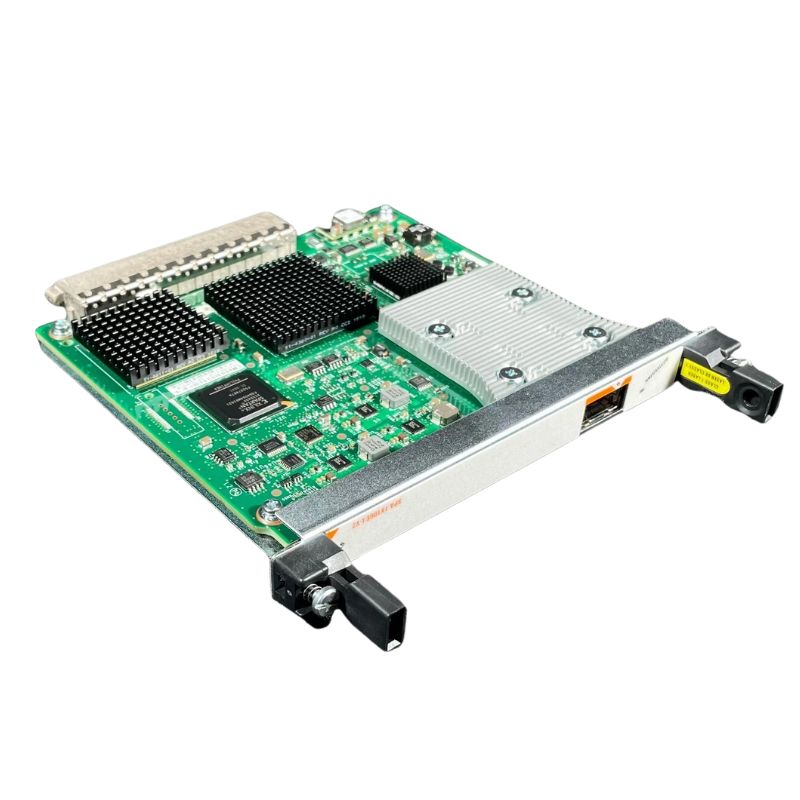

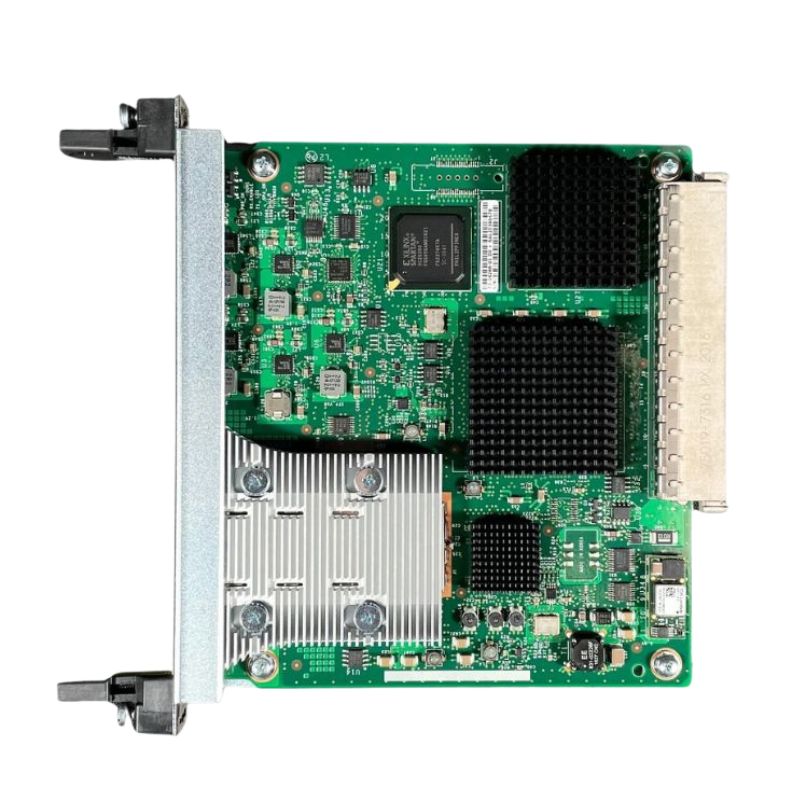

SPA-1X10GE-L-V2= Cisco 1 Port Ethernet Expansion Module Optical Fiber

Cisco SPA-1X10GE-L-V2= 1-Port Expansion Module Overview

The Cisco SPA-1X10GE-L-V2= is a high-performance 10 Gigabit Ethernet expansion module designed to enhance modular routing platforms with ultra-fast network connectivity and scalable data processing capabilities. Built for enterprise and service provider environments, this plug-in interface module delivers reliable 10 Gbps throughput, advanced virtualization support, and broad compatibility across Cisco carrier-grade systems.

Product Information

• Manufacturer: Cisco
• Part Number: SPA-1X10GE-L-V2=
• Product Type: Expansion
• Form Factor: Plug-in Network Module
• Interface Speed: 10 Gigabit Ethernet (10 Gbps)
• Data Link Protocol: 10 Gigabit LAN

Performance Advantages

• 10 Gbps dedicated throughput for high-speed networking
• Optimized for carrier-grade routing platforms
• Low-latency packet processing
• Efficient handling of high-volume traffic flows
• Stable performance under heavy network loads

Virtual Interface Capabilities

• Up to 8000 VLANs supported
• 4000 VLANs per port (IEEE 802.1Q)
• Up to 5000 MAC addresses supported

Supported IEEE Standards

• IEEE 802.1Q (VLAN tagging)
• IEEE 802.3x (Flow control)
• IEEE 802.3ae (10 Gigabit Ethernet)
• IEEE 802.1ad (Provider Bridging / Q-in-Q)

Form Factor Benefits

• Hot-swappable plug-in architecture
• Easy installation and replacement
• Reduced network downtime
• Scalable system expansion
• Cost-efficient infrastructure upgrades

Traffic Optimization Features

• High-speed packet forwarding
• Efficient VLAN segmentation
• MAC address table optimization
• QoS-ready architecture support

Supported Cisco Systems

• 12000-SIP-601 series
• 7600-SIP-400 and 7600-SIP-600 series
• 7600-SIP600-10GE platforms
• ASR1000-SIP10 series routers
• CRS1-SIP-800 systems

Cisco SPA-1X10GE-L-V2= 1 Port Expansion Module

The Cisco SPA-1X10GE-L-V2= 1 Port Expansion Module 10 Gigabit Ethernet represents a high-performance networking expansion solution designed to deliver advanced 10 Gigabit Ethernet (10GbE) connectivity within modular Cisco networking environments. Built for scalability, density, and high-throughput enterprise communication, this service processor adapter (SPA) module is widely deployed in carrier-grade routing platforms and enterprise aggregation systems where bandwidth expansion and interface flexibility are critical.

As part of the broader Cisco SPA (Shared Port Adapter) ecosystem, this module plays a vital role in extending router and service module capabilities by introducing high-speed Ethernet interfaces without requiring a full chassis replacement. Developed under the engineering standards the module integrates seamlessly into compatible chassis platforms to support next-generation data transmission demands, virtualization-ready infrastructure, and high-capacity network convergence.

Role in Modern Enterprise and Carrier Networking

In modern enterprise and service provider environments, network scalability is no longer optional. The demand for cloud computing, virtualization, real-time analytics, and high-definition content delivery has significantly increased the need for flexible, modular network expansion. The Cisco SPA-1X10GE-L-V2= module addresses this need by enabling a single-slot expansion approach that supports 10GbE throughput while preserving system modularity and operational efficiency.

This expansion module is designed to function within supported Cisco routing platforms that accept SPA interface processors. It allows organizations to incrementally scale network capacity, reduce infrastructure disruption, and optimize long-term investment strategies by avoiding complete system replacement when bandwidth requirements increase.

Technical Architecture and Design Principles

High-Speed Packet Processing Architecture

The Cisco SPA-1X10GE-L-V2= is engineered around a high-performance packet processing architecture that ensures consistent throughput under heavy traffic conditions. It is optimized for line-rate performance on 10GbE links, minimizing latency while maintaining packet integrity across enterprise-grade routing systems. The architecture is designed to offload processing tasks from the main router CPU, enabling more efficient system-wide resource allocation.

Hardware Acceleration and Interface Optimization

Hardware acceleration plays a central role in the module’s performance profile. Dedicated ASIC-based processing pathways allow the module to manage Ethernet frame forwarding, buffering, and error correction with minimal latency overhead. This design is particularly important in environments where time-sensitive applications such as VoIP, financial trading systems, and real-time data analytics are deployed.

Buffer Management and Traffic Efficiency

Efficient buffer management ensures that network congestion does not result in packet loss or excessive jitter. The module is engineered to dynamically allocate buffer resources based on traffic conditions, enabling stable performance even during peak utilization periods. This capability is essential in large-scale enterprise WAN and metropolitan area network deployments.

10 Gigabit Ethernet Interface Capabilities

At its core, the module delivers a single high-density 10 Gigabit Ethernet port designed for optical or compatible high-speed connectivity. The interface supports advanced Ethernet standards, enabling interoperability with modern network switches, aggregation devices, and optical transport systems.

The 10GbE capability ensures that enterprises can support bandwidth-intensive workloads such as cloud storage replication, high-volume database synchronization, and large-scale virtualization traffic flows. It also provides a foundation for scalable backbone network design in distributed enterprise environments.

Deployment Environments and Infrastructure Integration

Enterprise Core Network Deployment

Within enterprise core networks, the Cisco SPA-1X10GE-L-V2= is commonly deployed as a high-capacity uplink module connecting distribution layers to backbone routers. Its ability to handle sustained high-throughput traffic makes it suitable for centralized data centers where multiple network segments converge.

Data Center Aggregation Layer Usage

In data center environments, the module is frequently utilized at the aggregation layer to consolidate traffic from multiple server clusters. This ensures that east-west and north-south traffic flows remain efficient, reducing bottlenecks and improving application responsiveness across virtualized environments.

Virtualized Infrastructure Compatibility

The expansion module supports modern virtualized infrastructure requirements by providing consistent high-speed connectivity to hypervisors, container platforms, and software-defined networking architectures. This enables seamless integration with cloud orchestration tools and workload balancing systems.

Service Provider WAN Applications

Service providers leverage this module to enhance WAN edge routing capabilities, particularly in scenarios requiring high-speed aggregation of subscriber traffic. Its deployment allows telecom operators to scale bandwidth dynamically while maintaining operational stability across distributed networks.

Metro Ethernet Integration

Metro Ethernet environments benefit significantly from the module’s 10GbE interface, as it enables efficient transport of aggregated traffic between metropolitan nodes. This supports high-demand services such as video streaming, enterprise VPNs, and cloud connectivity services.

Performance Optimization and Network Efficiency

Latency Reduction Mechanisms

Low latency is a critical requirement for modern networking infrastructures. The Cisco SPA-1X10GE-L-V2= minimizes latency through optimized hardware forwarding paths and reduced software dependency. This ensures that packet forwarding occurs at near-line-rate speeds, improving overall application performance.

Deterministic Traffic Handling

Deterministic traffic handling ensures that network behavior remains predictable even under varying load conditions. This is essential for applications requiring consistent quality of service, including unified communications, real-time monitoring systems, and financial transaction platforms.

Throughput Scalability

The module is designed to support scalable throughput expansion within modular router environments. By enabling 10GbE connectivity on demand, it allows network administrators to increase bandwidth without redesigning the entire infrastructure.

Operational Reliability and Lifecycle Efficiency

Carrier-Grade Stability

Built for carrier-grade environments, the module is designed to maintain continuous operation under demanding network conditions. This includes extended uptime requirements, high packet volumes, and mission-critical service availability expectations.

Fault Tolerance and Resilience

Fault tolerance is achieved through redundant system design at the platform level, allowing the module to operate within resilient routing environments. In case of network congestion or upstream failures, traffic can be rerouted without affecting overall system stability.

Security and Data Integrity Considerations

Secure Handling

The module supports secure packet handling mechanisms that help protect data integrity during transmission. While it is not a standalone security appliance, it integrates with broader Cisco security frameworks to ensure compliance with enterprise security policies.

Network Segmentation Support

Network segmentation capabilities allow administrators to isolate traffic flows based on organizational or functional requirements. This enhances security posture and improves traffic management efficiency in complex enterprise environments.

Compatibility and System Integration

Supported Cisco Platforms

The Cisco SPA-1X10GE-L-V2= is compatible with a range of Cisco router platforms that support SPA interface modules. Its integration is designed to be seamless, allowing administrators to deploy it within existing infrastructures without requiring extensive configuration changes.

Interoperability with Network Ecosystems

Interoperability is a key feature of this module, enabling it to function effectively within multi-vendor network environments. It supports standard Ethernet protocols that ensure compatibility with a wide range of switching and routing equipment.
