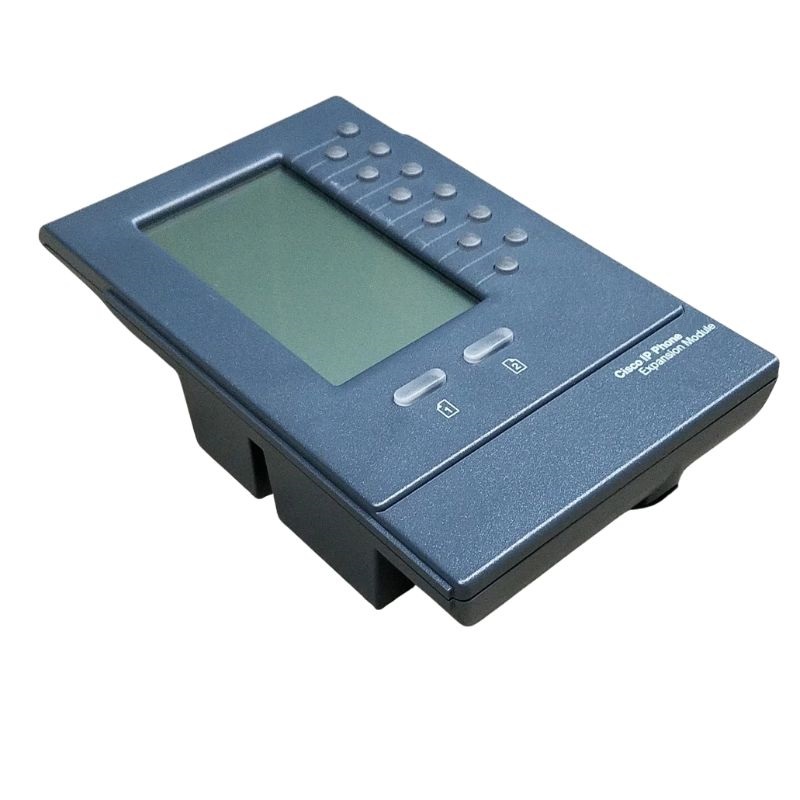

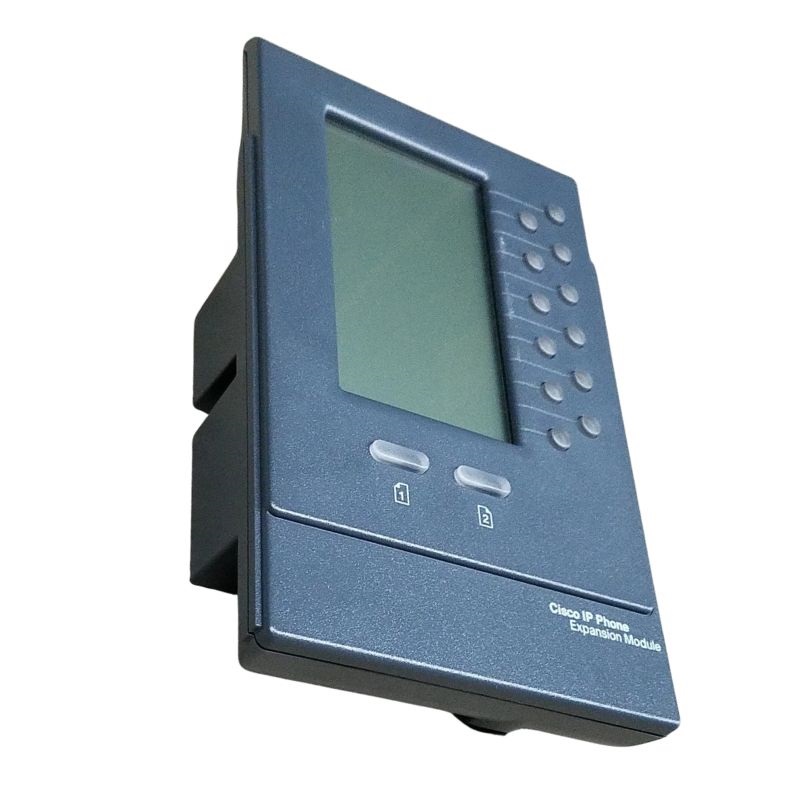

CP-7916 Cisco IP Phone Expansion Module

Product Overview – Cisco CP-7916 IP Phone Expansion Module

The Cisco CP-7916 Unified IP Phone Expansion Module enhances productivity by extending line appearances and programmable keys for advanced telephony needs. This accessory is ideal for professionals who manage multiple calls and require efficient telephony solutions.

General Information

• Manufacturer: Cisco
• Part Number: CP-7916
• Device Type: Telephony Expansion Unit

Technical Specifications

• Device Type: IP Phone Expansion Module
• Compatible Models: Cisco 7962G, 7965G, 7975G
• Programmable Keys: 12 physical buttons
• Pages Supported: 2 pages (24 total keys)
• Display: LCD screen for line status and labels
• Expandable Units: Up to 2 modules per phone
• Power Supply: Via IP phone or external adapter
• Voltage: 48V DC
• Power Consumption: Approx. 40 mA max
• PoE Support: Compatible with Power over Ethernet setups

Physical Dimensions

• Height: ~203 mm
• Width: ~121 mm
• Depth: ~51 mm
• Weight: ~366 g

Connectivity & Interface

• Interface Type: RJ-11 style (6-pin connector)
• Connection: Direct link to Cisco IP phones via expansion port cable
• Mounting: Desk stand support (single or dual stand)

System Compatibility

• Requires Cisco Unified Communications Manager (CUCM) or compatible call control system
• Designed for enterprise VoIP environments
• Supports up to 2 expansion modules per phone for maximum flexibility

Cisco CP-7916 IP Phone Expansion Telephony Module Overview

The Cisco CP-7916 IP Phone Expansion Module is a specialized telephony accessory designed to extend the functionality of compatible Cisco IP phones within enterprise communication environments. Developed by Cisco, a globally recognized leader in networking and unified communications, this expansion module enhances call handling efficiency by increasing the number of programmable line and feature keys available to users. It is widely adopted in corporate offices, call centers, reception desks, and high-volume communication environments where managing multiple extensions, contacts, or call queues is essential for operational productivity. The module integrates seamlessly with supported Cisco IP phone models, providing a scalable solution for users who require additional line appearances or speed dial capabilities without upgrading to a higher-tier phone system. It is particularly beneficial in environments where call traffic is intensive and quick access to multiple extensions is necessary for workflow continuity.

Ergonomic Hardware Construction

The Cisco CP-7916 expansion module is engineered with a focus on durability and usability. Its physical design complements Cisco IP phones, maintaining a consistent aesthetic and ergonomic alignment. The unit is constructed with industrial-grade plastic materials that ensure long-term resistance to wear and frequent usage in demanding office environments.

Modular Expansion System

One of the key architectural strengths of the CP-7916 is its modular nature. It is designed to attach directly to compatible Cisco IP phones, forming a unified communication station. Multiple modules can be chained together depending on user requirements, significantly expanding the number of programmable keys available for line appearances or feature activation.

Expandable Configuration Capability

Depending on system configuration and firmware support, users can deploy more than one CP-7916 module in a single setup. This modular expansion is particularly valuable for receptionists, executive assistants, and call center agents who manage large volumes of simultaneous calls and require immediate access to multiple communication channels.

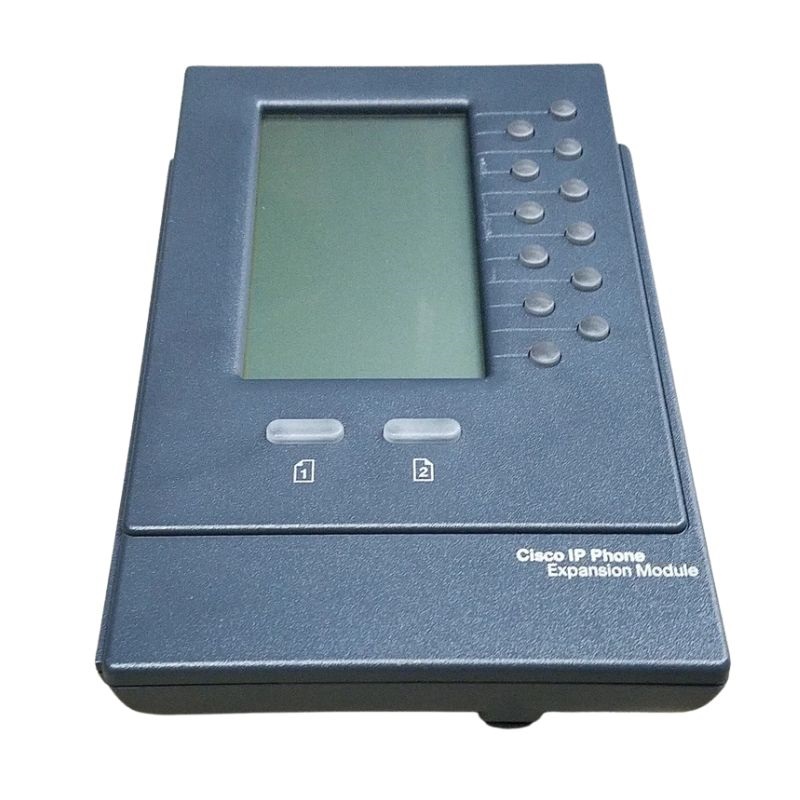

Dual-LCD Screen Layout

The Cisco CP-7916 features a dual LCD screen interface, designed to provide clear visibility of line status, contact names, and feature assignments. Each display segment corresponds to a set of programmable buttons, ensuring that users can easily identify active lines or assigned functions.

High Visibility for Operational Efficiency

The screens are optimized for readability under varying lighting conditions commonly found in office environments. The layout reduces cognitive load by presenting structured information in a simplified format, allowing users to respond quickly to incoming calls or system alerts.

Programmable Key Functionality

Each button on the CP-7916 module can be configured to serve multiple roles, including direct line access, speed dialing, call transfer functions, or monitoring extensions. This flexibility makes it an essential tool for high-performance telephony systems.

Dynamic Line Management

The programmable nature of the keys enables dynamic call handling strategies, especially in environments where call distribution and routing efficiency are critical. Users can assign frequently contacted numbers or departmental extensions for immediate access.

Compatibility and System Integration

The CP-7916 is designed for integration with specific Cisco IP phone series within the Cisco Unified Communications architecture. It works in conjunction with compatible base units to extend their functional capacity without requiring hardware replacement.

Unified Communications Integration

Within a broader unified communications infrastructure, the CP-7916 operates as an extension component of Cisco’s VoIP ecosystem. It synchronizes with call management servers and enterprise communication platforms to ensure real-time updates of line status and feature availability.

Enterprise Use Cases and Applications

In call centers, the Cisco CP-7916 plays a critical role in managing high call volumes. Agents can monitor multiple queues simultaneously, respond to customer inquiries efficiently, and transfer calls without delay. The expanded key layout significantly reduces operational bottlenecks.

Corporate Reception Desks

Receptionists benefit greatly from the expanded line capacity, as they can handle multiple incoming calls, route them to appropriate departments, and maintain visibility over internal extensions. The module simplifies front-desk communication management.

Hospitality and Service Industry

Hotels and service-oriented businesses also utilize the CP-7916 for guest service desks, enabling staff to handle multiple room extensions, service requests, and external calls simultaneously.

Power and Connectivity

The Cisco CP-7916 derives power and operational control directly from the host IP phone, eliminating the need for external power supplies. It connects through a dedicated interface port designed for expansion modules, ensuring stable communication and data transmission.

Response Time and Operational Efficiency

The module is optimized for real-time response, ensuring that key presses are registered instantly and reflected on the system interface. This low-latency operation is essential in environments where rapid call handling is required.

System Stability Under Load

Even in high-traffic communication environments, the CP-7916 maintains stable performance. It is engineered to handle continuous updates of call states and line activity without lag or display inconsistencies.

Physical Attachment Mechanism

The CP-7916 attaches directly to the side of compatible Cisco IP phones using a secure mounting system. This physical integration ensures that the module remains stable during daily use while maintaining a compact workstation footprint..

Enhanced Productivity

The expanded key capacity allows users to manage more communication channels simultaneously, reducing the time spent navigating menus or switching between screens. This directly contributes to improved workflow efficiency.

Long-Term Operational Durability

The Cisco CP-7916 is designed for long-term usage in professional environments. Its hardware construction ensures resistance to continuous use, while its integration with the host system minimizes maintenance requirements.

Scalability Over Traditional Telephony Systems

Compared to traditional PBX hardware expansions, the Cisco CP-7916 offers a more flexible and scalable solution. Its integration with VoIP systems allows for greater adaptability in modern communication infrastructures.

Corporate Communication Infrastructure

Within corporate environments, the CP-7916 supports structured communication frameworks, enabling departments to maintain efficient internal and external communication channels.

Financial and Banking Sector Usage

In banking environments, the module assists in managing customer service lines, internal departments, and secure communication channels, ensuring high levels of responsiveness and operational control.

Support for Evolving Needs

Organizations can adapt the module to changing communication requirements by reconfiguring its programmable keys, allowing it to remain relevant even as business workflows evolve.
