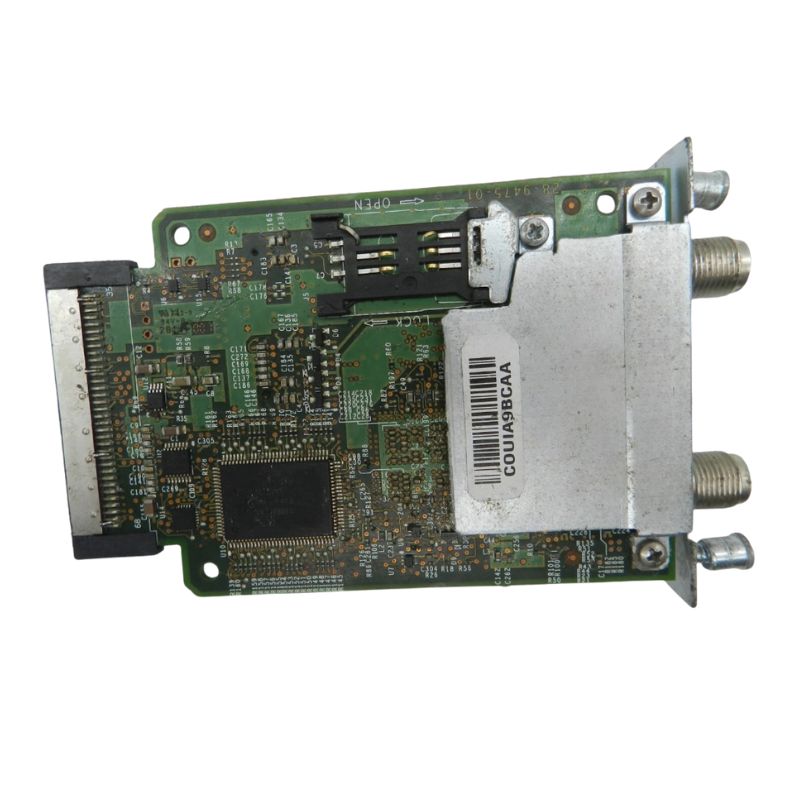

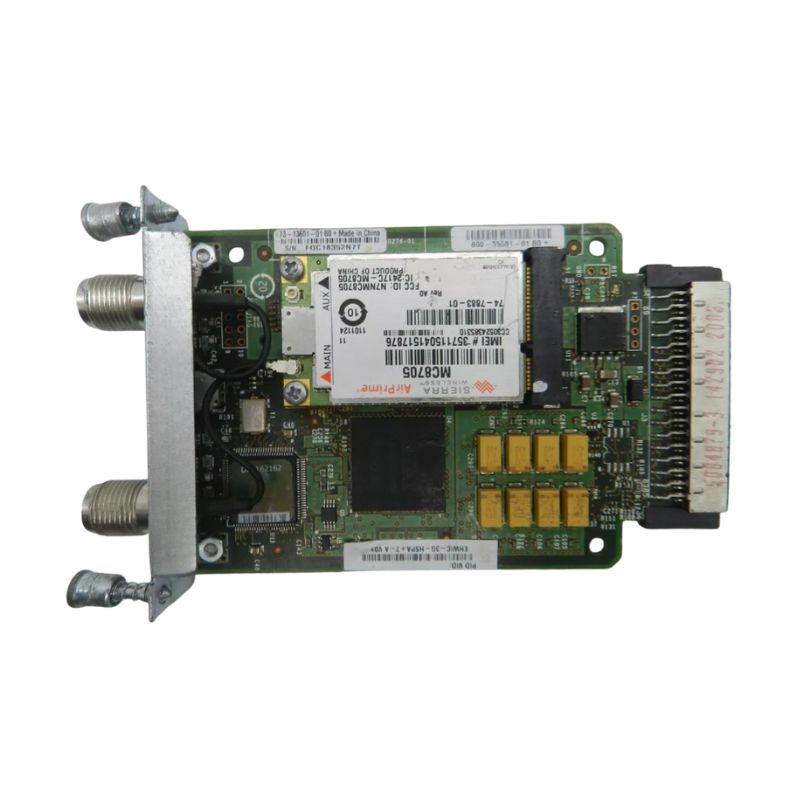

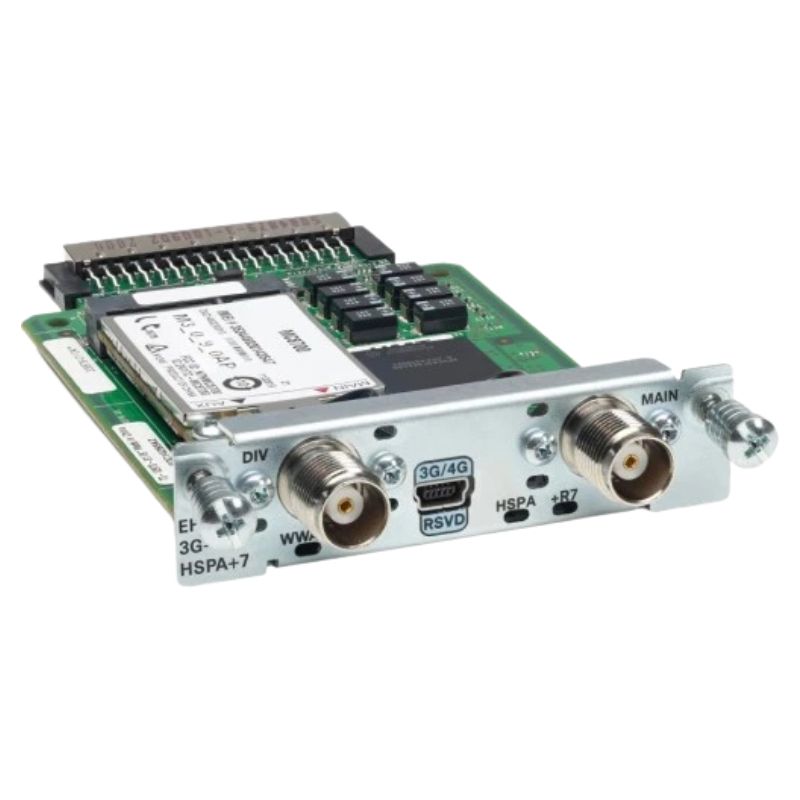

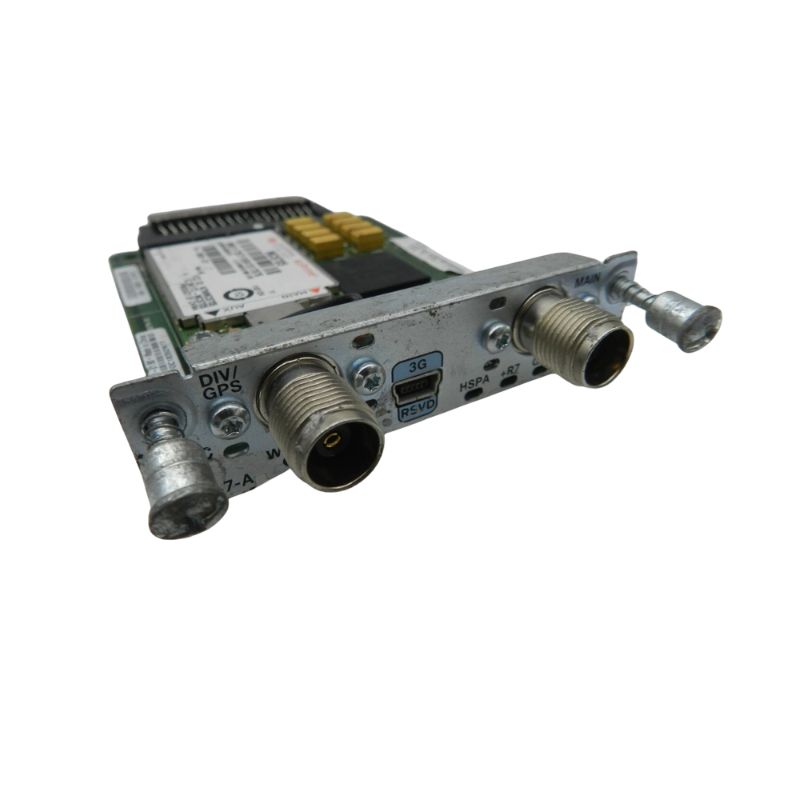

EHWIC-3G-HSPA+7 Cisco 3G WAN Interface Card

Product Overview of the Cisco High-Speed WAN Interface Card

The Cisco EHWIC-3G-HSPA+7 High-Speed WAN Interface Card is an advanced networking module engineered to deliver reliable mobile broadband connectivity for enterprise-grade routers. Designed to extend WAN capabilities, this solution enables seamless access to cellular networks, ensuring stable communication across remote locations and branch offices. Built with enhanced wireless standards, it supports high-performance data transmission, optimized mobility, and flexible integration into Cisco routing platforms.

General Information

• Brand: Cisco
• Part Identifier: EHWIC-3G-HSPA+7
• Device Type: Wide Area Network Interface Module

Supported Frequency Bands

• GPRS / EDGE operating bands: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz
• UMTS / HSPA frequency ranges: 800 MHz, 850 MHz, 900 MHz, 1900 MHz, 2100 MHz

Additional Functional Features

• Integrated GPS capability for real-time positioning and tracking
• Short Message Service (SMS) support for network-based communication alerts
• Optimized for deployment in Cisco ISR platforms for extended WAN coverage

Compatibility

• Designed for compatibility with Cisco Integrated Services Routers (ISR) supporting EHWIC slots
• Works with Cisco network infrastructure requiring 3G/3.5G cellular backup or primary WAN access
• Suitable for enterprise, remote office, and mobile networking environments requiring cellular failover connectivity

High Speed WAN Interface Cards in Modular Networking Systems

High Speed WAN Interface Cards represent a specialized class of modular networking components designed to extend enterprise routers with cellular connectivity. Within this category, the Cisco EHWIC-3G-HSPA+7 module is engineered to provide 3G broadband connectivity using HSPA+ technology. This type of interface card is inserted into compatible router slots, enabling wide area network access where wired broadband infrastructure is limited, unavailable, or used as a secondary failover path. The architecture supports distributed enterprise environments, branch deployments, and remote connectivity requirements where continuity of service is critical.

The modular design allows organizations to integrate cellular WAN capabilities without replacing the entire routing system. Instead, the card becomes an extension of the router's existing hardware stack, leveraging shared processing resources, power management, and routing intelligence. This category of networking hardware is particularly significant for distributed enterprises, retail networks, transportation systems, and industrial monitoring environments that require always-on connectivity.

Core Functionality of the Cisco EHWIC-3G-HSPA+7 Module

The Cisco EHWIC-3G-HSPA+7 module operates by interfacing directly with 3G cellular networks using HSPA+ technology, which is an enhancement over traditional HSPA standards. It enables data transmission over mobile networks, allowing routers to connect to internet service providers through cellular towers rather than physical cable infrastructure. This functionality is essential for locations where DSL, fiber, or cable broadband is unavailable or unreliable.

Embedded Wireless Communication System

The module incorporates a built-in radio subsystem designed to handle uplink and downlink data communication. It communicates through supported frequency bands used by global mobile carriers, allowing deployment flexibility across multiple regions. The embedded communication system is optimized for stable packet transfer, latency management, and adaptive signal handling in fluctuating network conditions.

SIM-Based Network Authentication

Authentication within this category relies on SIM-based identity recognition. The module accepts a SIM card that provides network credentials to the cellular carrier. This enables secure registration with the mobile network, ensuring that only authorized enterprise devices gain access to data services. The SIM-driven architecture also allows easy replacement or migration between carriers without hardware modification.

Compact Form Factor and Slot Integration

The Cisco EHWIC-3G-HSPA+7 is designed in an Enhanced High-Speed WAN Interface Card format, making it compatible with Cisco modular routers supporting EHWIC slots. The compact design ensures minimal physical footprint while delivering high functional density. The module slides into the router chassis and is secured for stable electrical and mechanical connection.

Integrated Radio and Signal Processing Unit

Inside the module, the radio transceiver is tightly integrated with a signal processing chipset responsible for modulation, demodulation, and packet handling. This integration reduces dependency on external components and improves signal efficiency. The design prioritizes energy efficiency while maintaining consistent throughput across varying signal conditions.

Antenna Interface System

External antenna connectors provide enhanced signal reception and transmission capability. These connectors support optional high-gain antennas, which can be deployed in environments with weak cellular coverage. The antenna system plays a crucial role in stabilizing connectivity in rural, industrial, or structurally obstructed environments.

Network Performance and Optimization

The HSPA+ technology used in this category improves data throughput compared to earlier 3G implementations. It enables faster uplink and downlink speeds, allowing enterprise applications such as VPN tunneling, remote access, and cloud synchronization to operate with reduced latency. Although not comparable to modern LTE or 5G systems, it remains effective for backup connectivity and low-to-medium bandwidth applications.

Latency Behavior in Cellular Environments

Latency performance is influenced by network congestion, signal strength, and carrier infrastructure. The module incorporates adaptive buffering and error correction techniques to mitigate packet loss and reduce retransmission overhead. These mechanisms help maintain stable connections for mission-critical applications such as remote monitoring and transactional systems.

Failover and Redundancy Integration

One of the primary use cases for this category is WAN failover. When primary wired connections fail, the module automatically activates cellular connectivity, ensuring uninterrupted network access. This redundancy model is widely used in financial institutions, retail point-of-sale systems, and distributed enterprise networks that cannot tolerate downtime.

Deployment Scenarios Across Enterprise Environments

Branch offices often require reliable internet access without the cost or complexity of dedicated fiber installation. The Cisco EHWIC-3G-HSPA+7 provides an efficient alternative by leveraging existing cellular infrastructure. It allows rapid deployment of network services in newly established branches or temporary office setups.

Security Architecture and Data Protection

Security is a fundamental requirement for WAN interface modules. The Cisco EHWIC-3G-HSPA+7 supports encrypted tunnels when integrated with router-based VPN configurations. This ensures that data transmitted over cellular networks remains protected against interception or unauthorized access.

Authentication and Network Access Control

Network access control is managed through SIM authentication combined with router-level security policies. This dual-layer mechanism ensures that both carrier-level and enterprise-level authentication standards are enforced. It reduces the risk of unauthorized device access and strengthens overall network integrity.

Supported Router Platforms

The module is designed to function with Cisco routers that support Enhanced High-Speed WAN Interface Cards. These routers provide the necessary hardware interfaces and software drivers to recognize and manage the cellular module effectively. Compatibility ensures seamless integration without requiring external adapters or converters.

Power Consumption Characteristics

The module is designed with power efficiency in mind, drawing energy from the host router. Power consumption varies depending on signal strength and data transmission load. Efficient power management ensures minimal impact on overall router energy usage while maintaining stable performance.

Transition from Early 3G Modules

Earlier cellular WAN modules provided basic connectivity with limited bandwidth and higher latency. The introduction of HSPA+ technology significantly improved performance by enhancing modulation techniques and increasing spectral efficiency. This evolution enabled broader enterprise adoption of cellular backup systems.

Role in Hybrid WAN Architectures

Modern enterprise networks increasingly adopt hybrid WAN models combining wired broadband, MPLS, and cellular connectivity. The Cisco EHWIC-3G-HSPA+7 fits into this architecture as a resilient backup or secondary link, ensuring continuity during outages or peak congestion periods on primary networks.
