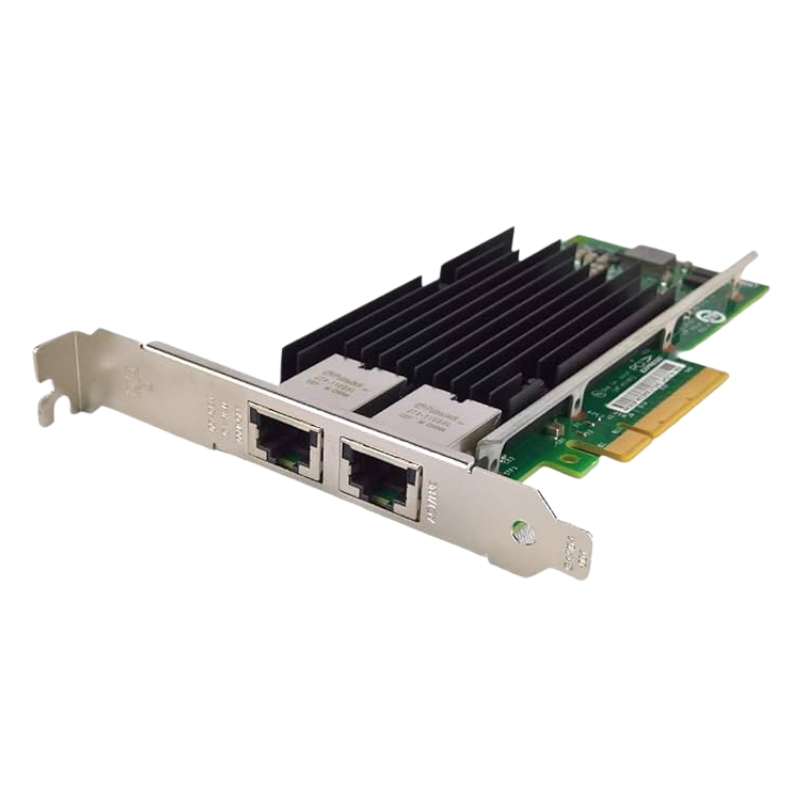

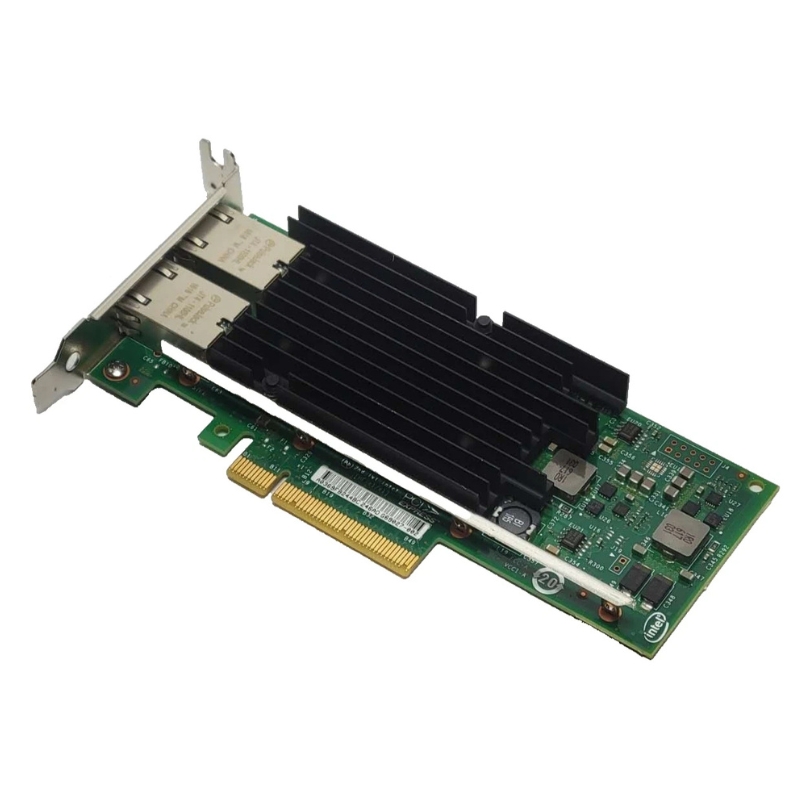

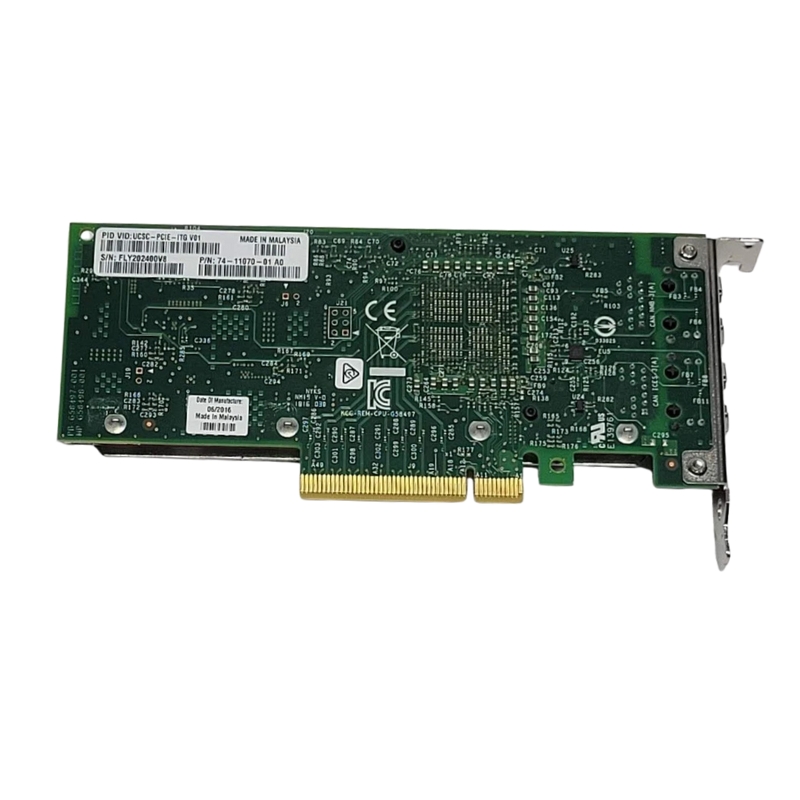

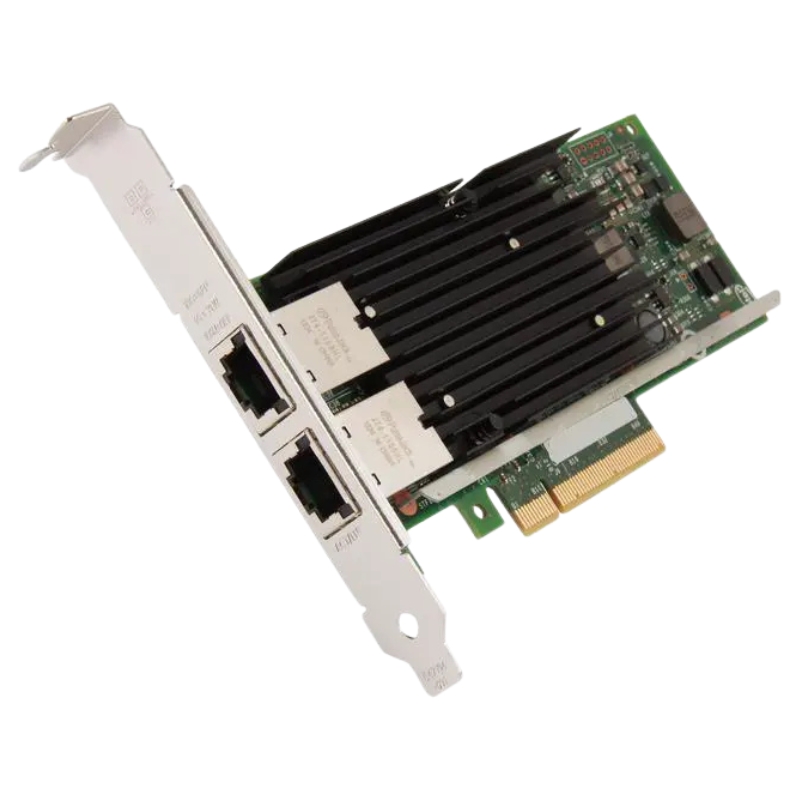

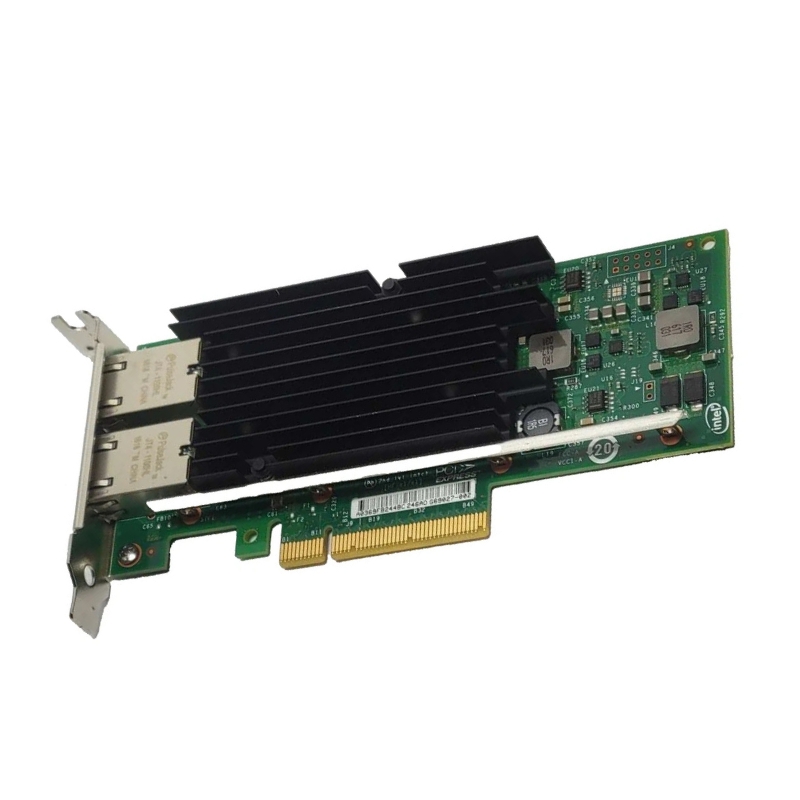

X540T2 Intel 10 Gigabit Ethernet Converged Network Adapter

Overview of Intel X540T2 2 Ports Converged Network Adapter

The Intel X540T2 Dual Port Converged Network Adapter is engineered to deliver robust, high-speed connectivity for modern data centers, enterprise servers, and performance-driven networking infrastructures. Designed with advanced 10 Gigabit Ethernet capabilities, this adapter ensures seamless data transmission, reduced latency, and optimized network efficiency for demanding workloads.

General Specification

• Manufacturer: Intel
• Part Number: X540T2
• Device Type: Network Adapter

Core Device Architecture

• Space-saving low-profile bracket configuration
• Optimized airflow compatibility for server chassis
• Durable hardware construction for long-term usage
• Stable PCI Express integration for enterprise systems

Interface and Bus Technology

• PCI Express revision: PCIe 2.0
• Lane configuration: x8 high-speed channel
• Optimized throughput for enterprise-grade workloads

Networking Capabilities

• Connectivity technology: Wired Ethernet
• Data link protocol: 10 Gigabit Ethernet
• Maximum data transfer rate: 10 Gbps per port
• Supported cabling type: 10GBASE-T copper infrastructure

Connectivity Interfaces

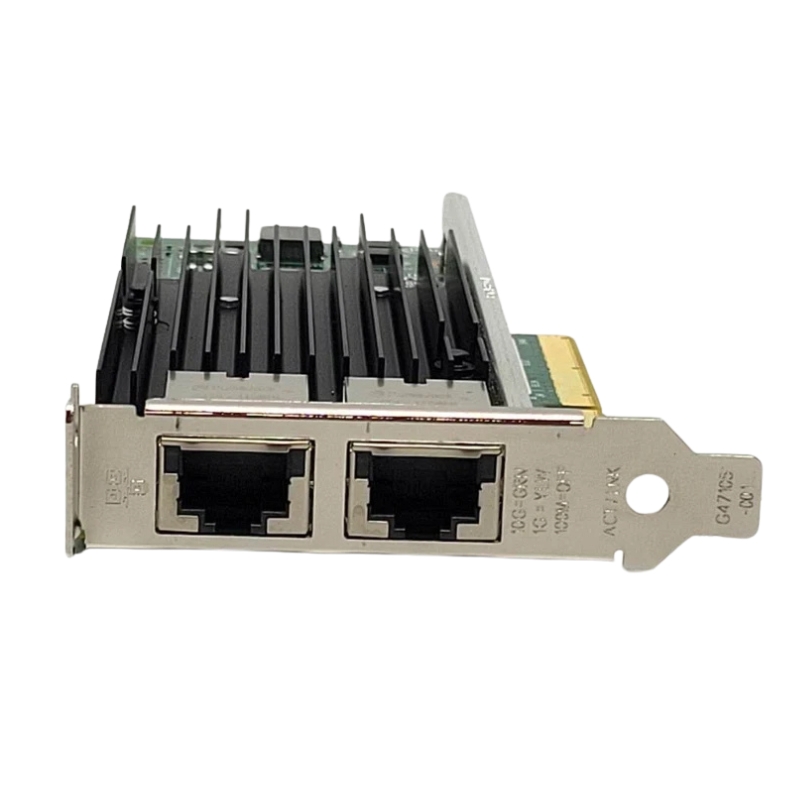

• 2 x RJ-45 Ethernet 10GBASE-T ports
• Full-duplex high-speed communication support
• Seamless integration with existing copper-based networks

System Compatibility

• Compatible slot: 1 x PCI Express 2.0 x8
• Plug-and-play deployment in supported systems
• Designed for enterprise server environments

Operational Advantages

• Enhanced bandwidth utilization for data-intensive applications
• Reduced network congestion and improved traffic handling
• Support for scalable enterprise network architectures
• Reliable performance under continuous workloads

Enterprise-Grade Use Cases

• Data center networking infrastructure
• Virtualized server environments
• Cloud computing platforms
• High-performance computing clusters
• Enterprise storage and backup systems

Connectivity Highlights

• Backward compatibility with existing Ethernet setups
• Reduced infrastructure upgrade costs
• Stable copper-based network performance

Outline of Intel X540T2 Ethernet Converged Network Adapter

The Intel X540T2 Ethernet Converged Network Adapter represents a high-performance dual-port 10 Gigabit Ethernet solution engineered for enterprise data centers, virtualization environments, and high-throughput server infrastructures. Built on Intel’s advanced Ethernet controller architecture, this adapter is designed to deliver consistent network acceleration, low latency communication, and efficient workload distribution across demanding multi-server systems. The dual RJ45 interface design allows seamless integration with existing copper cabling infrastructures while enabling a significant leap in bandwidth capacity compared to traditional Gigabit Ethernet adapters.

As part of the Intel 10GbE network adapter family, the X540T2 is widely recognized for its balance of cost efficiency, reliability, and enterprise-grade performance. It is optimized for cloud computing environments, high-density virtualization clusters, and storage-intensive workloads that require predictable network throughput and reduced CPU overhead. The adapter supports a wide range of server platforms and is frequently deployed in both scale-out and hybrid data center architectures.

Architectural Foundation of Intel X540T2

Integrated Dual-Port 10GBASE-T Controller Design

At the core of the Intel X540T2 lies a sophisticated dual-port 10GBASE-T controller that enables high-speed communication over standard copper cabling. This architectural design eliminates the need for fiber-based transceivers in many enterprise scenarios, reducing deployment complexity while maintaining high bandwidth capability. Each port operates independently, allowing simultaneous bidirectional traffic processing that enhances overall network efficiency.

The controller integrates advanced packet processing logic that offloads critical networking tasks from the host CPU. This includes checksum offload, segmentation offload, and interrupt moderation, all of which contribute to improved system performance and reduced latency during heavy data transfers.

PCI Express Interface and Bandwidth Optimization

The adapter connects through a PCI Express interface, ensuring compatibility with modern server motherboards and high-speed backplane architectures. The PCIe design enables full utilization of available 10Gbps bandwidth per port, supporting aggregated throughput for demanding applications such as virtualization clusters and distributed storage systems. The architecture ensures that data packets are processed efficiently without bottlenecks at the bus level.

By leveraging multiple lanes of PCIe connectivity, the X540T2 ensures stable performance even under sustained high traffic loads. This makes it suitable for mission-critical workloads that require consistent low-latency networking performance.

Key Features of Intel X540T2 Ethernet Converged Network Adapter

High-Speed Dual 10 Gigabit Ethernet Connectivity

The Intel X540T2 provides dual 10GbE ports that support high-bandwidth networking for modern enterprise workloads. These ports are capable of handling large volumes of data traffic simultaneously, making the adapter suitable for environments where high throughput and low latency are essential. The use of RJ45 connectors allows compatibility with standard Cat6a and Cat7 cabling, ensuring cost-effective deployment across existing infrastructure.

Advanced Offload Engine Capabilities

TCP/IP Offload and Checksum Acceleration

The adapter incorporates advanced offload engines that handle TCP/IP processing tasks directly on the hardware. This reduces CPU utilization and allows server processors to focus on application-level tasks rather than network packet processing. Checksum offloading ensures data integrity without imposing additional computational overhead on the host system.

Large Send and Receive Offload Optimization

Large Send Offload (LSO) and Large Receive Offload (LRO) technologies are integrated into the adapter to improve data handling efficiency. These features allow the system to process large data packets more efficiently, reducing fragmentation and improving throughput in high-volume data environments.

Virtualization-Ready Networking Features

The Intel X540T2 is optimized for virtualization environments through support for technologies such as Single Root Input/Output Virtualization (SR-IOV). This allows multiple virtual machines to share a single physical network adapter while maintaining dedicated performance channels. Each virtual function operates independently, ensuring isolation and predictable network behavior in multi-tenant environments.

Virtual Machine Direct Communication

Virtual machine direct communication capabilities allow VMs to bypass traditional software-based networking stacks, reducing latency and improving packet processing speed. This feature is particularly beneficial in cloud computing environments where virtual machine density is high and network efficiency is critical.

Performance Optimization in Enterprise Environments

Low Latency Data Transmission

One of the defining characteristics of the Intel X540T2 Ethernet Converged Network Adapter is its ability to maintain low latency communication across high-speed networks. This is achieved through a combination of hardware acceleration, intelligent interrupt moderation, and optimized packet routing. These features ensure that data packets are transmitted and received with minimal delay, which is essential for real-time applications and high-frequency data processing systems.

High Throughput for Data-Intensive Applications

The adapter is engineered to support sustained high throughput in environments such as database clusters, analytics platforms, and large-scale file storage systems. By enabling dual-port operation, the X540T2 effectively doubles the available bandwidth for network-intensive workloads, ensuring smooth data flow even under peak utilization conditions.

Efficient CPU Utilization

By offloading network processing tasks from the CPU, the Intel X540T2 significantly reduces processor overhead. This allows server resources to be allocated more efficiently, improving overall system performance and enabling higher application density per server node. This efficiency is particularly valuable in virtualized data center environments where CPU resources are shared across multiple workloads.

Enterprise and Data Center Integration

Compatibility with Server Infrastructure

The Intel X540T2 is designed for seamless integration with a wide range of enterprise server platforms. It is compatible with major server motherboard architectures and supports hot-plug installation in many configurations. This ensures minimal disruption during deployment or system upgrades, making it suitable for scalable infrastructure environments.

Support for Modern Data Center Architectures

Modern data centers rely heavily on high-speed, low-latency networking to support cloud services, virtualization clusters, and distributed applications. The X540T2 fits into these environments by providing reliable 10GbE connectivity over existing copper infrastructure. This reduces the need for costly fiber deployments while maintaining enterprise-grade performance standards.

Scalability in Multi-Node Clusters

In clustered server environments, the adapter supports scalable networking architectures where multiple nodes communicate simultaneously. The dual-port configuration ensures redundancy and load balancing, improving overall system resilience and fault tolerance.

Storage Networking and Data Access Efficiency

Optimized iSCSI Performance

The Intel X540T2 supports optimized iSCSI data transfers, making it suitable for network-attached storage and storage area network environments. By accelerating storage traffic over Ethernet, the adapter enhances data retrieval speeds and improves overall storage system responsiveness.

High-Speed Data Replication

In enterprise backup and replication scenarios, the adapter enables fast data synchronization between storage nodes. This is particularly important in disaster recovery environments where rapid data replication is essential for minimizing downtime and ensuring business continuity.

Storage Virtualization Support

The adapter integrates smoothly with storage virtualization platforms, enabling efficient abstraction of physical storage resources. This allows enterprises to manage storage more flexibly while maintaining high-speed access to critical data assets.

Virtualization and Cloud Computing Optimization

Multi-Tenant Network Efficiency

In cloud environments, the Intel X540T2 supports multi-tenant networking through hardware-based virtualization technologies. This ensures that multiple virtual machines can operate independently without network contention or performance degradation.

Enhanced Network Isolation

Network isolation is critical in shared computing environments. The adapter provides hardware-level separation of traffic streams, ensuring secure and stable operation for each virtual instance. This improves security posture while maintaining high performance.

Dynamic Resource Allocation

The adapter supports dynamic allocation of network resources, allowing administrators to adjust bandwidth distribution based on workload demands. This ensures optimal performance across varying application requirements in cloud infrastructures.

Driver Support and Operating System Compatibility

Enterprise Operating System Integration

The Intel X540T2 is supported across major enterprise operating systems, including Windows Server, Linux distributions, and virtualization hypervisors. This broad compatibility ensures that organizations can deploy the adapter across heterogeneous environments without compatibility concerns.

Driver Optimization for Performance Stability

Intel provides optimized drivers that enhance performance stability and ensure consistent operation under heavy workloads. These drivers are regularly updated to support new features, security enhancements, and performance improvements.

Thermal Design and Power Efficiency

Efficient Power Consumption Model

Despite its high-performance capabilities, the Intel X540T2 is designed with power efficiency in mind. The adapter utilizes intelligent power management features that adjust energy consumption based on network activity levels. This reduces overall server power usage and contributes to lower operational costs in data center environments.

Thermal Stability in High-Density Deployments

The adapter is engineered to maintain thermal stability even in high-density server configurations. Its efficient heat dissipation design ensures consistent performance without overheating, making it suitable for rack-mounted servers operating under continuous load conditions.

Deployment Scenarios and Use Cases

Enterprise Data Centers

The Intel X540T2 is widely deployed in enterprise data centers where high-speed networking and reliability are essential. It supports core infrastructure services, application hosting, and internal communication between server nodes.

Cloud Infrastructure Platforms

In cloud environments, the adapter enables efficient virtual machine communication, scalable workload distribution, and high-speed data transfer between distributed systems. Its virtualization features make it ideal for infrastructure-as-a-service deployments.

High-Performance Computing Environments

High-performance computing clusters benefit from the adapter’s low latency and high throughput capabilities. Scientific computing, financial modeling, and big data analytics workloads rely on its stable and predictable network performance.

Storage and Backup Systems

The adapter is frequently used in storage networks where fast data access and replication are required. It enhances backup speed, improves storage responsiveness, and supports large-scale data archival systems.

Extended Operational Considerations

Network Reliability and Redundancy

The dual-port design of the Intel X540T2 enables built-in redundancy, ensuring continuous network availability even in the event of a port failure. This enhances system reliability and reduces the risk of downtime in critical environments.

Long-Term Infrastructure Stability

The adapter is engineered for long-term deployment in enterprise environments where stability and durability are essential. Its consistent performance profile makes it a reliable component in mission-critical network infrastructures.

Adaptive Workload Handling

The X540T2 dynamically adapts to varying workload conditions, ensuring efficient traffic handling regardless of application demand fluctuations. This adaptability contributes to stable network performance across diverse operational scenarios.
