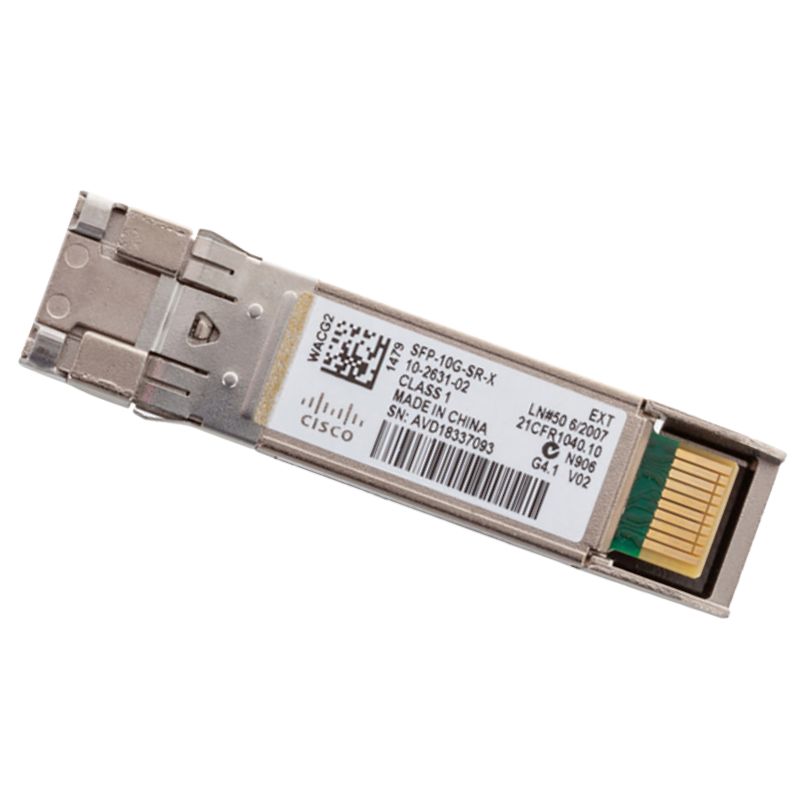

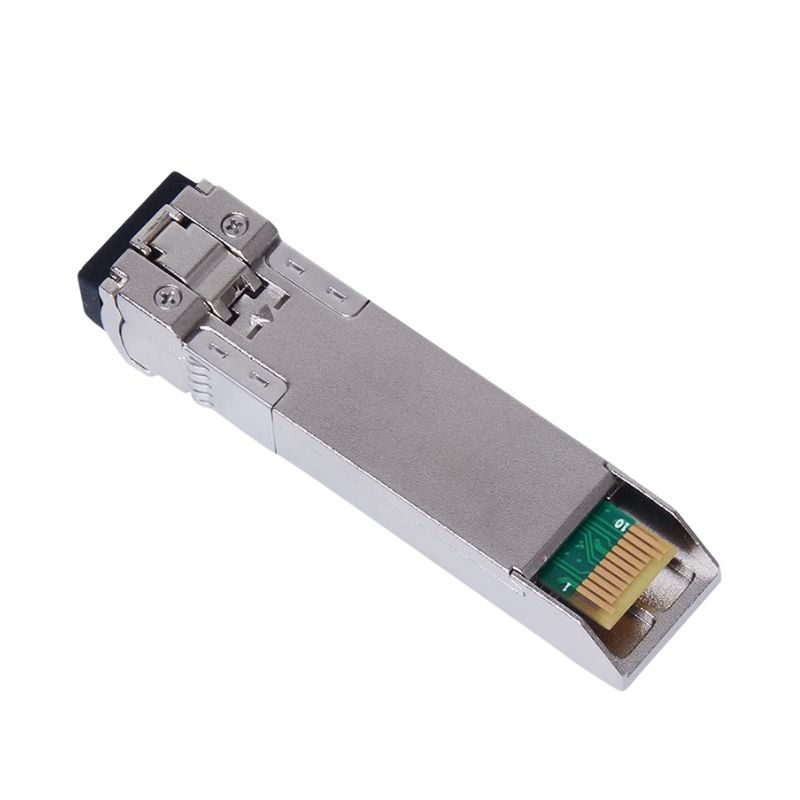

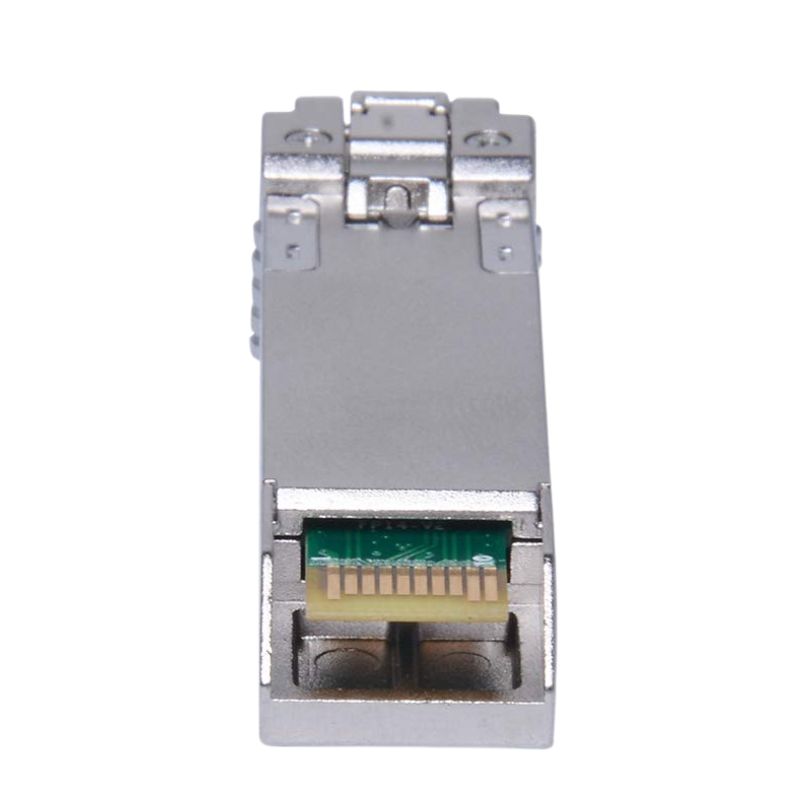

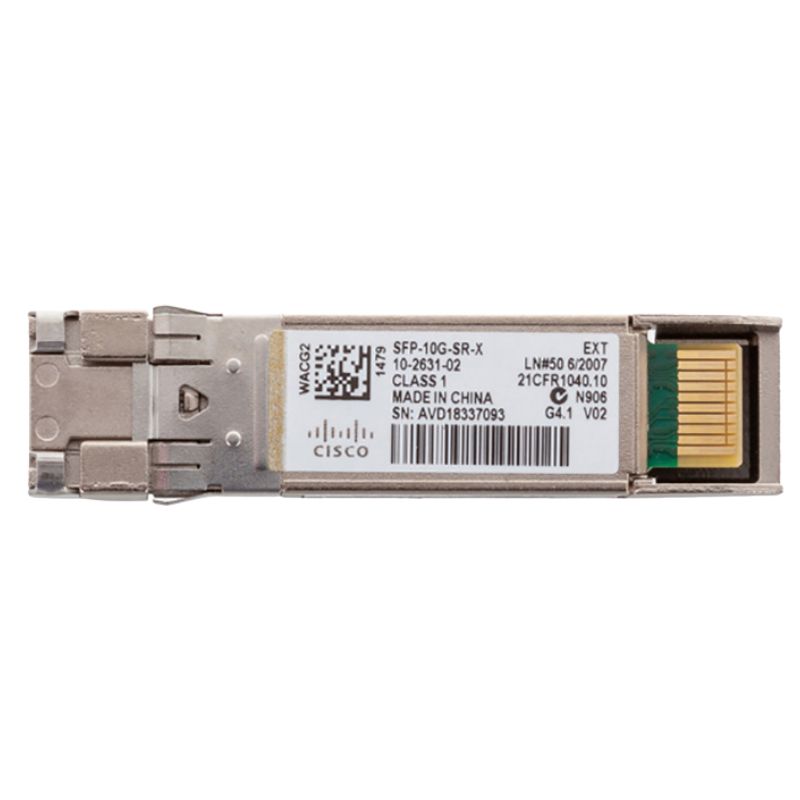

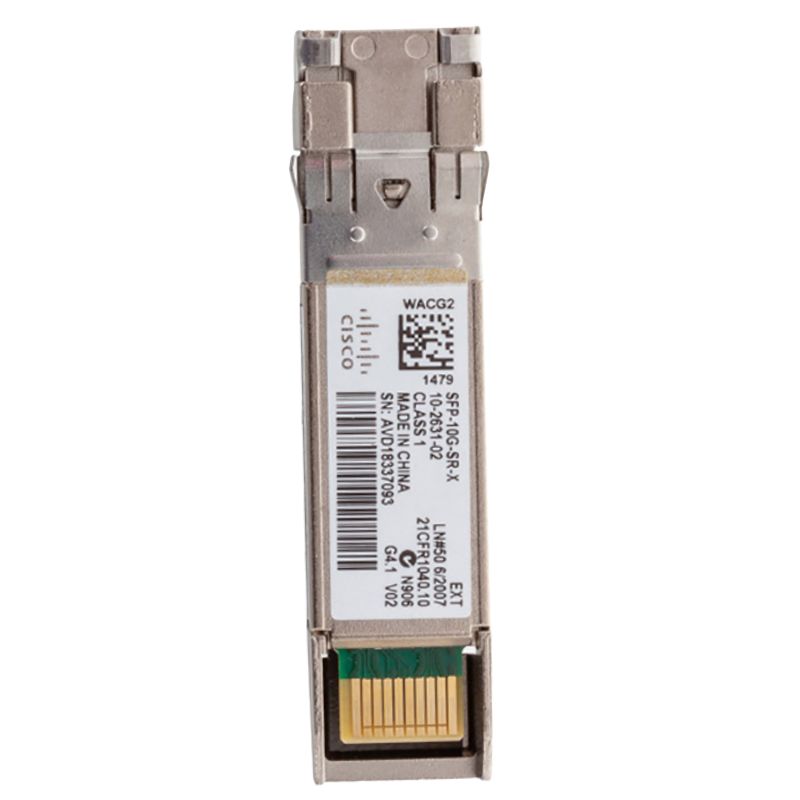

SFP-10G-SR-X Cisco SFP+ Transceiver Module Multi-Mode

Comprehensive Product Overview

The Cisco SFP-10G-SR-X transceiver is a high-speed optical solution engineered for seamless integration into enterprise-grade networking environments. It ensures dependable connectivity and efficient data transmission across fiber infrastructures.

Main Specifications

• Manufacturer: Cisco
• Part Number: SFP-10G-SR-X
• Device Type: Hot-pluggable Optical Transceiver

Technical Attributes

• Transmission Rate: 10 Gigabits per second
• Supported Protocol: 10 Gigabit Ethernet
• Cabling Standard: 10GBase-SR for fiber optic links
• Wavelength: 850 nanometers
• Reach Capability: Up to 400 meters (approx. 1310 feet)

Connectivity & Expansion

• Interface: LC/PC duplex connector for multi-mode fiber
• Slot Compatibility: Designed for SFP+ expansion slots
• Form Factor: Compact plug-in design for quick installation

Application Scope

• Enterprise Networking: Strengthens backbone connections in corporate infrastructures
• Fiber Systems: Reliable integration into optical communication frameworks
• Data Centers: Optimized for short-range fiber deployments

Key Advantages

• Compact and lightweight design for effortless deployment
• Supports multi-mode fiber for versatile installation scenarios
• Delivers rapid 10G Ethernet throughput for demanding workloads
• Compliant with industry standards ensuring interoperability

Usage Highlights

• Ideal for short-distance fiber optic communication
• Perfect match for Cisco switches and routers
• Ensures consistent and stable performance in optical networks

Cisco SFP-10G-SR-X 10GBASE-SR SFP+ Transceiver Module

The Cisco SFP-10G-SR-X 10Gbps 10GBASE-SR Multi-Mode Fiber Transceiver Module is designed to provide high-speed optical connectivity across enterprise, data center, campus, and storage networking environments. Engineered to support 10 Gigabit Ethernet communication over multimode fiber infrastructure, this SFP+ transceiver operates at an 850nm wavelength and delivers reliable transmission distances of up to 300 meters when deployed with optimized multimode fiber cabling. The module incorporates advanced optical technologies that ensure low latency, stable signal integrity, and efficient data transport within modern network architectures.

Built according to industry-standard SFP+ form factors, the Cisco SFP-10G-SR-X offers seamless integration into compatible switches, routers, network interface cards, and storage networking equipment. Its compact design enables high-density deployments while maintaining excellent thermal efficiency and power optimization. The transceiver supports duplex communication through dual optical paths, ensuring simultaneous transmission and reception of data for enhanced network performance.

10GBASE-SR Optical Networking Technology

The 10GBASE-SR standard is widely recognized as one of the most efficient methods for delivering 10 Gigabit Ethernet connectivity across short-range fiber environments. The Cisco SFP-10G-SR-X utilizes short-wave laser technology operating at 850nm, making it ideal for high-bandwidth applications requiring reliable and cost-effective optical communication.

The transceiver leverages multimode fiber infrastructure commonly deployed in enterprise buildings, data centers, educational institutions, healthcare facilities, and corporate campuses. By utilizing optimized multimode fiber cabling, the module can achieve transmission distances that support backbone aggregation, server connectivity, switch interconnection, and storage networking applications.

Short-Reach Fiber Transmission Performance

The module is specifically engineered for short-reach deployments where ultra-fast communication between network devices is essential. Its optical architecture minimizes attenuation and signal degradation across supported transmission distances, ensuring consistent throughput and low error rates. The 850nm operating wavelength is optimized for multimode fiber environments and supports stable performance under demanding networking conditions.

Optimized Data Center Connectivity

Modern data centers require high-speed communication between servers, storage systems, virtualization platforms, and switching infrastructure. The Cisco SFP-10G-SR-X provides the bandwidth necessary to support these requirements while maintaining operational efficiency. Its short-range optical characteristics make it particularly effective for rack-to-rack, row-to-row, and aggregation-layer deployments.

850nm VCSEL Laser Technology

The Cisco SFP-10G-SR-X incorporates advanced Vertical Cavity Surface Emitting Laser (VCSEL) technology operating at an 850nm wavelength. VCSEL-based optical systems provide significant advantages in multimode fiber environments, including improved energy efficiency, reduced manufacturing complexity, enhanced optical stability, and superior reliability.

The laser subsystem is designed to generate precise optical signals that maintain integrity across supported transmission distances. By utilizing a highly focused light source, the module achieves excellent signal quality and consistent communication performance even in high-density networking environments.

Optical Signal Integrity

Signal integrity is a critical requirement for 10 Gigabit Ethernet networks. The Cisco SFP-10G-SR-X utilizes sophisticated optical components that reduce jitter, minimize insertion loss, and maintain consistent optical output. These characteristics contribute to lower bit error rates and improved overall network reliability.

Enhanced Reliability Through Precision Optics

Precision-engineered optical assemblies ensure that transmitted signals maintain clarity throughout the communication path. The integration of advanced laser and receiver technologies allows the module to support demanding enterprise applications while maintaining consistent operational performance.

Duplex LC Connector

The Cisco SFP-10G-SR-X features a duplex LC optical interface, one of the most widely adopted connector formats in modern networking infrastructures. The compact LC connector design enables high-density installations while maintaining secure fiber connections and excellent optical performance.

Duplex LC connectivity provides separate optical channels for transmitting and receiving data, enabling full-duplex communication essential for 10 Gigabit Ethernet operations. The connector design simplifies deployment, cable management, and maintenance within enterprise and data center environments.

High-Density Fiber Deployments

Network operators frequently deploy large numbers of transceivers within switches and aggregation devices. The compact nature of the LC connector supports increased port density, allowing organizations to maximize available rack space while maintaining scalable network architectures.

Support for Multi-Mode Fiber Infrastructure

The Cisco SFP-10G-SR-X is optimized for operation over multimode fiber cabling systems. Multimode fiber remains one of the most widely deployed optical media types in enterprise environments due to its cost-effectiveness, ease of installation, and support for high-bandwidth applications.

The transceiver supports common multimode fiber grades used throughout enterprise and data center infrastructures. This compatibility enables organizations to leverage existing cabling investments while upgrading network speeds to 10 Gigabit Ethernet.

OM3 and OM4 Fiber Compatibility

The module is designed to operate effectively across advanced multimode fiber standards including OM3 and OM4 cabling systems. These fiber types offer enhanced bandwidth capabilities and support transmission distances that align with modern data center and campus networking requirements.

Migration Without Major Infrastructure Changes

Organizations seeking to transition from lower-speed networking technologies can utilize existing multimode fiber infrastructure when deploying the Cisco SFP-10G-SR-X. This approach reduces deployment complexity and accelerates network modernization initiatives.

SFP+ Form Factor Advantages

The SFP+ form factor represents an evolution of small form-factor optical technology, providing increased bandwidth capacity while maintaining compact dimensions. The Cisco SFP-10G-SR-X leverages this standardized design to support broad equipment compatibility and deployment flexibility.

Its compact footprint allows network administrators to deploy numerous high-speed optical links within a single chassis, maximizing connectivity density while preserving valuable rack space.

Hot-Swappable Functionality

The module supports hot-swappable installation, enabling insertion or replacement without requiring system shutdown. This capability minimizes service interruptions and simplifies maintenance operations within mission-critical environments.

Enterprise Network Applications

The Cisco SFP-10G-SR-X is suitable for a broad range of enterprise networking scenarios where high-speed optical communication is required. Its 10 Gigabit Ethernet capabilities support increasing bandwidth demands generated by cloud computing, virtualization, collaboration platforms, and data-intensive applications.

Switch-to-Switch Connectivity

Interconnecting switches at 10Gbps speeds is essential for maintaining efficient network traffic flow. The transceiver facilitates high-bandwidth communication between access, distribution, and core network layers, ensuring optimal performance throughout enterprise infrastructures.

Server Connectivity

Modern servers frequently require 10 Gigabit Ethernet connections to support virtualization, database workloads, cloud services, and application hosting environments. The Cisco SFP-10G-SR-X provides the bandwidth necessary to support these demanding workloads.

Storage Networking Integration

Storage environments demand consistent throughput and low latency. The Cisco SFP-10G-SR-X delivers the performance characteristics required for storage networking applications including SAN connectivity, backup operations, replication workflows, and data migration processes.

High-Speed Data Transfers

The module supports rapid movement of large datasets between storage systems and compute resources. Its reliable optical performance contributes to improved backup efficiency, reduced replication times, and enhanced disaster recovery capabilities.

Scalable Storage Architectures

As storage requirements continue to grow, organizations require networking components capable of supporting increasing traffic volumes. The Cisco SFP-10G-SR-X provides a scalable foundation for expanding storage infrastructures.

Power Efficiency and Thermal Performance

Energy efficiency is an important consideration in modern networking environments. The Cisco SFP-10G-SR-X incorporates optimized optical and electronic components designed to deliver high-speed connectivity while minimizing power consumption.

Efficient thermal management contributes to operational stability and long-term reliability. By controlling heat generation within the transceiver, the module supports dense deployments without compromising system performance.

Optimized Power Consumption

The module's architecture balances high-speed operation with energy-efficient design principles. Reduced power requirements can contribute to lower operational costs and improved sustainability objectives within enterprise environments.

Reliable Operation in Dense Installations

High-density networking platforms often contain dozens of transceivers operating simultaneously. The Cisco SFP-10G-SR-X is engineered to function effectively within these environments while maintaining stable thermal characteristics.

Compatibility with Cisco Networking Platforms

The Cisco SFP-10G-SR-X is designed for integration with a wide range of Cisco networking platforms supporting SFP+ interfaces. Compatibility across switching, routing, and data center product families simplifies deployment planning and inventory management.

Unified Network Infrastructure Deployment

Organizations utilizing Cisco networking ecosystems benefit from consistent transceiver technology across multiple infrastructure layers. This standardization streamlines procurement, installation, maintenance, and operational management processes.

Consistent Performance Across Platforms

The transceiver maintains standardized optical and electrical characteristics, ensuring predictable behavior across supported networking devices. This consistency enhances deployment confidence and simplifies network design considerations.

Advanced Optical Performance Characteristics

The Cisco SFP-10G-SR-X combines precision optics, robust electronics, and standards-based engineering to deliver dependable 10 Gigabit Ethernet performance. Its advanced optical subsystem supports accurate signal transmission, efficient reception, and stable communication across multimode fiber networks.

Error Reduction Capabilities

Reliable optical communication requires minimizing transmission errors and maintaining signal integrity. The transceiver incorporates design features that help reduce packet retransmissions, improve throughput efficiency, and support consistent network operations.

Long-Term Operational Stability

High-quality optical components contribute to extended service life and dependable performance under continuous operation. The Cisco SFP-10G-SR-X is engineered for enterprise environments where reliability, scalability, and high-speed connectivity remain critical requirements.
