WS-SVC-FWM-1-K9 Cisco Catalyst 6500 Firewall Service Module

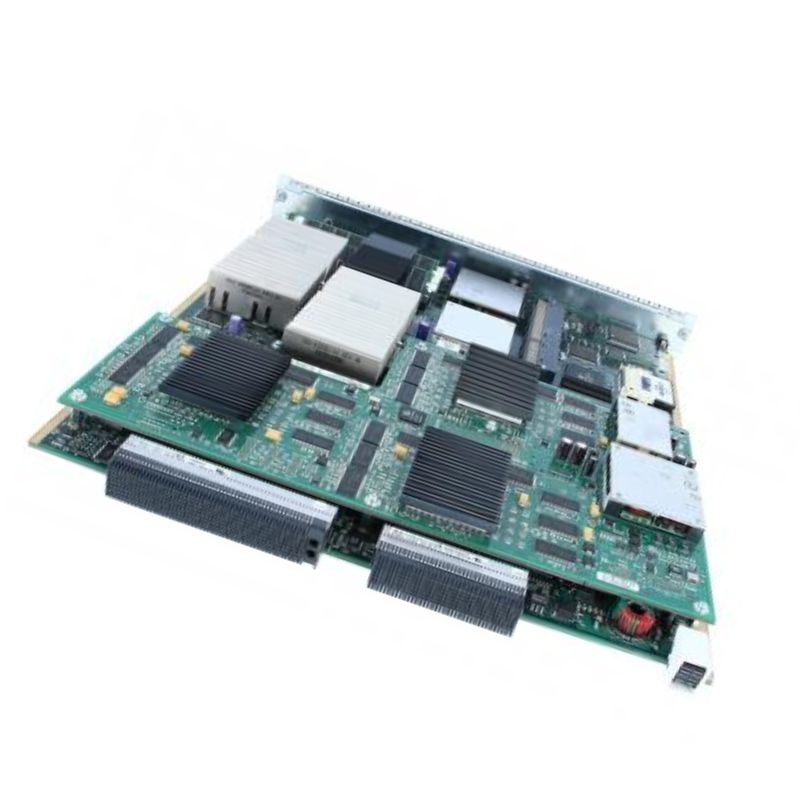

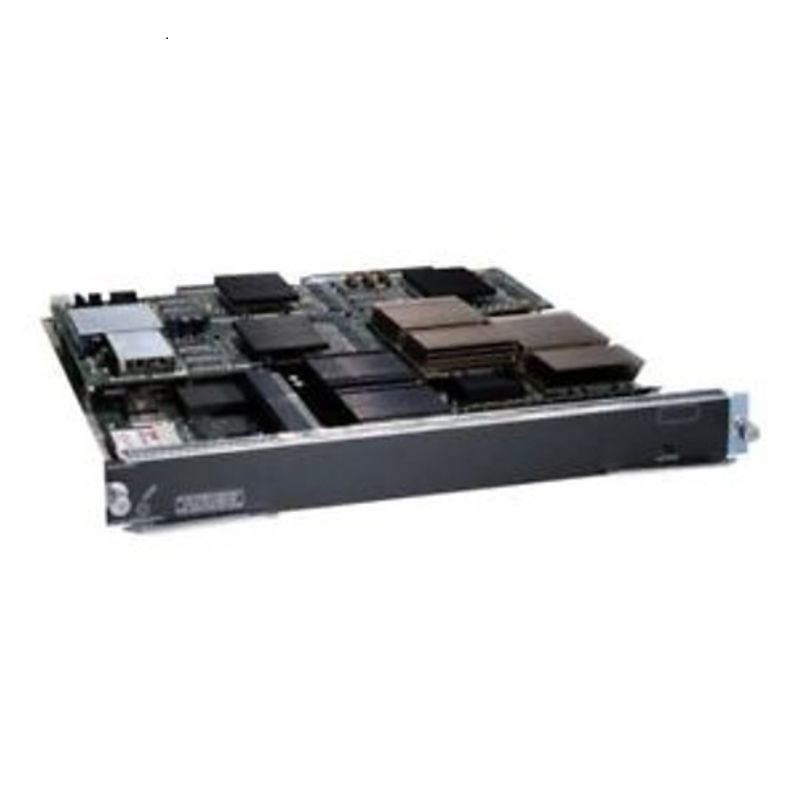

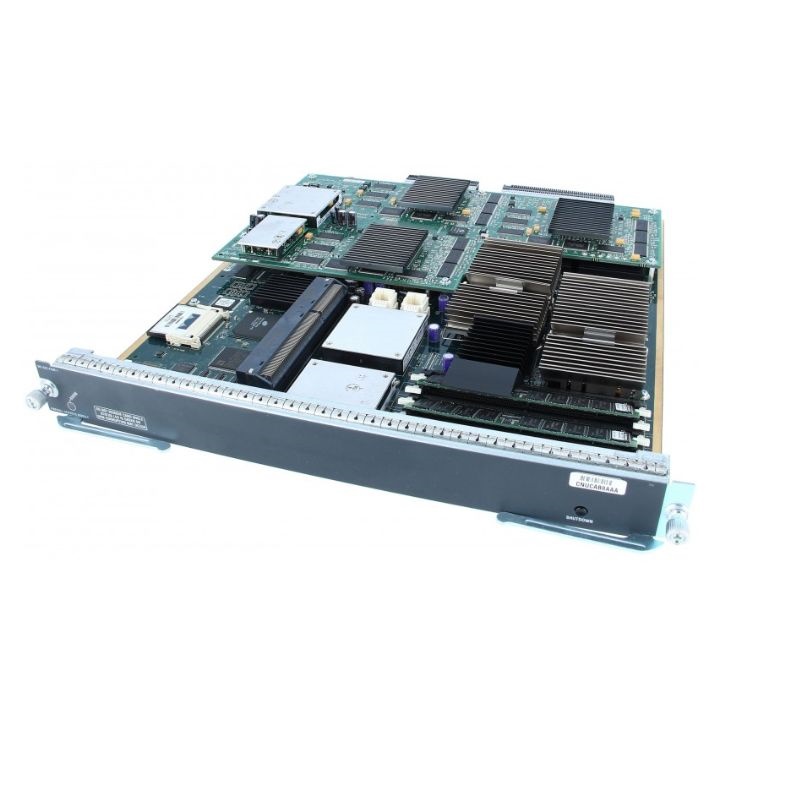

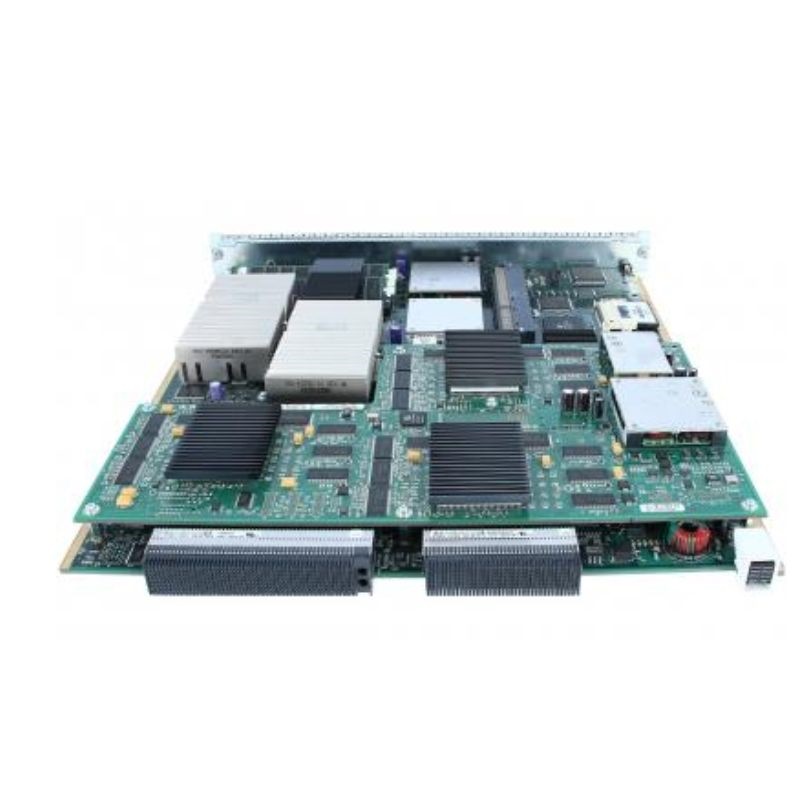

Cisco WS-SVC-FWM-1-K9 Firewall Service Module

The Cisco WS-SVC-FWM-1-K9 is a high-performance firewall service module designed for Cisco Catalyst 6500 Series and Cisco 7600 Series platforms. It delivers integrated network security, stateful inspection, and scalable firewall capabilities, enabling enterprises to strengthen perimeter defense while maintaining high-speed data flow across complex infrastructures.

General Information

• Manufacturer: Cisco
• Model Number: WS-SVC-FWM-1-K9
• Product Category: Service Module

Primary Security Capabilities

• Integrated stateful firewall protection for enterprise networks
• Real-time traffic inspection and filtering
• High-performance security processing within Catalyst architecture
• Scalable protection for large enterprise environments
• Seamless integration with Cisco network infrastructure

Included Security Software Package

• Cisco PIX Device Manager (PDM) software included
• SF-PIX-PDM-2.1 management platform support
• No additional licensing required for deployment

Management Interfaces and Access Methods

• Command-Line Interface (CLI) via console access
• Telnet access to internal firewall interface
• IPSec Telnet connectivity for external interface management
• Secure Shell (SSH) for encrypted administration
• SSL-based access through PIX Device Manager

Authentication and AAA Integration

• Supports TACACS+ authentication protocol
• RADIUS-based authentication, authorization, and accounting
• Granular access control for administrative users

Address Translation Technologies

• Dynamic Network Address Translation (NAT)
• Static NAT configuration support
• Port Address Translation (PAT) for flexible mapping

Threat Prevention Systems

• DNS Guard for domain-based protection
• Flood Guard and Flood Defender for traffic surge mitigation
• TCP Intercept to prevent connection-based attacks
• Unicast Reverse Path Forwarding (uRPF)
• Mail Guard for email-based threat filtering
• FragGuard and virtual packet reassembly security

Access Control and Filtering

• Support for up to 128,000 access control list entries
• Object-based grouping for services and protocols
• URL filtering powered by Websense policy integration
• Command-level privilege management system

Routing Protocol

• Static routing configuration support
• Dynamic routing via RIP protocol
• Open Shortest Path First (OSPF) compatibility

High Availability Architecture

• Stateful failover support for uninterrupted operations
• Intra-chassis and inter-chassis failover capability
• Redundant security processing for mission-critical networks

System Logging Capabilities

• Comprehensive syslog event tracking
• FTP, ACL, and URL logging support
• Real-time and historical security event monitoring

Performance Reporting Features

• Web-based graphical reporting interface
• Network usage trend analysis
• Security event and traffic performance metrics

Enterprise Deployment Advantages

• Ideal for enterprise firewall deployments in Catalyst 6500 systems
• Strong perimeter defense for data center environments
• Scalable architecture for growing network infrastructures
• High-performance security without network bottlenecks

Key Product Highlights

• Integrated firewall service module for Cisco Catalyst 6500
• PIX Device Manager-based management interface
• Advanced NAT, PAT, and ACL security controls
• Supports TACACS+ and RADIUS authentication systems
• High availability with stateful failover protection
• Robust intrusion prevention and traffic filtering features

Cisco WS-SVC-FWM-1-K9 Catalyst 6500 Service Module

The Cisco WS-SVC-FWM-1-K9 Catalyst 6500 Firewall Service Module represents a specialized security hardware component designed to extend advanced firewall capabilities within the Cisco Catalyst 6500 Series switch environment. This module integrates stateful firewall functionality directly into the switching fabric, allowing enterprises to enforce security policies at wire speed without requiring external standalone firewall appliances. By embedding security processing into the modular chassis architecture, organizations gain the ability to scale both switching performance and security enforcement within a unified infrastructure model.

In enterprise networking environments, the Catalyst 6500 platform is often deployed as a core switching solution, and the WS-SVC-FWM-1-K9 enhances this role by enabling deep packet inspection and traffic control closer to the data path. This design reduces latency, simplifies network topology, and improves operational efficiency by consolidating network services into a single chassis-based system.

Architectural Design and Integration Principles

The WS-SVC-FWM-1-K9 is engineered as a service module that fits into the Cisco Catalyst 6500 chassis, leveraging the backplane architecture for high-speed data transfer. The module operates in conjunction with supervisor engines and switching modules, ensuring that firewall processing is tightly integrated into the switching workflow. This integration allows traffic to be inspected and filtered without unnecessary detours across external security devices.

The architectural approach is based on distributed processing, where firewall functions are handled at the module level while the supervisor engine maintains control-plane intelligence. This separation ensures that security enforcement does not degrade overall switching performance, even under heavy network loads.

Stateful Inspection Processing Engine

At the core of the WS-SVC-FWM-1-K9 lies a stateful inspection engine that tracks active sessions and enforces security policies based on connection state. Unlike stateless filtering methods, stateful inspection allows the module to understand the context of traffic flows, making it possible to detect unauthorized access attempts, anomalous traffic behavior, and policy violations more effectively.

Advanced Packet Filtering and Access Control

The Cisco WS-SVC-FWM-1-K9 provides granular packet filtering capabilities that allow network administrators to define detailed access control policies. These policies can be applied based on source and destination IP addresses, protocol types, port numbers, and session states. This level of control ensures that only authorized traffic is allowed to traverse the network infrastructure.

In addition to basic filtering, the module supports contextual decision-making, enabling it to adapt firewall rules dynamically based on traffic conditions. This is particularly important in environments where traffic patterns change frequently and require adaptive security enforcement.

Hardware-Accelerated Processing Design

The WS-SVC-FWM-1-K9 leverages hardware acceleration to ensure that firewall operations do not become a bottleneck in high-throughput environments. By offloading intensive packet inspection tasks to dedicated processing components, the module maintains efficient data handling even under sustained traffic loads. This design is essential for large-scale enterprise and service provider networks where performance consistency is critical.

Optimized Packet Flow Architecture

Packet flow through the firewall service module is optimized to reduce unnecessary processing overhead. Traffic entering the Catalyst 6500 chassis is directed through the switching fabric and then passed through the firewall module only when policy enforcement is required. This selective inspection model helps maintain high-speed switching performance while still providing robust security enforcement.

Latency Reduction Strategies

The integration of firewall services within the switching chassis significantly reduces latency compared to external firewall deployments. Since traffic does not need to traverse additional network hops, packet processing is completed more efficiently. This is particularly beneficial for latency-sensitive applications such as financial transactions, voice communications, and real-time data processing systems.

Modular Scalability in Enterprise Networks

One of the defining advantages of the Cisco Catalyst 6500 architecture combined with the WS-SVC-FWM-1-K9 is modular scalability. Organizations can expand firewall capacity by adding additional service modules as network demand increases. This allows infrastructure growth without requiring complete redesign or replacement of existing systems.

The modular approach ensures that organizations can scale security services independently of switching capacity, providing flexibility in network design and long-term investment protection.

High Availability and Redundancy Mechanisms

High availability is a critical requirement in enterprise environments, and the WS-SVC-FWM-1-K9 supports redundant configurations to ensure continuous operation. In the event of a module failure, traffic can be rerouted through alternate paths within the Catalyst chassis, minimizing service disruption.

Failover Processing Behavior

Failover mechanisms are designed to preserve session integrity whenever possible, allowing active connections to continue without interruption during hardware transitions. This capability is essential for maintaining business continuity in mission-critical environments.

Command-Line Interface Configuration

The WS-SVC-FWM-1-K9 is managed through Cisco IOS-based command-line interfaces, allowing administrators to configure firewall policies, monitor traffic flows, and adjust security settings. The CLI environment provides granular control over module behavior and enables precise tuning of security rules.

Network engineers can define complex policy structures that govern traffic behavior across multiple network segments. This flexibility ensures that the firewall module can adapt to a wide variety of deployment scenarios and security requirements.

Integration with Centralized Management Systems

In addition to local configuration, the firewall service module can be integrated into centralized network management platforms. These systems allow administrators to monitor security events, analyze traffic patterns, and enforce policy consistency across multiple devices and locations.

Policy Synchronization and Monitoring

Centralized management enables synchronized policy deployment, ensuring that firewall rules remain consistent across the network infrastructure. Continuous monitoring capabilities provide real-time visibility into security events, allowing rapid response to potential threats.

Enterprise Campus Network Security

In enterprise campus environments, the WS-SVC-FWM-1-K9 plays a critical role in securing internal network segments. By integrating firewall functionality directly into the core switching layer, organizations can enforce segmentation policies between departments, user groups, and application zones. This helps reduce lateral movement risks and strengthens internal security posture.

Service Provider Infrastructure Deployment

Service providers benefit from the scalability and performance capabilities of the firewall service module when delivering managed security services. The ability to process large volumes of traffic while maintaining policy enforcement allows providers to offer firewall services as part of their network offerings without requiring separate infrastructure.

Data Center Integration Scenarios

Within data center environments, the WS-SVC-FWM-1-K9 contributes to east-west and north-south traffic security enforcement. As virtualization and distributed computing increase internal traffic volumes, embedded firewall services help ensure that security policies are consistently applied across all data flows.

Quality of Service Awareness

The firewall service module supports traffic prioritization mechanisms that allow critical applications to receive preferential treatment during periods of congestion. By integrating security enforcement with quality of service policies, the module ensures that both performance and protection requirements are met simultaneously.

Catalyst 6500 Ecosystem Alignment

The WS-SVC-FWM-1-K9 is designed to operate seamlessly within the broader Cisco Catalyst 6500 ecosystem. This includes compatibility with supervisor engines, switching modules, and other service modules that may be installed within the chassis. The cohesive integration ensures that all components function as a unified system rather than isolated devices.

Interoperability with Network Services

The firewall service module is capable of interoperating with additional network services such as intrusion detection systems, load balancing modules, and VPN services. This allows organizations to build comprehensive security architectures within a single hardware platform.

Service Chaining Capabilities

Service chaining enables traffic to be processed through multiple service modules in a defined sequence. This allows organizations to combine firewall inspection with other network services to create layered security and performance optimization strategies.

Long-Term Infrastructure Value

Deploying the Cisco WS-SVC-FWM-1-K9 within Catalyst 6500 environments provides long-term operational value by extending the lifespan of existing switching infrastructure while adding advanced security capabilities. This reduces the need for frequent hardware replacement cycles and supports sustainable network evolution.

Maintenance and Upgradability

The modular nature of the firewall service module allows for straightforward maintenance and upgrade procedures. Administrators can replace or upgrade individual modules without disrupting the entire network infrastructure, ensuring minimal downtime during maintenance operations.

Firmware and Software Evolution

Software updates and firmware enhancements enable continuous improvement of security capabilities over time. This ensures that the firewall module remains aligned with evolving security threats and networking standards without requiring hardware replacement.
