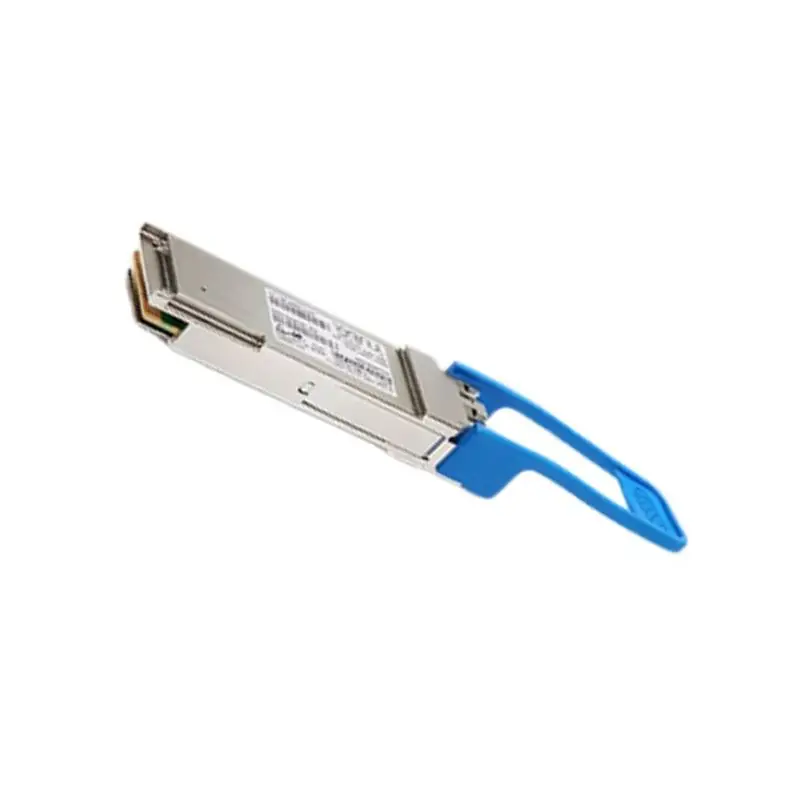

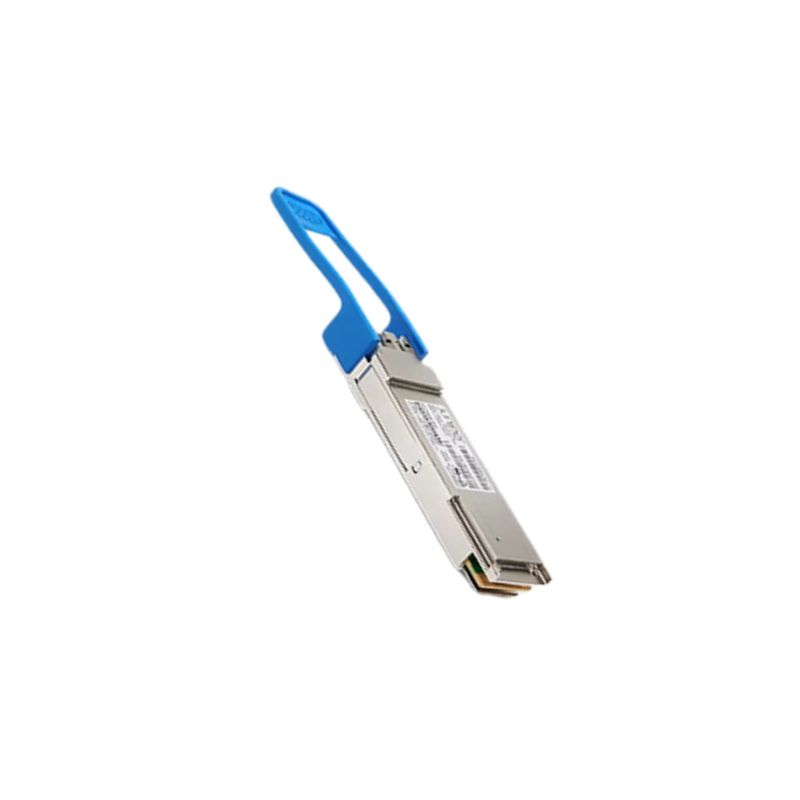

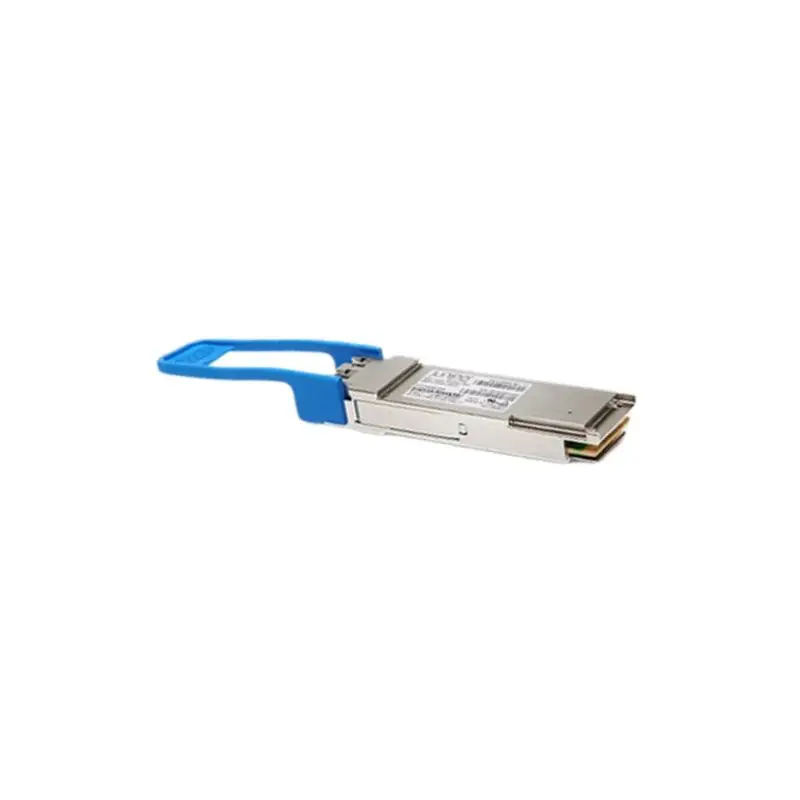

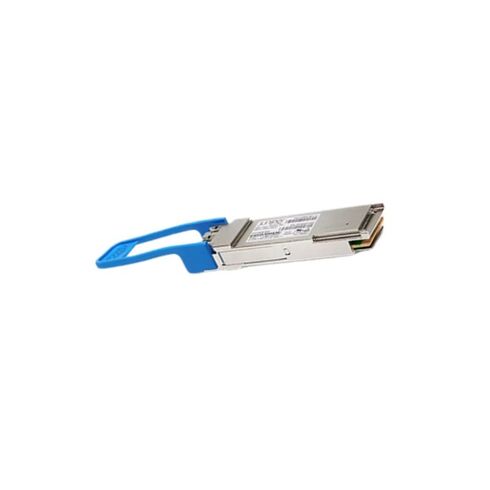

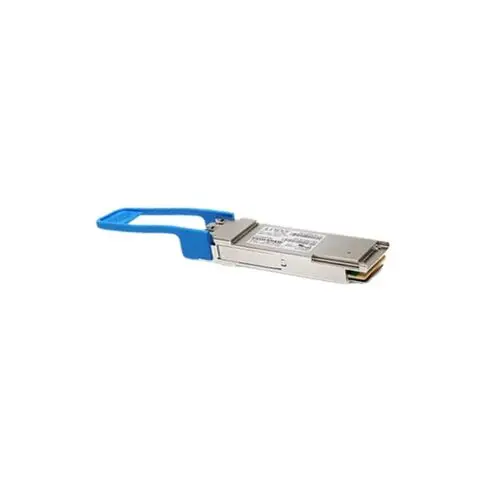

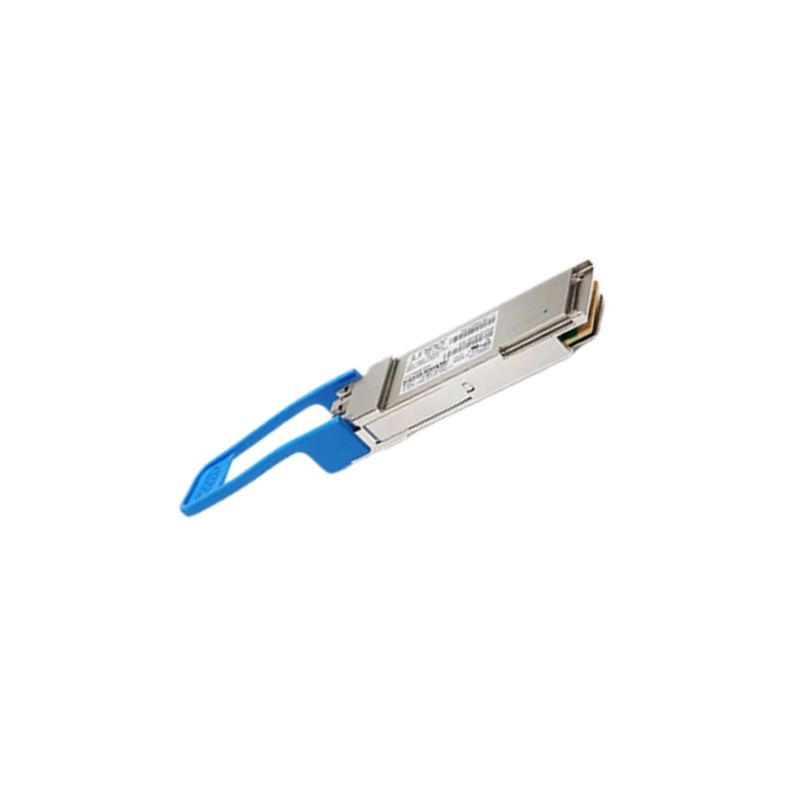

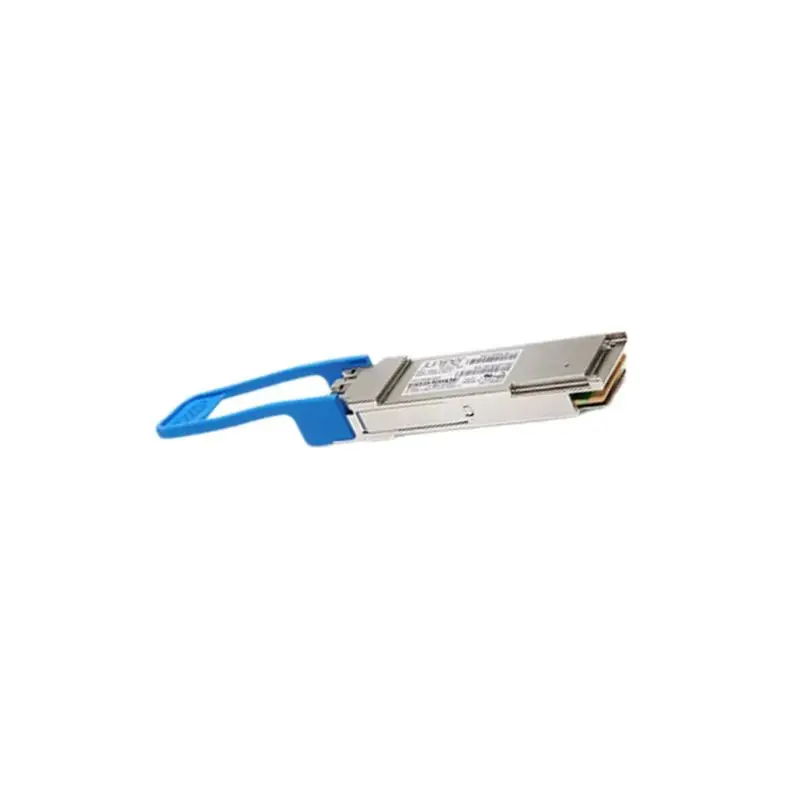

CFP2-100G-SR10-D3 Juniper Networks Short Range Optics Single Rate Ethernet Optical Transceiver

Details of Juniper 100G Single Rate Transceiver

The Juniper Networks CFP2-100G-SR10-D3 is a high-performance Ethernet optical transceiver designed for short-range data transmission. This device ensures reliable connectivity and efficient communication across modern networking infrastructures.

Main Information

• Manufacturer: Juniper
• Part Number: CFP2-100G-SR10-D3
• Device Type: Ethernet Optical Transceiver

Technical Specifications

• Speed: 100 Gigabit Ethernet
• Breakout Capability: Not Supported
• Transceiver Format: CFP2
• Product Category: Optical Transceiver

Connector and Monitoring

• Connector Type: MPO-24
• Monitoring Features: Available
• Digital Optical Monitoring: Supported

Standards Compliance

• Ethernet/OTN Standard: IEEE 802.3ba—2010
• Example Standard: 100GBASE-LR4

Optical Characteristics

• Wavelength Range: 840 nm – 860 nm
• Output Power (Minimum per Lane): –7.6 dBm
• Output Power (Maximum per Lane): 2.4 dBm

Receiver Properties

OM3 Fiber

• Input Power (Minimum): –9.5 dBm
• Input Power (Maximum): 2.4 dBm

OM4 Fiber

• Input Power (Minimum): –9.1 dBm
• Input Power (Maximum): 2.4 dBm

Cabling and Distance

• Cable Type: MMF (Multi-Mode Fiber)
• Fiber Grade: OM3, OM4
• Transmission Distance: 100 m (OM3), 150 m (OM4)

Power and Environmental Conditions

• Maximum Power Usage: 6 W

Temperature Range

• Operating Temperature: 0° C to 70° C

Storage Conditions

• Storage Temperature: –40° C to 85° C

Juniper CFP2-100G-SR10-D3 100G Optics Transceiver Overview

The Juniper Networks CFP2-100G-SR10-D3 CFP2 100G Short Range Optics Single Rate Ethernet Optical Transceiver is designed to support high-bandwidth networking environments that demand exceptional speed, reliability, and operational efficiency. As modern enterprises, cloud providers, data centers, and service providers continue to expand their digital infrastructure, the need for high-performance optical connectivity solutions has become increasingly important. This CFP2 optical transceiver delivers 100 Gigabit Ethernet connectivity while supporting short-range multimode fiber applications, enabling organizations to achieve seamless data transmission across critical network segments.

Engineered to comply with industry standards and optimized for compatibility with Juniper networking platforms, the CFP2-100G-SR10-D3 optical module provides a dependable solution for organizations seeking scalable network expansion. The transceiver combines advanced optical technology with high-density deployment capabilities, making it suitable for next-generation switching, routing, storage networking, and cloud computing environments.

Advanced 100 Gigabit Ethernet Connectivity

Network traffic continues to increase due to cloud applications, virtualization, artificial intelligence workloads, big data analytics, and video streaming services. The Juniper Networks CFP2-100G-SR10-D3 addresses these growing bandwidth requirements by providing a robust 100 Gigabit Ethernet interface capable of supporting demanding workloads across enterprise and service provider infrastructures.

With support for single-rate 100GbE operation, this optical transceiver enables organizations to consolidate network resources while maintaining exceptional performance. The module helps reduce bottlenecks that commonly occur in high-density environments and supports efficient data movement between switches, routers, servers, and storage systems.

Benefits of 100G Network Deployment

Deploying a 100 Gigabit Ethernet transceiver such as the CFP2-100G-SR10-D3 can significantly improve network responsiveness, increase data throughput, and enhance application performance. Organizations handling large-scale data transfers benefit from reduced latency and improved efficiency, resulting in better user experiences and optimized business operations.

The increased bandwidth capacity also supports future growth, allowing network administrators to scale infrastructure without requiring frequent upgrades. This scalability makes the CFP2-100G-SR10-D3 a strategic investment for organizations planning long-term network expansion.

CFP2 Form Factor Advantages

The CFP2 form factor represents an evolution in high-speed optical transceiver technology. Compared to earlier CFP modules, CFP2 transceivers offer a more compact design while maintaining high-performance capabilities. The smaller footprint enables network operators to increase port density and maximize available rack space within data centers and telecommunications facilities.

The Juniper Networks CFP2-100G-SR10-D3 leverages these design advantages to provide efficient deployment options for environments where space optimization is critical. Higher port density allows organizations to support more connections within existing infrastructure, reducing the need for additional equipment and lowering operational costs.

Space Optimization and Infrastructure Efficiency

Data centers often face limitations related to rack space, power consumption, and cooling requirements. The CFP2 design helps address these challenges by reducing the physical size of optical modules while delivering high-capacity networking performance.

This compact architecture enables greater flexibility when designing network topologies, supporting efficient utilization of switching and routing platforms. Organizations can deploy larger numbers of high-speed connections without sacrificing valuable rack space.

Enhanced Port Density Capabilities

High-density network deployments require hardware that can accommodate increasing connectivity demands. The CFP2-100G-SR10-D3 supports this objective by enabling network equipment manufacturers and administrators to deliver greater bandwidth capacity within limited physical footprints.

Enhanced port density contributes to lower infrastructure costs while supporting the performance requirements of modern digital environments.

Short Range Optical Connectivity Performance

The CFP2-100G-SR10-D3 is specifically designed for short-range optical communication applications. Utilizing multimode fiber technology, the transceiver provides reliable high-speed connectivity between network devices located within data centers, enterprise campuses, and other localized networking environments.

Short-range optics play a vital role in supporting east-west traffic patterns commonly found in virtualized infrastructures and cloud computing environments. These traffic flows require rapid communication between servers, storage arrays, and networking equipment to maintain application performance and service availability.

Multimode Fiber Compatibility

The transceiver is optimized for deployment over multimode fiber cabling, which remains a popular choice for short-distance networking applications. Multimode fiber infrastructure offers cost-effective deployment while delivering excellent performance for high-speed Ethernet communications.

Organizations with existing multimode fiber installations can integrate the CFP2-100G-SR10-D3 into their environments with minimal disruption, maximizing the value of current infrastructure investments while upgrading network performance.

Reliable Signal Integrity

Signal quality is essential for maintaining consistent network operations. The advanced optical components integrated into the CFP2-100G-SR10-D3 help preserve signal integrity throughout transmission, reducing the likelihood of data errors and communication disruptions.

Reliable optical performance contributes to improved application availability, enhanced productivity, and reduced maintenance requirements across enterprise and service provider networks.

Data Center Networking Applications

Modern data centers serve as the foundation of digital business operations. As workloads become increasingly distributed and interconnected, high-speed optical connectivity becomes essential for supporting application performance and resource availability.

The Juniper Networks CFP2-100G-SR10-D3 is well suited for data center architectures that require rapid communication between network layers. The transceiver enables high-capacity connectivity between core switches, aggregation switches, spine-and-leaf architectures, storage systems, and virtualization platforms.

Cloud Infrastructure Support

Cloud computing environments generate substantial network traffic due to virtual machine migrations, storage replication, application synchronization, and user access requests. The CFP2-100G-SR10-D3 helps support these workloads by delivering the bandwidth necessary for efficient cloud operations.

Organizations implementing private cloud, hybrid cloud, or public cloud infrastructures can leverage this optical transceiver to maintain responsive and scalable networking environments.

Virtualization Performance Enhancement

Virtualized data centers rely heavily on network performance to support dynamic workload movement and resource allocation. High-speed 100 Gigabit Ethernet connectivity helps ensure that virtual machines, containers, and software-defined networking solutions operate efficiently.

The CFP2-100G-SR10-D3 provides the bandwidth foundation needed to support virtualization initiatives while minimizing network congestion.

Enterprise Network Infrastructure Benefits

Large enterprises increasingly require high-capacity networking solutions to support digital transformation initiatives, collaboration platforms, business applications, and centralized data management systems. The CFP2-100G-SR10-D3 optical transceiver helps organizations achieve these objectives through reliable high-speed connectivity.

Enterprise networks often connect multiple departments, buildings, and data centers while supporting thousands of users and devices. The transceiver facilitates efficient communication across these environments, enabling improved productivity and operational effectiveness.

Business Continuity and Network Reliability

Network downtime can significantly impact business operations and revenue generation. The CFP2-100G-SR10-D3 is engineered to deliver dependable performance, helping organizations maintain service availability and operational continuity.

Reliable optical communication supports critical applications such as enterprise resource planning systems, customer relationship management platforms, financial services applications, and real-time collaboration tools.

Scalable Growth Opportunities

Organizations planning future expansion require networking solutions capable of accommodating increasing bandwidth demands. The CFP2-100G-SR10-D3 supports scalable growth strategies by providing high-capacity connectivity that aligns with evolving business requirements.

This scalability reduces the need for frequent infrastructure replacements while supporting long-term investment protection.

Compatibility with Juniper Networking Platforms

The Juniper Networks CFP2-100G-SR10-D3 is developed to operate seamlessly within Juniper networking ecosystems. Compatibility with Juniper switches, routers, and networking solutions ensures streamlined deployment and reliable performance across enterprise and service provider environments.

Using vendor-validated optical modules can help reduce compatibility concerns, simplify network management, and improve overall operational efficiency. Organizations benefit from predictable performance characteristics and simplified support processes.

Optimized Integration Capabilities

Network administrators seek components that integrate efficiently with existing infrastructure. The CFP2-100G-SR10-D3 supports streamlined implementation by aligning with Juniper hardware specifications and networking standards.

Efficient integration reduces deployment complexity and accelerates infrastructure upgrades, enabling organizations to realize performance benefits more quickly.
