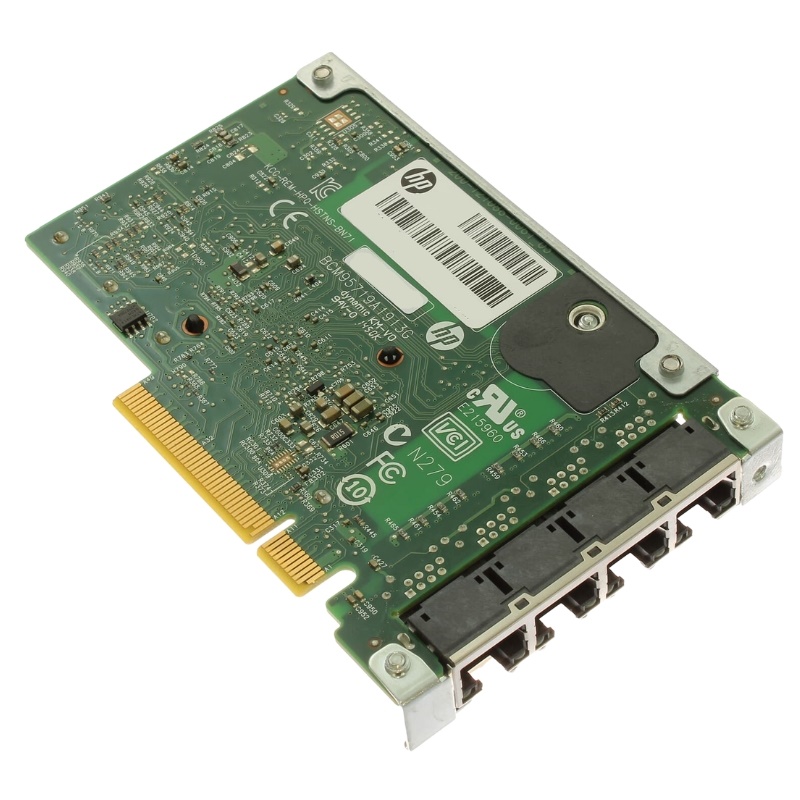

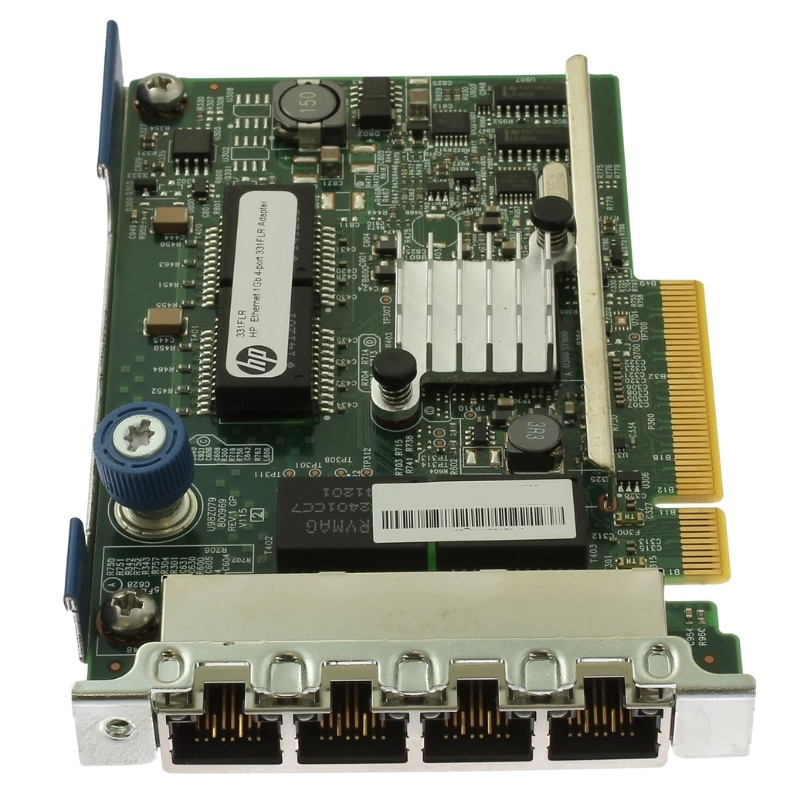

634025-001 HPE 331FLR Gigabit PCI Express X4 4 Port Ethernet Card

Overview of the HPE 634025-001 Network Adapter

The HPE 634025-001 Ethernet 1Gb 4-port 331FLR is an advanced network adapter designed to enhance your system's connectivity. This multi-port Ethernet card delivers high-speed wired network communication, ideal for demanding data transfer needs. The device features robust support for multiple standards, making it a versatile solution for both small and large-scale network environments.

Main Specifications

• Manufacturer: HPE
• Part Number: 634025-001
• Product Type: Network Adapter

Technical Information

• Device Type: 4-Port Network Adapter
• Bus Interface: PCI Express 2.0 x4
• PCI Specification: PCIe 2.0
• Processor: Broadcom BCM5719 (1 x)

Networking Capabilities

• Connectivity: Wired Ethernet
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Data Transfer Speed: 1 Gbps
• Remote Management: SNMP
• Status Indicators: Link Activity, Port Transmission Speed

Advanced Features

• Jumbo Frames Support
• PXE Boot Support
• Large Send Offload (LSO)

Compliance with Networking Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.1q
• IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP)
• IEEE 802.1as, IEEE 802.3az

Expansion and Slot Compatibility

• Interfaces: 4 x RJ-45 Network Ports (Ethernet 10Base-T/100Base-TX/1000Base-T)
• Compatible Slot: 1 x FlexibleLOM Slot

634025-001 HPE PCI Express X4 4 Port Ethernet Card

The 634025-001 HPE 331FLR Gigabit PCI Express X4 4 Port Ethernet Card is a high-performance server networking adapter engineered for enterprise-class data centers, virtualization environments, and mission-critical workloads that demand stable, scalable, and high-throughput network connectivity.

As modern IT infrastructures evolve toward cloud computing, hyper-converged systems, and software-defined networking (SDN), the demand for reliable multi-port Ethernet solutions continues to grow. The HPE 331FLR 4-port Gigabit Ethernet adapter addresses this need by providing four independent Gigabit Ethernet channels on a single PCI Express x4 interface, allowing administrators to consolidate networking hardware while maintaining high availability and redundancy.

Architecture and Design of the HPE Network Adapter

The HPE 331FLR Gigabit Ethernet Card is built on a compact FlexibleLOM design, specifically engineered for HPE ProLiant Gen8 and Gen9 servers. Unlike traditional PCIe add-in cards, the FLR form factor integrates directly into the server motherboard via a dedicated slot, reducing cable clutter and freeing up PCI Express expansion slots for other critical components such as storage controllers or GPU accelerators.

Its PCI Express x4 interface ensures sufficient bandwidth for handling multiple Gigabit streams simultaneously without bottlenecks. Each of the four ports operates independently, enabling advanced network segmentation strategies, load balancing, and failover configurations. This architecture significantly improves network resilience in environments where uptime is critical.

Performance Benefits in Enterprise Environments

One of the defining advantages of the 634025-001 HPE 331FLR Ethernet card is its ability to deliver consistent performance under heavy network loads. In enterprise data centers, workloads such as virtualization clusters, database replication, backup operations, and distributed computing require predictable and low-latency network behavior. With four independent Gigabit ports, this adapter enables administrators to distribute network traffic across multiple channels. This reduces congestion and ensures smooth data flow between servers, storage systems, and client endpoints. It is particularly beneficial in environments using VMware ESXi, Microsoft Hyper-V, or Linux KVM virtualization platforms, where virtual machines rely heavily on shared physical network resources.

Load Balancing and Traffic Optimization

The adapter supports advanced load balancing techniques, allowing traffic distribution across all four ports. This helps prevent any single interface from becoming a bottleneck. In clustered server environments, network traffic can be intelligently routed based on workload demands, ensuring optimal utilization of available bandwidth. Additionally, the NIC supports link aggregation (LACP), enabling multiple ports to be combined into a single logical channel. This not only increases throughput but also enhances redundancy, ensuring continuous connectivity even if one port or cable fails.

Compatibility with HPE Server Ecosystems

The HPE 331FLR Gigabit Ethernet Adapter is specifically optimized for integration with HPE ProLiant server platforms. Its FLR design ensures seamless compatibility with server BIOS and firmware, allowing for easy deployment and management through HPE Intelligent Provisioning and HPE Integrated Lights-Out (iLO) systems. This tight integration reduces configuration complexity and ensures that system administrators can deploy network settings consistently across multiple servers. It also supports remote management capabilities, enabling IT teams to monitor network performance, update firmware, and troubleshoot connectivity issues without physical server access.

Network Features and Advanced Capabilities

Beyond basic connectivity, the 634025-001 HPE 331FLR Ethernet Card supports a range of advanced networking features designed for enterprise-grade performance. These features enhance security, reliability, and traffic management in complex IT environments.

Virtualization Optimization

The adapter supports virtualization offloading features such as Virtual Machine Queue (VMQ) and SR-IOV-like enhancements depending on system configuration. These capabilities reduce CPU overhead by offloading network processing tasks directly to the NIC hardware, resulting in improved virtual machine density and performance. In virtualized environments, each port can be assigned to different virtual switches or directly mapped to virtual machines, allowing fine-grained control over network traffic flow.

Jumbo Frame Support

The NIC supports jumbo frames, enabling larger packet sizes for improved efficiency in high-throughput environments such as data backup systems, storage replication, and media streaming servers. By reducing packet overhead, jumbo frames improve overall network efficiency and reduce CPU utilization.

Wake-on-LAN and Remote Management

Wake-on-LAN (WoL) support allows administrators to remotely power on systems over the network, an essential feature in enterprise environments where physical access to servers may be limited. Combined with HPE iLO management tools, this feature enhances remote administration capabilities.

Reliability and Redundancy Features

Reliability is a core design principle of the HPE 331FLR 4-port Ethernet adapter. In mission-critical environments, network downtime can lead to significant operational and financial losses. To mitigate this risk, the adapter incorporates multiple redundancy features.

Failover Protection

If one network port fails due to hardware issues or cable disconnection, traffic is automatically rerouted to the remaining active ports. This ensures continuous connectivity without manual intervention.

Link Aggregation Control Protocol (LACP)

LACP enables dynamic grouping of multiple Ethernet links into a single logical channel. This not only increases bandwidth but also provides redundancy in case one of the links becomes unavailable.

Error Detection and Correction

The NIC includes built-in error detection mechanisms that monitor packet integrity and network performance. These features help identify potential issues before they escalate into system-wide failures.

Use Cases in Modern IT Infrastructure

The versatility of the 634025-001 HPE 331FLR Gigabit Ethernet Card makes it suitable for a wide range of enterprise applications. It is commonly deployed in data centers, cloud hosting environments, enterprise LAN networks, and virtualization clusters.

Data Center Networking

In data centers, the adapter provides reliable server-to-switch connectivity, ensuring stable communication between compute nodes and storage systems. Its multi-port design allows efficient traffic segmentation across different network tiers such as management, storage, and production traffic.

Virtualization Clusters

For virtualization platforms, the adapter supports high VM density environments by distributing network load across multiple ports. This ensures consistent performance even during peak usage periods.

Enterprise Storage Networks

The adapter is frequently used in conjunction with network-attached storage (NAS) and storage area network (SAN) solutions, where stable Gigabit connectivity is essential for data replication and backup operations.

al Performance

Energy efficiency is a significant consideration in modern data centers, and the HPE 331FLR NIC is designed with this in mind. It incorporates low-power components and dynamic energy management features that reduce power consumption during low network activity periods. Thermal efficiency is also optimized through intelligent heat distribution, ensuring that the adapter operates within safe temperature ranges even under sustained high-load conditions. This contributes to improved server longevity and reduced cooling costs.

Scalability in Enterprise Networks

The scalable nature of the 634025-001 HPE 331FLR Gigabit Ethernet Card makes it ideal for growing IT environments. Organizations can deploy multiple servers equipped with this adapter to build scalable network architectures that can handle increasing data demands without requiring immediate upgrades to higher-speed infrastructure. Its compatibility with existing Gigabit Ethernet infrastructure also allows businesses to extend the lifecycle of their network investments while gradually transitioning to more advanced technologies.

Integration with Hybrid Cloud Systems

In hybrid cloud environments, the adapter plays a crucial role in maintaining stable connectivity between on-premises infrastructure and cloud-based services. Its reliable performance ensures seamless data synchronization and workload migration between environments.

Security Features and Network Protection

Security is an essential aspect of enterprise networking, and the HPE 331FLR Ethernet Card supports multiple features that enhance network protection. These include hardware-level packet filtering, VLAN segmentation, and compatibility with enterprise firewalls and intrusion detection systems. By isolating network traffic and supporting secure segmentation strategies, the adapter helps reduce the risk of unauthorized access and data breaches within corporate environments.
