ASR5K-SPS3-BNC-K9 Cisco ASR 5000 Common Card Switch Processor I/O

Overview Cisco ASR5K-SPS3-BNC-K9 Switch Processor I/O

The Cisco ASR5K-SPS3-BNC-K9 is a specialized Common Card Switch Processor designed for the ASR 5000 Series. It integrates advanced synchronization, multiple interface options, and high-availability features, making it ideal for carrier-grade telecommunications and mobile backhaul environments.

General Information

• Manufacturer: Cisco
• Model Number: ASR5K-SPS3-BNC-K9
• Category: Router / Switch Processor Module

Technical Specifications

Clock Source

• Integrated Stratum 3 (SPS3) high-stability clock
• Provides precision timing for frequency synchronization

BITS Interface

• BNC (coaxial) connectors for Building Integrated Timing Supply (BITS) input/output

Applications

• Carrier-grade environments requiring strict synchronization
• Optimized for mobile backhaul deployments

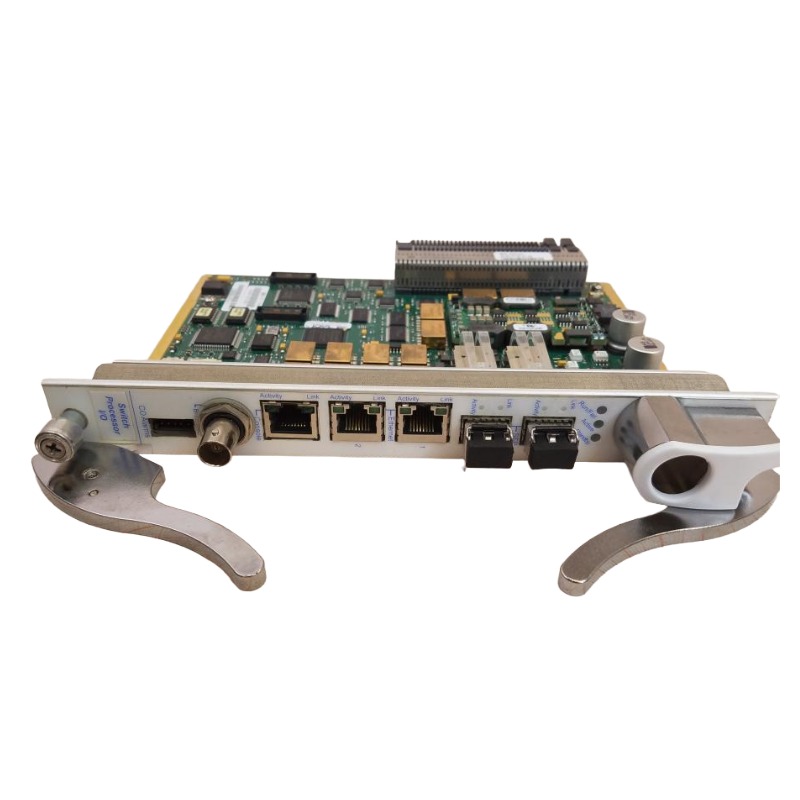

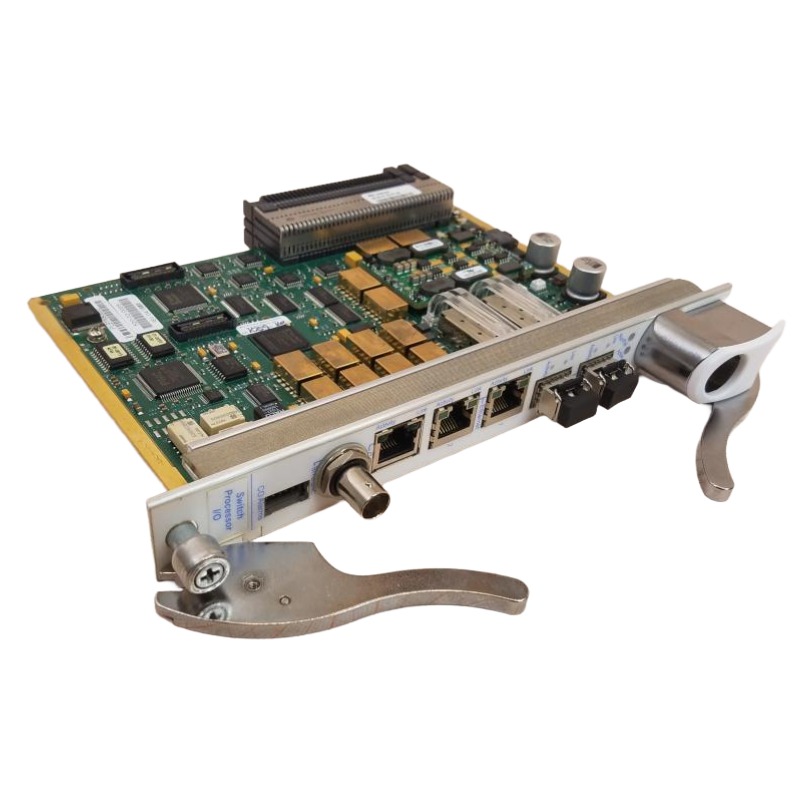

Physical Interfaces

Management Access

• 1 x RJ-45 console port (RS-232) for local CLI management

Optical Ethernet

• 2 x Gigabit Ethernet SFP slots for high-speed connectivity

Copper Ethernet

• 2 x 10/100 Mbps RJ-45 Fast Ethernet ports

External Alarms

• 1 x 10-pin Molex Central Office (CO) alarm interface for monitoring chassis health

Hardware & Power

Chassis Compatibility

• Plug-in module for Cisco ASR 5000 multimedia core platform

Power Consumption

• Approximately 20 Watts

Hot Swappable

• Supports removal and replacement without powering down the chassis

Redundancy

• Typically deployed in pairs for active/standby high-availability configurations

Cisco ASR5K-SPS3-BNC-K9 Common Card Switch I/O Overview

The Cisco ASR5K-SPS3-BNC-K9 ASR 5000 Common Card Switch Processor I/O module represents a critical component within the ASR 5000 Series architecture, delivering high-performance switching and processing capabilities tailored for modern service provider environments. Designed to meet the evolving demands of mobile packet core, broadband aggregation, and edge network deployments, this module ensures seamless traffic management, control plane efficiency, and reliable data forwarding across complex infrastructures. Its BNC interface configuration further enhances timing synchronization and connectivity precision, making it suitable for telecom-grade applications where timing accuracy is paramount.

Core Architecture and Functional Design

The architecture of the ASR5K-SPS3-BNC-K9 module is engineered to support carrier-grade scalability and performance. It integrates advanced switching fabrics with intelligent processing units, enabling efficient handling of control plane and data plane functions. The modular design allows for easy integration into existing ASR 5000 systems, providing flexibility for network expansion and upgrades. Its processing capabilities ensure consistent throughput even under heavy traffic conditions, supporting high-density subscriber environments and bandwidth-intensive applications.

Switch Processor Capabilities

The switch processor embedded within the module is optimized for rapid packet switching and intelligent traffic routing. It ensures minimal latency and high throughput by leveraging advanced hardware acceleration techniques. The processor manages multiple data streams simultaneously, ensuring that network congestion is minimized while maintaining optimal performance levels. This makes it particularly effective for service providers delivering real-time services such as voice, video, and data streaming.

Integrated I/O Functionality

The integrated input and output capabilities of the module facilitate seamless communication between different components of the ASR 5000 system. The I/O interfaces are designed to handle high-speed data transfer while maintaining signal integrity. This ensures that data packets are transmitted accurately and efficiently, reducing the risk of packet loss or corruption. The integration of BNC connectors adds an additional layer of reliability for timing synchronization and signal distribution.

BNC Interface and Timing Synchronization

The inclusion of BNC interfaces in the ASR5K-SPS3-BNC-K9 module highlights its suitability for telecom environments that require precise timing synchronization. BNC connectors are widely used for transmitting timing signals, including clock synchronization and frequency distribution. This ensures that all network elements operate in harmony, which is essential for maintaining service quality in mobile and broadband networks.

Importance of Accurate Timing

Accurate timing synchronization is crucial in modern network infrastructures, particularly in mobile packet core networks where latency and jitter can significantly impact service quality. The BNC interface enables the module to receive and distribute timing signals with high precision, ensuring that all connected components remain synchronized. This is especially important for technologies such as LTE and 5G, where strict timing requirements must be met.

Enhanced Network Stability

By providing reliable timing synchronization, the module contributes to overall network stability and performance. It reduces the likelihood of synchronization errors, which can lead to service disruptions or degraded performance. This makes the ASR5K-SPS3-BNC-K9 module an essential component for operators seeking to maintain high levels of service reliability.

Performance Optimization in High-Density Environments

The ASR5K-SPS3-BNC-K9 module is specifically designed to handle high-density traffic scenarios, making it ideal for large-scale deployments. Its advanced processing capabilities ensure that it can manage a high number of concurrent sessions without compromising performance. This is particularly beneficial for service providers operating in urban areas with high subscriber densities.

Scalability and Flexibility

Scalability is a key feature of the ASR 5000 Series, and the SPS3-BNC-K9 module plays a vital role in enabling this capability. It allows operators to expand their network capacity by adding additional modules as needed, without requiring significant changes to the existing infrastructure. This flexibility ensures that networks can grow in line with increasing demand, providing a cost-effective solution for long-term expansion.

Load Balancing and Traffic Management

The module incorporates advanced load balancing mechanisms that distribute traffic evenly across available resources. This ensures optimal utilization of network capacity and prevents bottlenecks that can degrade performance. The intelligent traffic management capabilities also enable prioritization of critical services, ensuring that high-priority traffic is delivered without delay.

Integration with ASR 5000 Series Ecosystem

The ASR5K-SPS3-BNC-K9 module is fully compatible with the broader ASR 5000 Series ecosystem, allowing seamless integration with other components such as line cards, control processors, and service modules. This interoperability ensures that the module can be deployed in a wide range of network configurations, supporting diverse service requirements.

Compatibility with Existing Infrastructure

One of the key advantages of the module is its compatibility with existing ASR 5000 systems. This allows network operators to upgrade their infrastructure without the need for complete system replacement. The module can be easily installed and configured, minimizing downtime and ensuring a smooth transition to enhanced performance capabilities.

Advanced Networking Protocols

The module supports a wide range of networking protocols, enabling it to handle various types of traffic and services. This includes support for IP-based services, mobile packet core functions, and broadband applications. The ability to support multiple protocols ensures that the module can adapt to changing network requirements and emerging technologies.

Energy Efficiency and Thermal Management

Energy efficiency is an important consideration in modern network deployments, and the ASR5K-SPS3-BNC-K9 module is designed to optimize power consumption. It incorporates energy-efficient components and intelligent power management features that reduce overall energy usage without compromising performance.

Optimized Power Consumption

The module’s design focuses on minimizing power consumption while maintaining high performance levels. This is achieved through the use of advanced semiconductor technologies and efficient power management algorithms. Reduced power consumption not only lowers operational costs but also contributes to environmental sustainability.

Thermal Control Mechanisms

Effective thermal management is essential for maintaining the performance and longevity of network components. The module includes advanced cooling and thermal control mechanisms that ensure optimal operating temperatures. This prevents overheating and reduces the risk of hardware failures, enhancing overall system reliability.

Deployment Scenarios and Use Cases

The ASR5K-SPS3-BNC-K9 module is suitable for a wide range of deployment scenarios, including mobile packet core networks, broadband aggregation, and edge computing environments. Its versatility makes it a valuable asset for service providers seeking to deliver high-quality services across diverse applications.

Mobile Network Infrastructure

In mobile network deployments, the module plays a critical role in managing subscriber sessions and ensuring efficient data routing. Its high-performance capabilities enable it to handle the demands of modern mobile networks, including LTE and 5G services.

Broadband and Edge Applications

For broadband and edge computing applications, the module provides the processing power and connectivity required to deliver high-speed internet services. It supports the aggregation of traffic from multiple sources, ensuring efficient data distribution and improved user experience.
