C9800-L-F-K9 Cisco Catalyst 9800-L Wireless LAN Controller

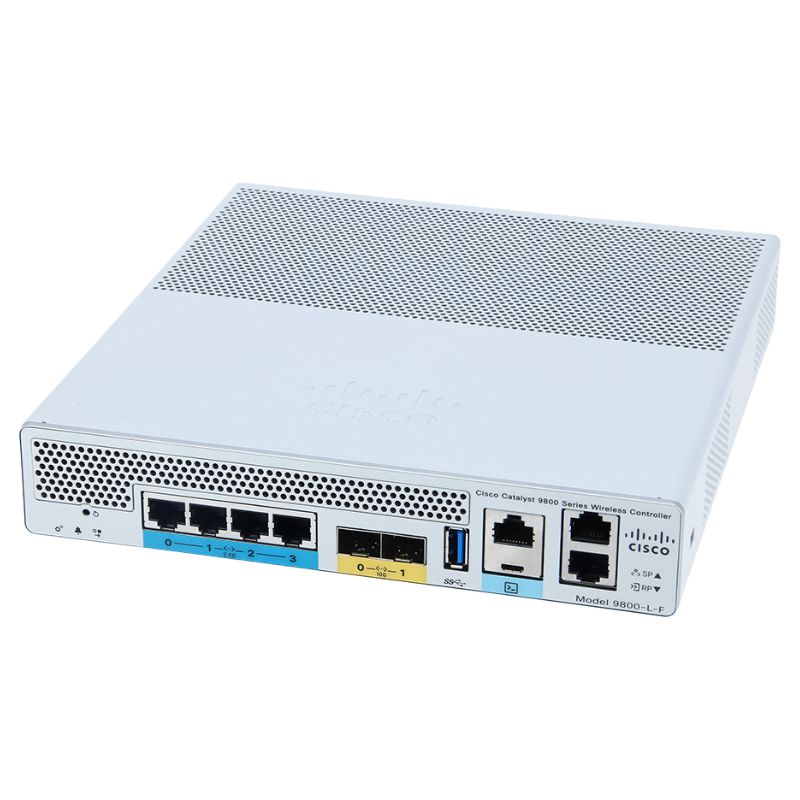

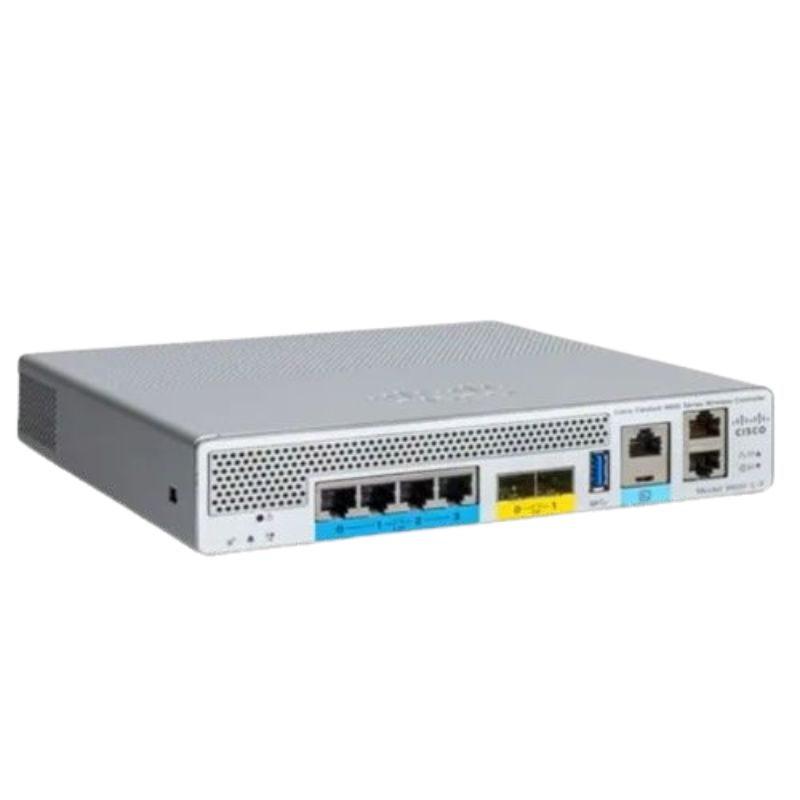

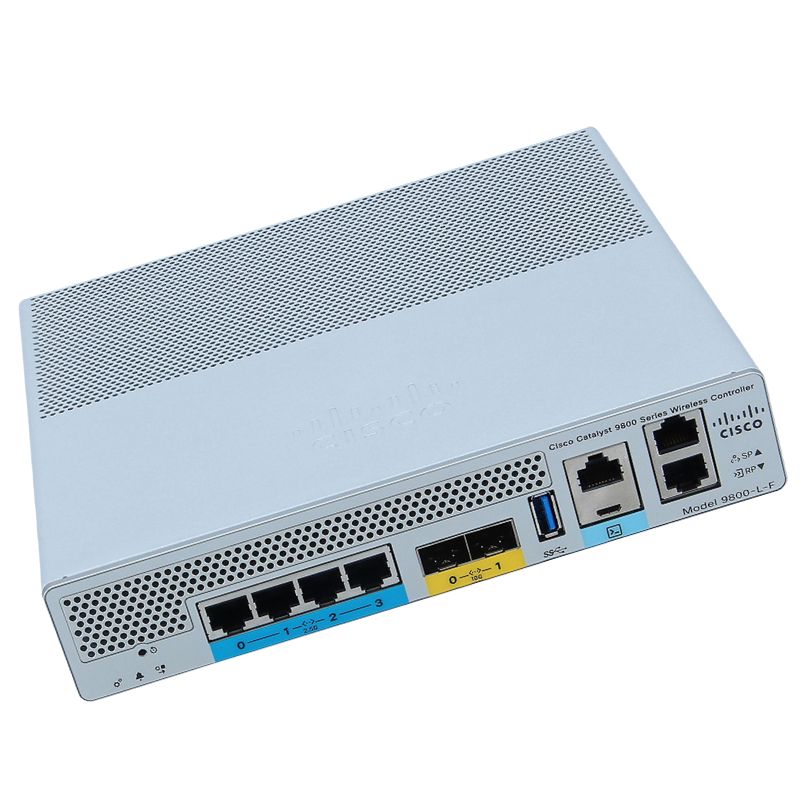

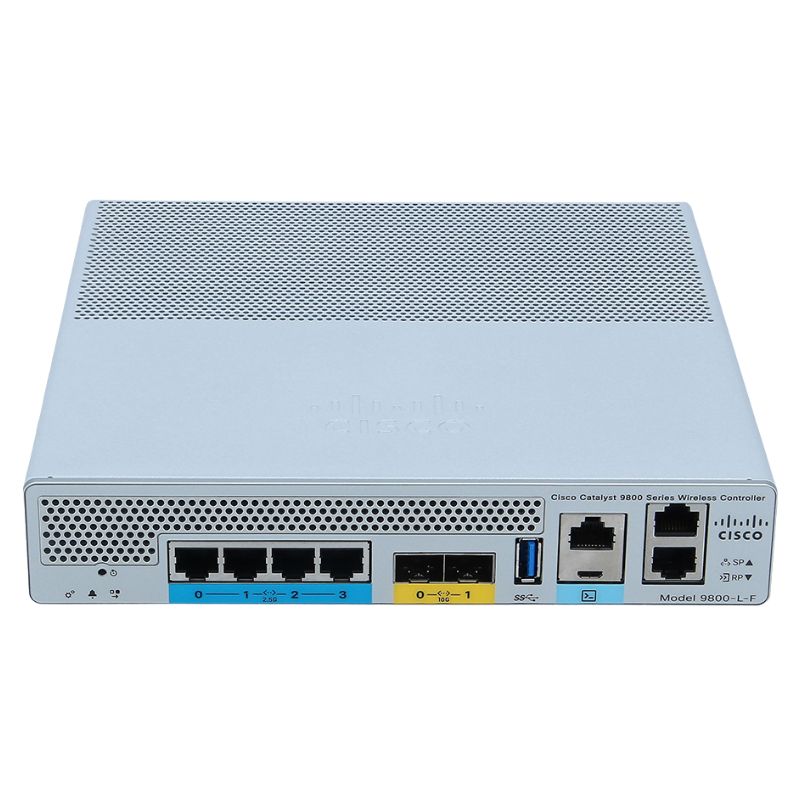

Cisco C9800-L-F-K9 Catalyst 9800-L Wireless Controller

Product Overview

The Cisco C9800-L-F-K9 Catalyst 9800-L Wireless LAN Controller is a next-generation enterprise-grade wireless management solution designed to deliver secure, scalable, and high-performance Wi-Fi control. Built by Cisco, this advanced wireless controller is optimized for modern network environments that demand reliability, flexibility, and seamless connectivity across multiple access points.

General Information

• Manufacturer: Cisco Systems
• Part Number: C9800-L-F-K9
• Product Type: Wireless LAN Controller (WLC)

Key Features and Advantages

High-Performance Wireless Management

• Optimized for enterprise Wi-Fi environments
• Ensures smooth handling of thousands of wireless clients
• Designed for stable and secure access point control

Scalability and Efficiency

• Supports up to 250 access points
• Handles up to 5000 concurrent clients
• Ideal for growing business networks and campus deployments

Advanced Networking Capabilities

• Maximum throughput up to 5 Gbps for high-speed data transfer
• Supports up to 4096 WLANs for flexible network segmentation
• Up to 4096 VLANs for advanced traffic management and isolation

Technical Specifications

Physical Dimensions

• Height: 1.58 in (4.02 cm)
• Width: 8.5 in (21.59 cm)
• Depth: 9.06 in (23.01 cm)

Power and Energy Details

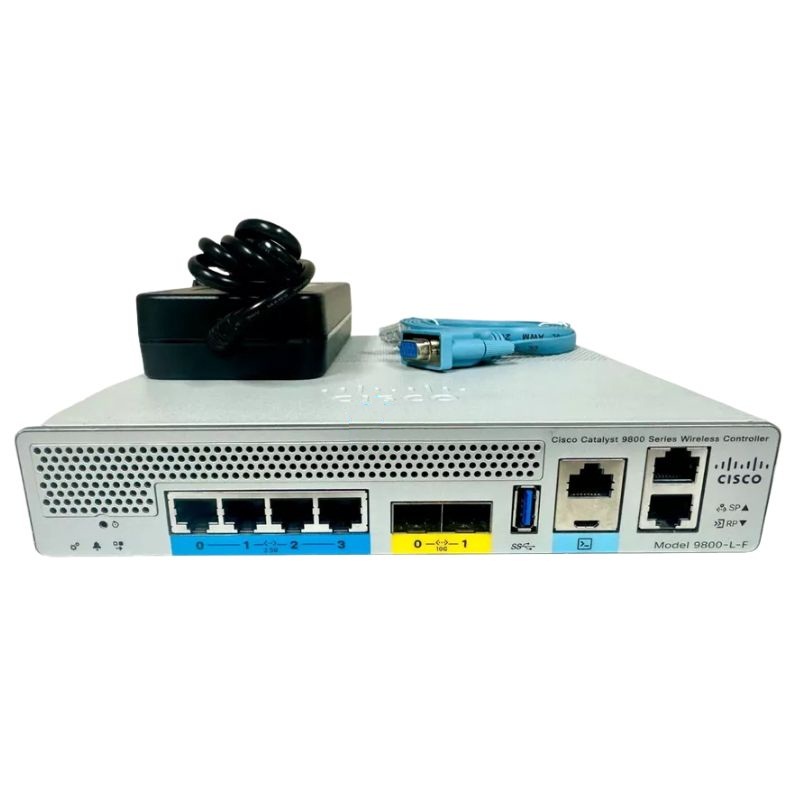

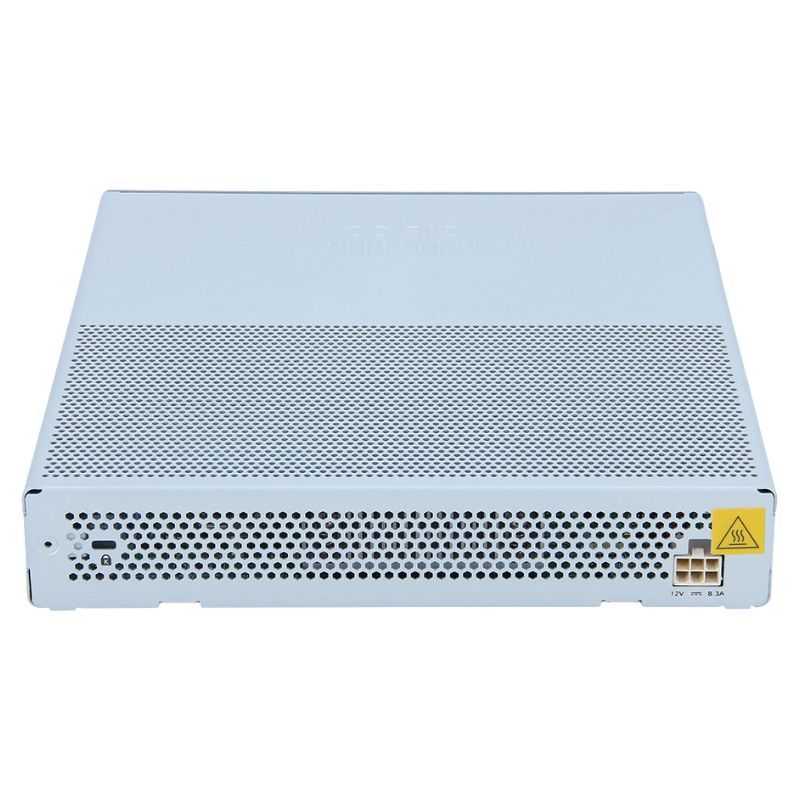

• Power Supply: 110W, 12V DC AC/DC adapter included
• Maximum Power Consumption: 84.5W
• Includes load assumptions with SFP and USB power usage

Uplink and Connectivity Options

• 2x 10G Multigigabit copper uplinks
• OR 2x 10G Multigigabit fiber uplinks
• Flexible deployment in hybrid network infrastructures

Performance and Network Capacity

Wireless Capacity

• Supports up to 250 wireless access points
• Handles up to 5000 simultaneous clients efficiently
• Ideal for high-density enterprise environments

Throughput and Speed

• Maximum throughput of 5 Gbps
• Optimized for fast roaming and low-latency connections
• Reliable performance for mission-critical applications

Deployment Use Cases

Enterprise Networks

• Corporate offices requiring centralized Wi-Fi control
• Secure wireless access for employees and guests
• Scalable infrastructure for growing organizations

Branch and Campus Networks

• Supports distributed network environments
• Centralized policy enforcement across locations
• Efficient management of multiple access points

Service Provider and Managed Networks

• Suitable for managed Wi-Fi services
• Supports large-scale client deployments
• Reliable backbone for wireless service delivery

Benefits of Cisco Catalyst 9800-L Controller

Security and Reliability

• Advanced security architecture for wireless protection
• Stable and resilient network performance
• Minimized downtime with intelligent management features

Operational Simplicity

• Easy integration with Cisco wireless ecosystem
• Streamlined configuration and monitoring tools
• Reduced operational complexity for IT teams

Future-Ready Architecture

• Designed for modern digital transformation needs
• Supports high-density wireless environments
• Flexible scalability for future network expansion

Cisco C9800-L-F-K9 Catalyst 9800-L Wireless LAN Controller

The Cisco C9800-L-F-K9 Catalyst 9800-L Wireless LAN Controller represents a modern enterprise-grade wireless control platform designed to deliver highly secure, resilient, and scalable wireless network management for organizations of varying sizes. Built as part of the Cisco Catalyst 9800 Series and powered by Cisco IOS XE, this controller is engineered to simplify wireless operations while improving performance, visibility, and automation across complex network environments. As part of the broader enterprise networking portfolio from Cisco Systems, the platform integrates advanced wireless capabilities that align with the demands of digital transformation, hybrid workplaces, and high-density connectivity scenarios.

Product Positioning in Enterprise Wireless Networking

The Catalyst 9800-L Wireless LAN Controller is positioned as a mid-range yet highly capable controller suitable for small to medium enterprises and distributed branch deployments. It bridges the gap between compact wireless controllers and large-scale data center-based wireless infrastructures. Designed for flexibility, it supports both on-premises and virtual deployment environments depending on organizational requirements. This adaptability allows enterprises to maintain consistent wireless policy enforcement regardless of physical infrastructure constraints.

It is optimized for environments requiring secure access, seamless roaming, and centralized control of wireless access points. The controller is particularly effective in enterprise campuses, educational institutions, healthcare environments, and retail networks where uninterrupted wireless connectivity is critical.

Architecture and Platform Design

The Cisco C9800-L-F-K9 is built on a modular and resilient architecture that leverages Cisco IOS XE software, offering programmability, automation, and advanced telemetry. The architecture is designed to decouple control and data plane operations, ensuring efficient traffic handling even under heavy network load. This separation enhances scalability and allows administrators to manage wireless networks more effectively.

Hardware Foundation and System Efficiency

The hardware design of the Catalyst 9800-L emphasizes reliability and performance optimization. It is engineered to handle a significant number of access points and client connections while maintaining low latency and high throughput. The system is built with redundancy considerations and supports high availability configurations to ensure minimal service disruption in enterprise environments.

Performance Optimization Layer

The performance layer of the controller integrates intelligent packet processing and wireless traffic optimization mechanisms. These capabilities allow the system to efficiently distribute bandwidth, prioritize mission-critical applications, and reduce congestion in high-density deployments. The controller dynamically adjusts wireless resource allocation based on real-time network conditions.

IOS XE Software Integration

At the core of the C9800-L-F-K9 is Cisco IOS XE, a robust network operating system that enables advanced programmability and automation features. IOS XE supports model-driven telemetry, REST APIs, and YANG data models, allowing network administrators to automate configuration tasks and gain real-time insights into network behavior. This modern software architecture significantly improves operational efficiency and reduces manual configuration errors.

Wireless LAN Management Capabilities

The Catalyst 9800-L provides centralized wireless LAN management, enabling administrators to configure, monitor, and troubleshoot access points and wireless clients from a unified interface. This centralized approach enhances consistency in policy enforcement and simplifies large-scale wireless network administration.

Access Point Control and Lifecycle Management

The controller manages the full lifecycle of access points, including discovery, provisioning, configuration, and ongoing monitoring. It supports seamless onboarding of new access points and ensures consistent configuration alignment across distributed wireless environments. This reduces deployment complexity and improves operational efficiency.

Configuration Consistency Mechanism

Configuration consistency is maintained through automated policy synchronization. Once a configuration template is defined, it is propagated across all connected access points, ensuring uniform behavior and eliminating configuration drift. This capability is particularly valuable in large enterprise environments where manual configuration can introduce inconsistencies.

Advanced Security Framework

Security is a foundational element of the Cisco C9800-L-F-K9 Catalyst 9800-L Wireless LAN Controller. It incorporates multiple layers of protection to safeguard wireless communications, prevent unauthorized access, and ensure data integrity across the network. The security framework is designed to address modern cybersecurity threats while maintaining seamless user access.

Authentication and Access Control Mechanisms

The controller supports advanced authentication protocols, including enterprise-grade identity management systems and secure key exchange mechanisms. It integrates with identity services to enforce role-based access control, ensuring that users and devices are granted appropriate network privileges based on predefined policies.

Encryption and Data Protection

Wireless data transmitted through the controller is protected using robust encryption standards. These encryption mechanisms safeguard sensitive information from interception and unauthorized access. The system continuously updates security protocols to align with evolving industry standards.

Threat Detection and Mitigation

The controller includes built-in mechanisms for detecting and mitigating wireless threats such as rogue access points, spoofing attempts, and unauthorized device connections. Continuous monitoring ensures rapid identification of anomalies within the wireless environment.

Scalability and Network Expansion

The Catalyst 9800-L is designed with scalability in mind, allowing organizations to expand their wireless infrastructure as operational demands grow. Its architecture supports incremental expansion without requiring major infrastructure redesigns. This scalability ensures long-term investment protection and operational flexibility.

Client and Access Point Scaling

The controller supports a significant number of concurrent client connections and access points, making it suitable for expanding enterprise networks. As organizations grow, additional wireless devices can be integrated seamlessly without degrading performance or stability.

Load Distribution Efficiency

Load distribution mechanisms ensure that wireless traffic is evenly balanced across available resources. This prevents congestion and maintains consistent performance even during peak usage periods. The system intelligently allocates resources based on network demand.

High Availability and Redundancy

High availability is a critical feature of the Cisco C9800-L-F-K9 platform. It ensures continuous wireless connectivity by minimizing downtime and providing redundancy mechanisms in case of system failure. This is essential for mission-critical environments where uninterrupted access is required.

Failover Mechanisms

The controller supports automatic failover capabilities, enabling backup systems to take over operations instantly in the event of a failure. This ensures that wireless services remain operational without manual intervention.

State Synchronization

State synchronization between active and standby systems ensures that session data and network configurations are preserved during failover events. This minimizes disruption and maintains seamless user experiences.

Deployment Flexibility and Network Integration

The Cisco C9800-L-F-K9 supports flexible deployment models that accommodate both physical and virtual environments. It can be integrated into existing enterprise networks with minimal disruption, making it suitable for phased upgrades and hybrid infrastructures.

On-Premises Deployment Scenarios

In on-premises environments, the controller provides direct management of wireless infrastructure within corporate data centers or branch offices. This setup offers organizations full control over network operations and security policies.

Hybrid Network Integration

Hybrid deployment scenarios allow organizations to combine on-premises and cloud-managed services. This flexibility enables optimized resource utilization and improved scalability while maintaining centralized control.

Cloud and Automation Capabilities

The Catalyst 9800-L integrates seamlessly with cloud-based management platforms and automation tools. This enables organizations to streamline network operations and reduce administrative overhead through intelligent automation workflows.

API-Driven Automation

The controller supports API-driven automation, allowing integration with third-party orchestration systems and network management platforms. This facilitates dynamic configuration updates and automated provisioning processes.

Mobility and Seamless Roaming

The Cisco C9800-L-F-K9 ensures seamless mobility for wireless clients across access points. This is essential for environments where users move frequently, such as campuses, hospitals, and large office buildings.

Fast Roaming Capabilities

Fast roaming mechanisms allow devices to switch between access points without noticeable disruption. This ensures uninterrupted connectivity for voice, video, and real-time applications.

Session Continuity Management

Session continuity features maintain active connections during mobility events, preventing session drops and ensuring consistent application performance.

RF Management and Wireless Optimization

Radio frequency management is a core component of the Catalyst 9800-L architecture. It dynamically optimizes wireless spectrum usage to reduce interference and improve signal quality across environments.

Dynamic Channel Allocation

The controller automatically assigns optimal channels to access points based on environmental conditions and interference patterns. This ensures efficient spectrum utilization and improved network performance.

Power Optimization Mechanisms

Transmit power levels are dynamically adjusted to balance coverage and reduce interference. This helps maintain consistent wireless performance across diverse deployment environments.

Enterprise Use Cases and Application Scenarios

The Catalyst 9800-L is widely used across various enterprise environments where reliable wireless connectivity is essential. It supports digital transformation initiatives by enabling scalable and secure wireless infrastructure.

Education and Campus Networks

In educational institutions, the controller supports high-density student and faculty connectivity, enabling seamless access to digital learning resources and online platforms.

Healthcare Environments

Healthcare organizations rely on the controller for secure and uninterrupted connectivity for medical devices, patient systems, and administrative applications.

Retail and Hospitality Networks

Retail and hospitality environments benefit from enhanced customer connectivity, secure payment processing, and centralized network management capabilities.
