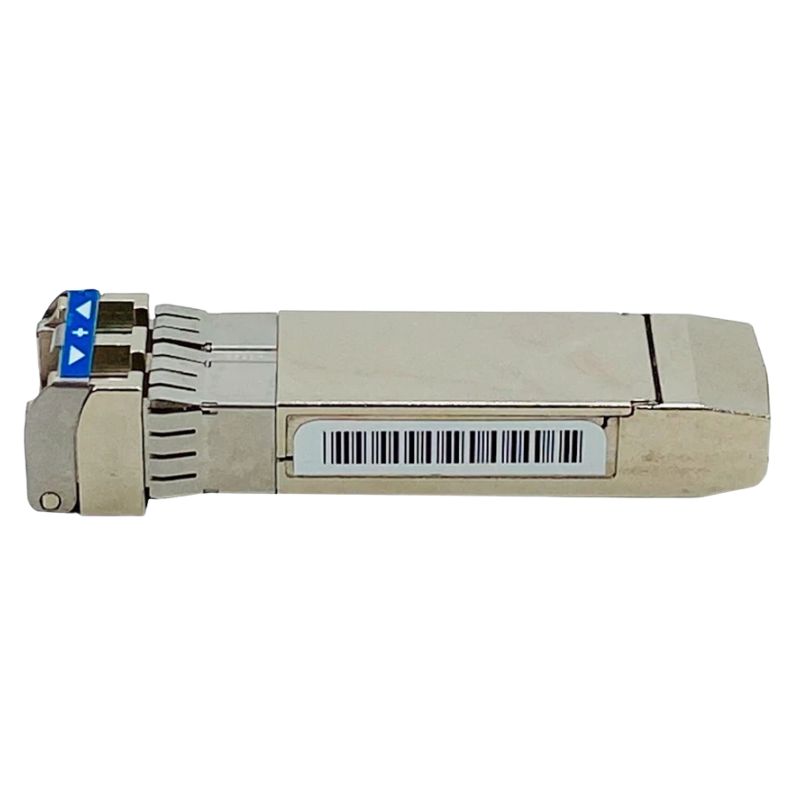

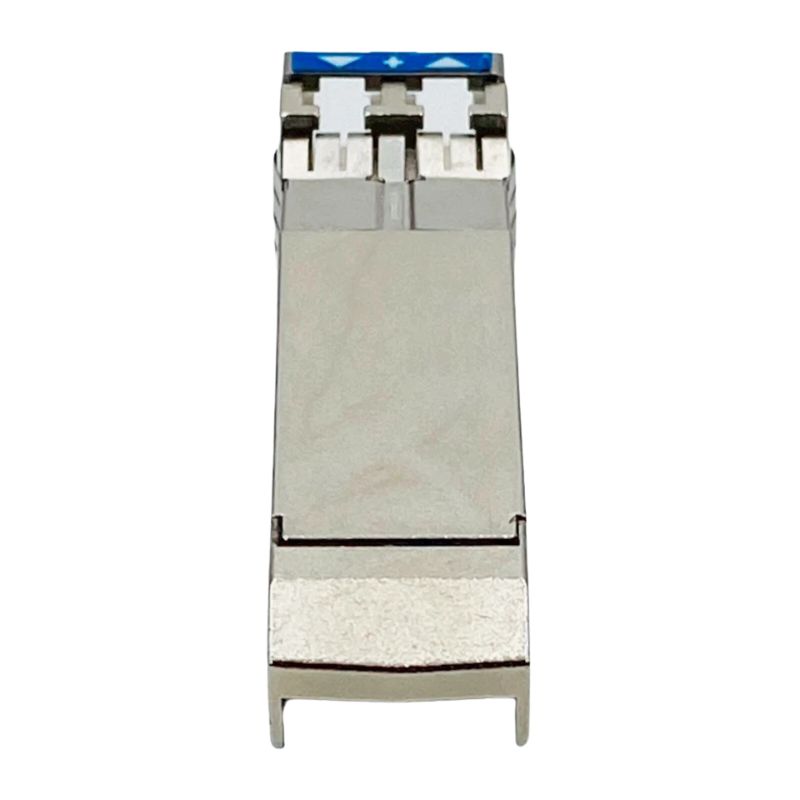

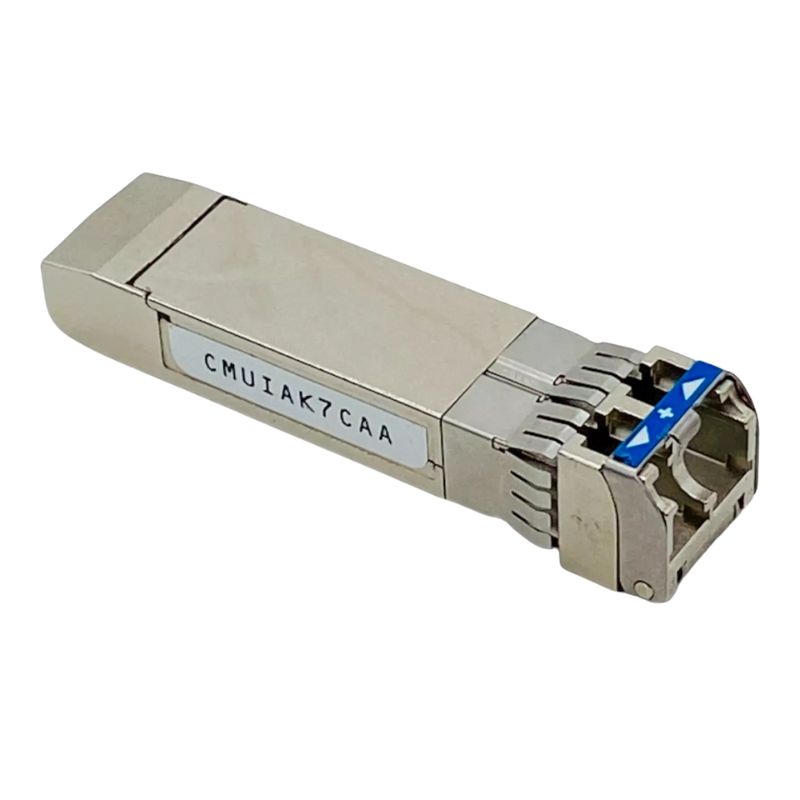

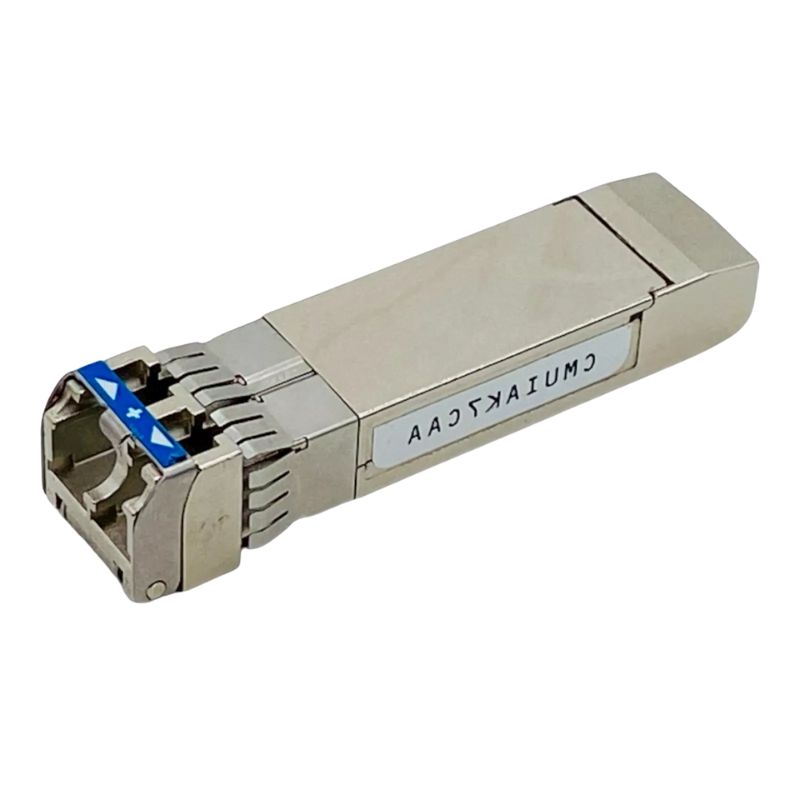

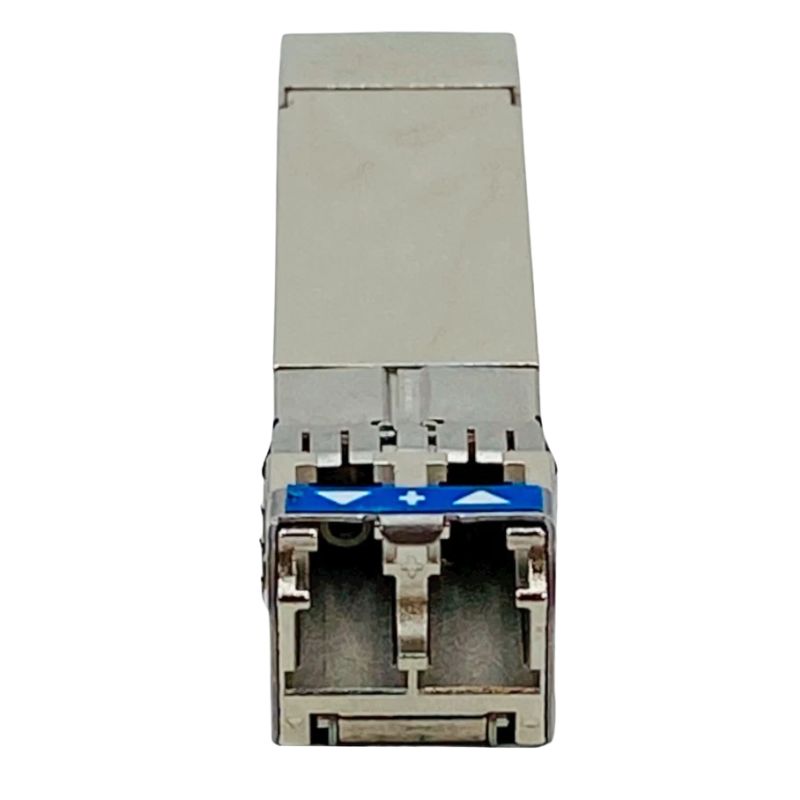

10-3107-01 Cisco SFP+ LC SM 10G Transceiver Module

Cisco 10-3107-01 10GBase-LR SFP+ Transceiver Overview

The Cisco 10-3107-01 is a high-speed 10 Gigabit Ethernet SFP+ transceiver module designed for long-distance optical data transmission over single-mode fiber (SMF). Built for enterprise-grade networking environments, this plug-in module ensures stable connectivity, low latency, and efficient data transfer performance for modern data centers and telecom infrastructures.

General Product Information

• Brand: Cisco
• Part Number: 10-3107-01
• Device Type: Optical Transceiver Module

Technical Specifications

• Data Rate: 10 Gbps high-speed transmission
• Network Standard: 10 Gigabit Ethernet (10GbE)
• Optical Wavelength: 1310 nm optimized laser output

Interface and Form Factor Design

• Hot-swappable SFP+ interface
• Compact modular design for flexible deployment
• Compatible with a wide range of Cisco networking devices

Optical Cabling and Connectivity

• Fiber Type: Single-Mode Fiber (SMF)
• Standard: 10GBase-LR
• Optimized for long-distance enterprise networking

Transmission Distance and Efficiency

• Maximum transmission distance: up to 6.2 miles (10 km approx.)
• High signal integrity across extended fiber runs
• Reduced attenuation for reliable communication

Performance and Reliability Benefits

• Supports ultra-fast 10Gbps data transfer rates
• Ensures stable and consistent network performance
• Hot-swappable design reduces downtime
• Ideal for enterprise and data center environments

Enterprise and Data Center Networking

• Data center interconnects
• Enterprise backbone networks
• Telecommunications infrastructure
• High-speed server-to-switch connectivity

Cisco 10-3107-01 10Gb/s Long Range SMF LC SFP+ Transceiver

The Cisco 10-3107-01 10Gb/s 10GBase-LR Long Range SMF LC SFP+ Transceiver represents a critical component in modern high-speed optical networking environments, designed to support reliable and efficient data transmission over long distances using single-mode fiber infrastructure. As networks evolve toward higher bandwidth demand and distributed infrastructure models, the role of 10GBase-LR transceivers becomes increasingly important in maintaining scalability and operational continuity.

This category of optical transceivers is widely deployed in backbone connections, aggregation layers, and inter-building links where copper cabling is insufficient due to distance limitations or electromagnetic interference risks. The Cisco 10-3107-01 is specifically optimized for long-reach applications over single-mode fiber (SMF), making it a preferred choice in scenarios requiring transmission distances of up to 10 kilometers under standard operating conditions.

Architectural Design and Engineering

The internal architecture of the 10GBase-LR SFP+ transceiver is based on high-precision laser transmission technology operating at the 1310nm wavelength. This wavelength is ideal for long-distance propagation over single-mode fiber due to its low attenuation characteristics and minimal dispersion over extended ranges. The module integrates both a high-performance laser transmitter and a sensitive photodiode receiver, enabling full-duplex communication at 10Gb/s speeds.

Within this architecture, signal integrity is preserved through advanced digital signal processing mechanisms that help minimize jitter, noise, and optical distortion. The transceiver converts electrical signals from network devices into optical signals for transmission and then back into electrical signals at the receiving end, ensuring seamless data exchange across network nodes.

SFP+ Form Factor Advantages

The SFP+ form factor is a compact, hot-pluggable interface standard that enables flexible deployment across a wide range of networking equipment. Compared to earlier transceiver formats, SFP+ modules such as the Cisco 10-3107-01 provide higher port density, improved power efficiency, and enhanced thermal performance.

This compact design allows network engineers to maximize port utilization on switches and routers while maintaining high-speed connectivity. The reduced footprint is particularly beneficial in high-density data center environments where space optimization is a key operational requirement.

Hot-Swappable Functionality

One of the defining characteristics of SFP+ modules is their hot-swappable capability. This means that the Cisco 10-3107-01 can be installed or removed without shutting down the host device. This feature significantly reduces downtime and enables seamless maintenance operations, upgrades, or replacements in live network environments.

Hot-swapping also supports dynamic network scalability, allowing administrators to adapt infrastructure in real time as bandwidth requirements evolve. This operational flexibility is a core reason why SFP+ transceivers are widely adopted in enterprise and carrier-grade systems.

10GBase-LR Standard and Transmission Capabilities

Understanding 10GBase-LR Technology

The 10GBase-LR standard defines a long-range Ethernet specification designed for 10 Gigabit per second transmission over single-mode fiber. The "LR" designation stands for "Long Range," indicating its ability to support distances significantly greater than short-range optical standards such as 10GBase-SR. In typical deployments, 10GBase-LR transceivers achieve transmission distances of up to 10 kilometers, depending on fiber quality and network conditions.

This makes the Cisco 10-3107-01 highly suitable for campus networks, metropolitan area networks, and inter-building connections where extended reach is essential without compromising data integrity or throughput.

Single-Mode Fiber and LC Connector Interface

The transceiver operates exclusively with single-mode fiber (SMF), which is designed for long-distance optical transmission with minimal signal dispersion. SMF uses a narrow core that allows light to travel in a single path, significantly reducing modal dispersion and enabling higher bandwidth over longer distances.

The LC duplex connector interface is a widely adopted industry standard for SFP+ modules. It provides a compact, secure, and high-precision connection between the transceiver and fiber optic cabling. The LC connector ensures stable alignment of optical fibers, reducing insertion loss and maintaining consistent signal quality.

Wavelength Optimization and Signal Integrity

Operating at approximately 1310nm wavelength, the Cisco 10-3107-01 is optimized for long-distance transmission with reduced chromatic dispersion. This wavelength is considered ideal for medium to long-range optical communication because it balances attenuation and dispersion characteristics effectively.

Signal integrity is further enhanced through built-in calibration mechanisms that maintain consistent optical power output and receiver sensitivity across varying environmental conditions.

Network Integration and Cisco Ecosystem Compatibility

Seamless Integration with Cisco Networking Hardware

This compatibility ensures that enterprises can deploy standardized optical solutions across heterogeneous network architectures.

Cisco devices often include firmware-level validation mechanisms that recognize and optimize performance for genuine Cisco optical modules. This ensures consistent interoperability, reduced configuration complexity, and improved diagnostic visibility across network layers.

Role in Data Center and Enterprise Networks

In modern data centers, the demand for high-speed, low-latency connectivity is constantly increasing due to virtualization, cloud computing, and distributed application architectures. The Cisco 10-3107-01 supports these requirements by providing reliable 10GbE connectivity between servers, storage systems, and network aggregation layers.

Enterprise environments also benefit from its long-range capabilities, particularly in campus deployments where multiple buildings must be interconnected without sacrificing bandwidth. The transceiver enables unified network design across geographically separated infrastructure.

Operational Stability in High-Density Deployments

High-density environments require transceivers that maintain performance under thermal and electrical stress conditions. The Cisco 10-3107-01 is engineered with robust thermal management and power efficiency characteristics that ensure stable operation even in densely populated switch chassis.

This reliability reduces the risk of packet loss, signal degradation, or hardware failure, which is critical in mission-critical applications such as financial systems, healthcare networks, and cloud infrastructure.

Predictive Maintenance and Network Optimization

The availability of real-time diagnostic data allows for predictive maintenance strategies, where potential failures can be addressed before they occur. This improves network reliability and reduces operational costs associated with emergency repairs or unplanned outages.

Performance optimization is also enhanced through detailed visibility into signal strength and link quality, enabling fine-tuning of network configurations for maximum efficiency.

Performance Characteristics and Optimization Strategies

Latency and Throughput Efficiency

The Cisco 10-3107-01 is engineered to deliver ultra-low latency performance, making it suitable for time-sensitive applications such as high-frequency trading, real-time analytics, and cloud computing workloads. Its 10Gb/s throughput capacity ensures that large volumes of data can be transmitted efficiently without bottlenecks.

Latency optimization is achieved through high-quality optical components and minimal signal processing delay within the transceiver module.

Bandwidth Scalability in Modern Networks

As network demand increases, scalability becomes a critical requirement. The 10GBase-LR standard allows organizations to scale bandwidth incrementally by deploying multiple SFP+ links across their infrastructure. This modular scalability ensures that networks can evolve without requiring complete architectural redesigns.

Traffic Optimization in Aggregation Layers

In aggregation network layers, the Cisco 10-3107-01 plays a key role in consolidating traffic from multiple access points into high-speed backbone links. This ensures efficient traffic flow and reduces congestion in core network pathways.

Reliability, Compliance, and Lifecycle Performance

Durability and Operational Lifespan

The Cisco 10-3107-01 is designed for long-term operational reliability, with robust components capable of sustaining continuous high-speed data transmission over extended periods. Its durability ensures consistent performance in demanding enterprise environments.

Standards Compliance and Industry Certification

This transceiver complies with major Ethernet and optical networking standards, ensuring interoperability across multi-vendor environments. Compliance with IEEE 802.3 10GBASE-LR specifications guarantees consistent performance and compatibility across certified networking devices.

Long-Term Deployment Stability

Lifecycle stability is a key factor in enterprise procurement decisions. The Cisco 10-3107-01 offers predictable performance characteristics over time, reducing the need for frequent replacements and ensuring stable network infrastructure planning.

Advanced Deployment Scenarios

Campus Backbone Connectivity

In campus network architectures, the Cisco 10-3107-01 is frequently used to interconnect multiple buildings, providing a unified high-speed backbone. This enables centralized data management and efficient resource sharing across departments and facilities.

Metropolitan Area Network Applications

Within metropolitan area networks, long-range SFP+ transceivers support connectivity between geographically dispersed network nodes. This allows service providers and large enterprises to extend their infrastructure across cities while maintaining high-speed performance.

Cloud and Virtualization Infrastructure Support

Cloud computing environments rely heavily on high-speed interconnects between compute clusters, storage arrays, and virtualization platforms. The Cisco 10-3107-01 supports these environments by ensuring stable and high-bandwidth communication pathways essential for distributed workloads.

Future-Proofing and Evolution of Optical Networking

Transition Toward Higher Bandwidth Architectures

While 10GbE remains widely deployed, many organizations are gradually transitioning toward 25GbE, 40GbE, and beyond. However, the Cisco 10-3107-01 continues to play a vital role in existing infrastructure, providing cost-effective and reliable performance for established networks.

Interoperability with Emerging Network Technologies

The flexibility of SFP+ based architectures ensures that 10GBase-LR modules remain relevant in hybrid network environments where multiple speed standards coexist. This interoperability supports gradual network evolution without disruptive overhauls.
