AIR-CAP3602I-A-K9 Cisco Fast Ethernet Wireless Access Point 450MBPS

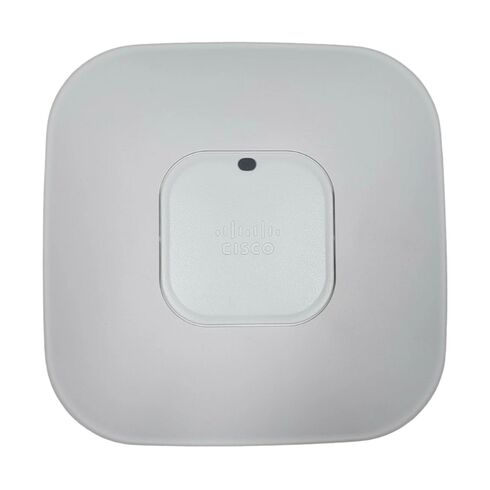

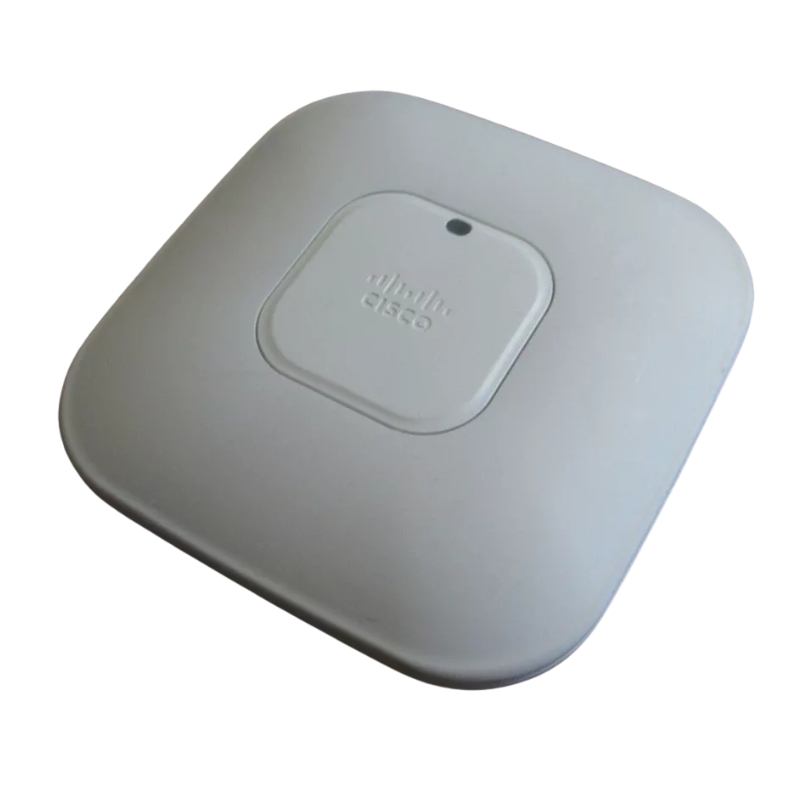

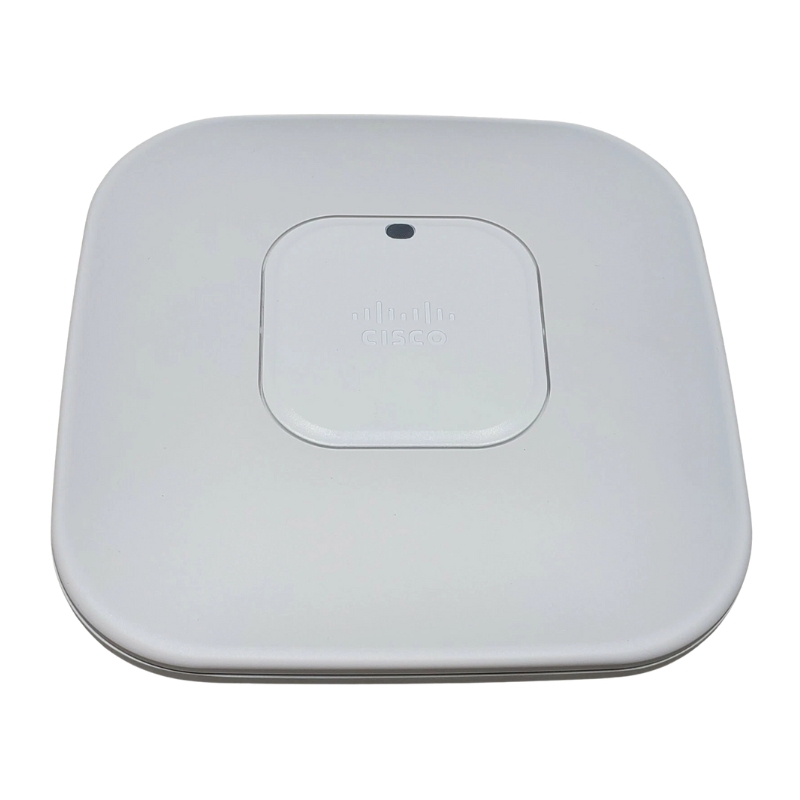

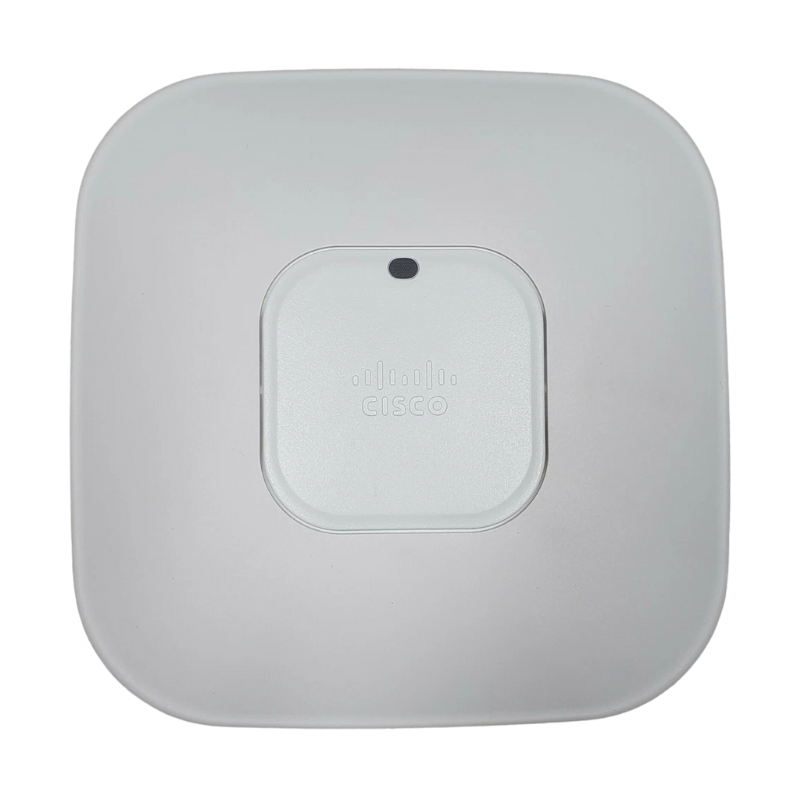

The Cisco AIR-CAP3602I-A-K9 Aironet 3602I Access Point

The Cisco AIR-CAP3602I-A-K9 Aironet 3602I Wireless Access Point is an enterprise-class controller-based Wi-Fi solution engineered for high-density business environments. Supporting dual-band IEEE 802.11a/b/g/n wireless standards, advanced 4x4 MIMO technology, Cisco CleanAir intelligence, and Power over Ethernet (PoE), this access point delivers reliable wireless connectivity with data transfer speeds of up to 450 Mbps per band. Its modular architecture also enables future upgrades to 802.11ac, making it a scalable solution for growing enterprise networks.

General Specifications

• Manufacturer: Cisco
• Part Number: AIR-CAP3602I-A-K9
• Product Series: Cisco Aironet 3600 Series
• Product Type: Wireless Access Point

Technical Product Information

• Product Model: Aironet 3602I
• Deployment Type: Controller-Based Enterprise Access Point
• Wireless Interface: IEEE 802.11a/b/g/n
• Wireless Standards: IEEE 802.11a, 802.11b, 802.11g, 802.11n
• Upgradeable Standard: IEEE 802.11ac (via optional module)
• Frequency Bands: 2.4 GHz and 5 GHz
• Maximum Data Rate: Up to 450 Mbps per band
• MIMO Configuration: 4x4:3 Spatial Streams
• Antenna Type: Internal Omnidirectional

Hardware Specifications

• Device Type: Wireless Access Point
• Enclosure: External

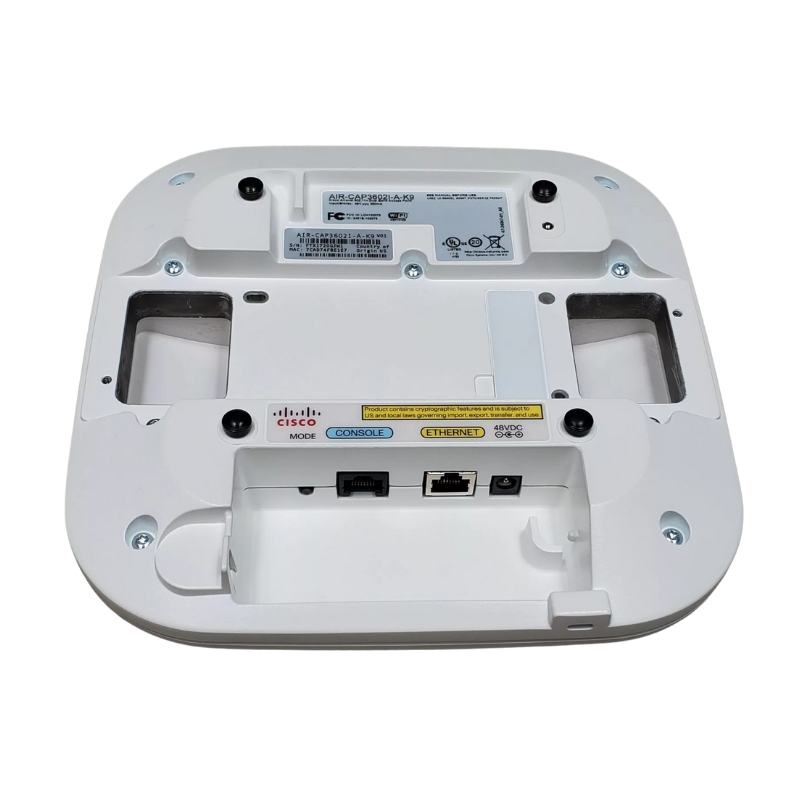

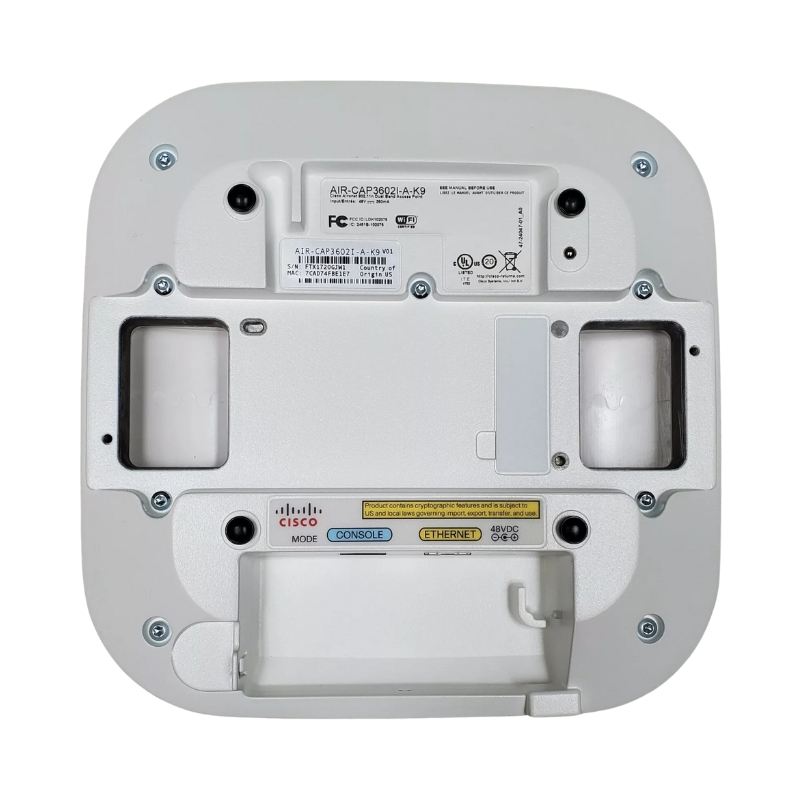

• Ethernet Port: 1 × 10/100/1000BASE-T RJ-45
• Console Port: 1 × RJ-45
• Installed Memory: 256 MB DRAM
• Flash Memory: 32 MB
• Power Source: IEEE 802.3af Power over Ethernet
• Maximum Power Draw: 16.1 Watts
• System Memory: 256 MB DRAM
• Flash Memory: 32 MB

High-Speed Dual-Band Connectivity

• Dual-band IEEE 802.11a/b/g/n support
• Maximum wireless throughput up to 450 Mbps per band
• Concurrent 2.4 GHz and 5 GHz operation
• Optimized for enterprise wireless deployments

Advanced Wireless Technologies

• 4x4 MIMO with three spatial streams
• Cisco CleanAir interference mitigation
• Maximum Ratio Combining (MRC)
• Wi-Fi Multimedia (WMM) support
• Auto-sensing device capability

Internal Antenna Design

• Integrated internal antennas
• 360° horizontal beamwidth
• Optimized indoor wireless coverage
• Ideal for office and campus environments

Network Connectivity

• 1 × 10/100/1000BASE-T RJ-45 Gigabit Ethernet port
• 1 × RJ-45 Console Management port
• Autosensing Ethernet interface

Power Specifications

• Power over Ethernet (IEEE 802.3af PoE)
• Maximum Power Consumption: 16.1 Watts
• Simplified installation using a single network cable

Security & Network Optimization

• Cisco CleanAir Technology
• Maximum Ratio Combining (MRC)
• Wi-Fi Multimedia (WMM)
• Power over Ethernet support
• Controller-based centralized management

Overview of Cisco AIR-CAP3602I-A-K9 Aironet Access Point

The Cisco AIR-CAP3602I-A-K9 Aironet 3602I CTRLR-Based Fast Ethernet 450MBPS Wireless Access Point is engineered to deliver enterprise-class wireless connectivity with internal antenna design and controller-based management. Built on IEEE 802.11n standards, this device ensures scalable throughput, reliable integration, and seamless deployment in dense infrastructures. Its architecture supports modern workloads, delivering consistent bandwidth, optimized traffic management, and enhanced flexibility for mission-critical applications across diverse industries.

IEEE 802.11n Connectivity

The Cisco AIR-CAP3602I-A-K9 leverages IEEE 802.11n technology to provide high-speed wireless connectivity across enterprise environments. With internal antenna support, it ensures stable coverage and improved signal strength. Enterprises benefit from reduced interference, enhanced throughput, and reliable performance for laptops, smartphones, and IoT devices operating simultaneously in demanding conditions.

Integration with Cisco Aironet Series

The access point integrates seamlessly with Cisco Aironet series, offering flexible expansion options. This integration supports advanced traffic management, security features, and high availability. Enterprises benefit from streamlined deployment, reduced complexity, and scalable solutions that adapt to evolving networking requirements across enterprise and campus environments with minimal disruption.

Advanced Security Architecture

The Cisco AIR-CAP3602I-A-K9 incorporates advanced security mechanisms to safeguard enterprise networks. WPA2 encryption, secure boot, and access control lists protect against unauthorized access and cyber threats. Enterprises achieve compliance with industry standards, ensuring reliable protection for sensitive data and mission-critical applications with minimal risk exposure and enhanced resilience.

Wireless Performance

With support for IEEE 802.11a/b/g/n throughput, the Cisco AIR-CAP3602I-A-K9 enables versatile communication across enterprise networks. Its architecture ensures consistent bandwidth for diverse applications. Enterprises benefit from optimized traffic flow, reduced latency, and improved scalability in wireless-centric environments where performance consistency is essential for mission-critical workloads and distributed infrastructures.

Traffic Management and QoS Capabilities

Quality of Service features allow administrators to prioritize critical applications such as voice and video. The Cisco AIR-CAP3602I-A-K9 ensures that latency-sensitive workloads receive dedicated bandwidth, reducing jitter and packet loss. Enterprises achieve improved user experiences, optimized performance, and reliable communication across diverse applications with enhanced control over traffic distribution and prioritization.

Energy Efficiency and PoE Support

Energy-efficient design minimizes power consumption while maintaining high performance. Power over Ethernet functionality ensures simplified deployment without the need for separate power sources. Enterprises benefit from reduced cabling requirements, improved sustainability, and extended hardware lifespan in high-density environments where efficiency and reliability are critical for long-term operations.

Scalability for Enterprise Growth

The Cisco AIR-CAP3602I-A-K9 provides scalability to meet growing enterprise demands. With dual-band support and IEEE 802.11a/b/g/n functionality, businesses can expand their networks without significant infrastructure changes. Enterprises achieve cost-effective scaling, ensuring that networking capabilities evolve alongside organizational growth with minimal disruption and consistent performance across diverse workloads.

Mission-Critical Workloads

Reliability is a cornerstone of the Cisco AIR-CAP3602I-A-K9 design. Redundant architecture and robust wireless connectivity ensure continuous operation even during hardware failures. Enterprises benefit from minimized downtime, consistent service availability, and enhanced resilience for mission-critical workloads requiring uninterrupted connectivity across distributed environments and global deployments.

Deployment Flexibility Across Environments

The Cisco AIR-CAP3602I-A-K9 offers deployment flexibility across diverse environments. Its compatibility with Cisco modular switch platforms allows seamless integration into enterprise, campus, and branch networks. Enterprises can tailor configurations for redundancy, scalability, or performance optimization, ensuring adaptability to evolving business needs with simplified management and streamlined workflows.

High-Density Applications

High-density applications such as office complexes and backbone connectivity benefit from the Cisco AIR-CAP3602I-A-K9’s internal antenna design and wireless capabilities. Enterprises achieve simplified cabling, reduced infrastructure costs, and improved manageability in environments requiring large-scale device connectivity with consistent performance delivery and reliable throughput across critical workloads.

Future-Proof Networking Solution

The Cisco AIR-CAP3602I-A-K9 is designed as a future-proof solution, meeting evolving enterprise needs. Its compatibility, scalability, and advanced features ensure relevance as technology advances. Businesses can invest confidently, knowing the access point will support networking requirements for years to come across diverse industries with minimal upgrade requirements and enhanced adaptability.

Enhanced Performance

Unified communications platforms benefit from the Cisco AIR-CAP3602I-A-K9’s QoS and wireless support. Voice and video traffic receive prioritized bandwidth, ensuring clear communication and reduced latency. Enterprises achieve improved collaboration, optimized performance, and reliable connectivity for unified communication systems across global deployments with consistent quality and seamless integration.

Cloud and Edge Deployments

Cloud and edge deployments require reliable connectivity and scalability. The Cisco AIR-CAP3602I-A-K9 provides wireless integration for high-speed cloud adoption and edge device connectivity. Enterprises benefit from seamless cloud adoption, reduced latency, and improved efficiency in distributed environments with consistent throughput and reliable performance across diverse workloads.

Comprehensive Manageability Features

Manageability features such as centralized monitoring, configuration management, and diagnostics simplify administration. The Cisco AIR-CAP3602I-A-K9 ensures that IT teams can efficiently manage large-scale deployments. Enterprises achieve reduced operational overhead, improved visibility, and enhanced control over network infrastructures with streamlined workflows and simplified management processes across complex environments.

Emerging Technologies

The Cisco AIR-CAP3602I-A-K9 supports emerging technologies such as IoT and smart devices. Its wireless capabilities ensure reliable connectivity, while advanced traffic management provides high-speed performance. Enterprises benefit from future-ready infrastructure, enabling seamless adoption of new technologies without significant upgrades or disruptions across diverse industries and global deployments.

Enterprise Networks

The resilient architecture of the Cisco AIR-CAP3602I-A-K9 ensures consistent performance under demanding conditions. Redundant wireless connectivity and advanced traffic management features safeguard enterprise networks. Enterprises achieve improved uptime, reduced risk, and enhanced reliability for mission-critical applications requiring continuous availability and consistent performance across distributed infrastructures.

Performance Optimization

Data-intensive workloads such as analytics and cloud applications benefit from the Cisco AIR-CAP3602I-A-K9’s wireless connectivity and QoS features. Enterprises achieve optimized performance, reduced latency, and improved scalability for workloads requiring consistent bandwidth and reliable communication across distributed environments and mission-critical infrastructures.

Enterprise-Class Reliability

Reliability is a key advantage of the Cisco AIR-CAP3602I-A-K9. Its robust architecture ensures continuous operation even during hardware failures. Enterprises benefit from minimized downtime, consistent service availability, and enhanced resilience for mission-critical workloads requiring uninterrupted connectivity across diverse environments and global deployments with consistent performance.
