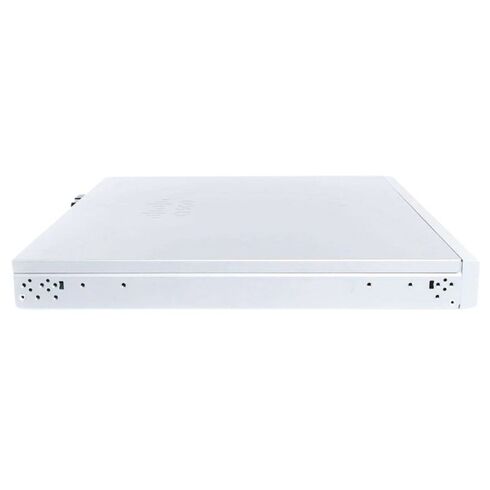

Cisco ASA5525-FTD-K9 Firepower Security Appliance

Main Features of Cisco ASA5525-FTD-K9 Security Appliance

• Manufacturer: Cisco
• Part Number: ASA5525-FTD-K9
• Product Series: ASA
• Model Name: ASA 5525-X with Firepower Threat Defense
• Device Category: Network Security Appliance

Comprehensive Technical Specifications

• Total Port Count: 8
• Connection Type: Wired
• Supported Data Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Data Transfer Speed: 600 Mbps

Firewall and VPN Capabilities

• Firewall throughput: 2 Gbps
• VPN throughput: 300 Mbps
• Connection handling: 20,000 connections per second
• Firewall combined with intrusion prevention

VPN and Session Capacities

• IPSec VPN capacity: 750 users
• SSL VPN peers: 2
• Concurrent sessions supported: 500,000
• Virtual LANs (VLANs): 200
• Security contexts: 2

Expansion and Connectivity Options

• Expansion Slots: 1 total, 1 available
• Interfaces:
• 8 x 1000Base-T (RJ-45)
• 1 x 1000Base-T (management, RJ-45)
• 1 x RJ-45 management interface
• 2 x USB 2.0 Type-A ports

Processor, Memory, and Storage Specifications

• RAM: 8 GB
• Flash Storage: 8 GB

Power Device Details

• Power Source: Internal power supply
• Number of Power Units: 1 installed, 1 supported
• Voltage Range: 120/230 V AC (50/60 Hz)
• Power Output: 400 Watts

Software and System Support

• Included Software: Cisco Threat Defense 6.0.1, Drivers & Utilities

Physical Dimensions and Weight

• Height: 1.7 inches
• Width: 16.9 inches
• Depth: 15.6 inches
• Weight: 14.99 lbs

Compliance and Certifications

• VCCI
• C-Tick
• EN 61000-3-2, EN 61000-3-3
• ICES-003, EN55024, EN55022 Class A
• CISPR 22, UL 60950-1, IEC 60950-1
• FCC Part 15 B Class A
• CAN/CSA C22.2 No. 60950-1-07
• ANSI C63.4-2009

Features

The Cisco ASA5525-FTD-K9 Firepower Security Appliance offers a comprehensive set of features that ensure robust security for your network. This advanced appliance combines firewall protection, intrusion prevention, advanced malware protection, URL filtering, and VPN capabilities to safeguard your network from various threats. Let's delve into the benefits and importance of each of these features.

Firewall Protection

Firewall protection is a fundamental aspect of network security. The Cisco ASA5525-FTD-K9 Firepower Security Appliance provides robust firewall capabilities, allowing you to control incoming and outgoing traffic based on predefined rules. By establishing a secure perimeter around your network, the firewall prevents unauthorized access and protects your sensitive data from potential breaches. With the ability to create custom firewall rules, you can tailor the security settings according to your specific requirements.

Benefits:

• Prevents unauthorized access to your network
• Protects sensitive data from potential breaches
• Offers customization options for enhanced security

Intrusion Prevention

Intrusion prevention is crucial in detecting and preventing malicious activities within your network. The Cisco ASA5525-FTD-K9 Firepower Security Appliance employs advanced intrusion prevention system (IPS) technology to identify and block various types of attacks, such as DDoS, SQL injection, and cross-site scripting. By constantly monitoring network traffic and analyzing patterns, the appliance can detect and mitigate threats before they can cause significant damage.

Benefits:

• Detects and blocks various types of attacks
• Prevents potential damage to your network infrastructure
• Reduces the risk of network downtime and data loss

Advanced Malware Protection

In today's digital landscape, malware poses a significant threat to organizations of all sizes. The Cisco ASA5525-FTD-K9 Firepower Security Appliance incorporates advanced malware protection to defend against emerging and sophisticated malware threats. By utilizing real-time threat intelligence and advanced detection techniques, the appliance can identify and block malicious files, preventing them from infiltrating your network and compromising your systems.

Benefits:

• Detects and blocks emerging and sophisticated malware threats
• Protects your network from potential data breaches
• Minimizes the risk of malware-related disruptions

URL Filtering

URL filtering is essential for enforcing web usage policies within your organization. The Cisco ASA5525-FTD-K9 Firepower Security Appliance incorporates robust URL filtering capabilities, allowing you to control access to websites based on categories, specific URLs, or custom rules. With granular control over web content, you can prevent users from accessing potentially harmful or non-work-related websites, thereby improving productivity and reducing the risk of security incidents.

Benefits:

• Enforces web usage policies within your organization
• Reduces the risk of users accessing malicious or inappropriate websites
• Enhances overall network security and productivity

VPN Capabilities

Virtual Private Networks (VPNs) are essential for secure remote access and interconnecting geographically dispersed networks. The Cisco ASA5525-FTD-K9 Firepower Security Appliance offers robust VPN capabilities, enabling secure communication between remote users, branch offices, and partner networks. With support for various VPN protocols and encryption algorithms, this appliance ensures the confidentiality and integrity of data transmitted over public networks.

Benefits:

• Enables secure remote access for employees
• Facilitates secure interconnection of geographically dispersed networks
• Protects sensitive data during transmission over public networks

Importance of These Features for Users

The features offered by the Cisco ASA5525-FTD-K9 Firepower Security Appliance are of utmost importance for users looking to establish a robust and secure network infrastructure. By combining firewall protection, intrusion prevention, advanced malware protection, URL filtering, and VPN capabilities, this appliance provides comprehensive security coverage that mitigates various threats and ensures the integrity of your network.

These features are not only beneficial but also necessary in today's digital landscape. With the increasing sophistication of cyber threats, having a reliable firewall is crucial to prevent unauthorized access and protect sensitive data from potential breaches. The customizable firewall rules offered by this appliance allow users to tailor the security settings according to their specific requirements, providing an added layer of protection.

Intrusion prevention is equally vital as it detects and blocks various types of attacks that could potentially cause significant damage to your network infrastructure. By constantly monitoring network traffic and analyzing patterns, the Cisco ASA5525-FTD-K9 Firepower Security Appliance can identify and mitigate threats before they can exploit vulnerabilities within your systems.

The appliance's advanced malware protection is essential in defending against emerging and sophisticated malware threats. With real-time threat intelligence and advanced detection techniques, it can identify and block malicious files, preventing them from infiltrating your network. This feature significantly reduces the risk of malware-related disruptions and potential data breaches.

URL filtering plays a critical role in enforcing web usage policies within organizations. By controlling access to websites based on categories, specific URLs, or custom rules, this feature ensures that users do not access potentially harmful or non-work-related websites. It enhances overall network security and productivity by reducing the risk of users falling victim to phishing attempts or inadvertently downloading malicious content.

Lastly, the VPN capabilities of the Cisco ASA5525-FTD-K9 Firepower Security Appliance enable secure remote access for employees and facilitate secure interconnection of geographically dispersed networks. With support for various VPN protocols and encryption algorithms, it ensures the confidentiality and integrity of data transmitted over public networks. This feature is particularly useful for organizations with remote workers or multiple branch offices.

In conclusion, the Cisco ASA5525-FTD-K9 Firepower Security Appliance offers a robust set of features that are essential for users seeking to establish a secure network infrastructure. Firewall protection, intrusion prevention, advanced malware protection, URL filtering, and VPN capabilities work together to safeguard your network from a wide range of threats. By investing in this appliance, you can ensure the integrity of your network, protect sensitive data, and minimize the risk of security incidents.
