FPR2140-ASA-K9 Cisco Firepower Security Appliance 2140 ASA Rack-Mountable

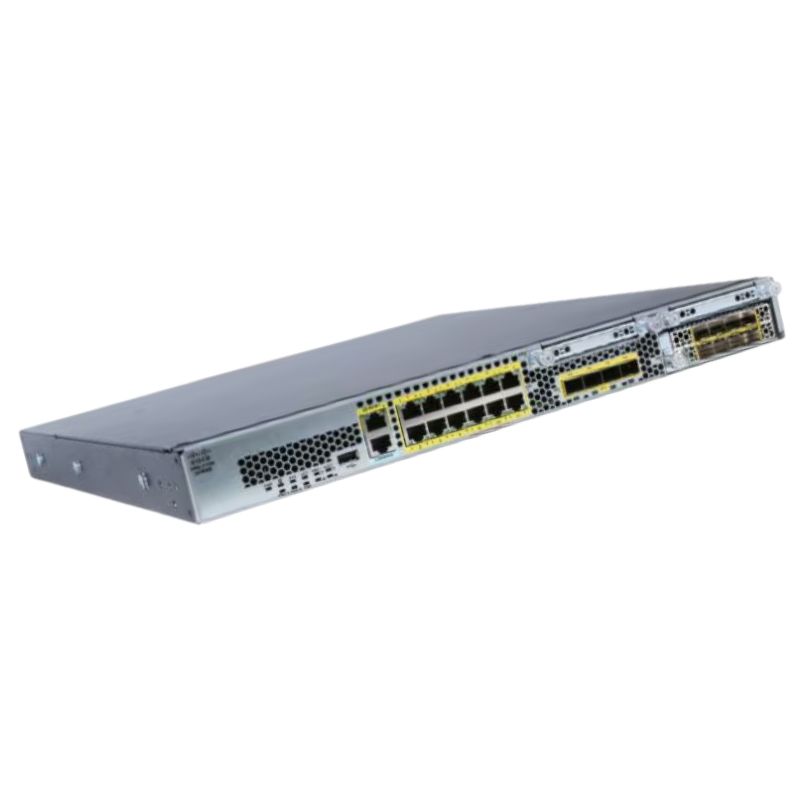

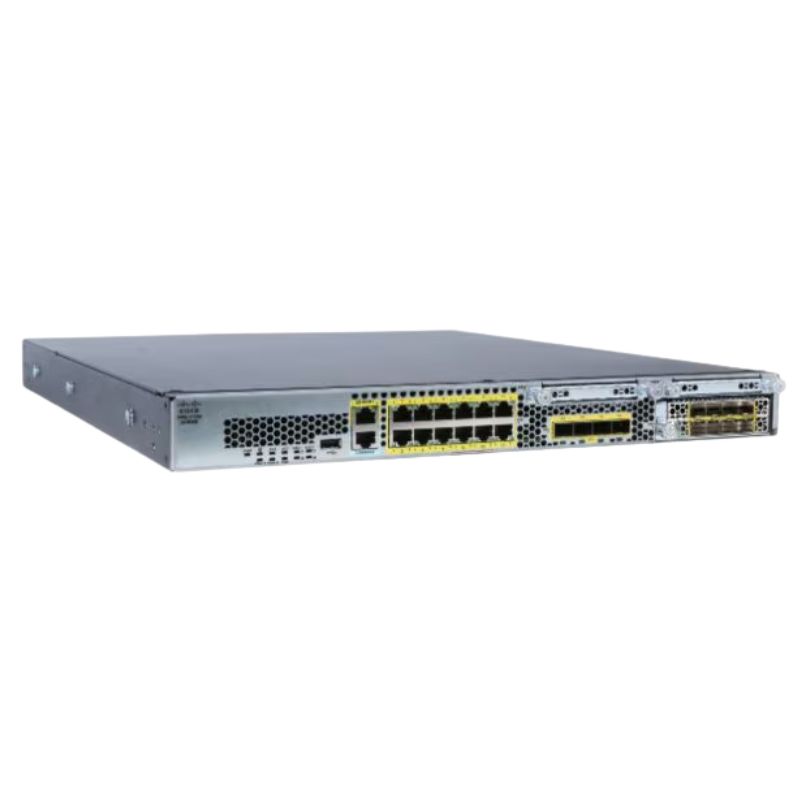

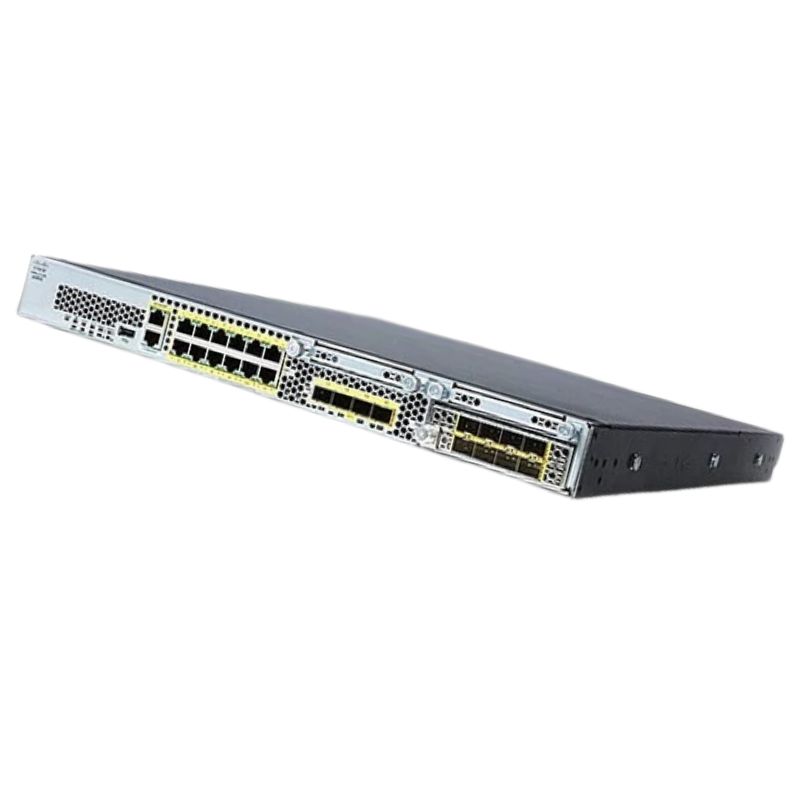

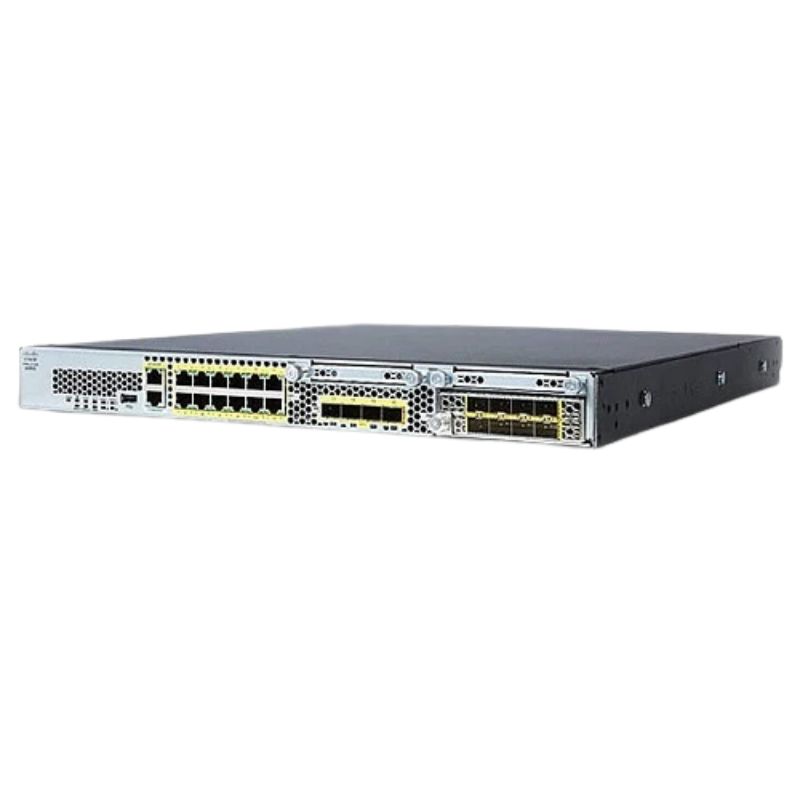

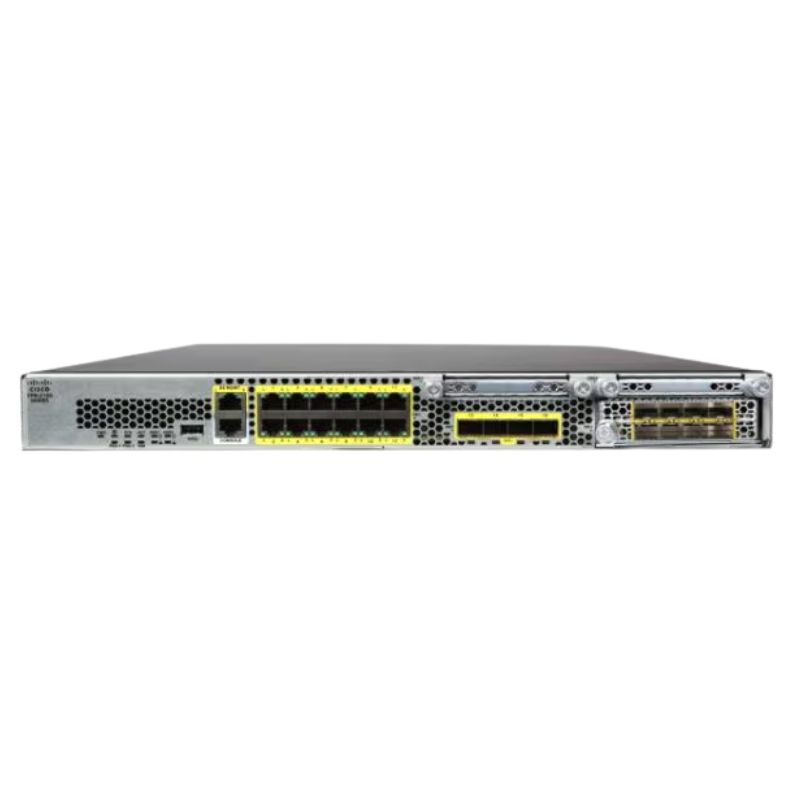

Cisco FPR2140-ASA-K9 Firepower Security Appliance

The Cisco FPR2140-ASA-K9 Firepower 2140 Security Appliance is a high-performance, rack-mountable firewall solution designed for enterprise-grade network protection, delivering advanced threat defense, scalable connectivity, and optimized traffic handling for modern IT infrastructures. Engineered under Cisco’s trusted security architecture, this ASA-based firewall appliance integrates powerful inspection capabilities, high-speed data processing, and flexible deployment options, making it ideal for data centers, large organizations, and mission-critical network environments requiring consistent uptime and robust cyber defense.

General Information

• Manufacturer: Cisco
• Part Number: FPR2140-ASA-K9
• Category: Network Firewall

Technical Specifications

Device Description

• Appliance Type: Advanced Security Firewall System
• Bundled Component: Netmod Expansion Bay Support

Processor, Storage & Memory Configuration

• Storage Drive: 200GB SSD (1 unit included)

Network Architecture & Form Factor

• Design: Rack-mountable chassis for enterprise racks
• Connectivity: Fully wired high-speed network integration

Performance Capabilities

• Firewall Throughput: 20 Gbps
• Firewall + AVC Throughput: 8.5 Gbps
• Firewall + AVC + NGIPS Throughput: 8.5 Gbps
• IPsec VPN Throughput (1024B TCP FastPath): 3 Gbps
• Multiprotocol Firewall Throughput: 10 Gbps
• IPsec VPN Throughput (450B UDP L2L Test): 2 Gbps

Scalability & Capacity Metrics

• New Connections per Second (AVC Enabled): 40,000
• Maximum New Connections per Second: 75,000
• Concurrent Sessions with AVC: 3,000,000
• Maximum Concurrent Firewall Sessions: 3,000,000
• Virtual Interfaces (VLANs): Up to 1024
• VPN Peer Capacity: 10,000
• Security Contexts: 2 (expandable up to 40)

Built-in Security Features

• Advanced VLAN segmentation support
• URL-based traffic filtering and policy control
• Distributed denial-of-service (DDoS) mitigation mechanisms
• Application Visibility and Control (AVC)
• High availability clustering technology
• Integrated thermal management with 4 high-efficiency fans

Expansion & Connectivity

Interface Configuration

• 12 × 1G RJ-45 Ethernet ports (1000BASE-T)
• 4 × 10G SFP+ high-speed uplink ports
• 1 × 1G RJ-45 dedicated management interface
• 1 × Serial console port (RJ-45)
• 1 × USB 2.0 Type-A port

Expansion Capability

• Total Expansion Slots: 1
• Available Slot: 1 free for modular upgrades

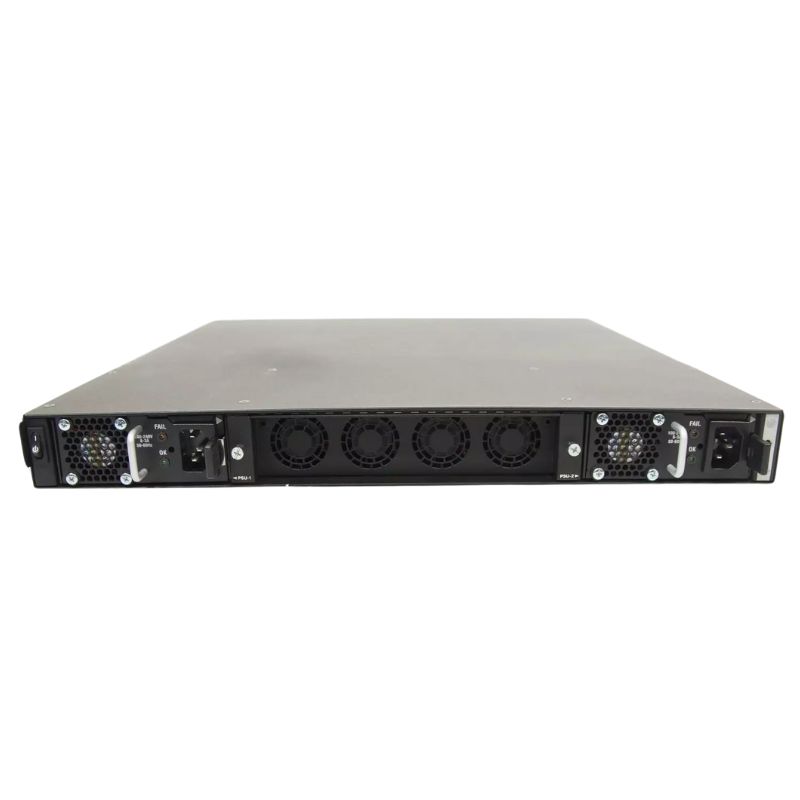

Power System & Reliability

• Power Supply Type: Internal hot-plug power unit
• Maximum Power Supply Units Supported: 2
• Power Redundancy: Optional dual power configuration support

Compatibility

• Compatible with Cisco ASA and Firepower Threat Defense (FTD) software environments
• Supports integration with Cisco Secure Firewall Management Center (FMC)
• Works with enterprise-grade 1G and 10G Ethernet network infrastructure
• Fully compatible with SFP+ optical transceivers and standard RJ-45 networking setups
• Designed for rack-based data center installations and structured cabling systems
• Supports VLAN-based segmentation across multi-network enterprise environments
• Integrates with IPsec VPN-based site-to-site and remote access deployments
• Suitable for hybrid cloud and on-premise security architectures requiring scalable firewall protection

Cisco FPR2140-ASA-K9 Firepower Security Appliance

The Cisco FPR2140-ASA-K9 Firepower Security Appliance 2140 ASA Rack-Mountable is designed as a high-performance next-generation security platform that supports enterprise-grade firewall protection, advanced threat defense, and scalable network security enforcement across complex digital infrastructures. This appliance belongs to the Cisco Firepower 2100 Series ecosystem, engineered to deliver consistent security performance while maintaining application visibility, secure connectivity, and resilient network operations in environments that demand continuous uptime and strict protection policies.

Modern enterprise networks require security systems that are capable of handling increasing traffic volumes, encrypted communication streams, distributed applications, cloud integration, and hybrid workforce environments. The Cisco FPR2140-ASA-K9 appliance addresses these demands through a hardware-accelerated architecture that supports firewall functions, intrusion prevention, secure VPN connectivity, and adaptive traffic inspection. It is designed for organizations that prioritize network resilience, regulatory compliance, and secure digital transformation initiatives.

Next Generation Firewall Architecture

The Cisco FPR2140-ASA-K9 integrates next generation firewall capabilities that go beyond traditional packet filtering. It enables deep packet inspection, contextual awareness, and application-level control, allowing organizations to enforce granular security policies across their network infrastructure. This capability is essential in environments where applications are distributed across cloud platforms, data centers, and remote endpoints.

The firewall architecture is built to analyze traffic behavior in real time, identifying anomalies and potential threats before they impact network operations. This proactive approach to security helps reduce exposure to malware, ransomware, unauthorized access attempts, and advanced persistent threats. The system is optimized for environments that require continuous monitoring of encrypted and unencrypted traffic without degrading performance.

High Performance Security Processing Capabilities

The Cisco FPR2140-ASA-K9 appliance is engineered to handle high throughput environments where large volumes of network traffic must be inspected and secured simultaneously. The underlying hardware architecture supports efficient packet processing and security enforcement without creating bottlenecks in network communication.

This performance efficiency is particularly important for enterprises operating mission critical applications such as financial systems, healthcare platforms, e-commerce infrastructures, and cloud based services. The appliance ensures that security processing does not interfere with application responsiveness or user experience, maintaining a balance between protection and performance.

Organizations deploying the Cisco FPR2140-ASA-K9 benefit from its ability to maintain stable operation under heavy network load conditions, making it suitable for core network deployment, data center edge security, and high traffic aggregation points.

Intrusion Prevention and Threat Detection Framework

A key component of the Cisco FPR2140-ASA-K9 Firepower Security Appliance is its intrusion prevention system functionality. This system continuously analyzes network traffic patterns to identify malicious behavior, exploit attempts, and unauthorized access activities. It uses a combination of signature based detection and behavioral analysis to enhance security accuracy.

The intrusion prevention framework is designed to adapt to evolving threat landscapes, ensuring that organizations remain protected against newly emerging vulnerabilities. It can detect and mitigate attacks targeting operating systems, applications, and network protocols, helping reduce the risk of data breaches and service disruptions.

The appliance also supports contextual threat intelligence integration, allowing it to correlate network events with global threat data sources. This improves detection accuracy and enables faster response times when security incidents occur within enterprise environments.

Secure Connectivity and Virtual Private Network

The Cisco FPR2140-ASA-K9 appliance provides robust support for secure virtual private network connectivity, enabling encrypted communication between distributed network locations. This capability is essential for organizations with branch offices, remote employees, and hybrid cloud architectures requiring secure data exchange.

VPN functionality within the appliance ensures that data transmitted across public networks remains protected through strong encryption mechanisms. It supports secure site to site connectivity as well as remote access solutions, allowing users to securely connect to enterprise resources from external environments.

This secure connectivity framework enables organizations to maintain consistent security policies across all network endpoints while ensuring that sensitive information remains protected during transmission.

Advanced Application Visibility and Control

The Cisco FPR2140-ASA-K9 Firepower Security Appliance provides deep visibility into network applications, allowing administrators to identify, classify, and control application traffic across the network infrastructure. This capability is essential for organizations that rely on cloud based applications, collaboration platforms, and distributed software services.

Application visibility enables security teams to enforce policies based on application behavior rather than just network ports or protocols. This approach improves security accuracy and allows organizations to prioritize business critical applications while restricting or monitoring non essential traffic.

Through application control mechanisms, enterprises can optimize bandwidth usage, reduce security risks, and ensure compliance with organizational policies regarding data usage and network access.

Scalable Enterprise Security Deployment

The Cisco FPR2140-ASA-K9 appliance is designed to support scalable deployment models suitable for growing enterprise environments. It can be integrated into existing network infrastructures without requiring extensive architectural changes, making it a flexible solution for organizations expanding their digital operations.

Scalability is a critical factor in modern network security planning, as organizations must accommodate increasing traffic volumes, expanding user bases, and evolving application requirements. The appliance supports modular growth strategies that allow enterprises to enhance their security posture without replacing core infrastructure components.

This scalability ensures long term operational efficiency and helps organizations align security investments with business expansion strategies.

Data Center Integration and Edge Security Protection

The Cisco FPR2140-ASA-K9 Firepower Security Appliance is commonly deployed at data center edges to provide secure traffic filtering, intrusion prevention, and application level inspection. It plays a crucial role in protecting critical infrastructure from external threats while ensuring smooth internal communication between systems and services.

In data center environments, the appliance helps secure workloads, virtualization platforms, storage systems, and application servers. It ensures that only authorized traffic is allowed to interact with internal resources, reducing the risk of unauthorized access and data leakage.

At network edge locations, the appliance provides a first line of defense against external threats, ensuring that malicious traffic is identified and mitigated before reaching core systems.

Cloud Connectivity and Hybrid Infrastructure

As organizations adopt cloud computing strategies, the need for secure hybrid infrastructure connectivity becomes increasingly important. The Cisco FPR2140-ASA-K9 supports secure integration between on premise systems and cloud environments, enabling organizations to maintain consistent security policies across distributed architectures.

Hybrid infrastructure security ensures that data moving between private data centers and cloud platforms remains protected against interception, tampering, or unauthorized access. The appliance facilitates secure communication channels that support business critical workloads in hybrid environments.

This capability is essential for organizations using multi cloud strategies or migrating applications to cloud platforms while maintaining legacy systems on premise.

Long Term Infrastructure Value and Security Protection

The Cisco FPR2140-ASA-K9 appliance provides long term value by supporting scalable security architectures that adapt to changing business requirements. Organizations investing in this platform benefit from a solution designed to evolve alongside technological advancements and emerging security challenges.

Investment protection is achieved through flexible deployment options, upgradeable capabilities, and compatibility with broader Cisco security ecosystems. This ensures that organizations can extend the lifecycle of their security infrastructure while maintaining high levels of protection and performance.

The appliance remains a critical component for enterprises seeking to build resilient, secure, and scalable network infrastructures capable of supporting modern digital operations and future growth requirements.
