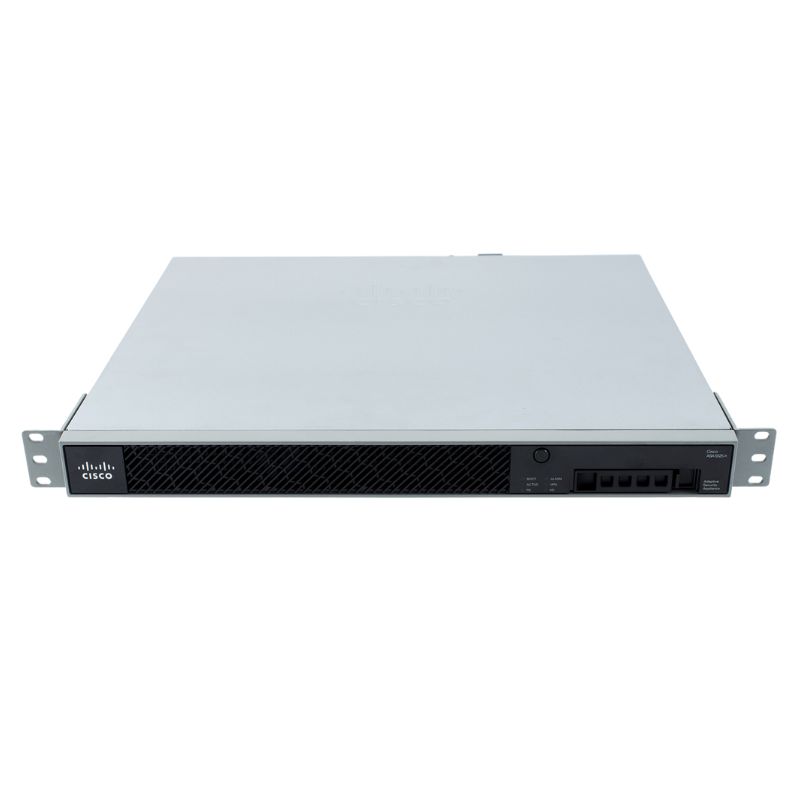

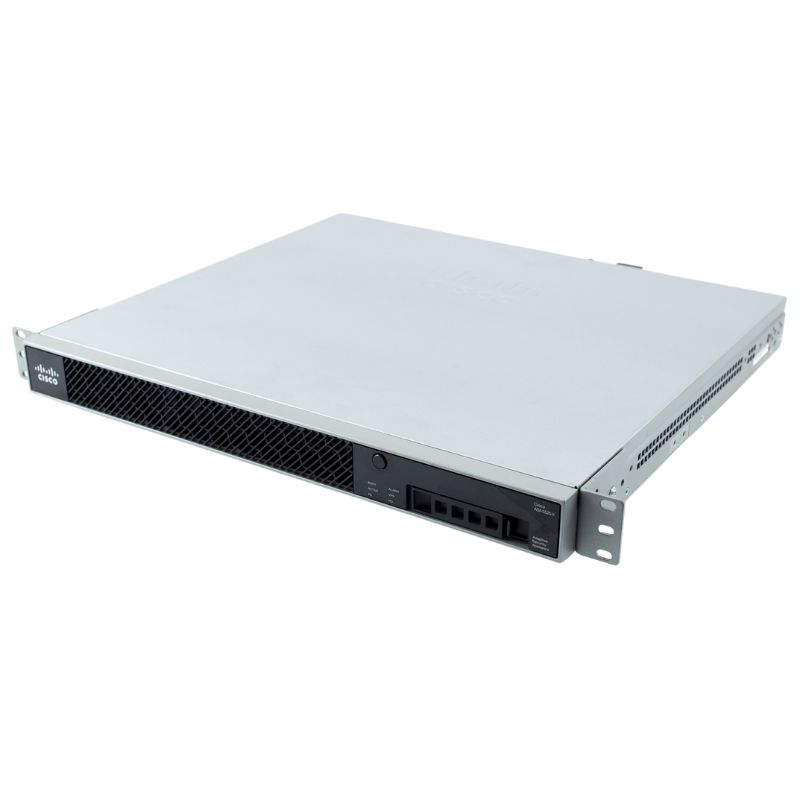

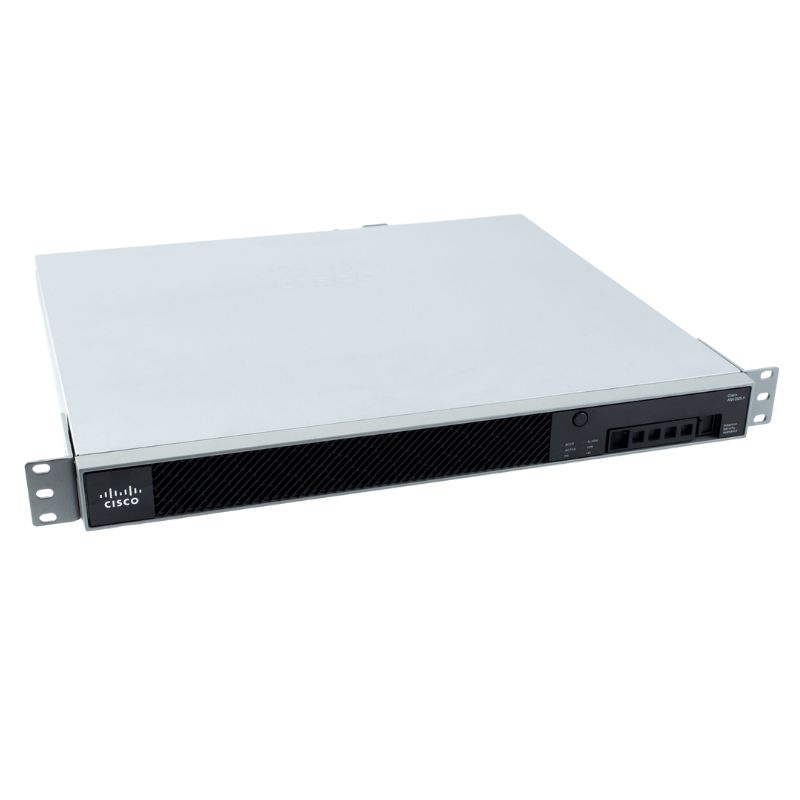

ASA5525-IPS-K9 Cisco 8 Ports Firewall Appliance (ASA 5525-X)

Overview of the Cisco ASA 5525-X Firewall Appliance

Cisco ASA5525-IPS-K9, also known as ASA 5525-X Firewall Appliance, is a high-performance next-generation security solution engineered for enterprise-grade network protection. Designed to deliver advanced threat defense, secure VPN connectivity, and scalable firewall capabilities, this device ensures reliable performance for modern IT infrastructures requiring robust cybersecurity and uninterrupted connectivity.

General Information

• Manufacturer: Cisco
• Model / Part Number: ASA5525-IPS-K9
• Device Category: Advanced Network Security Appliance / Firewall System

Technical Specifications

• Rack Design: 1U rack-mounted chassis, optimized for compact data center deployment
• Memory Capacity: 12 GB RAM installed (maximum supported configuration)
• Storage Configuration: No built-in hard disk included (flash-based system architecture)

Networking Capabilities

• Installation Type: Rack-mountable enterprise firewall unit
• Ethernet Interfaces: 8 high-speed Gigabit Ethernet ports
• Connection Type: Wired network infrastructure for stable and low-latency communication
• Protocol Support: Gigabit Ethernet data link with IPsec secure tunneling

Performance

• Firewall Throughput: Up to 2 Gbps for high-volume traffic protection
• VPN Performance: 300 Mbps encrypted throughput using 3DES/AES standards
• Session Processing Rate: Capable of handling 20,000 new connections per second
• IPS + Firewall Combined Speed: Approximately 600 Mbps with intrusion prevention enabled

Scalability & Capacity

• VPN Peers: Supports up to 750 IPsec VPN connections
• SSL VPN Sessions: Up to 2 concurrent SSL VPN users
• Active Sessions: Handles up to 500,000 simultaneous network sessions
• Virtual LANs: Supports up to 200 VLAN configurations
• Security Contexts: Maximum of 2 isolated security environments

Status Indicators

• System Alerts: LED indicators for power status, boot activity, and system health
• Network Monitoring: Real-time status for VPN activity, active sessions, and alarms

Advanced Security Features

• Firewall Protection: Stateful inspection firewall with integrated threat defense
• VPN Integration: Built-in secure remote access and site-to-site connectivity
• Intrusion Prevention System: Embedded IPS for proactive attack mitigation
• Encryption Standards: Supports DES, 3DES, and AES encryption algorithms
• Network Segmentation: VLAN-based traffic isolation for enhanced control
• High Availability: Redundancy and failover support for continuous uptime

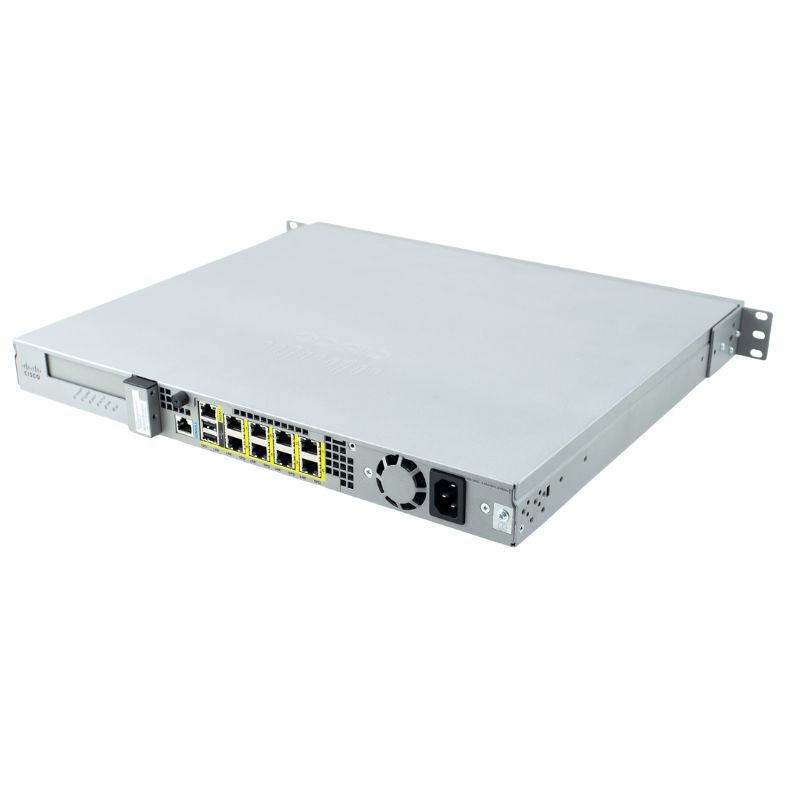

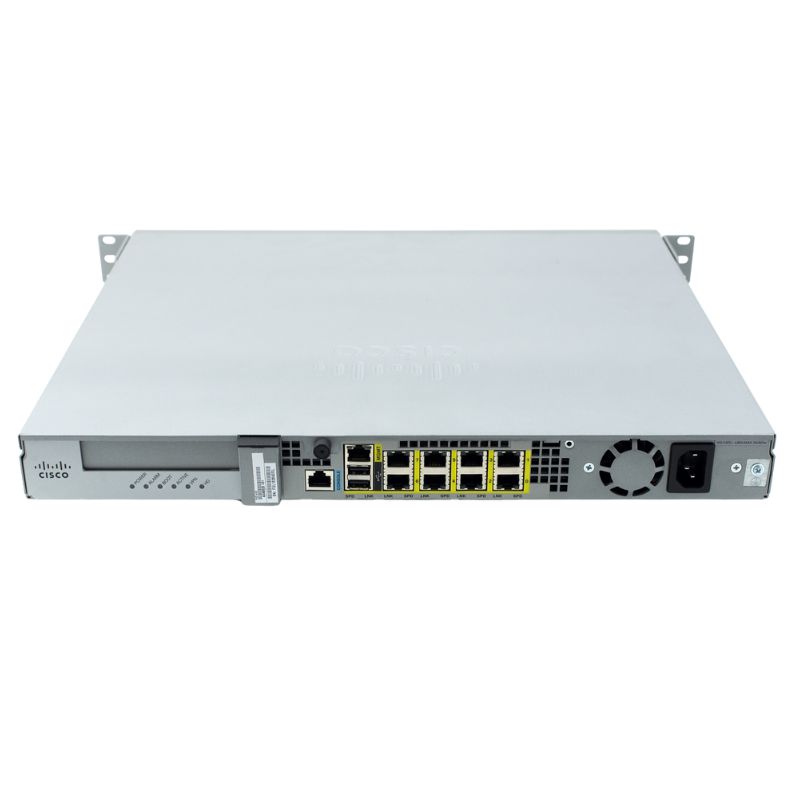

Expansion & Interface Options

• Expansion Slot: 1 available slot for optional hardware upgrades
• Network Ports: 8 × 1000BASE-T RJ-45 Ethernet interfaces
• Management Port: 1 × dedicated Gigabit Ethernet management interface
• Console Access: RJ-45 console port for configuration and troubleshooting
• USB Ports: 2 × high-speed USB Type-A ports

Power

• Power Supply: Internal integrated power module
• Input Voltage: 120/230V AC compatibility
• Frequency Range: 50/60 Hz operation support

Compatibility

• Compatible with Cisco ASA 5500-X Series security platforms
• Supports Cisco AnyConnect Secure Mobility Client for remote VPN access
• Works with IPsec-based VPN gateways and enterprise tunneling solutions
• Integrates with Cisco Security Manager for centralized policy control
• Compatible with VLAN-based enterprise switching environments
• Supports standard Gigabit Ethernet networking infrastructure (IEEE 802.3)
• Interoperable with Cisco network monitoring and management tools

The Cisco ASA5525 IPS K9 Firewall Appliance Architecture

The Cisco ASA5525 IPS K9 ASA 5525 X 8 Ports Firewall Appliance is designed as a next generation security platform that integrates advanced firewall capabilities with intrusion prevention and deep packet inspection. It is engineered for enterprise environments that require consistent enforcement of network security policies across multiple segments while maintaining high throughput and low latency communication between internal and external networks.

At its core, the appliance operates on a highly optimized security architecture that combines stateful inspection with application aware processing. This allows the device to not only filter traffic based on IP addresses and ports but also understand application layer behavior. The integration of hardware acceleration ensures that security operations do not degrade performance even under heavy network loads.

The system is structured to support modular security functions, enabling organizations to adapt the firewall behavior according to evolving network threats. This adaptability is essential in modern enterprise environments where attack surfaces continuously expand due to cloud adoption, remote work infrastructure, and distributed systems.

Network Security Capabilities

The firewall inspection engine within the Cisco ASA5525 IPS K9 appliance performs deep stateful inspection of all inbound and outbound traffic. This ensures that every packet is evaluated in the context of an established session rather than as isolated data. By tracking connection states, the firewall can detect anomalies such as session hijacking attempts, malformed packets, and unauthorized access patterns.

This stateful processing capability enhances security by ensuring that only legitimate traffic flows through the network. It enforces strict adherence to predefined security policies while dynamically adjusting to real time traffic behavior.

Prevention System Integration

The integrated intrusion prevention system provides an additional layer of protection by analyzing network traffic for known and unknown attack signatures. This includes detection of malware propagation attempts, denial of service patterns, and exploit-based intrusion techniques.

The IPS functionality operates inline, meaning it can actively block malicious traffic before it reaches critical internal resources. This proactive defense model reduces the risk of compromise and ensures continuous network integrity.

Advanced behavioral analysis techniques allow the system to identify suspicious patterns even when they do not match existing signatures. This enhances protection against zero day threats and emerging vulnerabilities.

Hardware and Eight-Port Network Configuration

The Cisco ASA5525 IPS K9 appliance is equipped with multiple high speed network interfaces that support flexible deployment in complex network topologies. The eight port design allows administrators to segment networks into multiple security zones, each with customized access control rules and traffic policies.

Each port is capable of handling high bandwidth traffic, ensuring smooth data transmission across internal and external network boundaries. The hardware architecture is optimized for parallel processing, enabling simultaneous inspection of multiple data streams without bottlenecks.

The internal processing unit is designed to accelerate cryptographic operations, firewall rule evaluation, and intrusion detection functions. This ensures that even encrypted traffic can be analyzed efficiently without compromising throughput.

VPN Security and Secure Remote Connectivity

The appliance provides robust virtual private network capabilities that enable secure communication between remote users, branch offices, and centralized data centers. It supports both site to site and remote access VPN configurations, ensuring secure encrypted tunnels across public networks.

Encryption standards implemented within the device ensure that sensitive data remains protected during transmission. This is particularly important for organizations handling confidential financial data, healthcare records, or intellectual property.

The VPN system is optimized for scalability, allowing a large number of simultaneous connections without degradation in performance. Authentication mechanisms support multiple identity verification methods, ensuring that only authorized users can establish secure connections.

Performance Optimization Processing

Performance is a critical aspect of the Cisco ASA5525 IPS K9 firewall appliance. The system is engineered to maintain high throughput even when multiple security services are active simultaneously. This is achieved through hardware acceleration and optimized packet processing pipelines.

The appliance distributes workload across multiple processing cores, ensuring balanced utilization of system resources. This prevents performance degradation during peak traffic conditions and supports consistent network responsiveness.

Traffic prioritization mechanisms ensure that mission critical applications receive higher bandwidth allocation, while less important traffic is managed accordingly. This helps maintain operational efficiency in enterprise environments with diverse application requirements.

Enterprise Deployment Scenarios and Network Integration

The Cisco ASA5525 IPS K9 firewall appliance is suitable for a wide range of enterprise deployment scenarios. It can be deployed at the network perimeter to protect against external threats or within internal network segments to enforce segmentation policies.

In large enterprise environments, the device is often used to secure data centers, branch offices, and cloud connectivity points. Its flexible architecture allows seamless integration into hybrid network infrastructures that combine on premise and cloud based resources.

Service providers also utilize this appliance to deliver managed security services to clients, leveraging its scalability and centralized management capabilities.

High Availability Architecture and Network Scalability

The appliance supports high availability configurations that ensure continuous network protection even in the event of hardware failure. Redundant deployment models allow multiple devices to operate in synchronized mode, providing automatic failover capabilities.

This redundancy ensures that network services remain uninterrupted, which is critical for mission critical business operations. Load balancing features distribute traffic across multiple devices to optimize performance and resource utilization.

Scalability is achieved through modular integration with larger network security ecosystems. The appliance can be expanded to support growing network demands without requiring complete infrastructure redesign.

Security Policy Enforcement and Access Control Systems

Security policy enforcement within the Cisco ASA5525 IPS K9 firewall appliance is highly granular, allowing administrators to define detailed access control rules. These rules determine which users, devices, and applications are permitted to access specific network resources.

Access control mechanisms operate based on identity, role, and contextual information such as location and device type. This ensures that access decisions are not solely based on static IP addresses but on dynamic security attributes.

Policy enforcement is continuously applied across all network traffic, ensuring consistent protection regardless of traffic source or destination.

Advanced Visibility

The appliance provides deep visibility into application layer traffic, enabling administrators to identify and control application usage across the network. This includes the ability to prioritize business critical applications while restricting non essential traffic.

Traffic classification mechanisms analyze packet content to determine application type, ensuring accurate identification even when applications use non standard ports or encrypted channels.

This level of visibility enhances network optimization and improves overall security posture by reducing the risk of unauthorized application usage.

Enterprise Compliance Security

The Cisco ASA5525 IPS K9 firewall appliance supports compliance with various enterprise security frameworks and regulatory requirements. It provides logging, auditing, and reporting capabilities that assist organizations in meeting industry standards.

Security controls are designed to align with best practices for data protection, ensuring that sensitive information is handled according to regulatory guidelines. This makes the appliance suitable for industries such as finance, healthcare, government, and large scale enterprise IT environments.

Continuous monitoring and reporting functions ensure that compliance status can be evaluated at any time, reducing the risk of violations and improving overall governance.
