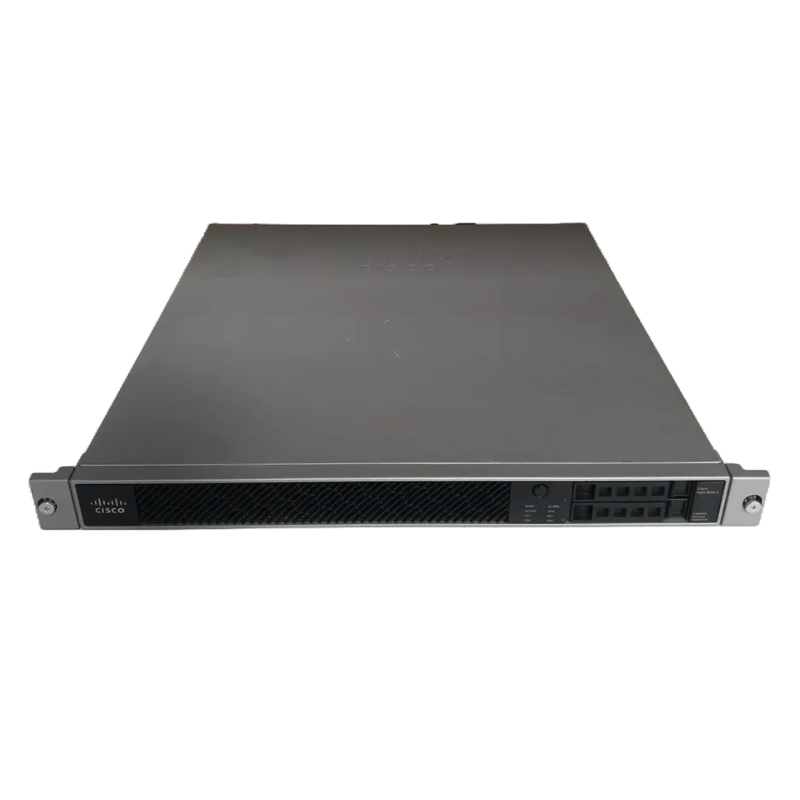

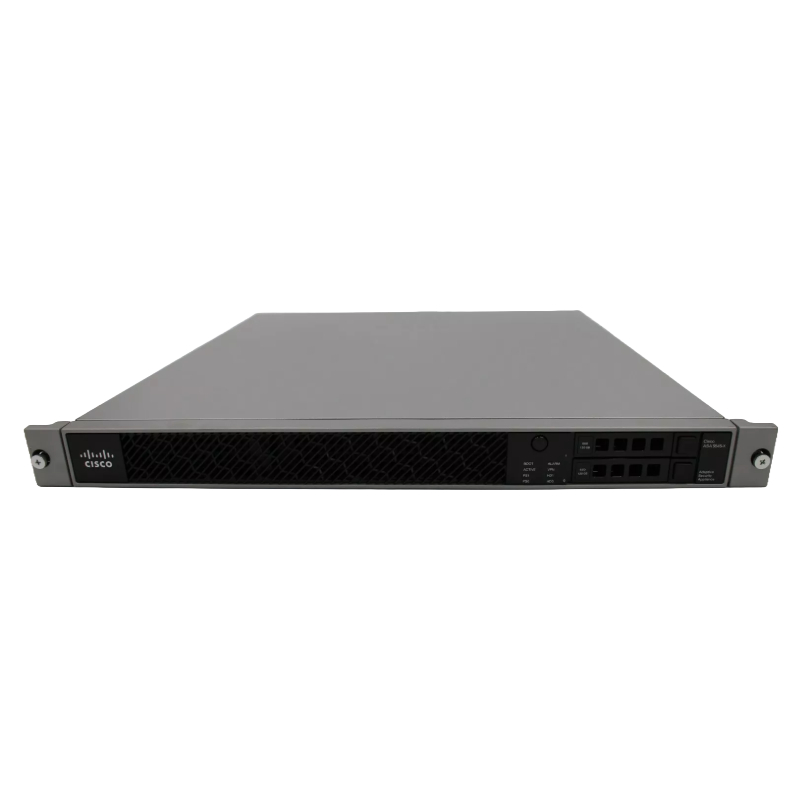

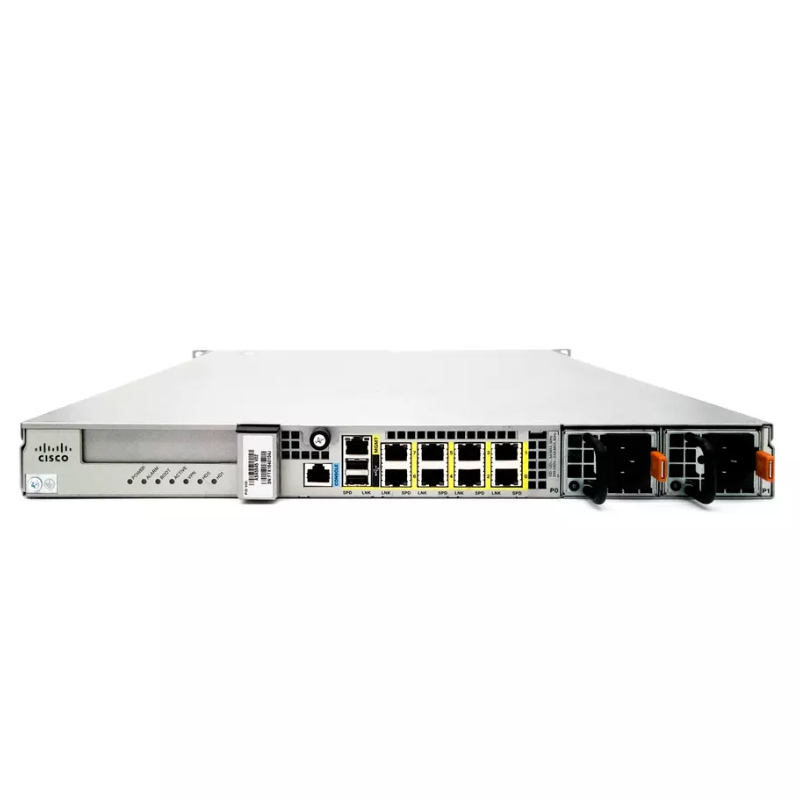

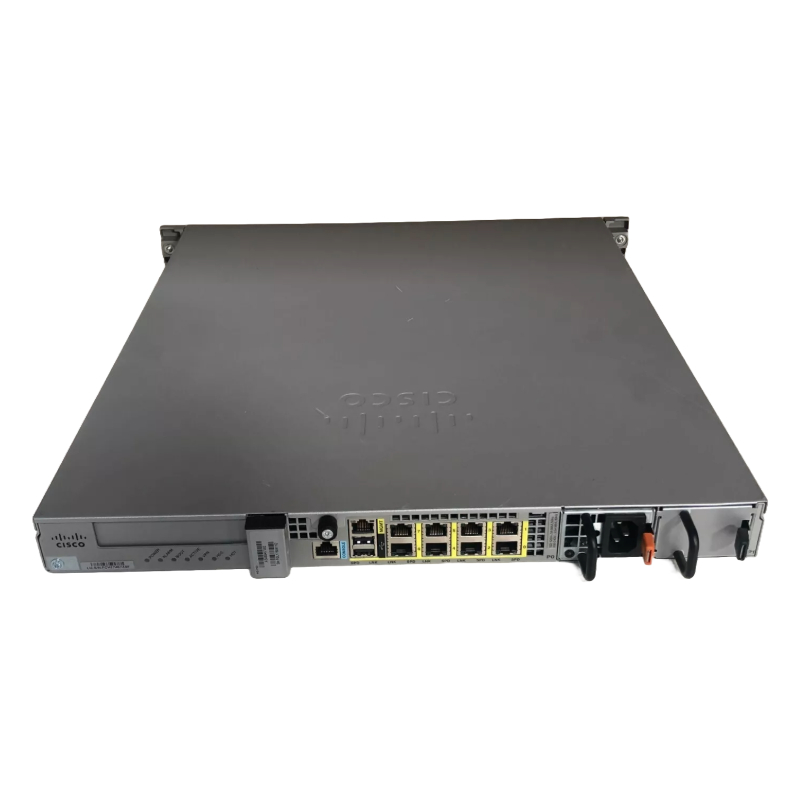

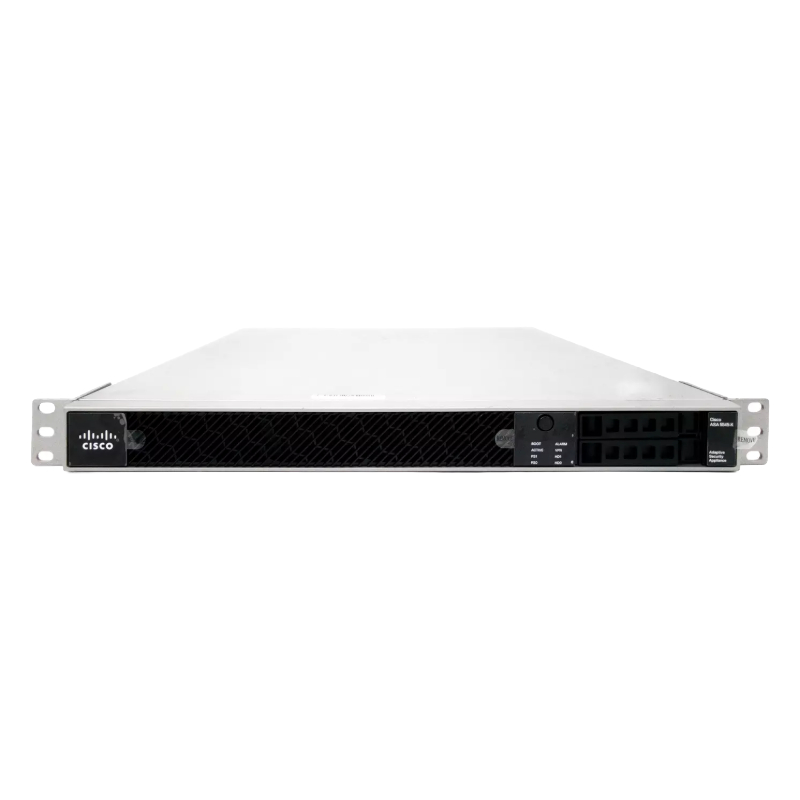

ASA5545-K9 Cisco 5545-X Firewall Edition Security Appliance

Overview of the Cisco 5545-X Firewall Security Appliance

The Cisco ASA5545-K9 ASA 5545-X Firewall Security Appliance is a high-performance network protection solution designed for enterprise-grade environments. It delivers robust cybersecurity, stable connectivity, and scalable architecture suitable for modern IT infrastructures. Built for reliability, this advanced firewall system ensures secure data transmission, efficient traffic handling, and strong defense against unauthorized access across business networks.

General Information

• Manufacturer: Cisco Systems
• Part Number: ASA5545-K9
• Model Type: 8-Port Advanced Security Appliance

Technical Specifications

• Category: Enterprise-grade Security Appliance
• Form Factor: Rack-mounted design (1U height)
• Memory Capacity: Up to 12 GB RAM
• Network Ports: 8 high-speed connectivity ports
• Communication Protocol: Gigabit Ethernet support
• Security Protocol: IPsec encryption standard

Performance Metrics

• Firewall Throughput: Up to 3 Gbps for high-speed traffic filtering
• VPN Throughput (3DES/AES): Approximately 400 Mbps secure tunnel performance
• Connection Handling Rate: 30,000 new connections per second
• Combined Firewall & IPS Throughput: Around 900 Mbps for integrated security processing

Capacity and Scalability

• IPsec VPN Peers: Supports up to 2,500 simultaneous secure connections
• SSL VPN Users: Up to 2 concurrent sessions
• Concurrent Network Sessions: Handles up to 750,000 active sessions
• Virtual LANs (VLANs): Supports up to 300 segmented networks
• Security Contexts: 2 independent security environments

Features and Capabilities

• Advanced firewall protection with deep packet inspection
• Strong VPN functionality for secure remote access
• Flexible VLAN configuration for network segmentation
• High availability support for redundancy and uptime optimization
• Integrated intrusion prevention and traffic monitoring tools
• Optimized for enterprise-level cybersecurity infrastructure

Power

• Input Power: AC 120/230V with 50/60Hz frequency support
• Redundant Power Option: Available for enhanced system reliability and uninterrupted operation

Compatibility

• Compatible with enterprise Cisco network infrastructure and routing systems
• Supports integration with Gigabit Ethernet-based switches and routers
• Works with IPsec and SSL VPN clients for remote secure connectivity
• Supports Cisco security management tools and centralized network monitoring platforms
• Compatible with IPv4 and IPv6 network environments
• Designed to integrate with multi-vendor enterprise IT systems using standard networking protocols

Cisco ASA5545-K9 Firewall Security Appliance Architecture

The Cisco ASA5545-K9 firewall security appliance belongs to a class of high-performance network protection systems designed for medium to large enterprise environments. It is engineered to deliver robust security capabilities combined with flexible deployment options, making it suitable for perimeter defense, branch connectivity, and data center integration. This appliance integrates hardware acceleration technologies that enhance packet processing efficiency, allowing organizations to handle large volumes of encrypted and unencrypted traffic without compromising performance.

The architecture of this security appliance is built around modular hardware components optimized for scalability and resilience. It supports multiple network interfaces that enable seamless integration into existing network infrastructures. The processing system is designed to handle concurrent sessions efficiently, ensuring that high-density traffic environments remain stable even during peak usage periods. The internal architecture emphasizes redundancy, fault tolerance, and consistent security enforcement across all network layers.

Hardware and Performance Capabilities

The hardware design of the Cisco ASA5545-K9 focuses on delivering high throughput while maintaining security inspection accuracy. It is equipped with specialized processing units that accelerate encryption, decryption, and traffic inspection tasks. This ensures that secure communication channels such as virtual private networks operate efficiently without introducing significant latency. The appliance is also designed with sufficient memory resources to handle large-scale session tracking and policy enforcement operations.

Performance optimization is a core aspect of this category of firewall appliances. The system is capable of managing thousands of simultaneous connections while maintaining consistent packet inspection rates. This makes it suitable for environments where continuous data exchange is critical, such as financial institutions, healthcare networks, and enterprise cloud infrastructures. The balanced integration of hardware and software components ensures that security policies are enforced without degrading network performance.

Network Interface and Connectivity Structure

Connectivity is a fundamental component of any firewall appliance, and this model provides multiple network interface options to accommodate diverse deployment scenarios. It supports flexible interface configurations that allow administrators to segment traffic efficiently and define security zones within the network architecture. These interfaces are designed to handle both internal and external traffic flows, ensuring controlled communication between trusted and untrusted network segments.

The connectivity structure also supports advanced routing capabilities, enabling the appliance to function as a central security gateway within enterprise environments. It can integrate with existing routing infrastructure while enforcing security policies at the perimeter level. This dual capability enhances network efficiency while maintaining strict access control mechanisms across all communication channels.

Advanced Security Features

Security features integrated into this firewall category extend beyond traditional packet filtering mechanisms. The system is capable of deep packet inspection, allowing it to analyze traffic content at the application layer. This enables the detection and prevention of sophisticated threats that may bypass basic firewall rules. By examining application behavior and traffic patterns, the appliance can identify anomalies and enforce adaptive security responses.

Virtual private network support is another essential feature, providing secure communication channels for remote users and branch offices. Encrypted tunnels ensure that sensitive data remains protected during transmission over public networks. This capability is particularly important for organizations with distributed workforces and geographically dispersed infrastructure.

Intrusion prevention capabilities enhance the security posture by actively monitoring network traffic for malicious activity. The system can detect known attack signatures as well as behavioral anomalies that indicate potential security breaches. Once a threat is identified, the appliance can take immediate action to block or mitigate the activity, ensuring continuous protection of critical network assets.

Firewall Policy Enterprise Networks

Firewall policy enforcement within this category is designed to provide granular control over network traffic. Administrators can define rules that govern how data is allowed to flow between different network segments. These policies are enforced in real time, ensuring that unauthorized access attempts are blocked immediately. The system supports stateful inspection, which allows it to track active connections and make intelligent decisions based on session context.

Traffic control mechanisms enable prioritization of network resources, ensuring that critical applications receive the necessary bandwidth and performance levels. This is particularly important in environments where multiple services operate simultaneously and require consistent network availability. By managing traffic flow efficiently, the appliance helps maintain operational stability across enterprise networks.

Deployment Scenarios Environments

The Cisco ASA5545-K9 security appliance is designed for deployment in a variety of enterprise environments, including data centers, branch offices, and centralized network perimeters. In enterprise edge deployments, it serves as the primary line of defense against external threats, filtering incoming and outgoing traffic based on predefined security policies. This ensures that only authorized communication is allowed to pass through the network boundary.

In data center environments, the appliance provides internal segmentation security, protecting critical workloads and virtualized infrastructures. It helps isolate different application environments, reducing the risk of lateral movement in the event of a security breach. This segmentation approach enhances overall network resilience and minimizes potential attack surfaces.

Branch office deployments benefit from the appliance’s ability to securely connect remote locations to central corporate networks. It enables consistent security enforcement across distributed environments, ensuring that all locations adhere to the same security standards and policies. This unified approach simplifies network management while enhancing security consistency.

High Availability and System Redundancy

High availability is a critical requirement for enterprise security infrastructure, and this appliance category is designed to support redundant configurations. By deploying multiple units in a failover setup, organizations can ensure continuous network protection even in the event of hardware or software failures. This redundancy minimizes downtime and maintains uninterrupted security enforcement across the network.

Failover mechanisms are designed to automatically transfer active sessions to standby systems without disrupting ongoing communication. This seamless transition ensures that users experience minimal interruption during system failures or maintenance activities. The redundancy architecture also enhances system reliability by distributing workloads across multiple devices.

Performance Optimization and Scalability

Performance optimization is a defining characteristic of enterprise-grade firewall appliances. The system is engineered to scale with increasing network demands, ensuring that performance remains consistent as traffic volumes grow. Hardware acceleration and optimized software algorithms work together to maintain high throughput levels even under heavy load conditions.

Scalability is achieved through flexible architecture design that supports integration with additional security modules and network expansion components. This allows organizations to adapt their security infrastructure as their operational requirements evolve. The ability to scale efficiently ensures long-term value and sustained performance across enterprise deployments.

Use Cases

This category of firewall appliance is widely used across multiple industries, including finance, healthcare, education, government, and telecommunications. In financial institutions, it helps protect sensitive transactional data and ensures compliance with regulatory requirements. In healthcare environments, it safeguards patient records and supports secure communication between medical systems.

Educational institutions utilize these security systems to manage network access across large campus environments, ensuring safe internet usage and protecting academic resources. Government agencies rely on them to secure classified information and maintain national cybersecurity standards. Telecommunications providers use them to manage large-scale network traffic while maintaining service reliability and security.

Compliance and Security Standards Alignment

Enterprise firewall appliances are designed to support compliance with international security standards and regulatory frameworks. They help organizations meet requirements related to data protection, access control, and network monitoring. By enforcing strict security policies and maintaining detailed audit logs, these systems contribute to regulatory compliance across various industries.

Security standards integration ensures that the appliance aligns with best practices in cybersecurity architecture. This includes support for encryption protocols, authentication mechanisms, and secure communication standards. These capabilities are essential for organizations operating in regulated environments where data integrity and confidentiality are critical.

Integration Within Cisco Security Ecosystem

This firewall appliance integrates seamlessly within broader network security ecosystems, enabling interoperability with other security solutions and network management tools. It supports coordinated threat intelligence sharing and centralized policy enforcement, enhancing overall security effectiveness. Integration with network monitoring systems allows for comprehensive visibility across all network layers.

The ability to work within a unified security ecosystem ensures that organizations can implement layered security strategies that address multiple threat vectors. This holistic approach strengthens defense mechanisms and improves response times to security incidents. By operating as part of an integrated system, the appliance contributes to a more resilient and adaptive network security framework.
