ASR1013 Cisco Router Firewall Aggregation Services

Overview Cisco ASR1013 Firewall Aggregation Services Router

The Cisco ASR1013 Firewall Aggregation Services Router is engineered to deliver exceptional performance, enterprise-grade security, and scalable architecture for modern network infrastructures. Designed to handle high-volume data traffic with precision, this routing platform enables seamless integration of advanced services such as firewall aggregation, VPN encryption, and intelligent traffic management. With its modular design and robust throughput capabilities, the device is ideal for service providers, large enterprises, and data-intensive environments.

General Product Information

• Brand: Cisco
• Model Number: ASR1013
• Device Category: Enterprise Edge Router
• Deployment Type: Aggregation and Edge Routing Platform

Throughput Scalability

• Flexible throughput ranging from 40 Gbps to 200 Gbps
• Dependent on installed Embedded Services Processors (ESPs)
• Optimized for scaling network performance as business needs grow

Packet Forwarding Efficiency

• Supports up to 130 million packets per second (mpps)
• Ensures smooth data transmission across large-scale networks
• Minimizes latency and packet loss

Secure Data Encryption

• IPsec throughput reaches up to 78 Gbps
• Hardware-based encryption acceleration
• Ensures secure communication across enterprise networks

Routing Table Capacity

• Supports up to 4 million IPv4 and IPv6 routes
• Ideal for complex routing environments
• Enhances scalability for large service provider networks

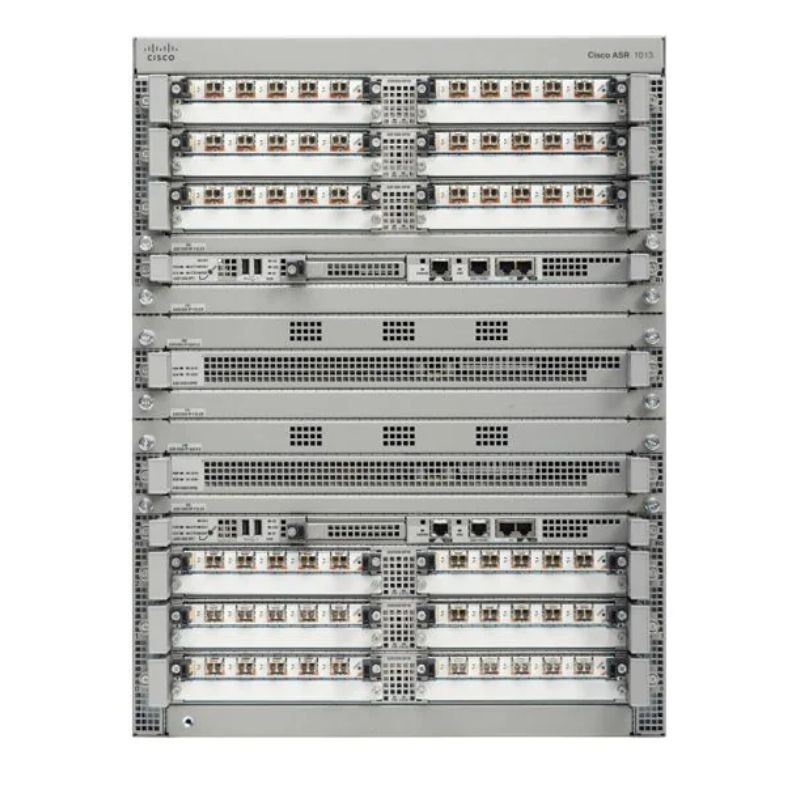

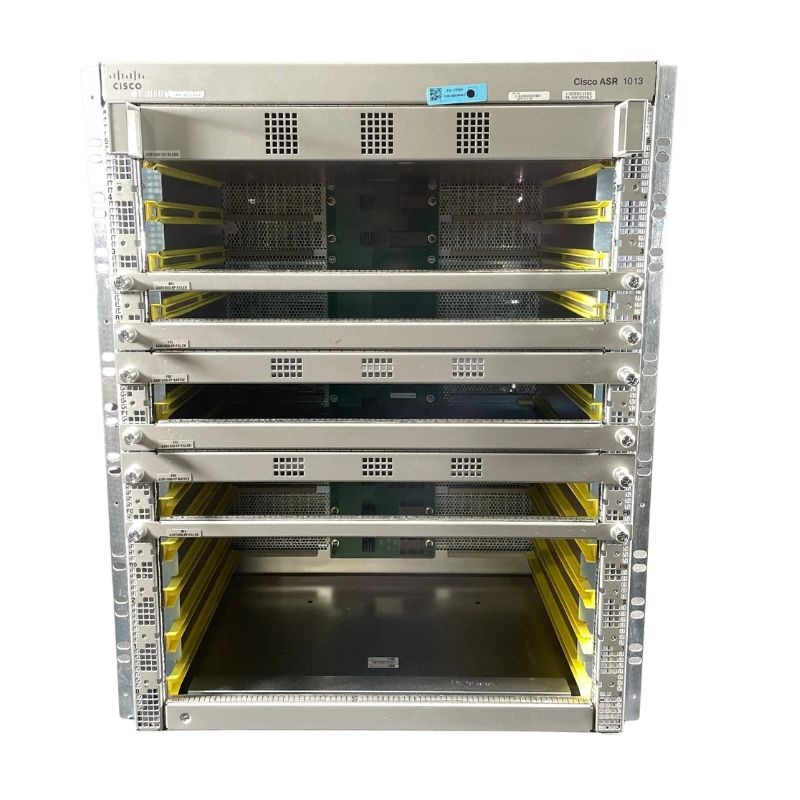

Chassis Slot Configuration

• 2 Route Processor (RP) slots for system management and redundancy
• 2 Embedded Services Processor (ESP) slots for data forwarding
• 6 SPA Interface Processor (SIP) slots for flexible interface deployment

Interface Expansion Capabilities

• Supports up to 24 half-height Shared Port Adapters (SPAs)
• Alternatively supports 12 Ethernet Port Adapters (EPAs)
• Provides high-density connectivity options

Hardware Redundancy

• 1+1 redundancy for Route Processors
• 1+1 redundancy for Embedded Services Processors
• Stateful failover for seamless transition during failures

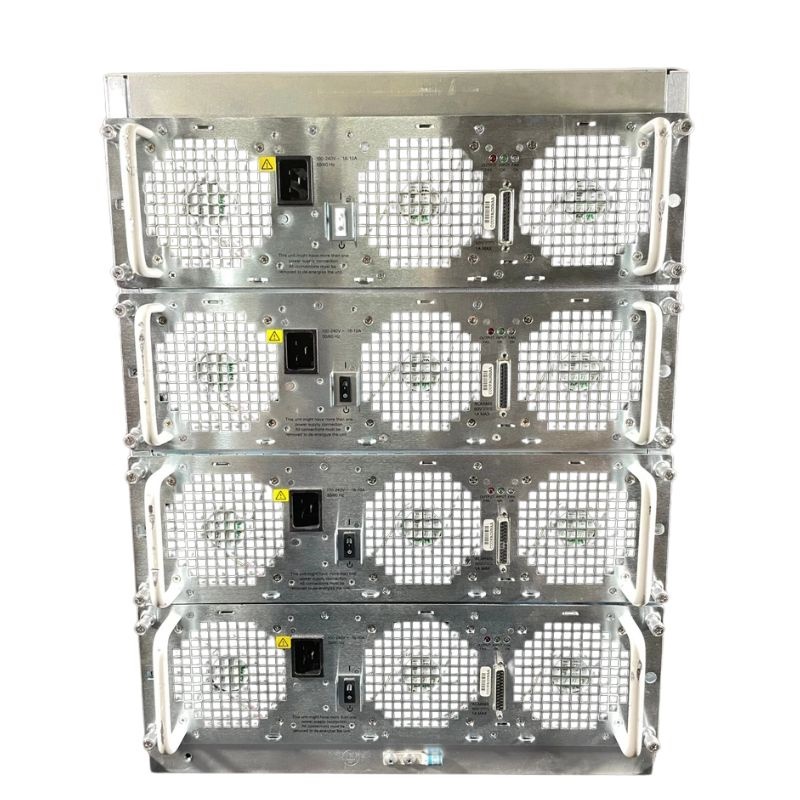

Power Supply Reliability

• Quad power supply configuration
• Redundant pairs across two power zones
• Supports both AC and DC power options

Five-Nines Availability

• Designed for 99.999% uptime
• Minimizes downtime and service interruptions
• Ideal for telecom and enterprise-grade deployments

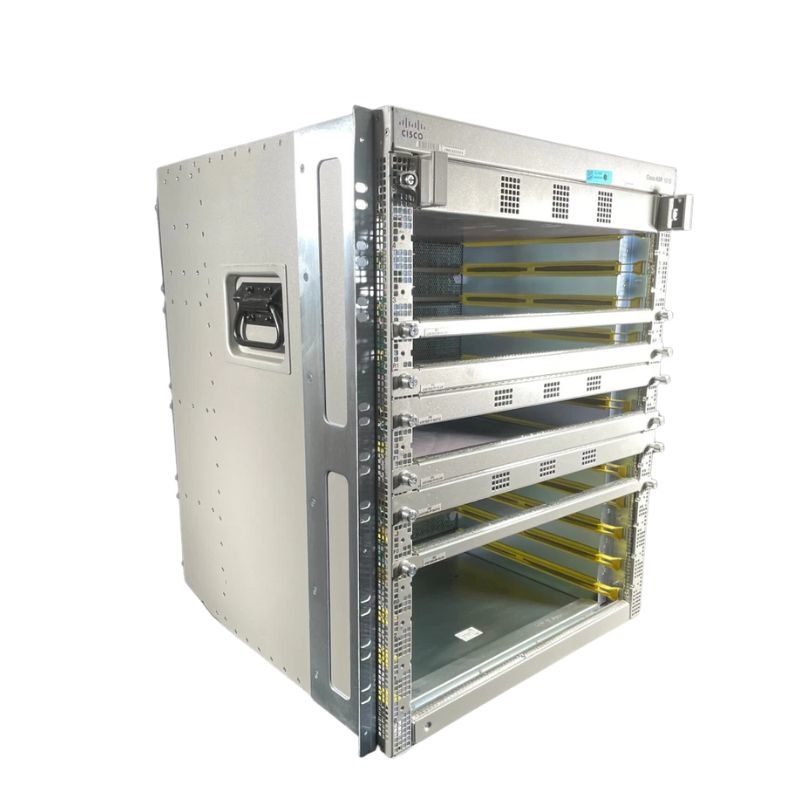

Form Factor and Dimensions

• 13 Rack Units (13RU) chassis design
• Dimensions: 22.8 x 17.2 x 18.15 inches
• Metric size: 579.1 x 437.4 x 461.0 mm

Weight Specifications

• Typical weight: Approximately 184 lbs (83.46 kg)
• Fully configured weight: Up to 208 lbs (94.6 kg)
• Sturdy build for enterprise environments

Firewall Aggregation Capabilities

• Supports large-scale firewall deployments
• Handles high-volume encrypted traffic
• Ensures secure data exchange across networks

Encryption and VPN Support

• Hardware-accelerated IPsec encryption
• Secure VPN connectivity for remote access
• Enhanced data protection for sensitive information

Flexible Upgrade Options

• Upgradeable Embedded Services Processors
• Expandable interface modules
• Adaptable to increasing network demands

Large-Scale Deployments

• Ideal for ISPs and telecom providers
• Handles massive routing tables and traffic loads
• Ensures consistent performance across distributed networks

Cisco ASR1013 Firewall Aggregation Services Router

The Cisco ASR1013 Firewall Aggregation Services Router represents a high-performance, scalable networking platform designed to meet the demanding requirements of enterprise edge, service provider aggregation, and data center interconnect environments. Built on a modular architecture, this advanced routing solution integrates firewall capabilities with aggregation efficiency, enabling organizations to handle increasing volumes of data traffic while maintaining optimal security and operational reliability. The ASR1013 model is part of the widely recognized Aggregation Services Router family, engineered to deliver consistent throughput, enhanced application awareness, and robust service integration across diverse network infrastructures.

Architecture and System Design

The system architecture of the ASR1013 is centered on a distributed forwarding model, enabling independent processing across hardware components to ensure uninterrupted packet handling even under heavy load conditions. This architecture allows the router to maintain high availability while supporting multiple services simultaneously. The separation of control plane and data plane functions ensures that routing decisions and forwarding operations occur efficiently, reducing latency and improving overall network responsiveness. Its modular chassis design allows administrators to expand capabilities by adding interface modules and service processors without disrupting existing operations.

Modular Scalability

Scalability is a defining characteristic of the Cisco ASR1013 Firewall Aggregation Services Router. The system supports multiple interface modules and redundant components, making it suitable for growing network environments that demand flexibility and future-proofing. Organizations can scale bandwidth, connectivity options, and processing capabilities according to their evolving needs. This modularity reduces the necessity for complete infrastructure overhauls and provides a cost-effective path to network expansion.

Redundant Components and Reliability

Reliability is enhanced through redundant power supplies, cooling systems, and route processors. These features ensure continuous uptime and minimize the risk of service interruptions. The router is designed to support stateful failover mechanisms, allowing seamless transitions during hardware or software failures. Such capabilities are crucial for mission-critical environments where downtime can lead to significant operational and financial losses.

Integrated Firewall and Security Capabilities

The Cisco ASR1013 integrates advanced firewall functionalities directly into its architecture, eliminating the need for separate security appliances. This integration simplifies network design while enhancing security posture. The firewall capabilities include deep packet inspection, application-level filtering, and intrusion prevention mechanisms that protect against modern cyber threats. By combining routing and security in a single platform, organizations can streamline their infrastructure and improve performance efficiency.

Advanced Threat Protection

Advanced threat protection mechanisms within the ASR1013 enable real-time monitoring and mitigation of malicious activities. The router supports dynamic threat intelligence updates, allowing it to adapt to emerging vulnerabilities and attack vectors. This proactive approach to security helps organizations maintain compliance with industry standards and protect sensitive data across their networks.

Application Visibility and Control

Application visibility and control features provide administrators with detailed insights into network traffic patterns. These capabilities allow for granular policy enforcement based on application type, user identity, or network segment. By leveraging this level of visibility, organizations can optimize bandwidth allocation, prioritize critical applications, and prevent unauthorized usage.

Secure VPN Integration

Secure Virtual Private Network integration ensures encrypted communication across distributed networks. The ASR1013 supports various VPN technologies, enabling secure connectivity for remote users, branch offices, and partner networks. This functionality is essential for maintaining confidentiality and integrity in modern hybrid work environments.

Performance and Throughput Optimization

Performance optimization is a key strength of the Cisco ASR1013 Firewall Aggregation Services Router. The platform is designed to handle high throughput levels while maintaining consistent performance across multiple services. Hardware acceleration techniques are employed to offload processing tasks, ensuring efficient packet forwarding and reduced CPU utilization. This approach allows the router to deliver predictable performance even during peak traffic periods.

High-Speed Data Processing

The router utilizes specialized hardware components to process large volumes of data at high speeds. This capability is critical for environments such as service provider networks and large enterprises where data traffic continues to grow exponentially. The ASR1013 ensures that network performance remains stable regardless of traffic fluctuations.

Quality of Service Management

Quality of Service features enable precise traffic management by prioritizing mission-critical applications over less important data flows. This ensures optimal user experience and prevents congestion-related issues. Administrators can define policies that allocate bandwidth based on application requirements, ensuring efficient resource utilization.

Latency Reduction Techniques

Latency reduction is achieved through optimized packet processing paths and efficient resource allocation. These techniques are essential for applications that require real-time communication, such as voice over IP and video conferencing. The ASR1013 ensures minimal delay, enhancing overall network performance.

Deployment Flexibility and Use Cases

The Cisco ASR1013 Firewall Aggregation Services Router is designed for versatile deployment across various network scenarios. Its robust feature set makes it suitable for enterprise edge routing, service provider aggregation, and data center interconnect applications. The router can handle complex networking requirements while maintaining simplicity in deployment and management.

Enterprise Edge Deployment

In enterprise environments, the ASR1013 serves as a powerful edge router that connects internal networks to external resources. Its integrated security features protect against external threats while ensuring seamless connectivity. The router supports multiple connectivity options, enabling organizations to integrate diverse network technologies.

Service Provider Aggregation

Service providers benefit from the ASR1013’s ability to aggregate traffic from multiple sources and deliver it efficiently across core networks. The router’s high throughput and scalability make it ideal for handling large volumes of subscriber traffic. Its advanced routing capabilities ensure efficient data delivery and optimized network performance.

Data Center Interconnect

For data center environments, the ASR1013 facilitates high-speed connectivity between geographically distributed facilities. Its performance and reliability ensure seamless data transfer and support for cloud-based applications. This capability is essential for organizations that rely on distributed computing resources.

Energy Efficiency and Environmental Considerations

The Cisco ASR1013 Firewall Aggregation Services Router is designed with energy efficiency in mind, helping organizations reduce operational costs and environmental impact. Efficient power management systems ensure optimal energy usage without compromising performance. The router’s design aligns with modern sustainability goals, making it a suitable choice for organizations committed to reducing their carbon footprint.

Optimized Power Consumption

Power optimization features dynamically adjust energy usage based on network load, ensuring efficient operation at all times. This capability reduces unnecessary power consumption during periods of low activity, contributing to cost savings and environmental sustainability.

Cooling and Thermal Management

Advanced cooling systems maintain optimal operating temperatures, ensuring reliable performance and extending hardware lifespan. Efficient thermal management reduces the risk of overheating and enhances overall system stability.

Eco-Friendly Design

The router’s eco-friendly design incorporates materials and manufacturing processes that minimize environmental impact. This approach reflects a commitment to sustainability while maintaining high performance and reliability standards.

Future-Ready Networking Capabilities

The Cisco ASR1013 Firewall Aggregation Services Router is built to support future networking technologies and evolving business requirements. Its flexible architecture and advanced feature set ensure compatibility with emerging standards and applications. This future-ready design enables organizations to adapt to changing technological landscapes without requiring significant infrastructure changes.

Emerging Technologies

The router supports advanced networking technologies such as software-defined networking and network function virtualization. These capabilities enable organizations to implement innovative solutions that enhance efficiency and agility. By embracing these technologies, the ASR1013 ensures long-term relevance in dynamic network environments.

Integration with Cloud Environments

Cloud integration features enable seamless connectivity between on-premises infrastructure and cloud-based services. This capability is essential for organizations adopting hybrid or multi-cloud strategies. The ASR1013 ensures secure and efficient data transfer across different environments.
