ASR1000-RP3= Cisco ASR1000 Series Twisted Pair Firewall Router Processor 3.

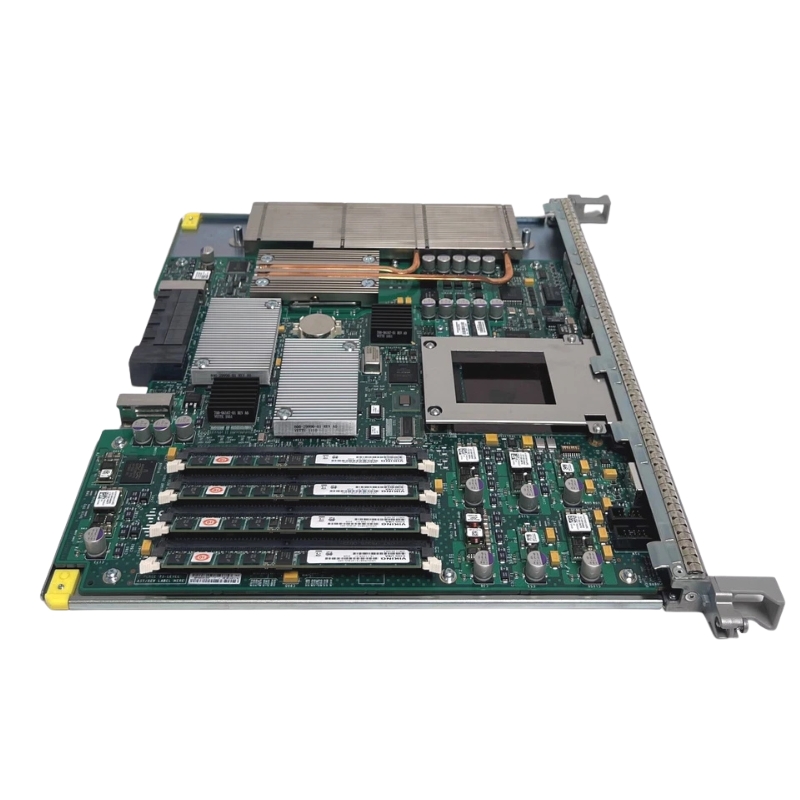

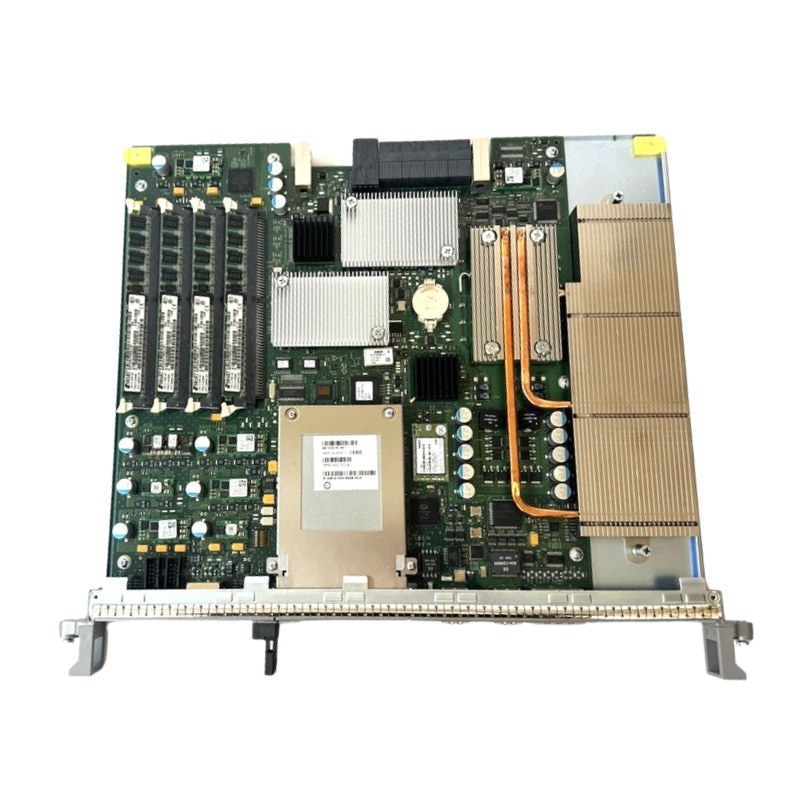

Overview Cisco ASR1000-RP3= Router Processor

The Cisco ASR1000-RP3= is a high-performance routing processor designed for the ASR1000 Series. It delivers advanced scalability, robust performance, and compatibility with modular chassis systems, making it ideal for enterprise and service provider networks.

General Information

• Brand: Cisco
• Part Number: ASR1000-RP3=
• Category: Router Processor

Core Technical Specifications

Processor

• Quad-core Intel x86 CPU
• Clock speed: 2.2 GHz

Memory (DRAM)

• Default: 8 GB
• Expandable: 16 GB, 32 GB, or 64 GB

Storage & Flash

• Bootflash: 8 GB eUSB/eMMC
• SSD: 100 GB hot-swappable (upgradeable to 200 GB or 400 GB)

Operating System

• Requires Cisco IOS XE (64-bit)
• Minimum version: 16.3.1

Physical Attributes

• Weight: 7 lb (3.2 kg)
• Dimensions: 0.92 x 16.7 x 14.19 inches

Performance & Scalability

Routing Capacity

• Up to 1,000,000 IPv4/IPv6 routes with 8 GB memory
• Up to 8,500,000 IPv4 or 7,500,000 IPv6 routes with 32 GB memory

BGP Route Reflector

• Supports up to 24M IPv4 or 17M IPv6 routes with 16/32 GB memory

Control Plane Speed

• Approximately 50% faster than RP2 module

Hardware Compatibility

Chassis Support

• ASR 1006-X
• ASR 1009-X
• ASR 1013

Supported ESPs

• ESP40
• ESP100
• ESP200

Line Card Support

• SIP40
• MIP100
• Ethernet Port Adapters (EPA)

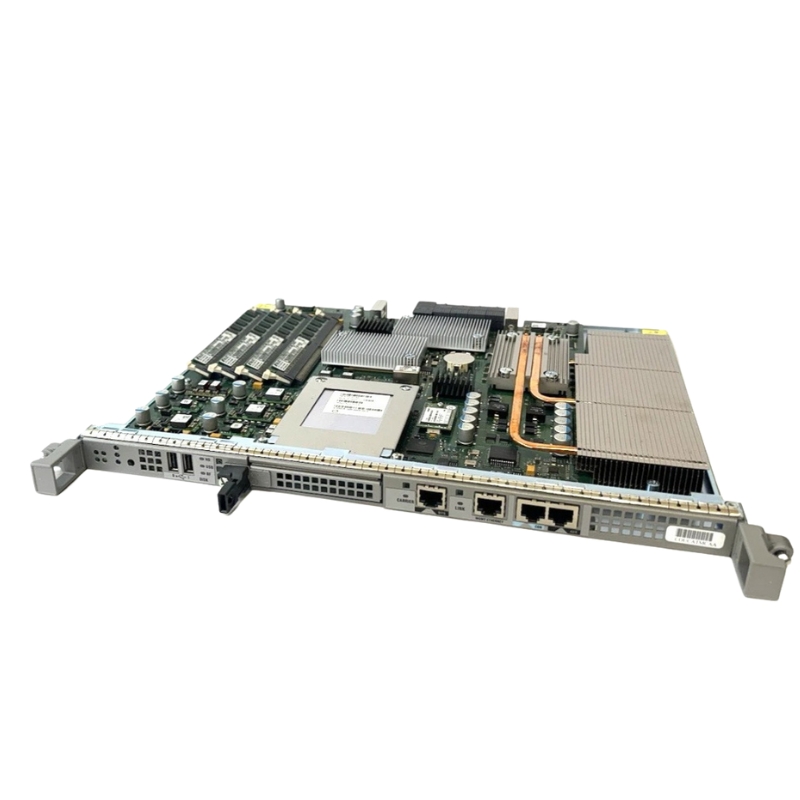

Interface Ports

Management

• 1x 10/100/1000 Mbps RJ-45 Ethernet port

Console & Auxiliary

• 1x RJ-45 Console
• 1x Mini-USB Console
• 1x RJ-45 AUX port

Synchronization

• 1x RJ-48 BITS interface

External Storage

• 2x USB 2.0 ports

Key Highlights

Scalability

• Supports millions of routes for large-scale deployments

Performance

• Enhanced control plane speed compared to RP2

Compatibility

• Works seamlessly with ASR1000 modular chassis and ESPs

Cisco ASR1000-RP3= Route Processor 3 for Enterprise-Grade Networking

The Cisco ASR1000-RP3= ASR1000 Series Twisted Pair Route Processor 3 represents a high-performance control plane module engineered for modern enterprise and service provider networks. Designed to operate within the ASR 1000 Series aggregation services routers, this advanced route processor delivers exceptional scalability, improved throughput, and enhanced system resiliency. It is built to meet the demands of complex network infrastructures where uninterrupted connectivity, high-speed routing, and intelligent traffic management are critical for business continuity and digital transformation initiatives.

Architecture and Processing Capabilities

The architecture of the Route Processor 3 is based on a multi-core processing design that ensures efficient distribution of routing and management tasks. Its processing capabilities allow it to handle large routing tables, complex protocols, and high volumes of data traffic without compromising performance. The RP3 is optimized for advanced networking features such as virtualization, segmentation, and secure communication, making it ideal for both enterprise campuses and service provider environments.

Control Plane Optimization

The control plane plays a vital role in maintaining network stability and performance. The RP3 enhances control plane operations by delivering faster convergence times, improved route calculation efficiency, and better handling of routing updates. This ensures that networks can quickly adapt to changes, reducing downtime and improving overall reliability.

Advanced Memory and Processing Efficiency

With upgraded memory capacity and optimized CPU performance, the Route Processor 3 is capable of handling extensive routing databases and large-scale network configurations. This makes it suitable for environments where high-density routing and large-scale deployments are required.

Scalability for Growing Network Demands

Scalability is a fundamental requirement in modern networking infrastructures. The Cisco ASR1000-RP3= is designed to support network growth by enabling seamless expansion without compromising performance. Organizations can scale their operations by adding more interfaces, increasing bandwidth, and supporting additional services without needing a complete infrastructure overhaul.

Large Routing Tables

The RP3 is capable of supporting extensive routing tables, making it suitable for internet edge deployments and service provider networks. It efficiently manages both IPv4 and IPv6 routes, ensuring compatibility with evolving network standards and future-proofing investments.

High Availability and Redundancy

To ensure continuous operation, the Route Processor 3 supports redundancy configurations that allow for failover in case of hardware or software issues. This high availability feature minimizes downtime and ensures that critical services remain operational even during unexpected disruptions.

Seamless Integration with Existing Infrastructure

The RP3 integrates seamlessly with existing ASR 1000 Series routers, allowing organizations to upgrade their systems without significant changes to their current setup. This compatibility reduces deployment complexity and lowers total cost of ownership.

Enhanced Security Features

Security is a top priority in modern networking environments, and the Cisco ASR1000-RP3= is equipped with advanced security capabilities to protect sensitive data and network resources. It supports a wide range of security protocols and features that help safeguard against cyber threats and unauthorized access.

Integrated Encryption and Threat Protection

The Route Processor 3 supports integrated encryption technologies that ensure secure data transmission across networks. It also includes features for threat detection and mitigation, helping organizations protect their infrastructure from evolving cyber threats.

Secure Management and Access Control

Administrators can implement strict access control policies to manage network devices securely. The RP3 supports role-based access, authentication protocols, and secure management interfaces, ensuring that only authorized personnel can configure and monitor the system.

Compliance with Industry Standards

The RP3 adheres to industry security standards, making it suitable for organizations that require compliance with regulatory frameworks. This ensures that businesses can maintain secure and compliant network operations.

Performance Optimization and Throughput

Performance is a critical factor for any networking solution, and the Cisco ASR1000-RP3= delivers exceptional throughput and efficiency. It is designed to handle high-speed data transmission while maintaining low latency and consistent performance.

High-Speed Data Processing

The RP3 is capable of processing large volumes of data at high speeds, making it ideal for bandwidth-intensive applications such as video streaming, cloud computing, and large-scale data transfers. Its advanced processing capabilities ensure smooth and efficient data flow across the network.

Low Latency Networking

Low latency is essential for real-time applications such as voice over IP, online gaming, and financial transactions. The Route Processor 3 minimizes latency by optimizing data processing and routing decisions, ensuring a seamless user experience.

Efficient Resource Utilization

The RP3 is designed to utilize system resources efficiently, reducing power consumption while maintaining high performance. This makes it a cost-effective solution for organizations looking to optimize their network infrastructure.

Virtualization and Cloud Integration

The Cisco ASR1000-RP3= supports virtualization technologies that enable organizations to create flexible and scalable network environments. It is well-suited for cloud-based applications and services, allowing businesses to adapt to modern IT requirements.

Network Virtualization

The RP3 enables network virtualization by allowing multiple virtual instances to run on a single physical device. This enhances resource utilization and provides greater flexibility in managing network services.

Cloud-Ready Infrastructure

With support for cloud integration, the Route Processor 3 allows organizations to connect their on-premises infrastructure with cloud environments seamlessly. This enables hybrid cloud deployments and improves overall operational efficiency.

Automation and Orchestration

The RP3 supports automation tools and orchestration platforms that simplify network management. This reduces manual intervention and allows for faster deployment of services and configurations.

Reliability and Fault Tolerance

Reliability is a key consideration for mission-critical networks, and the Cisco ASR1000-RP3= is designed to deliver consistent performance under all conditions. Its fault-tolerant design ensures that networks remain operational even in the event of hardware failures.

Redundant System Design

The RP3 supports redundant configurations that provide backup in case of component failure. This ensures that network operations continue without interruption, maintaining service availability.

Error Detection and Recovery

Advanced error detection mechanisms allow the RP3 to identify and resolve issues quickly. This minimizes the impact of faults and ensures that the network remains stable and reliable.

Energy Efficiency and Cost Optimization

Energy efficiency is an important factor in modern data centers and networking environments. The Cisco ASR1000-RP3= is designed to deliver high performance while minimizing energy consumption, helping organizations reduce operational costs.

Power-Efficient Design

The RP3 incorporates power-saving technologies that reduce energy usage without compromising performance. This makes it an environmentally friendly choice for organizations looking to reduce their carbon footprint.

Lower Total Cost of Ownership

By combining high performance, scalability, and energy efficiency, the Route Processor 3 helps organizations achieve a lower total cost of ownership. Its long lifespan and reliability further contribute to cost savings.

Optimized Cooling Requirements

The RP3 is designed to operate efficiently with minimal cooling requirements, reducing the need for additional infrastructure and lowering operational expenses.

Deployment Scenarios and Use Cases

The Cisco ASR1000-RP3= is suitable for a wide range of deployment scenarios, including enterprise networks, service provider environments, and data centers. Its versatility makes it an ideal choice for organizations with diverse networking needs.

Enterprise Network Core

In enterprise environments, the RP3 serves as a reliable core routing solution that supports high-speed connectivity and advanced networking features. It enables seamless communication between different departments and locations.

Service Provider Edge

For service providers, the Route Processor 3 provides the performance and scalability required to handle large volumes of traffic and support multiple customers. It ensures efficient delivery of services and maintains high levels of customer satisfaction.

Data Center Connectivity

The RP3 is well-suited for data center environments where high-speed connectivity and low latency are essential. It supports modern applications and workloads, ensuring optimal performance and reliability.

Future-Proof Networking Solution

The Cisco ASR1000-RP3= is designed to meet the evolving demands of modern networking. Its advanced features, scalability, and compatibility with emerging technologies make it a future-proof solution for organizations looking to stay ahead in a rapidly changing digital landscape.

Emerging Technologies

The RP3 is compatible with emerging technologies such as software-defined networking and network function virtualization. This ensures that organizations can adopt new innovations without requiring significant infrastructure changes.

Flexible Upgrade Path

Organizations can upgrade their network infrastructure incrementally by integrating the RP3 into their existing systems. This flexibility allows for gradual expansion and reduces the risk associated with large-scale upgrades.

Long-Term Investment Value

With its robust design and advanced capabilities, the Cisco ASR1000-RP3= provides long-term value for organizations. It ensures that network infrastructure remains relevant and capable of supporting future requirements.
