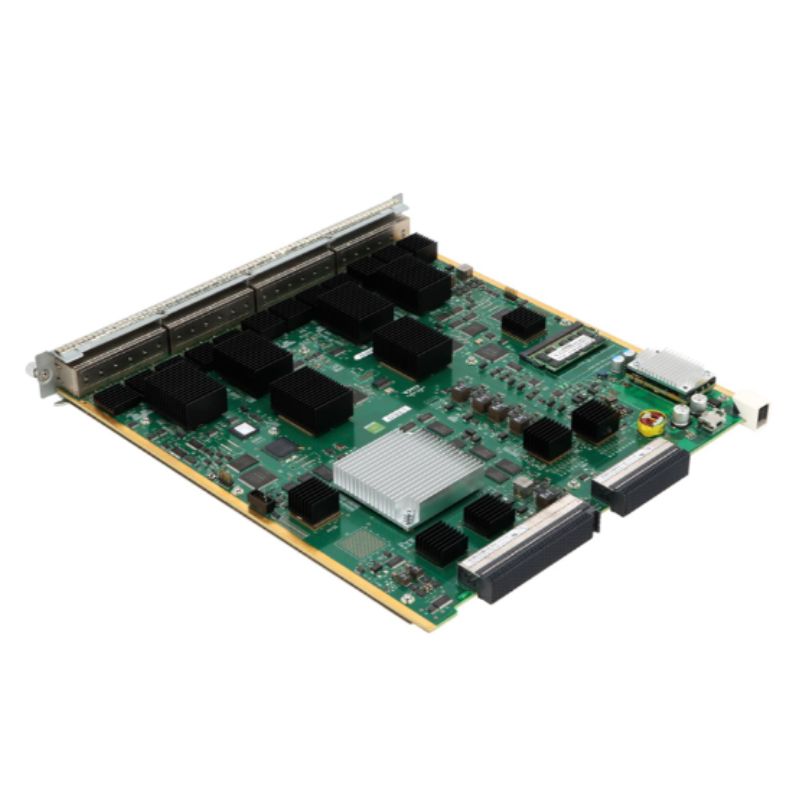

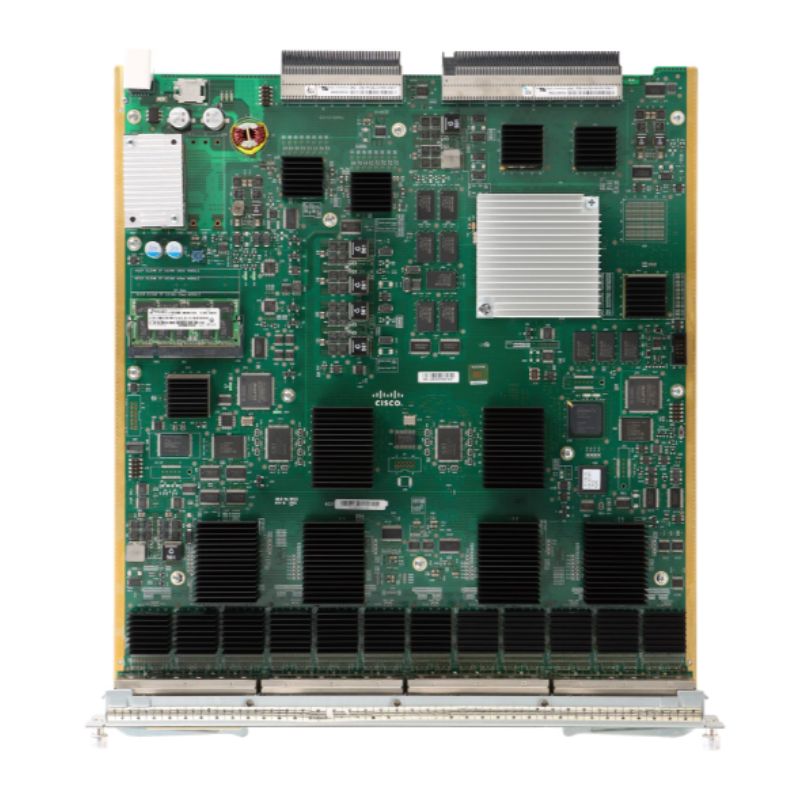

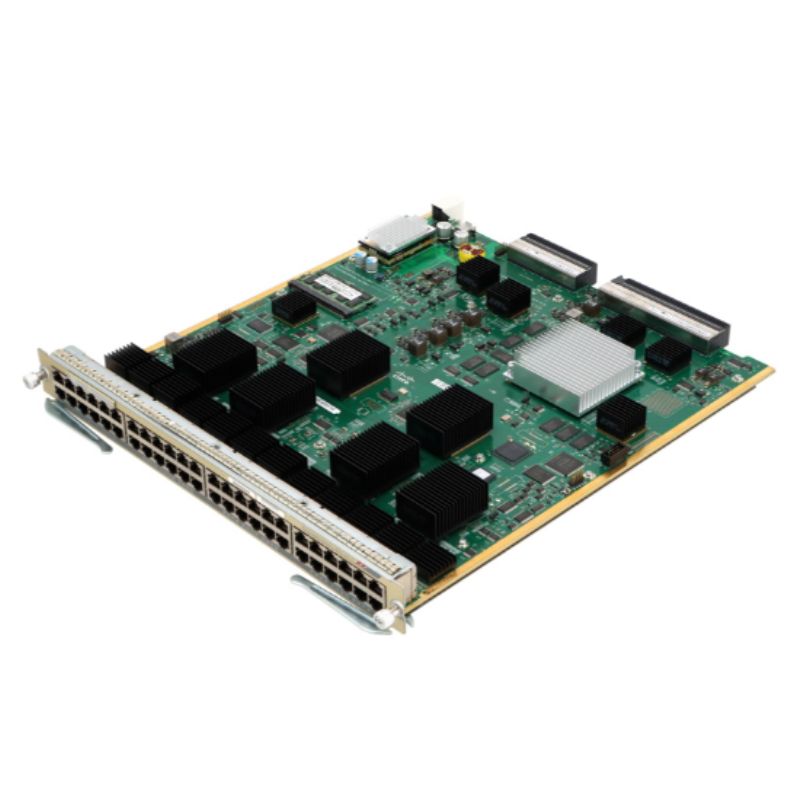

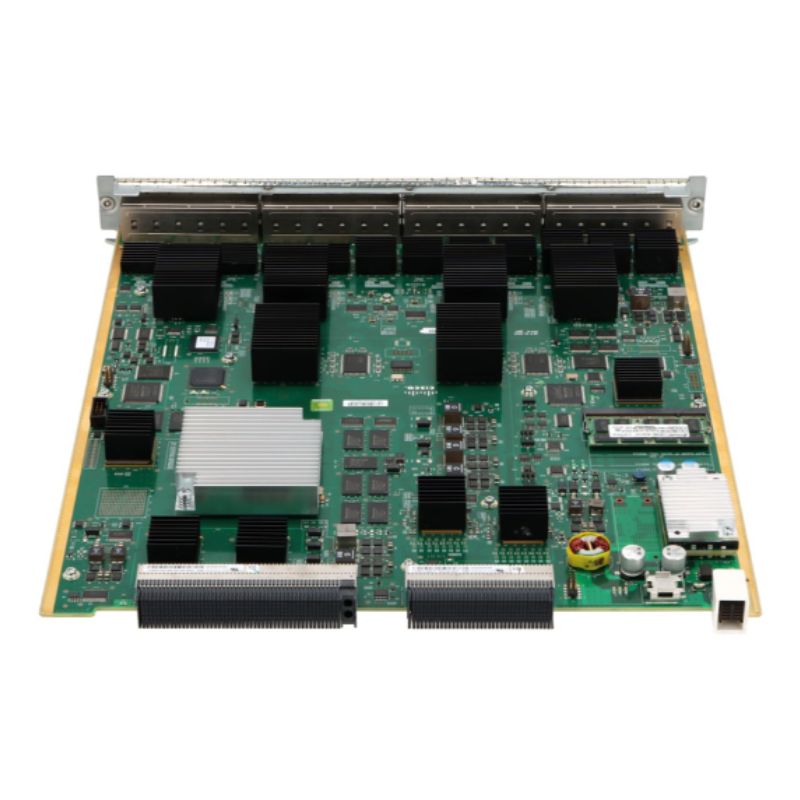

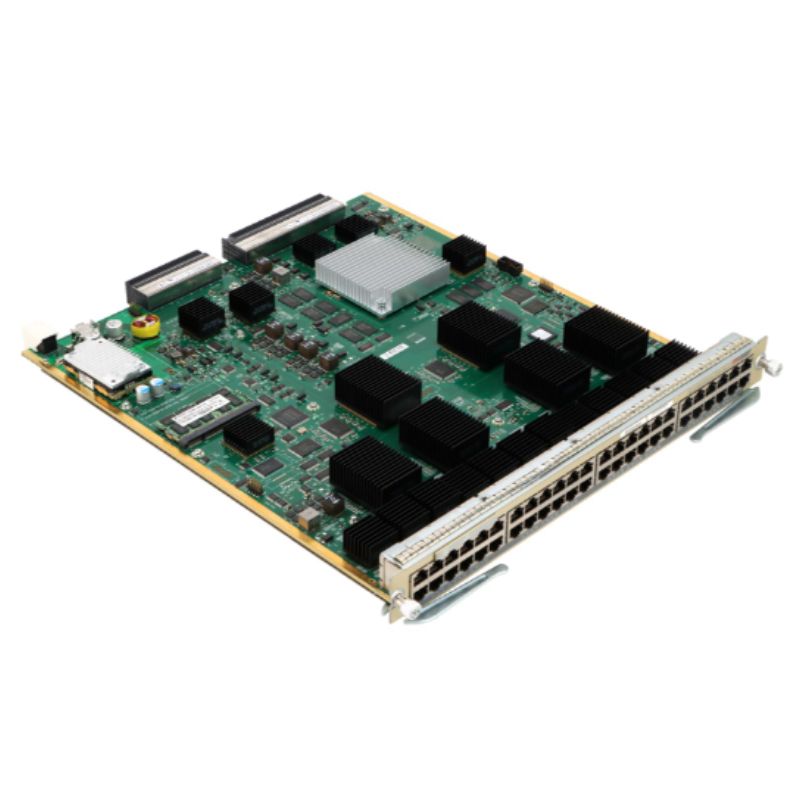

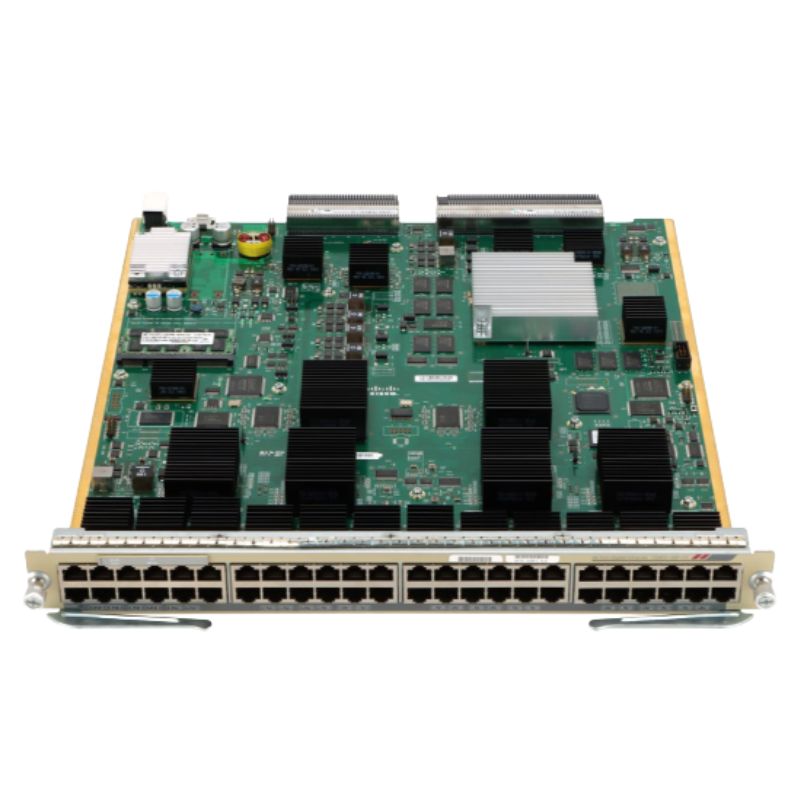

C6800-48P-TX Cisco Catalyst 6800 48 Ports Expansion Module

Cisco Catalyst 6800 48 Ports Expansion Module

The Cisco C6800-48P-TX Catalyst 6800 Expansion Module is a high-density networking solution designed for enterprise-grade infrastructures. With 48 RJ-45 Gigabit Ethernet ports, auxiliary SFP+ slots, and compliance with multiple IEEE standards, this Cisco module ensures reliable, scalable, and efficient connectivity for modern data centers and corporate networks.

General Information

• Manufacturer: Cisco
• Part Number: C6800-48P-TX
• Device Category: Expansion Module

Technical Specifications

• Type: Rack-mountable module
• Ports: 48 × 1000BASE-T RJ-45
• Auxiliary Ports: 4 × SFP+

Dimensions & Weight

• Width: 14 in
• Depth: 16 in
• Height: 1.2 in
• Weight: 8.25 lbs

Performance

• Cabling Type: Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T
• Data Link Protocols: 10Mb LAN, 100Mb LAN, Gigabit Ethernet
• Data Transfer Rate: 1 Gbps

Compliant Standards

• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1s

Key Advantages

• Provides 48 Gigabit Ethernet ports for high-density connectivity.
• Includes 4 SFP+ slots for flexible uplink expansion.
• Supports multiple Ethernet cabling types for versatile deployment.
• Complies with IEEE networking standards for reliability and interoperability.
• Rack-mountable design for enterprise scalability.

Overview of C6800-48P-TX 6800 Series Expansion Module

The C6800-48P-TX Catalyst 6800 Series Gigabit Ethernet Copper Module with DFC4 Expansion Module and 1000BASE-T 48-Port configuration represents a high-density switching solution designed for enterprise campus networks, large-scale aggregation layers, and mission-critical switching environments. Built for performance, scalability, and advanced Layer 2 and Layer 3 services, this copper-based switching module is engineered to deliver reliable Gigabit Ethernet connectivity across demanding infrastructures where bandwidth consistency, low latency, and resiliency are essential. It integrates seamlessly into the Catalyst 6800 modular switching ecosystem, enabling organizations to expand network capacity while maintaining centralized control and operational efficiency.

Architecture and Design of Catalyst 6800 Series Module

High-Density Switching Fabric Integration

The switching module is designed to operate within the Catalyst 6800 chassis architecture, leveraging a high-performance switching fabric that enables non-blocking data transmission across all active ports. The 48-port 1000BASE-T configuration ensures that each port operates at full Gigabit speed simultaneously, supporting enterprise workloads such as virtualization traffic, cloud applications, voice over IP, and video conferencing without congestion bottlenecks. The copper-based RJ-45 interfaces provide compatibility with standard structured cabling systems, simplifying deployment in existing enterprise environments.

Modular Scalability and System Expansion

The modular design philosophy of the Catalyst 6800 platform allows network administrators to scale infrastructure incrementally. The C6800-48P-TX module can be inserted into compatible chassis slots, increasing port density without requiring full system replacement. This architecture reduces capital expenditure while extending the lifecycle of existing network infrastructure. The inclusion of DFC4 (Distributed Forwarding Card 4) expansion capability enhances local switching intelligence, reducing reliance on centralized processing and improving overall forwarding efficiency.

Performance Capabilities and Switching Efficiency

Wire-Speed Gigabit Performance

Each of the 48 ports on the module supports 1000BASE-T connectivity, enabling wire-speed performance across all interfaces. This ensures consistent throughput for data-heavy environments where simultaneous access to applications, databases, and cloud services is required. The hardware-based forwarding engine minimizes packet processing delays and ensures deterministic latency even under heavy traffic loads.

Non-Blocking Architecture for Enterprise Traffic

The non-blocking architecture of the Catalyst 6800 series ensures that all ports can operate concurrently without oversubscription. This design is particularly important in enterprise campus backbones where multiple departments generate high volumes of traffic. The switching module distributes traffic intelligently across the fabric, maintaining optimal performance during peak usage periods and reducing the risk of packet loss or jitter.

Advanced Packet Forwarding Efficiency

With the integration of DFC4, the module benefits from distributed packet forwarding capabilities that allow local decision-making at the line card level. This reduces latency and offloads processing tasks from the central supervisor engine. As a result, the system achieves faster convergence times and improved resiliency in dynamic network environments where routing changes occur frequently.

DFC4 Expansion Module and Distributed Intelligence

Role of DFC4 in Network Acceleration

The Distributed Forwarding Card 4 (DFC4) plays a critical role in enhancing the performance of the C6800-48P-TX module by enabling hardware-based forwarding at the interface level. This reduces dependency on centralized routing processes and allows each module to independently manage traffic flows. The result is improved scalability and consistent performance even in high-density deployments.

Improved Latency and Traffic Optimization

By enabling local forwarding decisions, DFC4 significantly reduces end-to-end latency. This improvement is particularly beneficial for latency-sensitive applications such as financial trading systems, real-time analytics platforms, and unified communications infrastructure. Traffic optimization is further enhanced through intelligent load distribution mechanisms that ensure efficient utilization of available bandwidth.

Resilience and Fault Tolerance Enhancement

The distributed architecture provided by DFC4 improves network resilience by isolating processing tasks. In the event of central system stress, line cards continue to operate independently, ensuring uninterrupted forwarding of traffic. This fault-tolerant design is essential for enterprise environments requiring high availability and minimal downtime.

Layer 2 and Layer 3 Switching Features

Advanced Layer 2 Switching Capabilities

The module supports a comprehensive suite of Layer 2 features, including VLAN segmentation, spanning tree protocol optimization, and MAC address learning at scale. These features enable efficient segmentation of enterprise networks into logical domains, improving security and reducing broadcast domain size. VLAN support ensures that different departments or services can operate independently while sharing the same physical infrastructure.

Robust Layer 3 Routing Integration

In addition to Layer 2 switching, the C6800-48P-TX module supports advanced Layer 3 routing functions, enabling inter-VLAN routing and dynamic route management. This capability reduces dependency on external routers and enhances internal traffic flow efficiency. The module is capable of handling large routing tables, making it suitable for complex enterprise environments with multiple subnets and distributed architectures.

Multicast and Broadcast Traffic Handling

Efficient handling of multicast and broadcast traffic is essential in modern enterprise networks. The module includes intelligent traffic replication mechanisms that ensure multicast streams are delivered only to intended recipients, reducing unnecessary bandwidth consumption. This is particularly beneficial for video distribution, enterprise communication systems, and real-time monitoring applications.

Quality of Service and Traffic Prioritization

Granular QoS Control Mechanisms

The Catalyst 6800 series module provides advanced Quality of Service capabilities that allow administrators to prioritize critical applications over less important traffic. This ensures that latency-sensitive services such as voice and video communication receive guaranteed bandwidth and minimal delay even during peak network congestion.

Traffic Classification and Policy Enforcement

Traffic classification is achieved through deep packet inspection and policy-based routing mechanisms. These features allow network administrators to define traffic handling rules based on application type, user group, or service priority. Once classified, traffic is managed according to predefined policies that ensure consistent service delivery across the network.

Bandwidth Management and Congestion Control

The module includes dynamic bandwidth allocation mechanisms that prevent network congestion by distributing resources intelligently. During periods of high utilization, the system automatically adjusts traffic flows to maintain stability and performance consistency. This ensures that mission-critical applications remain unaffected by non-essential traffic spikes.

Enterprise Security Features and Network Protection

Access Control and Authentication Mechanisms

Security is a core component of the C6800-48P-TX module, which includes advanced access control mechanisms to prevent unauthorized network access. Port-based authentication ensures that only verified devices can connect to the network, reducing the risk of intrusion and unauthorized data access.

Integrated Threat Mitigation Capabilities

The module supports multiple layers of security enforcement, including dynamic ARP inspection, DHCP snooping, and IP source guard functionality. These features work together to prevent common network attacks such as spoofing, man-in-the-middle attacks, and rogue DHCP server deployments.

Secure Management and Encryption Support

Administrative access to the module can be secured using encrypted protocols, ensuring that configuration and monitoring activities are protected from interception. Secure shell access and encrypted SNMP management further enhance the security posture of enterprise deployments.

High Availability and Redundancy Features

Redundant System Integration

The Catalyst 6800 platform supports redundant supervisor engines and power systems, ensuring continuous operation even in the event of hardware failure. The C6800-48P-TX module benefits from this redundancy framework, maintaining active forwarding paths during failover scenarios.

Fast Convergence and Failover Recovery

The combination of hardware-based forwarding and distributed intelligence enables rapid convergence during network topology changes. This minimizes downtime and ensures that enterprise applications remain accessible even during infrastructure disruptions.

Operational Continuity in Mission-Critical Environments

Designed for enterprise-grade reliability, the module ensures operational continuity in environments where downtime is not acceptable. This includes financial institutions, healthcare systems, government networks, and large corporate campuses where uninterrupted connectivity is essential.

Deployment Scenarios and Enterprise Use Cases

Campus Network Aggregation Layer Deployment

The module is commonly deployed in campus aggregation layers where it connects multiple access switches and distributes traffic toward core switching infrastructure. Its high port density and Gigabit capability make it ideal for consolidating departmental networks into a centralized switching architecture.

Data Center Edge Connectivity

In data center environments, the module serves as a high-performance edge connectivity solution, linking server clusters, storage systems, and virtualization platforms. Its ability to handle large volumes of east-west traffic makes it suitable for modern data center architectures.

Enterprise Backbone Infrastructure

The C6800-48P-TX module is also used in enterprise backbone deployments where high-speed interconnectivity between different network segments is required. Its scalability ensures that organizations can expand their backbone infrastructure without redesigning the entire network.

Operational Management and Network Monitoring

Centralized Configuration and Control

Network administrators can manage the module through centralized management systems that provide visibility into performance metrics, traffic flows, and system health. This simplifies network operations and reduces administrative overhead.

Real-Time Performance Monitoring

The module supports real-time monitoring of traffic patterns, interface utilization, and error rates. This allows administrators to identify potential issues before they impact network performance, ensuring proactive maintenance and optimization.

Automation and Policy-Based Management

Automation capabilities enable dynamic configuration adjustments based on predefined policies. This reduces manual intervention and ensures consistent network behavior across large-scale deployments.

Hardware Reliability and Environmental Efficiency

Thermal Management and Cooling Efficiency

The module is designed with advanced thermal management systems that ensure stable operation under high load conditions. Efficient airflow design and heat dissipation mechanisms contribute to long-term hardware reliability.

Energy-Efficient Switching Operation

Energy efficiency is achieved through intelligent power management systems that adjust consumption based on traffic demand. This reduces operational costs while maintaining high performance levels.

Durability in Enterprise Environments

Built for continuous operation, the module is engineered to withstand demanding enterprise conditions. Its robust hardware design ensures long-term durability and consistent performance across extended deployment cycles.

Advanced Network Optimization Capabilities

Traffic Engineering and Load Balancing

The module supports advanced traffic engineering techniques that optimize data flow across the network. Load balancing ensures that no single path becomes a bottleneck, improving overall network efficiency.

Latency Optimization Techniques

Through hardware acceleration and distributed processing, the module minimizes latency across all network operations. This is critical for applications requiring real-time responsiveness and high-speed data processing.

Scalable Network Expansion Strategy

The modular nature of the Catalyst 6800 series allows organizations to scale their networks gradually. Additional modules can be integrated as demand increases, ensuring cost-effective expansion without disruption.
