C819G+7-K9 Cisco Secure M2M Wireless ISR

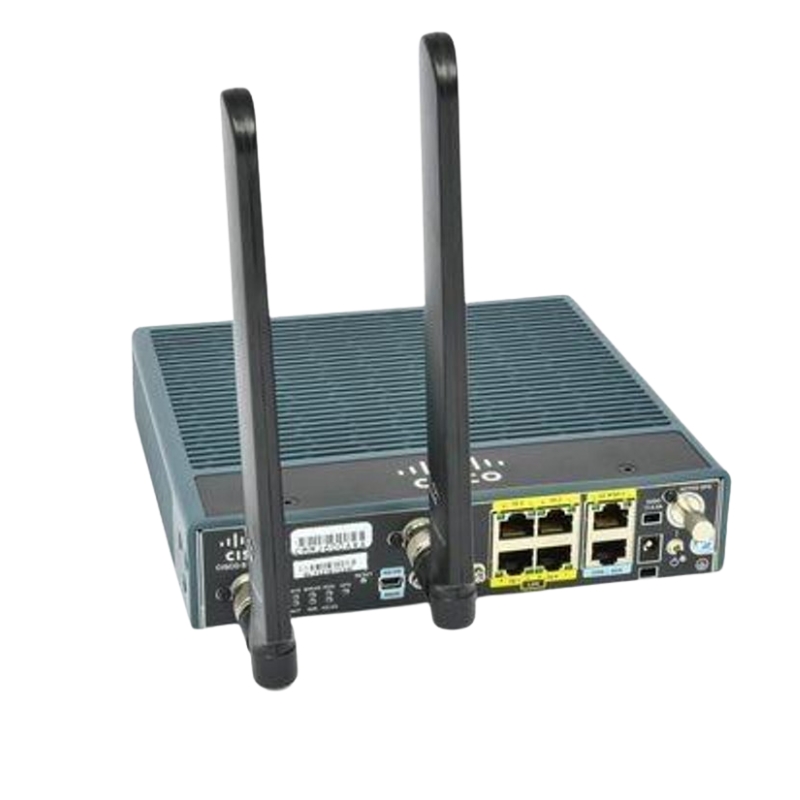

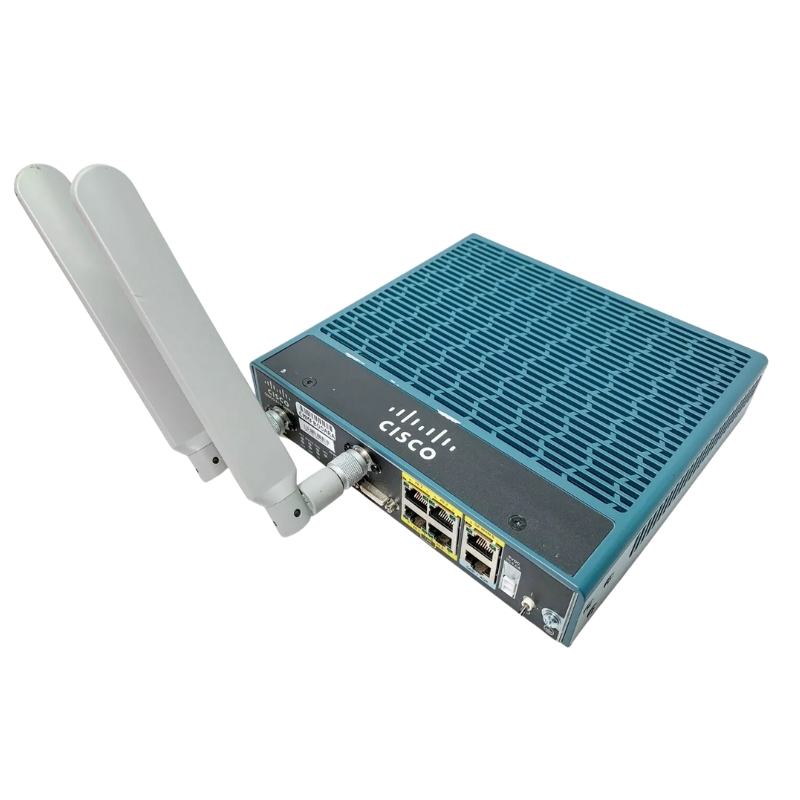

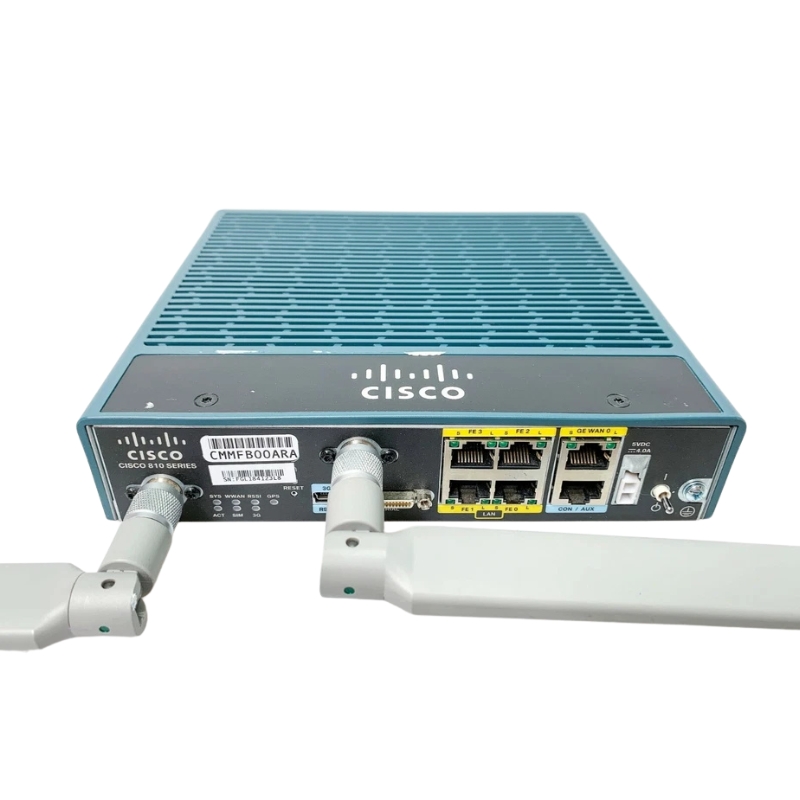

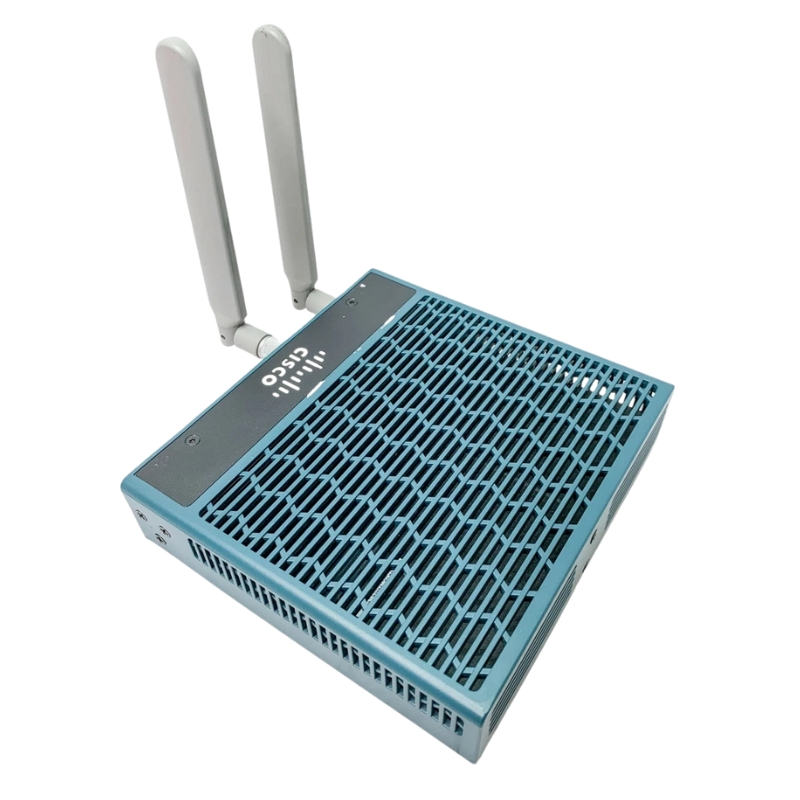

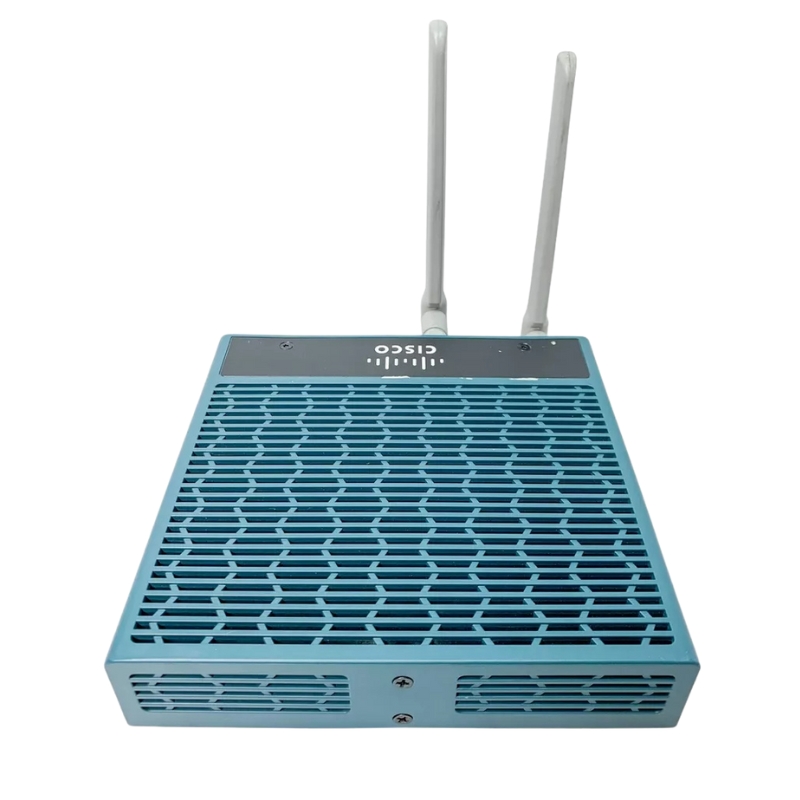

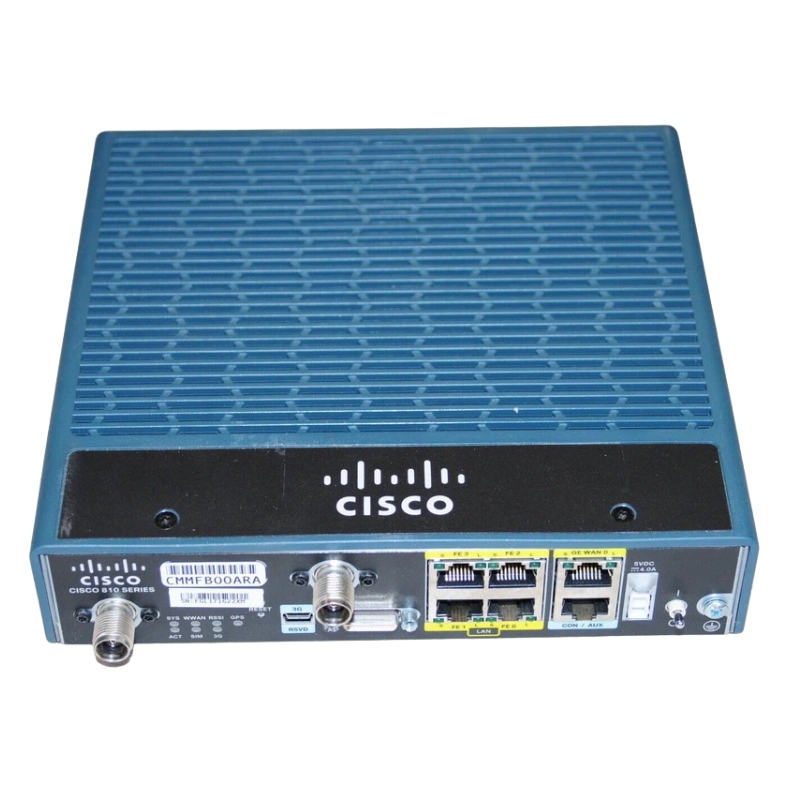

Cisco C819G+7-K9 Secure M2M Wireless Router Overview

The Cisco C819G+7-K9 is a reliable tabletop router designed for secure machine-to-machine (M2M) communication. Ideal for Ethernet networking, it provides robust mobile connectivity and advanced management features, making it perfect for enterprise or industrial deployments.

Key Specifications

• Manufacturer: Cisco
• Model: C819G+7-K9
• Product Type: Router
• Sub-Type: Ethernet
• Color: Black
• Form Factor: Tabletop

Wireless & Antenna Features

Antenna Configuration

• External antenna design for enhanced signal reception
• Two detachable antennas included

Wi-Fi Standards

• Supports Wi-Fi 4 (802.11n) for high-speed wireless connectivity
• Backward compatible with 802.11a, 802.11b, 802.11g
• Maximum WLAN transfer rate: 300 Mbit/s

Mobile Network Capabilities

3G and GSM Connectivity

• 3G supported with HSDPA, HSPA+, HSUPA protocols
• Compatible GSM/UMTS bands: 850, 900, 1900, 2100 MHz
• Edge and GPRS support for 2G fallback

SIM Card & Mobile Management

• Dedicated SIM card slot for mobile network access
• Web-based management interface for easy configuration
• Quality of Service (QoS) support for prioritizing traffic

Networking & Connectivity

Ethernet Interfaces

• Four RJ-45 Fast Ethernet LAN ports
• Supports Ethernet data rates: 10, 100 Mbps
• Compatible with IEEE 802.1D and 802.1Q networking standards

Routing & Protocol Support

• Routing protocols: BGP, EIGRP, OSPF, HSRP
• Network protocols: DHCP, DNS, L2TP
• Management protocols: SNMPv3, IGMPv3, IP SLA, EEM, SSH, Telnet, CLI, RADIUS, TACACS+

Security & Firewall

Advanced Protection Features

• Built-in Cisco IOS firewall
• Support for AES (128, 192, 256-bit), 3DES, DES encryption
• Secure protocols: HTTPS, SSL/TLS
• Comprehensive filtering capabilities

Hardware & Design

Physical & Visual Features

• LED indicators for status monitoring
• On/off switch for convenient power control
• Compact black tabletop design

Memory & Reliability

• Flash memory: 256 MB
• Internal memory: 512 MB
• Mean time between failures (MTBF): 420,000 hours

Power & Operational Requirements

• AC input: 100–240 V, output: 12 V
• Typical power consumption: 11 W
• Power supply rating: 20 W
• Operating temperature: 0–40 °C
• Operating humidity: 5–85%
• Operational altitude: 0–3048 m

Ports & Expansion

• DC-in jack included
• One USB 2.0 port for peripheral connectivity
• AC adapter included in packaging

Compliance & Safety Certifications

• Electromagnetic compatibility: EN55022/CISPR22, CFR 47, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1
• Safety standards: UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1

Additional Features

• Reset button for quick troubleshooting
• Supports DMVPN for secure remote connectivity

Category Placement

• Main Category: Network
• Subcategories: Wireless Network, Wireless Routers

Cisco C819G+7-K9 Secure M2M Wireless Services Router

The Cisco C819G+7-K9 Secure Machine-to-Machine Wireless Integrated Services Router represents a specialized segment within enterprise-grade networking hardware designed to address the growing demand for secure, reliable, and scalable connectivity in distributed environments. This category of routers is engineered specifically for machine-to-machine communication, remote site networking, and industrial IoT deployments where consistent uptime and secure data transmission are critical. These routers are compact yet powerful devices that integrate advanced routing, security, and wireless capabilities into a single platform, making them ideal for industries such as transportation, utilities, retail, and remote enterprise branch operations.

The defining characteristic of this category lies in its ability to combine enterprise-level networking features with cellular connectivity, enabling organizations to extend their network infrastructure beyond traditional wired environments. The Cisco C819G+7-K9 model exemplifies this by offering 3G wireless WAN connectivity, integrated VPN support, and advanced security protocols that ensure data integrity across public and private networks. These routers are particularly valuable in scenarios where wired broadband access is unavailable, unreliable, or impractical, allowing businesses to maintain operational continuity regardless of geographic limitations.

Architecture and Design Principles of M2M Wireless Routers

Compact Industrial Form Factor

The Cisco C819G+7-K9 router category is characterized by its rugged and compact design, which is purpose-built for deployment in constrained or harsh environments. Unlike traditional enterprise routers that are designed for data centers or office spaces, these devices are engineered to withstand temperature variations, vibrations, and other environmental challenges commonly encountered in industrial and remote settings. The small form factor enables easy installation in vehicles, kiosks, remote cabinets, and embedded systems, ensuring flexibility in deployment.

The internal architecture of these routers is optimized for efficiency, balancing processing power with energy consumption. This ensures that the devices can operate reliably even in power-constrained environments, such as solar-powered installations or battery-operated systems. The hardware design also incorporates high-quality components to ensure longevity and consistent performance over extended operational periods.

Integrated Wireless WAN Capabilities

A core feature of this category is the integration of cellular wireless WAN connectivity, allowing devices to connect to mobile networks for data transmission. The Cisco C819G+7-K9 supports 3G connectivity, providing a reliable communication channel for applications that require constant connectivity. This capability eliminates the dependency on fixed-line internet connections and enables real-time data exchange between remote devices and central systems.

The integration of wireless WAN modules within the router simplifies network architecture by reducing the need for external modems or additional hardware. This not only lowers deployment costs but also enhances reliability by minimizing potential points of failure. The seamless integration of cellular connectivity with routing and security features ensures that data flows efficiently and securely across the network.

Security Framework and Data Protection Mechanisms

Advanced Encryption Standards

Security is a fundamental aspect of the Cisco C819G+7-K9 router category, particularly given its role in transmitting sensitive data across public networks. These routers are equipped with robust encryption technologies, including IPsec VPN support, which ensures that data is protected during transmission. The use of advanced encryption standards helps prevent unauthorized access and data breaches, making these routers suitable for applications that require high levels of confidentiality.

The encryption capabilities are complemented by hardware-based acceleration, which ensures that security processes do not compromise network performance. This balance between security and efficiency is crucial for maintaining the responsiveness of applications that rely on real-time data exchange.

Integrated Firewall and Threat Defense

The Cisco C819G+7-K9 includes integrated firewall functionality that provides an additional layer of protection against network threats. The firewall is capable of monitoring incoming and outgoing traffic, identifying potential threats, and enforcing security policies to mitigate risks. This proactive approach to security helps organizations safeguard their networks against cyberattacks and unauthorized access attempts.

In addition to firewall capabilities, the router supports intrusion prevention systems and advanced threat detection features. These mechanisms work together to identify and neutralize threats before they can impact the network, ensuring continuous and secure operation.

Performance Optimization and Network Reliability

Efficient Data Routing and Traffic Management

The Cisco C819G+7-K9 router category is designed to deliver consistent performance even under demanding conditions. The routing capabilities are optimized to handle various types of traffic, ensuring that critical data is prioritized and delivered with minimal latency. Quality of Service (QoS) features enable administrators to allocate bandwidth effectively, ensuring that essential applications receive the resources they need to function optimally.

The router’s ability to manage traffic efficiently is particularly important in M2M environments, where multiple devices may be transmitting data simultaneously. By prioritizing traffic based on predefined policies, the router ensures that high-priority data, such as real-time monitoring or control signals, is transmitted without delay.

High Availability and Redundancy Features

Reliability is a key consideration in the design of the Cisco C819G+7-K9 router category. These devices are equipped with features that enhance network availability, such as automatic failover and link redundancy. In the event of a primary connection failure, the router can switch to a backup connection seamlessly, ensuring uninterrupted connectivity.

The inclusion of watchdog timers and self-monitoring capabilities further enhances reliability by enabling the router to detect and recover from faults automatically. This level of resilience is essential for applications that require continuous operation, such as remote monitoring systems and critical infrastructure networks.

Application Scenarios and Industry Use Cases

Transportation and Fleet Management

The Cisco C819G+7-K9 router category is widely used in transportation and fleet management applications, where reliable connectivity is essential for tracking and monitoring vehicles. These routers enable real-time communication between vehicles and central management systems, allowing organizations to monitor location, performance, and operational status. The rugged design ensures that the router can withstand the challenging conditions encountered in mobile environments.

The ability to integrate with GPS systems and other onboard devices enhances the functionality of the router, enabling comprehensive fleet management solutions. This capability is particularly valuable for logistics companies, public transportation systems, and emergency services.

Retail and Remote Branch Connectivity

In the retail sector, the Cisco C819G+7-K9 router category provides a reliable solution for connecting remote stores and kiosks to central networks. These routers enable secure communication between point-of-sale systems, inventory management systems, and corporate databases. The integration of wireless WAN connectivity ensures that retail operations can continue even in locations where traditional internet connections are unavailable.

The router’s security features are particularly important in retail environments, where sensitive customer data must be protected. By ensuring secure data transmission, these routers help organizations maintain compliance with industry regulations and protect their reputation.

Industrial IoT and Remote Monitoring

The rise of Industrial IoT has created a demand for reliable and secure connectivity solutions that can support large-scale deployments of connected devices. The Cisco C819G+7-K9 router category is well-suited for these applications, providing the connectivity and security required to support remote monitoring and control systems. These routers enable real-time data collection from sensors and devices, allowing organizations to optimize operations and improve efficiency.

The ability to operate in harsh environments makes these routers ideal for industrial applications, such as oil and gas, utilities, and manufacturing. The integration of advanced security features ensures that sensitive data is protected, even in remote and potentially vulnerable locations.

Management and Configuration Capabilities

Centralized Network Management

The Cisco C819G+7-K9 router category supports centralized management, enabling administrators to monitor and control multiple devices from a single interface. This capability simplifies network management and reduces the complexity of maintaining distributed networks. By providing a unified view of the network, centralized management tools enable administrators to identify and resolve issues and efficiently.

The ability to configure and update routers remotely further enhances operational efficiency, reducing the need for on-site maintenance. This is particularly beneficial for organizations with large-scale deployments across multiple locations.

Flexible Configuration Options

Flexibility is a key feature of the Cisco C819G+7-K9 router category, allowing organizations to tailor the device to their specific requirements. The router supports a wide range of configuration options, including routing protocols, security policies, and connectivity settings. This flexibility ensures that the router can be adapted to various use cases and network environments.

The use of a command-line interface and graphical management tools provides administrators with multiple options for configuring the router. This versatility makes it easier to manage the device and ensures that it can be integrated seamlessly into existing network infrastructures.

Scalability and Future-Proof Networking

Support for Expanding Network Demands

The Cisco C819G+7-K9 router category is designed to support the evolving needs of modern networks. As organizations expand their operations and deploy additional connected devices, the demand for reliable connectivity increases. These routers are built to scale, providing the performance and flexibility required to accommodate growing network demands.

The modular design and support for various connectivity options ensure that the router can adapt to changing requirements. This scalability makes it a valuable investment for organizations looking to future-proof their network infrastructure.

Integration with Emerging Technologies

As technology continues to evolve, the Cisco C819G+7-K9 router category remains relevant by supporting integration with emerging technologies. This includes compatibility with IoT platforms, cloud-based applications, and advanced analytics tools. By enabling seamless integration with these technologies, the router helps organizations leverage new capabilities and drive innovation.

The ability to support modern networking standards ensures that the router can continue to deliver value as technology advances. This forward-looking approach makes it an essential component of any future-ready network strategy.

Energy Efficiency and Operational Cost Optimization

Low Power Consumption Design

Energy efficiency is an important consideration in the design of the Cisco C819G+7-K9 router category. These routers are engineered to consume minimal power while delivering high performance, making them suitable for deployments where energy resources are limited. The efficient use of power not only reduces operational costs but also supports sustainability initiatives.

The ability to operate on alternative power sources, such as solar energy, further enhances the versatility of these routers. This makes them ideal for remote installations where access to traditional power sources may be limited.

Reduced Total Cost of Ownership

The integration of multiple functionalities into a single device helps reduce the total cost of ownership associated with the Cisco C819G+7-K9 router category. By combining routing, security, and wireless connectivity, these routers eliminate the need for additional hardware, reducing both capital and operational expenses. The durability and reliability of the devices further contribute to cost savings by minimizing maintenance and replacement costs.

The long lifecycle and support for software updates ensure that the router can continue to meet organizational needs over time, providing a cost-effective solution for network connectivity.
